Avimimus said:
Before someone gets confused: That is a twin engined design, just two sketches overlaid.

So, it looks like an HG-II or HG-III study, but without the increased sweep to the tail, and with the engines faired into the underside of the fuselauge rather than embedded in the wing roots? Interesting!
I think there not engine, but two bombs in aerodynamic covers, was proposed for Schnellbomber II


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,729
Reaction score
7
Not sure if this the right place, but I don't think it warrants it's own topic . . .
A question. If the German jet engines had turned out to be unsuccessful, would a piston engined Me262, powered by by, say a DB603, been a viable combat aircraft?


cheers,
Robin.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,663
Reaction score
39
Website
beyondthesprues.com
Probably not. Might as well have kept with existing designs. K about the closest one would get would be the Me309.


sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
566
Reaction score
78

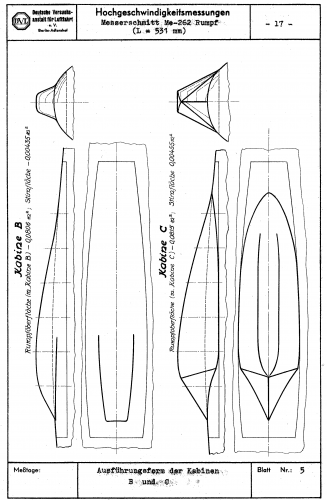

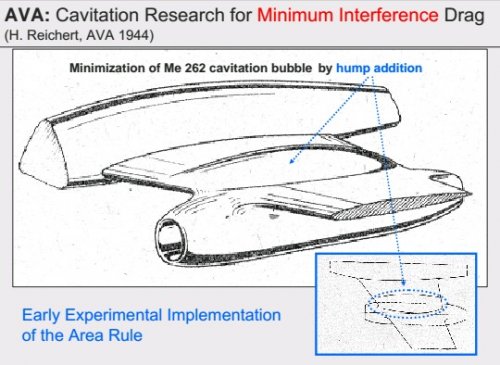

Interesting bit of research. From this pdf with lots of other neat info http://www.dglr.de/literatur/publikationen/DGLR_Hamel-JHV_2006-Vortrag.pdf


Attachments

Imperialist

Shipbucket FD-Scale Artist
Joined
Dec 18, 2013
Messages
17
Reaction score
0
Have a question, I vaguely remember reading about a (planned?) twin 37mm variant of the 262. Can someone tell me if this is real or fake?
Thanks,
Imperialist :)


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
539
Reaction score
30
Hello, sienar!

sienar said:
Interesting bit of research. From this pdf with lots of other neat info http://www.dglr.de/literatur/publikationen/DGLR_Hamel-JHV_2006-Vortrag.pdf
Thanks for sharin - the story about supersonic (and other) researches in Germany is intersting.
I wonder, how the additional fairings near engines' pods could be threated as "area rule" measure.
The cross section are only increased in the zone, where the area was already large.

Any suggestions?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
Where the Me P1099 come from?
I ask my question hhere because this aircraft yse a lot from the me 262.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
Me P1099

Something interesting from J-C Mermet: http://fighters.forumactif.com/t44515p15-me-p-1099-b


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
786
Reaction score
112
Re: Me P1099

sgeorges4 said:
Something interesting from J-C Mermet: http://fighters.forumactif.com/t44515p15-me-p-1099-b
Hmm. He doesn't really seem to know anything much about it. Scott Lowther (Orionblamblam on here) has the P 1100 Baubeschreibung for sale on his website http://www.aerospaceprojectsreview.com/catalog/airdoc4.jpg - yours for all of $4. Better to get your information from a primary source document.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
Re: Me P1099

Thanks!
Can I have a link for this please?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
Re: Me P1099

Thank!I will take it with some me 262 from hobby boss(3 in 1:48 scale).


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
sagallacci said:
a Drawing on page 71 "Jet Planes of the Third Reich" vol.1 Manfred Griehl for the armored canopy.

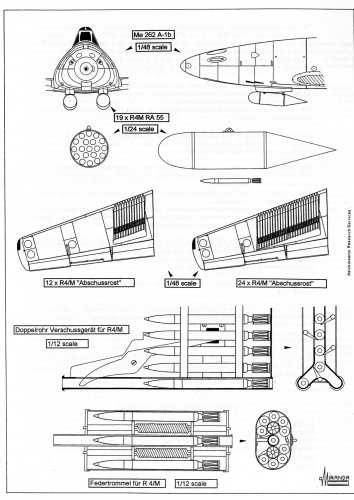

As for Me262 designations, Me262D-1 was alternate designation of the '262 C-2b, '262 E-1 alternate designation for '262A-1a/U4 (50mm cannon), and '262E-2 was to have RA55 automatic rocket dispensers, loaded with R4M rockets.
what was the RA 55?


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164
sgeorges4 said:
Where the Me P1099 come from?
As you correctly assumed, it was mainly based on the Me 262, it's even covered by Wiki:
https://en.wikipedia.org/wiki/Messerschmitt_P.1099

sgeorges4 said:
Where does it come from?
The artist is clearly recognisable on that picture (user name here is "PlanesPicture") and the type is
already mentioned here https://www.secretprojects.co.uk/forum/index.php/topic,6994.msg59903.html#msg59903

sgeorges4 said:
what was the RA 55?

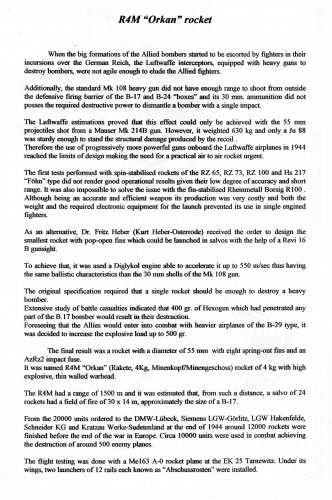

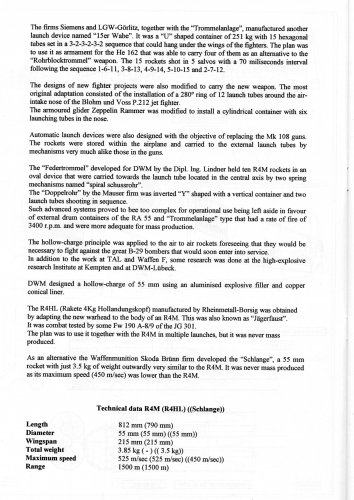

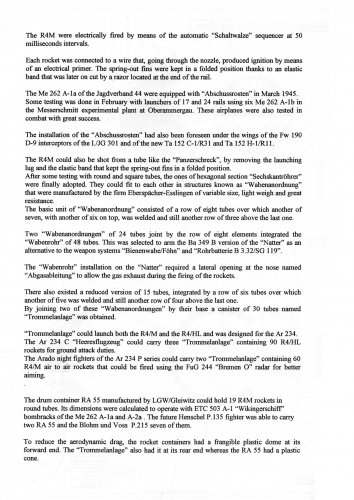

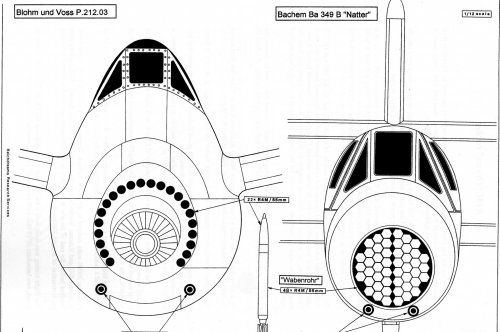

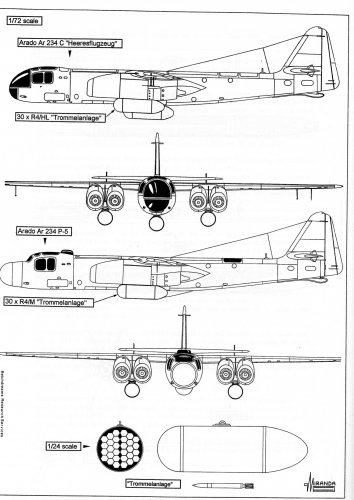

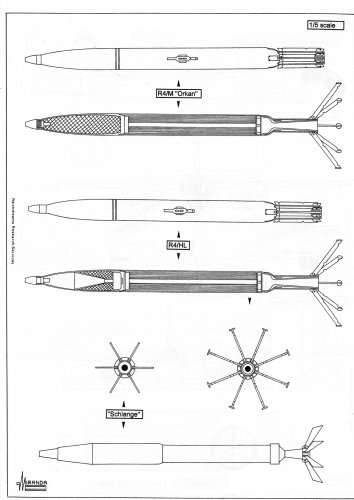

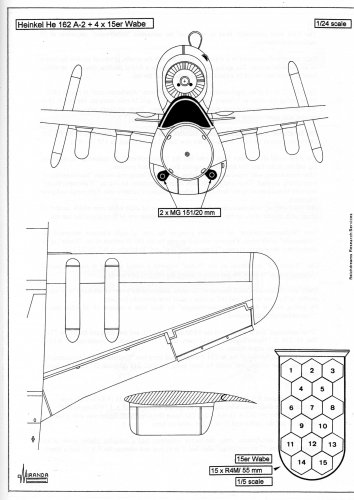

"RA 55" stands for "Raketenautomat 55", meaning automatic launcher for 55 mm rockets, drawing
and description to be found here http://www.germanluftwaffe.com/archiv/Dokumente/ABC/f/Flakraketen/R4M%20Orkan/R4M%20Orkan.html and mention on several other sites.

It's absolutely ok to ask, but some basic research, like using Google or the search function here
should be done before, as recommended by the forum rules !


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
Thank! Is the nose with rocket variant is real or not?(It's for buying moar me 262 from hobby boss :p ).


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,211
Reaction score
74

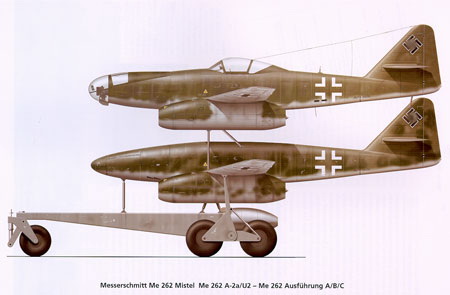

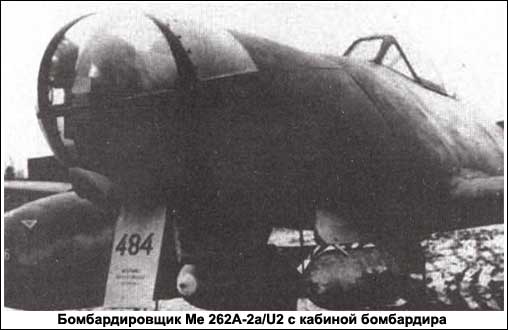

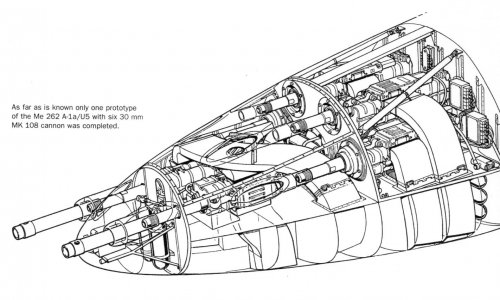

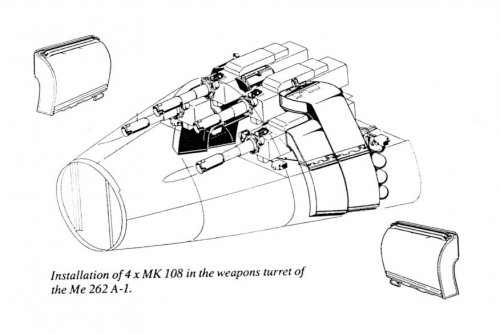

excuse me is that on top is a Me 262 A-2a/U2(V555) bomber version ?
if yes, this drawing show were the two MK 108 are installed in it's fuselage !


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
Yep,and the mistel can be done with a A1a variant(that why you see the classic me 262 nose with the MK 108),and you can do it with a A1a below).


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
539
Reaction score
30
sienar said:
Interesting bit of research. From this pdf with lots of other neat info http://www.dglr.de/literatur/publikationen/DGLR_Hamel-JHV_2006-Vortrag.pdf
Thanks for the sharing the history of aircraft research in DVL. A lot of impressive test and testing facilities.

I wonder, how could additional fairings on the Me-262' wings improve it's 'area rule" distribution of cross sections' areas?
It have been placed in the nearly same distance from the nose, wher engine nacelles located.
Perhaps, placing them rear to the canopy was a possible cause?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35
me 262 lorin: http://deutscheluftwaffe.com/archiv/Dokumente/ABC/m/Messerschmitt/Me%20262/Me%20262%20A-1/Me262_Lorin.pdf


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,913
Reaction score
14
Michel Van said:
excuse me is that on top is a Me 262 A-2a/U2(V555) bomber version ?
if yes, this drawing show were the two MK 108 are installed in it's fuselage !
I suspect those are alternative noses on the Me-262...


pacopepe

CLEARANCE: Restricted
Joined
Oct 11, 2008
Messages
25
Reaction score
0
Look the topic named "DFS 262", in the forum-web of what if-modelerswebsite. The model is mine.

But the project isn´t a whiffie. It´s included in a Me 262 book. I´ve put a profile pic in the topìc.

PACOPEPE


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35

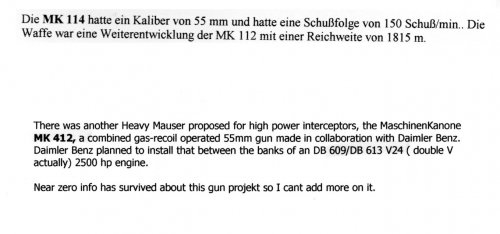

I found a me 262 with MK 412/112:

http://deutscheluftwaffe.com/archiv/Dokumente/web/new%20site/frames2/Dokumente.htm


pacopepe

CLEARANCE: Restricted
Joined
Oct 11, 2008
Messages
25
Reaction score
0
Very interesting document; and the date: january of 1945.

I´ll try to translate it.

Regards


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,211
Reaction score
74
rough over view

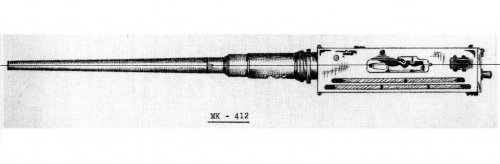

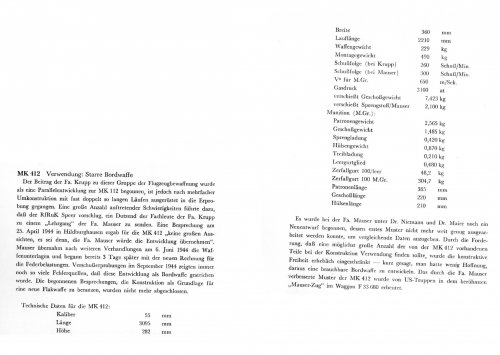

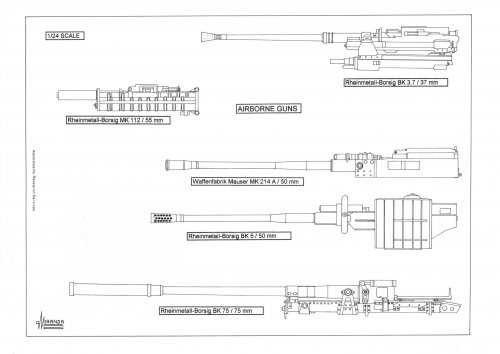

The Author say that demanded Fl. E 6 IV for possibility installment of MK 412 and MK 112 into 8-262
was made in researchcenter in oberammergau
at hand of project drawings was needed volume of both weapons compare and came to conclusion
The installment of MK 412 and MK 112 is possible in combination of two MK 108

MK 412 and MK 112 will have 40 shells and each MK 108 has 90 shells
although there will be issue with maintenance, the MK 412 & 112 have comply remove from Aircraft.

Notes on Machine canons

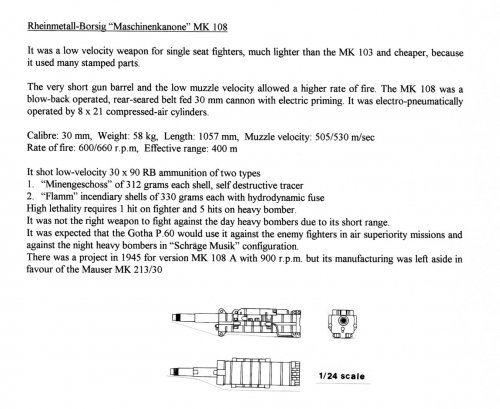

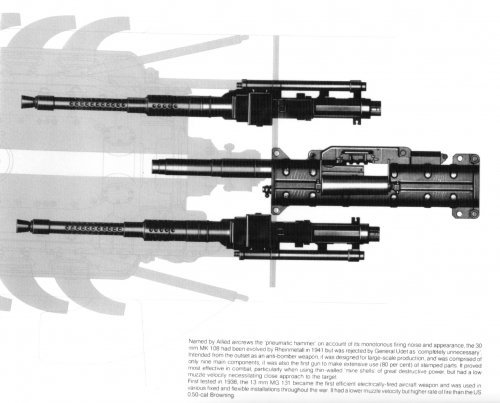

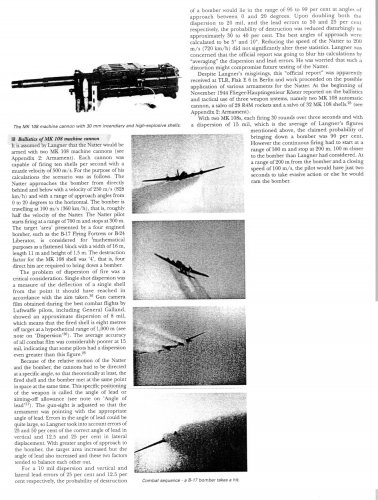

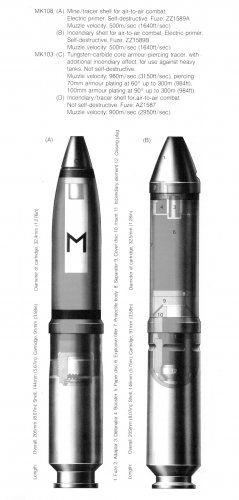

MK 108 was a 30×90RB mm caliber autocannon using ammunition with various shells, including practice, armor-piercing, high-explosive and incendiary.
Rate of fire 660 rounds/min, Muzzle velocity 540 m/s, length 1075 mm, weight 58 kg

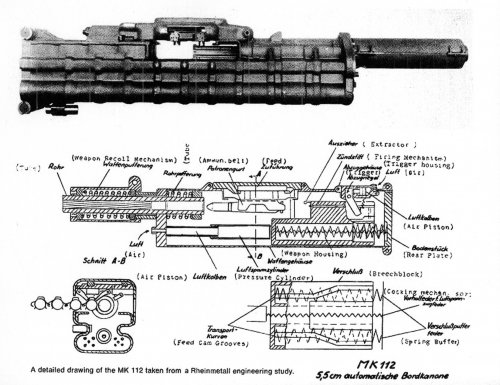

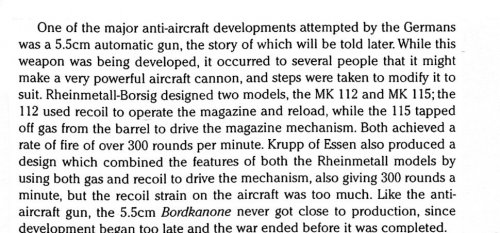

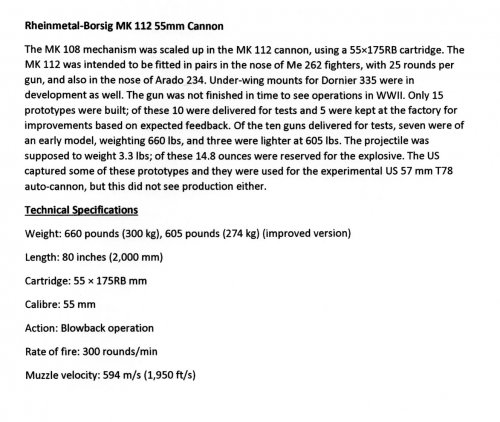

MK 112 was a 55×175RB mm caliber autocannon develop out the MK 108 (prototypes only)
Rate of fire 300 rounds/min, Muzzle velocity 600 m/s, length 2012 mm, weight 271 kg

MK 412 was a 55 mm caliber auto cannon, a modified 2,7 cm Flak gun.
Rate of fire 160-295/min, Muzzle velocity 580 m/s. length 3095 mm, weight 190~278 kg

source
Die deutsche Luftrüstung 1933–1945 volume 4, by Heinz J. Nowarra. page 129-130


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,663
Reaction score
39
Website
beyondthesprues.com
Installment of MK 412 and/or MK 112 in combination of two MK 108 = quite some firepower (One 55mm + two 30mm). Yikes!!


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
433
Reaction score
35

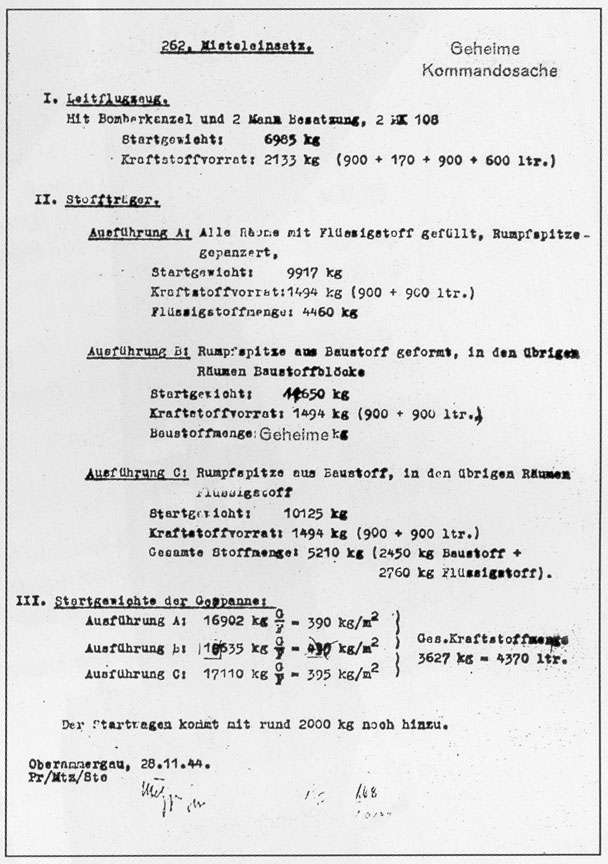

is the A2/U2 variant can be considered as a luft'46? Because we just have two proto on this variant(the V484 and V555):






the source are: http://www.48specialmodels.com/d-produkte/d-48-m4.html
http://www.fliegerrevuex.aero/neue-mistel-projekte-der-luftwaffe-1945/
The picture are from https://www.google.fr/search?rlz=1C1AOHY_frFR713FR713&biw=1680&bih=935&tbm=isch&sa=1&ei=0lacWtOfBpGmwQKp077YCw&q=me+262V555&oq=me+262V555&gs_l=psy-ab.3...3005.3005.0.3394.1.1.0.0.0.0.280.280.2-1.1.0....0...1c.1.64.psy-ab..0.0.0....0.5fODoXmXFwM
