Me 262 - Projects, Pre-Projects And Variants

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75

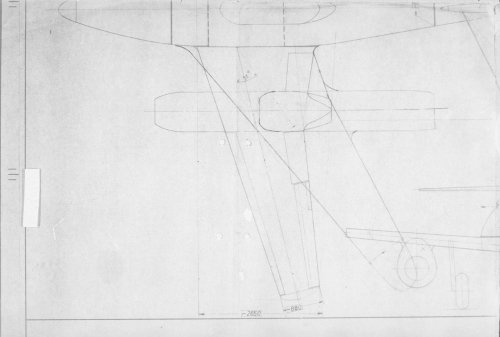

what do you think about those drawing?

http://www.modellversium.de/kit/artikel.php?id=1530



Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,479
Reaction score
190
sgeorges4 said:
So this was a real B2a concept?! :eek:

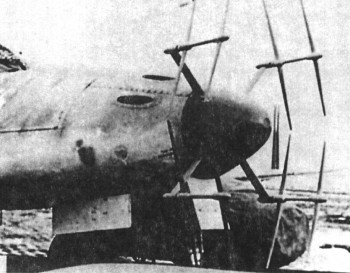

If your question is about the single-seat Me 262 with radar antennae: there was one such aircraft, but it seems it was a testbed with the radar array on its nose used mainly for aerodynamic testing.
https://www.secretprojects.co.uk/forum/index.php/topic,6994.msg256955.html#msg256955


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
My question was for the lenghtned monoplace with radar equipment.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,479
Reaction score
190

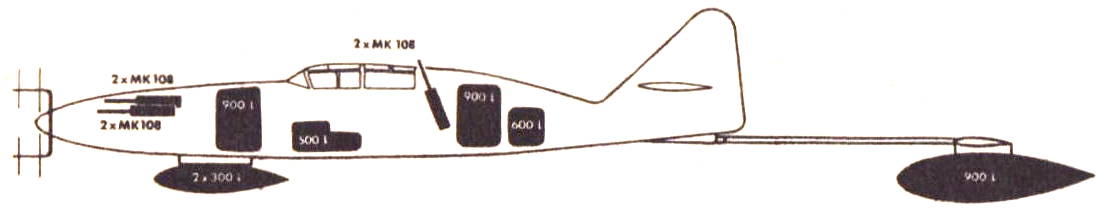

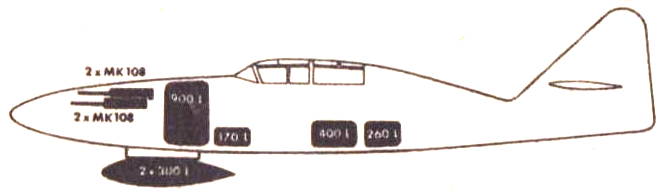

To me, this image shows the short fuselage. The long fuselage 262 appears to have its cockpit over the wing's leading edge, instead of the short fuselage's cockpit which sits in the middle of the centre section.

Also note the position of the under-fuselage tanks. The top image shows the tanks' tails reach as far back as the wing root, where the long fuselage drawing shows the same tanks well clear of the wing root.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
fake?

https://forum.warthunder.com/index.php?/topic/361221-messerschmitt-me-262-c-3a-latest-from-the-heimatsch%C3%BCtzer-iv-series-that-flew/


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
415

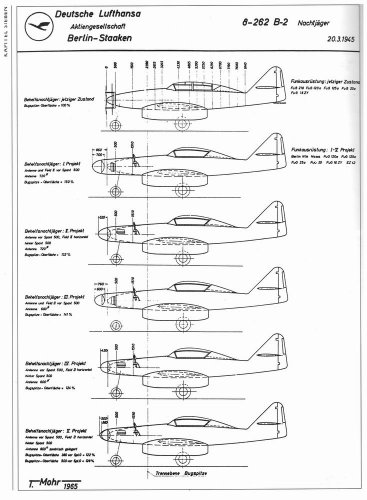

sgeorges4 said:
why original nose is dashed for the project under the first one?
Probably to show, how much the nose was lengthened compared to the standard.

sgeorges4 said:
... and can anyone give a larger picture of those project(I have some problem for reading what's write on them)?
.. and another good reason to mention the source (but I just asked once or twice ...) ! ::)
It's much easier, if you don't have to browse through several books. I was lucky, Hugh Morgans "Me 262 Sturmvogel/Schwalbe"
was the second one.
What's a bit strange is, that those drawings are on paper with the logo of the Deutsche Lufthansa. Perhaps paper with
the Messerschmitt logo was sold out ? Or the Lufthansa staff used his spare time to put some ideas on paper ?


Attachments

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
Thanks! Just want to know If those Mohr drawing are based on something real or not.
Thanks for your answer!
And for the lufthansa logo,It's seem that the first example where suppose to be create in the Berlin-
Staaken workshops of Deutsche Lufthansa from what I can understand in this book:


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
858
Reaction score
239
sgeorges4 said:
Thanks! Just want to know If those Mohr drawing are based on something real or not.
Thanks for your answer!
And for the lufthansa logo,It's seem that the first example where suppose to be create in the Berlin-
Staaken workshops of Deutsche Lufthansa from what I can understand in this book:
Yes, see p44.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
Just want to know if a all weather or nightfighter monoplace version where at least consider by messerschmitt,and If so any drawing/description of them?
Thank for your answer!


Grzesio

CLEARANCE: Secret
Joined
Mar 20, 2008
Messages
221
Reaction score
29
Website
chemnitzer27kb.blogspot.com
sgeorges4 said:
fake?

https://forum.warthunder.com/index.php?/topic/361221-messerschmitt-me-262-c-3a-latest-from-the-heimatsch%C3%BCtzer-iv-series-that-flew/
I'd say the photo is real, just showing a Me 262 A-1/2 with solid fuelled RATO units, not the Me 262 C-3 Heimatschuetzer.


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
858
Reaction score
239
sgeorges4 said:
Just want to know if a all weather or nightfighter monoplace version where at least consider by messerschmitt,and If so any drawing/description of them?
Thank for your answer!
Not that I know of, and not that I think has ever been written about by anyone (happy to be proven wrong if someone else can think of a book which mentions one!). It seems unlikely, since the pilot would have been severely overloaded if required to operate the radar unit while also flying the aircraft, managing the navigation, radio etc. on their own in darkness. And why bother when a two-seater conversion of the Me 262 wasn't that difficult?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75

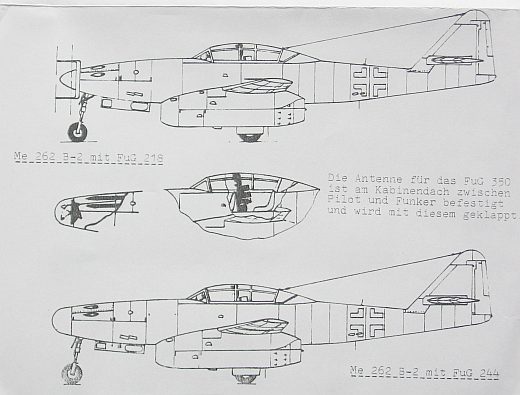

any drawing of the Fug 350 in the me 262 B1a/U1 nose?


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
858
Reaction score
239

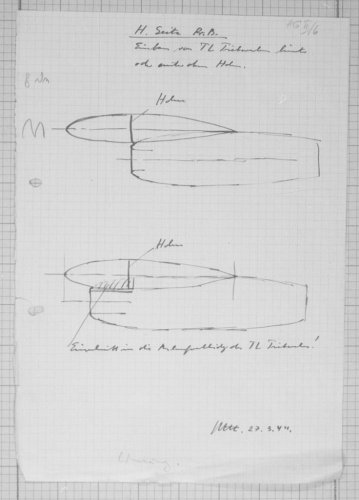

The original drawing that the re-draw on p753 of Smith & Creek's Me 262 Volume 4 is based on, plus a sketch from the same set of drawings, showing two different arrangements of the rear-set engine nacelle in profile. Other sketches in the set, which I don't think Smith & Creek show, include an Me 262 with delta-wing configuration and Arado-style crescent wing.


Attachments

sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
609
Reaction score
175
newsdeskdan said:
Me 262 with delta-wing configuration and Arado-style crescent wing.
Wow! Will this make it into your next volume?


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,185
Reaction score
229
From Flugzeug Classic Extra 2019.
Dear members,
who either understand German or live in Germany,
this bookazine "Flugzeug Classic Extra - Messerschmitt Me 262" will be published in followings days here in Germany according to my local newsagent at the main train station, who I asked yesterday after work on my way home. It might be laid out over the weekend before the official publishing date next Monday on Septemter 9th, 2019.
Link: https://verlagshaus24.de/messerschmitt-me-262


edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
732
Reaction score
100
It looks like it will be worth getting.

Last edited:

edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
732
Reaction score
100
Product information "Aircraft Classic Extra"
The Me 262 was the first mass-produced jet fighter in the world. and its emergence was sometimes as adventurous as its Einsatzgeschchte. In the first part of its new series, Aircraft Classic tells the story of the wonder jet from the early planning stage to the almost production-ready V-pattern. The magazine offers previously unpublished drawings and a wealth of rare footage.
product details
  • ISBN: 9783862459742
  • Appears on 09.09.2019
  • GeraMond Verlag
  • 100 pages
  • about 150 pictures
  • Format 21.0 x 28.0 cm
  • Perfect Bound


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,730
Reaction score
1,474
I've deleted Hesham's post. It contained lots of great pics from the Aircraft Classic Extra above. A PDF of the magazine is already being distributed online illegally before the magazine hits the news stands. we should not encourage this. If you are interested please buy a legitimate copy.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,947
Reaction score
1,742
Sorry for that my dear Paul,

I don't read any date on it,so I thought it published early this year.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75

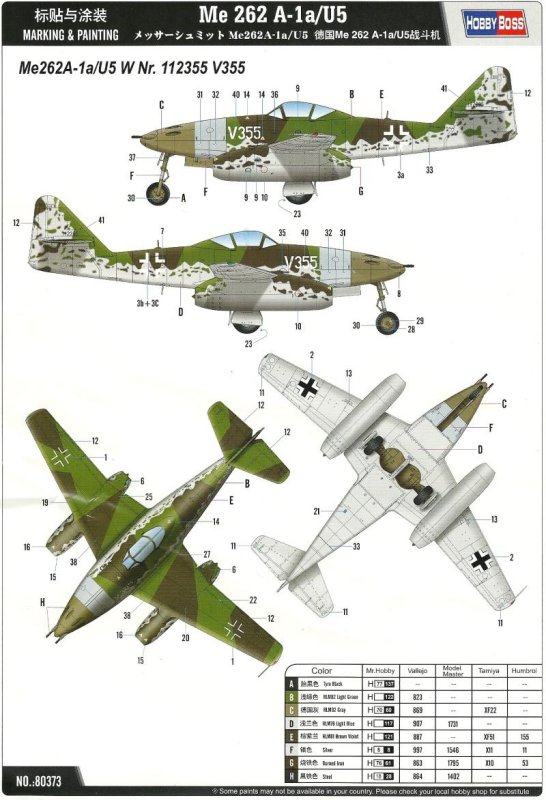

why hobby boss putted a bmw 003 in a avia cs 92 ? (same goes for the R4M/Wgr 21,would fit more for the a1a box for me,particluary the Wgr 21)
was it considered? Because the V-31 doesn't seem to have bmw 003 for me:


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
what 262 variant were considered to befitted with R4M / X4 krammer?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
wich variant was considered for the X4 beside the A1a?

also a list:


Grzesio

CLEARANCE: Secret
Joined
Mar 20, 2008
Messages
221
Reaction score
29
Website
chemnitzer27kb.blogspot.com
It's the SG 500 Jagdfaust, not rockets. The whole concept could be real, although tests of the SG 500 conducted with Fw190 showed, the weapon produced heavy blast when fired, so the barrels had to be mounted in wings far from the fuselage, to avoid damage.


dan_inbox

CLEARANCE: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
641
Reaction score
139
Plus anyway, Me-262 and B-29s, the author of that CGI shows his disregard for any veracity...


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,074
Reaction score
155
I believe the logistics effort required would have been huge and the aircraft itself overkill for the mission. Much better to use the B-29 for the pacific theatre where the extra legs of the aircraft were in real need.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75

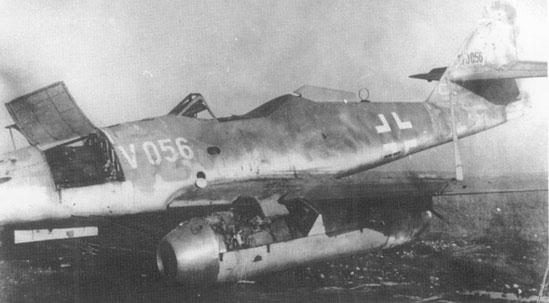

Were the radar tested on the V056 planned/considered to be on the B1a/U1 or other nacthjäger based on the 262?



dan_inbox

CLEARANCE: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
641
Reaction score
139
Then why not B-29 in Europe?
Simply because B-29s were not used in Europe during WW2. Like Foo wrote, their longer-range was more needed in the PTO. ETO used B-17s and B-24s.
A modicum of fact-checking is always useful before embarking on a project.

Now your pictures are very good and I enjoy them. I just prefer when they fit in history as we know it.


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
213
Reaction score
44
Actually, contrary to most everything else that has appeared about using the B-29 in Europe, the USAAF had every intention of using the aircraft and flying it out of the UK. However, according to my original documents (and assuming I am remembering the specifics precisely from here at the kitchen table) the USAAF got into a major pissing match with the RAF and UK about strengthening and extending runways, new taxiways and hardstands, etc., so the B-29 could be used. THis dragged on long enough that the B-29 was not really needed in Europe. On top of that, the AAF was planning on replacing ALL B-24s in all theaters with the B-32 which, had it actually happened, would have been a tremendous force multiplier. Going again from memory, one B-32 would have the equivalent impact of eight B-24s. This is going to be covered in my and Nick Veronico's upcoming book which we hope to have in print by late 2020, "Dominator - The Untold Story of the B-32". And believe me when I say the extent of the untold story is truly staggering.

Anyway, I've found no indication anywhere that the AAF didn't want to use the B-29 in Europe for fear of it falling into German hands. If anyone has any OFFICIAL documents indicating this I would love to see them.

Submitted for your consideration,

AlanG


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
why is the Flugzeug klassik extra dating the Schnellbomber I variant from 11 september 1943 when other document date it from the 22 july 1943?


edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
732
Reaction score
100
Actually, contrary to most everything else that has appeared about using the B-29 in Europe, the USAAF had every intention of using the aircraft and flying it out of the UK. However, according to my original documents (and assuming I am remembering the specifics precisely from here at the kitchen table) the USAAF got into a major pissing match with the RAF and UK about strengthening and extending runways, new taxiways and hardstands, etc., so the B-29 could be used. THis dragged on long enough that the B-29 was not really needed in Europe. On top of that, the AAF was planning on replacing ALL B-24s in all theaters with the B-32 which, had it actually happened, would have been a tremendous force multiplier. Going again from memory, one B-32 would have the equivalent impact of eight B-24s. This is going to be covered in my and Nick Veronico's upcoming book which we hope to have in print by late 2020, "Dominator - The Untold Story of the B-32". And believe me when I say the extent of the untold story is truly staggering.

Anyway, I've found no indication anywhere that the AAF didn't want to use the B-29 in Europe for fear of it falling into German hands. If anyone has any OFFICIAL documents indicating this I would love to see them.

Submitted for your consideration,

AlanG

Do you have a date as to when the book about the Dominator might appear?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
507
Reaction score
75
founded this HG 1 depiction



ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
213
Reaction score
44
Ed,

I have no idea when the book will be out, but we plan to deliver it to the publisher in June or July of this year. I'm going to guess that they will want to get it out sometime close to Christmas - perhaps even as early as Telford. For now, I've gathered over 42GB of photos and information on the Dominator that must be hammered together into a coherent story of this much-maligned aircraft. The book will be packed with photos and drawings, most of which have never been seen before, wrapped by information that no one ever bothered to look for before. I assure you there will NOT be very many pages (if any) taken from manuals. We're telling the story BEHIND the manuals on the aircraft's development. For instance, even tho the last production block was somewhere in the very low 30's (don't recall which one off the top of my head), we have the list of production changes planned up through the Block 60 that will appear in the book. My co-author Nick Veronico and I are both really excited about this book and giving the old bird the glory she's due.

Sorry I can't be of any more assistance than that at this point.

AlanG
