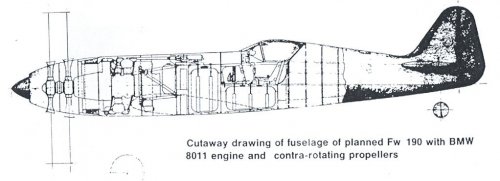

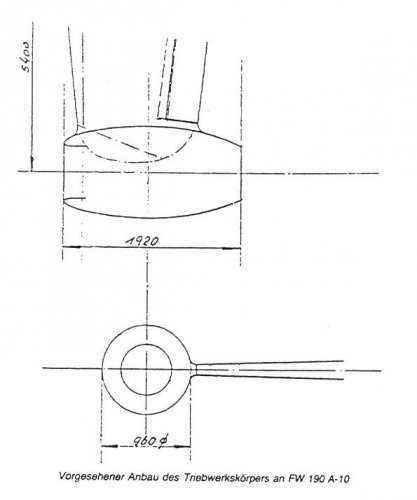

Please see attached some stuff from
-"Aircraft & Legend Focke Wulf Fw 190 & Ta 152" by Heinz J.Nowarra ,Haynes publishing , 1988

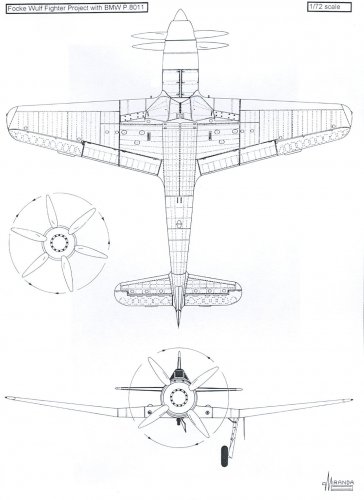

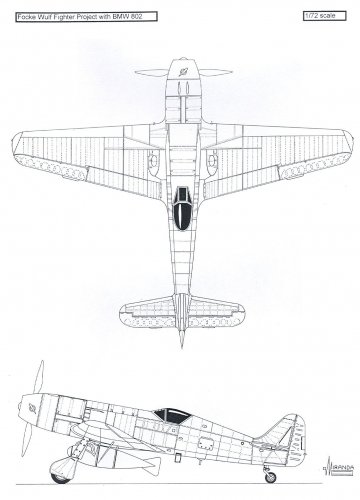

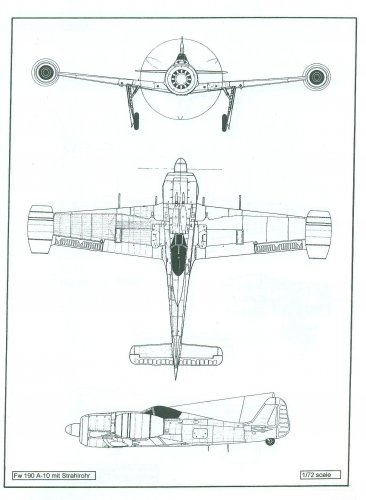

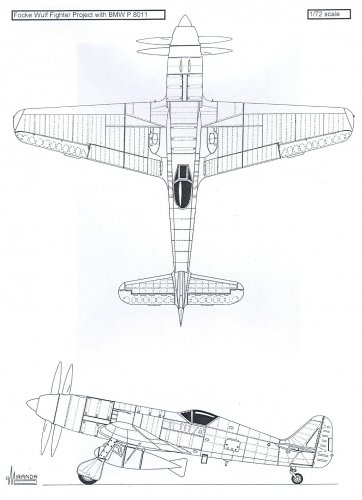

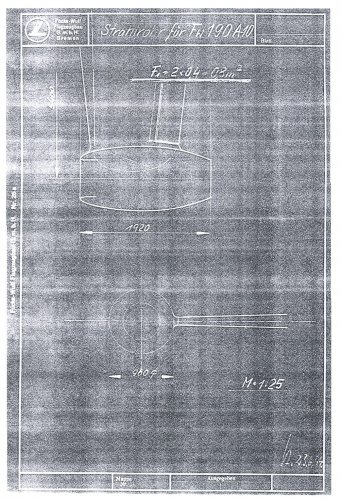

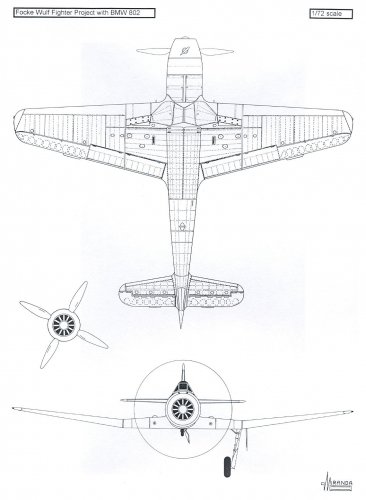

And four speculative drawings by myself
Wingspan 13 m, Lenght (BMW 802)11,5m (BMW 8011)11,8 m
SOURCE GRADING 4


Attachments

  • fw2.jpg
    103.3 KB · Views: 2,510
  • fw1.jpg
    49.4 KB · Views: 2,404
  • fw3.jpg
    159.3 KB · Views: 2,418
  • fw4.jpg
    157 KB · Views: 2,212
  • fw5.jpg
    176.4 KB · Views: 2,194
  • fw6.jpg
    142.7 KB · Views: 739

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
503
Thanks again for your wonderful drawings and data. Do you know which was the engine power for that monsters?.

Thanks in advance.

Both designs look mighty. I wonder why the FW-190/Ta-152 development was so delayed and why it was never boosted to the limits shown in that BMW 802 and 8011 versions. The Ta-152 proved to be a formidable fighter but. I guess a mix of circumstances conspired against it:

Political: Messerschmitt enjoyed better relationship with nazi leaders? That’s why Me-109 was a first line fighter to the end of the War?.

Technical: jet fighters appeared before the Ta152 could reach its full development?


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499
According to this Luft46 source ( http://www.luft46.com/fw/fwbmw802.html ), the BMW 802 produced 2600 hp for take-off and 1600 hp at 39,000 feet. The BMW P.8011 produced 2800-2900 hp for take-off but no altitude rating is given.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,095
Reaction score
222
pometablava said:
Political: Messerschmitt enjoyed better relationship with nazi leaders? That’s why Me-109 was a first line fighter to the end of the War?.

Far from it. Willy Messerschmitt was forced off the board of his own Design Bureaux/Factory before WWII started IIRC. He and Milch loathed each other.

Technical: jet fighters appeared before the Ta152 could reach its full development?

Yes. You have to remember, the BF109 started design in ~1933, four years before Kurt Tank started work on the FW190. The FW190 was always hoped to succeed the BF109 by Tank. The RLM merely wished it to supplement it.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
581
Reaction score
236
Justo - I'd just like to say thanks for the fascinating info you've been posting here lately.

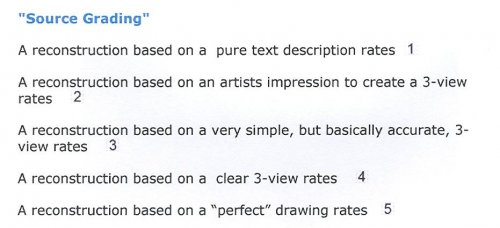

Source gradings - I take it 1 is primary documents, 2 secondary documents is this correct?what are 3 and higher?


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com
Nick Sumner said:
Justo - I'd just like to say thanks for the fascinating info you've been posting here lately.

Source gradings - I take it 1 is primary documents, 2 secondary documents is this correct?what are 3 and higher?


Attachments

  • Escanear.jpg
    48 KB · Views: 355

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com
pometablava said:
Thanks again for your wonderful drawings and data. Do you know which was the engine power for that monsters?.

Thanks in advance.

Both designs look mighty. I wonder why the FW-190/Ta-152 development was so delayed and why it was never boosted to the limits shown in that BMW 802 and 8011 versions. The Ta-152 proved to be a formidable fighter but. I guess a mix of circumstances conspired against it:

Political: Messerschmitt enjoyed better relationship with nazi leaders? That’s why Me-109 was a first line fighter to the end of the War?.

Technical: jet fighters appeared before the Ta152 could reach its full development?


Thank you ,Antonio for your kind words
History tells that the manufacturers with better political contacts in the Third Reich were Messerschmitt and Bachem , with Heinkel being the most poorly connected.

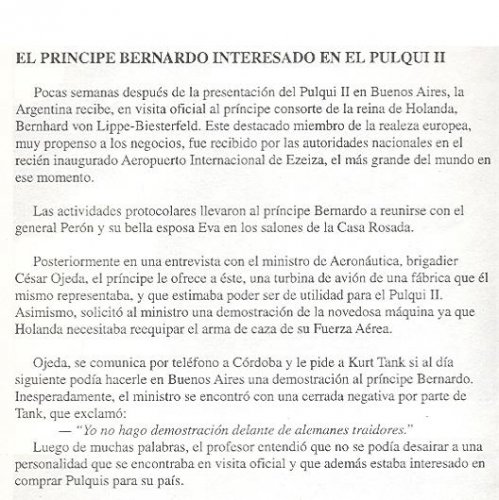

Like other good engineer , Kurt Tank lack social skills (You may see an example in the attached text , taken from "Las alas de Peron" by Ricardo Burzaco , Da Vinci ed. 1995)
The Ta 152 was built to compensate the low performance of the jet fighters at an altitude higher than 20000 ft.

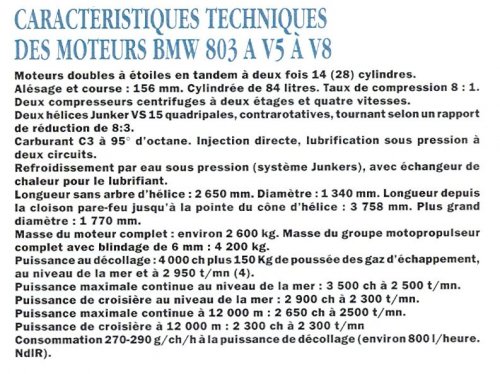

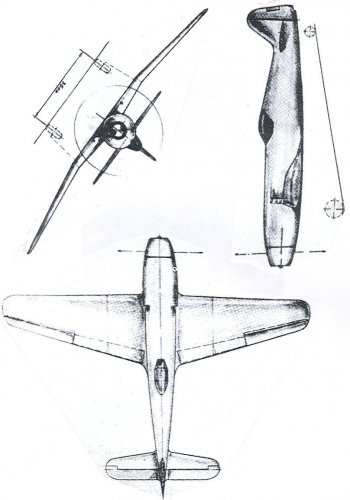

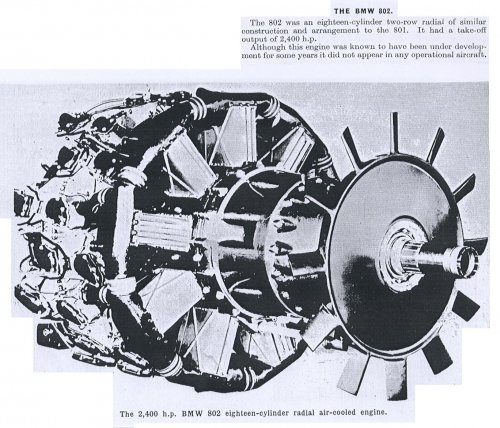

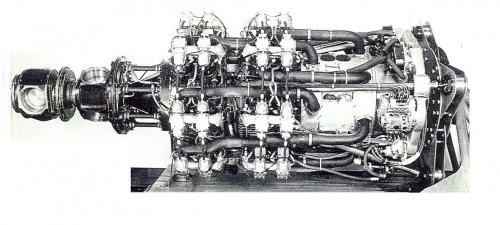

Please find attached some stuff on the engines
See also "Le Fana" Nov 94


Attachments

  • Tank2.jpg
    257.5 KB · Views: 483
  • Tank1.jpg
    301.9 KB · Views: 424
  • Tank.jpg
    68.6 KB · Views: 370

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com

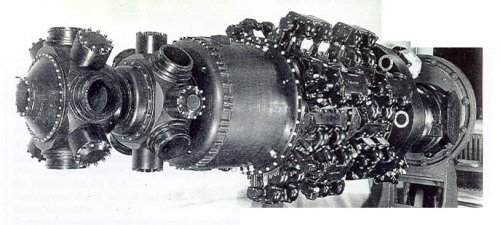

BMW engines -post 2


Attachments

  • Tank3.jpg
    134.4 KB · Views: 404
  • Tank4.jpg
    67.6 KB · Views: 442
  • Tank5.jpg
    105.5 KB · Views: 433

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
209
Great photos of the 803.Do you no whey the 802 was not put into production.


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
175
Reaction score
52
Probably the main reason the BMW 802, etc were not placed in production was simply the engines had not reached a production state of development. Even the 801 was not fully developed, I have one report from 1944 where on a single mission, the abort rate for a/c powered by 801s was 40%+ IIRC.
As a point of interest, the BMW director for advanced projects (everything after the 801) was Dipl. Ing. Peter Kappus who last time I checked (2002) was still living in Cincinnatti. I regret not being able to visit him since that time as he is (was?) one of the last engineers with hands on experience in WWII German aircraft engine development. At the time of my last contact, he was in his nineties and sounded frail, but it is possible he still is around.

Best regards,

Artie Bob


Jschmus

ACCESS: Confidential
Joined
Jan 26, 2006
Messages
66
Reaction score
2
On a related note, in the April 2008 issue of Flight Journal, there is an article about the design of the Fw 190, the main text of which is a 1975 interview of Kurt Tank by a Dr. Alfred Price.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
581
Reaction score
236
Johnbr said:
Great photos of the 803.Do you no whey the 802 was not put into production.

My understanding is that and the development process the BMW 802 was long and involved (a little like the R3350 or the Centaurus). An unusual feature was that the supercharger was placed in front of the cylinders (in relation to the aircraft's direction of travel).

There was a wide ranging Cull of German Aero engine projects in 1942, many promising designs were eliminated for concentration on just a few. The Jumo 222 was in the same power class as the BMW 802 but development was continued with the Jumo whereas the BMW and the DB 604 were not pursued.


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
6
What a wonderful story about Peron, The Prince and Kurt Tank, Justo.

Thank you for the info.


Raravia


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,297
Reaction score
145
Website
zeef.com
Justo Miranda said:

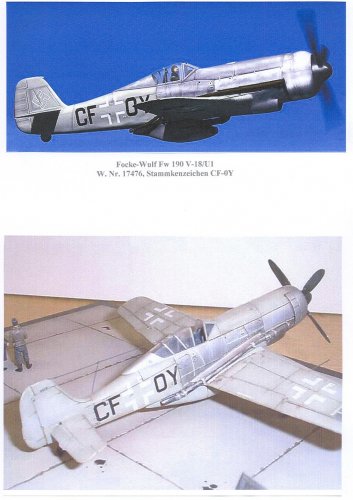

Fw 190 V-18/U1

Yes, is it : an experimental prototype !

well returning about escort fighters for Amerika Bombers , possible candidate as escort fighters for long range bombers was also Me-329

http://www.luft46.com/mess/me329.html
little ot about my avatar :
http://fw190.hobbyvista.com/fw190v18.htm
you have right , prototype V-18/U1 was prototype for Fw 190 C but project was halted by technical problems and opposition to use of the DB 603 (which was needed for other aircraft types).It was obviously !! :D


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com
Via Paul Malmassari

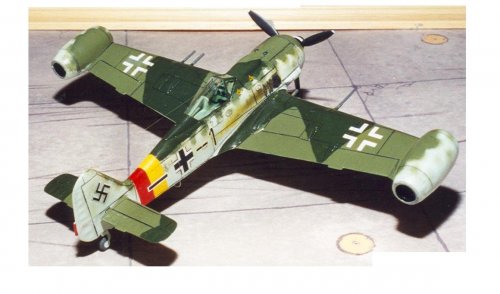

Model 1/144 scale from Paul Malmassari


Attachments

  • Escanear0004.jpg
    649.2 KB · Views: 368
  • Escanear0003.jpg
    29.8 KB · Views: 341
  • Escanear0002.jpg
    66.8 KB · Views: 370
  • Escanear0001.jpg
    86 KB · Views: 392

Vietcong

Avation Enthusiast from VN
Joined
Jan 11, 2010
Messages
76
Reaction score
4
Website
aviationprojects.blogspot.com

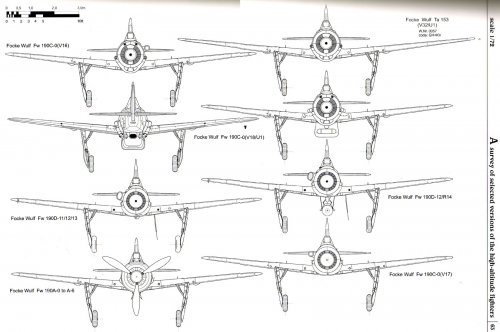

The Ta 153 is actually a testbed aircraft originally called the Fw 190 Ra-4D and was the plane which initially tested the long-spanned wing .But it was not complete because the factory was overun.Is this pic are the real art of the Ta 153 or it is the Fw 190D


Attachments

  • 78a0228b43134713220f48dcc0bc7683.jpg
    31.5 KB · Views: 747

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
503
According to the following source it is a drawing of Ta-153:

http://sandglasspatrol.com/IIGM-12oclockhigh/Ta152.htm


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499

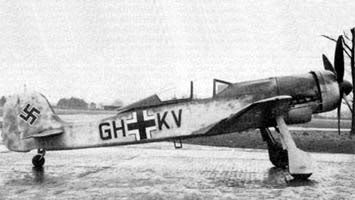

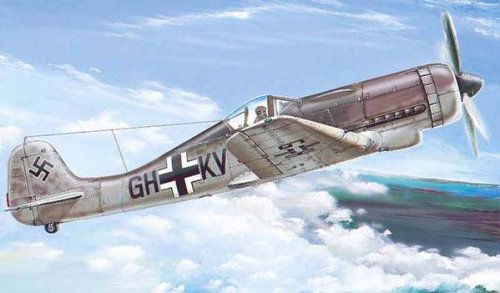

GH+KV is usually identified as the Fw-190v-32/U1 (WNr 0057). It had a DB 603G with Fw-190v-13 style oil cooler and enlarged Ta-152 style tailfin but, IIRC, the standard Fw-190 wing.


Attachments

  • Fw190v-32U1.jpg
    14.2 KB · Views: 799

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com

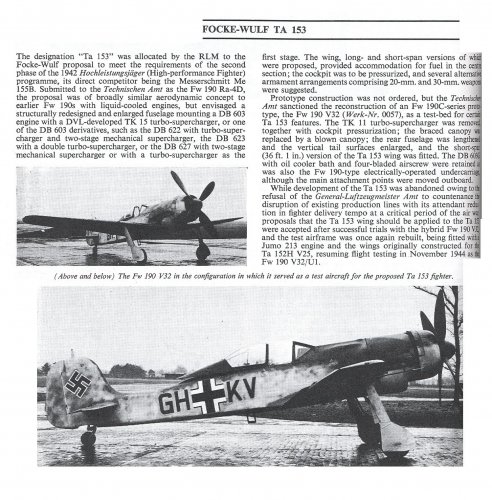

From

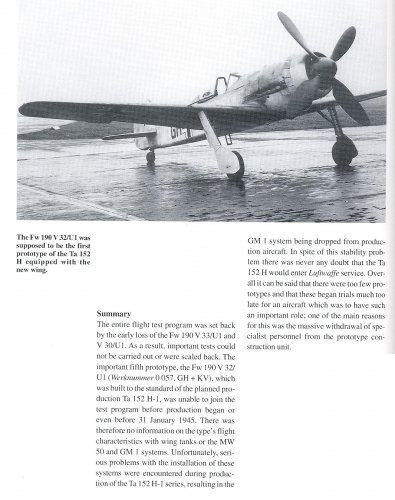

-Warplanes of the Third Reich by William Green
-Focke Wulf Ta 152 by Dieter Harmann


Attachments

  • Escanear0001.jpg
    400.5 KB · Views: 554
  • Escanear0002.jpg
    589.1 KB · Views: 563

sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
That machine actually had the slightly extended wing of the earlier Fw190B project, a unique item not used elsewhere.
(the '190B was attempting a high altitude machine using a BMW 801 with hi-alt features and extended outer wing sections, don't know if more than one machine was built and flown. Not successful.)


Le Chat

ACCESS: Restricted
Joined
Feb 29, 2008
Messages
6
Reaction score
0
Hello,

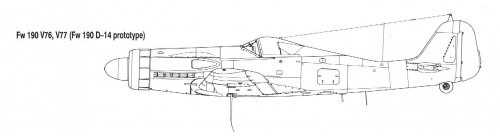

I'm looking for 3 view drawings or pictures of the Fw 190D-14.
Someone could help me ?

Thank you very much.

Le chat


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com

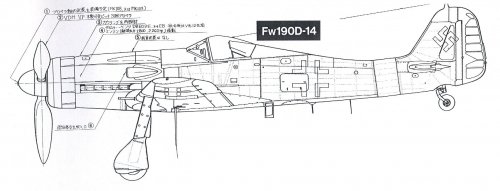

From
AE Quarterly/One
Aircraft Monograph-6-AJ Press
Unknown japanese source


Attachments

  • Escanear0003.jpg
    926.5 KB · Views: 471
  • Escanear0002.jpg
    46.4 KB · Views: 525
  • Escanear0001.jpg
    140.7 KB · Views: 554

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,452
Reaction score
1,538
Website
beyondthesprues.com

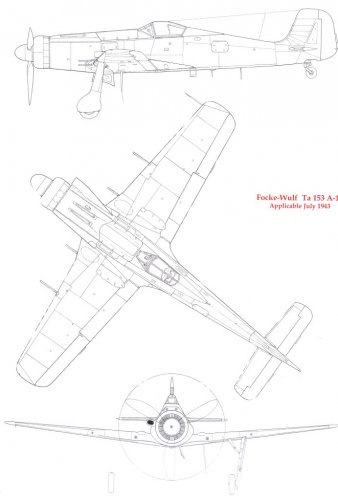

Interestingly, in the new(ish) Focke Wulf Ta 152 book by T.H. Hitchcock (see cover below), the attached pic is also purported to be the Ta153.



Regards,

Greg


Attachments

  • Ta153.jpg
    87.4 KB · Views: 572

tat2

ACCESS: Restricted
Joined
Sep 28, 2008
Messages
10
Reaction score
2

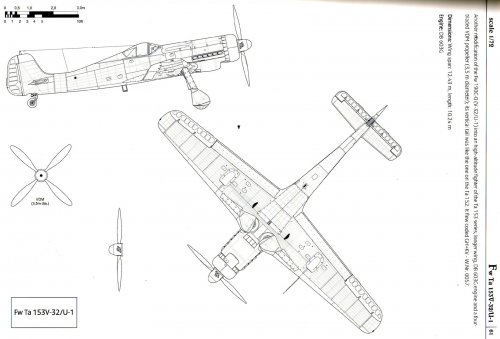

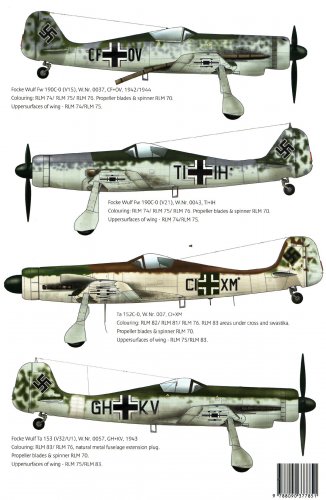

This is the information from RV Resin by Radek Vavrina from the book 'Special Drawings: Focke Wulf Fw-190C - Focke Wulf Fw0190D/Ta 152 part 2'

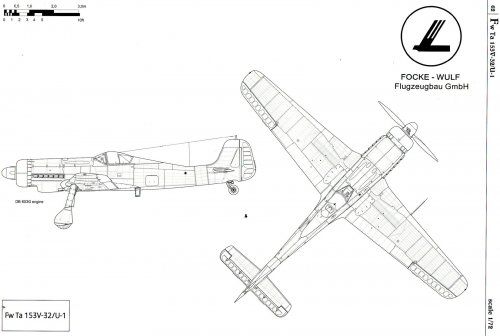

These are left and right, top and underside detailed drawings of the Ta-153 V-32/U-1


Attachments

  • Ta-153V32U-1.jpg
    210.7 KB · Views: 483
  • Ta-153V-332-U-1.jpg
    173.1 KB · Views: 493

tat2

ACCESS: Restricted
Joined
Sep 28, 2008
Messages
10
Reaction score
2
Ta-153 front view and color view from Radek Vavrina's Special Drawings Book of the Fw-190C to Ta-152 part II.


Attachments

  • Ta-153 front.jpg
    Ta-153 front.jpg
    228 KB · Views: 453
  • Ta-153 color.jpg
    Ta-153 color.jpg
    300.8 KB · Views: 535

maccountrypilot

ACCESS: Restricted
Joined
Jun 30, 2010
Messages
12
Reaction score
0
Has anyone ever heard of or seen anything on this FW-802 plane. I think it was a concept only. I don't ever remember seeing it in any type of production


maccountrypilot

ACCESS: Restricted
Joined
Jun 30, 2010
Messages
12
Reaction score
0
thanks for the help! Yes I was looking for the contra rotating prop FW-802. The question I have ... was this ever actually produced or is it drawings only?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807

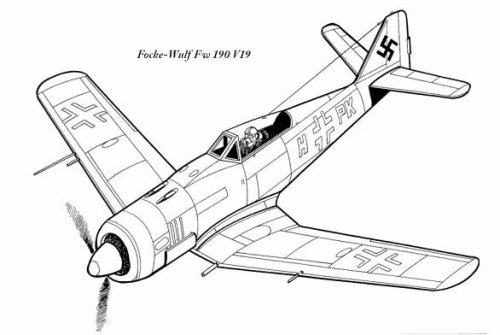

Saved from an old split topic, this Focke-Wulf Fw 190 V19 project:


Attachments

  • FW 190 V19.JPG
    FW 190 V19.JPG
    32.1 KB · Views: 1,243

Madoc

ACCESS: Confidential
Joined
Dec 14, 2006
Messages
119
Reaction score
11
Hello all!

I thought I'd ping the folks here to check this out.

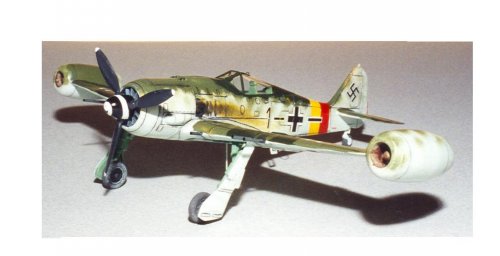

Do any of you know if the Luftwaffe ever experimented with Lorin ramjets by mounting them on the wingtips of a FW-190?

Thanks!


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,318
Reaction score
2,324
What was the Idea behind this concept ?
just like P-51D with Marquardt ram engine, getting more speed ?
and is this the origin for the P-51D Ramjet test in 1946 ?


Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
13
Website
rwrwalker.ca
Were the engines ever used in flight? You would want to be really REALLY sure both engines came on at exactly the same time, and went off at exactly the same time.
