Focke Wulf Fw 190/Ta 152 Projects & Variants

Madoc

CLEARANCE: Confidential
Joined
Dec 14, 2006
Messages
114
Reaction score
0
Okay, so, it was real, then?

At least "real" in concept, right?

I ask as I just picked up a model kit of such a configuration and the other items by the same manufacturer, Bird Models, seemed more like post-war "Luft 46!" inventions than anything actually worked up during the war.


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,448
Reaction score
83

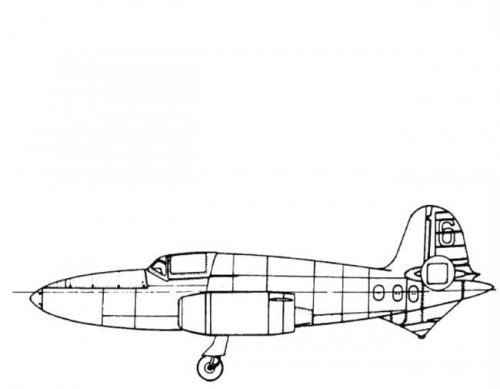

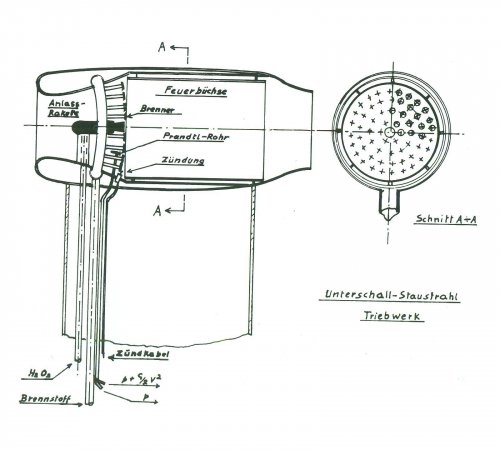

Real project,please see attached microfilm with Focke Wulf logo and 1/144 model from Paul Malmassari.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164

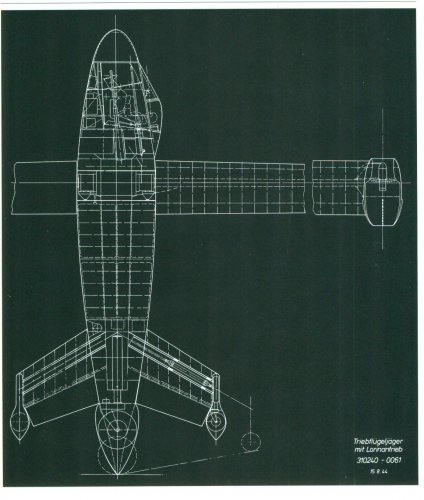

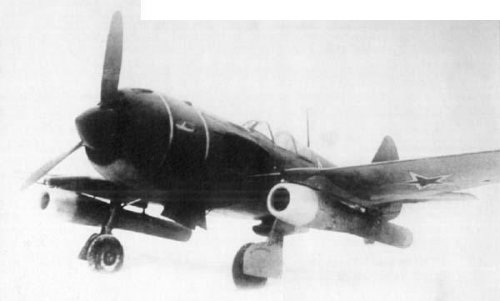

As Martin found on that site about that site mentioned above, this installation was meant as a test
for the Triebflügel project. If that's correct, the model with its armamnet and paintwork would be more a "whif",
not to disparage the skill of the modeller.

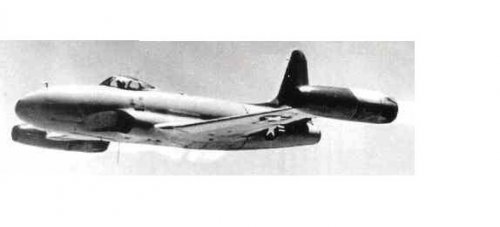

I would think, with regards to shape and size of that ramjet, it was the same type, as envisaged for the Triebflügel
and probably more powerful, than those actually fitted to the wingtips of the P-51 and F-80 (The former test aircraft
is mentioned as having been lost here http://www.enginehistory.org/f-80tj.shtml, anybody knows the reason ?).


martinbayer

CLEARANCE: Top Secret
Joined
Jan 6, 2009
Messages
566
Reaction score
67
There's a bit more alleged background information (mostly in German, without a source quote) in the item description at this Ebay sale of a corresponding model kit modification: http://www.ebay.de/itm/Focke-Wulf-Fw-190-A-10-Lorin-1-72-Bird-Models-Bausatz-/231096384882

Relevant (translated) text passages:

"Model kit of a projected but not realized research aircraft for high speed flight, the Focke Wulf FW 190 A-10 Lorin"

"When
Focke Wulf was designing its Triebflügel, it began the development of small, powerful ramjet engines. In order to test them, a high-performance airplane was to be used, since ramjets begin to work only at a minimum speed of 300 km/h. For this purpose, it was decided to convert a Focke Wulf FW 190 A-10 series aircraft, so that an engine would be mounted on each wing tip. Thus, it was hoped to bring the engine to series production, and this construction was also seen as an important milestone in the development of the actual Triebflügel design. The project failed partly due to the lack of availability of the engines, and on the other hand, the RLM did not want to provide a test aircraft."

"
This airplane had been projected in 1944 for testing the ramjets for the FW Triebfluegel. Because ramjets are [sic, obviously a 'not' missing] working until a speed of min. 300 km/h, it was planned to test the ramjets on a high power airplane like the FW 190."

Martin


Madoc

CLEARANCE: Confidential
Joined
Dec 14, 2006
Messages
114
Reaction score
0
Good. I'm feeling better about my purchase then! I like "what ifs" and all manner of paper projects - but they have to be real paper projects and not some imaginings conjured post-war.

As to armament on the test aircraft, would an unarmed German plane - even one conducting test flights - be a wise choice?


jimbrooks

Flight-Sim Game Developer
Joined
Sep 26, 2013
Messages
6
Reaction score
0
Website
www.palomino3d.org

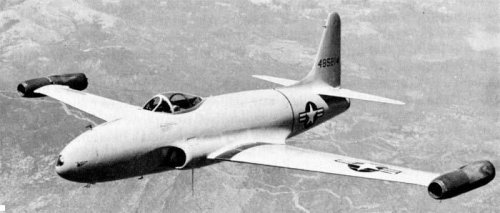

and is this the origin for the P-51D Ramjet test in 1946 ?
AFAIK, the ram-jet of the P-51 tested in 1946 was a US design made by Marquardt.
Another P-51 was fitted with a German engine which was actually a pulse-jet.
(I collected some info here http://www.jimbrooks.org/aviation/info_P-51Mustang.php)

CJGibson said:

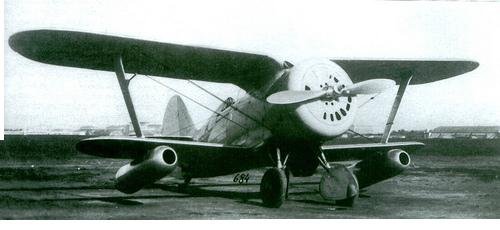

A ramjet for the Spitfire was looked at in 1940, again in 1944 and the RAE flew a Mustang I with twelve RAE PD.1 ramjets in 1944. See BSP.4 Ch.10.
What book does "BSP" refer to?


Lonewulf

CLEARANCE: Restricted
Joined
Jun 15, 2007
Messages
3
Reaction score
0

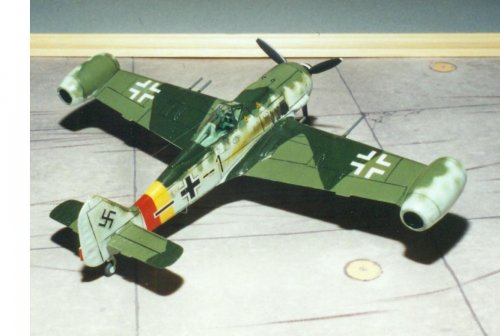

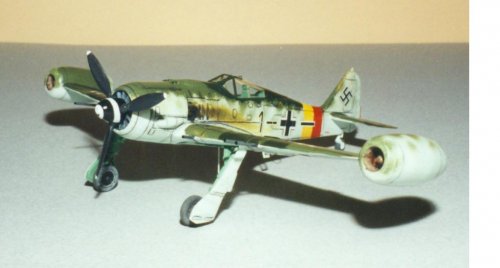

This is my 1/72 Fw 190 with wingtip ramjets. Revell 190 with my own Lonewulf conversion. The Germans tested ramjets of various sizes, first on the back of an Opel Blitz lorry then on Dornier Do217E.


Attachments

J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
1

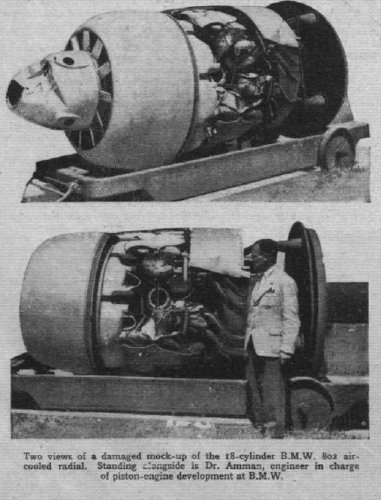

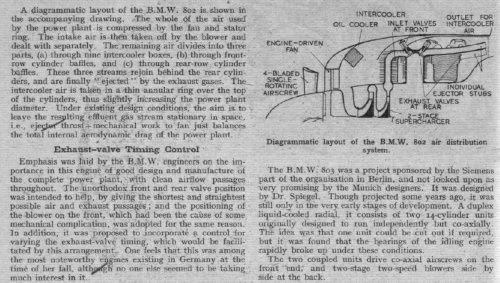

British appraisal of BMW (& others) from 'Flight' in `45..

http://www.flightglobal.com/pdfarchive/view/1945/1945%20-%202395.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893
Re: Various Focke-Wulf projects

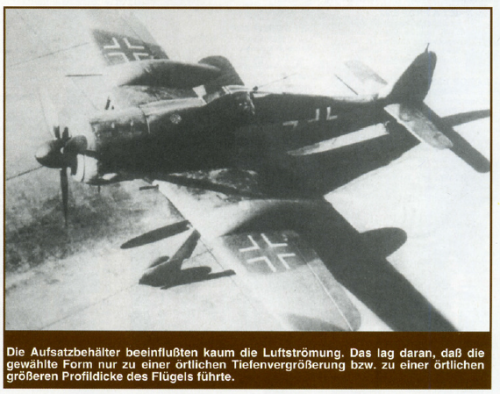

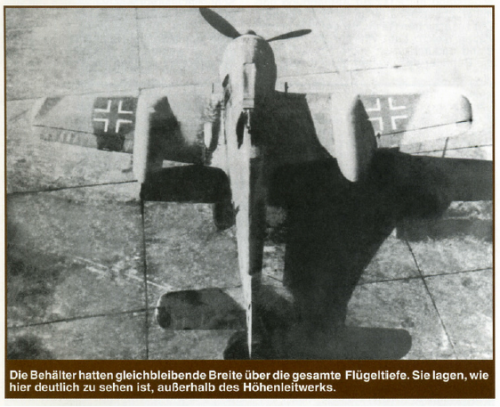

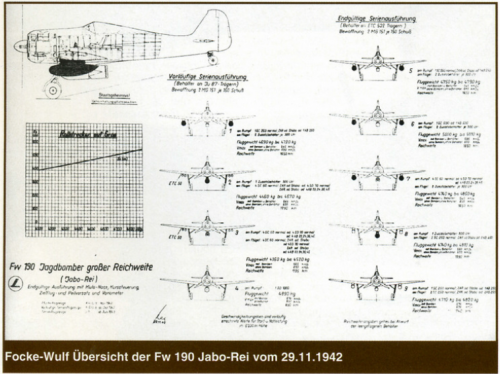

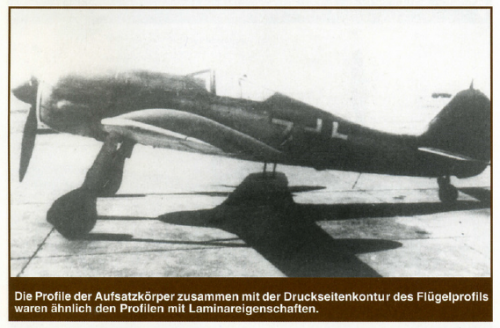

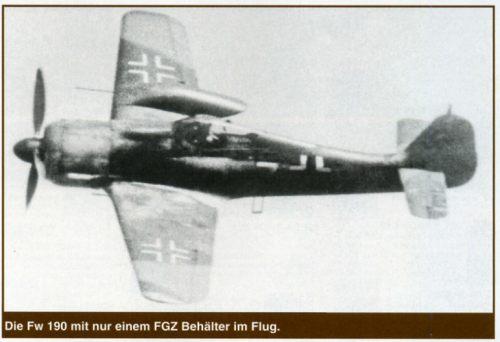

From Jet & Prop 5/2009,

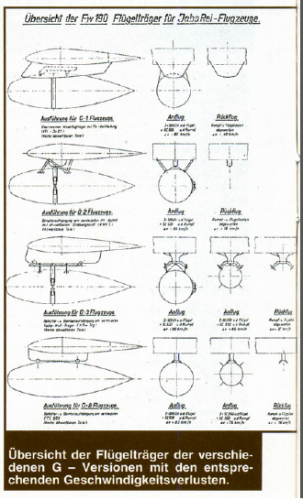

the external tanks for Focke Wulf Fw.190,the mounted over the wing is
very strange by that time.


Attachments

Imperialist

Shipbucket FD-Scale Artist
Joined
Dec 18, 2013
Messages
17
Reaction score
0

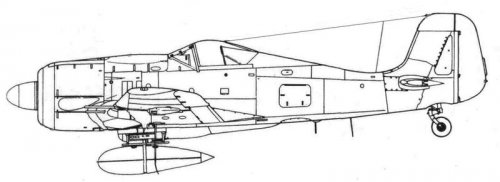

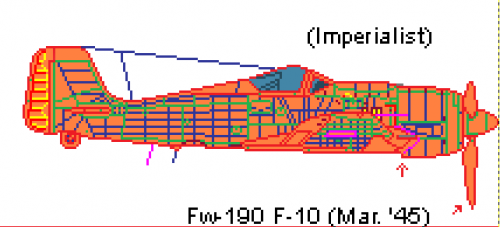

Hello, I've been a long time lurker of Secret Projects and I was hoping if anyone had any further information on the Fw-190 A-10. So far the info I've been able to glean are: the first attached image is supposedly from a Kagero drawings book and the latter is a kitbash from What-If forums from what I have found over the internet. Does anybody have info on the new wing the aircraft was to have and the the placement of the 30mm Mk103's in the wings? I post occasionally on Shipbucket and I've been working on drawing the entire Focke-Wulf 190/Ta-152 series so any thing in the ways of blueprints would be greatly appreciated. Also attached is a WIP drawing of the Fw-190 F-10 using the available info I have, if anyone can suggest changes that would be helpful as well.

Sincerely,
Imperialist


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164
Welcome here,

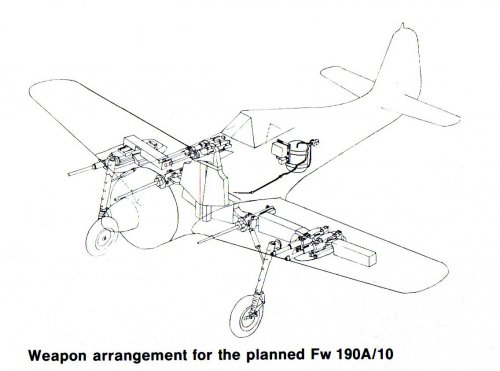

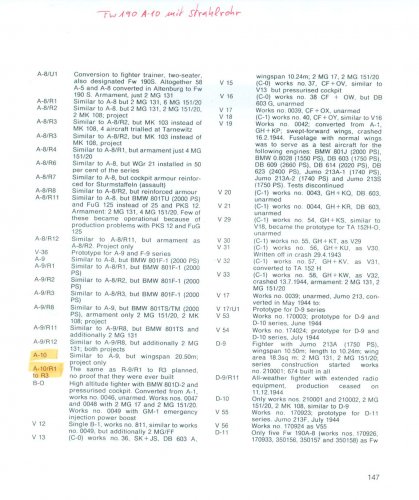

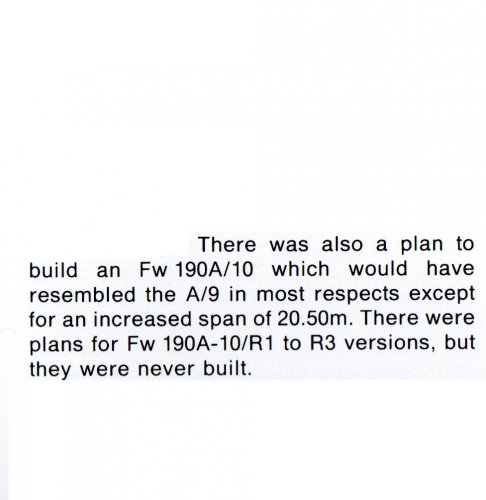

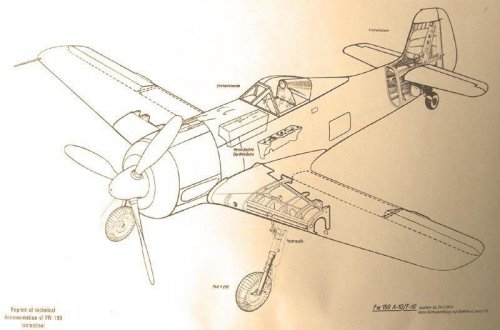

I'm not an expert for the Fw 190, only thing I found by a quick search is, that wing
area was increased from 18.3 to 20.5 sqm according to Nowarra and that varaints
R1 to R3 (analogue to the A-9) show up in contemporary documents, but if they actually
were built is unproven.
About your attachements, I would suggest, that you send them to the mail adress I just
sent via PM and I'll attach them to your post. Five posts are the minimum number for the
forum software to allow attaching pictures, IIRC. But we can easily solve htis problem,
I think. ;)


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164

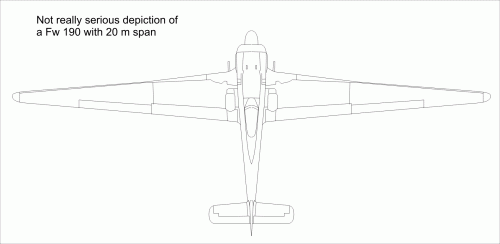

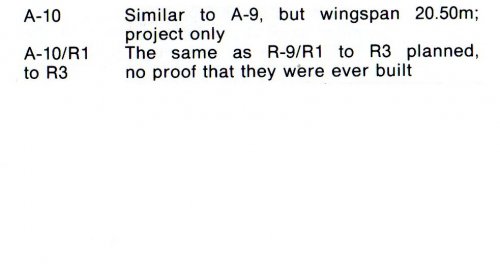

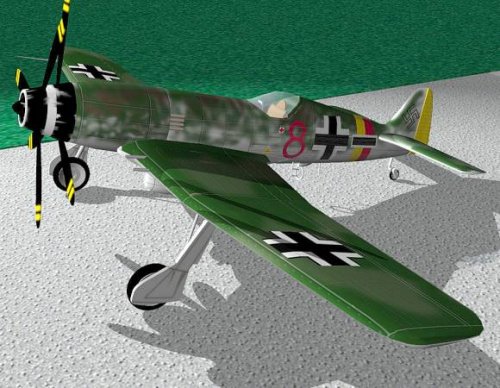

With 20,5 m, span would have been doubled, resulting in a kind of F-104- to U 2 modification. ;)
I think, it's a typo and meant was wing area.


Attachments

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,663
Reaction score
39
Website
beyondthesprues.com
Imperialist said:
a kitbash from What-If forums from what I have found over the internet
This was one that I did back in 2008. It was based upon available descriptions at the time which were that the A-10 version would have looked nearly the same as an A-9 with the exception of the larger tail and an uprated engine.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
Thanks. Super!!! My professor. :D


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
786
Reaction score
112
blackkite said:
Thanks. Super!!! My professor. :D
I've done a lot of work with the original documents. More to follow.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
Hi!

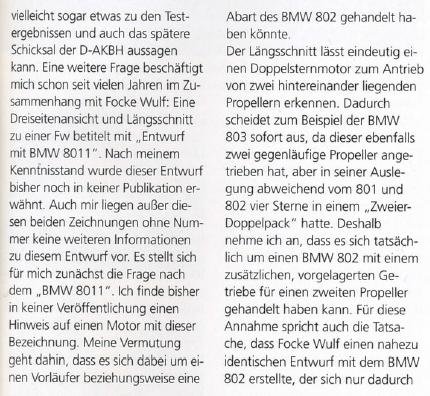

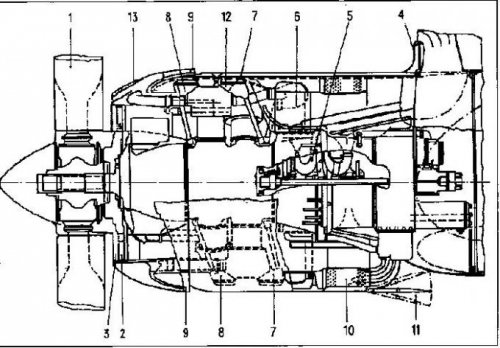

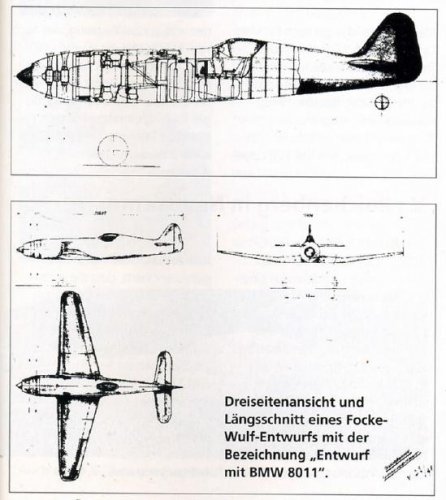

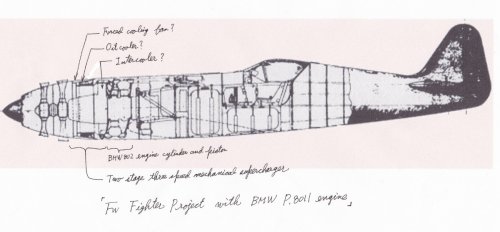

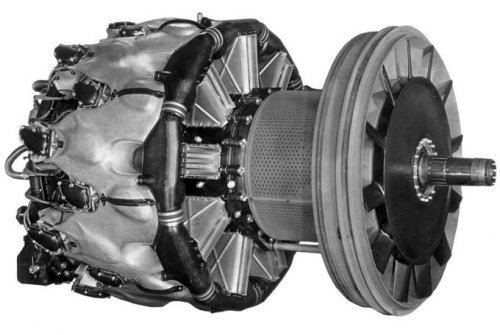

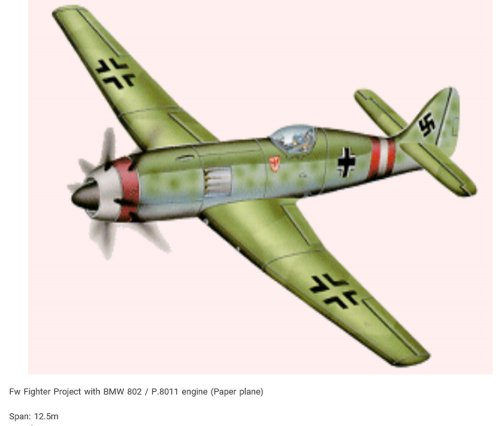

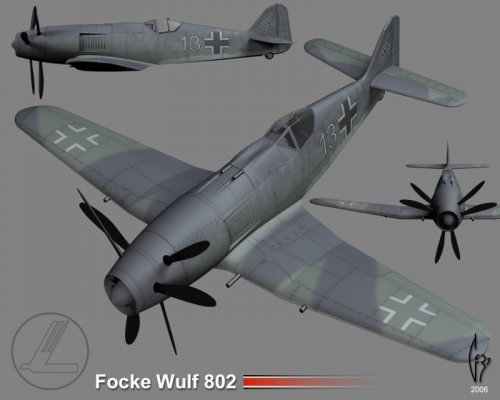

Fw Fighter Project with BMW P.8011 engine.
P.8011 engine's base is BMW 802 engine. BMW 802 engine had two stage two speed mechanical supercharger which located front of the engine.
BMW P.8011 engine had two stage three speed mechanical supercharger, intercooler and two small turbochargers.
But I can't find turbochargers in this side view drawing. Where is the turbocharger? Both side of the front fuselage same as turbo Raiden?
Of course this top drawing dose not include engine crank shaft, cylinders and pistons.

http://aviacia-all.ru/fokke_vulf_BMW802.php
"Alternative powerplant (sketch design was not accepted): 1 x BMW R8011 takeoff power 2800-2900 l.; Here we are talking about a BMW 802 with two turbochargers and two coaxial aerial propellers."

From Luft46
"P.8011 engine. This powerplant had a 2800-2900 HP take off rating. It was basically a BMW 802 with two exhaust gas turbines enclosed in an aerodynamic cowling, and it drove two contrarotating propellers."

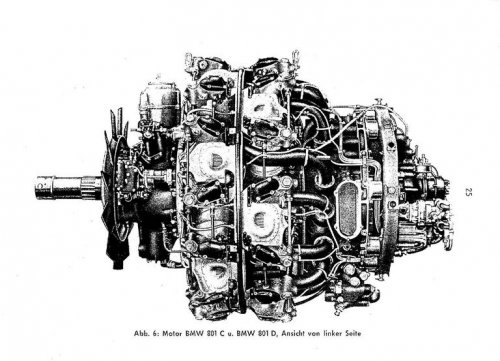

Mechanical supercharger of BMW801 engine is located rear of the engine.
http://forums.airforce.ru/attachments/do-1945/68046d1448095731-bmw-801.jpg/


Attachments

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
Thanks, here is what i faind: http://forum.warthunder.com/index.php?/topic/157773-creating-the-german-super-prop-fw-190d12-with-jumo-213eb-engine/ It's a little off thema but interesting


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
And four speculative drawings by myself

[/quote]


Just, cool!!! as always, Justo! B)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
But this drawing which hesham-san posted seems to have engine exhaust nozzle without turbocharger. Hmmm....???
Anyway engine exhaust nozzles were located front side of the fuselage.
Sorry for duplicating post.

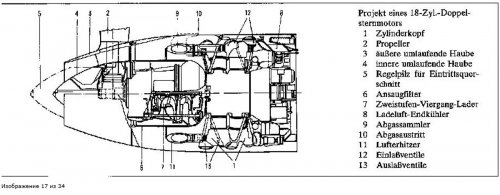

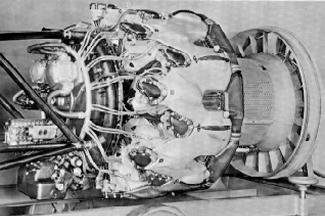

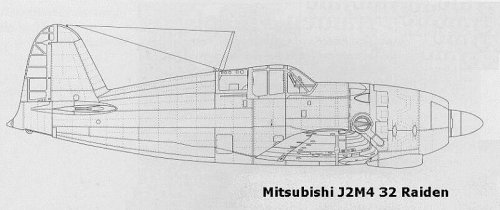

I find another two stage mechanical supercharger shape(perhaps BMW design) in internet.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
Thanks a lot. Super!!!

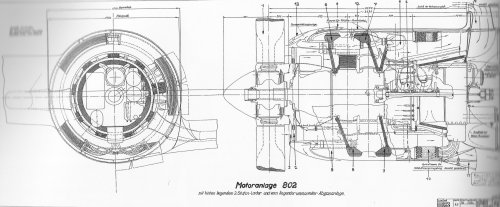

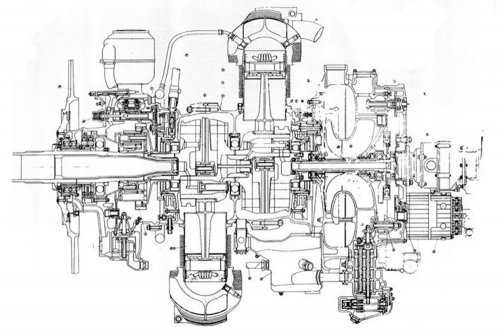

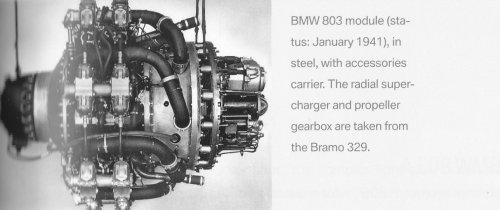

This bottom drawing shows BMW802 engine with two stage mechanical supercharger which located rear of the engine? :eek:


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,211
Reaction score
74
blackkite said:
After all, in essence, it's a fake? ;D
I found the Source of those Picture
https://www.flickr.com/photos/dizzyfugu/5074888145

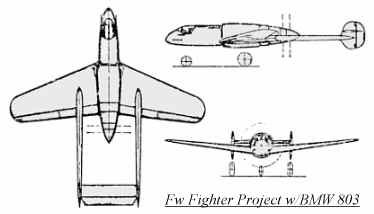

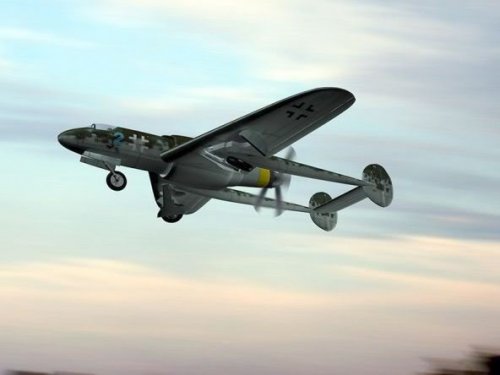

the maker "dizzyfugu" say about this design this:

From the original 1941 annular radiator design (a ring opening around the central fuselage), the arrangement was modified in April 1943 to a single drum radiator in the nose and, alternatively, twin drum radiators in the front ends of the tailbooms. The latter design is the layout I chose for my model, or better: where I ended up (see below).
his source:
Valuable sources:
Walter Schick, Ingolf Meyer: Luftwaffe Secret Projects, Fighters 1939-1945, Hinckley, 2005
(this is an English translation of the original German edition, Stuttgart, 1994, but with many colored illustrations added).

Sundin, Claes; Bergstroem, Christer: Deutsche Jaqgdflugzeuge 1939-1945 in Farbprofilen, Bonn, 1999.

www.luft46.com -

wp.scn.ru - "Wings Palette" - a Russian website which collects plane profiles and some details about the respective machine's history.
A nice reference archive, since a lot information concerning colors can be found there, too. Handling is poor, though. But once you get it, it is a great model kit building source.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
https://www.flickr.com/photos/dizzyfugu/5074888153

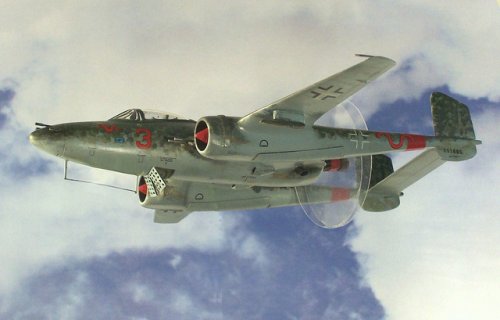

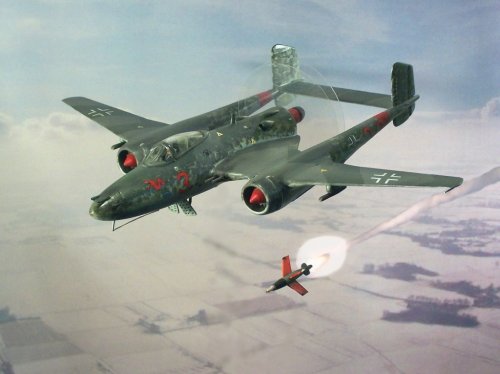

"1:72 Luft '46 - "Red 3" Focke Wulf Fighter with BMW 803 engine (kitbashing/scratch-built) - firing a X-4 missile against B-24 bombers
+++ DISCLAIMER +++
Nothing you see here is real, even though the conversion or the presented background story might be based historical facts. BEWARE!
How it came to be:
It has been a long time since I built a "real" airplane kit, and this one here is a one-of-a-kind. After a bleak phase with lots of reading about German WWII airplane projects I found a spark to fire up a project I kept in the back of my mind for a long time: building one of these semi-fictional WWII airplanes from scratch. These astonishing designs were on the drawing boards at their time and rarely made it beyond that. Only a few reached prototype status at the end of the war, but today these partly weird designs are the basis of today's Luft '46 model kit genre: What-if airplanes, based on sketches, construction plans and pure speculation, in the case the war would have gone on."

Above explanation means fake?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,779
Reaction score
270
I hope to the artist to stop such ambiguous thing. There is no meaning. A really mischievous act. I feel extreme anger. :mad:


martinbayer

CLEARANCE: Top Secret
Joined
Jan 6, 2009
Messages
566
Reaction score
67
blackkite said:
I hope to the artist to stop such ambiguous thing. There is no meaning. A really mischievous act. I feel extreme anger. :mad:
If that type of thing really gets you upset, you better not visit http://www.whatifmodelers.com/, where Dizzyfugu displays his most recent creations on a fairly regular basis. I for one actually hope he'll continue doing so for quite some time to come, because I really enjoy both his creativity and his artistry. In my view there is as little or as much "meaning" in his pursuits (which after all are a hobby) as there is in any artwork or work of fiction/alternate history, but of course YMMV.

Martin


dan_inbox

CLEARANCE: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
573
Reaction score
62
It is one thing that artists/fanboys/whatever create as many more-or-less fictional designs as they want.
It is quite another thing that those fictions are brought here, and not in the fictional section.

The latter is simply creating opportunities for confusion and misunderstandings, ingenuous or otherwise.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,663
Reaction score
39
Website
beyondthesprues.com
dan_inbox said:
It is one thing that artists/fanboys/whatever create as many more-or-less fictional designs as they want.
It is quite another thing that those fictions are brought here, and not in the fictional section.

The latter is simply creating opportunities for confusion and misunderstandings, ingenuous or otherwise.
If they are posted here by others than the creators it is hardly the fault of the creators.


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
786
Reaction score
112

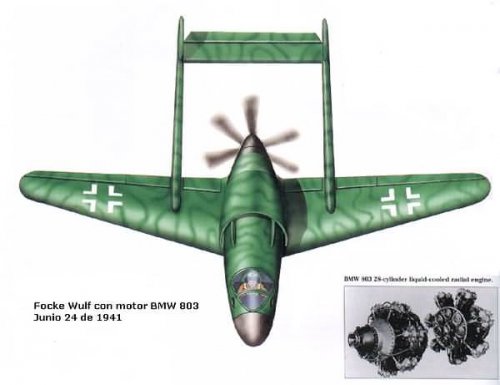

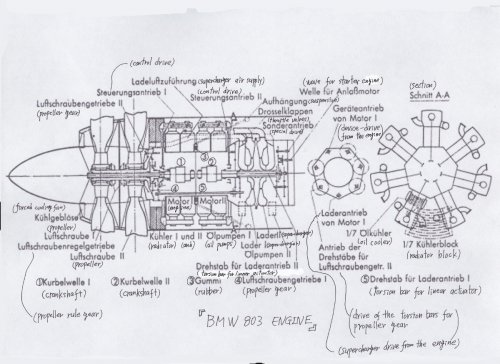

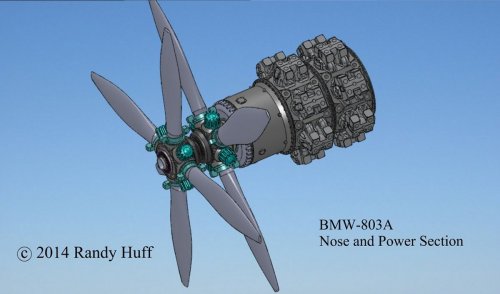

I'm not sure what all the fuss is about. The Focke-Wulf 'Jager mit BMW 803' is real. See p55 of Luftwaffe: Secret Jets of the Third Reich. That model is just a particularly poor depiction of it. Besides the version shown in Luftwaffe, there were versions with radiators on the forward ends of the booms and on the nose. It is shown in Focke-Wulf drawings 0310 231-02A and 0310 231-04A and several that were not numbered.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,442
Reaction score
744
Dizzyfugu makes pretty cool models more-or-less inspired by actual projects, but isn't overly concerned with accuracy of depiction. He is pretty good at posting clear descriptions of what they are. He made a nice Mikoyan Project 33 by cutting up an inaccurate MiG-29 model and splicing it together with a few spare bits - it overall resembles the Project 33 but isn't right in detail.

People reposting pics they found online without sources is what causes this kind of false impression. If everyone just posted their damn sources, you could trace the picture back to the source and understand what it is and what it isn't.

Some of the people annoyed by this stuff are repeat offenders at not giving sources in their own posts.
