Thank you!Really thank you,now I've got model to do.
For the Ta 152:
http://deutscheluftwaffe.com/archiv/Dokumente/ABC/f/FockeWulf/Ta%20152/Focke_Wulf_Ta152_Werkzeichnungen.pdf
I found a drawing about the Ta 152 C1/R14 on internet but sadly,it's photobucket now(snif).


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

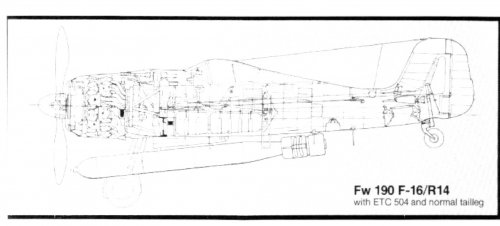

I can't do better for the C1/R14 variant(why all those torpedo variant in 1944-45?):

https://www.google.fr/search?rlz=1C1AOHY_frFR713FR713&biw=1680&bih=935&tbm=isch&sa=1&q=ta+152+torpedo&oq=ta+152+torpedo&gs_l=psy-ab.3...190748.193607.0.193918.8.8.0.0.0.0.98.670.8.8.0....0...1.1.64.psy-ab..0.2.182...0j0i30k1j0i8i30k1.0.10_Z2--GyxA#imgrc=ij2E1WJLc_4eXM:
doc about the ta 400, and P127:
http://deutscheluftwaffe.com/archiv/Dokumente/ABC/f/FockeWulf/projekte/Focke%20Wulf%20PTL%20021/Focke%20Wulf%20PTL%20021.pdf
http://deutscheluftwaffe.com/archiv/Dokumente/ABC/f/FockeWulf/Focke-Wulf%20Ta%20400/Focke%20Wulf%20Ta%20400%20Projekt.pdf

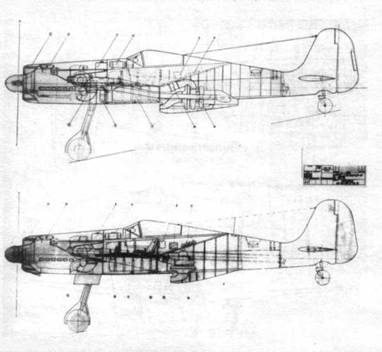

Weapon variant on the ta 152:


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

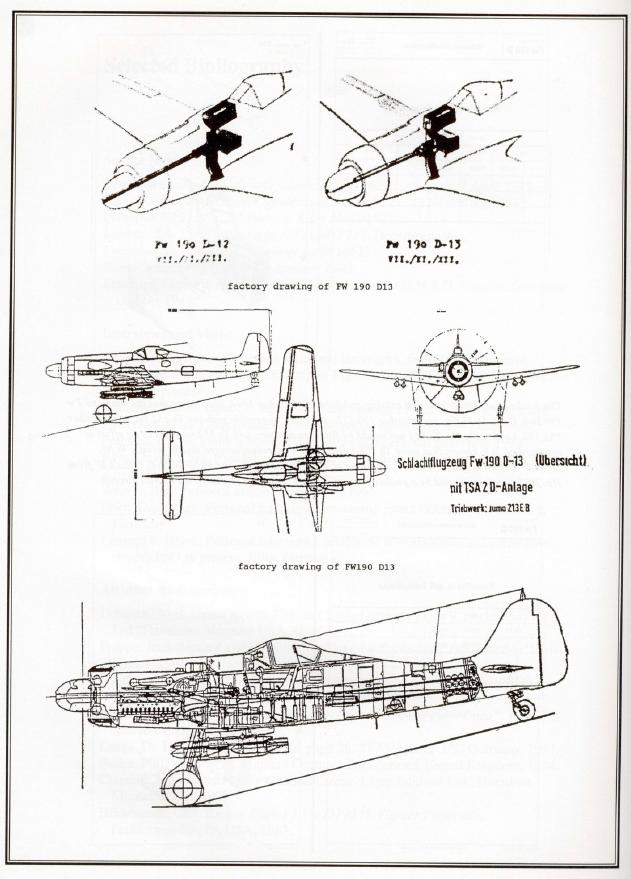

Can we confirm the dora with torpedo please(juste want drawing):


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
R4M and panzerblitz for dora and friedrich,what is Nachrüstung?


Anderman

CLEARANCE: Confidential
Joined
Sep 30, 2006
Messages
154
Reaction score
13
sgeorges4 said:
R4M and panzerblitz for dora and friedrich,what is Nachrüstung?
It means retrofit into the shown variants into the existing airframes.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

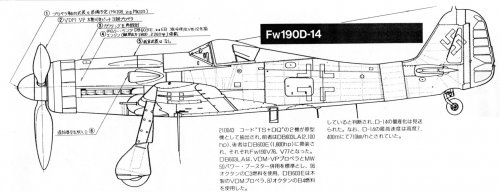

a fw 190 D14 mock-up or in construction:


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

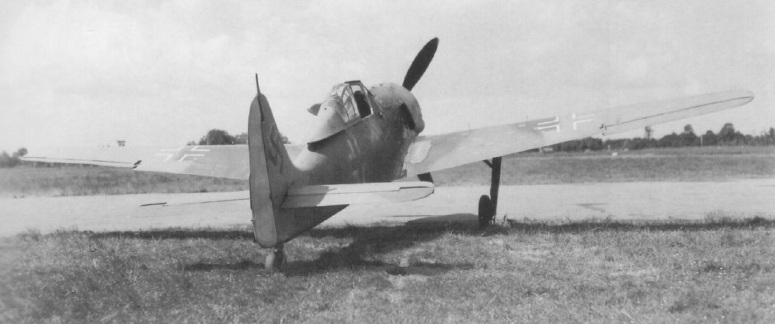

Really seem to be a A5 sir!

from : http://www.wwiiaircraftperformance.org/fw190/fw190a5.html


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
focke wulf 190 B-0 prototype:

http://forum.valka.cz/topic/view/77111/Focke-Wulf-Fw-190-B-0


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

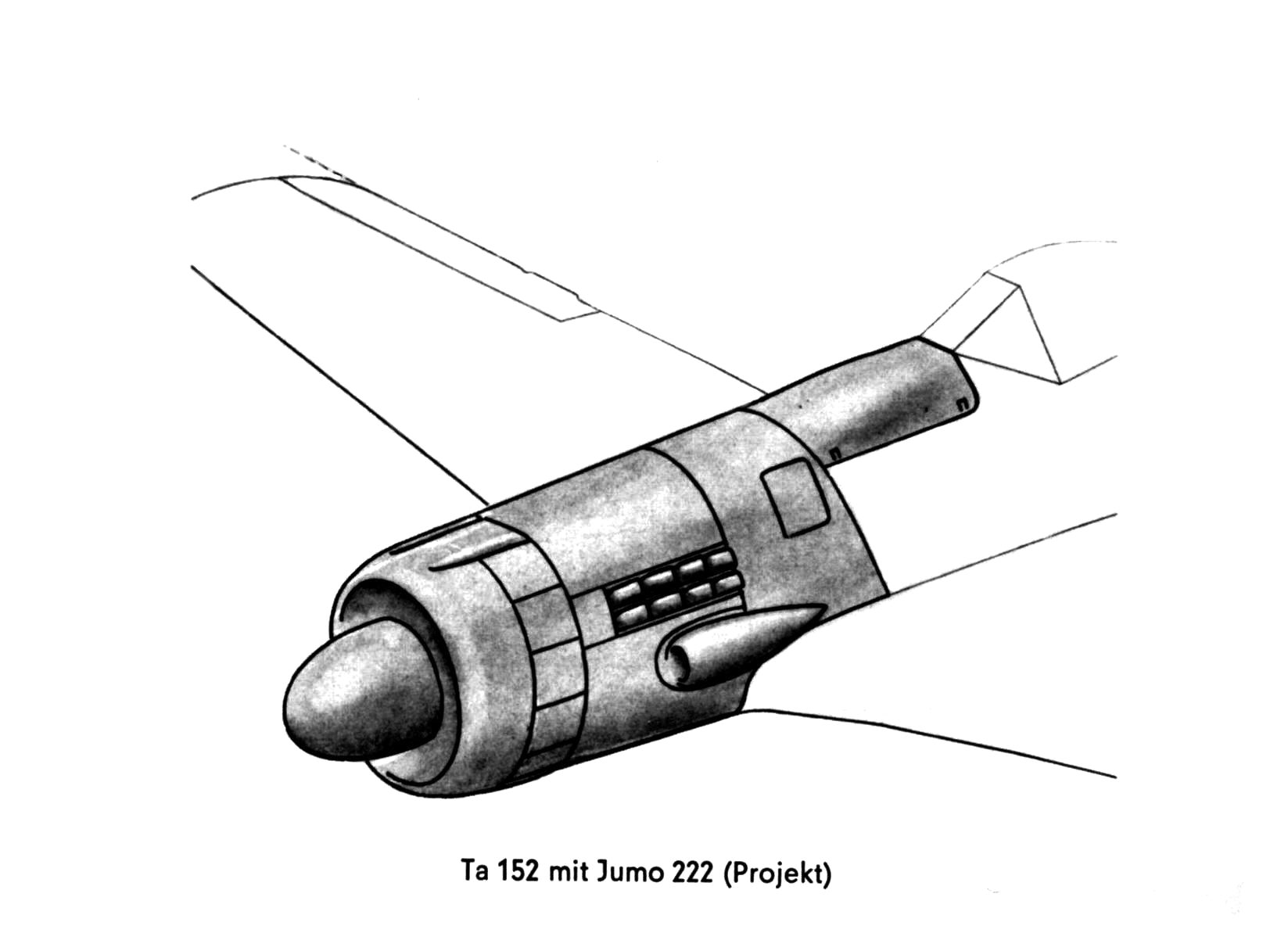

another turbo variant:

Sadly,I don't understand russian langage...
https://coollib.com/b/273132/read


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,697
Reaction score
1,600
Thanks a lot. Excellent contribution!!
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=https%3A%2F%2Fcoollib.com%2Fb%2F273132%2Fread&sandbox=1


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
Thank for the trad!

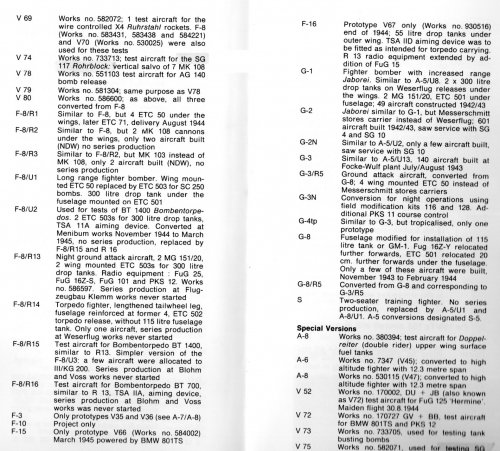

Did we have any information about the variant G-7,G8/N of the Fw 190?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,697
Reaction score
1,600

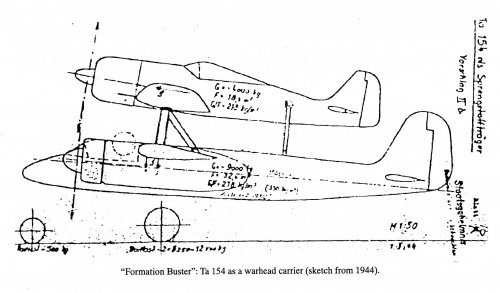

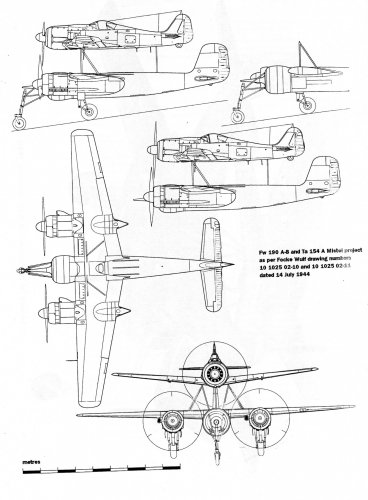

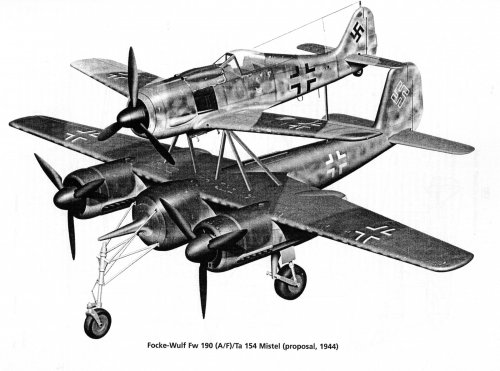

Wow!!!! Ta-154 was a drone. :eek:


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,697
Reaction score
1,600
I see. Thanks a lot. :D


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

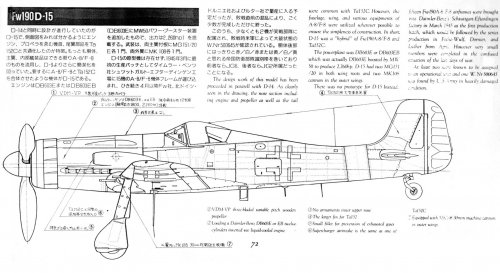

thanks!can the D15 support a "classic" D9 tail ?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
Why not the D15?Can we have some archive document about this variant?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,319
Reaction score
2,202
Nice imagine Sgeorges.


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
870
Reaction score
273

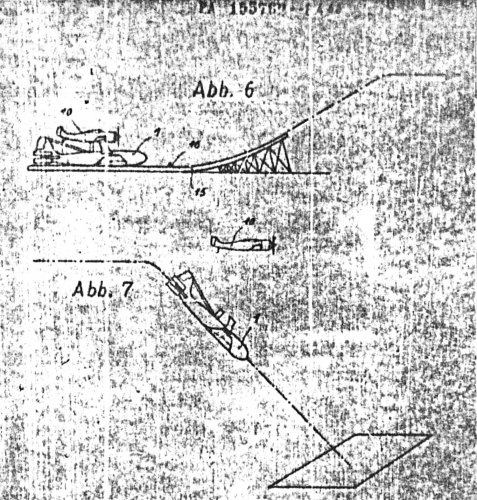

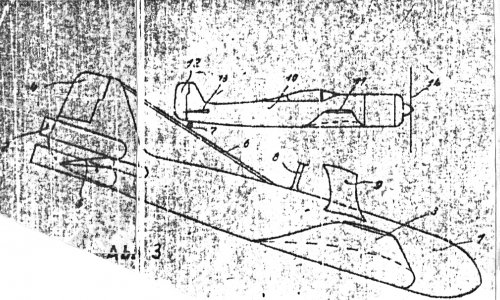

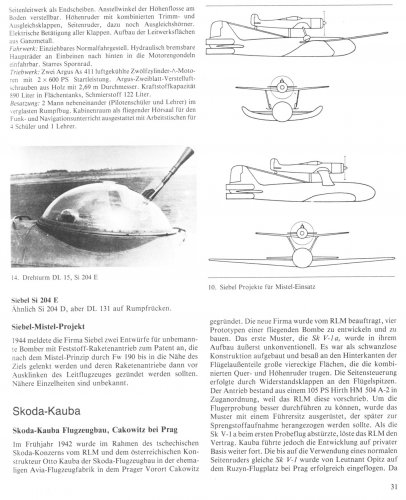

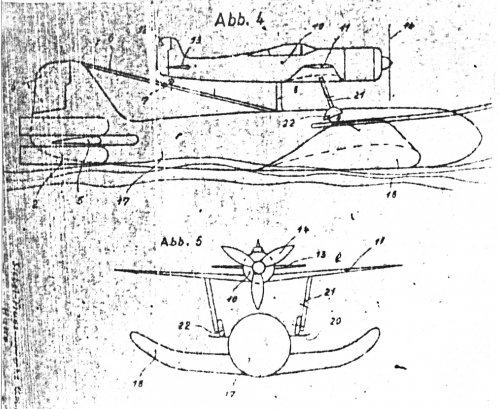

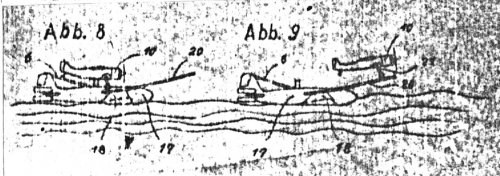

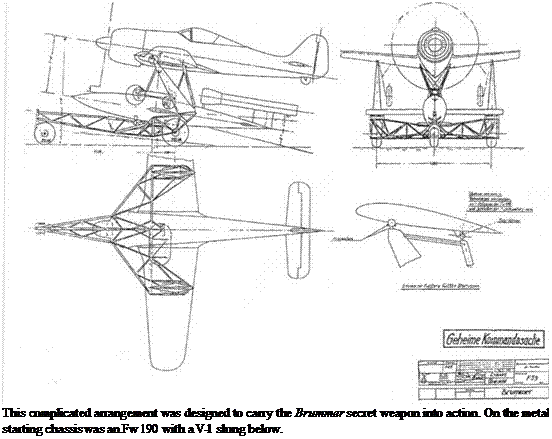

According to Heinz J Nowarra's Die Deutsche Luftrüstung 1933-1945 Book 4 of 1993 (see attached), the design is from a patent filed by Siebel in 1944. Given that most of Siebel's own papers were captured by the Soviets or destroyed, but most patent documents were captured by the Allies, it is plausible that this is in fact a genuine wartime project. Or at least a genuine idea for a project.

NB: Given the wide availability of old Fw 190s kicking around at this time, it seems highly unlikely to me that a Ta 152 H-1 would have been used for this sort of combination. But it might've been an A-8, for example.


Attachments

newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
870
Reaction score
273
sgeorges4 said:
that all we get about this project?
Maybe you could research it and let us know what you find out. It might be possible to track down the patent, or, I was recently informed, the Soviets kept everything they captured and the Russians still have it somewhere. You could try and get access to whatever they have on Siebel?
A third option would be to contact Nowarra's surviving relatives and attempt to find out what happened to this particular part of his collection. I believe all of Nowarra's materials were sold off after his death, so someone out there might have whatever he based the re-draw he featured in his book on. Lots of people today, I think, have old prints with Nowarra's distinctive stamp on the back, including me. Then again, all you might get even if you did track it down was another copy of the image, exactly as it already appears in his book.


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
870
Reaction score
273
richard B said:

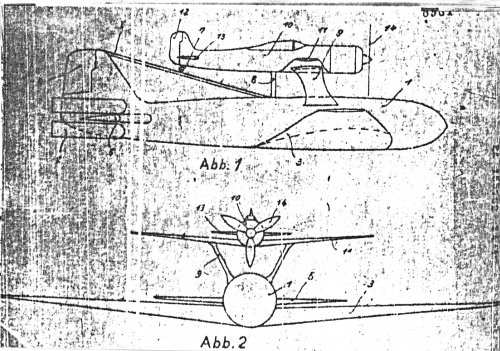

Here , copies of the patent , from a French book published many (30,40 ?? )years ago .
On one corner , I can read "PA 15576" , on another "Siebel".
I don't know more about this patent ... ...
Excellent! So there you go, not just a model-maker's dream.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

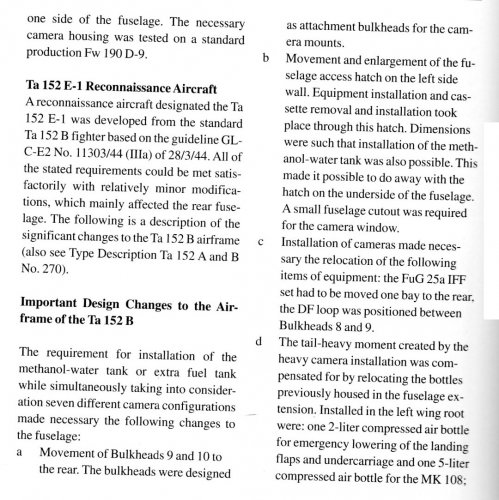

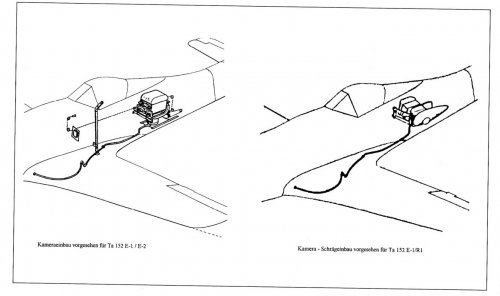

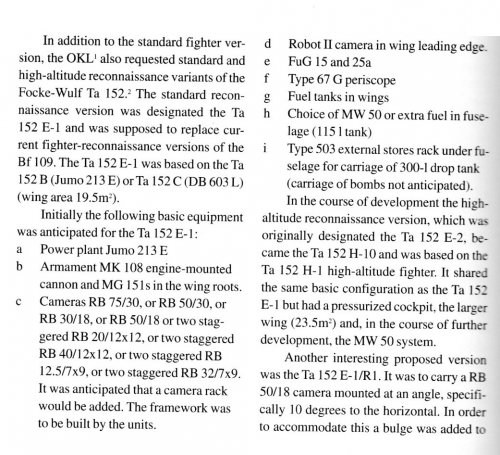

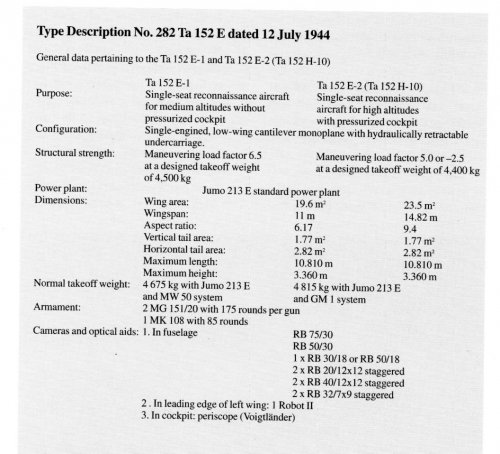

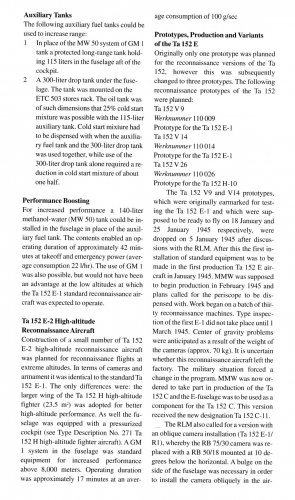

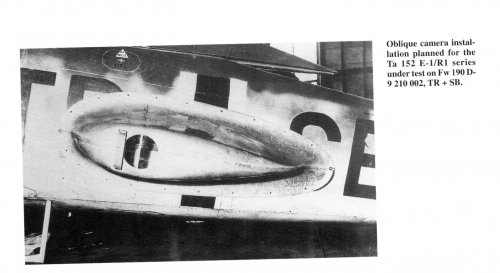

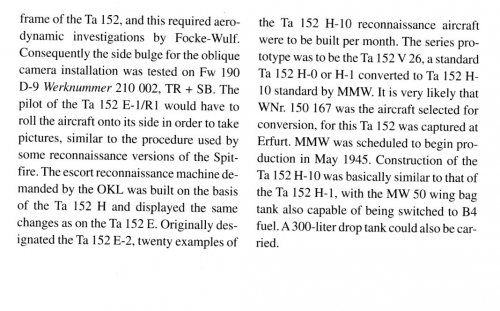

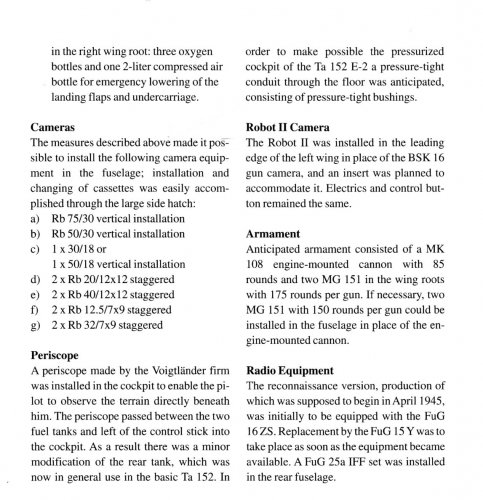

do you have any information about the fw 190 E(reco aircraft with camera)?


galgot

CLEARANCE: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
651
Reaction score
412
Website
galgot.com
I don't understand how that one is supposed to work :


The big "thing" with stub wings is supposed to float on water ? and the 190 to take-off (escape) from it via some rails ?...
How could the all thing (190 + the big stub winged thing) fly with such small wings ?...
