Focke Wulf Fw 190/Ta 152 Projects & Variants

Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
887
Reaction score
26

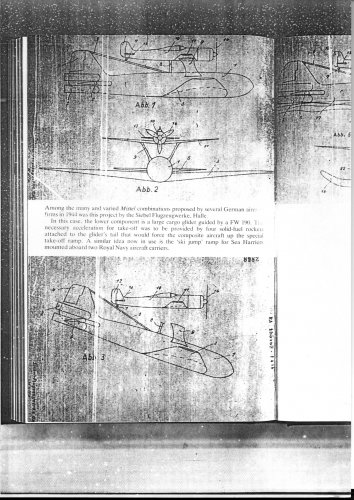

Justo,

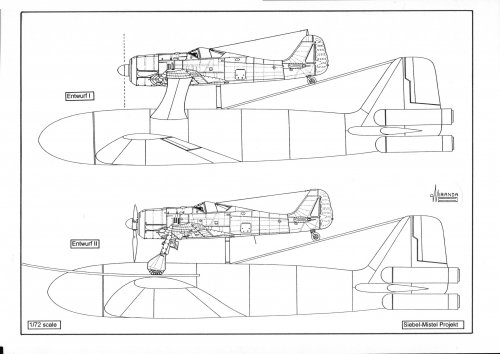

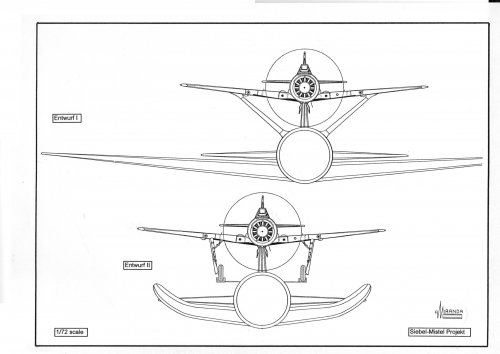

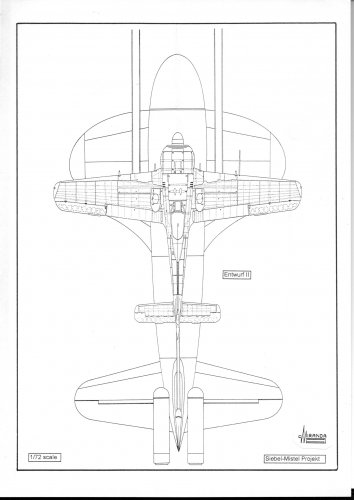

can you please state that source book on the Siebel Mistel?


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
870
Reaction score
272
Wurger said:
Justo,

can you please state that source book on the Siebel Mistel?

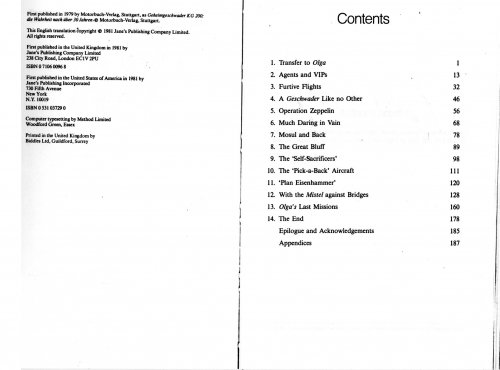

Looks to be KG 200: The True Story by P W Stahl, 1981.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

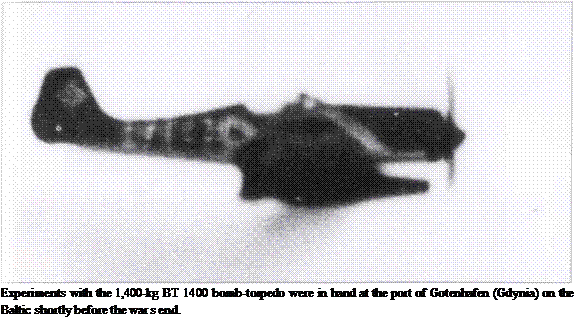

????dora or 190 or fake?

http://ourairports.biz/?p=6679


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

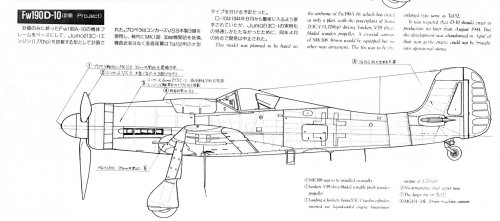

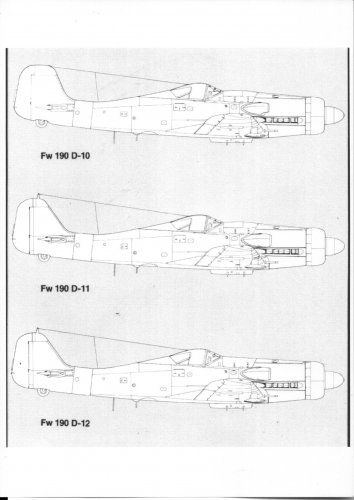

Somebody has information/document/drawing about the focke wulf fw 190 D10 please?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

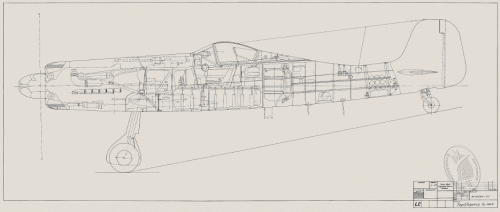

thank justo!The drawing for the D11 need be remake:


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
ta 152 H(Ra 2) with a wing variant:

http://www.germanluftwaffe.com/archiv/Dokumente/ABC/f/FockeWulf/Ta%20152/Focke_Wulf_Ta152_Werkzeichnungen.pdf


galgot

CLEARANCE: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
649
Reaction score
410
Website
galgot.com
I think Fw 190 V30 GH+KT prototype had these rounded wing tips.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

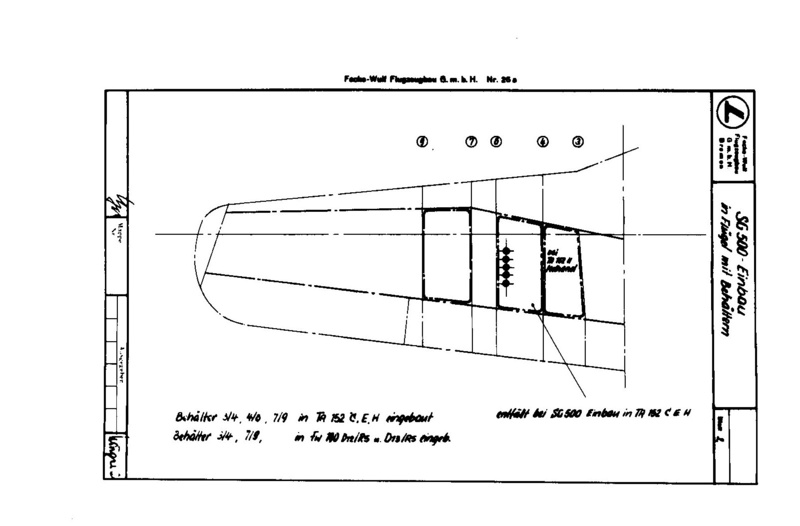

ta 152 and dora with sg 500:

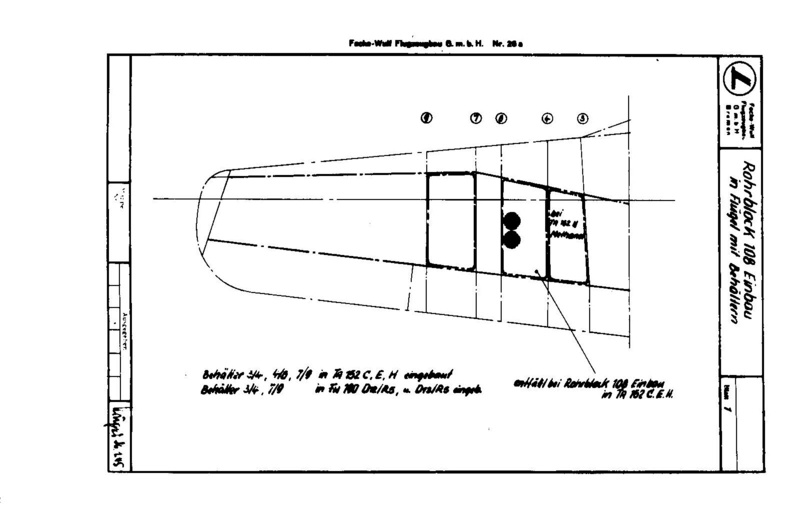

ta 152 and dora with Rohrblock mk 108(?what?)


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
http://www.germanluftwaffe.com/archiv/Dokumente/ABC/s/SG%20Sondergeraete/SG%20Bordflammenwerfer/Bordflammenwerfer.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,290
Reaction score
2,174
sgeorges4 said:

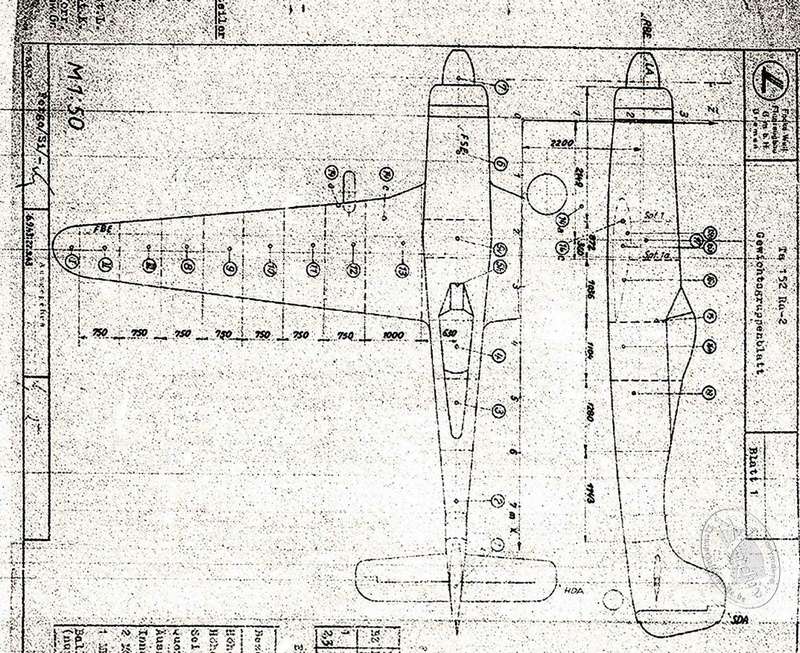

ta 152 H(Ra 2) with a wing variant:

http://www.germanluftwaffe.com/archiv/Dokumente/ABC/f/FockeWulf/Ta%20152/Focke_Wulf_Ta152_Werkzeichnungen.pdf
Hi Sgeorges,

from the same source,the drawing called 01013291-01.


Attachments

sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
615
Reaction score
190
The 190 V-15 was tested with the Messerschmitt P8 reversible pitch propeller.

Unfortunately this DVL report is missing the photos


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,589
Reaction score
475
The DB 603 installed only in
-Fw 190 A-1 (V19) c/n 0042
-Fw 190 C-1 (V20) c/n 0043
-Fw 190 C-1 (V21) c/n 0044


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

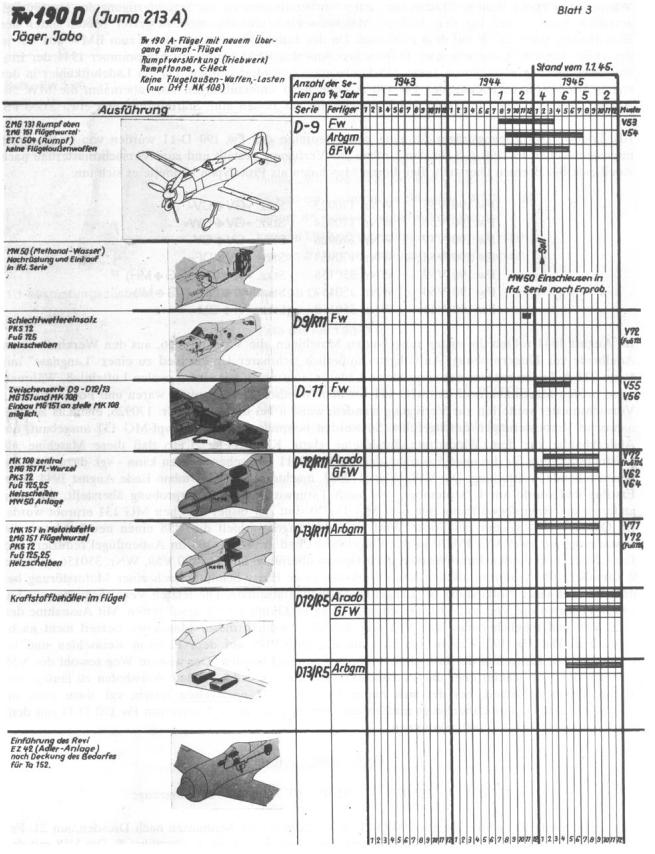

On this document,you can saw that the D9 can be equip with a DB 603


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

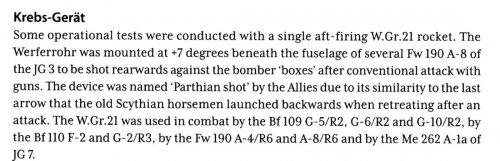

The Krebs-Gerat was intent to fire foward the aircraft at first,but it change with the new tactics( I try to understand my doc at this point):



sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

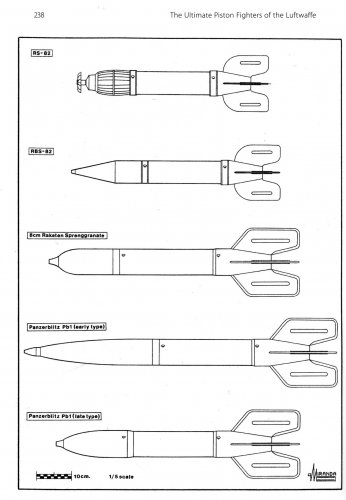

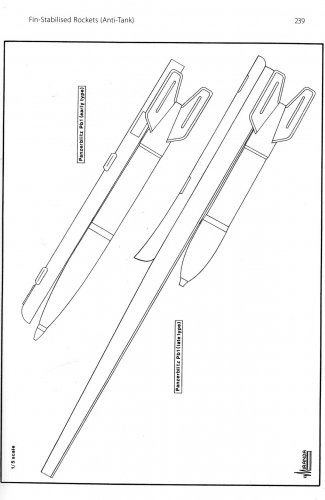

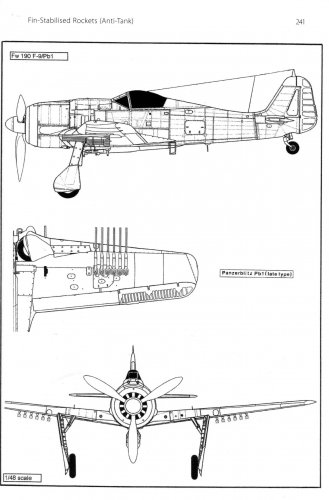

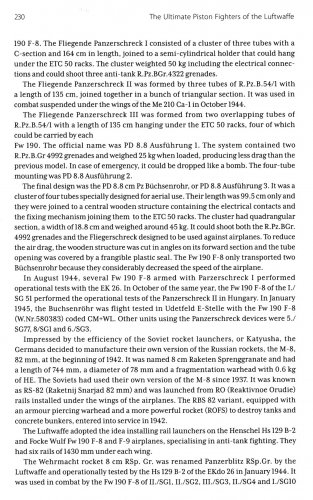

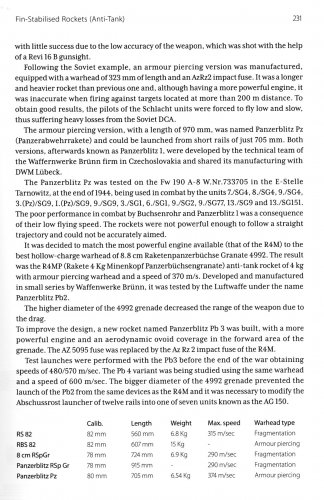

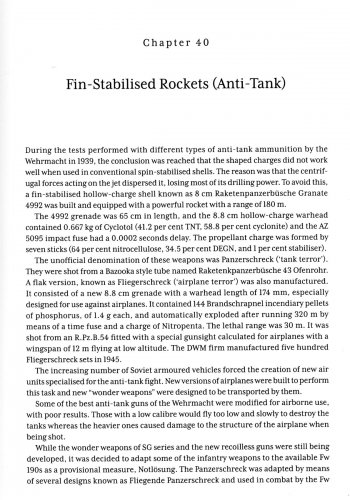

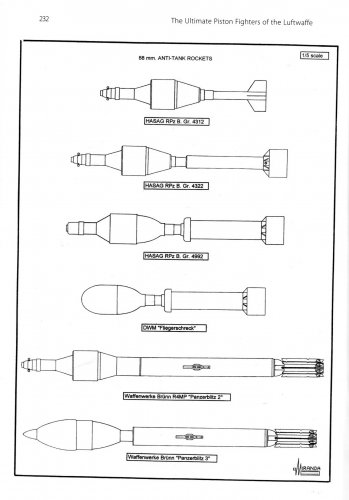

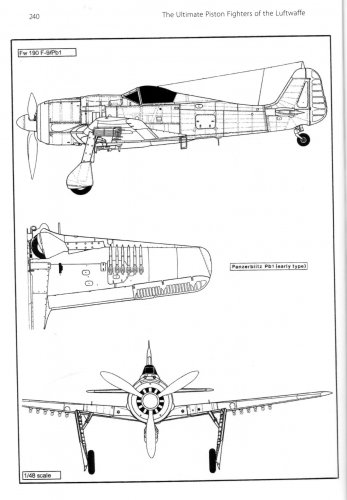

Dated 3 April 1945,Fw 190 Ds and Ta 152s were to be equipped with R4M,Panzerblitz rockets and ETC wing racks

After 10 January , all Eastern front aircraft were to fly Jabo missions including Ta 152 Cs.
http://www.germanluftwaffe.com/archiv/Dokumente/ABC/f/Flakraketen/R4M%20Orkan/Text/Panzerplitz%20Fw%20190/Panzerblitz%20Fw%20190.pdf
http://www.germanluftwaffe.com/archiv/Dokumente/ABC/f/Flakraketen/R4M%20Orkan/Text/R4%20M-Anlage%20Abschussgereat/R4M%20Anlage%20%20Abschussgereat.pdf



sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

Fw 190 D12+Ta 152 with jumo 213 EB.
https://forum.warthunder.com/index.php?/topic/189182-ta-152h-1-and-fw-190d-12-d-13-with-jumo-213eb-engines/


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

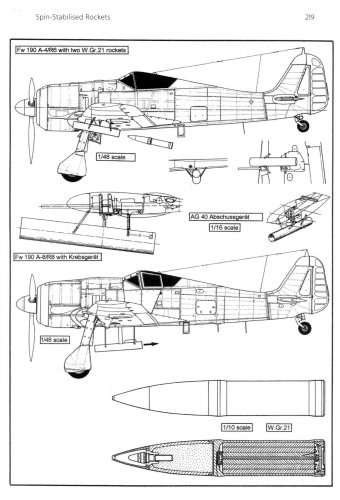

wgr 21 for the ta 152:

http://deutscheluftwaffe.com/archiv/Dokumente/web/new%20site/frames2/Dokumente.htm


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
http://deutscheluftwaffe.com/archiv/Dokumente/ABC/b/Bordwaffen/21%20cm%20Wurfgranate/Text/Gereat%2021%20Fw%20190/Gereat%2021%20Fw%20190.pdf
:p


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
jumo 213 EB on fw 190 D12 and ta 152 H1:
https://forum.warthunder.com/index.php?/topic/189182-ta-152h-1-and-fw-190d-12-d-13-with-jumo-213eb-engines/


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
?

from: https://fr.scribd.com/document/90470676/wgr-21


perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
105
Reaction score
4
sgeorges4 said:

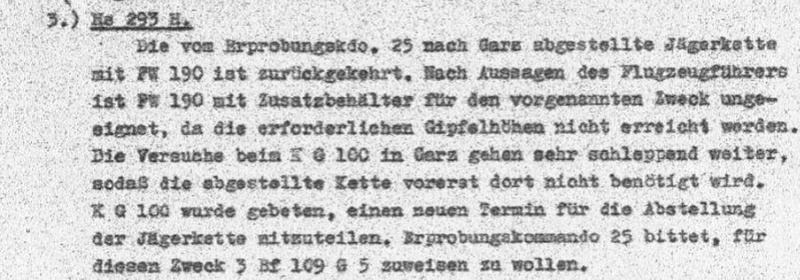

The flight with FW 190 that was seconded to Experimental Detachment 25 at Garz has returned. The pilots say that FW 190 with extra tanks is not suitable for the planned purpose, because the necessary altitudes could not be reached.
Experiments at Kampfgeschwader 100 (KG 100) at Garz are progressing slowly, so the flight is not needed for the time being. KG 100 was asked to provide a new schedule for seconding the flight.
Experimental Detachment 25 requests to be asigned three Bf 109 G5 aircraft for this purpose.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
Some devellopement variant of the dora: The D1 and the D2 who was pressurized


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
A report from the Jerry Crandall book show that the Fw 190 D9 was testing a VS 19 propeller,the Wnr and the Skz of this aircraft are : 210009,TR+SI.
And I found this ,a dorawith 2 panel for the wheel who seems to have been eliminated for the production variant:
https://www.noelshack.com/2018-05-4-1517484287-fw-190-d.png
https://fr.scribd.com/doc/204059830/Ersatzteilliste-FW-190-D-9
(see page 79)


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92

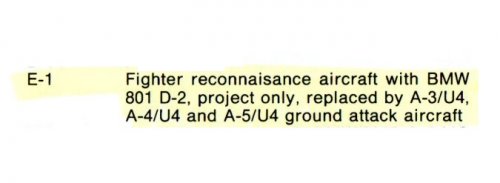

what do you have about the "fw 190 E"?
http://fw190.hobbyvista.com/variants.htm


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,290
Reaction score
2,174
From Aero Journal 35.


Attachments

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
something about the D15 variant,an extract from JaPo publishing:
https://www.japo.eu/preview.php?prod=2


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
92
Did somebody can scan or have this document regarding the ta 152 with jumo 222:

I also found this:
https://ww2aircraft.net/forum/threads/ta-152.1330/
https://forum.warthunder.com/index.php?/topic/189182-ta-152h-1-and-fw-190d-12-d-13-with-jumo-213eb-engines/&
