Russian and Soviet Aircraft Carriers

blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,687
Reaction score
15

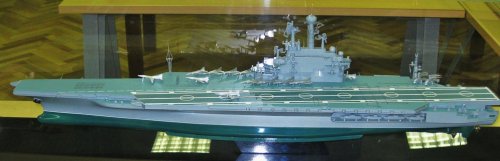

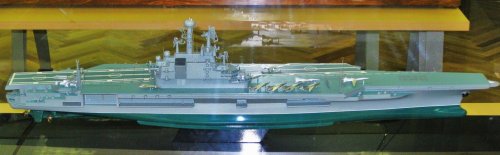

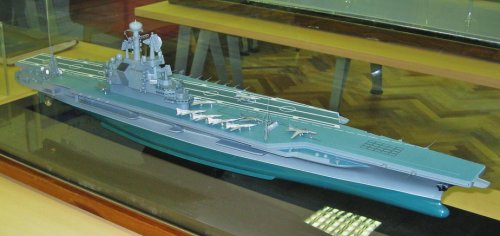

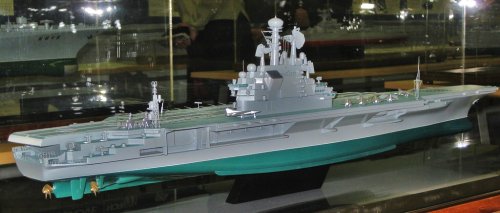

My Carrier4 picture is actually of the cruiser model, not the carrier, but I'll leave it there. One thing is missing from the video is a good panning shot of the entire model.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,034
Reaction score
205
Triton said:
Frame grabs of the Russian cruiser concept shown earlier in the video. I'm certain we had a topic devoted to a Russian Federation Kirov-class battlecruiser replacement program, but for the life of me, I can't seem to find it.
Good work! I took the liberty of cross-posting your screenshots for you.


JohnR

CLEARANCE: Secret
Joined
Sep 8, 2006
Messages
353
Reaction score
3
Any details re the power plant, are they going for the QE and PoW under the islands solution?


Moose

CLEARANCE: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,078
Reaction score
52

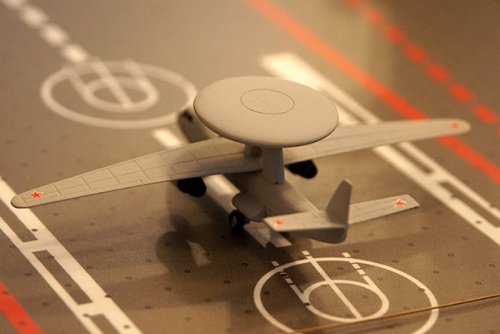

The E-2Dski model is cute, but so far we've not seen much indication of a real CV AEWC program.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,559
Reaction score
26
Moose said:
The E-2Dski model is cute, but so far we've not seen much indication of a real CV AEWC program.

It was a going project in the 1980s. The Yak-44


http://www.secretprojects.co.uk/forum/index.php/topic,2290.0.html


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
9,165
Reaction score
237
http://nextbigfuture.com/2015/02/russia-developing-new-aircraft-carrier.html


JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,220
Reaction score
100
They are certainly interested in bigger ships, apparently the Sevmash basin will be enlarged at some point. Though I still can't see something of this scale ever actually being built in Russia.


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
268
Reaction score
12
One of the smartest concepts in naval aircraft carriers, was the skyjump deck,since all russian naval aircraft fighters tend to be big,they are already thinking on a navalised t-50,the future russian carrier design will most likely to retain this feature.


regards


pedro


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
221
Website
deeptowild.blogspot.com
Not sure why we have a topic about this project in "The Bar" considering that we have photographs of a model of this aircraft carrier concept taken at Krylov State Research Centre:

"Russian and Soviet Aircraft Carrier Concepts"
http://www.secretprojects.co.uk/forum/index.php/topic,1948.msg241866.html#msg241866



fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,552
Reaction score
99
Triton said:
Magazine illustration of the aircraft carrier concept?

Source:
http://sandrermakoff.livejournal.com/372282.html
If that is a ski ramp on the angled deck, how do they do a "bolter"? How fast can you take a vertical ramp before your gear collapses?


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,687
Reaction score
15
pedrospe said:
One of the smartest concepts in naval aircraft carriers, was the skyjump deck,since all russian naval aircraft fighters tend to be big,they are already thinking on a navalised t-50,the future russian carrier design will most likely to retain this feature.
Dunno if I would call it "one of the smartest" because there are other major developments that were more important, starting with the angled deck.

But can a ski jump be used with a catapult? The ski jump is a compromise, and it comes at a cost of performance. It limits the range and payload of aircraft that can be launched.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,348
Reaction score
436
blackstar said:
But can a ski jump be used with a catapult? The ski jump is a compromise, and it comes at a cost of performance. It limits the range and payload of aircraft that can be launched.
If you have a catapult you don't need the ski jump.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,027
Reaction score
223
blackstar said:
...The ski jump is a compromise, and it comes at a cost of performance. It limits the range and payload of aircraft that can be launched.
Not sure where it was stated, I think in Robert Jacksons book about the Sea Harrier: An advantage of the
ski jump is, that aircraft are launched in a steeper upward trajectory, useful in very heavy seas, that may
limit carriers with catapults, because the launched aircraft would hit the waves.


JohnR

CLEARANCE: Secret
Joined
Sep 8, 2006
Messages
353
Reaction score
3
Somewhere in the recesses of my mind, I recall an article that stated that during the Falklands the Ski Jump allowed the Harriers; with the upward trajectory imparted on them, to be operated in much worse sea conditions than would have been possible with a US carrier. I would be very interested to hear how you gents would regard this.

Regards.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,559
Reaction score
26
fredymac said:
If that is a ski ramp on the angled deck, how do they do a "bolter"?
It actually helps with a bolter. If you miss the wire or the wire/hook breaks the ski jump at the end of the landing deck gives the bolting aircraft an additional boost of altitude. This can be quite important if you have been slowed down a bit by the gear before a failure or if your aircraft has lost an engine. Also in the case of a failure in which the aircraft has been slowed right down but not to a stop the ramp will likely stop you from going over the edge of a deck and into the water.

fredymac said:
How fast can you take a vertical ramp before your gear collapses?
You obviously don’t fit a ramp to your ship if the jump incline is too steep for the gear to survive at landing speeds. This is likely not to be a problem as the gear on naval CTOL and V/STOL aircraft are designed to survive the very strong forces of high sink rates at landing.

blackstar said:
But can a ski jump be used with a catapult?
Yes it can. As long as the means of attaching the aircraft to the catapult is compatible. The old method of using wire strops that are flung off the end (or caught by bow horns) is not compatible as it will collide with the ramp and aircraft. But fixed attachment points like the USN’s standard nose gear set up will have no problem as long as the jump incline isn't so steep it will plough into the ramp.

blackstar said:
The ski jump is a compromise, and it comes at a cost of performance. It limits the range and payload of aircraft that can be launched.
No the ski jump isn’t a compromise. It is for ships that can’t have catapults. In which case it’s much better than just a flat deck. I don’t think anyone choses ski jumps over catapults. But if you can’t build the later the ski jump is a free gift of altitude to the launching aircraft and slight cost to the ship.

sferrin said:
If you have a catapult you don't need the ski jump.
You can have both. An aircraft with the added velocity of a catapult and the added altitude of a ski jump can take-off with more weight and/or less engine power than one without one (or two) of these boosts.

Jemiba said:
Not sure where it was stated, I think in Robert Jacksons book about the Sea Harrier: An advantage of the ski jump is, that aircraft are launched in a steeper upward trajectory, useful in very heavy seas, that may limit carriers with catapults, because the launched aircraft would hit the waves.
No this is not true. If the ship is in waves that are coming over the bow no one is launching aircraft. And in a pitching ship without a ski jump the crew just wait until the ship is pitched up to launch the aircraft. It can actually help the launch dynamics but of course make it far harder to land.

JohnR said:
Somewhere in the recesses of my mind, I recall an article that stated that during the Falklands the Ski Jump allowed the Harriers; with the upward trajectory imparted on them, to be operated in much worse sea conditions than would have been possible with a US carrier. I would be very interested to hear how you gents would regard this.
This isn’t true. The advantage of the Sea Harrier in heavy seas was they could land much easier on pitching decks. Because the aircraft could land straight down in the centre of the deck and not suffer from the deck pitch at the rear of the flight deck.

The ski jump works like every other ramp. A simple machine that provides horizontal acceleration at little cost.


ouroboros

CLEARANCE: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
0
EMALS catapults in theory could follow the curve of a ski jump to the end, as curved linear motor track is not new engineering. I suppose in theory a steam catapult could too (it is basically a slotted cylinder with a riding piston), but that's a lot harder compared to EMALS.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,559
Reaction score
26
ouroboros said:
EMALS catapults in theory could follow the curve of a ski jump to the end, as curved linear motor track is not new engineering. I suppose in theory a steam catapult could too (it is basically a slotted cylinder with a riding piston), but that's a lot harder compared to EMALS.

I was assuming the catapult track would end before the incline of the ski jump starts. The aircraft would hit the ramp with a velocity thanks to the impulse of the catapult. Which would be much higher than if it was just reliant on the acceleration provided by its own thrust.


starviking

CLEARANCE: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
955
Reaction score
22
And an Alaskan Taxiway to the right of the island. Some CVA-01 inspiration?


Thorvic

CLEARANCE: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
601
Reaction score
10
starviking said:
And an Alaskan Taxiway to the right of the island. Some CVA-01 inspiration?
Look at the Island, look at the layout, very much a CVA-01 angled deck inspired design


JohnR

CLEARANCE: Secret
Joined
Sep 8, 2006
Messages
353
Reaction score
3
Appears to even have the three shaft machinery. Any specs available on it?

Also seems to be an appropriate point to ask a somewhat related question. Why do Soviet/Russian carriers always have such massive islands?

Regards.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
Isn't it some variation on the "Soviet Microchips are the BIGGEST microchips in the WORLD" joke?


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,348
Reaction score
436
JohnR said:
Appears to even have the three shaft machinery. Any specs available on it?

Also seems to be an appropriate point to ask a somewhat related question. Why do Soviet/Russian carriers always have such massive islands?

Regards.
At least they only have one. ;)


XP67_Moonbat

CLEARANCE: Top Secret
Joined
Jan 16, 2008
Messages
2,154
Reaction score
13
A writeup on Ulyanovsk.

https://medium.com/war-is-boring/the-ulyanovsk-would-have-been-the-soviet-titan-of-the-seas-ecce3a390d97


lancer21

CLEARANCE: Secret
Joined
Jan 9, 2010
Messages
296
Reaction score
6
stashandr said:
Project 1153 is 1977 year design.

You forget light aircraft carrier (1968) - nuclear or conventionally powered, 50000 t, 280x60 m, 38 aircrafts (attached).
Good day gentlemen,

Having dwelled into the fascinating world of soviet/russian carrier projects, i realize the above depiction is of a half-real half-fictious CV, i can see what looks like speculative MiG-21/Su-17 based carrier aircraft, but what about the twin engined aircraft with foldable straight wings (parked on the fantail f.e.), is it completely fictious or it has some basis in a real project, and if that's so, anyone knows who designed it and what is it called? Many thanks for any input.

Oh and i'd just like to add that Gollevainen's work on the subject (soviet/russian carriers and artwork) is fantastic.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,372
Reaction score
50
but what about the twin engined aircraft with foldable straight wings (parked on the fantail f.e.), is it completely fictious or it has some basis in a real project, and if that's so, anyone knows who designed it and what is it called?

KOR-70 (Kor.SVVP-70) shipboard multi purpose VTOL aircraft. 1969 V. Korchagin was a Bartini OKB engineer.

Source: Unflown Wings by Gordon and komissarov pg 502


gollevainen

CLEARANCE: Confidential
Joined
May 2, 2007
Messages
67
Reaction score
0

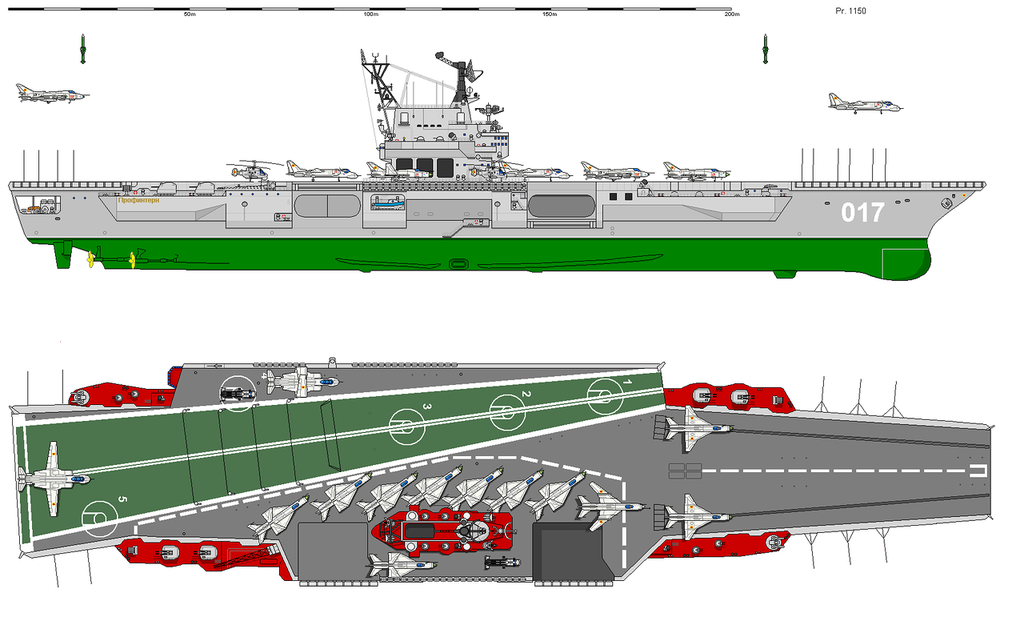

Thats an old drawing of mine for a alternative universum project I was doing back in the days. It's based on the so called AVL project, a real but little known carrier project dating back to later 60's. All the system fit and armaments are mostly purely fictional in that drawing. Also as for the aircrafts, those are again fictional carrier versions based on Su-11 and Su-17 series and the twin engined aircraft is a fictional AEW/ASW aircraft based on the Korchagin KOR-70 VSTOL aircraft.

Due the sudden new burst of reference material regarding the soviet carriers, I most likely will return to them once again in later this year and I will do a new version (to its proper real life never-where suite) of AVL as well.


lancer21

CLEARANCE: Secret
Joined
Jan 9, 2010
Messages
296
Reaction score
6
Thank you gents for your practically instantaneous help, and looking very much forward to your future work Gollevainen. :)


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,164
Reaction score
155
Re: Future Russian aircraft carrier

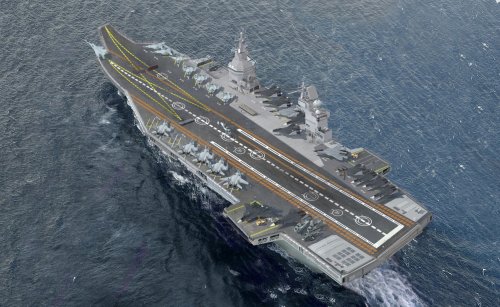

Russia developing Shtorm supercarrier


Nikolai Novichkov, Moscow - IHS Jane's Defence WeeklyRussia's Krylovsky State Research Center (KRSC) has developed a new multipurpose heavy aircraft carrier design called Project 23000E or Shtorm (Storm).

The model features a split air wing comprising navalised T-50 PAKFAs and MiG-29Ks, as well as jet-powered naval early warning aircraft and Ka-27 naval helicopters.

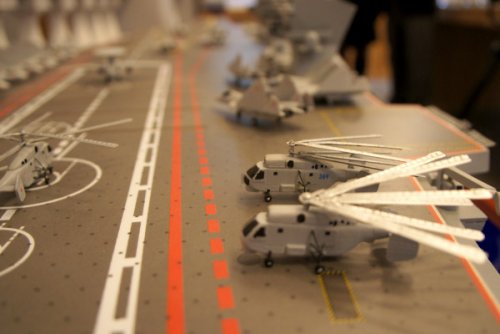

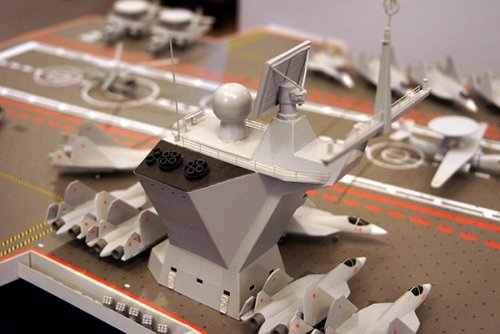

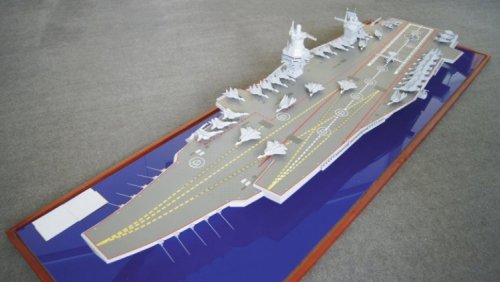

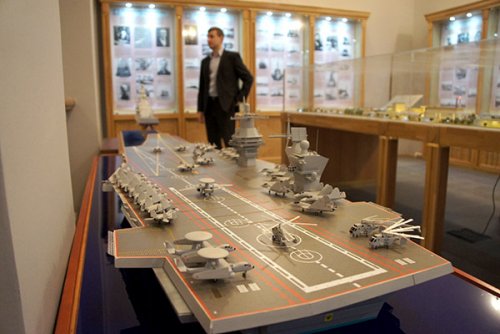

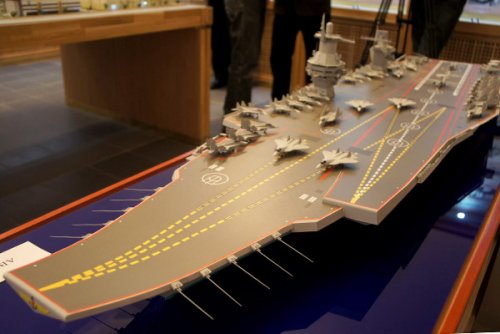

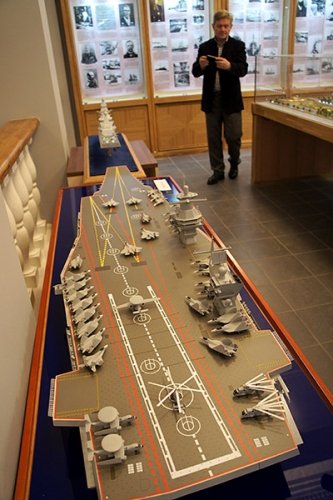

A scale model of the ship is going to be demonstrated for the first time at the International Maritime Defence Show 2015 in St Petersburg from 1-5 July, Valery Polyakov, the deputy director of KSC, told IHS Jane's .
"The Project 23000E multipurpose aircraft carrier is designed to conduct operations in remote and oceanic areas, engage land-based and sea-borne enemy targets, ensure the operational stability of naval forces, protect landing troops, and provide the anti-aircraft defence," Polyakov said.
The design has a displacement of 90-100,000 tons, is 330 m in length, 40 m wide, and has a draft of 11 m. It has a top speed of 30 kt, cruising speed of 20 kt, a 120-day endurance, a crew of 4-5,000, and designed to withstand sea state 6-7. Currently it has been designed with a conventional power plant, although this could be replaced by a nuclear one, according to potential customers' requirements.
The ship carries a powerful air group of 80-90 deck-based aircraft for various combat missions. The model features a split air wing comprising navalised T-50 PAKFAs and MiG-29Ks, as well as jet-powered naval early warning aircraft, and Ka-27 naval helicopters.
The carrier's flight deck is of a dual design, features an angled flight deck, and four launching positions: two via ski-jump ramps and two via electromagnetic catapults. One set of arrestor gear is included in the design. The design also features two islands; a feature only previously seen on the latest UK design.
Protection against air threats will be provided by four anti-aircraft missile system combat modules. An anti-torpedo armament suite is available.
The electronic support complex includes integrated sensors, including a multifunction phased array radar, electronic warfare system, and communications suite.
Polyakov pointed out that these specifications are subject to change, correction, and modification during the ship's design and development at every stage of work, once potential customers come up with a demand to change the weapons package and equipment.
[...]
Source: http://www.janes.com/article/51452/russia-developing-shtorm-supercarrier


Attachments

bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
9,165
Reaction score
237
http://www.janes.com/article/51452/russia-developing-shtorm-supercarrier?utm_campaign=%5bPMP%5d_PC5308_J360%2015.05.2015_KV_Deployment&utm_medium=email&utm_source=Eloqua

Storm Supercarrier


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,348
Reaction score
436
Re: Future Russian aircraft carrier

They can't even build their own Mistral analog and they think they're going to turn out one of these anytime soon? ???


Bgray

I really should change my personal text
Joined
Feb 2, 2012
Messages
69
Reaction score
4
Re: Future Russian aircraft carrier

sferrin said:
They can't even build their own Mistral analog and they think they're going to turn out one of these anytime soon? ???
And to be honest, a Mistral analog would be better than a single big CV. The Russian's don't have the logistics network to support long range deployments and they can't beat the USN (at all). A ship like a mistral, say with knock off Harriers or even just helicopters is a lot more useful in the day to day term than a single super carrier would be.
