Messerschmitt Bf/Me 109 - Blohm & Voss Bv 155 Projects & Prototypes

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
684
Reaction score
339
Hood said:
But I wonder if this was the reason why the F-models dispensed with the wing cannon? It seems odd that if the same shockwave issue occurred with the MG FF that the fences were not looked into again.

A few Fs were tested with wing MGFFs at Estelle, but I have no idea why the idea wasnt proceeded with. Seems like a no brainer.


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,096
Reaction score
1,417
Website
galgot.com
Galland flew a modified F with MG FFs in wings.
(And another one with MG 131 (?) in cowling, that before the Gustav).


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,176
Reaction score
856
Website
beyondthesprues.com

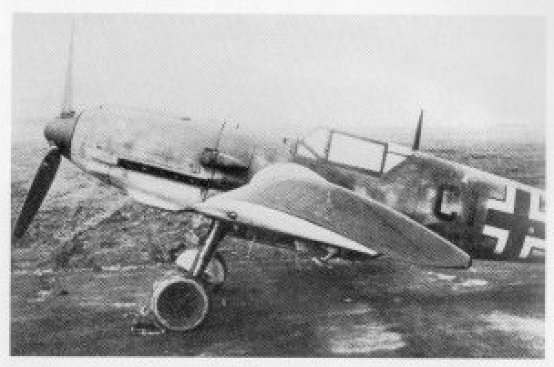

I believe these show what you are referring to:



attachment.php


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
684
Reaction score
339
From 109 F-K Radinger and Schick


Attachments

  • 109f mgff wings +IH.jpg
    109f mgff wings +IH.jpg
    196.9 KB · Views: 778

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
Any original drawing of the bf 109 S? I can't find the topic with those drawing,and I just want to know for wich version the wing was assigned(the F or the E?).


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,072
Reaction score
743
sgeorges4 said:
Any original drawing of the bf 109 S? I can't find the topic with those drawing,and I just want to know for wich version the wing was assigned(the F or the E?).

According to an A.I.2(g) report of December 1944 by G E F Proctor, under 'mainplanes': "The wing is very similar in construction to that employed on the Me 109 G-6 but has the following modifications:
(a) The fitting of an air duct between the main spar and the subsidiary spar to which the flaps and ailerons are attached.
(b) Wing flaps extending to root end of wing.
(c) Leading-edge slat throughout the complete span.
The air discharge is directed above the leading-edges of the ailerons and flaps, the width of the discharge slot being found by trial and error. Four widths of slot are available. The air ducts in the wing preclude the use of the normal coolant radiators and an evaporative cooling system has been evolved."


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,904
Reaction score
800
I only know of one site with drawings. http://www.oocities.org/heartland/village/4082/int_air/bv155-1.htm


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,072
Reaction score
743
sgeorges4 said:
Any official drawing regarding the me 155?

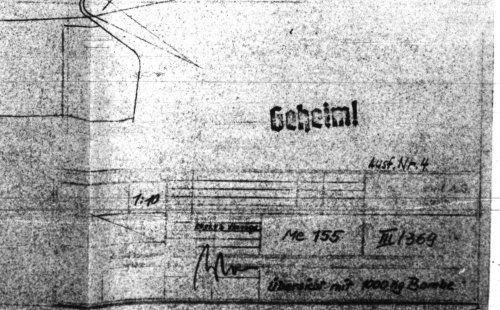

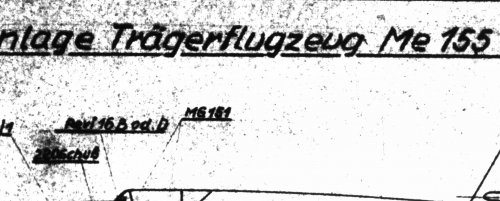

Official drawings of the Me 155 are pretty few and far between. I've only got a couple and the aircraft they depict doesn't look much like the postwar re-draws seen elsewhere. I should also add that, from what I can tell, the Me 155 from 1942 did not evolve into the BV 155. The Me 155 from 1942 was scrapped in all but name and that name was then applied to the P 1091 of 1943 - a new three-stage development as seen elsewhere. Messerschmitt then handed the P 1091 (a mixture of Me 109, Me 209 and new components) over to Blohm & Voss as the 'Me 155' and they completely re-drew it to become something else again.


Attachments

  • Me 155 1.jpg
    Me 155 1.jpg
    573.7 KB · Views: 581
  • Me 155 2.jpg
    Me 155 2.jpg
    3.4 MB · Views: 539

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
684
Reaction score
339
Was the wing of the 155 like the redraws? Mid virtually straight spar with evenly tapered planform?

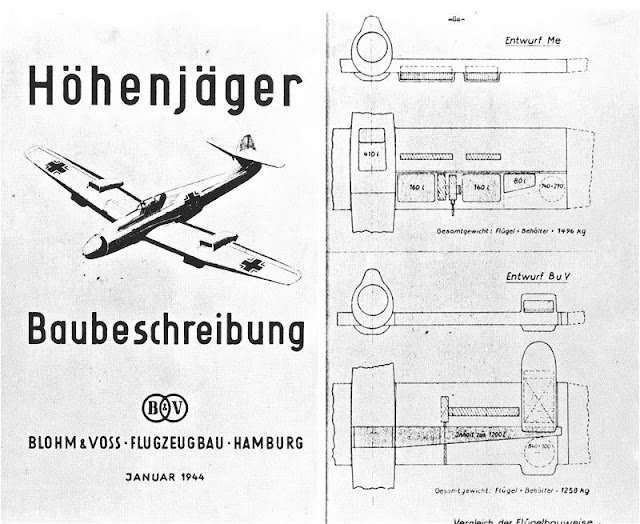

Blohm was really unhappy with the 1091 they were given. A key issue they identified was the spar location, which made the wing torsionally weak. Improving that was precluded as the landing gear meant a torsion box could not be built ahead of the spar, and the radiators in the trailing edge meant that the same could not be done aft of the spar either. They also identified problems with the fuselage and turbo installation, choosing to go for a tubular fuselage structure as this was much easier to design and rework when changes to the turbo occurred.


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,072
Reaction score
743
sienar said:
Was the wing of the 155 like the redraws? Mid virtually straight spar with evenly tapered planform?

Blohm was really unhappy with the 1091 they were given. A key issue they identified was the spar location, which made the wing torsionally weak. Improving that was precluded as the landing gear meant a torsion box could not be built ahead of the spar, and the radiators in the trailing edge meant that the same could not be done aft of the spar either. They also identified problems with the fuselage and turbo installation, choosing to go for a tubular fuselage structure as this was much easier to design and rework when changes to the turbo occurred.

Both versions I have simply refer to the aircraft as the 'Me 155' even though one has shorter wings and one longer. The longer wing example has no top view, so I can't tell what the shape was like. The short wing version does have a mid virtually straight spar with evenly tapered planform.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
can you show the entire drawing of the fuselage or you just got a part of it?
(I want to do a model of this one)


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181

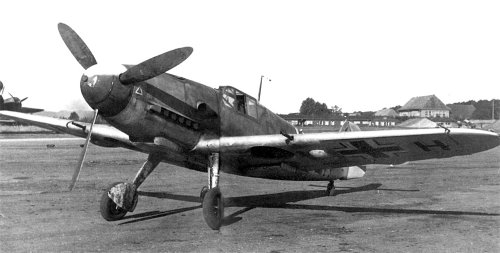

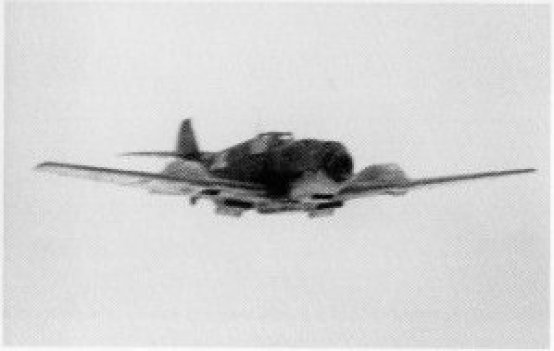

I found this one on Asisbiz:
Messerschmitt-Bf-109G4-Erla-flown-by-Karl-Hannes-during-high-altitude-testing-Deurne-Belgium-Mar-1943-01.jpg

Messerschmitt-Bf-109G4-Erla-flown-by-Karl-Hannes-during-high-altitude-testing-Deurne-Belgium-Mar-1943-02.jpg

https://www.asisbiz.com/il2/Bf-109G/Messerschmitt-Bf-109G.html


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181

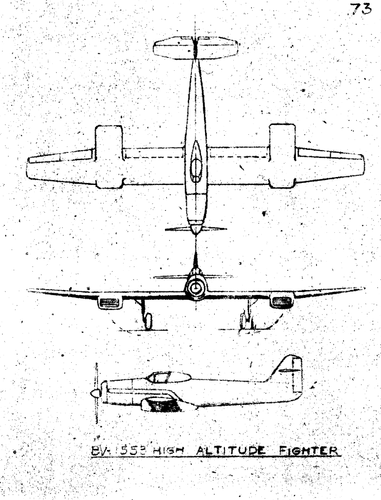

Is this deisgn the blohm und voss 155 A?

The source is here: http://fighters.forumactif.com/t80349p500-luftwaffe-46-et-autres-projets-de-l-axe-a-toutes-les-echellesbf-109-g10-erla-luft46


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,072
Reaction score
743
sgeorges4 said:
Is this deisgn the blohm und voss 155 A?

The source is here: http://fighters.forumactif.com/t80349p500-luftwaffe-46-et-autres-projets-de-l-axe-a-toutes-les-echellesbf-109-g10-erla-luft46

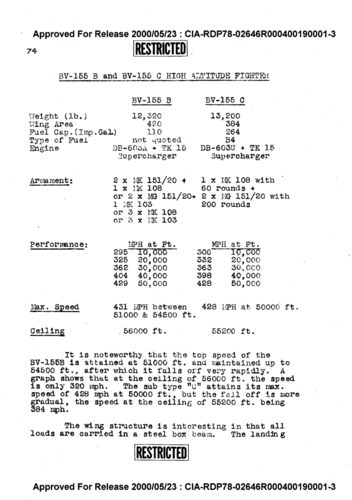

No. That's the BV 155 B. As far as is known, there never was a BV 155 A. It went straight from being the Me 155 B to being the BV 155 B.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
what the me 109 ST look like? Do you have a characterisitic description off this aircraft?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181

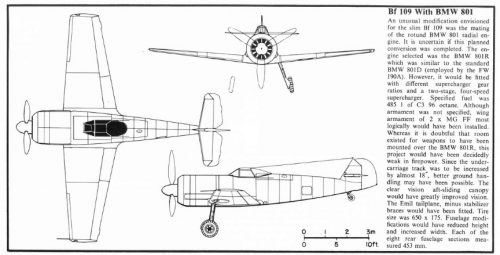

DB 627 on a O-nine?
http://me109.airwar1946.nl/family/me209.htm


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
Something about the 109 H:
http://forum.12oclockhigh.net/showthread.php?t=13823


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574

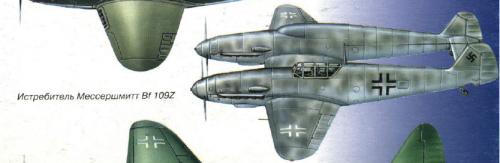

From Авиация и Космонавтика - Выпуск 45 от 1999


Attachments

  • 1.png
    414.2 KB · Views: 626

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
684
Reaction score
339

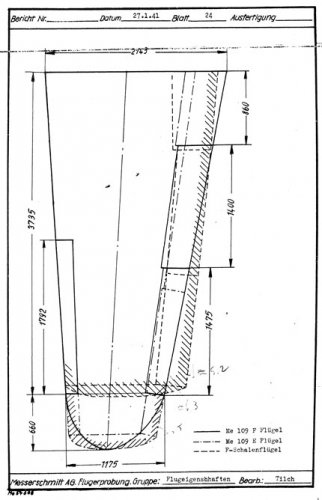

somewhat related


Attachments

  • bf109f proto wing.jpg
    bf109f proto wing.jpg
    49.7 KB · Views: 195

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574

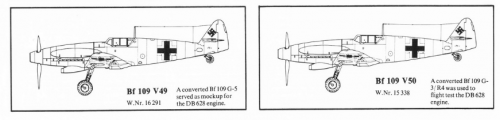

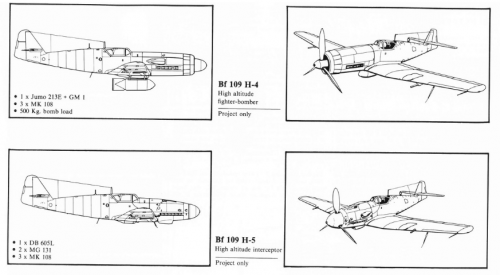

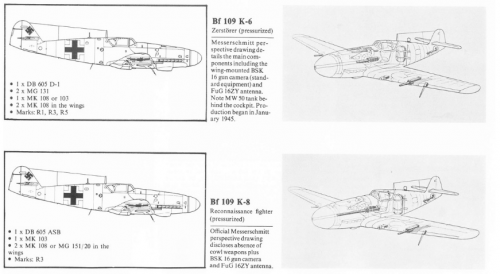

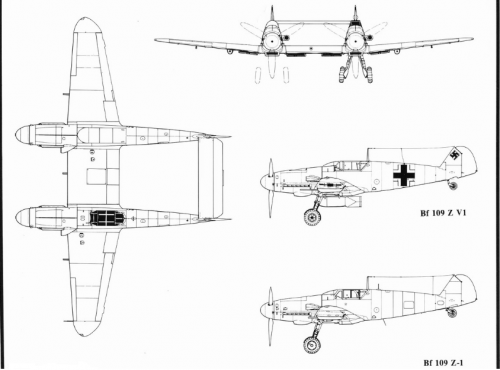

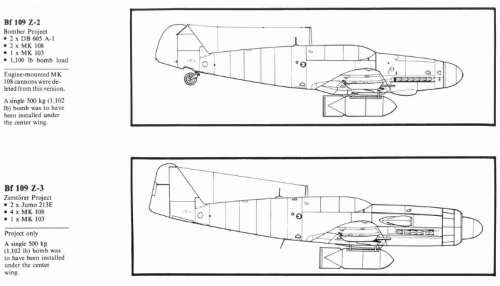

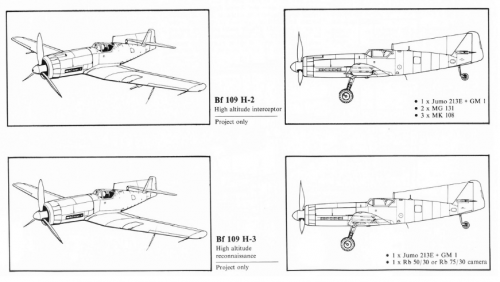

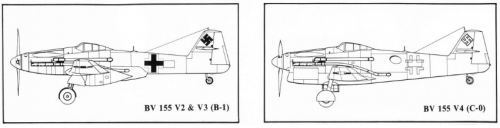

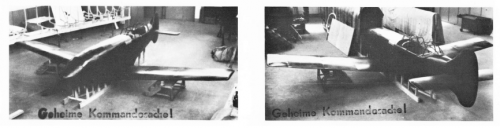

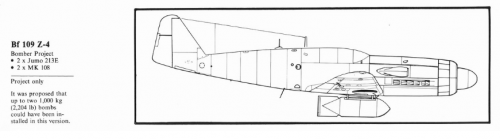

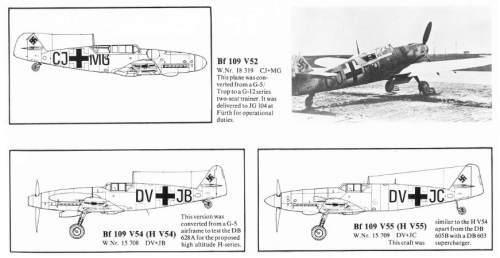

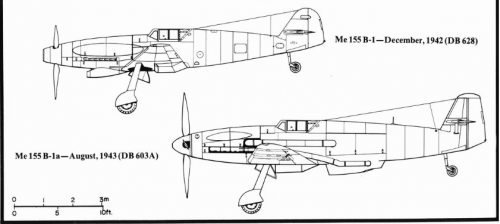

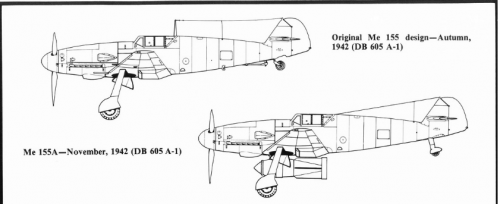

From; Messerschmitt "0-Nine" Gallery",

some Projects and Prototypes.


Attachments

  • 7.png
    156.4 KB · Views: 208
  • 8.png
    77.5 KB · Views: 186
  • 9.png
    105.2 KB · Views: 183
  • 10.png
    213.7 KB · Views: 188
  • 6.png
    165.6 KB · Views: 197
  • 5.png
    200.1 KB · Views: 188
  • 4.png
    220.5 KB · Views: 186
  • 3.png
    237.3 KB · Views: 178
  • 2.png
    277.4 KB · Views: 180
  • 1.png
    96.2 KB · Views: 176

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574

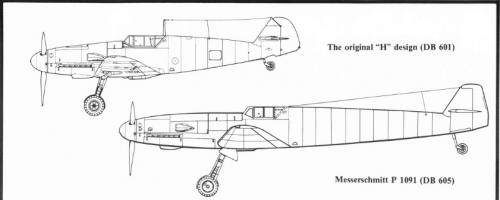

And;


Attachments

  • 16.png
    96.6 KB · Views: 207
  • 15.png
    122.3 KB · Views: 196
  • 14.png
    108.5 KB · Views: 211
  • 13.png
    129.8 KB · Views: 223
  • 12.png
    123.1 KB · Views: 229
  • 11.png
    182.9 KB · Views: 218

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181

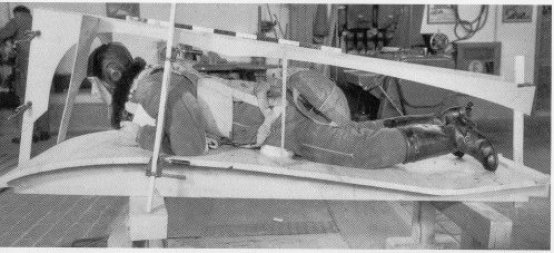

attachment.php

just found this:
http://forum.12oclockhigh.net/showthread.php?t=53013
Now,do you have any original drawing of the bf 109 K prototype/mock up design(with a diferent cowling[not a "erla" one])?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
any drawing or original document regarding the bf 109 K1/K2/K3 ,and concept for the bf 109 K?

thanks for your answer.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
684
Reaction score
339

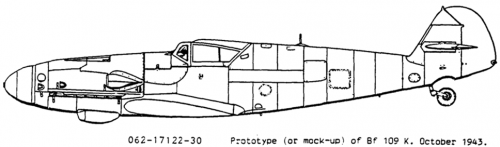

Messerschmitt Bf109 G-1 through K-4 Engines and Fitting, Jean-Claude Mermet


Attachments

  • 109k mockup.png
    109k mockup.png
    77.3 KB · Views: 422

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
Thanks,I'll do that one withe new bf 109 G10 from eduard and do someone has historical document regarding the bf 109 K14 or is it what if?
http://www.azmodel.cz/2018/10/bf-109k-14/


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
any official drawing regarding the me 155+DB 628? Was the wing form different beside of the span being different between the different variant?


robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
98
Reaction score
72

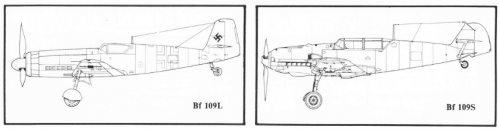

whether there is data on the Me/bf 109A, 109S, 109V models

thank you


Fear_ze_Lemon

ACCESS: Restricted
Joined
Jun 21, 2019
Messages
3
Reaction score
0
Hi,
Can anyone give me some good and reliable sources like books, documents or book titles about Me 155 later to be Bv 155. I've got Warplanes of the Third Reich in which there are some information but nit that many so i'm trying to find out some more about this fascinating aircraft. Thanks for all the help in advance.
