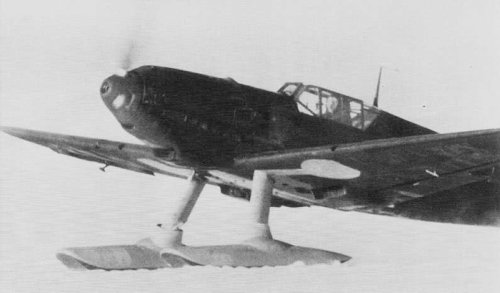

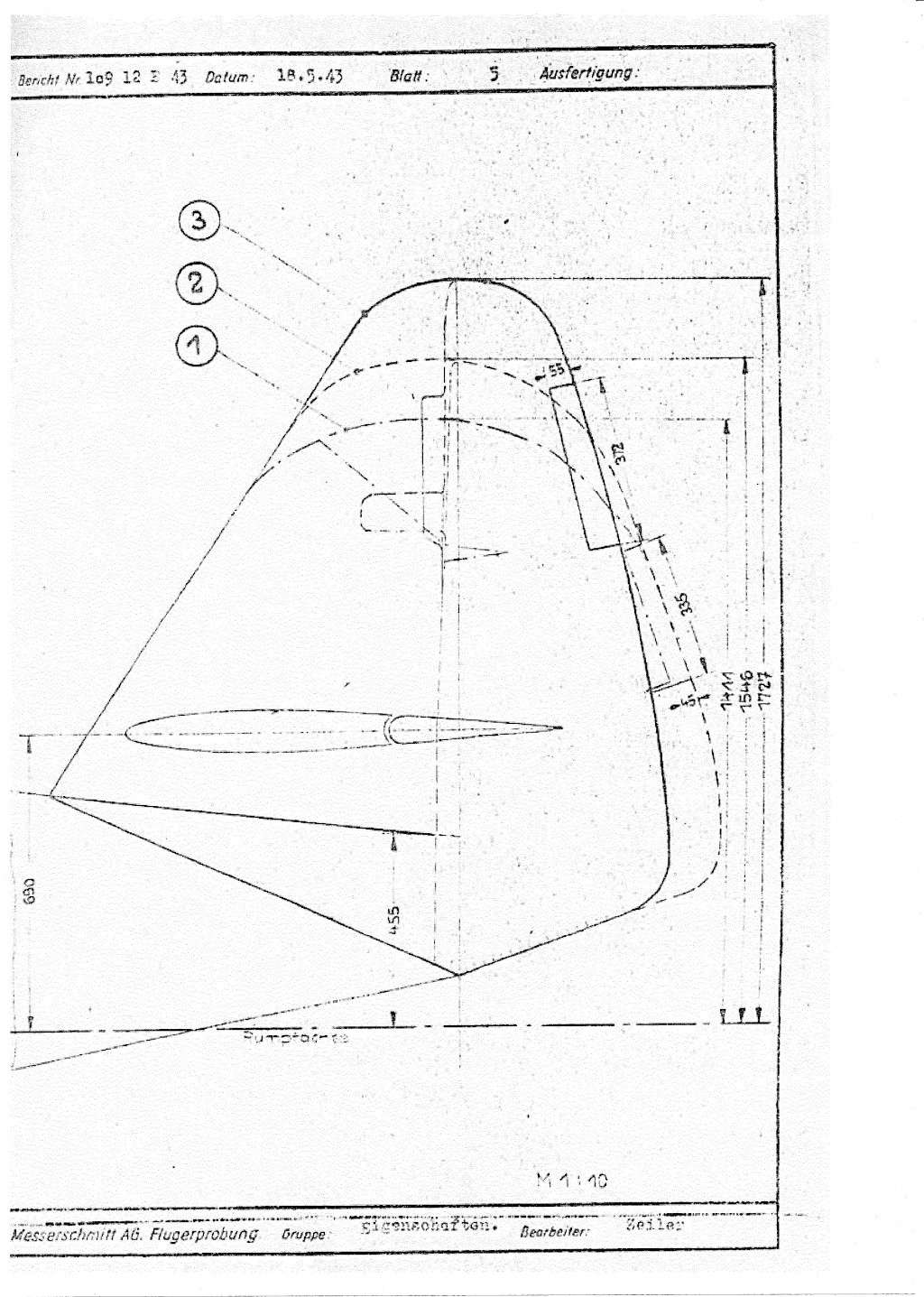

Messerschmitt Bf/Me 109 - Blohm & Voss Bv 155 Projects & Prototypes

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
17

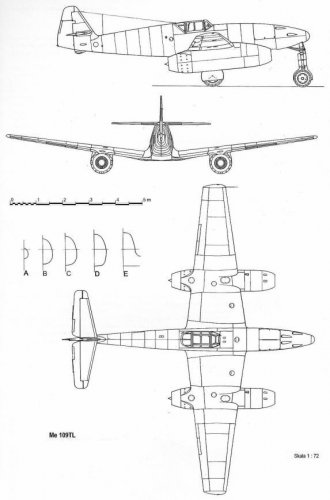

Yep, cool one


Attachments

  • me109tl1.jpg
    44.7 KB · Views: 201
  • me109tl2.jpg
    41.4 KB · Views: 209
  • 109TL_01.jpg
    146.3 KB · Views: 208

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,766
Reaction score
3,401
Hi!

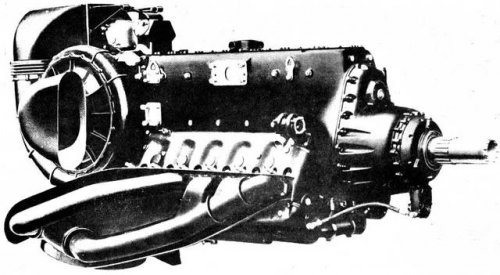

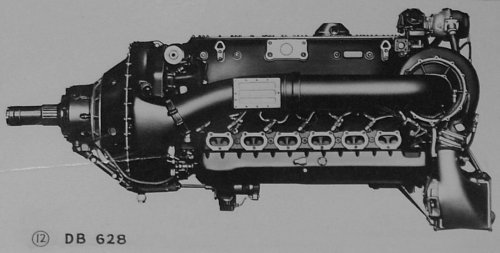

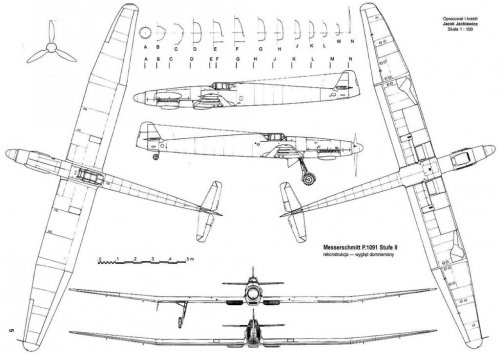

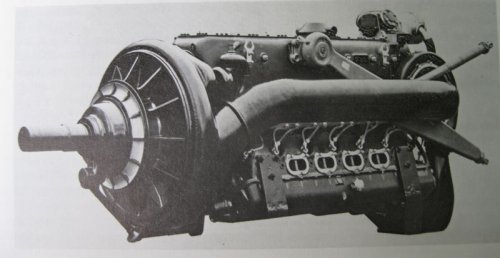

Me109/209/p.1091 stufe Ⅱ with DB628 engine.
DB628 had two stage supercharger. Low presssure(the first stage) supercharger was located behind the propeller and high pressure(the second stage) supercharger was located rear side of the engine. You can see a aftercooler rear bottom of the engine.
Also you can see the cover for piping between Low pressure supercharger and high pressure supercharger in these aircraft side view drawing.

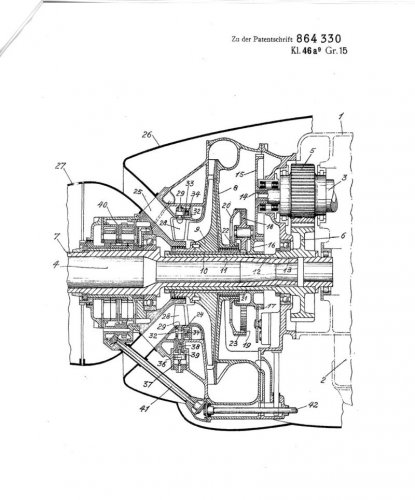

Last drawing shows low pressure supercharger drive mechanism patent drawing.
Development of DB628 engine was cancelled.


Attachments

  • DB628nose.jpg
    105.6 KB · Views: 154
  • DB628-1.jpg
    54 KB · Views: 116
  • DB628.jpg
    109.8 KB · Views: 218
  • P.1091 stufe Ⅱ with DB628 engine.jpg
    P.1091 stufe Ⅱ with DB628 engine.jpg
    79.6 KB · Views: 842
  • Me209H with DB628 engine.jpg
    Me209H with DB628 engine.jpg
    54.9 KB · Views: 861
  • Me109 ST with DB628 engine.jpg
    Me109 ST with DB628 engine.jpg
    87.6 KB · Views: 890
  • Me109 v54 with DB628 engine.jpg
    Me109 v54 with DB628 engine.jpg
    55.5 KB · Views: 888
  • Me109 v50 with DB628 engine.jpg
    Me109 v50 with DB628 engine.jpg
    31.2 KB · Views: 855

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,766
Reaction score
3,401

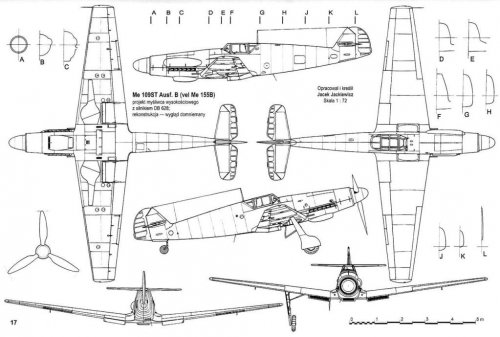

Grzesio said:

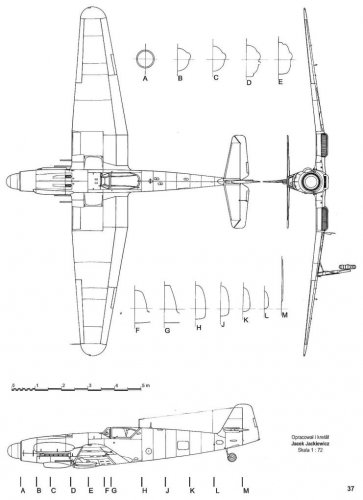

It should be just noticed, the scale plans are marked as "reconstruction, suppositious look".
HmHm...


Attachments

  • 6282.jpg
    838.5 KB · Views: 198
  • 6896f1166dc694546535cce87f16b009.png
    83.2 KB · Views: 234
  • me155bwdb628.jpg
    52.3 KB · Views: 208

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,766
Reaction score
3,401
Justo Miranda said:

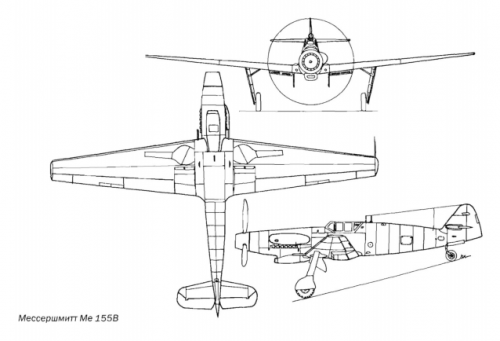

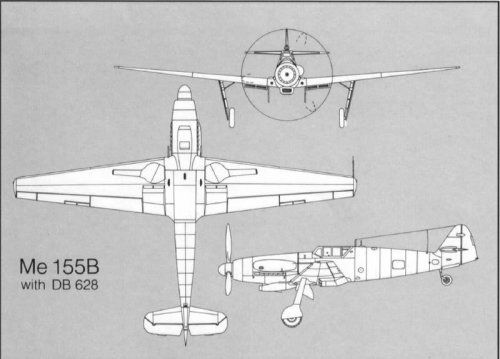

me155bwdb628.jpg is Justo Miranda drawing from Monogram Close-up 20 ;)
Great and exciting drawing as usual!!! :D

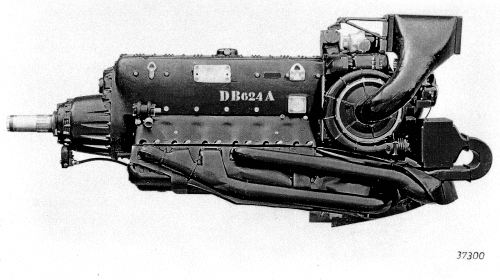

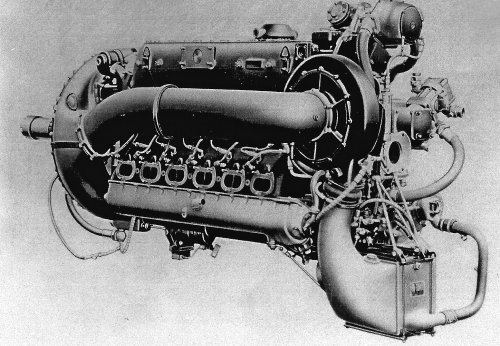

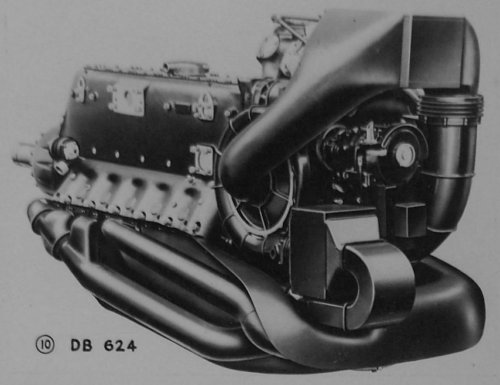

Justo-san, how do you think about this very surprising and interesting DB624 engine?
I imagine that Daimler Benz must be appealed this engine for Messerschmitt high altitude fighter or high altitude recon/bomber.
This engine had mechanical drive(Valkan coupling drive?) superchargers at both side of the engine as the first and the second stage supercharger, and also had turbo charger as the third stage supercharger at the bottom of the engine.
Intercoolers were located exit of the first stage supercharger and exit of the second stage supercharger.
Unbelievable layout. :eek: B)


Attachments

  • DB624 ram air intake.jpg
    DB624 ram air intake.jpg
    38.6 KB · Views: 145
  • db624 pic1.jpg
    db624 pic1.jpg
    123.8 KB · Views: 128
  • 624 pic2.png
    624 pic2.png
    1.6 MB · Views: 130

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
17

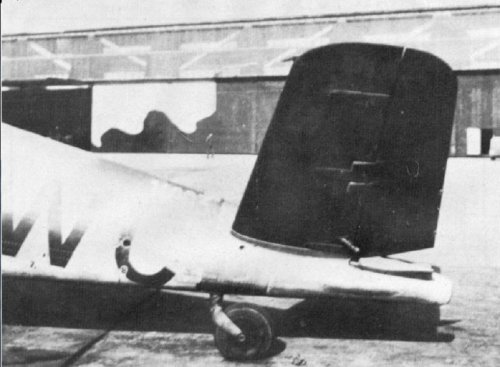

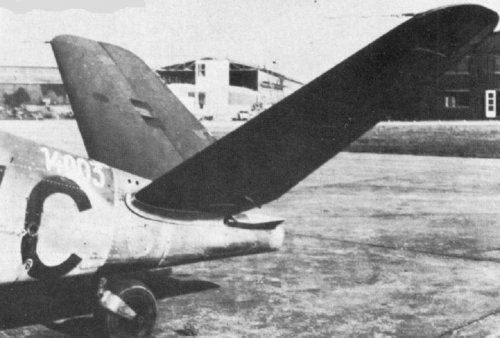

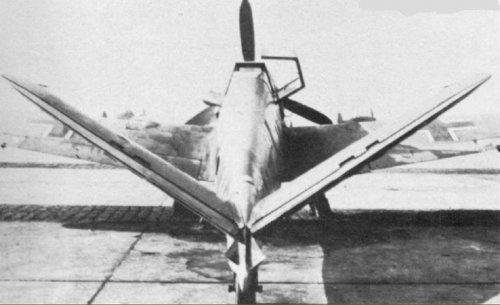

Hi, the experimental Bf. 109 with V-tail:


Attachments

  • bf10948b.jpg
    72.9 KB · Views: 115
  • bf10948.jpg
    58.2 KB · Views: 146
  • bf10948a.jpg
    61.4 KB · Views: 159

Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
315
Reaction score
147

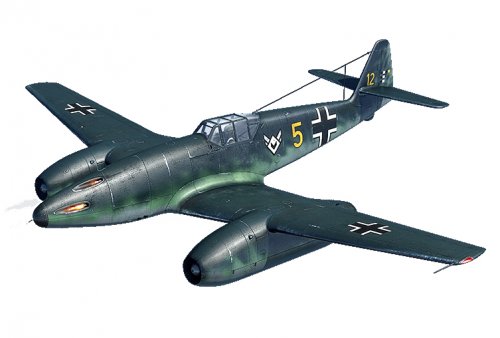

from the wowp


Attachments

  • 52a0854377014fa9b05c917ce86d71e8.jpg
    190.1 KB · Views: 214

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,418
Website
www.amazon.com
blackkite said:
Justo Miranda said:
me155bwdb628.jpg is Justo Miranda drawing from Monogram Close-up 20 ;)
Great and exciting drawing as usual!!! :D
Justo-san, how do you think about this very surprising and interesting DB624 engine?
I imagine that Daimler Benz must be appealed this engine for Messerschmitt high altitude fighter or high altitude recon/bomber.
This engine had mechanical drive(Valkan coupling drive?) superchargers at both side of the engine as the first and the second stage supercharger, and also had turbo charger as the third stage supercharger at the bottom of the engine.
Intercoolers were located exit of the first stage supercharger and exit of the second stage supercharger.
Unbelievable layout. :eek: B)



The information on the DB 624 is very rare. In my opinion, this engine was designed to power the Henschel Hs 130 D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,789
Reaction score
4,943

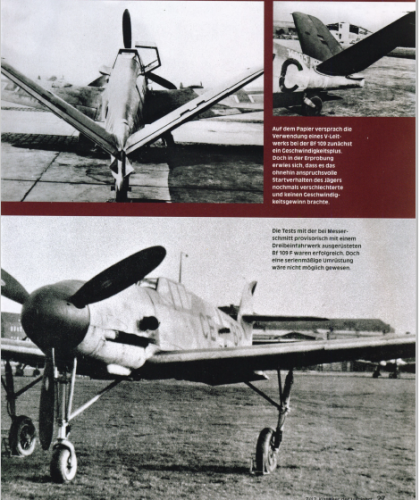

From Klassiker der Luftfahrt 2012-07


Attachments

  • 1.png
    587.2 KB · Views: 186

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,478
Reaction score
992

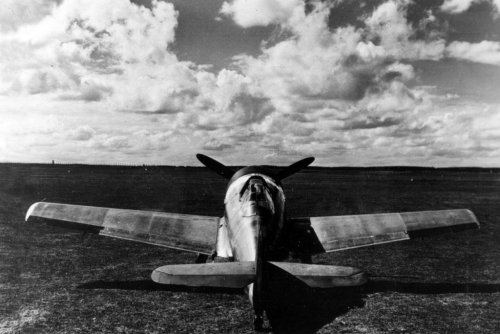

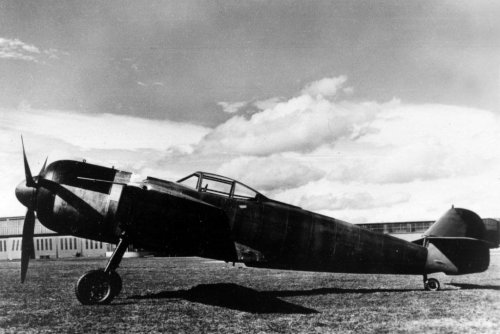

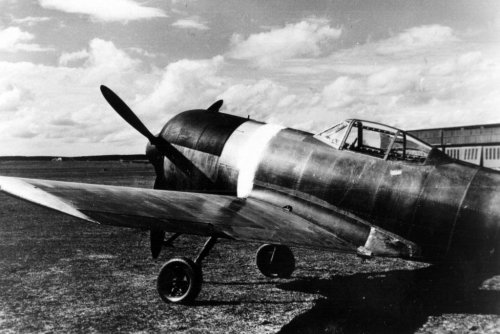

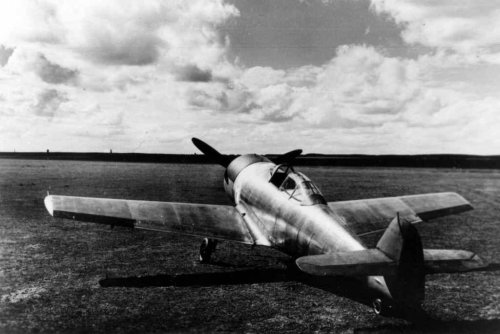

Re: Messerschmitt Bf.109V-21

Maveric said:
The article from Klassiker der Luftfahrt 2-2011!
Pictures:
http://www.klassiker-der-luftfahrt.de/geschichte/flugzeuge/messerschmitt-bf-109-mit-sternmotor/604092/fsuebersicht
Article:
http://www.klassiker-der-luftfahrt.de/geschichte/flugzeuge/messerschmitts-tests-der-bf-109-mit-sternmotoren/604052


Attachments

  • messerschmitt bf 109 mit sternmotor (1).jpg.5768766.jpg
    messerschmitt bf 109 mit sternmotor (1).jpg.5768766.jpg
    50.5 KB · Views: 241
  • messerschmitt bf 109 mit sternmotor (2).jpg.5768784.jpg
    messerschmitt bf 109 mit sternmotor (2).jpg.5768784.jpg
    92.4 KB · Views: 228
  • messerschmitt bf 109 mit sternmotor (5).jpg.5768838.jpg
    messerschmitt bf 109 mit sternmotor (5).jpg.5768838.jpg
    75.8 KB · Views: 228
  • messerschmitt bf 109 mit sternmotor (3).jpg.5768802.jpg
    messerschmitt bf 109 mit sternmotor (3).jpg.5768802.jpg
    97.2 KB · Views: 222
  • messerschmitt bf 109 mit sternmotor (4).jpg.5768820.jpg
    messerschmitt bf 109 mit sternmotor (4).jpg.5768820.jpg
    83 KB · Views: 234

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,766
Reaction score
3,401
Re: Re: Various Blohm und Voss projects

Super thanks. :D

Video.
https://www.youtube.com/watch?v=h4OUUj6xWPU

https://www.youtube.com/watch?v=ekgA8iIHAVw


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,789
Reaction score
4,943
Re: Re: Various Blohm und Voss projects

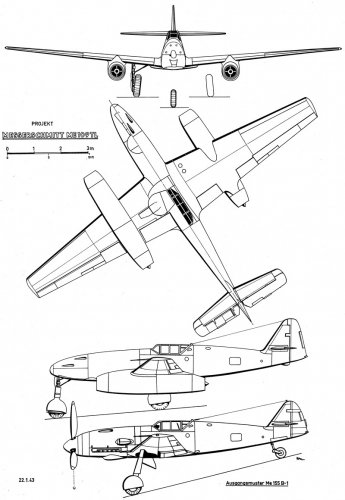

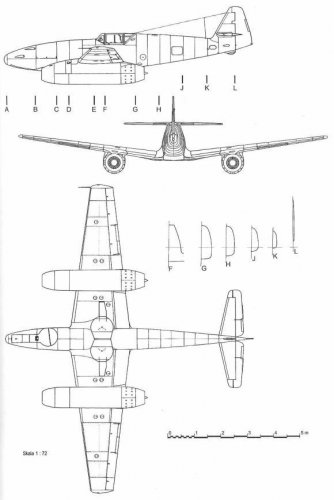

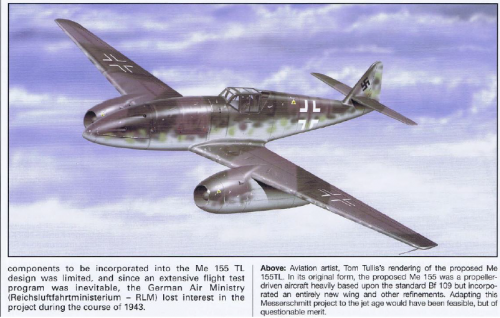

New Project,the BV/Messerschmitt 155 TL.

Jet Planes of the Third Reich - The Secret Projects-volume one


Attachments

  • 155.png
    831.2 KB · Views: 169

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,789
Reaction score
4,943
hesham said:
From the book; Die Deutsche Luftruestung 1933-1945 - Vol.3 - Henschel-Messerschmitt (Bernard&Graefe)

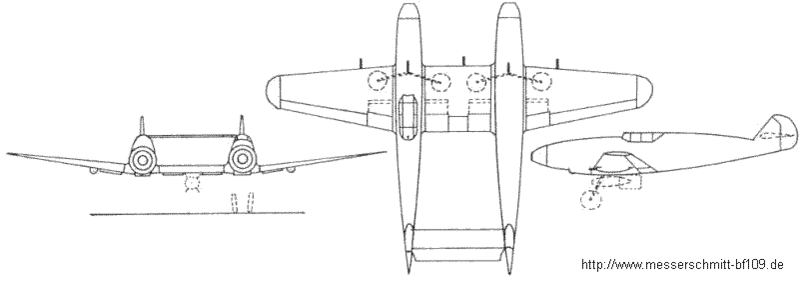

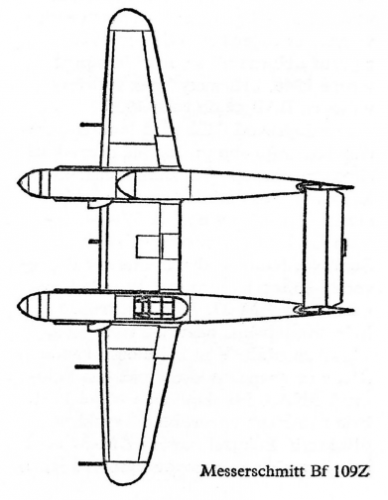

the Messerschmitt Bf.109Z was a real design,and there is two versions,Z-1 & Z-2.

Anther confirm from Vojenska Letadla 3.


Attachments

  • a.png
    86.4 KB · Views: 142

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,789
Reaction score
4,943

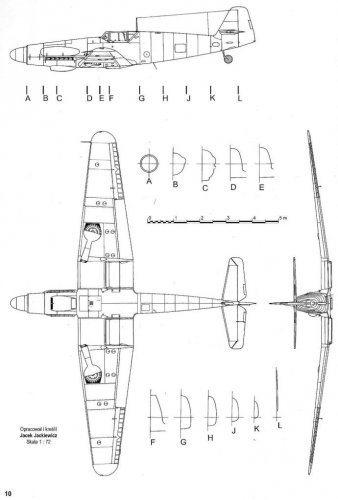

From Aero Journal No.5,

some Bf.109 Projects.


Attachments

  • 1.png
    124 KB · Views: 266
  • 2.png
    152.3 KB · Views: 240
  • 3.png
    130.6 KB · Views: 218

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
185
official bf 109 Z drawing(that all official drawing we have for the bf 109 Z:


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,089
Reaction score
779

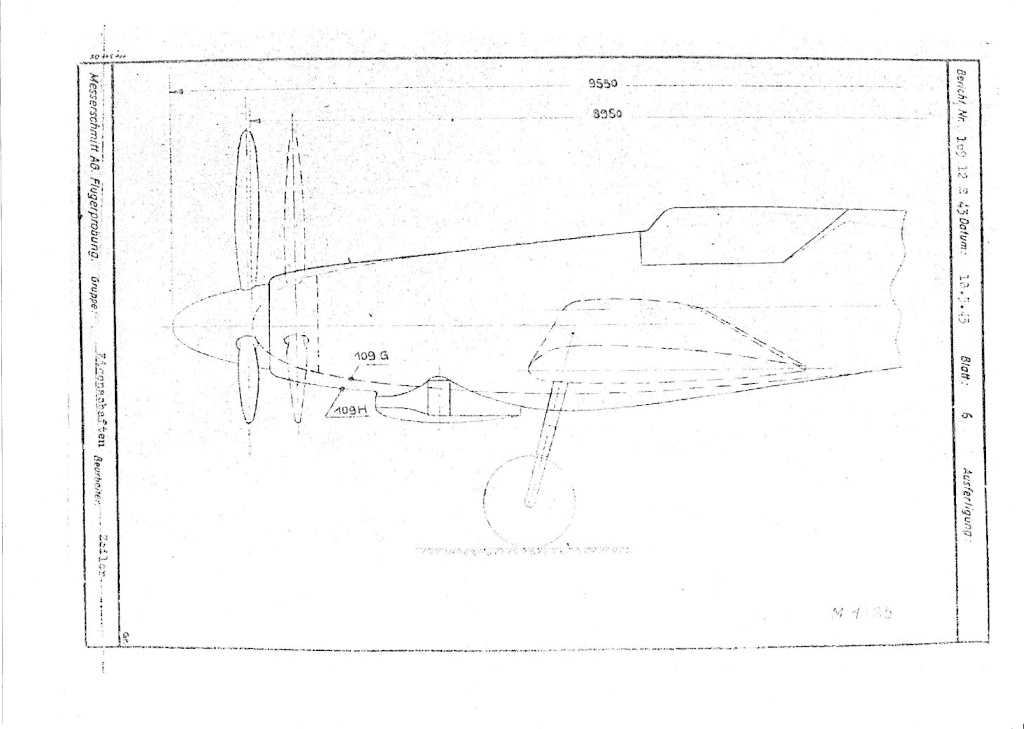

hesham said:
sgeorges4 said:
official bf 109 Z drawing(that all official drawing we have for the bf 109 Z:

Yes Sgeorges

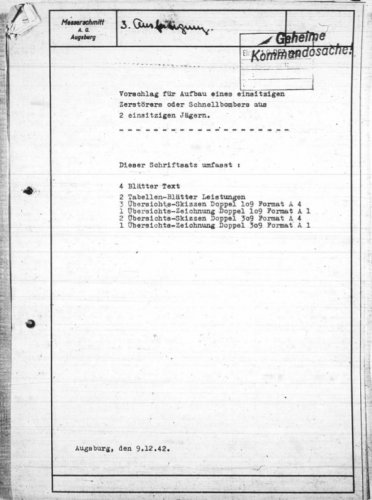

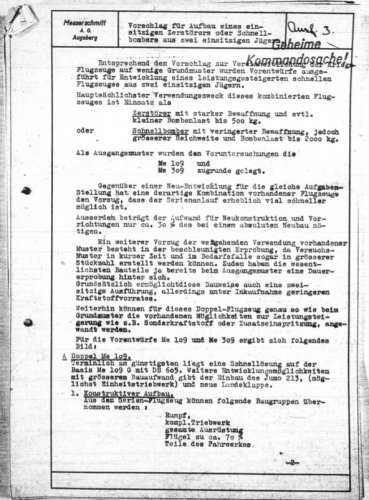

Ha, really? No. I've got a couple. So does whoever wrote that piece on the Me 309 for Klassiker der Luftfahrt. The drawing they've used is from the same report. Here's a couple of pages from it. To be fair, that drawing you've shown is pretty accurate.


Attachments

  • Doppel 109.jpg
    Doppel 109.jpg
    232.7 KB · Views: 787
  • Doppel 109 2.jpg
    Doppel 109 2.jpg
    305.4 KB · Views: 778

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
185
Thank for the doc! The drawing is from there:
http://fighters.forumactif.com/t80349p50-luftwaffe-46-et-autres-projets-de-l-axe-a-toutes-les-echellesbf-109-g10-erla-luft46
(that my post on Fighters)


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
185

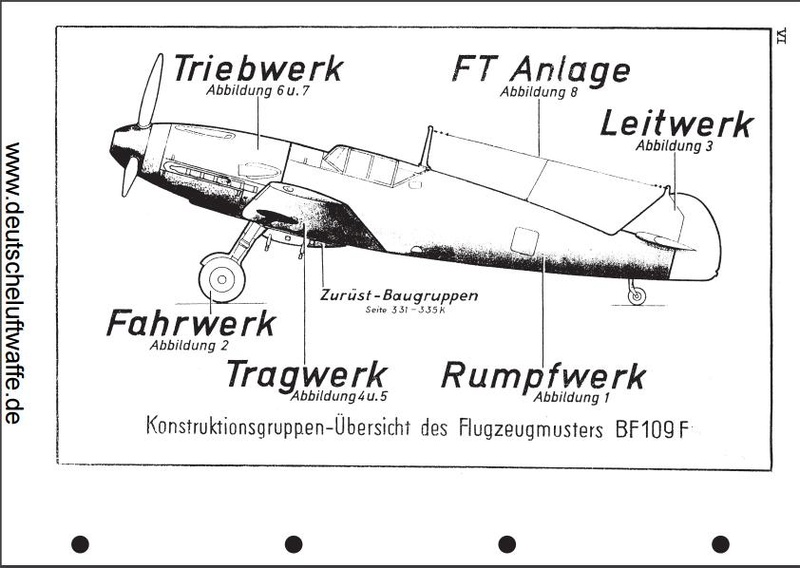

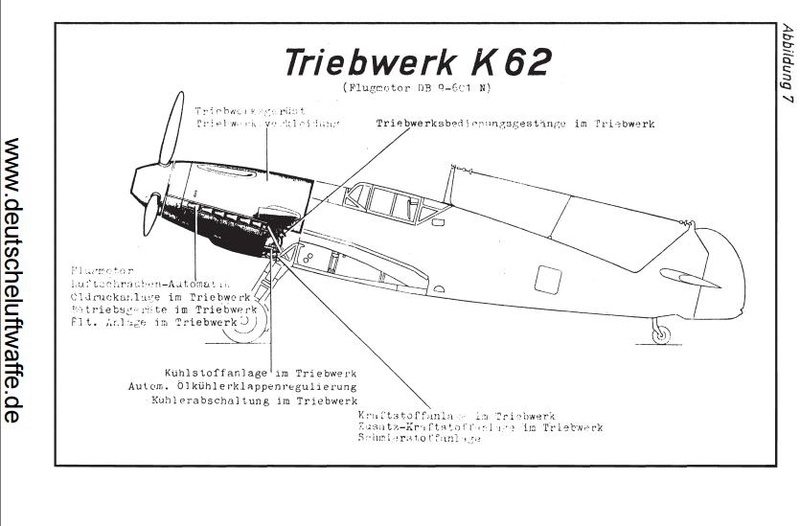

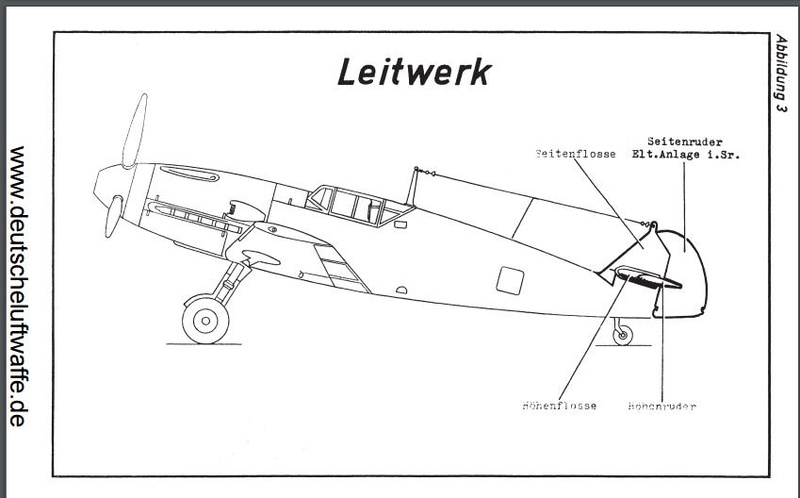

some friedrich project from here: http://deutscheluftwaffe.com/archiv/Dokumente/ABC/m/Messerschmitt/Me%20109/Bf109F_Ersatzteil_Liste.pdf




sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
185

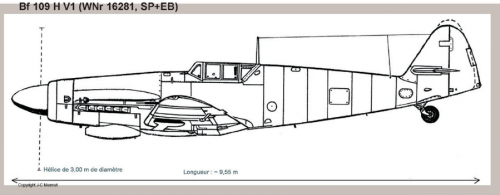

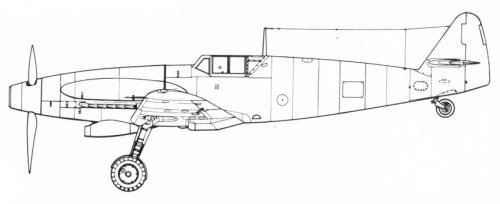

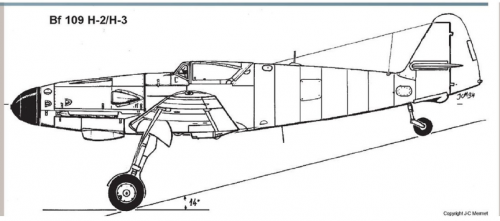

Bf 109 H+DB 628:


from: http://fighters.forumactif.com/t3739-messerschmitt-bf-109h-v1


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
185
Can I had the entire report about the doppel 109 please?


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
351

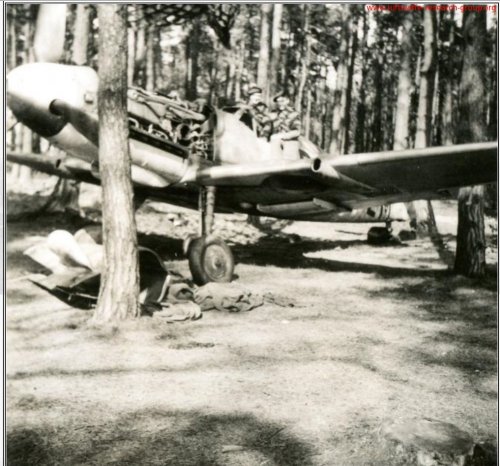

This 109g has been posted on Luftwaffe experten and lrg, but no one is quite sure what it is. The fairings are probably for canons, maybe a test for the K. But given the length of the fairings and size of the opening, is a recoilles cannon or some other weapon a possibility?


Attachments

  • Copy of downloadfile-7.jpg
    Copy of downloadfile-7.jpg
    226 KB · Views: 198

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,823
Reaction score
699
Integrated R4M launch tube?


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
559
Reaction score
190
My question would be 'Given the position of the trees how did that aeroplane get there?'


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,096
Reaction score
1,434
Website
galgot.com
Nick Sumner said:
My question would be 'Given the position of the trees how did that aeroplane get there?'

Super fast growing trees. Or super smart plane parking, reminds how difficult it is to park some gliders in a hangar.

Two more picts here :
https://me109.info/display.php?from=site&lang=de&auth=e&name=version_display&fotonummer=8664
https://me109.info/display.php?from=site&lang=de&auth=e&name=version_display&fotonummer=8662


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
415
Reaction score
259
Arjen said:
Integrated R4M launch tube?
I can't recall where I got the attached image from, but I have an old note that it represents the EG RZ65 integrated rocket launcher.


Attachments

  • aj2-f-rockets.jpg
    24 KB · Views: 725

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
185

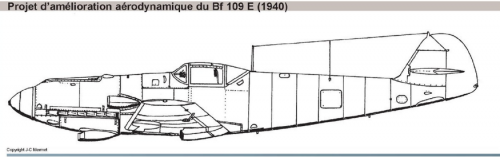

I ask Jean-claude mermet for findiing what is that thing(sorry for my english,I'm french).


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
271
Reaction score
95
Website
chemnitzer27kb.blogspot.com
I can't recall where I got the attached image from, but I have an old note that it represents the EG RZ65 integrated rocket launcher.

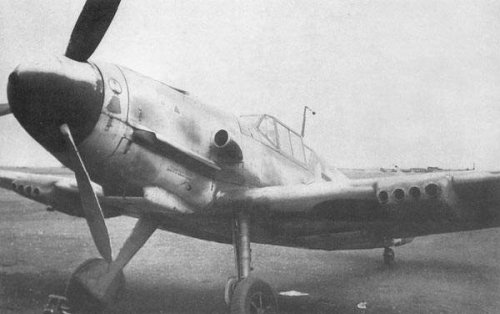

Yep, this one is a Bf 109 F-2 armed with eight EG - RZ 65 launchers, tested by E-Stelle Tarnewitz in early 1943. The launchers were aimed at 500 m distance (although shooting from up to 1000 m was to be practised with them) and the rockets could be launched in one or two salvoes.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
351

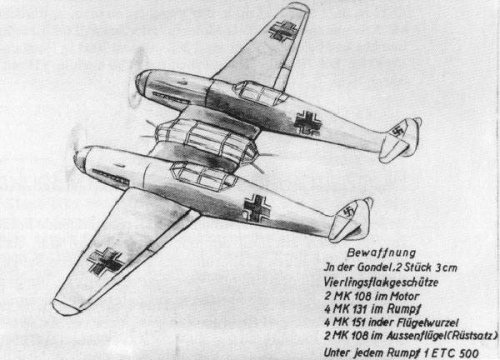

From Die Deutsche Luftfahrt; Willy Messerschmitt


Attachments

  • 02-109zz.jpg
    38 KB · Views: 492

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,254
From the pure look of that thing yes. At least the front gunner would have had a good chance to rip off his own props !
But I think, especially in the case of German late WW II projects, we have to consider, that there were lots of ideas, put on
paper by people, just trying to do their best for the final victory. And those ideas not necessarily always had a useful substance,
but were forwarded nevertheless, on official paper, so becoming "real" projects, when found later !


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
885
Reaction score
441
Jemiba said:
there were lots of ideas, put on paper by people, just trying to do their best for the final victory.
Jens, I suspect you just mis-spelt "...to do their best to buttress up anything to NOT go to the East front."
And those ideas not necessarily always had a useful substance, but were forwarded nevertheless, on official paper, so becoming "real" projects, when found later !
Yes, you point out one of the key limits of the researchers' methods in that era.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,970
Reaction score
858
I have seen many suggest that most of the later projects of all kinds were a method of protecting as many workers from conscription for as long as possible. Considering how long Germany was on it's knee's it is what I would do in their shoes.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,789
Reaction score
4,943
sienar said:
Are there any drawings or photos of the mockup of the P1034? Some sources state that there were two mock ups made, and apparently one of them or the v1 was fitted with a mockup of the bmw 116.

What was P.1034 ?.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
351
hesham said:
sienar said:
Are there any drawings or photos of the mockup of the P1034? Some sources state that there were two mock ups made, and apparently one of them or the v1 was fitted with a mockup of the bmw 116.

What was P.1034 ?.

The 109 project number


Similar threads

Top
