Messerschmitt Bf/Me 109 - Blohm & Voss Bv 155 Projects & Prototypes

Vietcong

Avation Enthusiast from VN
Joined
Jan 11, 2010
Messages
76
Reaction score
4
Website
aviationprojects.blogspot.com

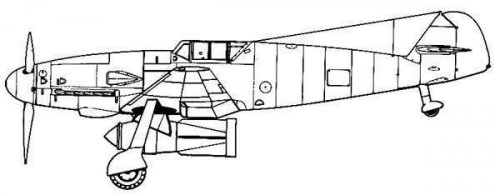

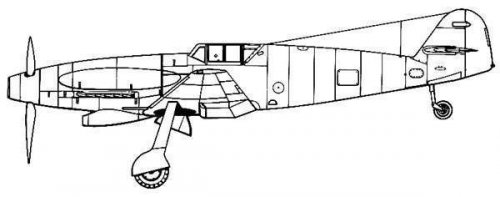

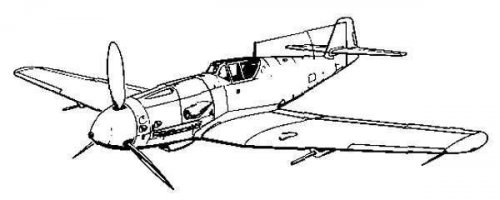

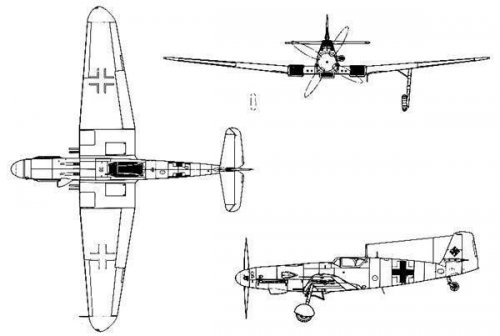

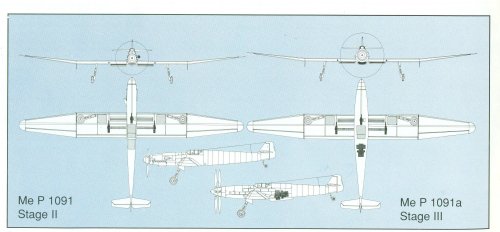

Here is the development of Messerschmitt high altitude fighter in 1940s


Attachments

  • 01-me109h-1.jpg
    16.4 KB · Views: 344

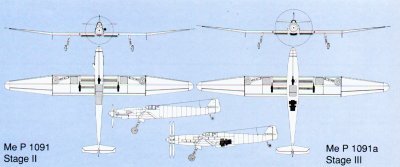

  • 01-p1091a.jpg
    12.9 KB · Views: 321
  • 01-me155b.jpg
    16.2 KB · Views: 413
  • 01-me155a2.jpg
    17.9 KB · Views: 430
  • 01-209H-V1.jpg
    20.6 KB · Views: 477

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
388

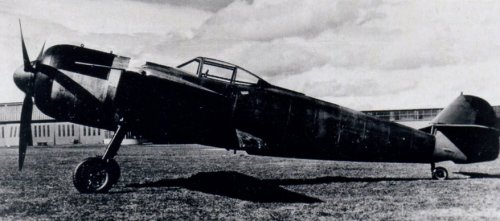

Messerschmitt Bf.109V-21

Hi all,

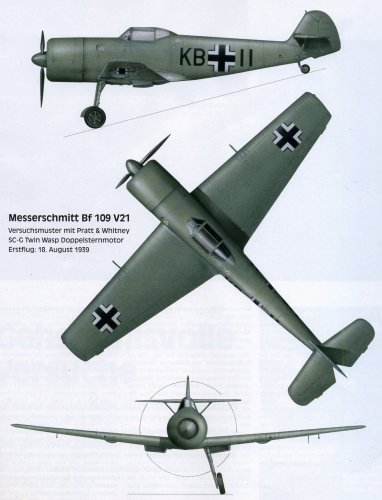

a very interesting experimental german fighter: the only Messerschmitt Bf.109V-21 (also called Bf.109X) fitted with a P&W SC-G "Twin Wasp". First flight 18.08.1939, civil registration D-IFKQ. A similar aircraft was built in 1940 with a BMW 801A and the registration D-ITXP.

Servus Maveric


Attachments

  • Messerschmitt Bf-109V-21.jpg
    Messerschmitt Bf-109V-21.jpg
    144.9 KB · Views: 904
  • Messerschmitt Bf-109V-21-.jpg
    Messerschmitt Bf-109V-21-.jpg
    520.6 KB · Views: 956

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,197
Reaction score
1,940
Re: Messerschmitt Bf.109V-21

I wonder why the raised canopy wasn't taken over onto later production models? Given the poor rearward visibility this modification might have been of some use. Even the Me209 fighter (not the racer) had a radically changed canopy or any attempt at better all-round vision.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996
Re: Messerschmitt Bf.109V-21

Additional info:
http://www.xs4all.nl/~tozu/me109/index.htm


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
327
Reaction score
207
Re: Messerschmitt Bf.109V-21

Any idea what the point was of installing an American engine in a 1939 German fighter prototype? Nobody could have expected to be able to get production volumes. Was it just a stand-in for another powerplant?


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
127
Website
cluttonfred.info
Re: Messerschmitt Bf.109V-21

Twin Wasp was used on several civil airliners and license-built in Sweden. It wouldn't have been that hard to reverse engineer one or "borrow" drawings from Swedes. Perhaps an air-cooled radial was considered for a ground attack variant since less susceptible to ground fire?


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
638
Reaction score
145
Re: Messerschmitt Bf.109V-21

Hi!

Has the article in "Klassiker.." mentioned purpose of such prototype design?

I've seen this aircraft in Czech magazine "L+K" - and if I remeber correctly, it's potential customer was Switzerland.

Sorry, no other details.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996
Re: Messerschmitt Bf.109V-21

Engine discussion:
The engine on the Bf.109V-21 was a Pratt & Whitney SC3-G Twin Wasp, which was purchased for the Ju 90Z-2 ordered by South African Airways.

I will summarize that article published in German magazine Klassiker der Luftfahrt - 02/2011 and post it here later during the day tomorrow.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
388
Re: Messerschmitt Bf.109V-21

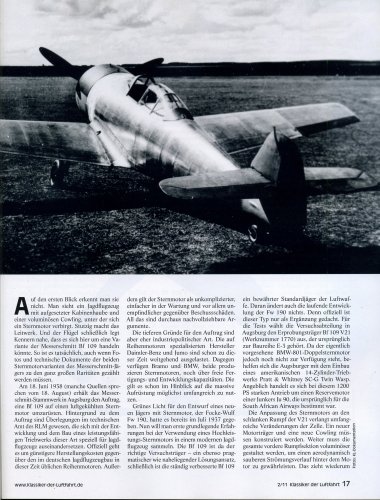

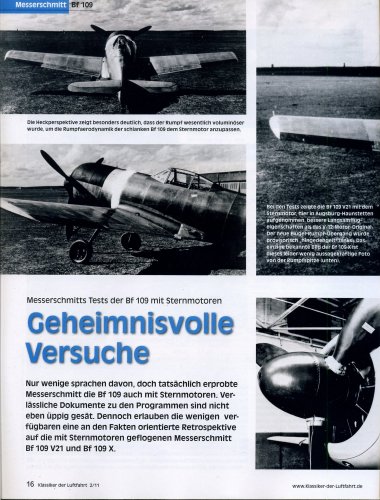

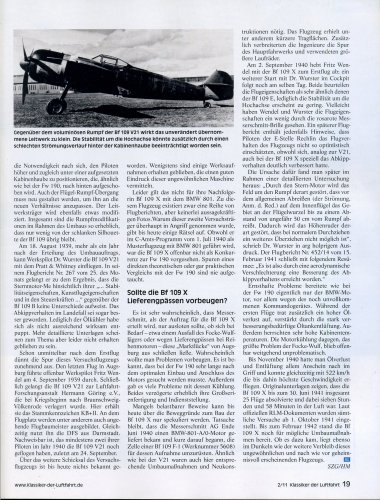

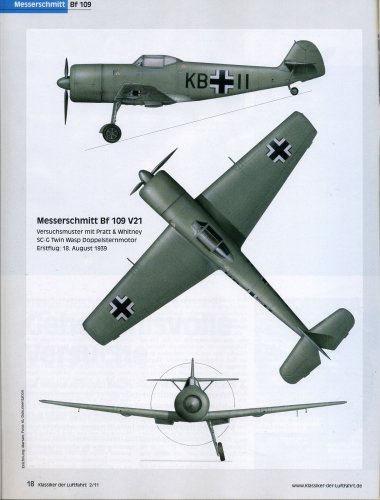

the article from Klassiker der Luftfahrt 2-2011!


Attachments

  • Klassiker der Luftfahrt - 2011-02_Page_16_Image_0001.jpg
    Klassiker der Luftfahrt - 2011-02_Page_16_Image_0001.jpg
    585.7 KB · Views: 799
  • Klassiker der Luftfahrt - 2011-02_Page_17_Image_0001.jpg
    Klassiker der Luftfahrt - 2011-02_Page_17_Image_0001.jpg
    656.7 KB · Views: 764
  • Klassiker der Luftfahrt - 2011-02_Page_18_Image_0001.jpg
    Klassiker der Luftfahrt - 2011-02_Page_18_Image_0001.jpg
    392 KB · Views: 730
  • Klassiker der Luftfahrt - 2011-02_Page_19_Image_0001.jpg
    Klassiker der Luftfahrt - 2011-02_Page_19_Image_0001.jpg
    836.7 KB · Views: 348

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
16
Re: Messerschmitt Bf.109V-21

Very interesting. Maveric thanks for the scans.
fightingirish if you translate even a little from the article Could be great. I can't read German :( Sadly.


richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
236
Reaction score
244
Re: Messerschmitt Bf.109V-21

??? The same article by THEODOR MOHR & KARL KÖSSLER was published in the early eighties in Germany and later in France (Le Fana de l'Aviation ,jan.1985) : Same pictures ,almost same text ...

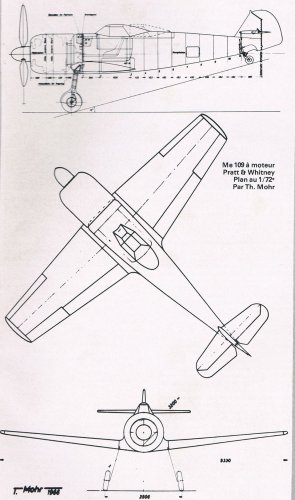

Here ,the 3 views of T. Mohr , dated 1966 .


Attachments

  • x.jpg
    554 KB · Views: 428

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
127
Website
cluttonfred.info
Re: Messerschmitt Bf.109V-21

richard B said:
The same article by THEODOR MOHR & KARL KÖSSLER was published in the early eighties in Germany and later in France (Le Fana de l'Aviation ,jan.1985)

I, for one, would love to see a copy of the French article, either posted here or sent privately if there are copyright concerns. My French is good, my German, not so. Thanks!


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996
Re: Messerschmitt Bf.109V-21

Hi folks,

just saw at a book shop in my local train station, that in the September issue of the German Magazine FLUGZEUG CLASSIC 09/2012, there is an an article about "mutated" Messerschmitt Bf / Me 109s".
The Messerschmitt Bf.109V-21 (also called Bf.109X) is also mentioned. Unfortunately I have no time this weekend to sum up the article and post some snapshots done by my cell phone.
But in the mean time you can go to their website and under "Online blättern!" you can get a small preview of the magazine.
I won't be surprised, if another member will post a screenshot already, before I'm back.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
693
Reaction score
357
Re: Messerschmitt Bf.109V-21

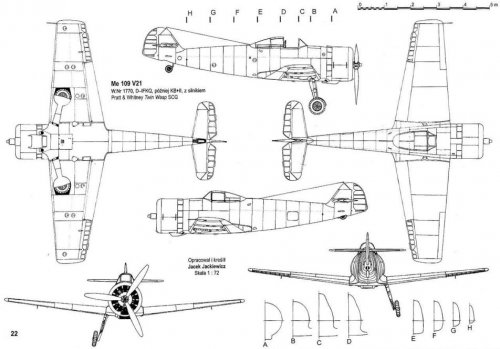

According to my sources there were 2 radial engined 109s


Model V21, W.Nr 1770, D-IFKQ with a Twin Wasp SCG

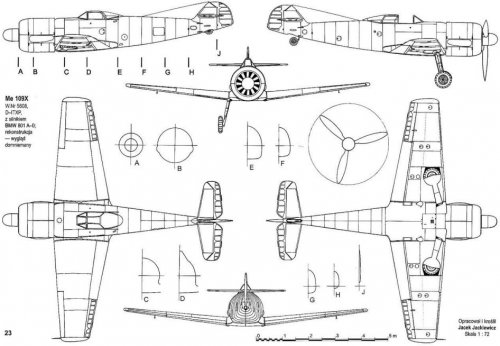

And Model 109X, W.Nr 5608, D-ITXP with a BMW 801 A-0


Source is Monografie Lotnicze 44


Attachments

  • 109v21.JPG
    91.7 KB · Views: 392
  • 109X.JPG
    97.9 KB · Views: 427

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
Hi,

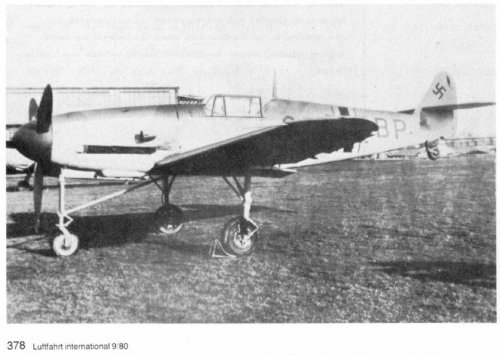

here is the Messerchmitt Bf.109 with a tricycle landing gear,also keeping on the
tail wheel.


Luftfahrt 9/1980


Attachments

  • 109.JPG
    76.9 KB · Views: 484

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
he Hesham

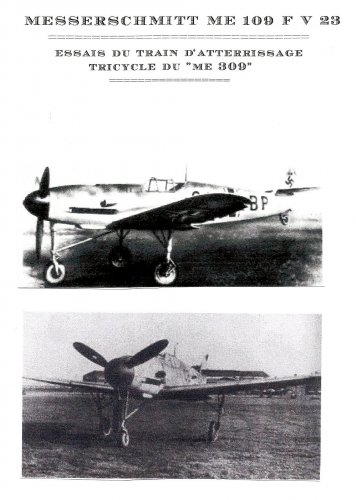

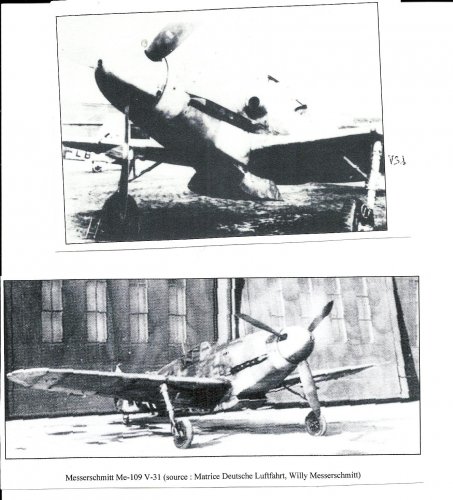

Messerschmitt bf 109 v 23
landing gear for me 309
Messerschmitt bf 109 v 31
large landing gear for me 309
and radiator for the same


Attachments

  • bf 109 v 31.jpg
    bf 109 v 31.jpg
    284.9 KB · Views: 283
  • bf 109 v 23.jpg
    bf 109 v 23.jpg
    233.8 KB · Views: 450

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,259

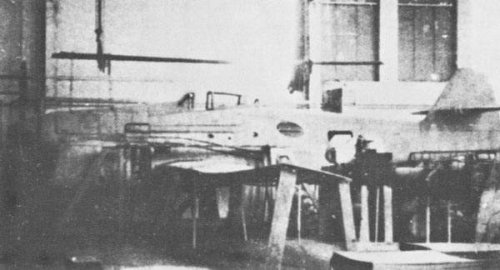

As principally already can be seen in the photo, the tricyccle landing gear was fixed
and only used for testing the taxying and take-off/landing characteristics for the
Me 309.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
Many thanks to you my dears Toura and Jemiba.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
Hi,

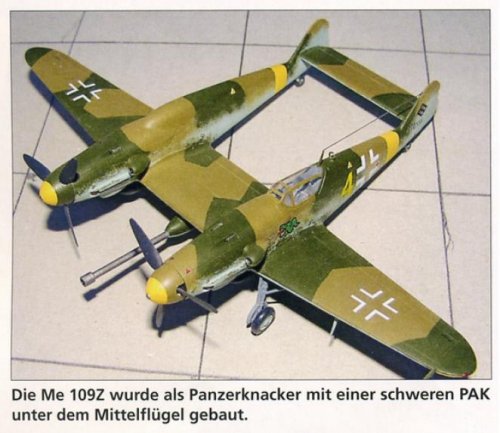

here is a Model for Messerschmitt Bf or Me.109Z aircraft,it was a well known,but
fitted with external big cannon,mounted between the two fuselage in the middle
connected section and below it,is it a real project ?.


Flugzeug Classic 1/2006


Attachments

  • Me.109Z.JPG
    55.1 KB · Views: 256

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
hesham said:
Hi,


here is a Model for Messerschmitt Bf or Me.109Z aircraft,it was a well known,but
fitted with external big cannon,mounted between the two fuselage in the middle
connected section and below it,is it a real project ?.


Flugzeug Classic 1/2006

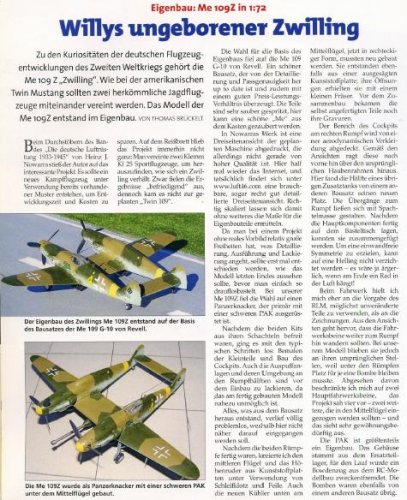

Here is the article about Me.109Z with cannon,real or fake ?.


Attachments

  • 109Z.JPG
    85.1 KB · Views: 265

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,259
Not mentioned explicitly, but the heavy anti-tank gun to my opinion is
just the product of the fantasy of the modeller and not mentioned in any
sources.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
Jemiba said:
Not mentioned explicitly, but the heavy anti-tank gun to my opinion is
just the product of the fantasy of the modeller and not mentioned in any
sources.


Thank you my dear Jemiba for your explanation.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
Re: Various Blohm und Voss projects

Hi,

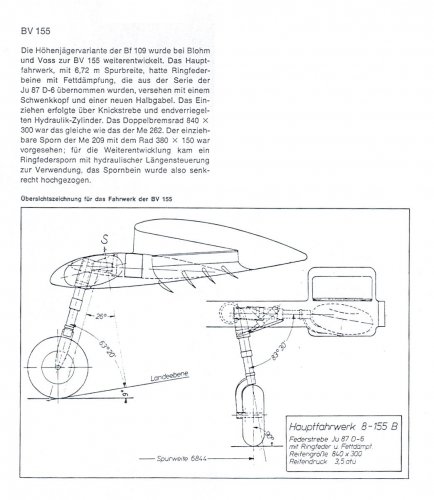

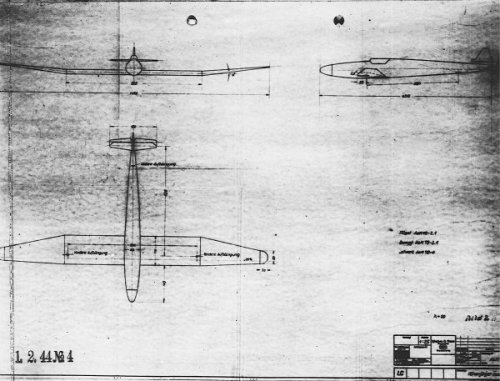

here is the original BV.155 drawing and Models.


Attachments

  • bv155_02.jpg
    68.3 KB · Views: 1,266
  • bv155_01.jpg
    68.3 KB · Views: 1,278

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
Re: Re: Various Blohm und Voss projects

Hi,

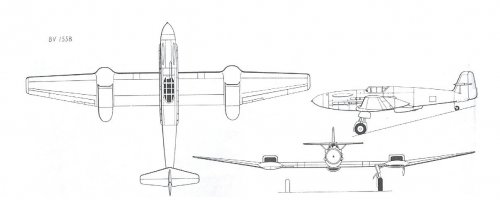

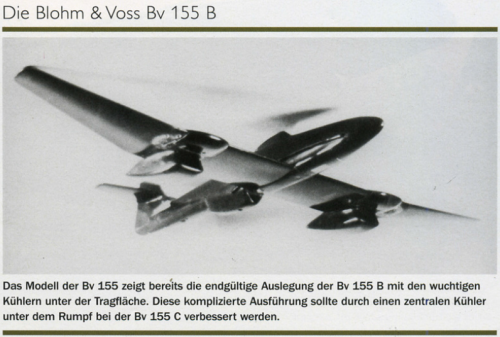

here is a Model for BV.155B aircraft.


Attachments

  • 155B.png
    698.5 KB · Views: 1,269

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
Hi,

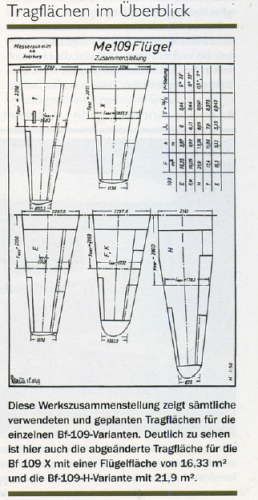

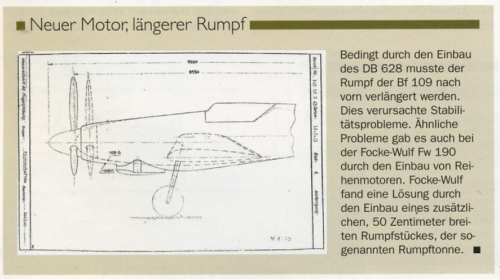

here is a drawing to Bf.109 with DB 628 engine,and a wings to different Bf.109
variants.


Attachments

  • 109.png
    821.2 KB · Views: 426
  • 109-wings.png
    396.3 KB · Views: 421

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987

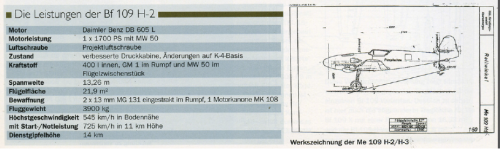

From Flugzeuge Classic 9/2012,

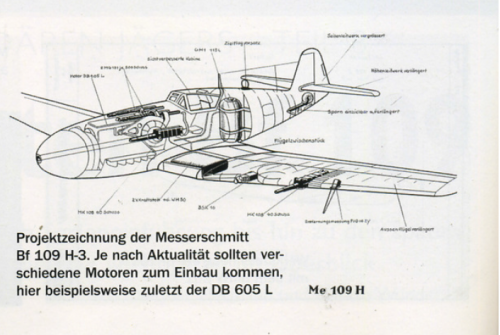

here is the Messerschmitt Bf.109 H-2 & H-3 projects.


Attachments

  • H-2.png
    498.8 KB · Views: 330
  • H-3.png
    558.5 KB · Views: 403

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987
hesham said:
here is a Model for Messerschmitt Bf or Me.109Z aircraft,it was a well known,but
fitted with external big cannon,mounted between the two fuselage in the middle
connected section and below it,is it a real project ?.

Flugzeug Classic 1/2006


My dear Jemiba,

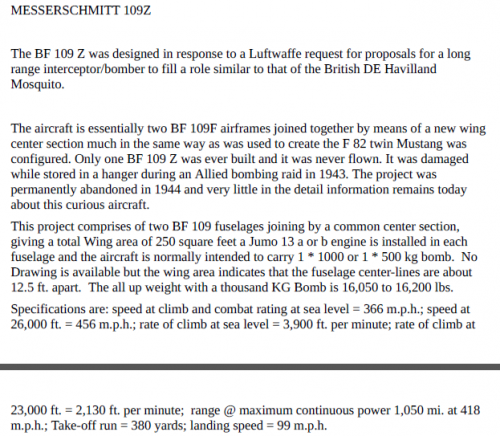

it seemed to be that,the Messerschmitt Bf.109Z was a real project,here is a more info
about it from the book; Secret Nazi Aircraft 1939 -1945 Luftwaffe's Advanced Aircraft Projects


Attachments

  • 109Z.png
    703.5 KB · Views: 269
  • 109Z data.png
    109Z data.png
    101.4 KB · Views: 241

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,813
Reaction score
4,987

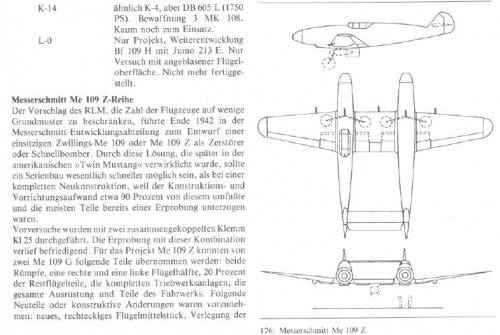

From the book; Die Deutsche Luftruestung 1933-1945 - Vol.3 - Henschel-Messerschmitt (Bernard&Graefe)


the Messerschmitt Bf.109Z was a real design,and there is two versions,Z-1 & Z-2.


Attachments

  • Z-II.png
    116.5 KB · Views: 218
  • 109Z.png
    201.5 KB · Views: 273

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
693
Reaction score
357

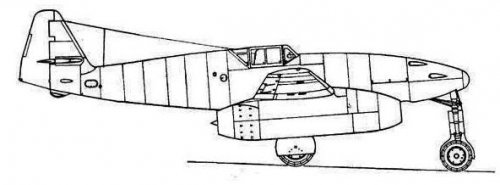

Technically a DB project, but does anyone have information on the planned fitting of a Merlin engine to a 109 which was contemporary with the messerspitt.


kiradog

ACCESS: Confidential
Joined
Feb 3, 2008
Messages
77
Reaction score
7
Re: Re: Various Blohm und Voss projects

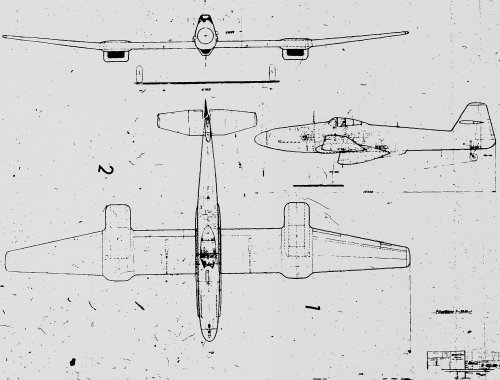

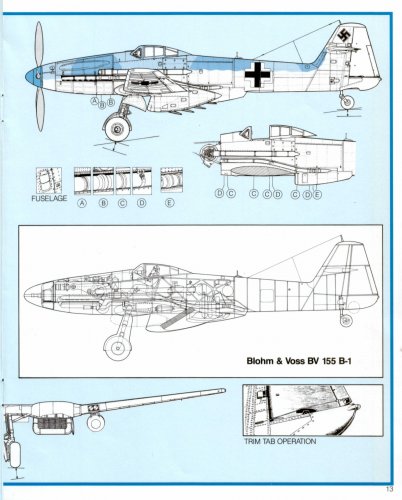

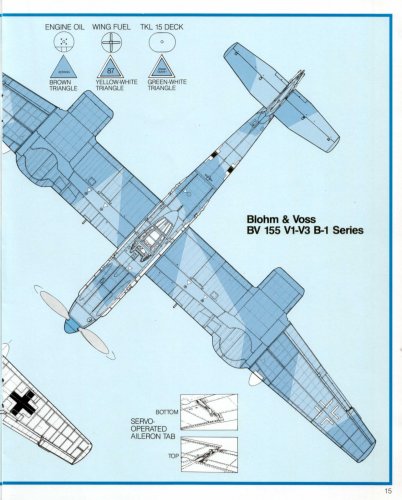

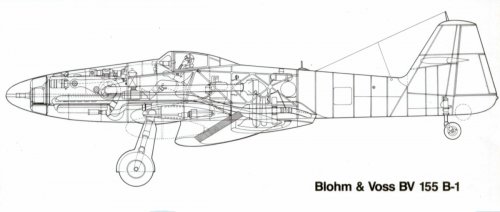

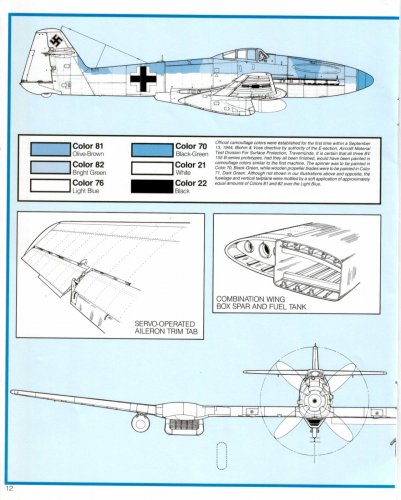

BV-155 Drawing


Attachments

  • bv155.jpg
    591.4 KB · Views: 638

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,786
Reaction score
3,436
Re: Re: Various Blohm und Voss projects

Wow thanks a lot.

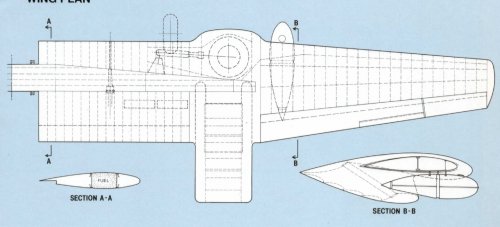

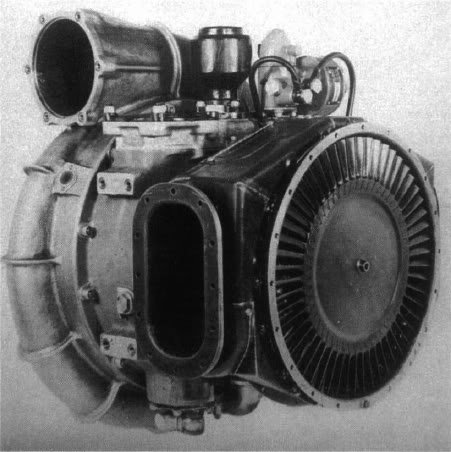

BV-155 had to cool powerful turbocharged engine by thin air of high altitude. Therefore a very huge radiator was needed.
This radiator position reduce wing root bending moment generated by wing lift force and bring some structural merit to reduce weight?
But moment of inertia around roll axis become large and reduce roll rate.

http://mundosgm.com/aereo/blohm-voss-bv-155/

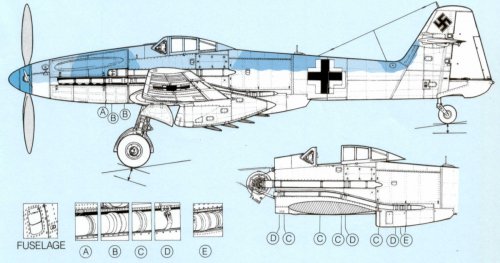

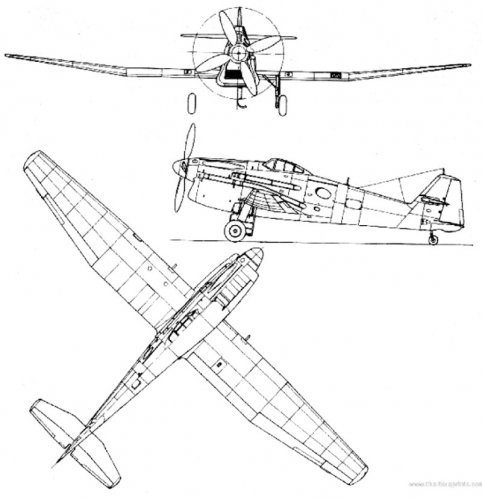

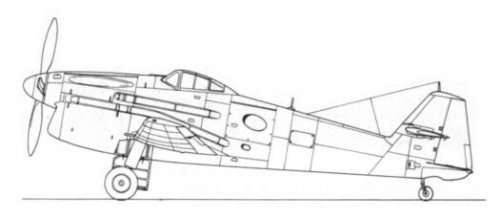

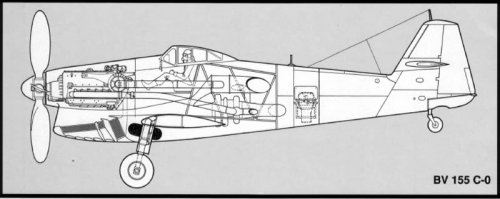

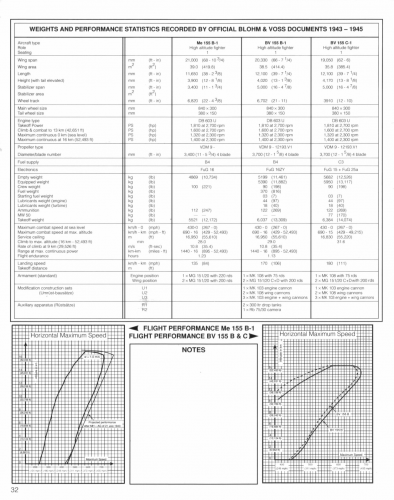

BV-155C-0/1 had a another shape. Intercooler was located behind the pilot.
Enormous front air intake is for radiator, oilcooler, turbocharger and intercooler.
BV-155C-1 was a BV-155 final version? But BV-155C-1 weight is heavy compared with BV-155B-1. Why?


Attachments

  • BV-155 C-1 3 SIDE VIEW.jpg
    BV-155 C-1 3 SIDE VIEW.jpg
    84.5 KB · Views: 242
  • 2_4.jpg
    182.6 KB · Views: 229
  • 01-155c-1.jpg
    24.9 KB · Views: 512
  • BlohmundVossBV155C-0.jpg
    12.5 KB · Views: 521
  • CorteesquematicoBV155C-0.jpg
    40.8 KB · Views: 535
  • RADIATOR.jpg
    228.8 KB · Views: 537

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,786
Reaction score
3,436
Re: Re: Various Blohm und Voss projects

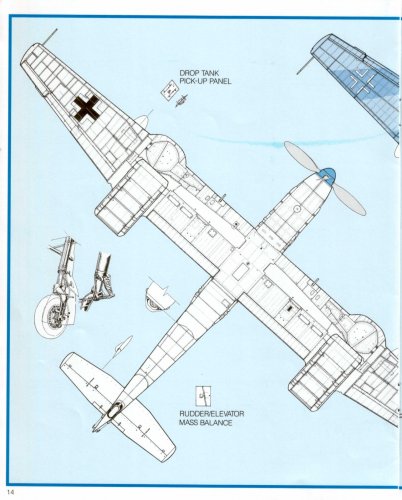

Hi! BV-155.

http://www.zona-militar.com/foros/threads/blohm-voss-bv-155.14782/


Attachments

  • TurbocompresorTKL15.jpg
    39.6 KB · Views: 185
  • i21t3a.jpg
    290 KB · Views: 203
  • scgnix.jpg
    317 KB · Views: 222
  • 9aprhy.jpg
    289.4 KB · Views: 265
  • ke66g4.jpg
    279.6 KB · Views: 268

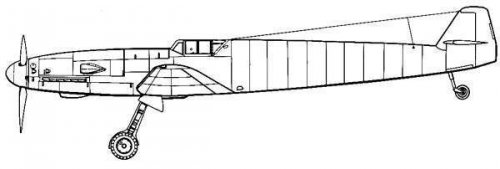

  • side view.jpg
    side view.jpg
    128.2 KB · Views: 265
  • 28k1r2w.png
    646 KB · Views: 251
  • side view.jpg
    side view.jpg
    82.8 KB · Views: 247

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
17
Me-109 TL


Attachments

  • me109tl1fn41.jpg
    19.6 KB · Views: 208

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,786
Reaction score
3,436
Wiki says that...
"It was first proposed on 22 January 1943 at an RLM conference; at the time only three prototypes of the Me 262 had been completed. The Bf 109TL would be a backup if the Me 262 did not come to production or as a second fighter to operate alongside the Me 262.

In order to reduce development time, various components from previous aircraft were to be used. The fuselage was to come from the Bf 109H/BV 155B high-altitude fighter (with a new nose and tail section), the wing was from the Me 409 project and the tricycle undercarriage came from the Me 309. The powerplant would be the same Junkers Jumo 004B-1 turbojet (900 kgf thrust) or BMW 003A (800 kgf).

The basic armament was to be two 20 mm MG 151/20 cannons (with 120 rpg) and two MK 103 cannons mounted in the nose. An additional proposal was two 30 mm (1.18 in) MK 108 cannons to be installed in the wing roots. The pilot cockpit used in the prototypes was the same as utilized in the Bf 109E/G types.

The performance was estimated to be possibly better than the Me 262 due to the Bf 109TL's narrower fuselage, a product of the design for a high-speed high-altitude fighter. The Bf 109TL received intensive research. By March 1943, it was decided that many other modifications to components would be needed and the project was abandoned in order to concentrate on the Me 262 project."


Attachments

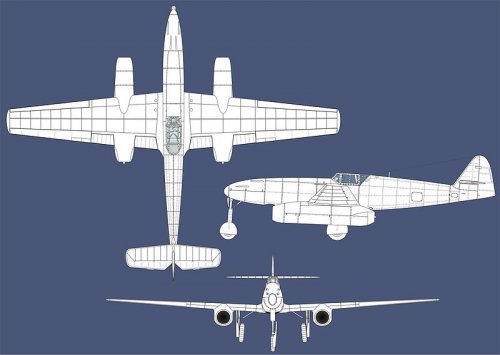

  • 800px-Bf109TL_3Seiten.jpg
    42.8 KB · Views: 234
  • wowp_screens_pack_91_3-premium_me_109tl_06-l.jpg
    347.9 KB · Views: 255

Similar threads

Top
