Hi,

the Breguet Br.600 was a twin engined amphibian seaplane Project,intended for A46 competition
with Br.790.

Last edited:

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
hi Justo
-The Breguet 696 is a bomber. crew 2
First flight november 03.1939
-The Breguet 697 is an heavy fighter. crew 2
First flight october 19.1939
2 Gnome Rhone engines 14 N 48/49 1070 hp
570 km/h 4500 m altitude
-The Breguet 698 is a dive bomber. crew 2
Nothing more
-The Breguet 699 is a 695 with American engine
Project !
-The Breguet 700 is a projected heavy fighter
crew 2.
Engine 2 Gnome Rhone 14 N 48/49 1180 hp
2 protos ordered before surender.
(Les avions Breguet)
Bye


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
For Hesham
"les premiers avions Breguet :
http://www.hydroretro.net/etudegh/breguet.pdf.
Bye


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,026
Reaction score
430

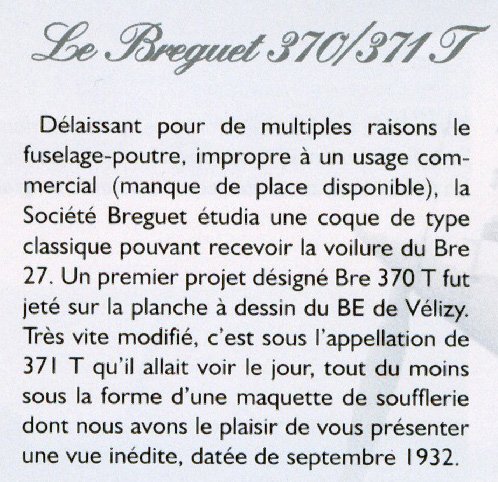

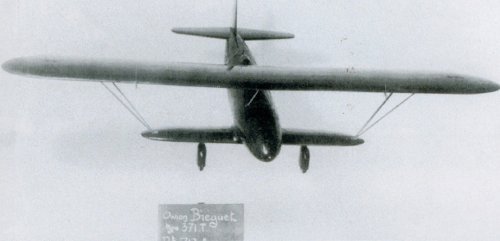

...a pic and some info about the Bréguet Bré.371T...


Attachments

  • Bréguet Bré-37 (Bré-371T).jpg
    Bréguet Bré-37 (Bré-371T).jpg
    148.4 KB · Views: 668
  • Bre-371T.jpg
    187.7 KB · Views: 560

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,026
Reaction score
430

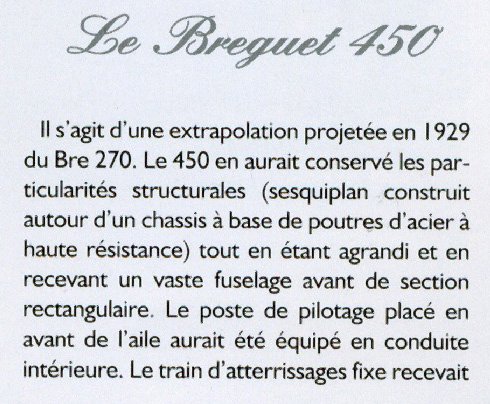

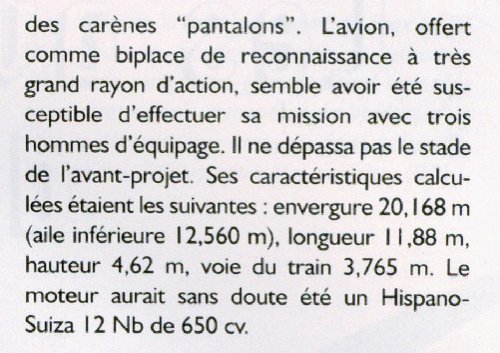

...and some details of the Bré.450. Do you have a drawing, please?


Attachments

  • Bre-450 Teil 1.jpg
    Bre-450 Teil 1.jpg
    150.1 KB · Views: 495
  • Bre-450 Teil 2.jpg
    Bre-450 Teil 2.jpg
    143.8 KB · Views: 459

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
Hi TOPHE
between the br 790 and br 792, I read in a very old
"AVIATION MAGAZINE" That the project BR 791 was
a version of the 790 with a Gnome et Rhone 14 "Mars"
660 hp engine. Never build
Bye


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,768
Reaction score
1,064

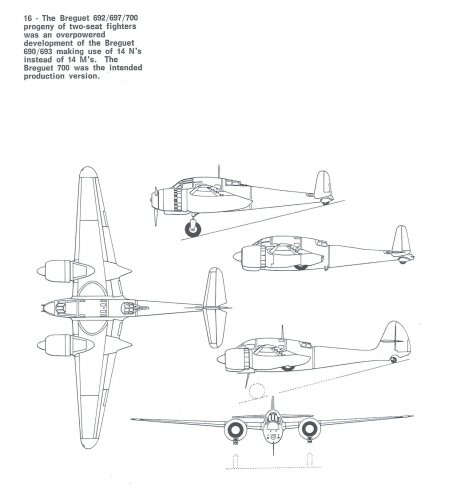

And what would be the armament of these projects? On the drawing I see 6-7 holes on the front fuselage. So maybe 2-3x20mm and 4x7.5mm MG's? or 1x20mm, 2x12.7mm and 4x 7.5mm MG's?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807
Big task of the day was to make some sense of the mess that was this and a few other pre-war Bréguet-related topics.

We now have separate topics for airliners/transports, combat types and flying boats.

As usual, only the types that are sufficiently documented/developed deserve their own thread (several loners were therefore merged into either of these three generic topics — until of course we get enough material to grant them separate status).

"Early" combat Bréguet aircraft topics are now as follows:
For other (non-combat) Bréguet aircraft, see:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
hesham said:
Hi,

the Breguet Br.600 was combat aircraft


Sorry for this mistake,


the Breguet Br.600 was amphibian version of Br.521.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
hesham said:
hesham said:
the Breguet Br.600 was combat aircraft

Sorry for this mistake,

the Breguet Br.600 was amphibian version of Br.521.

There was anther Breguet Br.600 Project,or re-allocated to a twin engined seaplane,intended for
1937 A-46 Specification,powered by two 725 hp Hispano-Suiza AB 12/13 engine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

the Breguet Br.720 was a four-seat night bomber Project,with retractable landing gear and powered
by four engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
From Avions 113.


Attachments

  • 1.png
    264.5 KB · Views: 225

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
From Flying magazine 1935/11,

an Info about Breguet Br.660 twin engined light bomber and multi-seat fighter monoplane Project of 1935,
powered by two 900 hp Gnome-Rhone 14 Kf engine.


Attachments

  • 1   1935-11.png
    1 1935-11.png
    9.5 KB · Views: 103
Last edited:

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
156

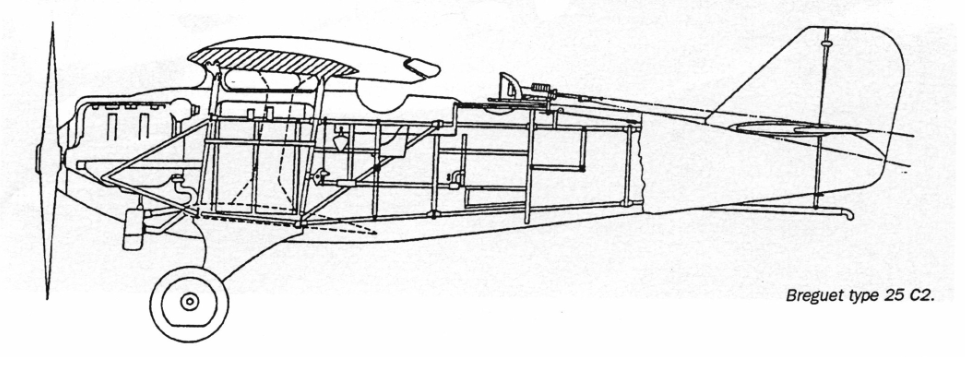

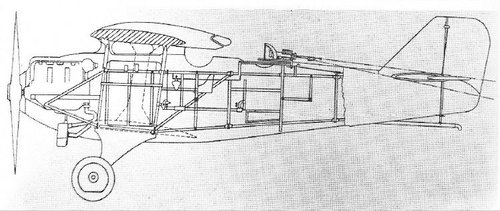

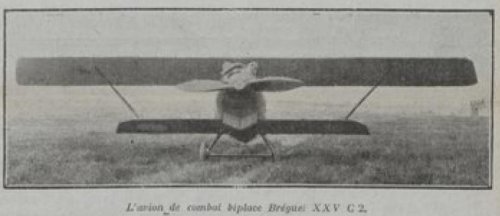

Factory drawing of the Bréguet Br.25:
Source "L'Aviation de chasse française 1918-1940" J. Curnel-Docavia


Attachments

  • breguet 25.JPG
    breguet 25.JPG
    84.5 KB · Views: 102

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023

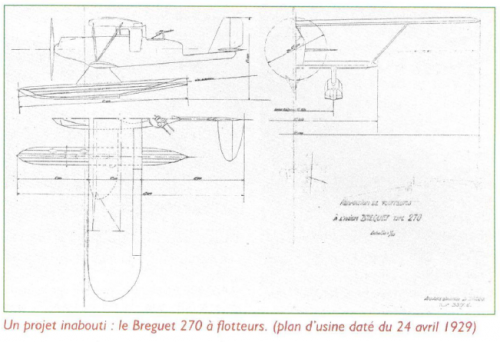

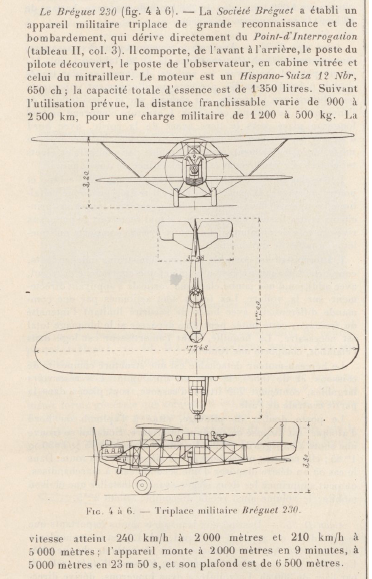

From, Le_Génie_civil___revue_[...]_bpt6k64894402


Attachments

  • 1.png
    302 KB · Views: 88

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,680
Reaction score
5,439
hi Justo
-The Breguet 696 is a bomber. crew 2
First flight november 03.1939
-The Breguet 697 is an heavy fighter. crew 2
First flight october 19.1939
2 Gnome Rhone engines 14 N 48/49 1070 hp
570 km/h 4500 m altitude
-The Breguet 698 is a dive bomber. crew 2
Nothing more
-The Breguet 699 is a 695 with American engine
Project !
-The Breguet 700 is a projected heavy fighter
crew 2.
Engine 2 Gnome Rhone 14 N 48/49 1180 hp
2 protos ordered before surender.
(Les avions Breguet)
Bye

And you can see one among 10000 reasons why France lost and collapsed in 1940... so many variants when the much needed Breguet 693s were only 80 to try and stop the panzers in Gembloux and Tongres and Namur and later, at Sedan. With 60% loss rates, soon there was only a couple of dozens ones...


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,201
Website
www.amazon.com

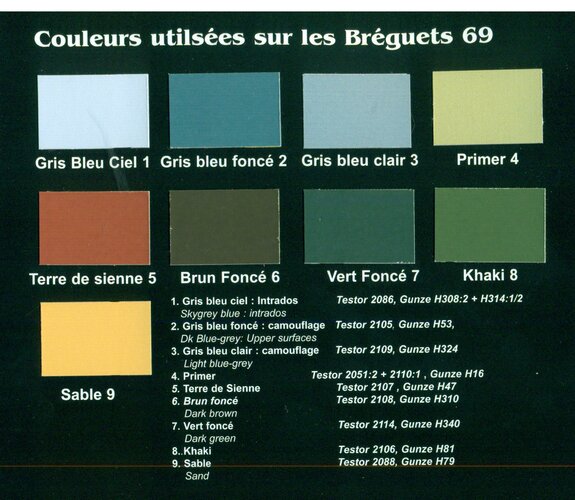

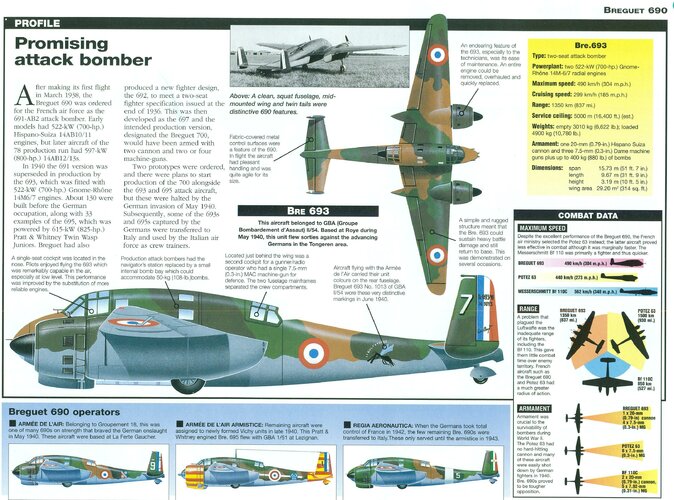

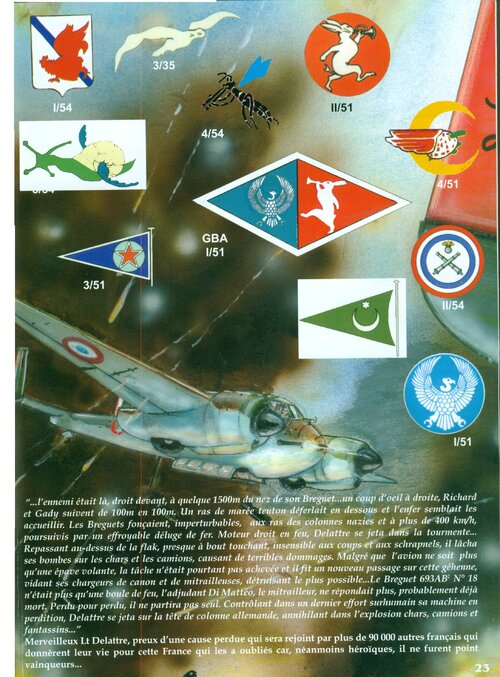

Epic


Attachments

  • Br 690 054.jpg
    Br 690 054.jpg
    1.2 MB · Views: 72
  • Br 690 013.jpg
    Br 690 013.jpg
    407.4 KB · Views: 57
  • Br 690 014.jpg
    Br 690 014.jpg
    272.4 KB · Views: 55
  • Br 690 038.jpg
    Br 690 038.jpg
    181.7 KB · Views: 54
  • Br 690 039.jpg
    Br 690 039.jpg
    258.3 KB · Views: 59
  • Br 690 040.jpg
    Br 690 040.jpg
    1.3 MB · Views: 74
  • Br 690 041.jpg
    Br 690 041.jpg
    1.6 MB · Views: 82
  • Br 690 055.jpg
    Br 690 055.jpg
    1.4 MB · Views: 69
  • Br 690 066.jpg
    Br 690 066.jpg
    458.2 KB · Views: 77

fortrena

ACCESS: Confidential
Joined
Dec 15, 2020
Messages
159
Reaction score
314
If I may, I seem to recall that the Br 693 had one 20 mm cannon (on one side) and four machine guns in the nose which, if memory serves right, could be tilted downward a bit when conducting an attack at very low level.

Incidentally, at one point in 1938 or 1939, a Canadian maker of railway rolling stock, National Steel Car Corporation of Malton, Ontario, was planning to produce 144 or so examples of the Bréguet attack aircraft - possibly the Br 695, which had Pratt & Whitney R-1535 Twin Wasp jr. engines, which would have been easier to get that the French engines of the Br 693. The British Air Ministry more or less, dare I say, sabotaged the project to keep the Canadian aircraft industry to itself. National Steel Car, which was going to build Westland Lysander army cooperation aircraft, got an additional but relatively small British order for its trouble.

Stay safe.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499

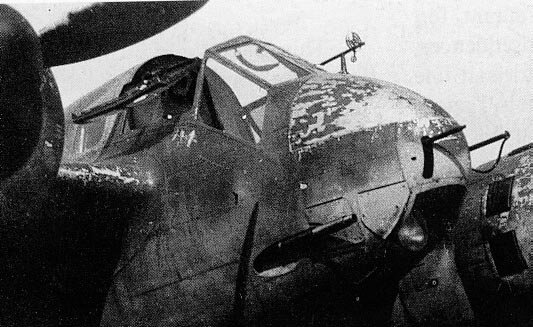

If I may, I seem to recall that the Br 693 had one 20 mm cannon (on one side) and four machine guns in the nose which, if memory serves right, could be tilted downward a bit when conducting an attack at very low level.

Actually, the Bre 693 AB2 only had two, forward-firing 7.5 mm nose guns (with the single 20 mm HS 404 set off to starboard). The other two MAC 1934 machine guns were fired by the rear gunner/radio operator - one was on an Alkan 220 or 224 flexible mount, the other fixed to fire obliquely rearward and downward for strafing. Late-production aircraft had two additional MAC 1934s on 'wobble-mounts', one fixed to fire aft from the rear of each engine nacelle.

On the proposed 144 Canadian-built Bréguets, National Steel Car was originally partnered with another Canadian firm which eventually dropped out. Any idea who that second company was?


Attachments

  • bre-693-nose-guns.jpg
    49.5 KB · Views: 66

fortrena

ACCESS: Confidential
Joined
Dec 15, 2020
Messages
159
Reaction score
314
Many thanks for correcting me.

As far as the other Canadian firm initially interested in the Bréguet project is concerned, I have to say I have found no info.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
From TU 211,

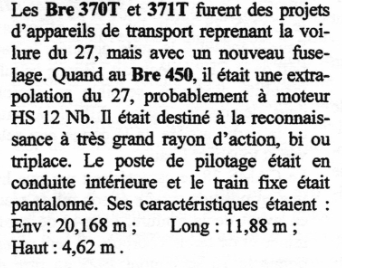

a more info about Breguet Br.450 recce Project.


Attachments

  • 1.png
    88.6 KB · Views: 69
Last edited:

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,726
Reaction score
6,295
And you can see one among 10000 reasons why France lost and collapsed in 1940... so many variants when the much needed Breguet 693s were only 80 to try and stop the panzers in Gembloux and Tongres and Namur and later, at Sedan. With 60% loss rates, soon there was only a couple of dozens ones...
Though, the Br 698 would have likely been a quite useful addition to the order of battle as well.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023

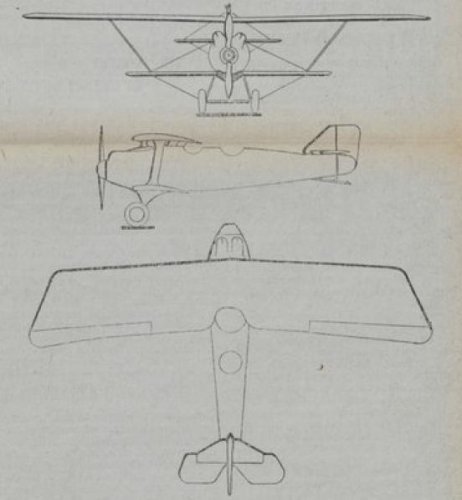

Factory drawing of the Bréguet Br.25:
Source "L'Aviation de chasse française 1918-1940" J. Curnel-Docavia

A clearer view to it,from TU 172.


Attachments

  • 1.png
    246.2 KB · Views: 35

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023

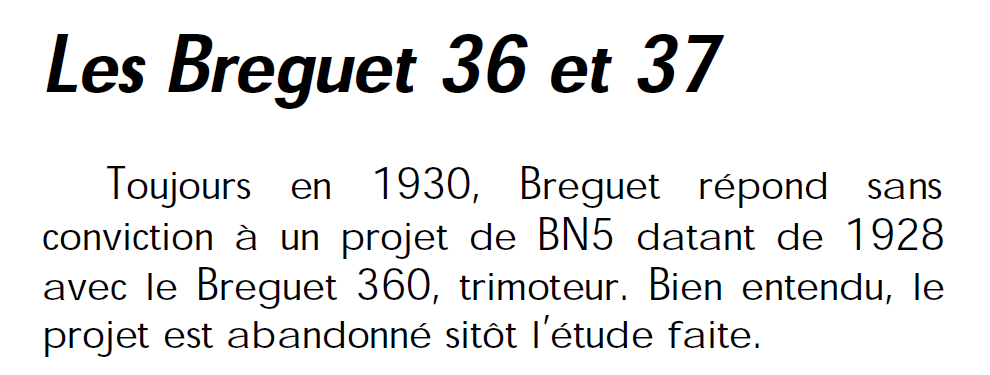

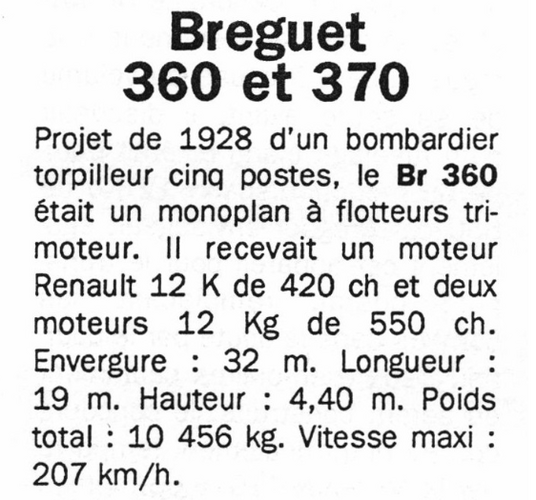

From Hydroretro site and TU 172,

I think there was a three designs for Br.360,the first was a BN5,five seat night
bomber,the second was a torpedo bomber version,the third was a transport
and airliner aircraft.


Attachments

  • c.png
    211.5 KB · Views: 13
  • d.png
    45.2 KB · Views: 10
  • e.png
    43.5 KB · Views: 23
