Bleriot-SPAD S-45 :four engined passengers transport biplane.

Bleriot-SPAD Berline S----?: single engined biplane transport aircraft.

Bleriot Model-101 :amphibian flying boat project.

Bleriot-SPAD S-48: derivative one S-33 transport aircraft fitted with a 275-hp
(205-kw) Lorriane engine.

Bleriot-SPAD S-53: version of S-34 trainer with wing area further increased.

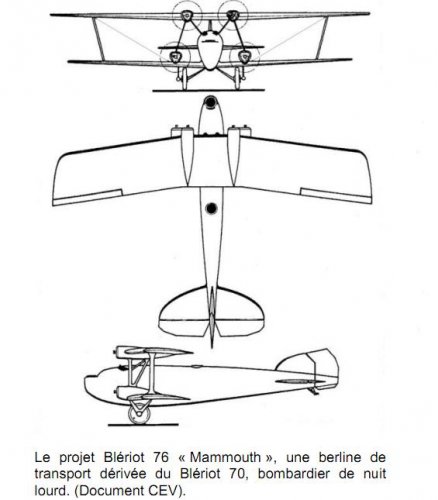

Bleriot 76 :four seat night bomber project,it was version of Blerio 75 with
simplified landing gear arrangement and swept back wings.

Bleriot 103 :four seat four engined biplane bomber,project was derivative from
Bleriot 115.

Bleriot 113 :four seat night bomber project,derivative of Bleriot 155.

Bleriot 136 :five seat day bomber project,derivative of Bleriot 135.

Bleriot 123 :three seat bomber project,derivative of Bleriot 165.

Bleriot 5120 :multi-engined flying boat,no more detail.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,

During the 1930s, Bleriot design a very strange aircraft,it was a single seat monoplane
fighter with forward swept wing and powered by one engine,it had a very smooth or
very flat fuselage,a twin tail fins and no rear wing,it was mentioned in Pilot magazine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,

in the French competition which was mentioned by the member
Retrofit of 1933,for three seat catapult launched recce seaplane,
the tenders were; CAMS-120,Breguet Br.610,Gourdou Lesseure
GL-820,LeO H-43,Levasseur PL200,Loire-130 and Bleriot-Spad
S.610.


It remained only a project,who know more about it ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,


here is the Bleriot giant transatlantic flying boat project,powered by
four Hispano-Suiza engines,mounted in tandem on two engines in
each nacelle,the fuselage is a large boat hull,and can detachable
from the aircraft and move in the water.


http://alternathistory.org.ua/gigantskie-samolety-kotorye-ni-kogda-ne-byli-postroeny-germaniya


Attachments

  • Bleriot Giant.JPG
    Bleriot Giant.JPG
    79.9 KB · Views: 1,004

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,


Bleriot-SPAD S.511 was a single seat biplane fighter,derivative of S.510,powered
by one 600 hp Lorraine Petrel engine,I don't know if ot was built or just a project.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,582
Reaction score
884
The S.511 was just a project. Other unbuilt projects derived from the S.510 were the S.510J2 (an inverted sequiplane with Gnome-Rhône 9Kers), the S.510J3 (Gnome-Rhône 14Ksd), and the S.610 (sequiplane twin-float hydroplane).

Source: JWR Taylor's Combat Aircraft of the World from 1909 to the Present, Putnam's, 1969. BTW, Taylor lists the S.511 as powered by a 860 hp 12Hars Pétrel. As the 12Hars was a 1938 engine, I suspect that the original 500 hp 12H Pétrel was the planned powerplant.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Thank you my dear Apophenia,


and do you have a more info about S.610 ?,I know that it had a length of 10.50m and
it was submitted to this competition;
http://www.secretprojects.co.uk/forum/index.php/topic,6873.msg58737.html#msg58737


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,582
Reaction score
884
Sorry Hesham, I have no more information on the S.610. I am surprised to see it listed as a 3-seater though. I had imagined it being a hydroavion development of the S.510.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Thank you my dear Apophenia,


and about Bleriot-SPAD S.610,it was mentioned in Hydroretro site.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,

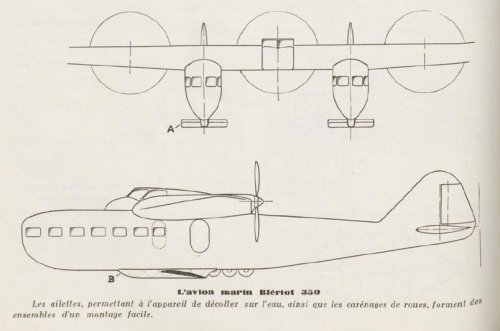

here is the Bleriot 350,it was a three fuselage high-wing transatlantic seaplane
aircraft project,powered by three pusher engines.


L'Aerophile 3/1936


Attachments

  • Bleriot-350.JPG
    40.2 KB · Views: 860

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465

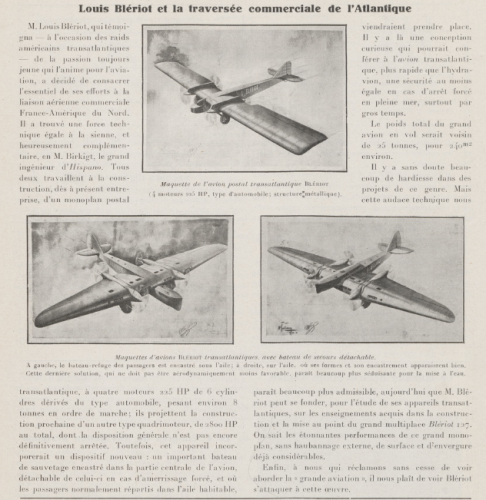

From l'Aeronautique journal August 1927,

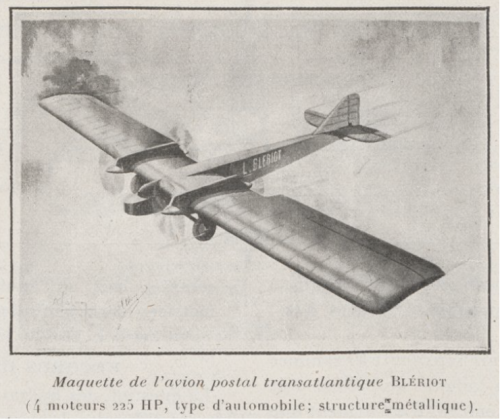

here is a Bleriot three transatlantic aircraft project,the last two are a well known designs,fitted with
detachable boat in emergency case.


Attachments

  • Bleriot-1.png
    646.9 KB · Views: 605
  • Bleriot-2.png
    545.7 KB · Views: 546
  • Bleriot-3.png
    472.8 KB · Views: 468
  • Bleriot.png
    640.1 KB · Views: 432

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
hesham said:
here is a Bleriot three transatlantic aircraft project,the last two are a well known designs,fitted with
detachable boat in emergency case.

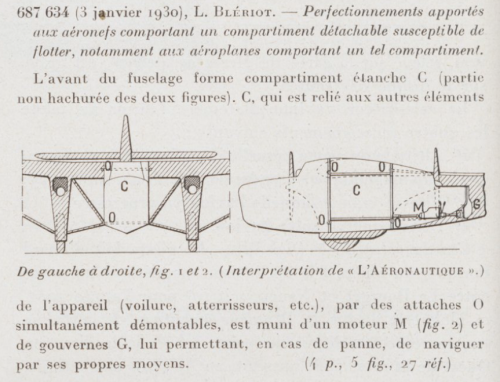

Here is a patent for detachable concept.



l'Aeronautique 1932


Attachments

  • Bleriot.png
    845.7 KB · Views: 372

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

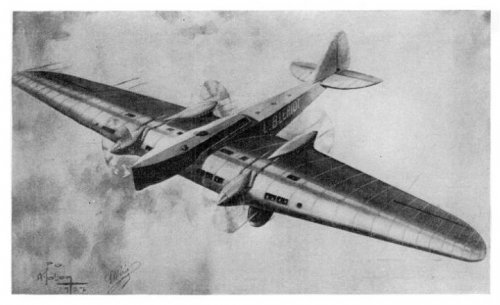

A slightly better image of one of the Transatlantic projects shown in hesham's message:


Attachments

  • Blériot.jpg
    71.9 KB · Views: 76

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Skyblazer said:
A slightly better image of one of the Transatlantic projects shown in hesham's message:


Very nice my dear Skyblazer,

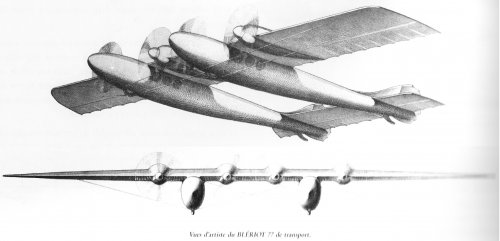

and here is a Bleriot-77 four engined twin fuselage transport aircraft project.


Attachments

  • Bleriot77.JPG
    733.2 KB · Views: 103

thonthon42

ACCESS: Restricted
Joined
Dec 21, 2008
Messages
15
Reaction score
1
Hi !

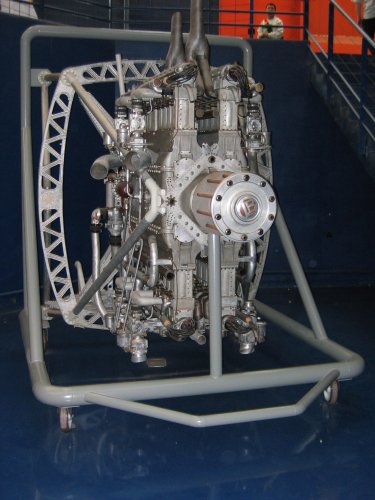

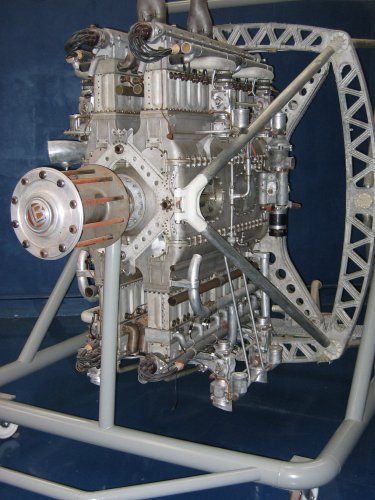

I would like share with you this pictures I have made at Musée de l'air in Le Bourget of the Blériot four engines composit.

@+++

Tonto


Attachments

  • BOURGET07 396.jpg
    BOURGET07 396.jpg
    1.2 MB · Views: 74
  • BOURGET07 395.jpg
    BOURGET07 395.jpg
    1.1 MB · Views: 75

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99
Hi all

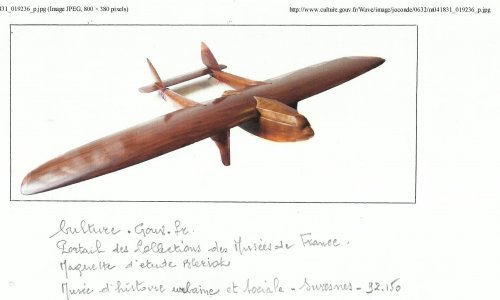

I've found this model of Bleriot's studies !
This come from a museum in SURESNES 92150 fRANCE

Do you know more ! I don't have explanation !!!


Attachments

  • test.jpg
    307.7 KB · Views: 128

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
My dear Toura,


I think no one know it,and we displayed it before here;


http://www.secretprojects.co.uk/forum/index.php/topic,17758.msg191106.html#msg191106


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99
My dear Hesham

How are you

Thank you very much !
You have many more detail than me !

Thanks again...Bye

PAUL


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
526
Reaction score
140
Thonthon 42 - very interesting engine - do we know any more about it?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,


Bleriot-152 was twin engined tourist light biplane project of 1931.


thonthon42

ACCESS: Restricted
Joined
Dec 21, 2008
Messages
15
Reaction score
1
Nick Sumner said:
Thonthon 42 - very interesting engine - do we know any more about it?

Hi Nick !

I think I've something over the subject in a "Fana de l'aviation". If I good remember me, that engine (or his sister) was flown on a prototype during mid twenties ... May be Tophe ;) , who is a "well of knowledge" in aeronautics, could have the right answer over this special four engine ...

@+++ and good year for all friends !

Tonton


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,

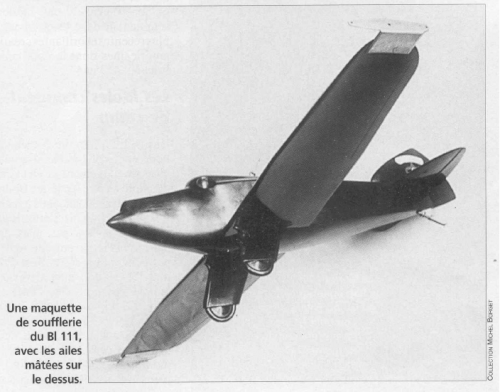

here is an early Model for Bleriot Bl.111 aircraft.


Attachments

  • Bl.111.png
    302.2 KB · Views: 957

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,


The Bleriot Bl.291 was a version of Type-290 with 240 hp Lorraine 7 engine,and
Bl.292 was also a version of Bl.290 with 300 hp Gnome-Rhone engine,remained
only a Projects.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

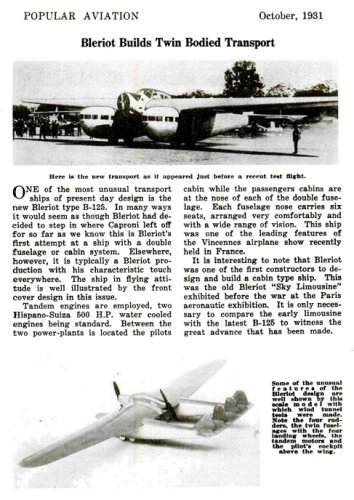

Blériot 125 from Popular Aviation, October 1931:


Attachments

  • Blériot 125 (1931-10).jpg
    Blériot 125 (1931-10).jpg
    195.7 KB · Views: 838

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,


Bleriot Bl.5193 was derivative from Bl.5910 for Miditrenian sea,could accommodated 40
passenger and powered by four 650 hp Hispano-Suiza 12 Nbr engines,also Bl.5194 was
derivative from Bl.5190,intended for range of 1150 km,maybe remained only a projects.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,


in 1923,and for Transport airliner competition,the main tenders were; Caudron C.83,Potez-XXII,
Buscaylets de Monge 7/2,Farman F.3X and F.4S,Breguet XXII and Bleriot-115 & anther Bleriot
design,can anyone ID this later proposal ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
From Le FANA magazine,

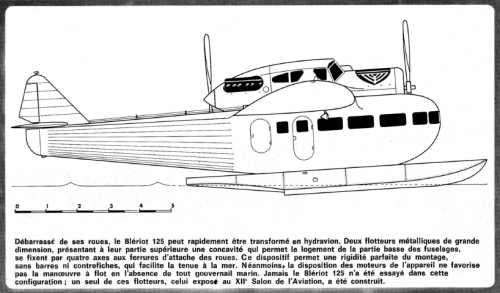

here is the Bleriot 125 with floats,I don't know if it was a project or not.


Attachments

  • 125.png
    191.7 KB · Views: 603

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
492
The image's caption says
Jamais le Blériot 125 n'a été essayé dans cette configuration; un seul de ces flotteurs, celui exposé au XIIe Salon de l'Aviation, a été construit.
The Blériot 125 was never tested in this configuration; only one of these floats, the one exhibited at the XIIth Salon de l'Aviation, was built.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
hesham said:
in 1923,and for Transport airliner competition,the main tenders were; Caudron C.83,Potez-XXII,
Buscaylets de Monge 7/2,Farman F.3X and F.4S,Breguet XXII and Bleriot-115 & anther Bleriot
design,can anyone ID this later proposal ?.


The Bleriot-105 was the solution.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,674
Reaction score
3,465
Hi,

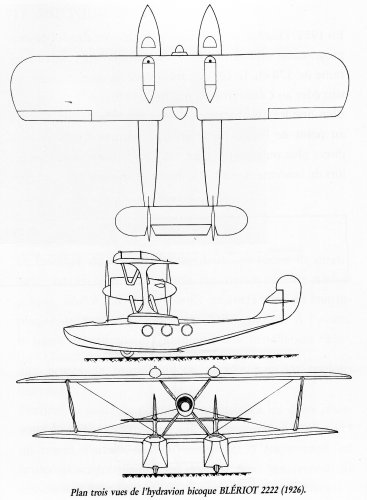

the Bleriot 2222 was twin engined (push-pull) amphibian flying boat biplane project of 1926,
intended for transport,could accommodated 8 passenger,powered by two 450 hp Lorraine
12 Ed engines,featured by a twin hull configuration.


Attachments

  • Blériot2222.JPG
    475.7 KB · Views: 419
