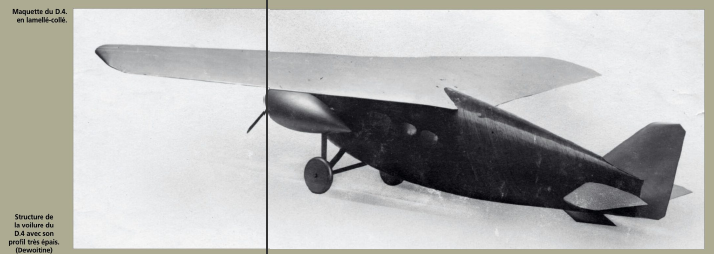

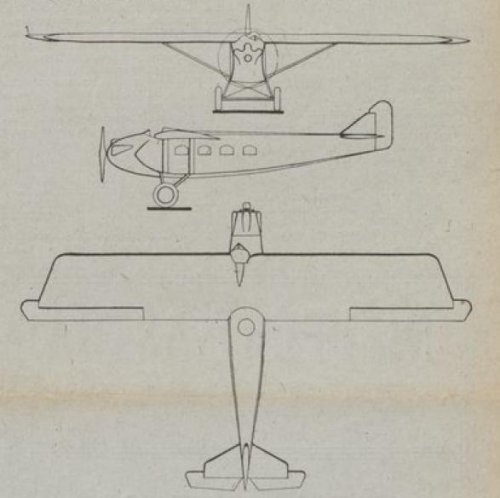

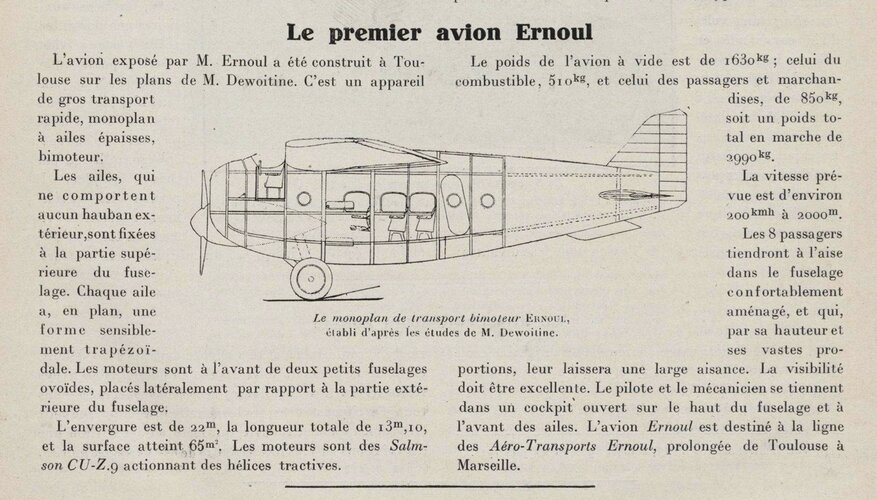

It's the Dewoitine D.4

An 1/25 scale model of this plane was shown for a "Salon de l'aéronautique" in Paris in 1921 (12th-27th november). F-ATMA 2 was a fictionnal french identification (Aéro-Transports Méditerranée Atlantique). The project was too expensive for M. Ernoul (owner of the too little "Aéropublicité" company) and for M. Dewoitine too (the D.1 fighter needed a lot of money).
-engines : 2 x 230 hp Salmson Canton-Unné Z 9
-Length : ?
-span : 22 m
-wing area : 65 m² (with the first 21,5 m wing)
-weight max : 2990 kg
-speed max : 200 km/h (2000 m)
-passengers : 8


A D.11 of 1923 was a possible bigger derivative of the D.4 (2 X 300 hp Hispano-Suiza 8 Fb, for 10 passengers)


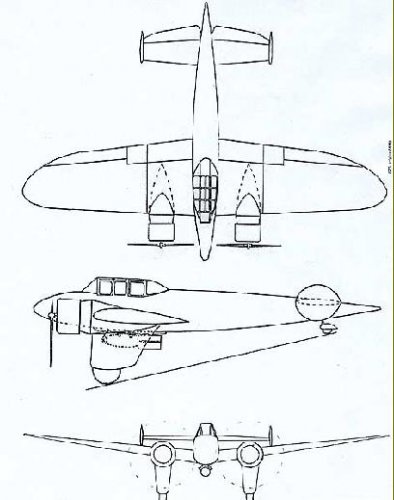

There was a night bomber (Bn2) derivative project of the D.4 too :
-engines : 2 x 230 hp Salmson Canton-Unné Z 9 (later : 2 x 260 hp Salmson Canton-Unné CM 9)
-length : 13,1 m (later : 14,4 m, then : 14,5 m)
-span : 21,8 m (later : 22,22 m, then : 22,3 m)
-65 m² wing area (at first)
-weight empty : 1730 kg (later : 1850 kg, then : 2115 kg)
-weight max : 3230 kg (later 3570 kg)
-max speed : 210 km/h (2 000 m)
-bombs : 10 x 50 kg

The Bn2 programme was abandonned (mid 1924 ?) and the D.4 Bn2 prototype never finished.


Sources : LES AVIONS DEWOITINE (by Cuny and Danel)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
Thank you my dear Deltafan,

it is very great info,and can I ask you that I heard the Dewoitine
D.2,D.3,D.5 and D.6 were also civil projects and the D.18 was
six seat high wing single engined light transport aircraft,is that right ?.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,329
Reaction score
1,117
-The D.2 was a all metall high altitude bomber project a little bigger than the D.1, foreseen for the 1920's Bp2 programme. Never built.
one 600 hp Renault 12 M engine
max speed : 190 km/h (5000 m)
bombs load : 300 kg

-The D.3 was a 1921's single engined civil project for 4 passengers and smaller than the D.4. Never built.
One 230 hp Salmson Z 9 engine
Span : 14,5 then 17,36 m
Wing area : 30 m² (for the two spans)
empty weight : 800 kg
max weight : 1 500 kg

-The D.5 was a 1921's reco derivative project of the D.1. Only a 1/20 scale model was built.
Length : 8,98 m
Span : 15,4 then 17,7 m
wing area : 34 m²
empty weight : 960 kg
max weight : 1 700 kg
max speed : 190 km/h


-The D.6 was a bi-engined torpedo bomber, floatplane or hydroplane (I don't know the good name in english) or wheels, for the 1922's HyT programme. Never built (the winners to build the prototypes were Schneider and Levasseur).
2 x 370 hp Lorraine-Dietrich 12 Da engines


-the D.18 was a 1924's derivative project of the D.1. Foreseen for the first Paris - New-York fly. Never finished.
One 450 hp Hispano-Suiza 12 Ga


Source : LES AVIONS DEWOITINE


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
970
Deltafan said:
It's the Dewoitine D.4

An 1/25 scale model of this plane was shown for a "Salon de l'aéronautique" in Paris in 1921 (12th-27th november). F-ATMA 2 was a fictionnal french identification (Aéro-Transports Méditerranée Atlantique). The project was too expensive for M. Ernoul (owner of the too little "Aéropublicité" company) and for M. Dewoitine too (the D.1 fighter needed a lot of money).
-engines : 2 x 230 hp Salmson Canton-Unné Z 9
-Length : ?
-span : 22 m
-wing area : 65 m² (with the first 21,5 m wing)
-weight max : 2990 kg
-speed max : 200 km/h (2000 m)
-passengers : 8

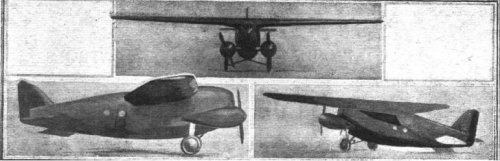

A whole page with 3-view plan, photos of model and details can be found here:
http://www.flightglobal.com/pdfarchive/view/1922/1922%20-%200089.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
Stargazer2006 said:
Deltafan said:
It's the Dewoitine D.4

An 1/25 scale model of this plane was shown for a "Salon de l'aéronautique" in Paris in 1921 (12th-27th november). F-ATMA 2 was a fictionnal french identification (Aéro-Transports Méditerranée Atlantique). The project was too expensive for M. Ernoul (owner of the too little "Aéropublicité" company) and for M. Dewoitine too (the D.1 fighter needed a lot of money).
-engines : 2 x 230 hp Salmson Canton-Unné Z 9
-Length : ?
-span : 22 m
-wing area : 65 m² (with the first 21,5 m wing)
-weight max : 2990 kg
-speed max : 200 km/h (2000 m)
-passengers : 8

A whole page with 3-view plan, photos of model and details can be found here:
http://www.flightglobal.com/pdfarchive/view/1922/1922%20-%200089.html

Please see the post before Deltafan.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
Hi,

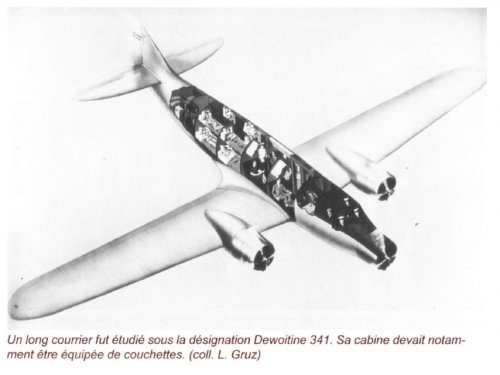

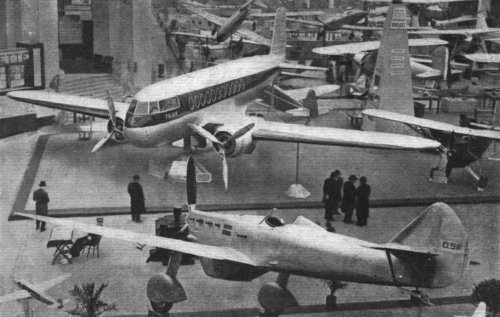

also from the magazine, Avions No.179,here is the three engined low-wing transport
project,the Dewoitine D.341.


Attachments

  • D.341.JPG
    40.1 KB · Views: 965

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
29

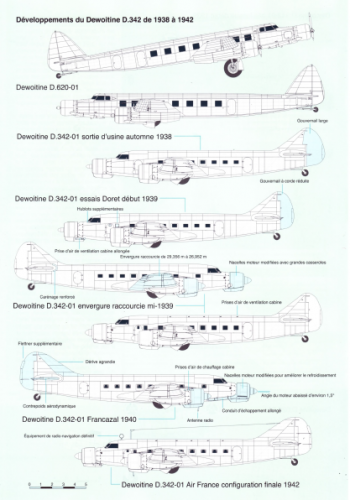

This was a 1937 project that seems to be similar to the D.342, which itself was a development of the D.338. Any further information on the D.341 would be appreciated.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871

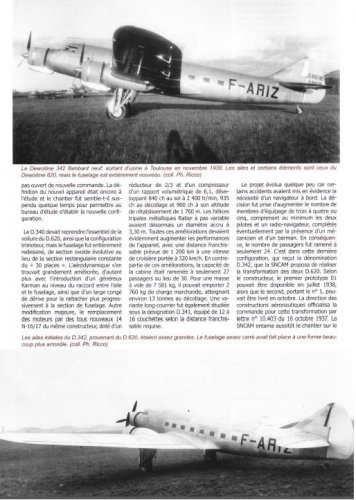

My dear Jos,


here is the only info in the article.


Attachments

  • 1.JPG
    73.8 KB · Views: 872

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
Hi,


the Dewoitine D-680 dive-bomber project.


Attachments

  • D-680.jpg
    28.5 KB · Views: 698

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,813
Reaction score
132
Strange design...Where is it from Hesham ?
Do you have more info,? (time frame, specs)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871

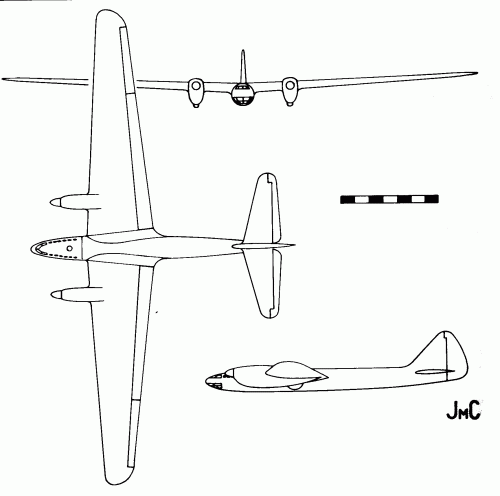

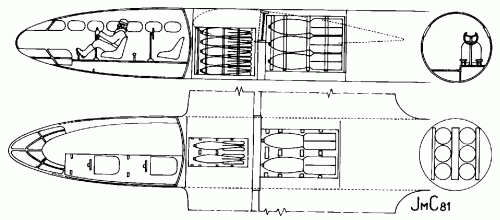

hesham said:
also from the magazine, Avions No.179,here is the three engined low-wing transport
project,the Dewoitine D.341.

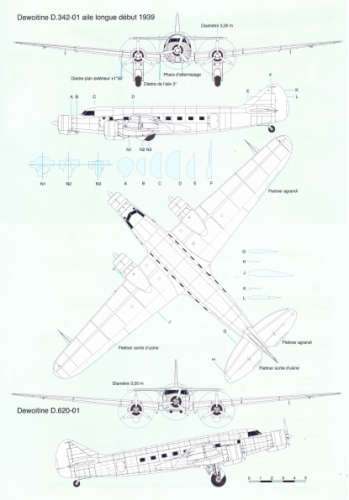

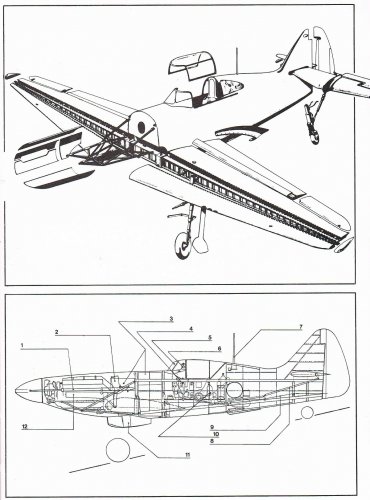

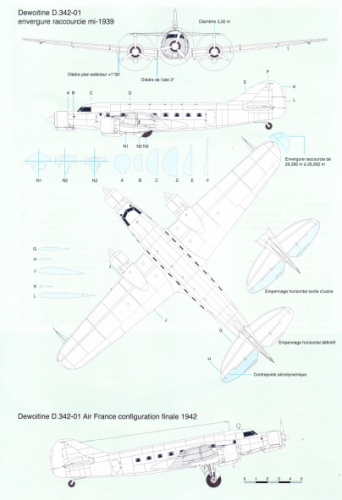

From the same source,some drawings.


Attachments

  • 1.png
    251.1 KB · Views: 910
  • 2.png
    280.2 KB · Views: 879
  • 3.png
    246.7 KB · Views: 839

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

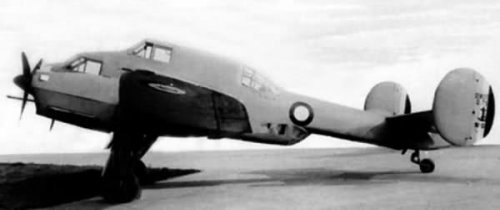

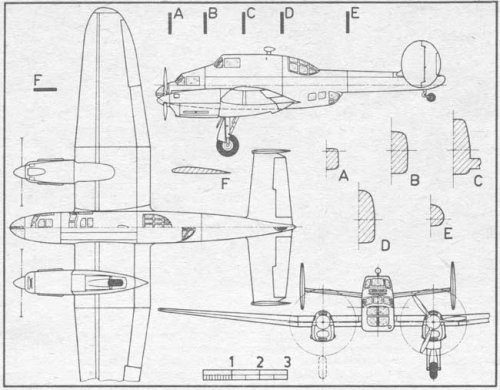

Hi! D.750.
https://en.wikipedia.org/wiki/Dewoitine_D.750

"The Dewoitine D.750 was a prototype French twin-engined torpedo bomber. It was designed prior to the outbreak of the Second World War to operate from the aircraft carriers of the French Navy, but only a single example was completed, with development ended by France's defeat by Germany in June 1940."


Attachments

  • D.750.jpg
    10.5 KB · Views: 233
  • Dewoitine D.750.jpg
    Dewoitine D.750.jpg
    39.2 KB · Views: 647

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

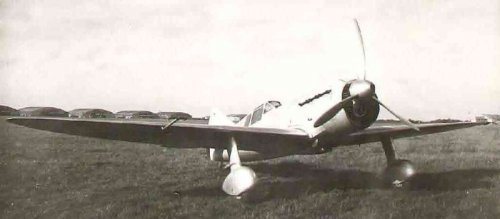

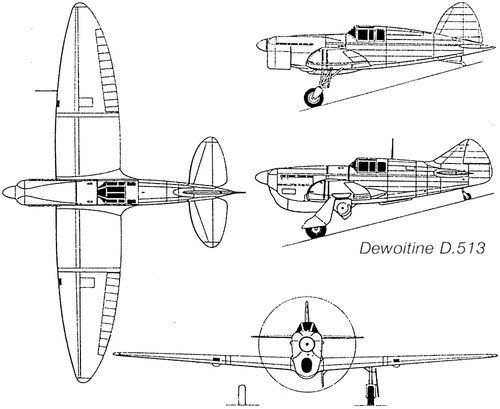

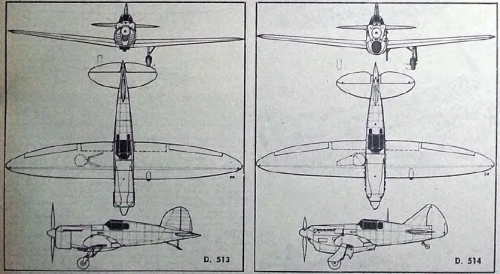

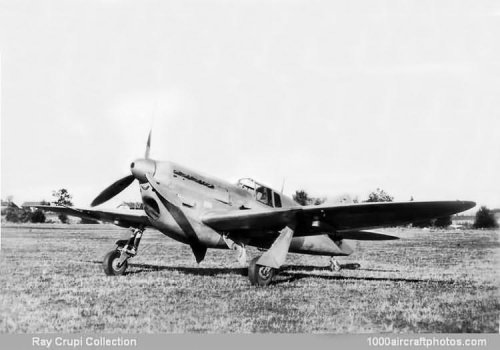

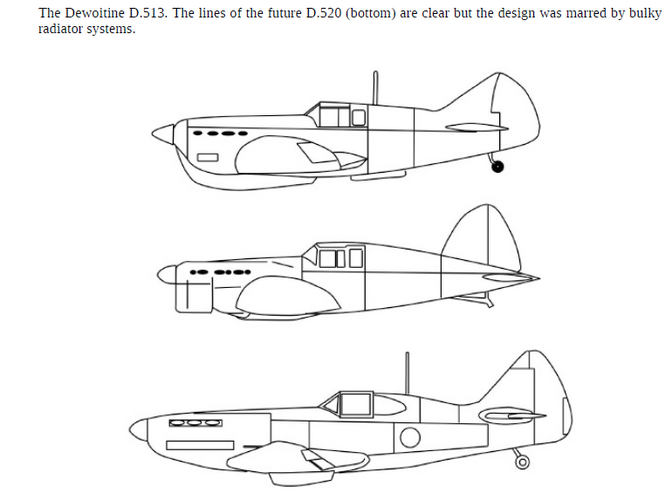

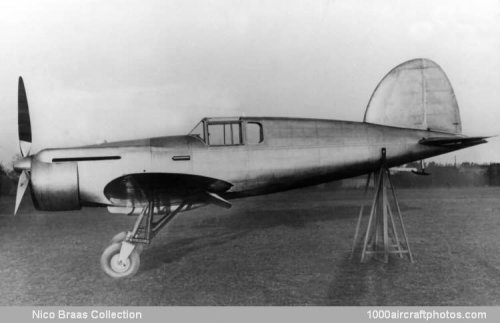

Hi! D.513 and D.514.
https://en.wikipedia.org/wiki/Dewoitine_D.513
"The D.513 was a single-seat low-wing cantilever monoplane fighter that first flew on 6 January 1936. The D.513 was powered by an 860 hp (641 kW) Hispano-Suiza 12Ycrs1 inline piston engine and had a retractable tailwheel landing gear. Testing proved that the D.513 was unstable and not able to reach the expected speeds and it was rebuilt with a new fuselage and a modified tail unit. The changes did not improve the stability or the maximum speed and problems were also found in the engine cooling and landing gear, and further development was halted. The second prototype was modified with landing gear and a radiator from the D.503. It was redesignated the D.514LP and was used in high-speed parachute trials."

http://1000aircraftphotos.com/Contributions/Visschedijk/Additions/Dewoitine_D.513_initial_3-view.htm

http://1000aircraftphotos.com/Contributions/Visschedijk/Additions/Dewoitine_D.513_final_3-view.htm

http://1000aircraftphotos.com/Contributions/Braas/8320.htm
http://1000aircraftphotos.com/Contributions/CrupiRay/12631.htm
http://forum.aviation-ancienne.fr/t387p855-quizz-1-2-3


Attachments

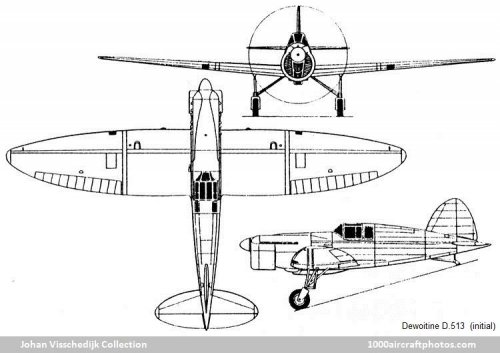

  • Dewoitine_D_513_initial_3-view.jpg
    59.4 KB · Views: 190
  • D.513 before modification.jpg
    D.513 before modification.jpg
    38.8 KB · Views: 184

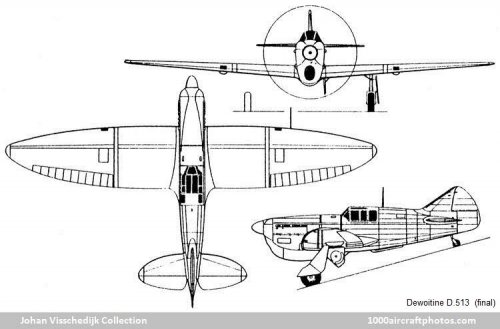

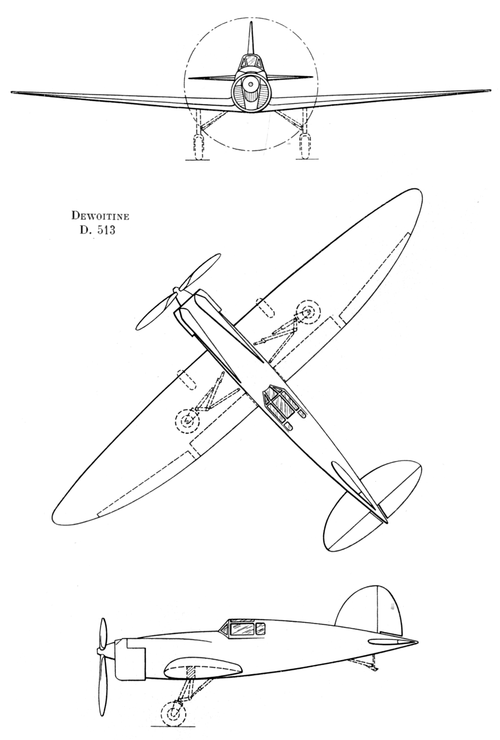

  • Dewoitine_D_513_final_3-view.jpg
    54.8 KB · Views: 194
  • D.513 after modification.jpg
    D.513 after modification.jpg
    39.2 KB · Views: 190
  • D.514.jpg
    63 KB · Views: 202
  • dewoitine_d_513-70876.jpg
    43.9 KB · Views: 227

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

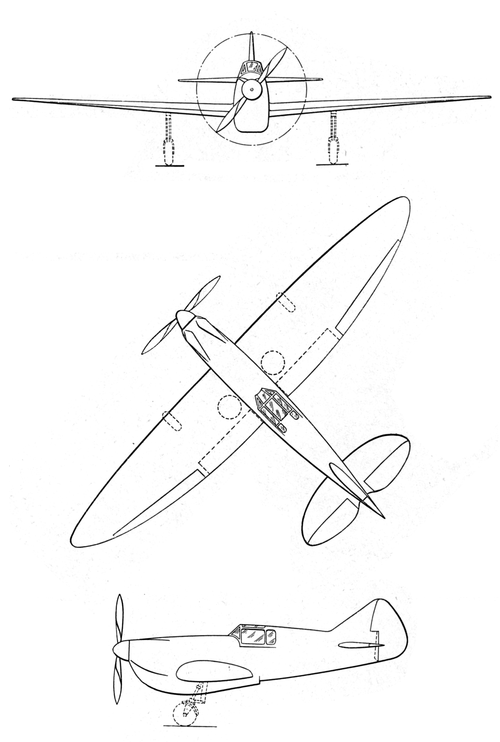

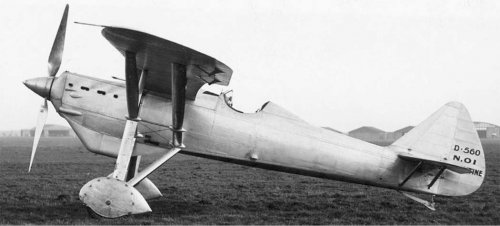

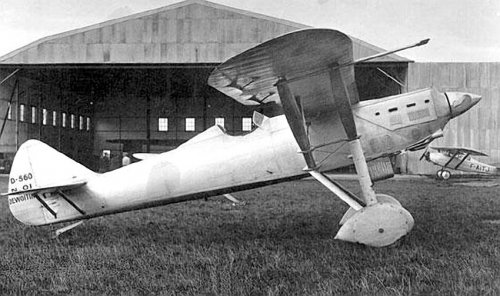

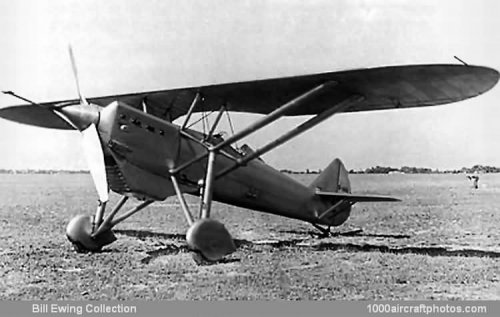

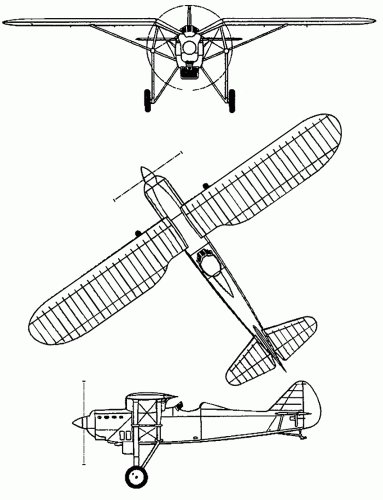

Hi! Dewoitine D.560 and D.570.
It's very hard to find D.560 three side view drawing with radiator fairing(bottom picture).
Also it's very hard to find D.570 three side view drawing.

http://www.airwar.ru/enc/fww1/dewd560.html

https://en.wikipedia.org/wiki/Dewoitine_D.560
"D.560 Prototype gull wing fighter, one built. D.570 The D.560 rebuilt with a parasol wing."


Attachments

  • D.570.jpg
    38.8 KB · Views: 166
  • dewd560-5.jpg
    62.4 KB · Views: 154
  • dewd560-1.jpg
    86.5 KB · Views: 163
  • dewd560-1.gif
    102.5 KB · Views: 180

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

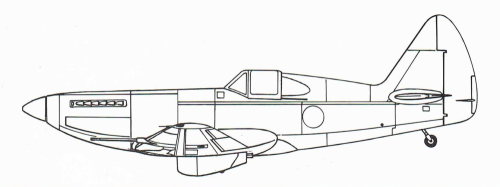

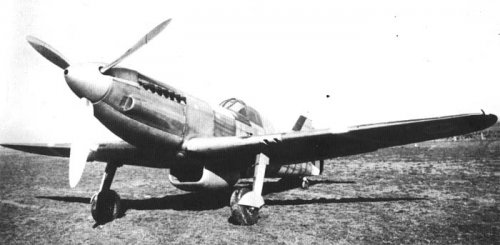

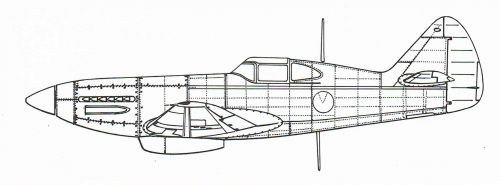

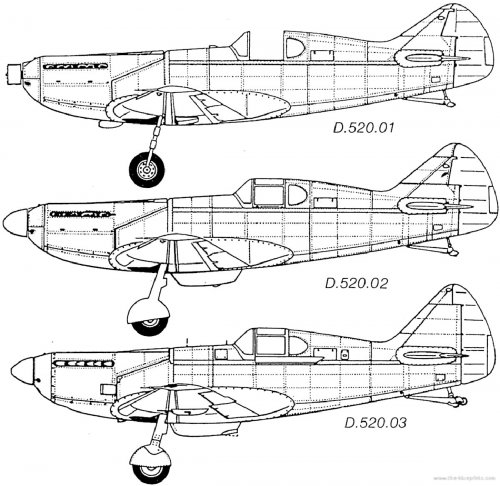

Hi! D.520 prototype and D.520Z.
D.520.01 radiator design is different from other models.
D.520Z radiator moved forward direction.
https://www.the-blueprints.com/blueprints/ww2planes/various/70879/view/dewoitine_d_520/

https://forum.warthunder.com/index.php?/topic/385554-the-dewoitine-se520z-the-ultimate-d520/

https://img4.hostingpics.net/pics/938123Image8.jpg

https://en.wikipedia.org/wiki/Dewoitine_D.520
"D.520 Z : D.520 airframe with 12Z engine and minor improvements. One example was built. The development resumed after the war (as SE.520Z), but was eventually cancelled in 1949."


Attachments

  • dewoitine-d520-4.jpg
    255 KB · Views: 200
  • D.520 prototype picture1.jpg
    D.520 prototype picture1.jpg
    59.9 KB · Views: 193
  • D520Z_prototype_thumb_png_ba6aa07ee25eeef98582498ae652a343.png
    299.2 KB · Views: 196
  • D520Z_thumb_png_730676beb4ef25b40d16bf91d975dd58.png
    253 KB · Views: 195
  • D.520Z.jpg
    339.3 KB · Views: 213
  • d520z-3.jpg
    56.2 KB · Views: 219

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

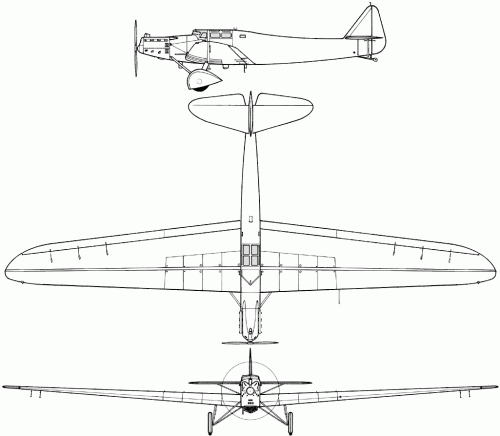

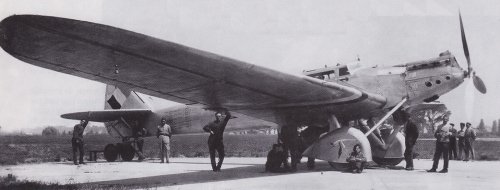

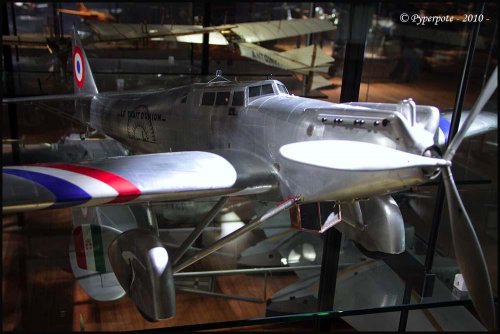

Hi! D.33.
https://en.wikipedia.org/wiki/Dewoitine_D.33
"The Dewoitine D.33 was a single-engine low-wing monoplane aircraft built by the Dewoitine Company. It is remembered for setting a long-distance record on its first flight in 1930.
Little is documented on the specifics and the basic model of the D.33, other than the fact that it had a fixed undercarriage, and was a low-wing cantilever monoplane. There were three documented variations to the model, each of which was designed as a separate aircraft. This line of aircraft were regarded highly commercially before World War II, and they were influential in the establishment of the Dewoitine Company."

http://drawingdatabase.com/dewoitine-d-33/

https://www.pinterest.jp/pin/471892867192865608/?lp=true

http://www.pyperpote.tonsite.biz/listinmaeu/index.php?option=com_content&view=article&id=449:7-decembre-2011&catid=55:les-news&Itemid=57


Attachments

  • D.33 pic2.jpg
    D.33 pic2.jpg
    73.8 KB · Views: 184
  • D.33 pic1.jpg
    D.33 pic1.jpg
    273.5 KB · Views: 172
  • dewoitine-d-33.gif
    32.1 KB · Views: 168

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

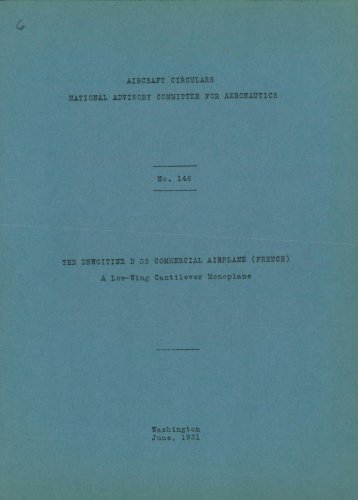

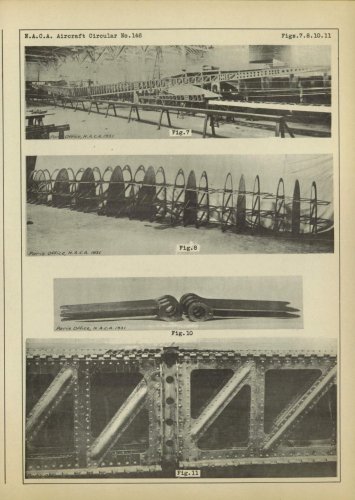

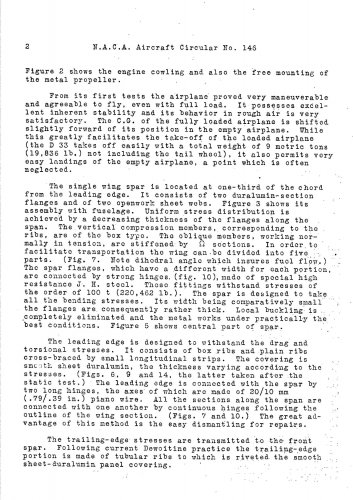

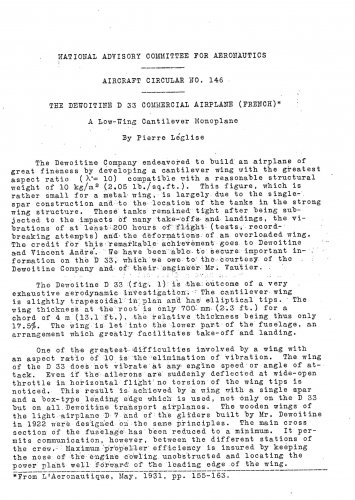

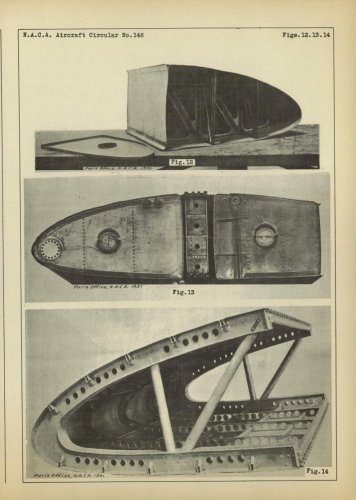

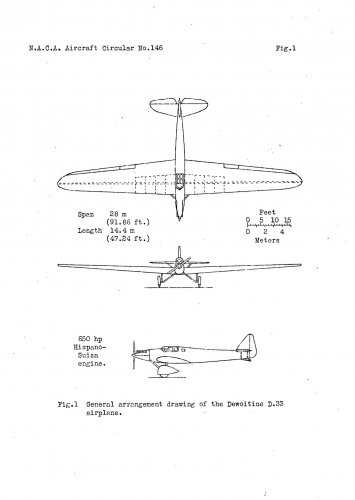

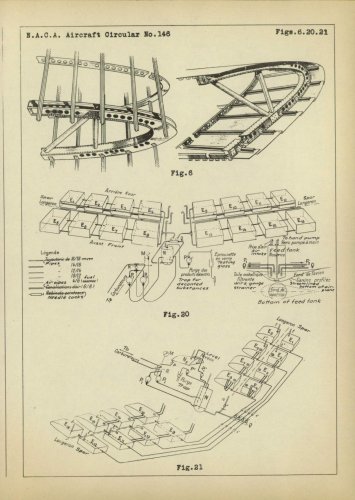

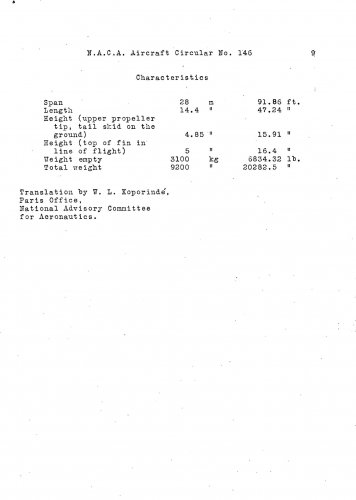

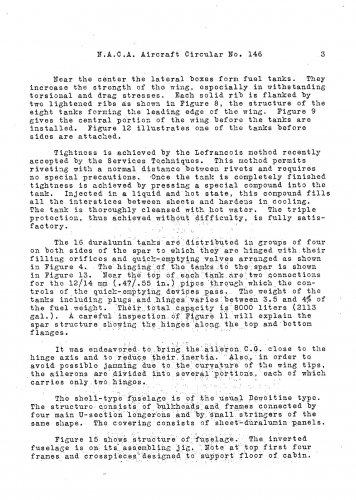

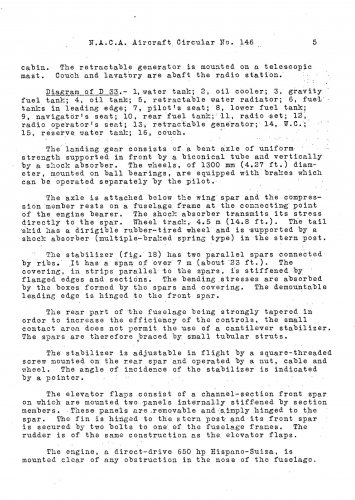

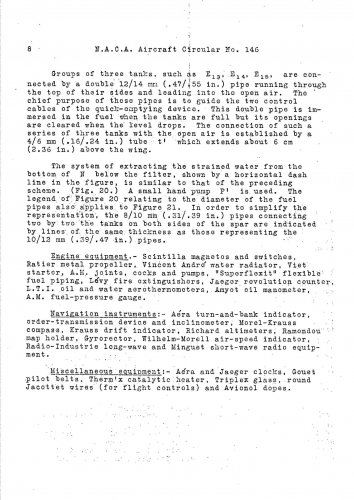

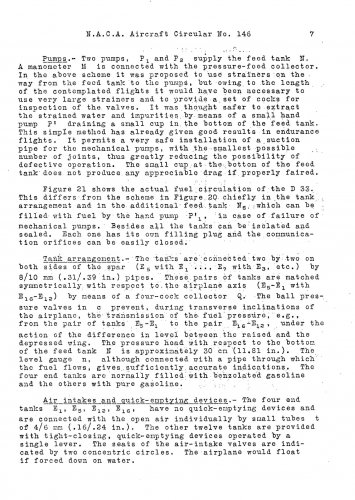

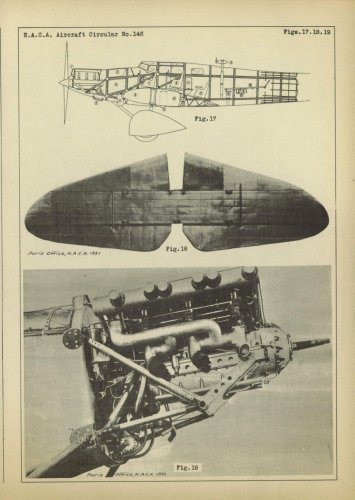

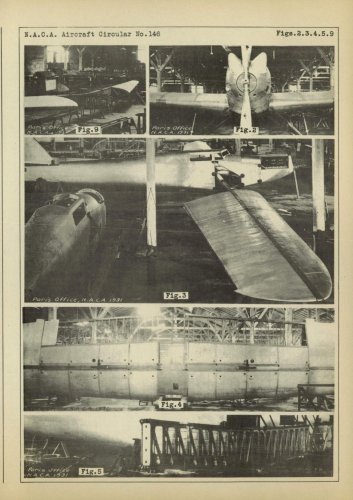

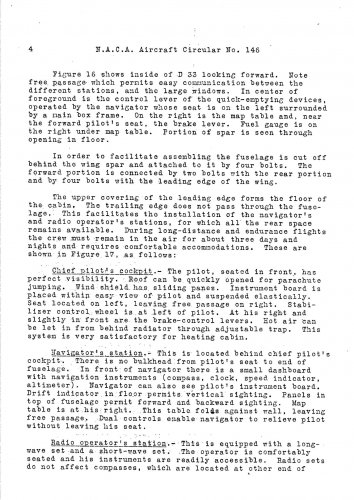

The Dewoitine D 33 commercial airplane (French) : a low-wing cantilever monoplane
https://digital.library.unt.edu/ark:/67531/metadc279652/m1/10/


Attachments

  • 9.jpg
    91.3 KB · Views: 129
  • 8.jpg
    410.9 KB · Views: 115
  • 7.jpg
    489.1 KB · Views: 106
  • 6.jpg
    446.3 KB · Views: 100
  • 5.jpg
    439.9 KB · Views: 93
  • 4.jpg
    477.6 KB · Views: 88
  • 3.jpg
    468.2 KB · Views: 87
  • 2.jpg
    497.6 KB · Views: 86
  • 1.jpg
    464.2 KB · Views: 95
  • 0.jpg
    208.1 KB · Views: 104

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

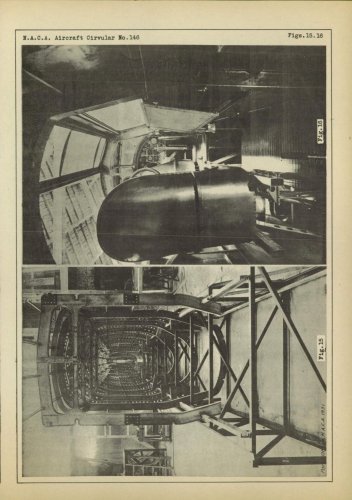

continued


Attachments

  • 16.jpg
    331.2 KB · Views: 113
  • 15.jpg
    382.6 KB · Views: 100
  • 14.jpg
    343.7 KB · Views: 91
  • 13.jpg
    366 KB · Views: 95
  • 12.jpg
    327.5 KB · Views: 102
  • 11.jpg
    403.4 KB · Views: 138
  • 10.jpg
    114.2 KB · Views: 159

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520
Hi! D.332.

https://en.wikipedia.org/wiki/Dewoitine_D.332

https://www.youtube.com/watch?v=7Pb-iUZMwdo

https://www.youtube.com/watch?v=PaJoYBykiw8


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520
Yes. What a pity. :'(
"On January 15, 1934, while flying from Lyons, France, to Paris-Le Bourget Airport outside Paris – the final leg of a flight that began on 5 January in Saigon, French Indochina, with stops at Karachi, British India; Baghdad, Iraq; Marseilles, France; and Lyons – the prototype Emeraude, operating for Air France and registered as F-AMMY, crashed in a snowstorm at Corbigny, France, killing all ten people on board. The crash probably occurred due to icing."


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,520

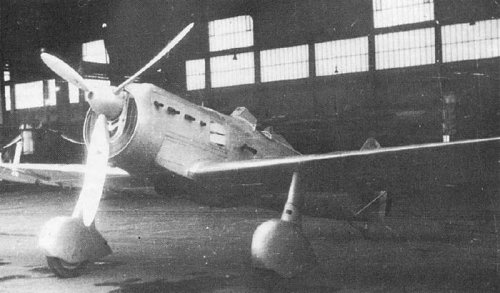

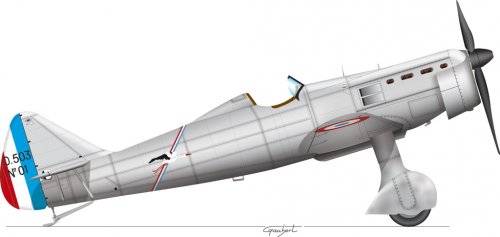

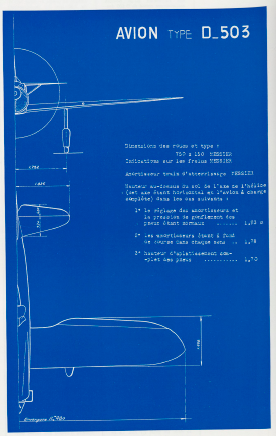

Hi! Dewoitine D.511,503 and AXD1.

http://aviadejavu.ru/Site/Crafts/Craft33646.htm
"In the centre of this display is the Breguet 46T as it will look when finished. Two Mistral Major engines of 880 h.p. each are expected to give it a top speed of 240 m.p.h. In the foreground is the Dewoitine D.511, France's latest and fastest fighter."

https://weaponsandwarfare.com/2015/08/18/dewoitine-d-510/
"D.511
Prototype with D.500 fuselage and tail, smaller wings, cantilever undercarriage, 12Ycrs engine. One prototype built in 1934 but never flown, converted to D.503."

"D.503
The sole D.511 prototype fitted with a 12Xcrs engine with a circular radiator in the nose, the same armament as D.501. First flight 15 April 1935, found to perform worse than D.500. The aircraft was briefly the personal mount of René Fonck."

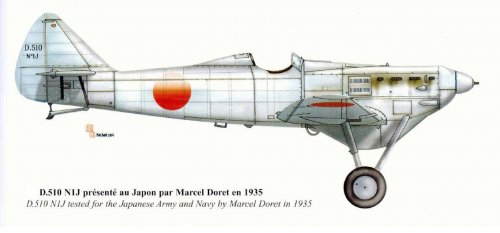

"AXD1
The short designation for the single Dewoitine D.510 supplied to the Imperial Japanese Navy Air Service for evaluation in 1935."


Attachments

  • AXD1.jpg
    62 KB · Views: 185
  • d503-3.jpg
    76.2 KB · Views: 163
  • Devoitine D.503.jpg
    Devoitine D.503.jpg
    80.3 KB · Views: 179
  • Dewoitine D.511.jpg
    Dewoitine D.511.jpg
    117.4 KB · Views: 192

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
From Ali Nuove 1/1962.


Attachments

  • 1.png
    753.4 KB · Views: 201

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
From Icare 1966,

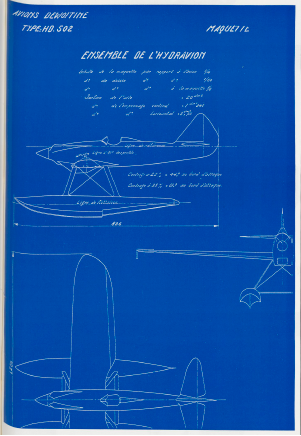

here is a two Projects,HD.502 ?& HD.503.


Attachments

  • 1.png
    145.8 KB · Views: 176
  • 2.png
    168.1 KB · Views: 211

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,454
Reaction score
7,194


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
From Docavia,

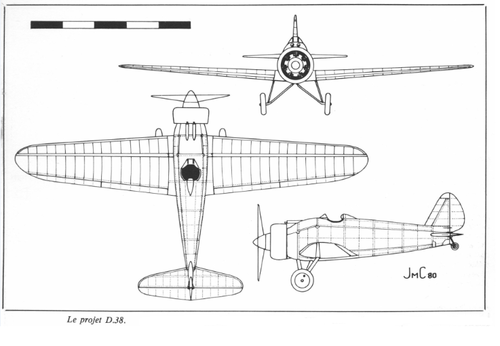

the D.38 was a single seat low-wing monoplane fighter Project,with fixed landing gear and powered by either 220 hp Titan or 320 hp Titan Major engine,1929.


Attachments

  • 1.png
    135.6 KB · Views: 169
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
From Ailes,

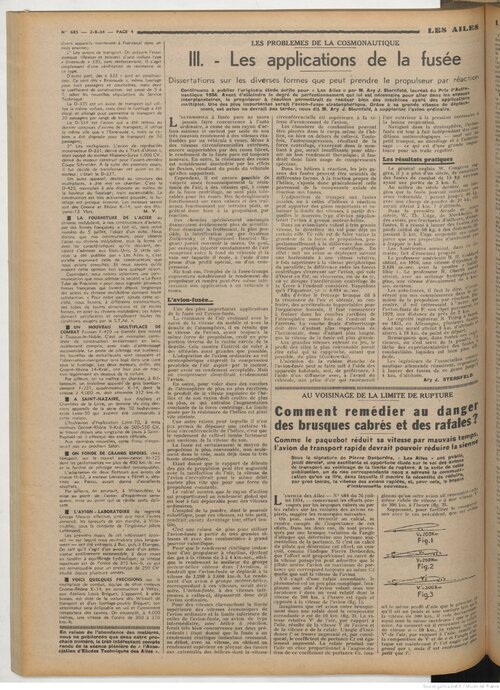

here is a small Info about D.330,D.331,D.333,D.334,D.335 & D.337.


Attachments

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k65760503_4.jpeg
    1.6 MB · Views: 71

juanT

ACCESS: Confidential
Joined
Dec 25, 2008
Messages
56
Reaction score
143
"...The Ernoul twin-engine transport monoplane, established from studies by M. Dewoitine" (L´Aéronautique)


Attachments

  • 13.JPG
    1.9 MB · Views: 94

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,990
Reaction score
6,871
From, The Rise and Fall of the French Air Force French Air Operations and Strategy 1900-1940


Attachments

  • 2.png
    101.8 KB · Views: 70

iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
605
Reaction score
559
Here are a couple of additional three views that show landing gear arrangments.


Attachments

  • d513-1.gif
    294.1 KB · Views: 53
  • d513-2.gif
    192.3 KB · Views: 68

Similar threads

Top
