Hi CNH,

It was a document, internal letter at the Public Records Office at Kew. There was another document 1958/59 in the same section that suggested three identical weapons, bombs could be carried by blue Streak in addition to the live round to act as decoys
I think there is a digital photo copy of it some where at home. Some of my records have been corrupted but will try to find it. Am looking forward to getting a copy of the latest edition of your book.




CNH said:
It certainly was in play with the UK military programme by the end of the fifties as a considered possibility.
The 1958/9 cost estimate of BS round was according to ministry documents about £500,000 plus £2,500,000 for the warhead.
I have never come across this - can you give me a source?


PMN1

CLEARANCE: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
679
Reaction score
20
Spark said:
Hi CNH,

It was a document, internal letter at the Public Records Office at Kew. There was another document 1958/59 in the same section that suggested three identical weapons, bombs could be carried by blue Streak in addition to the live round to act as decoys
I think there is a digital photo copy of it some where at home. Some of my records have been corrupted but will try to find it. Am looking forward to getting a copy of the latest edition of your book.
He may have to write a revised version to include this new info.... :)


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi,

The other week talking to former member of the BS/RR RZ2 trials team, he said there was a RZ2/12 version developed using an all fluidic control system apart from a single solenoid starter control. Has any one found details of such a engine?


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi

Armstrong Whitworth had a eight man team working in secret from 1956 on space craft/space plane proposal under the direction of Mr. H. R. Watson



Spark said:
Hi,

The other week talking to former member of the BS/RR RZ2 trials team, he said there was a RZ2/12 version developed using an all fluidic control system apart from a single solenoid starter control. Has any one found details of such a engine?


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi,
While trying to find references for CNH I came across a PRO document, early fifties which refers to the only studies being for 15ft and 16ft diameter missiles and the observation on logistics that it would be difficult to move by road but 15ft was OK for UK rail transport. It was then stated that this issue was being checked and looked into.

This possibility for such a big missile was new to me although it was always in tended that the latter 10ft diamter BS had rail deployment as an option.
Has any one found confirmation for such a big 15ft dia..missile being rail mobile?
But it may explain while Charles Martin said “ we should not forget the 15ft diameter SLV for which we had done so much work”.


Spark said:
Hi

Armstrong Whitworth had a eight man team working in secret from 1956 on space craft/space plane proposal under the direction of Mr. H. R. Watson



Spark said:
Hi,

The other week talking to former member of the BS/RR RZ2 trials team, he said there was a RZ2/12 version developed using an all fluidic control system apart from a single solenoid starter control. Has any one found details of such a engine?


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
926
Reaction score
23
Currently reading "From Polaris To Trident" by Graham Spinardi and in the section about Jupiter being considered for submarine/ship basing there is this line "Whereas the Army's only size limitation was apparently the Berne International Railway Tunnel - to allow "rapid" transportation around Europe..."
Anyone know the measurements?
Regards,
Barry


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
i found only this http://www.railway-technical.com/berne.shtml

2.5m or 8ft 2.5in for swap-bodies or commercial vehicles, and 8ft or 8ft 6in (2.437m or 2.6m) for containers.
if i have the Time/money next year, will try and visit the Derbyshire Record Office
they have document and Drawings of Blue Streak in ELDO-B version and of RZ 2 to RZ 14
D5290/1/1 RZ.14 Project
D5290/1/14 ELDO B.1 and B.2
D5290/2/2 RZ.3 Rocket engine
D5290/2/3 RZ.3 RZ.14 Rocket engine
D5290/2/5 Miscellaneous RZ Rocket engines
but they have Copyright Rolls Royce on it, so Derbyshire Record Office can only copy 10% of it.
so I need to look for my self and Copy it...


CJGibson

CLEARANCE: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,222
Reaction score
128
Well...get nine mates and copy 10% apiece, meet in the pub, put it together and leg it before they rumble you.

You aint seen me. Right?

Chris


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
CJGibson said:
Well...get nine mates and copy 10% apiece, meet in the pub, put it together and leg it before they rumble you.

You aint seen me. Right?

Chris




that good one...
and also a good idea !


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
926
Reaction score
23
2 other options - get the permission of the copyright holder if possible to copy more.
- were there any conditions made when the material was donated to the library about copying and use?
Regards,
Barry


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi Michel,
Interesting archive also contains Mr. Brassington’s personal collection, a BIS member and Rolls Royce artist, illustrator his mother or aunt used too live three doors up from my grandma at Matlock many yeas ago.
Look at what he deposited its interesting, there is the write up of a lecture by one of Val Cleavers colleagues , obviously based on a proposed UK military system from the late fifties the masses for the launch vehicle fit the proposed military RZ2x4 SLV with a 35,000lb RAF/RAAF Spaceplane. That could change its orbital inclination by + or- 20degrees and go from a 300n.mile parking orbit out some 7,000n.mile. This was presented in the lecture as an ELDO civil project after the military cancellation. But I am told the Requirement is still on the books!
Remember book a place early at the archive. limited work room.

Visit Rolls Royce Heritage at Derby, they have an interesting range of historic engines.
Best on a Wednesday, we could arrange for you to meet some of the old timers who worked for Armstrong Siddeley.


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi Michel,

Note, at Cosford there is a SR 53, a variant of which was proposed circa 1954 as a TAV research aircaft when flown from the back of a Vulcan and before but with a similar performance to the initial X15.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,027
Reaction score
222

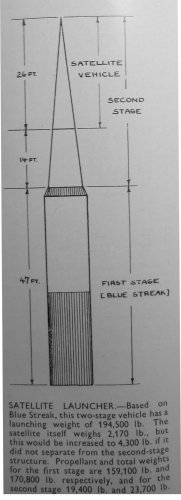

During my latest "raid" to the States Library I found this drawing in
The Aeroplane March 1959 :


Attachments

martinbayer

CLEARANCE: Top Secret
Joined
Jan 6, 2009
Messages
620
Reaction score
100
Spark said:
Hi Michel,

Note, at Cosford there is a SR 53, a variant of which was proposed circa 1954 as a TAV research aircaft when flown from the back of a Vulcan and before but with a similar performance to the initial X15.
Spark, did you mean the Valiant, as outlined in http://www.spaceuk.org/sr53/sr53%20pics.htm, rather than the Vulcan?

Martin


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi Martin,

Sorry you are right, my mistake. I did mean the Vickers Valiant as the launch platform for the SR-53, however with the proposed Armstrong Siddeley (Stentor) powered Saunders-Roe SR-177 variant the launch platform would have been the Avro Vulcan. I assume that this variant may also have had the planned steel wing etc. to help cope with Mach 3 plus and the power of a 24,000lbf thrust rocket engine and the jet engine deleted which would make recovery interesting.

The illustration of the Avro 720 variant piggybacked by an Avro Vulcan was with a straight leading edge, so was very early.
This I suggest would have been the technical combination of choice with a better potential performance at altitude.

At about this time or a year or two latter there were reports in the UK press of a Soviet sanger type spaceplane bomber being tested.
The T something?, just a thought.

martinbayer said:
Spark said:
Hi Michel,

Note, at Cosford there is a SR 53, a variant of which was proposed circa 1954 as a TAV research aircaft when flown from the back of a Vulcan and before but with a similar performance to the initial X15.
Spark, did you mean the Valiant, as outlined in http://www.spaceuk.org/sr53/sr53%20pics.htm, rather than the Vulcan?

Martin


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
926
Reaction score
23

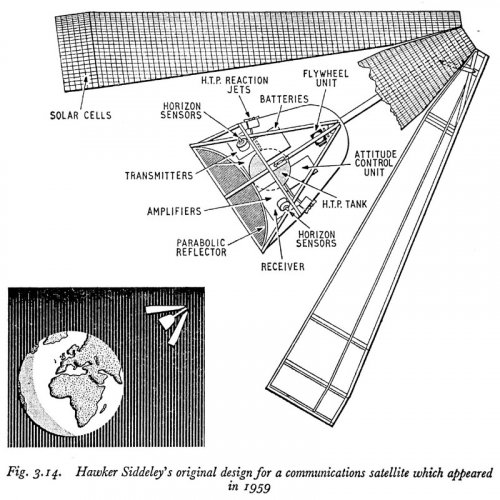

Hawker Siddeley communications satellite circa 1959: for scale the dish was 3 foot wide.
From Astronautics in the Sixties by Kenneth Gatland.


Attachments

Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
926
Reaction score
23

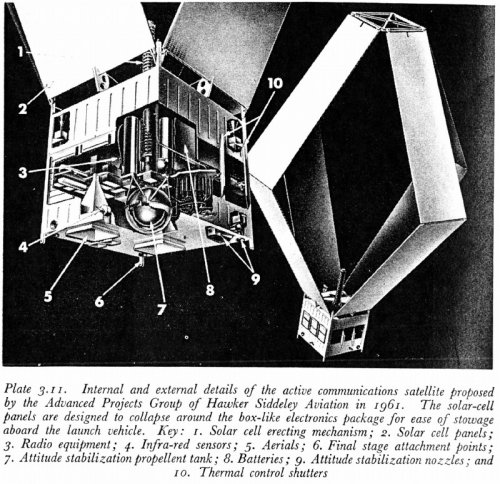

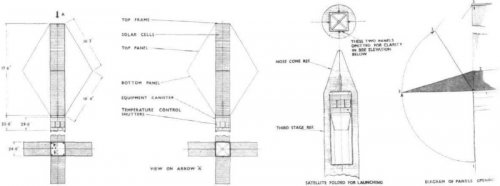

Hawker Siddeley active communications satellite circa 1961.
Astronautics in the Sixties by Kenneth Gatland.


Attachments

blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,687
Reaction score
15
Barrington Bond said:
Hawker Siddeley active communications satellite circa 1961.
Astronautics in the Sixties by Kenneth Gatland.
Well, that looks kinda awkward. I wonder how practical that deployment mechanism really was. It strikes me that any little bending of those long panels during launch and the whole thing would stick closed, or at least partway open.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
THX for picture, Barrington


this HS design for communications sat has really unusual solar cell configuration


CJGibson

CLEARANCE: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,222
Reaction score
128
Can't see this within any threads on SPF, so might be of interest.

http://www.flightglobal.com/pdfarchive/view/1960/1960%20-%201247.html

Chris


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
from thread about Black Arrow cost
came this info by Spark

The Twin Blue Streak drawing from Charles Martin looked in side view like the French Vulcain, but with only two RZ14’s and a 16 ton payload to 300 n.mile orbit.

Just a thought but four BS strapped together with 32ton payload, a mini Saturn?
Only a thought but I do recall there was an official study, proposal for four micro truncated 10ft dia. Blue Streaks each with a single RZ2.in a wrap around configuration.
A bit like a big EE Thunder Bird
That Twin Blue Streak design, are this 2 BS bold together or is this more a Cluster last stand like Saturn-I ?


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi Michel,

Thanks, the idea was to take two standard Blue Streaks from the Stevenage production line. A Single Rolls-Royce RZ14 400,000lbf direct drive rocket enginewith single thrust chamber would be fitted on the the line instead of the the RZ12 (2xRZ2, each rated at 187,00lbf ). Just like a car assembly line when they fit different engines.
According to Charles Martin the two Blue Streaks would have been joined together for tests and for launch but would be transported seperately. either by rail, road or air to the launch site. With the original military programme this could have been RAF/Military UK, East African (Tanginikan or Kenyan) or Area 6 Woomera joint special project RAF/RAAF manned launch sites. New launch stands would be needed because 16ft was the maximum size diameter that could be catered for with the two existing Woomera 6A, 6B, service towers, launch sites.
I have a "Rosseta stone" drawing showing the three versions been compared with the same upper stages. the First was one with four wraparound truncated Blue Streaks each with Single RZ2engine. The Second was the medium lift 14ft diameter Blue Streak variant which would easily fit the existing gantries launch sites. The Third was the Twin Blue Streak, a new service tower/new gantry and dedicated site needed.
The twin was the most massive first stageof the three with from memory about 10,000lbs more propellant.

I do not know of actual bigger cluster vehicles, but can not see any reason why not?

There is a paper given by Val Cleaver's colleague that gives the masses that fit the 14ft BS uprated 187,500lbfRZ2 x 4, and LH/LOX upper stage package with in about two per cent that gives the payload as 35,000lbs to 300n.mile orbit. So we are talking about eight tons per Blue Streak with a single RZ14.

A kind of European miniture Saturn V with 24, 32 tons payload or may be more? Four coupled BS with 32 ton payload seems a very practical suggestion must be better than Saturn 1b.

Remember these vehicles from the Existing original 1959 Stevenage assembly line. The 14ft from the Pinnicles, Harlow Essex factory.











Michel Van said:
from thread about Black Arrow cost
came this info by Spark

The Twin Blue Streak drawing from Charles Martin looked in side view like the French Vulcain, but with only two RZ14’s and a 16 ton payload to 300 n.mile orbit.

Just a thought but four BS strapped together with 32ton payload, a mini Saturn?
Only a thought but I do recall there was an official study, proposal for four micro truncated 10ft dia. Blue Streaks each with a single RZ2.in a wrap around configuration.
A bit like a big EE Thunder Bird
That Twin Blue Streak design, are this 2 BS bold together or is this more a Cluster last stand like Saturn-I ?


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
THX spark

the twin Blue Streaks is also a cluster with bigger RZ14 engine
question: is the RZ14 in one of Blue Streaks engine-bay and other is drop during flight. or is the RZ14 put with adapter under the two BS ?

on wraparound truncated Blue Streaks
i made some calculation: a 4 BS truncated around Centaur center-stage could bring 10000 lb. in 100 n.m. orbit like the US Atlas-Centaur
or are 4 BS truncated for Blue Streak as center-stage ?


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi Michel

The two BS are fired together as a "siamese twin" first stage each has a fixed RZ14. there is an adopter to the second stage.

The 2nd and 3rd stages are HL/LOX and are identical in the three cases for comparison purposes.

No BS centre stage, I assume the RZ2 engine would be rated at 187,500lbf each which is needed to lift the total mass and will increase payload as will the use of a third stage.

Michel Van said:
THX spark

the twin Blue Streaks is also a cluster with bigger RZ14 engine
question: is the RZ14 in one of Blue Streaks engine-bay and other is drop during flight. or is the RZ14 put with adapter under the two BS ?

on wraparound truncated Blue Streaks
i made some calculation: a 4 BS truncated around Centaur center-stage could bring 10000 lb. in 100 n.m. orbit like the US Atlas-Centaur
or are 4 BS truncated for Blue Streak as center-stage ?


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
Thx spark
I try to make Drawing about those BS rocket but during the design, i realize some thing

Spark said:
The 2nd and 3rd stages are HL/LOX and are identical in the three cases for comparison purposes.
Have those upperstage size of 46ft x 13ft ø with 6 RZ20 engine and 28,5ft x 9ft ø with one RZ20 ?

if Yes, we could have here variants of ELDO-C ?


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi Michel,

Good man, similar, re-invented for ELDO C but in this case 14ftdia by about 55ft depending on interstage. These are from the ELDO drawings given to me by Charles Martin, He could not find copies of the Original 1950's work/drawings in his private archive but he said the ELDO were the same/similar for first stages as the original Military UK 1950's Boosters, proposals so could be used to illustrate a talk we were discussing.
The fifties motors not sure about could have been either Bristol or R-R, maybe AS. this would have changed with date/time

I agree evolved from early work BS+R-R joint motor would, could be indicator. But RZ20 not sure, but would bet you are right.


Michel Van said:
Thx spark
I try to make Drawing about those BS rocket but during the design, i realize some thing

Spark said:
The 2nd and 3rd stages are HL/LOX and are identical in the three cases for comparison purposes.
Have those upperstage size of 46ft x 13ft ø with 6 RZ20 engine and 28,5ft x 9ft ø with one RZ20 ?

if Yes, we could have here variants of ELDO-C ?


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
0
Hi Folks,

Just to add to posting, Charles Martin said that the truncated the single RZ2 Blue Streak wrap around booster and the "siamesetwin" or double Blue Streak was originally proposed inpart to ease transportation problems. It all so utilised the existing assembly line.


Spark said:
Hi Michel,

Good man, similar, re-invented for ELDO C but in this case 14ftdia by about 55ft depending on interstage. These are from the ELDO drawings given to me by Charles Martin, He could not find copies of the Original 1950's work/drawings in his private archive but he said the ELDO were the same/similar for first stages as the original Military UK 1950's Boosters, proposals so could be used to illustrate a talk we were discussing.
The fifties motors not sure about could have been either Bristol or R-R, maybe AS. this would have changed with date/time

I agree evolved from early work BS+R-R joint motor would, could be indicator. But RZ20 not sure, but would bet you are right.


Michel Van said:
Thx spark
I try to make Drawing about those BS rocket but during the design, i realize some thing

Spark said:
The 2nd and 3rd stages are HL/LOX and are identical in the three cases for comparison purposes.
Have those upperstage size of 46ft x 13ft ø with 6 RZ20 engine and 28,5ft x 9ft ø with one RZ20 ?

if Yes, we could have here variants of ELDO-C ?


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
926
Reaction score
23
Back to Blue Streak cost...

Flight 2nd November 1961 page 679.
"According to recent UK figures, the cost of the Blue Streak first stage is known to be close to 7m NF (£507,000)."
Presumably the price would have been lower for the higher production rates for the LRBM version?

Regards,
Barry


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
Barrington Bond said:
Back to Blue Streak cost...

Flight 2nd November 1961 page 679.
"According to recent UK figures, the cost of the Blue Streak first stage is known to be close to 7m NF (£507,000)."
Presumably the price would have been lower for the higher production rates for the LRBM version?

Regards,
Barry

are those £507,000 in 1961 pound value ?


Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
926
Reaction score
23
Since the magazine in question was published in 1961 and it refers to a recent report I can see no reason that it can be anything other than 1961 pounds ???


CNH

CLEARANCE: Secret
Senior Member
Joined
Dec 5, 2010
Messages
264
Reaction score
44
I don't have the reference now, but remember reading in a PRO file that Blue Streaks for ELDO at the end of the 60s were priced at £4M each.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114
CNH said:
I don't have the reference now, but remember reading in a PRO file that Blue Streaks for ELDO at the end of the 60s were priced at £4M each.
that has two reasons
one: the low production rate on Blue Streak what drive price up
second: the inflation rate of British Pound Sterling, what change 507,000.00 in 1960 into 1,120,000.00 Pound in 1971


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,687
Reaction score
15
So does anybody have the new edition of Vertical Empire? Does it cover all this stuff?


CNH

CLEARANCE: Secret
Senior Member
Joined
Dec 5, 2010
Messages
264
Reaction score
44
Buy a copy and find out.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,282
Reaction score
114

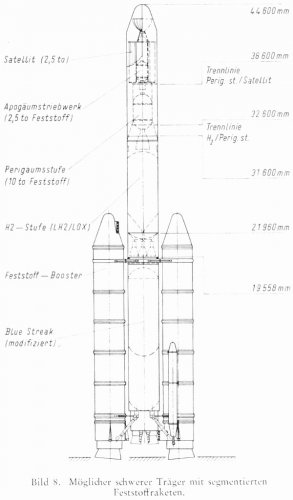

the big solid booster for Europa 3 ;D


According the Book "Europäische Trägerraketen Band 1" by Bernd Leitenberger
page 166.
ELDO made a in-deep study on big solid booster 25t fuel with thrust 940kN under Europa-TA
The conclusion:
the Blue Streak Lox tank has to be considerably reenforce, also was problem with much higher acceleration beyond 1.39 G at launch
the smaller P16 booster with 353 kN was better adaptable for Blue Streak.


PMN1

CLEARANCE: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
679
Reaction score
20

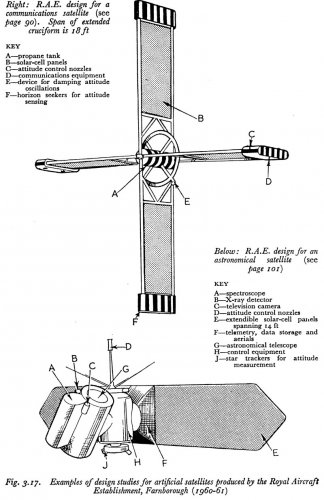

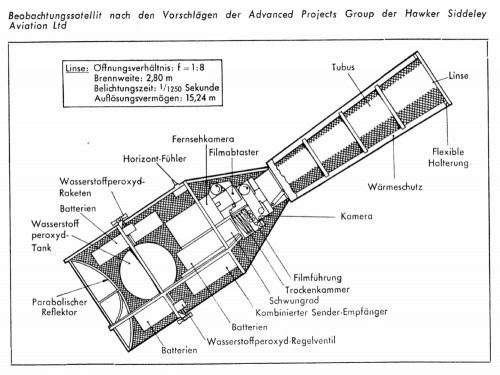

Any weights and dimensions for the spy sat?

Top
