jsport said:
Wasn't there a bit recently on BBC radio about someone trying to raise money for a new concorde?
Ummm........Concorde is noisy, especially at landing.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,230
Reaction score
1,439
blackkite said:
Thanks alot Arjen-san. Pre production model length(Pre-production Concorde 101 G-AXDN dimensions on Duxford Aviation Society site) is little long? Pre production model had short tail.
I think somebody will have to visit Le Bourget and Duxford with a tape measure to settle this.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,569
Or ask BAE Systems or Airbus Group SE. ;)


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,230
Reaction score
1,439
Well, yes, but you would miss out on the exhibitions ;D


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
8,710
Reaction score
8,235

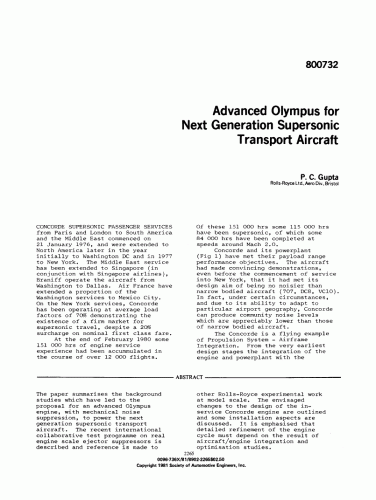

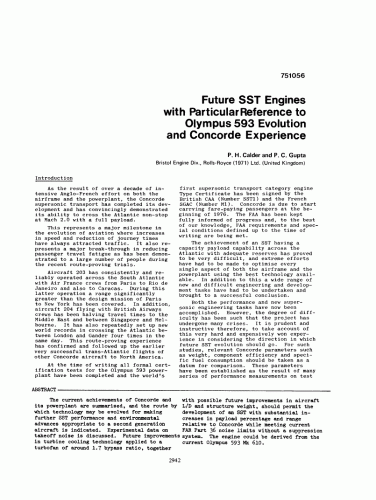

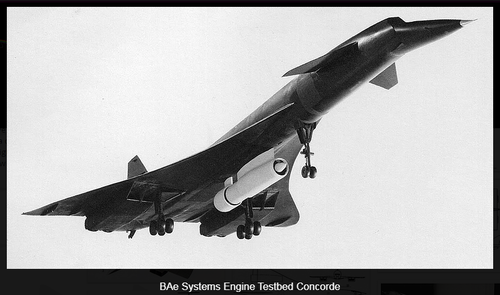

I found a couple of papers dealing with the "Concorde B" and that much improved Olympus.
Which has a different name than "+25%" as mentionned in that site

It was called the Olympus 593 mk.622 - larger fan and up to 10% to even 30% more thrust. 30% more thrust out of 18 tons, should be 24 tons, and not that far from the Boeing SST General electric GE4.

The papers are behind a paywall (and a pretty expensive one with that) but c'est la vie. I linked the first pages.

Anybody ever heard of a man called P.C Gupka that worked at Bristol engines in the late 70's ?


Attachments

  • Gupta 1.gif
    Gupta 1.gif
    54.1 KB · Views: 672
  • Gupta 2.gif
    Gupta 2.gif
    39.6 KB · Views: 733

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,230
Reaction score
1,439

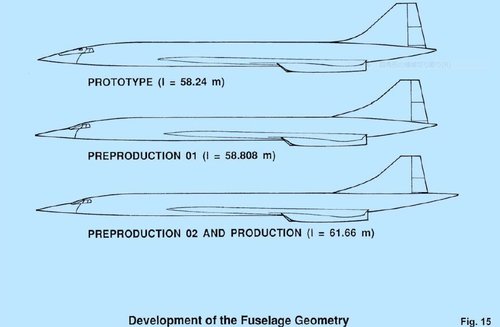

Having just received my copy of Building Concorde by Tony Buttler and Jean Christophe Carbonel I leafed to the part with Concorde's dimensions to settle a point that has been vexing me for years - fuselage length of prototype/pre-production/production aircraft. Lengths in SI units made no sense, with the prototype's length given as 64.16m, pre-production 67.51m and production 61.66m. Length in Imperial measures looked better:
- prototype 184ft 4.5in - 56.20m
- pre-production 194ft 0in - 59.13m
- production 202ft 3.6 in - 61.66m

A minor glitch in an otherwise excellent book.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
14,409
Reaction score
10,600
Archibald said:
I found a couple of papers dealing with the "Concorde B" and that much improved Olympus.
Which has a different name than "+25%" as mentionned in that site

It was called the Olympus 593 mk.622 - larger fan and up to 10% to even 30% more thrust. 30% more thrust out of 18 tons, should be 24 tons, and not that far from the Boeing SST General electric GE4.

The papers are behind a paywall (and a pretty expensive one with that) but c'est la vie. I linked the first pages.

Anybody ever heard of a man called P.C Gupka that worked at Bristol engines in the late 70's ?

Mr Gupta has a lot of articles on SST engines on the SAE.org website.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,209
Reaction score
168
Hi all
I worked in DBA airequipement from 1961 to 1988.
Here iss the storry of the hydraulic jack of the nose of
the Concord


Attachments

  • Scan_0001.pdf
    336.8 KB · Views: 80

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
A good Article about Concorde and its predessesors on Le Fana 3/2019.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,454
Reaction score
7,261
Also, there is a nice piece about the flight testing of the Concorde in the April edition of Aeroplane. It's based on the recollections of the last surviving manufacturer's test pilot, Alan Smith.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032

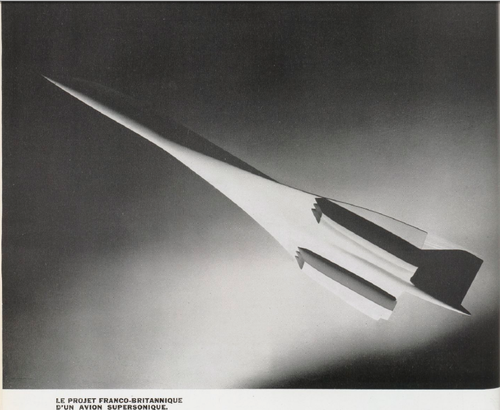

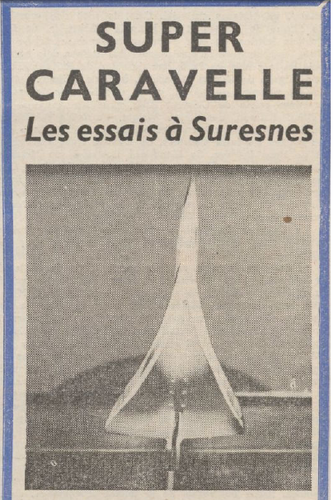

From Icare 1963,

a model to Concorde.


Attachments

  • 3-1963.png
    536.4 KB · Views: 162

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,510
Website
galgot.com

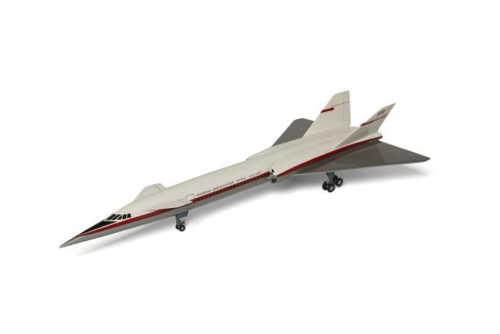

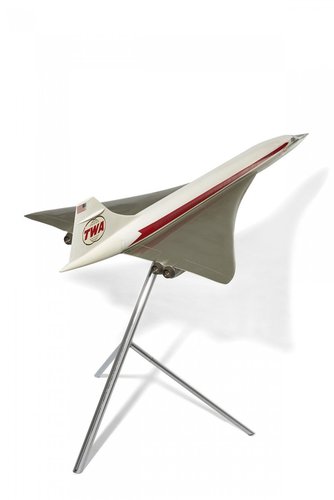

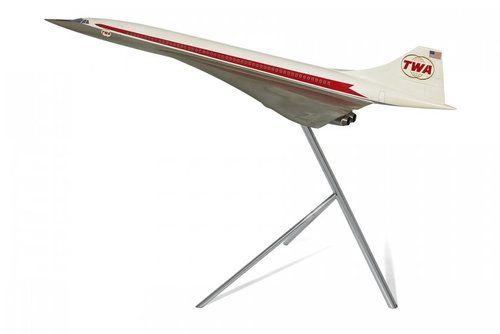

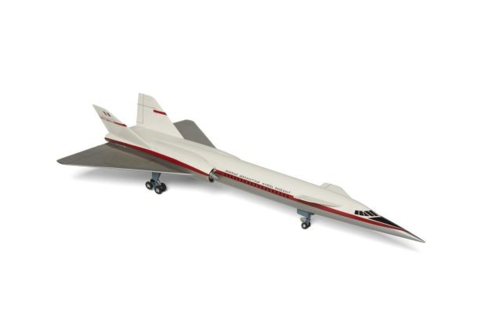

A 1973 TWA agency model, this model was sold 10400 € at an auction in Paris... :


Attachments

  • 2963_10559371_0.jpg
    32.9 KB · Views: 144
  • 2963_10559371_1.jpg
    66.7 KB · Views: 226

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032

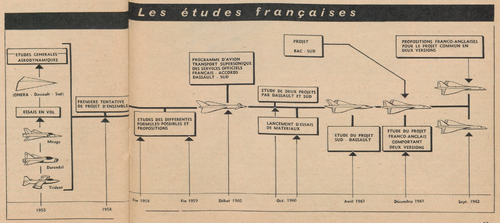

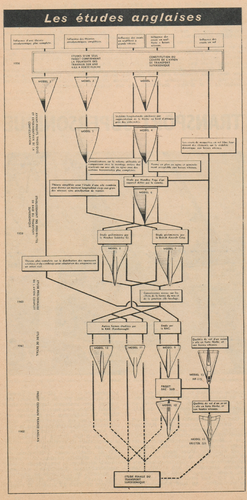

From Ailes 1961.


Attachments

  • 1.png
    429.2 KB · Views: 184
  • 2.png
    463.4 KB · Views: 117

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
From Ailes 23/2/1962.


Attachments

  • 1.png
    435.5 KB · Views: 156

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
4,182
Reaction score
3,439
Whereas the Comet and Caravelle gave way to fleets of Boeings until Airbus came on the scene, Concorde lived to see its Boeing rival broken up as a wood and cardboard mockup.
The future of the supersonic airliner may well be an executive jet sized plane for those prepared to pay the price.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,569
Recently I feel ecological big size subsonic liner is enough for me.
I could travel France, Italy, Spain, U.S, Bali and Singapore economically by my favorite 747.
But I want to travel by SST for once in my life. :)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032

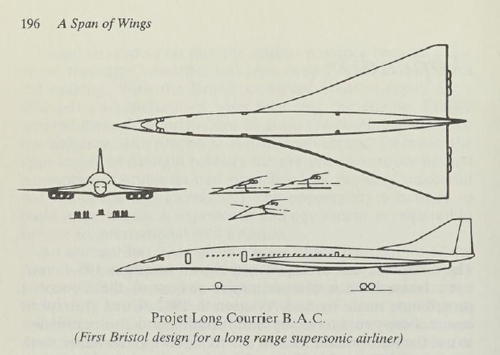

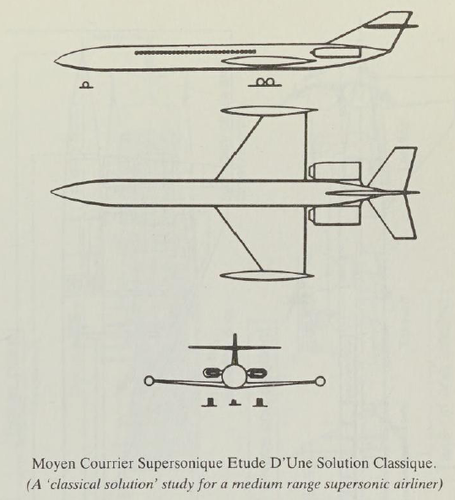

From; A span of wings.


Attachments

  • 1.png
    205.9 KB · Views: 120
  • 2.png
    176.6 KB · Views: 106
  • 3.png
    229.3 KB · Views: 116
  • 4.png
    156.7 KB · Views: 1,195

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,334
Reaction score
1,136
Thanks Hesham.

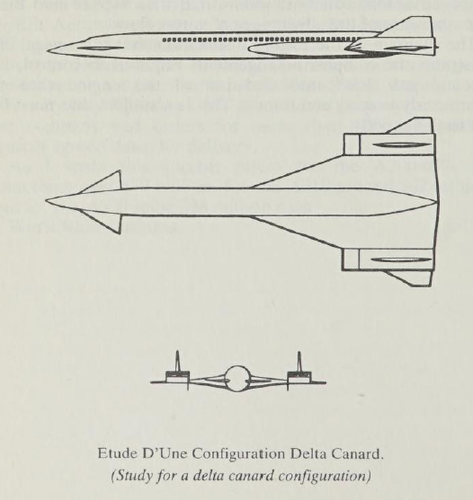

From where or from who comes the "Study for a delta canard configuration based on the Mirage IV" : Dassault ? Sud-Aviation ? Other ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032

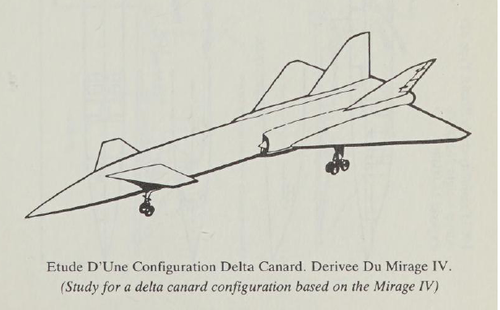

From where or from who comes the "Study for a delta canard configuration based on the Mirage IV" : Dassault ? Sud-Aviation ? Other ?

My dear Deltafan,I think my dear Galgot gave the answer,and many thanks to him,really I didn't
remember this Project,in reply # 20.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
1,119
Reaction score
782

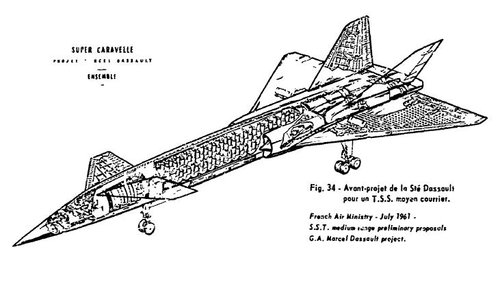

Galgot, I have a nagging doubt about the document "Super Caravelle by Dassault SàRL" which you posted:
Caravelle was a trademark of Sud-Aviation / Aérospatiale, the arch-rival of Dassault, and appropriating it would be a blatant infringement.
Plus the use of English language by the "French Air Ministry", back then in 1961, would be another big infringement.

I wonder whether this is anything from a real ~official French source, or the creation of some journo/fanboi/whatever.
What is the source?
(Great doc nevertheless) :)


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,510
Website
galgot.com
Galgot, I have a nagging doubt about the document "Super Caravelle by Dassault SàRL" which you posted:
Caravelle was a trademark of Sud-Aviation / Aérospatiale, the arch-rival of Dassault, and appropriating it would be a blatant infringement.
Plus the use of English language by the "French Air Ministry", back then in 1961, would be another big infringement.

I wonder whether this is anything from a real ~official French source, or the creation of some journo/fanboi/whatever.
What is the source?
(Great doc nevertheless) :)

Hi Dan_inbox,

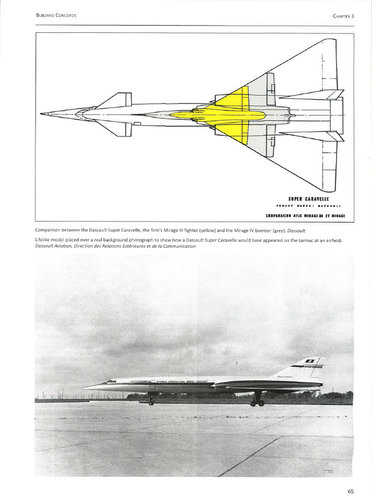

It’s from this document :
Page 69.
(Hesham posted it already on page 1)

Not sure about it being a fan art… From the Sud-Aviation Super-Caravelle wikipedia page (as far as we can trust Wikipedia…) :
it seems GAMD did participate to early studies . After all they had a small share of the production latter.

Same drawing can be seen on this MAE page , so it seems a real stuff ?
Maybe both Sud-Aviation and Dassault submitted their own separate studies early on during the French only program,
then latter Sud-Aviation one being selected, then merged with the very similar Bristol 223 ?
Could’nt find something "official" tho…

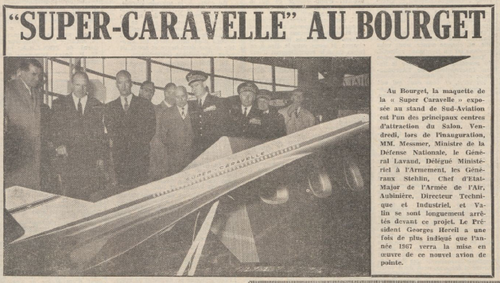

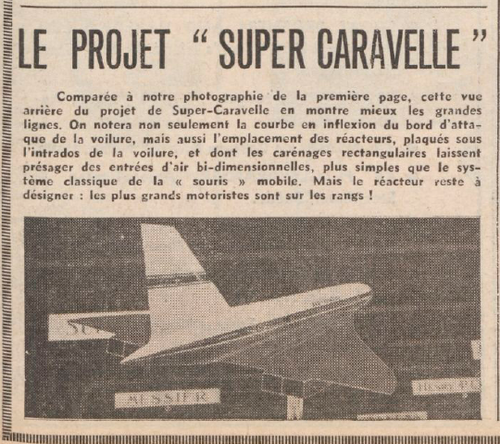

EDIT: January 1967 article in INTERAVIA, do mention the participation of Dassault at the time it was still called "Super-Caravelle"
"Or, tout récemment, ce projet semble avoir fait un grand pas en avant, sous l’impulsion peut-être de Sud-Aviation qui – ce ne fut pas une surprise – a publié un plan trois-vues et quelques caractéristiques du moyen-courrier supersonique que cette société doit réaliser avec le concours de Dassault. De plus, il a été révélé que les deux constructeurs français, en coopération avec la British Aircraft Corporation et, probablement, avec d’autres firmes européennes, entendaient se mettre à l’œuvre sans tarder. Enfin, on a appris que le prototype de la Super-Caravelle effectuerait son premier vol en 1965 et que les appareils de série pourraient être mis en service en 1968."

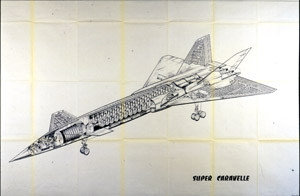

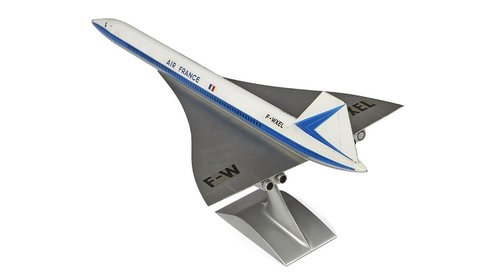

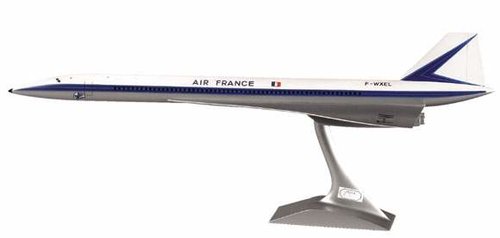

Btw, here two pict of the Sud-Av Super-Caravelle in AirFrance markings:
art10_1.jpg 1164987335914113.jpeg

Last edited:

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,510
Website
galgot.com

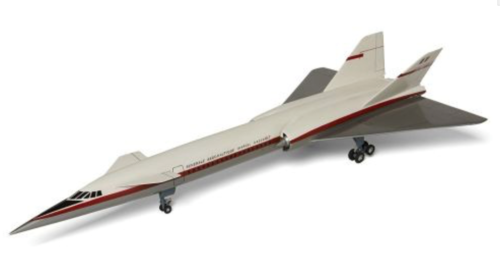

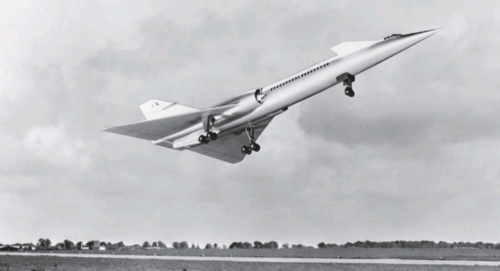

found that beauty :
Capture d’écran 2020-01-21 à 13.23.52.png Capture d’écran 2020-01-21 à 13.23.59.png
from here:


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
1,119
Reaction score
782
Thanks much for all this great info. I did not remember that GAMD collaborated with Sud-Aviation and BAC for a while. That explains everything.
Beautiful model, too.


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,510
Website
galgot.com
Too bad the pictures are so small :/ Still I think I can make "Générale aéronautique Marcel Dassault" on the fuselage.
there is a sh!tload of interesting stuff on that site , here a Concorde in Continental livery by paul Lengellé :
Capture d’écran 2020-01-22 à 12.17.28.png


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,510
Website
galgot.com
from FANA 02/2019 :
Capture d’écran 2020-01-22 à 12.44.08.png

Dassault had an option for that one with hinged wing tips like XB-70 :
"
Les trois constructeurs présentèrent leurs conclusions en 1961, Dassault et Nord gardant la configuration canard, tandis que Sud proposait une Super-Caravelle qui ressemblait déjà beaucoup au Concorde que nous connaissons. Nord proposa une variante Mach 3, hors sujet par rapport aux orientations stratégiques choisies. Le projet Dassault se caractérisait par une option à géométrie variable (basculement vers le bas des extrémités d’ailes lors du vol supersonique). Sud Aviation, pressentant une réorientation de la stratégie commerciale, introduisit la Super- Caravelle IIID, optimisée pour le vol transatlantique
"

Capture d’écran 2020-01-22 à 12.53.41.png


Last edited:

Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
960
Reaction score
1,274
Were there to be any military variants of the Concorde?


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,334
Reaction score
1,136
Were there to be any military variants of the Concorde?
As What if yes, but in reality I think no.



Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,454
Reaction score
7,261
A user called Vega ECM made the following interesting statement at the bottom of a related thread at https://forum.keypublishing.com/sho...e-for-the-RAF-(Zombie-Thread-from-2006)/page2:

"A good few years ago I was in the Concorde archive legitimately looking for something but couldn't resist from typing 'Military Concorde' into the search. Only two documents came up;- the first dated 1970, was a study on how much of military value could be learnt by the Chinese if they bought a few, but the second dated 1974, was a proposal to the RAF for military versions. This report was about 40 pages and detailed 3 potential versions;- The first was a transport version , a drawing shows a swing nose and landrovers driving down a long ramp. This proposal was covered by just 2 of the 40 pages and really had very little detail. The next is a supersonic strike aircraft. A drawing shows 3 nuclear strike missiles (looking a bit like AGM-69 SRAM's) within the fuselage launched on angled tubes exiting the fuselage underside. This proposal runs to about 10 pages. There's quite a bit of info on mission profile, tactical equipment fit etc. The third proposal is for a tactical recon version. This occupies the majority of the report. Lots of info on camera / radar / eves dropping kit / decoys / ECM mission profiles etc. I would suggest the number of pages in the report probably represents the relative interest from the customer.

Good stuff, all history now."

In the late 1970s I believe Concorde was seriously looked at again as a RAF VIP transport (in particular as an alert evacuation aircraft for members of the Royal Family in the event of a nuclear exchange). The last Military Concorde project confirmed to date was a proposal to procure Concordes for the RAF as Backfire (and later in addition Blackjack) simulators. First proposed in the early 1980s. There have been reports of a EW/ELINT proposal from around the mid-1980s though.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
From Aviation magazine 1962.


Attachments

  • 1.png
    2.6 MB · Views: 47
  • 2.png
    2.5 MB · Views: 44
