BAC/Sud Aviation Concorde - Development, Variants, Projects

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
http://www.museeairespace.fr/aller-plus-haut/documentation/plans/

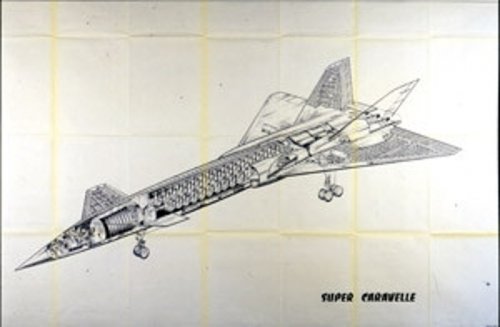

"The Super Caravelle is a project studied in common by the French companies South-Aviation and General Aviation Marcel Dassault (GAMD)

The first for his knowledge of civil transport aircraft, the second for its supersonic jet expertise.

Average plane supersonic mail, the Super Caravelle had to be capable of carrying 82 passengers over a distance of 3500 km.

Designed in 1961, the Super Caravelle was to succeed the legendary Caravelle and gave a first draft of what would become the Concorde."

This 1961 Dassault design had four engines.


Attachments

  • super caravelle.jpg
    super caravelle.jpg
    56.6 KB · Views: 169

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!
Source ; Avion Concorde

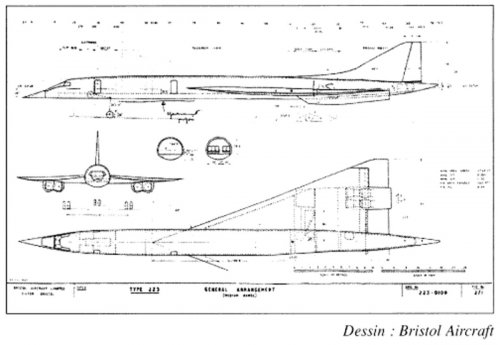

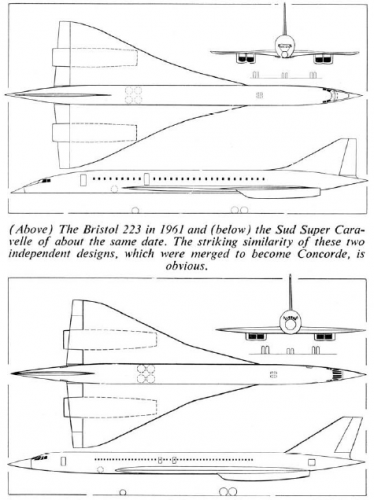

Bristol 223 wing was twisted same as Concorde.
Sud Super Caravelle had double delta or ogee wing.


Attachments

  • Bristol 223.jpg
    Bristol 223.jpg
    102 KB · Views: 147
  • Super_Caravelle.jpg
    67.9 KB · Views: 130
  • Super Caravelle.jpg
    Super Caravelle.jpg
    25.9 KB · Views: 115
  • Concordev1_0.png
    120.8 KB · Views: 114
  • WingLE.jpg
    166.1 KB · Views: 109

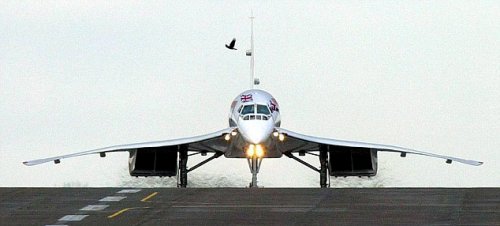

  • article-2139651-12EC1E38000005DC-816_634x286.jpg
    49.3 KB · Views: 112

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!

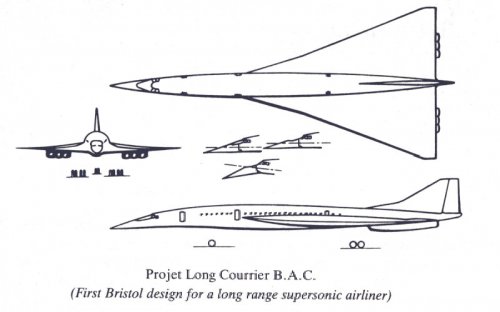

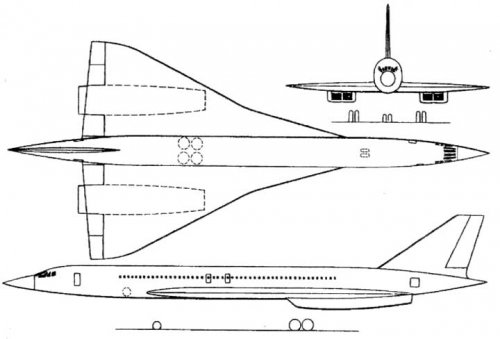

This Bristol 1961 design had 6 engines and double delta wing without twist. Is this plan called Type 198?

http://forum.e-train.fr/viewtopic.php?f=46&t=10397&start=2940&hilit=mey

Wikipedia.
https://en.wikipedia.org/wiki/Bristol_Type_223
"STAC
By 1956 there was enough official interest in this research for the Supersonic Transport Aircraft Committee, or STAC, to be formed under Sir Morien Morgan to investigate the creation of a supersonic transport. Its first report, in 1959, recommended two designs. One was an M-wing Mach 1.2 medium range airliner and the other a straight wing, Mach 1.8 design with six wingtip engines. Soon after, however, studies at the Royal Aircraft Establishment began to favour the gothic delta and design contracts using this planform went to Hawker Siddeley and Bristol in late 1959. Both were asked to look at both Mach 2.2 aluminium alloy and Mach 2.7 stainless steel structures. Bristol's Mach 2.7 design was labelled the Type 213. Their designer, Archibald Russell, was influenced by the constructional problems and expense encountered with the Bristol 188 and favoured the lower speed alloy aircraft.

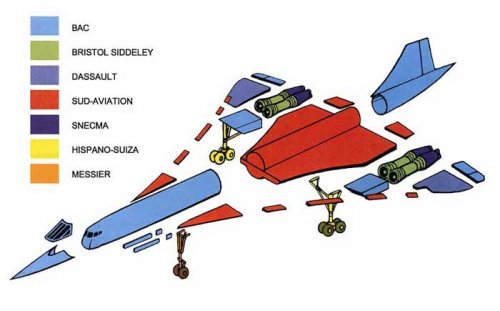

The thin wing design of the Type 213 was preferred by the STC and a 1961 contract encouraged a detailed series of studies of a 130-seat, Mach 2.2 aircraft powered by six Bristol Olympus engines under the generic Type 198 label. Aware of the great expense of the project, STAC required Bristol to share the cost with an overseas partner. In 1961, Sud Aviation revealed their plans for the Super-Caravelle at the Paris Air Show, a smaller aircraft than the Type 198. Bristol proposed a design which came between the Super Caravelle and the Type 198 which they called the Type 223; the French were looking at a slightly larger version of the Super Caravelle and the two companies had a specification for agreement to build an aircraft jointly. Throughout 1962 they and their respective governments negotiated the formation of a consortium to share development and production costs, estimated at £15m-£170m.On 29 November 1962 an agreement was jointly signed by the UK Minister for Aviation, Julian Amery and the French ambassador, Geoffrey de Courcel and the Concorde project was underway.

hesham-san's great contribution.
http://www.dtic.mil/dtic/tr/fulltext/u2/783307.pdf


Attachments

  • Bristol 223.jpg
    Bristol 223.jpg
    102 KB · Views: 105

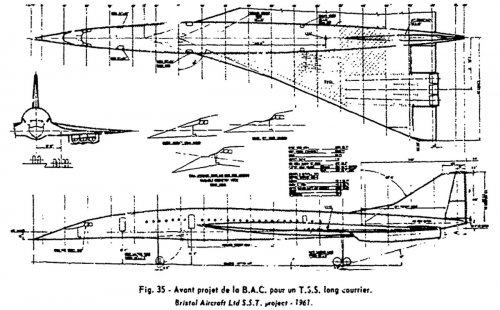

  • Fig 35 perhaps Bristol type 198.jpg
    Fig 35 perhaps Bristol type 198.jpg
    182.1 KB · Views: 110
  • Fig.35 explanation.jpg
    Fig.35 explanation.jpg
    47.5 KB · Views: 90

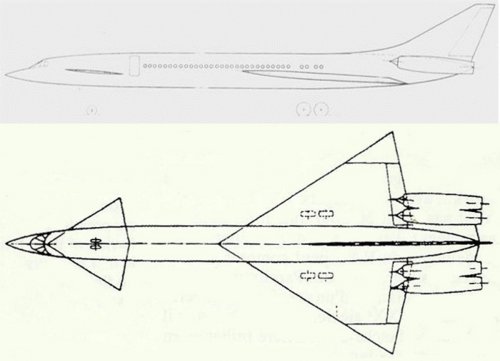

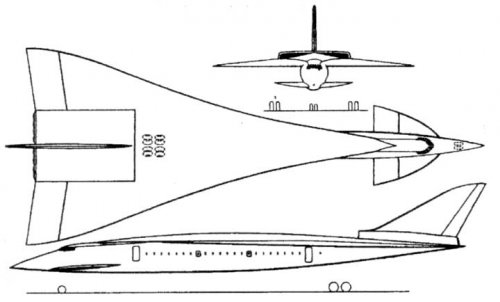

  • Bristol 1961 design.jpg
    Bristol 1961 design.jpg
    53.8 KB · Views: 105

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

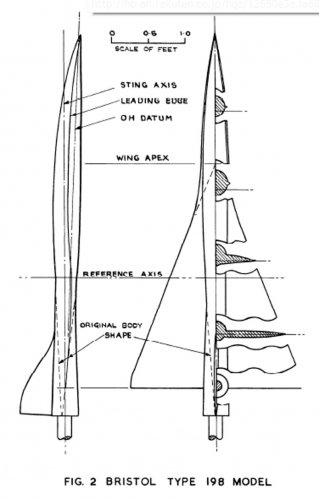

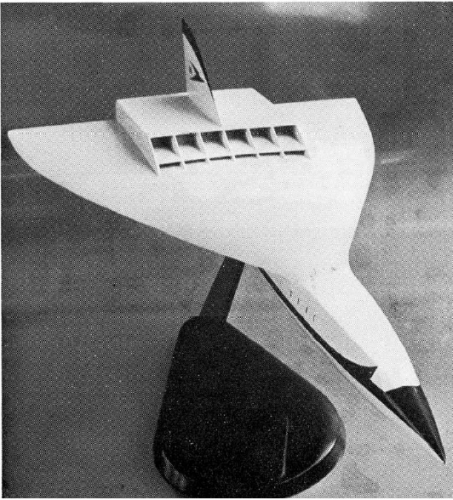

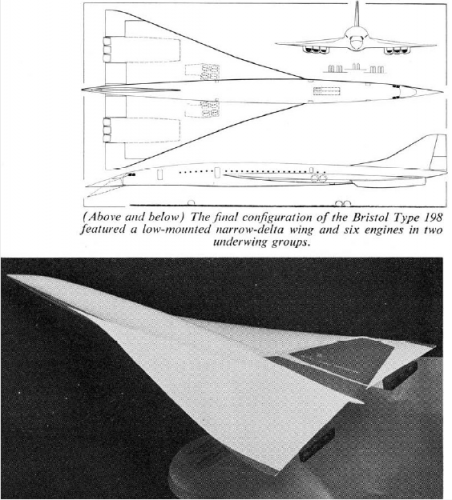

Russian site say thta this is Type 198. (Early type 198 design?)
http://testpilot.ru/uk/bac/223/bac223.htm

Owner's great contribution.
http://naca.central.cranfield.ac.uk/reports/arc/cp/0815.pdf
Type 198 SST topic.
http://www.secretprojects.co.uk/forum/index.php/topic,2319.0.html


Another information.
http://www.aeroflight.co.uk/aircraft/types/type-details/aerospatialebac-concorde.htm
"The Bristol Aircraft Company had been a leading player in developing a workable aircraft configuration for STAC, producing several successive designs under the generic label Type 198. In 1959 further contracts were awarded to continue design studies and by January 1960 the Type 198 had evolved into a shape recognisable as an ancestor of Concorde. It featured a tail-less slender delta wing with a gentle curved leading edge, six engines in two groups of three in nacelles under the wing, and was to carry 136 passengers at Mach 1.8. A comparative study of a Mach 3 version (made of steel to withstand the increased air friction heating) was designated Type 213, but soon dropped as uneconomic."


Attachments

  • bristol_198_late.jpg
    22.4 KB · Views: 88
  • type_198_model.jpg
    85.2 KB · Views: 99

thrax

ACCESS: Restricted
Joined
Aug 1, 2011
Messages
20
Reaction score
5

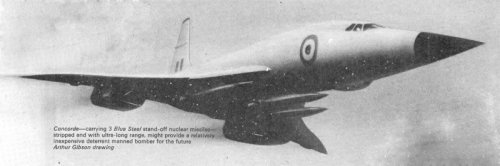

thats why i love this forum


Attachments

  • raf-concorde_blue_steel.jpg
    39.6 KB · Views: 460

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi! My poor guess for Bristol/BAC SST design evolution.
Also please confirm page 5 of this topic.


Attachments

  • Bristol BAC SST DESIGN EVOLUTION.pdf
    156.4 KB · Views: 60

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

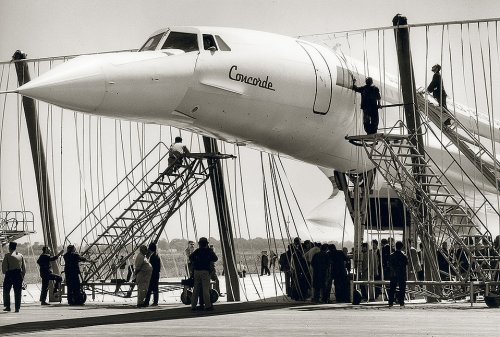

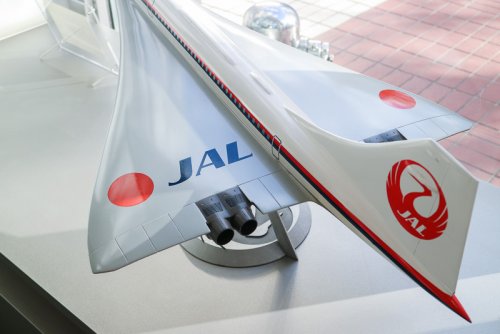

Hi! Concorde prototype model and production model.


Attachments

  • rearendcloseup.jpg
    20.2 KB · Views: 519

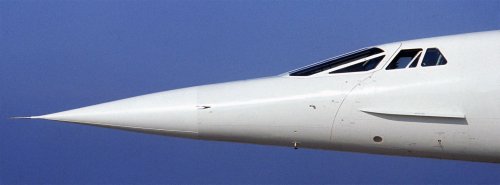

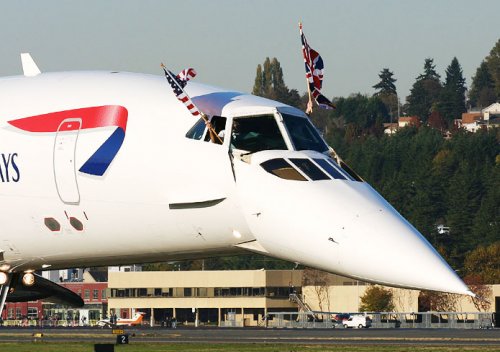

  • concorde-nose.jpg
    82.8 KB · Views: 382
  • CONCORDE PROTOTYPE.jpg
    CONCORDE PROTOTYPE.jpg
    74.4 KB · Views: 398

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

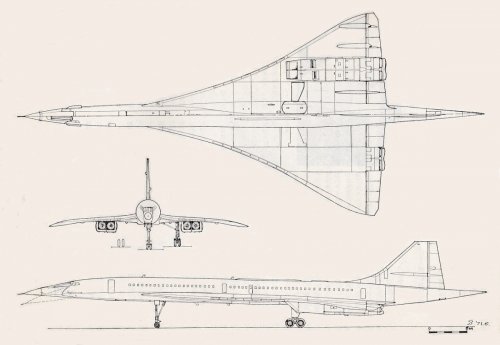

Hi! Concorde prototype and production model three side view drawings by Kikuo Hashimoto and Sachio Suzuki.
Especially Suzuki-san's twisted wing front view is excellent.
Hashimoto-san's prototype model front two window shape is little strange compared with actual picture.
There were only limited information, but Hashimoto-san struggled in order to approach the truth desperately.
Source : AIREVIEW MAGAZINE.

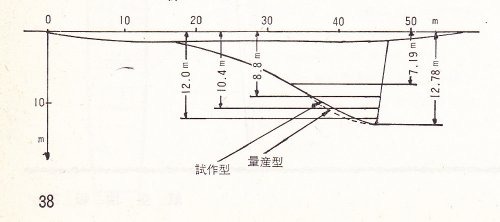

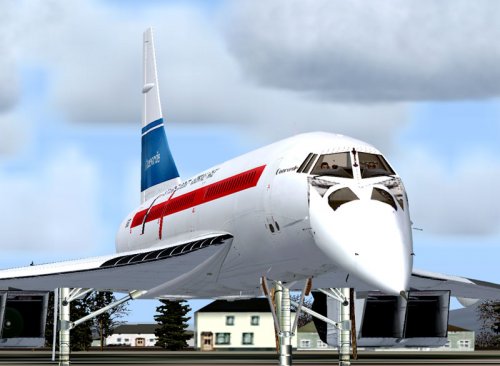

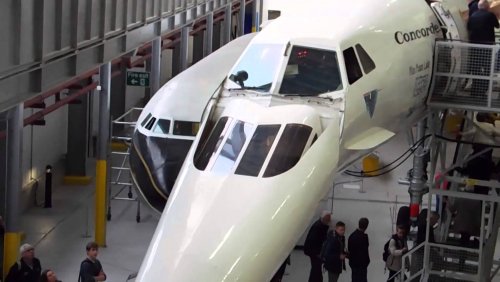

Concorde prototype pictures. I want to measure wing tip twist angle at the Fleet Air Arm Museum in Yeovilton, Somersetthere.
https://hiveminer.com/Tags/002,concorde

Heritage Concorde. You can see prototype Concorde nose motion movie.
http://www.heritageconcorde.com/who-built-concorde

Technical specification
http://www.concordesst.com/dimentions.html

Concorde bomber.
http://generaltate.deviantart.com/art/BAC-Concorde-Bomber-Bombcorde-387790402

Wing photo.
http://www.airplane-pictures.net/photo/263516/f-wtsb-aerospatiale-aerospatiale-bac-concorde/


Attachments

  • concorde prototype.jpg
    concorde prototype.jpg
    330 KB · Views: 377
  • concorde production model.jpg
    concorde production model.jpg
    148.2 KB · Views: 142
  • 14169554552_1febe34dd6_b.jpg
    321.7 KB · Views: 130

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

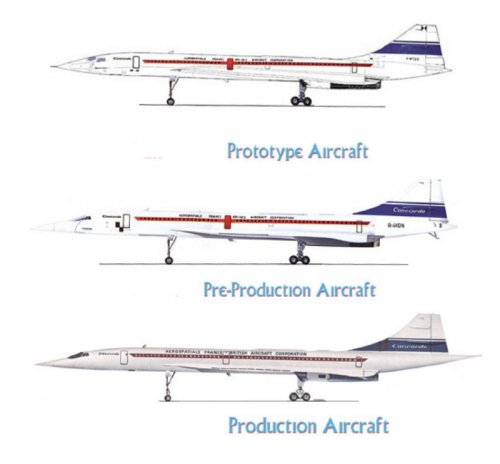

Hi! Concorde prototype, Pre production model and Production model side view. And dimension.

Another book says that Concorde dimension as follows. (AIRLINER COLOR HISTORY CONCORDE,ISBN 0-7603-1195-1)

Prototype Pre-Production Production
wing span 83ft 10in(25.56m) 83ft 10in(25.56m) 83ft 10in(25.56m)
Length Overall 184ft4.5in(56.20m) 194ft(59.13m) 203ft10in(62.13m)
Height Overall 36ft6in(11.1m) 38ft(11.58m) 40ft1in(12.22m)


Attachments

  • concorde prototype pre production and production model.pdf
    111.8 KB · Views: 47
  • concorde dimension.pdf
    236.6 KB · Views: 41

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!

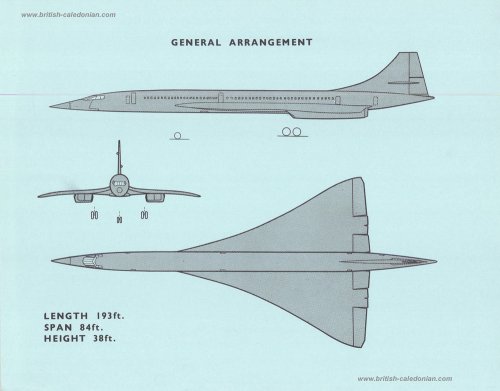

Perhaps Pre-Production model three side view drawing.
http://www.british-caledonian.com/BUA_Supersonic.html


Attachments

  • Perhaps Pre Production model.jpg
    Perhaps Pre Production model.jpg
    455.5 KB · Views: 131

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,510
Website
galgot.com
Hi Blackkite,
here you have a 360° view of the first prototype at Le Bourget museum :
http://www.museeairespace.fr/aller-plus-haut/panoramas-360/360-cabines-de-pilotage/panorama-360-concorde-001-f-wtss/


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Oh my dear galgot-san!! Thank you very much for your super information. :D
Do you know overall length of prototype Concorde ? 184ft4.5in(56.20m)?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,232
Reaction score
1,440
First and second prototypes:

Shorter fuselage and only small windows in metal nose visor.

Larger passenger cabin windows.

Olympus 593-1, 2B or 3B engines

OVERALL LENGTH – 51:80 M

FUSELAGE MAX EXTERNAL WIDTH – 2.88M (9’5”)

FUSELAGE MAX INTERNAL WIDTH – 2.63M (103’:4”)

FUSELAGE MAX EXTERNAL HEIGHT – 1.96M (77”)

WING SPAN – 23:80M (83’10”)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Thanks a lot Arjen-san. :D I feel 51.8m is little short.

WING SPAN – 23:80M (83’10”) is mistake. 83'10" is 25.552m.
FUSELAGE MAX INTERNAL WIDTH – 2.63M (103’:4”)???


Attachments

  • Concorde_side_view.jpg
    63.6 KB · Views: 243

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,232
Reaction score
1,440
I will have look at my books to determine what went wrong with the wing span figures. If I remember correctly, the prototype was considerably shorter than the pre-production aircraft - which, in turn, were a little shorter than the production aircraft.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,232
Reaction score
1,440
Jane's All the World's Aircraft 1966-67 gives 58.24m length, 25.50m span in SI-units.
Oddly, in Imperial measures it gives 194 ft 10 in length, 83 ft 10 in span - which, with a conversion factor of 2.54 cm to 1 inch, translates to 59.39m length, 25.56m span.

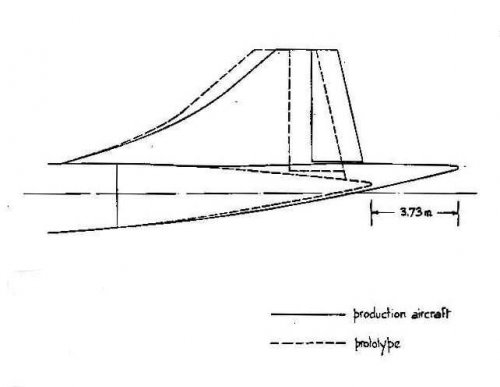

Image from reply #77 shows 3.73m as the difference in length between production tail and prototype tail:
index.php

I'm guessing 58.24m is closest to reality.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

Attachments

  • Concordev1_0.png
    120.8 KB · Views: 172
  • concorde-nose.jpg
    295.2 KB · Views: 148
  • nose.jpg
    127 KB · Views: 142

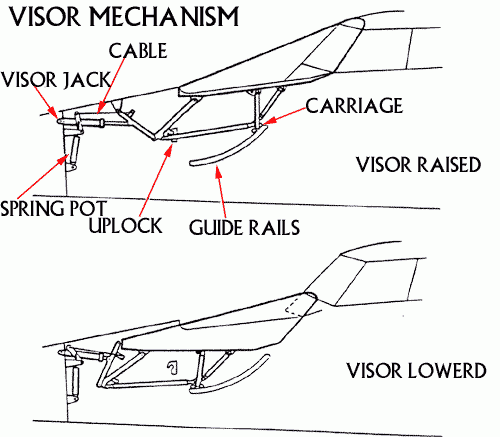

  • visormech.gif
    12.9 KB · Views: 144

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

Attachments

  • Early_design.jpg
    158.2 KB · Views: 112

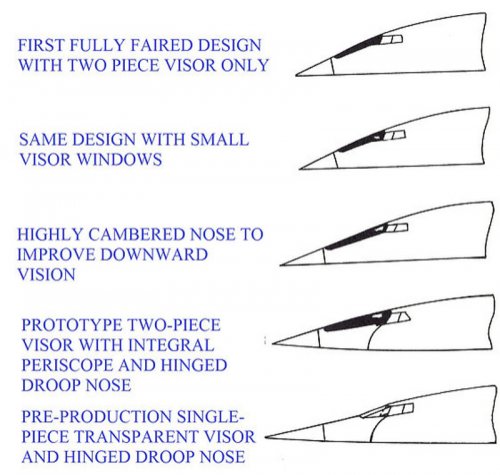

  • Concorde_nose_design_evolution.jpg
    125.5 KB · Views: 115

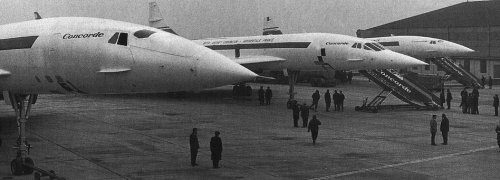

  • The Prototypes 001 & 002 along with the first Pre-production Concorde 01.jpg
    The Prototypes 001 & 002 along with the first Pre-production Concorde 01.jpg
    82.9 KB · Views: 99

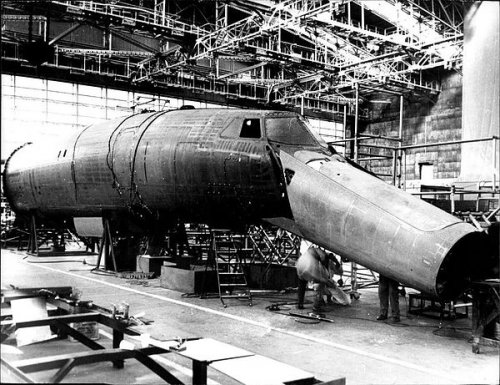

  • prototype node pic2.jpg
    prototype node pic2.jpg
    88.4 KB · Views: 67

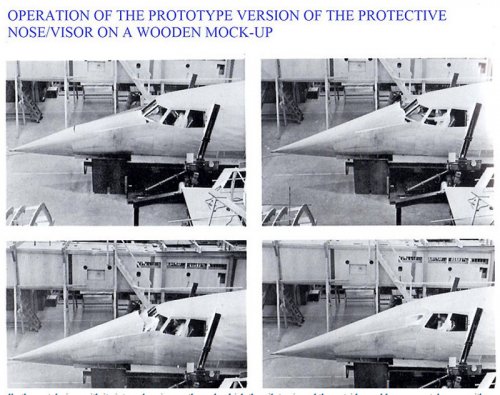

  • prototype nose.jpg
    prototype nose.jpg
    217.9 KB · Views: 65

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

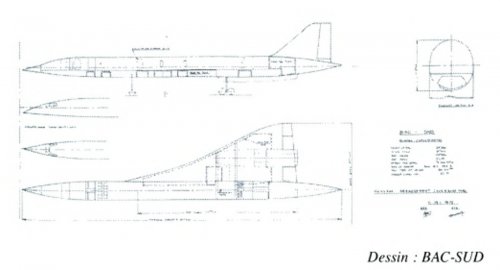

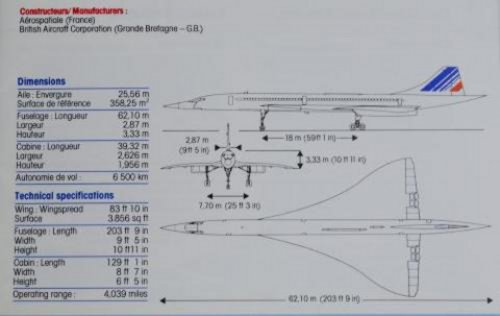

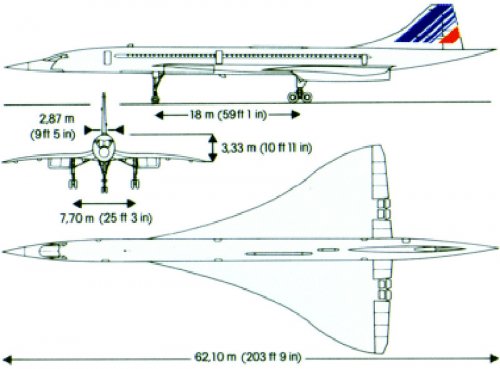

I found another drawing for production model.


Perhaps main cabin length is common between prototype, pre-production model and production model. Pre-production model had short tail, if production model overall length is 62.1m, pre-production model overall length seemd to be as follows.
62.1m-3.73m=58.37m (191.5ft) (There are another data, 193ft and 194ft)

Concorde Airframe Design and Development


Attachments

  • dimensions_concorde.jpg
    91.7 KB · Views: 455
  • The photograph is from the book received at Concorde boarding..jpg
    The photograph is from the book received at Concorde boarding..jpg
    106.5 KB · Views: 441
Last edited by a moderator:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!
British Aircraft Corporation: A History
Stephen Skinner




Attachments

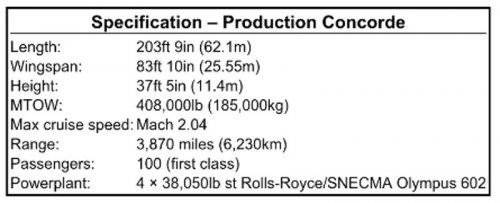

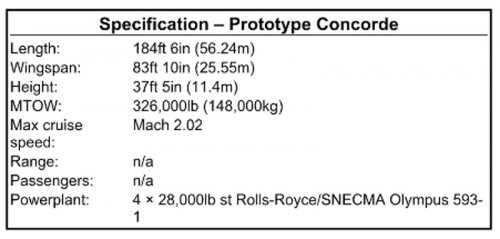

  • specification_prototype_concorde.jpg
    43.9 KB · Views: 363
  • specification production concorde.jpg
    specification production concorde.jpg
    46.4 KB · Views: 341
  • 51bXtT9txzL.jpg
    35.4 KB · Views: 356

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
blackkite said:
Hi! Concorde prototype, Pre production model and Production model side view. And dimension.

Another book says that Concorde dimension as follows. (AIRLINER COLOR HISTORY CONCORDE,ISBN 0-7603-1195-1)

Prototype Pre-Production Production
wing span 83ft 10in(25.56m) 83ft 10in(25.56m) 83ft 10in(25.56m)
Length Overall 184ft4.5in(56.20m) 194ft(59.13m) 203ft10in(62.13m)
Height Overall 36ft6in(11.1m) 38ft(11.58m) 40ft1in(12.22m)

Super data.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
From Air Enthusiast.


Attachments

  • 4.png
    139.3 KB · Views: 127
  • 3.png
    284.1 KB · Views: 123
  • 2.png
    193.9 KB · Views: 107
  • 1.png
    395.5 KB · Views: 90

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Is this aircraft also Bristol design? I feel Armstrong Whitworth. :eek:


"Much more radical however was the W wing model, effectively like two swept-forward plan forms on either side of the fuselage and combining the proven advantages of a swept or delta wing with aerofoils closer to the front of the fuselage to enhance low speed handling. A similar effect is nowadays achieved by the use of canard foreplanes such as those found on the Eurofighter Typhoon, although back in the 1950s the W wing was seriously considered by the Bristol Aeroplane Company. "

ARC-CP-773 Free Flight Measurements of the Drag and Longitudinal Stability of a Transonic M-Wing Aircraft.pdf


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!



Attachments

  • 03.jpg
    167.2 KB · Views: 95
  • 05.jpg
    151.5 KB · Views: 91
  • 07.jpg
    141.6 KB · Views: 92
  • plan_concorde_bac_sud_aviation_by_olivelebasque-d9dattl.jpg
    74.9 KB · Views: 98

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

Attachments

  • 516SMNH104L.jpg
    35.4 KB · Views: 594

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Wind tunnel test model picture and line drawing of this aircraft is different. ???
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=180.0;attach=130029;image


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Super contribution!!

Another site.
http://enperspective.pagesperso-orange.fr/pd.html


On the other hand, "FRENCH SECRET PROJECTS Post War Fighters" says that this is Nord's vision of a Mach 3 aircraft had evoluved into this design powered by four turbojet engines. ???
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=180.0;attach=1257;image


Attachments

  • Concorde_buld.jpg
    27.2 KB · Views: 598

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Re: Super Caravelle

I believe someone has three side view drawing of this design. ;) 457 wing and airintake looks like MirageⅣ

http://www.museeairespace.fr/aller-plus-haut/documentation/plans/ Low wall? ;D

"The Super Caravelle is a project studied jointly by the French companies Sud-Aviation and general aviation Marcel Dassault (GAMD)
The first for his knowledge of civil transport aircraft, the second for his know-how in the field of supersonic aircraft.
Supersonic medium-haul aircraft, the super Caravelle was to be able to carry 82 passengers for a distance of 3500 km.
Designed in 1961, the Super Caravelle was to succeed the mythical Caravelle and gave a first draft of what would become the Concorde."


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Concorde wing.

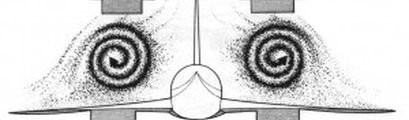

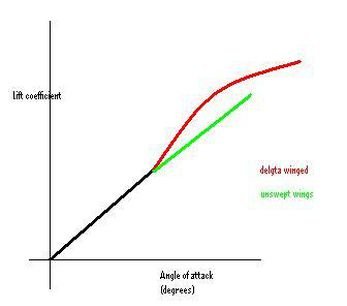

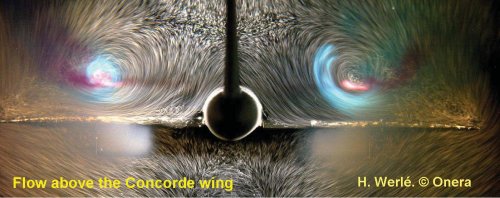

"The separated vortex flow represents an alternative method of lift generation. The airspeed in the vortex is high, and so the pressure is low. Thus, lift is still produced by exposing the upper surface to a low pressure than the lower surface; this low pressure is produced due to the vortex motion above it.
At low angle of attack the generation of lift is the same as in the convention wing the effect of vortex lift comes into play only in high angles of attack."

Vortex lift.

View: https://www.youtube.com/watch?v=YHpd506RpSU


Attachments

  • AFljJ.jpg
    142.5 KB · Views: 526
  • b9d472_390851280ade43bc887327a216b3aa38.jpg
    7.9 KB · Views: 481
  • b9d472_bfba6aff6a444395af1fdcab86e8cb3f.jpg
    10 KB · Views: 466
  • b9d472_7257096bc87c45d0bb6f7e36c4827a2e.gif
    3.7 KB · Views: 75

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
From Le Fana 389.


Attachments

  • A.png
    284.7 KB · Views: 155

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
438
Reaction score
800

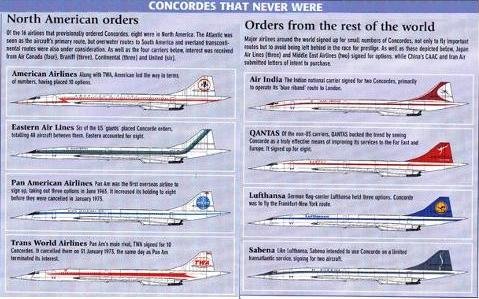

Further to the posts showing the various customers which eventually cancelled their Concordes, I thought members might like to see this taken from an article written during my time with Aerospace Publishing, and published in an aviation part work magazine, which unfortunately never saw the light of day apart from in two areas of the UK.


Attachments

  • concorde exports.jpg
    concorde exports.jpg
    40.9 KB · Views: 192

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

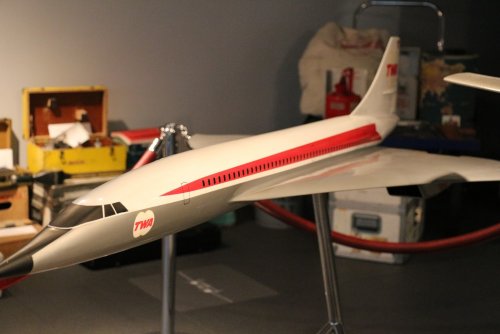

Hi! Two side view of Caravelle S and TWA Museum Guides Blog.



Attachments

  • IMG_3769.JPG
    197.6 KB · Views: 128
  • Caravelle_S.jpg
    124.6 KB · Views: 88

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!

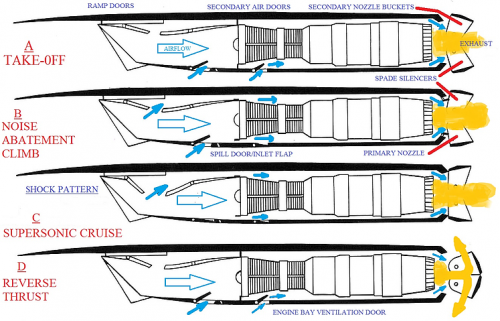

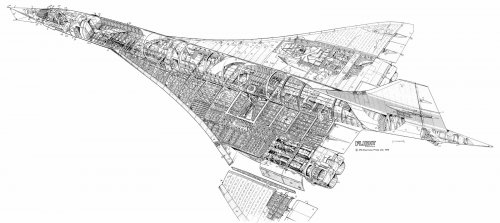

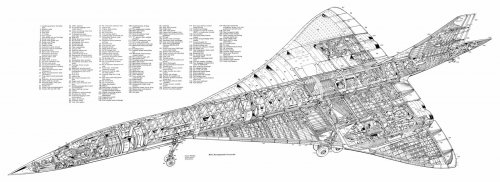

Variable exhaust nozzle.


Attachments

  • bacaerospatialeconcorde (1).jpg
    bacaerospatialeconcorde (1).jpg
    250.9 KB · Views: 100
  • bacaerospatialeconcorde.jpg
    265.9 KB · Views: 99

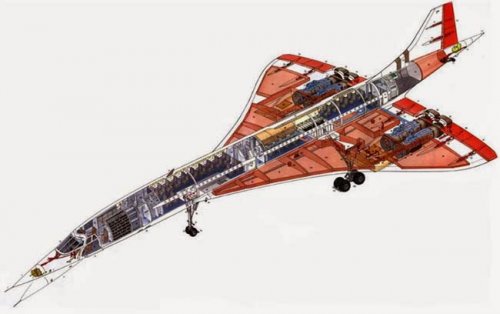

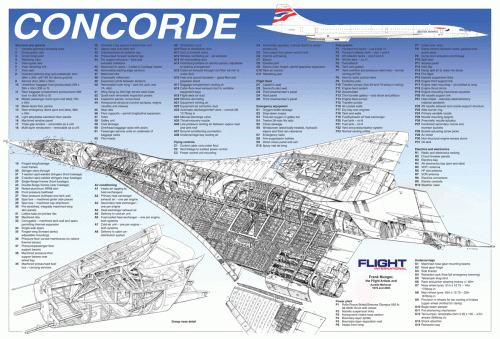

  • maincutaway.jpg
    32.8 KB · Views: 95
  • yourfile.gif
    410.5 KB · Views: 109
  • b9d472_709173f74eed4ae7b8f63a657facbc06.png
    351.1 KB · Views: 107

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi! Concorde wing.
試作型 : prototype, 量産型 : production model.
Source : Aireview magazine 8/1971.


Attachments

  • Concorde wing.jpg
    Concorde wing.jpg
    94.1 KB · Views: 109

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,232
Reaction score
1,440
blackkite said:
blackkite said:
Hi! Concorde prototype, Pre production model and Production model side view. And dimension.

Another book says that Concorde dimension as follows. (AIRLINER COLOR HISTORY CONCORDE,ISBN 0-7603-1195-1)
https://www.abebooks.com/9780760311950/Concorde-Airliner-Color-History-Endres-0760311951/plp

Prototype Pre-Production Production
wing span 83ft 10in(25.56m) 83ft 10in(25.56m) 83ft 10in(25.56m)
Length Overall 184ft4.5in(56.20m) 194ft(59.13m) 203ft10in(62.13m)
Height Overall 36ft6in(11.1m) 38ft(11.58m) 40ft1in(12.22m)

Super data.
Prototype Concorde 001 F-WTSS dimensions on Musée Air + Espace site:
Envergure : 25.56 m [Span]
Longueur : 56.24 m [Length]
Hauteur : 12.11 m [Height]
Pre-production Concorde 101 G-AXDN dimensions on Duxford Aviation Society site:
Length : 202 ft 4 in (61.66 m) [61.67 m assuming 1 inch = 2.54 cm]
Wingspan: 84 ft 0 in (25.60 m) [25.60 m]
Height : 40 ft 0 in (12.20 m) [12.19 m]


jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
4,361
Reaction score
1,985
Wasn't there a bit recently on BBC radio about someone trying to raise money for a new concorde?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Thanks alot Arjen-san. Pre production model length(Pre-production Concorde 101 G-AXDN dimensions on Duxford Aviation Society site) is little long? Pre production model had short tail.

Top
