Planned Tu-160 Variants

Tu-160PP

There were plans for an escort ECM variant which was also intended to have air-to-air radar and carry long range and medium range AAMs.

Tu-161

An offshoot of Tu-160PP was the Tu-161 interceptor, designed to carry an upgraded MiG-31 Zaslon radar and 12 AAMs (R-33) and intended to intercept transport aircraft over the Atlantic.

Tu-160R

Strategic reconnaissance variant

Tu-170

Conventionally armed only derivative to circumvent SALT-2 limitations.

Tu-160M

Designed to accommodate 2 Meteorit-A supersonic "plasma stealth" missiles, one in each bomb bay, which required stretching of the fuselage. Cancelled with the missile.

Tu-160V
Liquid hydrogen fuelled variant. Enlarged fuselage to accomodate the greater volume of hydrogen fuel.

Tu-160 (Voron carrier)
Voron was a clone of the US D-21 UAV, reverse engineered from a crashed D-21. All the electronics were destroyed by explosive charges as designed, but the airframe and engine were in working order. The Tu-160 and Tu-142 were both studied as carrier aircraft. Voron as a D-21 clone was abandoned, but work continued on a new design under the same name.

Source
  • Piotr Butowski, Tu-160 in Donald David, ed. Tupolev Bombers (AIRTime)


Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
427
Reaction score
39
Interestingly some sources mention two Tu-160 escort variants: the Tu-160PP as a jammer, and the Tu-160P as an escort interceptor with AAMs. Reportedly a mockup of the Tu-160PP was constructed.

One additional variant was the Tu-160K that was to carry two Krechet-R ALBMs.

Sources
  • Tu-160 'Blackjack', International Air Power Review Vol 2, 2001
  • http://www.testpilot.ru/russia/tupolev/160/160_m.htm (in Russian)


Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
427
Reaction score
39
Krechet-R

Designer: Yuzhnoye
Lenght: 10.7 m
Diameter: 1.6 m
Launch Weight: 24,400 kg
Warhead: 1,400 kg nuclear/six nuclear MIRVs
Propulsion: Two-stage solid-propellant rocket
Guidance: Inertial
Max Range: 7,500 km
CEP: 600 m

Work on the Krechet scientific research program for an air-based missile system began in July 1983 with V.F. Utkin of Yuzhnoye design bureau as chief designer. The primary aim of the project was to increase the survivability of nuclear counter-strike forces. The Krechet-R ALBM was a two-stage solid-propellant fourth generation missile with a liquid-propellant warhead bus. First stage was controlled by aerodynamic surfaces, and the second stage by a rotating nozzle. The warhead section contained penetration aids. It was proposed to use a Tupolev Tu-160 variant with an increased load capacity of 50 tons designated Tu-160K as the launch platform. Two missiles were to be carried in the bomb bays of the aircraft. Ground support equipment for the missile was designed by KBTM. Draft design of the system was completed in December 1984, but development was not proceeded with.

Source

Last edited by a moderator:

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
503
HAAL (High Altitude Aerial Launch)

AW&ST June 12,2000

In May 1999, The US State Dept and Ukrainian Government agreed to remove SALT limitations on commercial use of three Tu-160, as long as certain modifications were made to prevent their use as weapons platforms.
A two-stage, liquid fuel, 70,000-lb booster carried under the belly of the Tu-160 will be designed to put spacecrafts into Low-Earth-Orbit.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89
A lot of those Tu-160 variants, including the Voron carrier and the ALBM launcher, were first conceived as variants of the original Tu-160 design. That'd be the one that looked like a Tu-144D.


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,992
Reaction score
1,178
Maybe of interest !

http://tuku.military.china.com/military/html/2008-03-06/98811_812666.htm#t

Deino


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Is there any other info on the Tu-160 design that looked like the -144D? I've only seen a small line drawing side view of what was claimed to be it, definitely not just a side view of a -144, BTW, in an issue of Wings or Airpoer in the early '90s & an overhead view of the same -144 derivative in a late '70s AW & ST, but those are the only ones I've seen. Even Butowski's(?) "Red Star" series book on the -144 lists Recon, ECM(?) & interceptor versions, but no bomber, IIRC. I do recall one design that looks like -144D wings, tail & engines & a very abbreviated, squashed fuselage, but that's about it. I scratchbuilt one about 15 years ago basing it on the little line & AW & ST drawings.


SOC said:
A lot of those Tu-160 variants, including the Voron carrier and the ALBM launcher, were first conceived as variants of the original Tu-160 design. That'd be the one that looked like a Tu-144D.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
503
Frank,

Soviet Secret Projects: Bombers since 1945 Pages 155 and 156.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89
frank said:
Is there any other info on the Tu-160 design that looked like the -144D?

Check out Yefim Gordon's Red Star series book on the Tu-160, there is a good bit of info in there. Soviet Secret Projects: Bombers has some info as well, but not quite as much or in as great detail (such as it is, of course). This was Tupolev's Tu-160 design, prior to being handed Myasischev's M-18 variable-geometry design for reworking and serial production. If I remember right, part of the reason that Tupolev's initial Tu-160 design was discarded was because the RusAF felt like it was simply getting a warmed-over airliner. This was not the case of course, if you look at the design it is markedly different save perhaps in general arrangement from the Tu-144D.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Ah, it might also be Gordon's book on the -144. ISTR having ordered the Tu-160 book before, but it got back-ordered & I never followed it up. Thanks.


SOC said:
frank said:
Is there any other info on the Tu-160 design that looked like the -144D?

Check out Yefim Gordon's Red Star series book on the Tu-160, there is a good bit of info in there. Soviet Secret Projects: Bombers has some info as well, but not quite as much or in as great detail (such as it is, of course). This was Tupolev's Tu-160 design, prior to being handed Myasischev's M-18 variable-geometry design for reworking and serial production. If I remember right, part of the reason that Tupolev's initial Tu-160 design was discarded was because the RusAF felt like it was simply getting a warmed-over airliner. This was not the case of course, if you look at the design it is markedly different save perhaps in general arrangement from the Tu-144D.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89
2 of them in stock at Amazon:

http://www.amazon.com/Tupolev-Tu-160-Blackjack-Russian-Answer/dp/1857801474/ref=pd_bbs_sr_1?ie=UTF8&s=books&qid=1204921110&sr=8-1


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Sorry, again, those aren't the ones. This is it.



pometablava said:
Frank,

Soviet Secret Projects: Bombers since 1945 Pages 155 and 156.


Attachments

  • tu144bomber.jpg
    119.6 KB · Views: 1,415

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Thanks, I found I do have a copy, but still not the drawing I posted.

SOC said:
2 of them in stock at Amazon:

http://www.amazon.com/Tupolev-Tu-160-Blackjack-Russian-Answer/dp/1857801474/ref=pd_bbs_sr_1?ie=UTF8&s=books&qid=1204921110&sr=8-1


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Also, while fumbling thru my Tu-144 bomber folder, in addition to the o/h shot of it from AW & ST, which I'm not going to post as it's a poor photocopy of a photocopy printed from microfilm about 15+ years ago. :) Anyway, I found a few notes from both FI & AW & ST, all thru the early to even late '80s, there's regular reference to a cruise missile carrier version of the Tu-144, usually associated with the AS(X)-19. ISTR reading somewhere, sometime, that one of the Tu-144 derived bomber/missile carriers had been determined to be the Sukhoi T-4, satellite imagery being what it was back then, I guess.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,040
Reaction score
564
http://web.archive.org/web/20070404132502/www.abo.fi/~mlindroo/SpaceLVs/Slides/index.htm

is this perhaps the 'real' reason the design was changed from a single to twin engine nacelles, rather than aerodynamic reasons?
a large cruise missile could be carried between them, or a weapons bay placed inside the fuselage here?

cheers,
Robin.


Attachments

  • tu144bomber.jpg
    119.6 KB · Views: 1,390

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Considering the re-design was more than just engine nacelle re-location, probably not.


robunos said:
http://web.archive.org/web/20070404132502/www.abo.fi/~mlindroo/SpaceLVs/Slides/index.htm

is this perhaps the 'real' reason the design was changed from a single to twin engine nacelles, rather than aerodynamic reasons?
a large cruise missile could be carried between them, or a weapons bay placed inside the fuselage here?

cheers,
Robin.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89
frank said:
there's regular reference to a cruise missile carrier version of the Tu-144, usually associated with the AS(X)-19.

The Meteorit was originally intended to arm the Tu-160, so associating it with the "original" Tu-160, the Tu-144D derivative, might have resulted in the confusion.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,

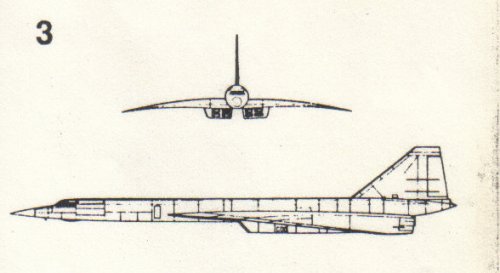

the Tu-144 as a bomber.
http://www.abovetopsecret.com/forum/thread195957/pg1


Attachments

  • tu144.jpg
    39.4 KB · Views: 1,232

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,466
Reaction score
7,172
Tu-160V, liquid hydrogen fueled version, for Meteorit.


Attachments

  • Tu-160v.jpg
    17.3 KB · Views: 1,238

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
427
Reaction score
39
Thank you. Differs from the base Tu-160 by quite a lot more than I had thought.
Now we only need to see the Tu-160P, K and M variants ;)


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
983
Website
deeptowild.blogspot.com

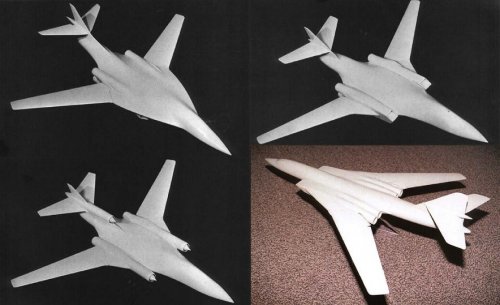

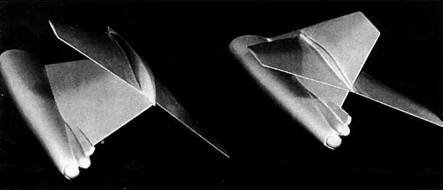

Models of Tupolev Tu-160 configuration concepts.

Source: Yefim Gordon, "Tu-160", POLYGON-PRESS, Moscow 2003


Attachments

  • 01i70tu160earlyuv2.jpg
    63.7 KB · Views: 1,225

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
983
Website
deeptowild.blogspot.com

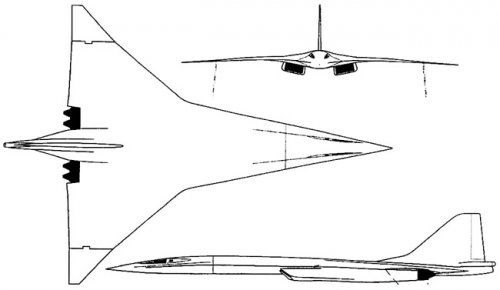

Three-view drawing of Tupolev Tu-160 concept.

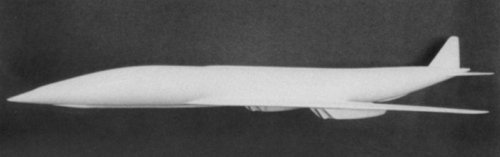

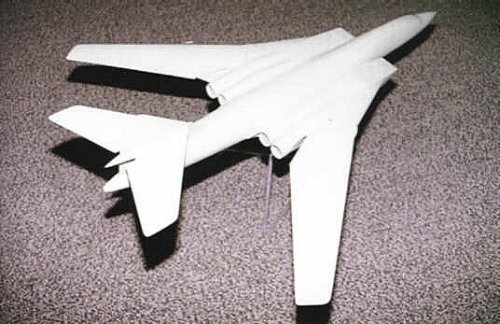

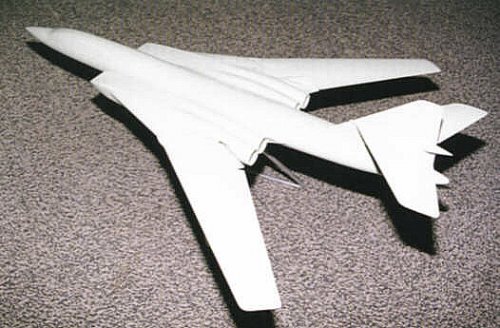

Model of Tupolev Tu-160.

Source: Yefim Gordon, "Tu-160", POLYGON-PRESS, Moscow 2003


Attachments

  • tu-160_16.jpg
    42.9 KB · Views: 863
  • 160.jpg
    87.4 KB · Views: 254

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
983
Website
deeptowild.blogspot.com

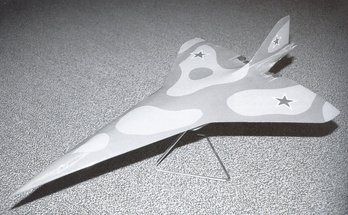

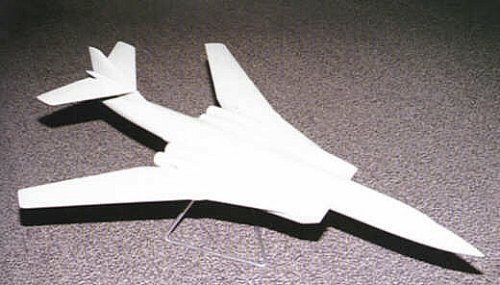

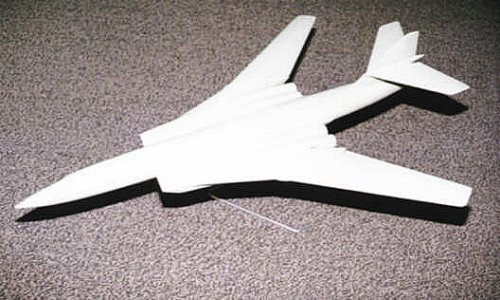

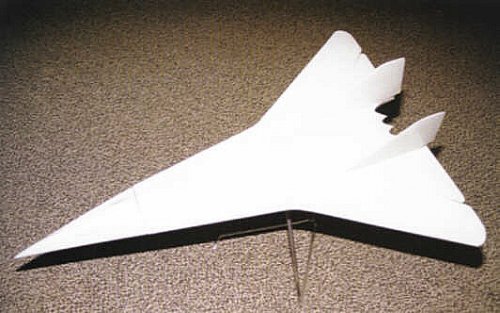

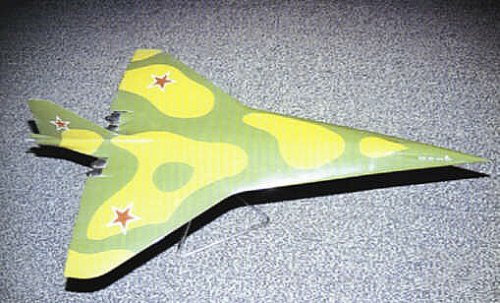

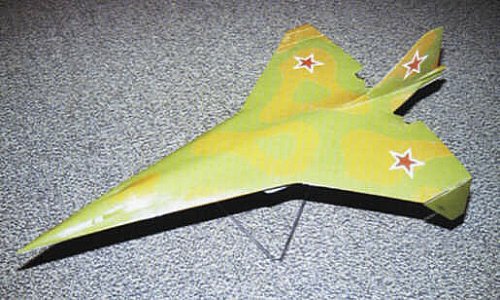

Model of Tupolev Tu-160 concept.

Source: Yefim Gordon, "Tu-160", POLYGON-PRESS, Moscow 2003


Attachments

  • 160_53.jpg
    101.1 KB · Views: 165
  • 160_52.jpg
    135.5 KB · Views: 137
  • 160_51.jpg
    122 KB · Views: 128
  • 160_08.jpg
    133.4 KB · Views: 132

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
983
Website
deeptowild.blogspot.com

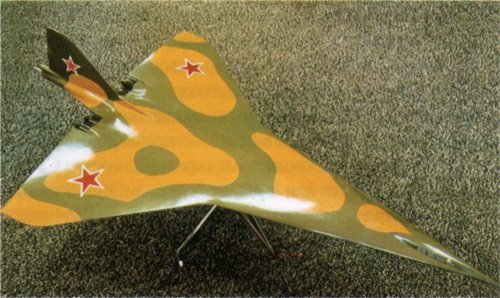

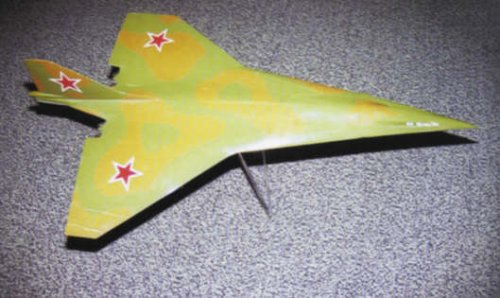

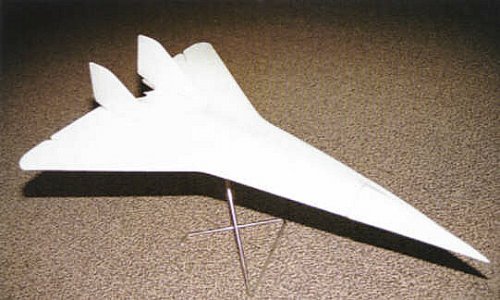

Model of Tupolev Tu-160 concept.

Source: Yefim Gordon, "Tu-160", POLYGON-PRESS, Moscow 2003


Attachments

  • 160M_44.jpg
    118.4 KB · Views: 137
  • 160M_46.jpg
    117.9 KB · Views: 130
  • 160M_46.jpg
    117.9 KB · Views: 136

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
983
Website
deeptowild.blogspot.com
Model of Tupolev Tu-160 concept.

Source: Yefim Gordon, "Tu-160", POLYGON-PRESS, Moscow 2003


Attachments

  • 160M_50.jpg
    142.1 KB · Views: 160
  • 160M_49.jpg
    138.4 KB · Views: 151
  • 160M_48.jpg
    147.3 KB · Views: 157
  • 160M_47.jpg
    30.1 KB · Views: 155

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,249
Reaction score
1,683
PaulMM (Overscan) said:
Tu-160V, liquid hydrogen fueled version, for Meteorit.
Well, it turns out that this is not even Tu-160 mod, but hydrogen Tu-244V SST. To my sorrow, I can't post 3 view, but mystery must be solved and mistake fixed. And yes, it has no VG wings.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,367
Reaction score
6,023
Hi,


here is the development of the tail unit.


Attachments

  • Tu-160.jpg
    8.4 KB · Views: 255

stashandr

ACCESS: Confidential
Joined
Jul 9, 2007
Messages
55
Reaction score
14
Very funny situation: I have this book (Tu-160 - Rigmant, 2016), but I have missed this page about Tu-170!
Thank you for remind!

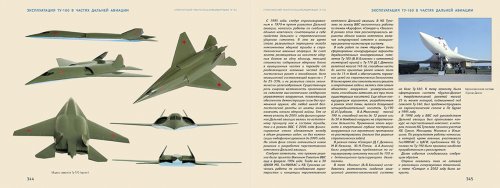

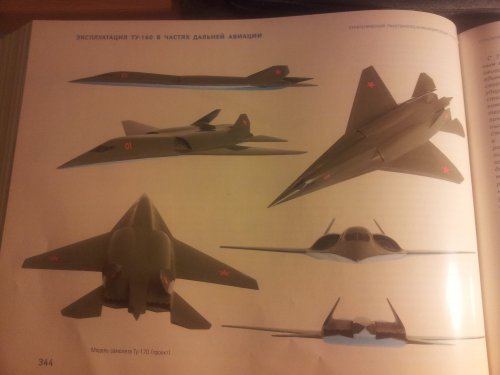

On the previous page (№343) there is a drawing of aircraft, which lookes like stealth modified Tu-22M - Tu-22M5?..


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
347
Reaction score
22
Wow! So what is the bottom pic of? Still labeled as Tu-160 tho?


stashandr

ACCESS: Confidential
Joined
Jul 9, 2007
Messages
55
Reaction score
14
Tu-170 (145 t, middle 90th, Aerofan theme) and probably Tu-22M5.


Attachments

  • Tu-170.jpg
    1.1 MB · Views: 796
  • Tu-22M5.jpg
    1.3 MB · Views: 784

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
347
Reaction score
22
Oh my! I need these books! Are they still available and where? I Googled polygonpress.ru but it is all Cyrillic so I'm still lost. :(


Kryptid

ACCESS: Secret
Joined
Mar 13, 2009
Messages
275
Reaction score
11
Website
www.facebook.com
Is the Tu-170 intended to have a reduced radar signature? I see inward canted tails and serrations on the engine nozzles.


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,256
Reaction score
743
What a looker :eek: Bodes well for PAK-DA, although the latter, being subsonic, is going to look very different. Still, LO is clearly something Tupolev have been wrapping their collective minds round for some time!


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,466
Reaction score
7,172
Moved to Tu-160 topic.

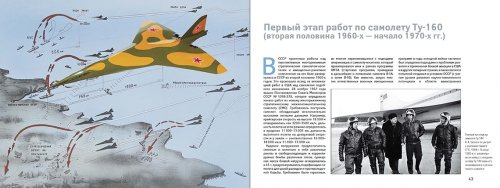

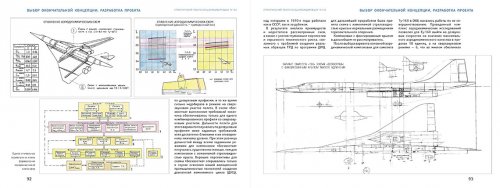

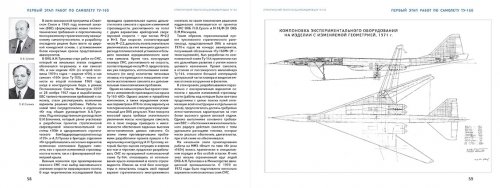

Pictures are from Vladimir Rigmant's Tu-160 book by Polygon Press. This is a really awesome book made with close cooperation with Tupolev, marred only (for non-Russian speakers) by being written in Russian. It pays particular attention to the early projects and configuration development of the Tu-160, which makes it especially interesting for this forum, and large numbers of original Tupolev OKB drawings and illustrations are presented.


Attachments

  • book-tu160__20.jpg
    140 KB · Views: 423
  • book-tu160__08.jpg
    127.5 KB · Views: 641
  • book-tu160__06.jpg
    140.1 KB · Views: 620
  • book-tu160__05.jpg
    144.7 KB · Views: 634

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,021
Reaction score
792

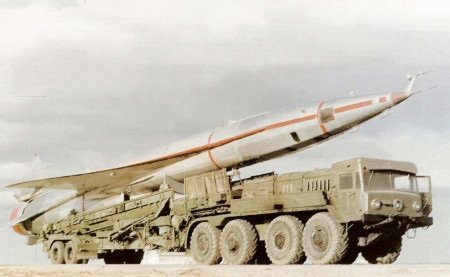

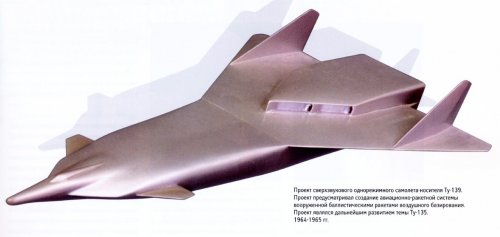

It was continuation of Tu-135 (it is so noted on picture). Hypersonic was probably project on atached picture


Attachments

  • Tupolev Tu-139 DBR-2 Jastreb-2.jpg
    Tupolev Tu-139 DBR-2 Jastreb-2.jpg
    60.8 KB · Views: 245

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,249
Reaction score
1,683
They both were not hypersonic. '139' on the top picture (one of the times this designation was used) is a supersonic launcher platform.for '136' with R-14 based booster stage. Here's a different variant of '139'.
http://www.uhlib.ru/transport_i_aviacija/aviacija_i_kosmonavtika_2009_08/p3.php


Attachments

  • 139.jpg
    13.8 KB · Views: 276

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,168
PaulMM (Overscan) said:
Moved to Tu-160 topic.

Pictures are from Vladimir Rigmant's Tu-160 book by Polygon Press. This is a really awesome book made with close cooperation with Tupolev, marred only (for non-Russian speakers) by being written in Russian. It pays particular attention to the early projects and configuration development of the Tu-160, which makes it especially interesting for this forum, and large numbers of original Tupolev OKB drawings and illustrations are presented.

Hi!
http://www.polygonpress.ru/?portfolio=book-tu-160
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Fwww.polygonpress.ru%2F%3Fportfolio%3Dbook-tu-160&sandbox=1
Someone please show me how to get this book in Japan. ;)


Attachments

  • tu160-cover3d-1140.jpg
    92.6 KB · Views: 214

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,168

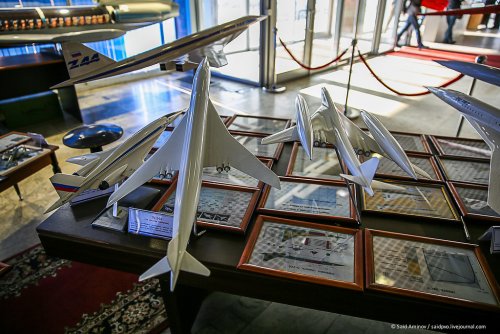

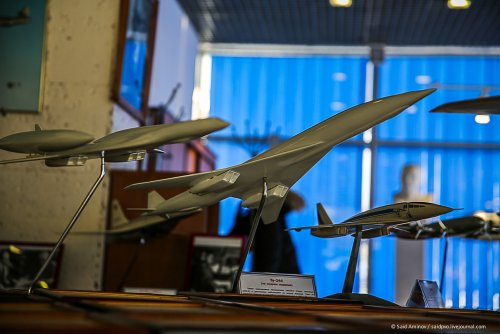

The book "OKB TUPOLEV" says that "this is a model of the projected Tu-160V delivative fuelled by liquid hydrogen. The LH2 tanks are housed in the upper fuselage, hense the odd shape of the fuselage and the totally new all-movable tail suefaces."

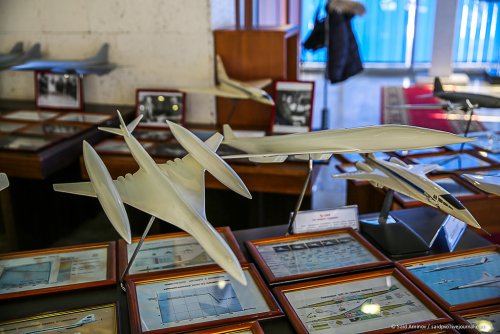

What is the aircraft with large wing tanks? One delivative of Tu-160V?


Attachments

  • 0_11c42a_cf8c059c_XXL.jpg
    182.8 KB · Views: 243
  • 0_11c425_16b064f6_XXL.jpg
    269.5 KB · Views: 236
  • 0_11c42d_613dd41d_XXL.jpg
    223.4 KB · Views: 236

Similar threads

Top
