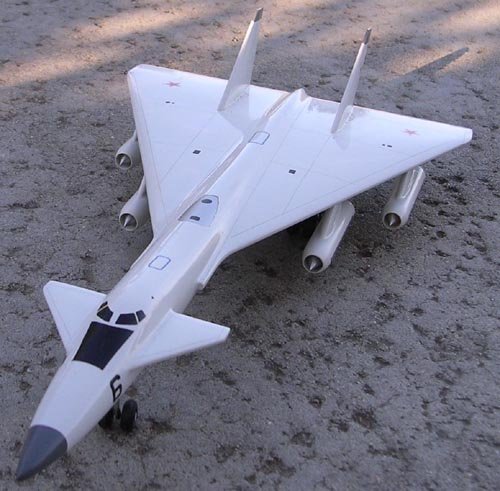

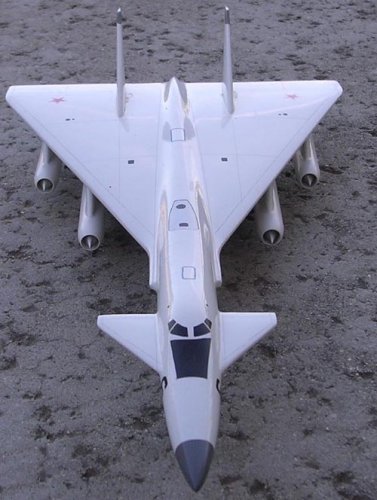

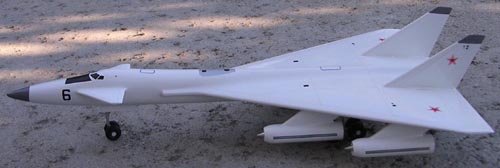

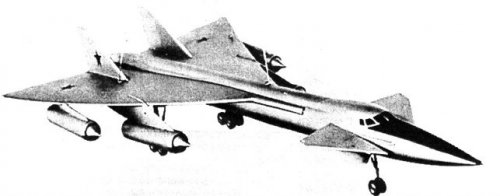

Model of Myasishchev M-56 from USSR-Russian Aviation & Space Collectibles (Alex Panchenko).

Description:
12.5 inches length model of Myasishchev`s OKB-23 early project of M-56 cannard bomber. It wings and engines layout are similar to that of the earlier M-52. By mid-1960 M-52 was abandoned for the even more advanced M-56.Design work on M-56K complex-the M-56 aircraft with the Kh-22 missiles-began 1958 and a number of different variants considered. In October 1960, Myasishchev`s OKB-23 was incorporated as a branch office of Vladimir Chelomey`s OKB-52, working on space missile systems.And Vladimir Myasishchev meanwhile, was promoted to become a director of TSAGI (Central Aerodynamic and Hydrodynamic Institute).A full-size mock up of M-56 was built and the maiden flight was expected in mid 1963, but Government resolution stopped the works on project and M-56 designs existed only as models at Myasishchev Design Bureau.

Source:
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_108&products_id=2005


Attachments

  • 17130751.jpg
    98.3 KB · Views: 1,732
  • 17130735.jpg
    86.3 KB · Views: 1,507
  • 17130803.jpg
    51.9 KB · Views: 1,440

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,287
Hi,

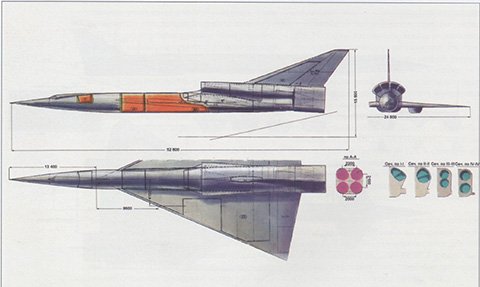

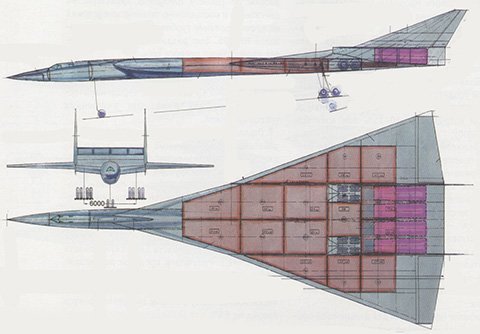

here is a 2-view to Myasishchev M-56 SST.

Первые сверхзвуковые - Ту-144 против "Конкорда"


Attachments

  • pic_36.jpg
    22.9 KB · Views: 1,146

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
595
Reaction score
274

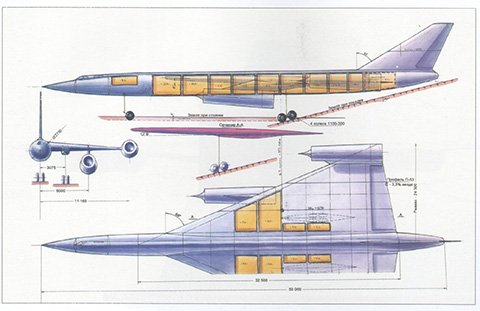

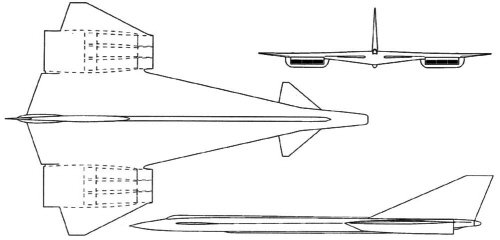

Two views of two M-56 variants - possibly from Aviation Enthusiast (from the days before I recorded sources) together with an artists impression from an article in Aviatsiya i Kosmonavitika (A+K) issue 11/1999 by Vladimir Rigmant called The Breakthrough Towards Mach 3.


Attachments

  • Myashischev_M-56_Variant_2_Schematic.jpg
    36.2 KB · Views: 1,021
  • Myashischev_M-56_Variant_3_Schematic.jpg
    27.2 KB · Views: 140
  • M-56_Artists_Impression.PNG
    311 KB · Views: 150

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,895
Reaction score
3,742
Hi!
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Ftestpilot.ru%2Frussia%2Fmyasishchev%2Fm%2F56%2Fm56.htm&sandbox=1

http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Faviadejavu.ru%2FSite%2FCrafts%2FCraft20506.htm&sandbox=1


Attachments

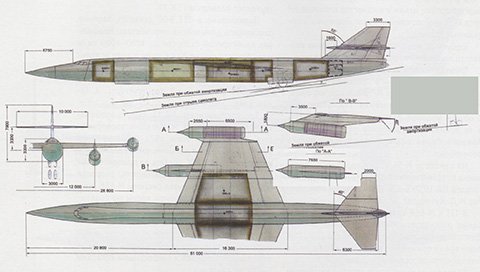

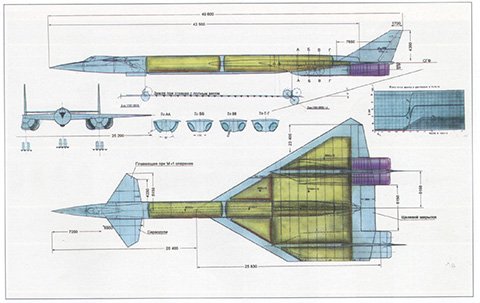

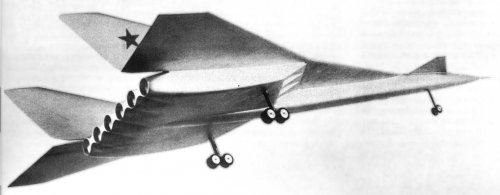

  • The final version of the M-56.jpg
    The final version of the M-56.jpg
    43.5 KB · Views: 122

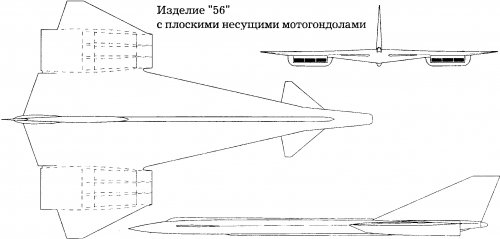

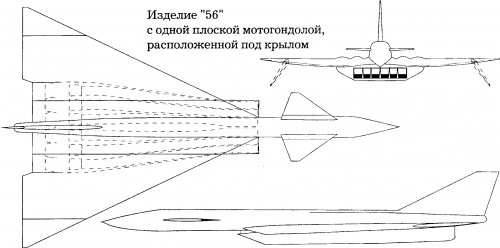

  • 56 with a flat nacelles beneath the wing.jpg
    56 with a flat nacelles beneath the wing.jpg
    248.5 KB · Views: 125

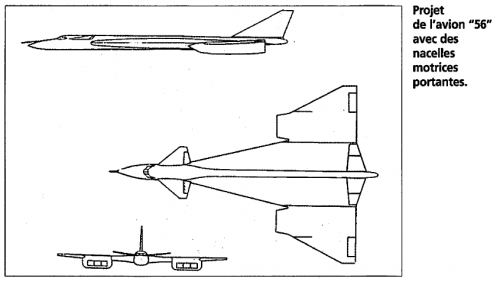

  • 56 with a flat bearing pods.jpg
    56 with a flat bearing pods.jpg
    187.6 KB · Views: 129

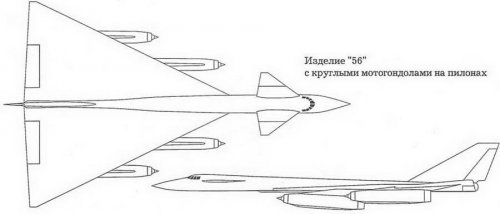

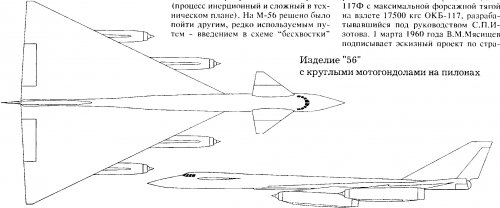

  • 56 with round pods on pylons.jpg
    56 with round pods on pylons.jpg
    250.8 KB · Views: 152
  • One of the first versions of the M-56.jpg
    One of the first versions of the M-56.jpg
    26 KB · Views: 120

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,895
Reaction score
3,742

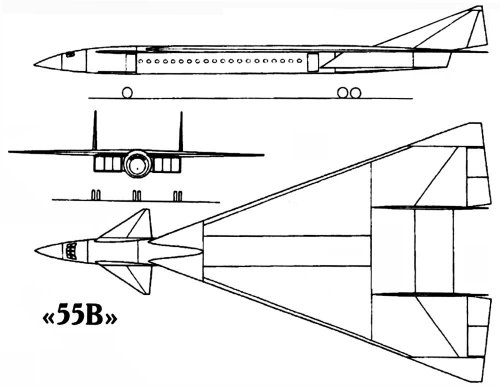

And passenger version M-55.
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Ftestpilot.ru%2Frussia%2Fmyasishchev%2Fm%2F55%2Fm55.htm&sandbox=1


Attachments

  • m55v_3.jpg
    52.9 KB · Views: 115

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,895
Reaction score
3,742
Hi! Another drawing.

https://forums.somethingawful.com/showthread.php?threadid=3276654&pagenumber=815&perpage=40#post447761618


Attachments

  • superbounder2.jpg
    26.8 KB · Views: 119

Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98
Can we get some dimensions of color scans m56_2, m56_3, m56_4, m56_5, and m56_6?
They are rather small and the numbers don't show up that well.

Maybe we can have @ucon help us if need be.


TheOmnimercurial

ACCESS: Restricted
Joined
Aug 31, 2019
Messages
8
Reaction score
9
10-piece encyklopedia of Myasishchev aircraft. Sold out

Oof! I hope that a new publishing run occurs, I'd hate to miss out on this set of Books.

Can we get some dimensions of color scans m56_2, m56_3, m56_4, m56_5, and m56_6?
They are rather small and the numbers don't show up that well.

Maybe we can have @ucon help us if need be.
PM me

Is there any chance of further copies of this Encyclopedia of 10 Volumes going on Sale again?

I am most interested in learning more about Myasishchev, the Man himself and the OKB's that also operated.


foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
296
Reaction score
38
10-piece encyklopedia of Myasishchev aircraft. Sold out

Oof! I hope that a new publishing run occurs, I'd hate to miss out on this set of Books.

Can we get some dimensions of color scans m56_2, m56_3, m56_4, m56_5, and m56_6?
They are rather small and the numbers don't show up that well.

Maybe we can have @ucon help us if need be.
PM me

Is there any chance of further copies of this Encyclopedia of 10 Volumes going on Sale again?

I am most interested in learning more about Myasishchev, the Man himself and the OKB's that also operated.
I too love Myasishchev designs. My wish is for Avico books - of the same incomparable standard (especially 3 views) - on the M-20 & M-18.
