Italian Little Known Light Aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
What was those ?,

http://www.avia-it.com/act/biblioteca/libri/PDF_Libri_By_AVIA/Marinai-in-volo.pdf


Attachments

  • a.png
    130.7 KB · Views: 83
  • c.png
    69.9 KB · Views: 84

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
What was those ?,

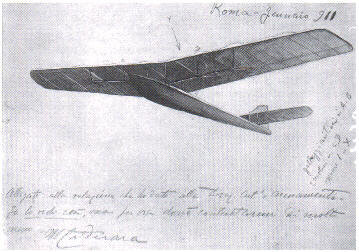

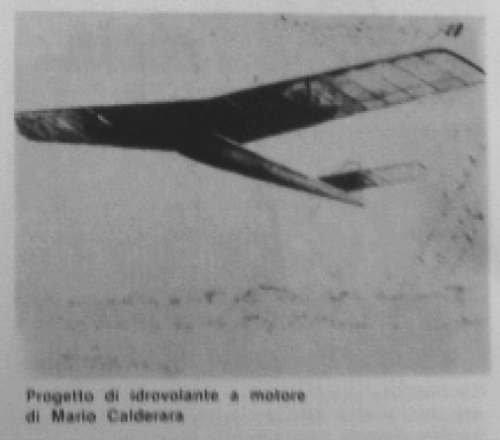

The sketch on the left was Mario Calderara idealized notion of a seaplane (in contrast with the heavily-strutted, triple-pontooned idrovolante that he actually built).

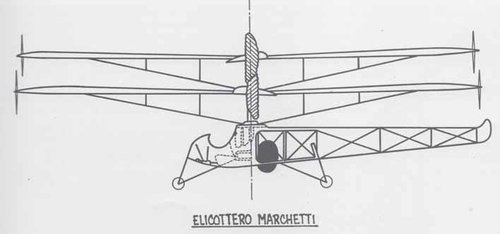

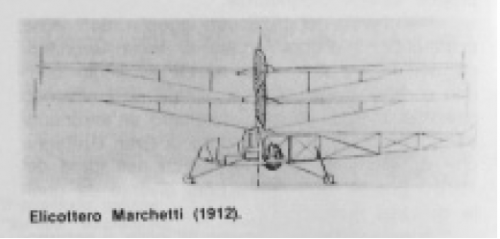

The 'Elicottero Marchetti 1912' is obvious but I'm not sure about that date. I suspect this to be Marchetti's contentious 1922 freelance design for a Regia Marina observation helicopter.


Attachments

  • idro-progetto-calderara.jpg
    26.1 KB · Views: 52
  • elicottero-marchetti.jpg
    28.4 KB · Views: 82

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005

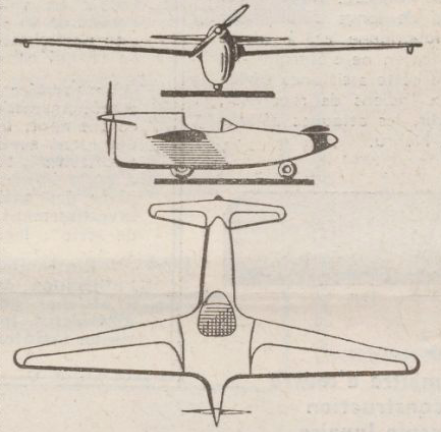

here is a Beltrame Colibri tail-first canard light aircraft ...

Perhaps appropriately for such a small airplane, Milan-based Quito Beltrame was best known for producing flying models - as the Fabbrica Italiana Aeromodelli Quito Bertrame.

BTW, photo 2 in Reply #9 was taken at the 1937 Milan Fair - Salone internazionale aeronautico. This display was listed as a " Modello dell'areo "Colibrì" ... which I assume to mean a mockup: http://www.lombardiabeniculturali.it/fotografie/schede/IMM-u3010-0003703/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

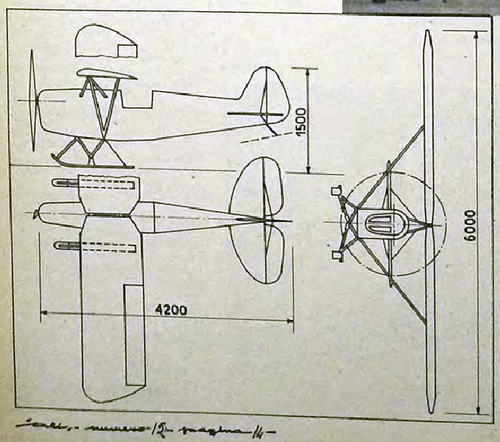

From Ali RSI 1944,

what was this ?.


Attachments

  • 1.png
    596.9 KB · Views: 50
  • 2.png
    424 KB · Views: 51

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38

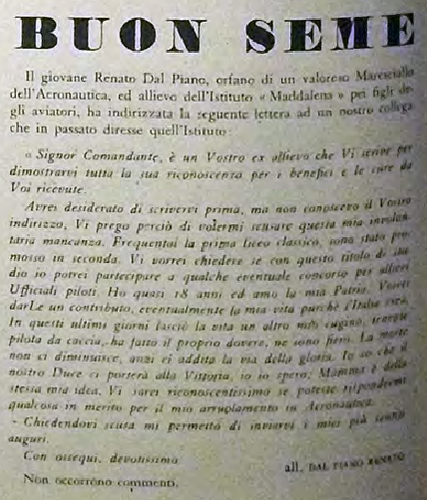

The second page excerpt is not related to the 3-view, it seems only a request to the editor to endorse the enrollment of the young man in the pilot academy.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
Unfortunately this company and it's designation number was completely a mystery ?,I know they produced several other
aircraft,but no-sense for this series ?.

The CNA corporate history is a little convoluted but not really a mystery.

CNA aircraft designs were originally given Greek letter names - Beta, Delta, Eta, Teta (Italian for Theta), ... but they don't seem to be in order (I can't find alfa, gamma, or zeta). In 1935, designations shift to numerals - the CNA 15 and CNA 25 that you've mentioned. Then there is the distinct PM-1 of 1939/'40 (standing for Politecnico di Milano). CNA's original aircraft developments all seem to be experimental types built under contract to the Ministero dell’Aeronautica. CNA also developed a range of series production engines (with numerical designations prefixed by 'C') for light aircraft.

The corporate identity changed often. CNA was established in 1920 by il conte Giovanni Bonmartini but it existed under a number of names. The earliest incarnation was the Cooperativa Nazionale Aeronautica of March 1920 relating to the flying school at Rome (Cerveteri). In late November 1921, the firm becomes the Compagnia di Navigazione Aerea. Then, in 1922, another renaming for a joint venture with Ing Giovanni Pegna - the Costruzione Navali Aeronautsche.

Costruzione Navali Aeronautsche projects were the unbuilt multi-rotor Elicottero and Leonardo da Vinci (16-engined transatlantic idrovolante); the 1923 Pegna Bonmartini P.B.N. 4-engined (push-pull) biplane (aka Piaggio P.3); the 1923 single-seat ultralight Pegna-Bonmartini Rondine ('Swallow', aka CNA PB Rondine, Piaggio P.1); the unbuilt 2-seat Pegna-Bonmartini Rondone ('Swift', 45 hp Anzani); the built Pegna-Bonmartini Rondone Tipo 2; and the Caccia Pegna (aka Piaggio P.2). See: https://modellismoitalia.altervista.org/pegna-bonmartini/

The final rebranding occurred after Pegna and Bonmartini parted ways. CNA then stood for the Compagnia Nazionale Aeronautica. In 1934 Bonmartini sold CNA to Caproni. Small-scale series production began of Caproni Ca.100s (1935-1937) and SAIMAN 202s (1940-1941). This was a fairly small operation - total production of all types by CNA was only 188 airframes.

Original Designs built by the Compagnia Nazionale Aeronautica

CNA Beta - 193? (??) no other details
- Beta: 1 x 170-180 hp CNA C.7 9-cylinder radial engine

CNA Delta - 1931 trimotor low-winged passenger monoplane
- CNA Delta: 2-4 passengers, optional postal aircraft
3 x 90 hp Fiat A.50 radials, alt: 138 hp A.54, 160 hp CNA C.7
- CNA Delta: Mixed construction (wood & fabric-covered steel-tube
-- http://tof.canardpc.com/preview2/2a768858-e3d9-4cf3-9c30-1fe7f08dd3ad.jpg

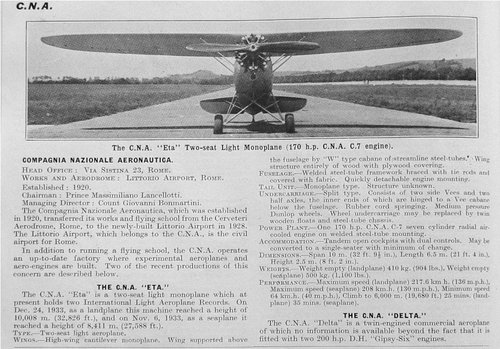

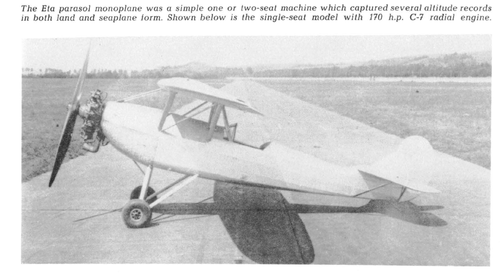

CNA Eta - 1933 1-or-2-seat parasol-winged lightplane, x 1*
- CNA Eta: Tandem or solo seat, landplane or on floats
- CNA Eta: (Orig.) 1 x 180 hp CNA C.7 9-cylinder radial
-- Single-seat float Eta FAI C.II altitude record, 8,411 m
-- Single-seat land Eta FAI C.II altitude record, 10,008 m
- CNA Eta: (Mod.) 1 x 150 hp CNA C.VI 6-cyl., span 10.00 m
-- 2-seat float Eta FAI C.I 100 km circuit record, 192.62 km/h
-- * Some sources say x 2 (more likely same airframe modified)
-- http://www.airwar.ru/image/idop/law1/eta/eta-1.jpg
-- http://www.airwar.ru/image/idop/law1/eta/eta-2.jpg

CNA Merah - 1934 2-seat low-wing monoplane, x 1
- Merah: 1 x (??) hp CNA (type?) engine, span (??) m

CNA Teta - 1933 tandem 2-seat, single-engined light biplane
- Teta: Radial engine, poss. highly mod. Breda Ba.25 (??)
- Teta: (??) No other details

CNA 15 - 1935 4-seat cantilever low-winged sportsplane
- CNA 15: Designed specif. for Littorio sports a/c races
- CNA 15: Parallel development to high-wing CNA 25 (qv)
- CNA 15: 1 x 150 hp CNA C-VI IRC.43 6-cyl., span 11.78 m
-- 1937, turbocharger increased ceiling to 9,000 metres
-- CNA 15 MM307 to Luigi Tonegutti (Verona) 1939, I-VIVI

CNA 25 - 1935 4-seat cantilever high-winged sportsplane
- CNA 25: Parallel development to low-winged CNA 15 (qv)
- CNA 25: 1 x 150 hp CNA C-VI IRC.43 6-cyl., span 11.78 m
- CNA 25: Lower-performing CNA 25 not further developed
- 3v: http://www.airwar.ru/image/idop/law1/cna25/cna25-1.gif

CNA PM.1 - (Politecnico di Milano) 1939 student lightplane, x 1*
- PM.1: 2-seat cabin a/c with a cantilever high-wing monoplane
- PM.1: Designed for a student competition, design begun 1938
- PM.1: 1 x 60 hp CNA D.4 air-cooled HO4 engine , span 10.60 m
- PM.1: Plywood-covered wooden airframe, side-by-side seating
-- Assigned reg. I-ACGM in 1940 by Ministero dell’Aeronautica
-- * Aug 1942 order x 10, airframes destroyed by bombing July 1943
-- By the PM's Instituto di Construzioni Aeronautische del Regio

Does anyone have more on CNA aircraft?

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Amazing answer dear Apophenia,

and the Merrah was a light aircraft as I know.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

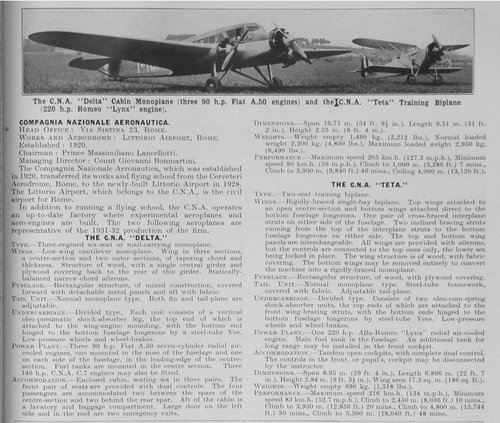

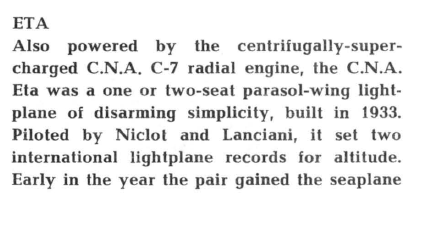

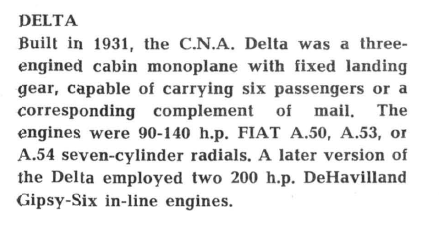

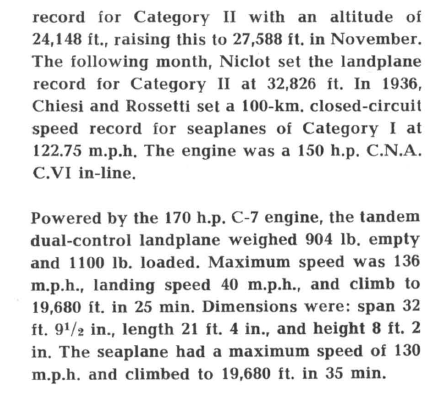

From, Italian Civil and Military Aircraft 1930-1945


Attachments

  • 1.png
    37.2 KB · Views: 17
  • 2.png
    53.1 KB · Views: 20

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
From, Italian Civil and Military Aircraft 1930-1945

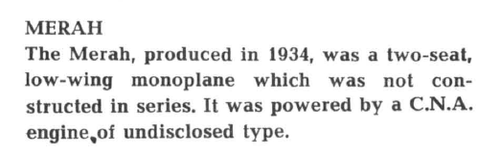

Thanks for that hesham. I've added those detail to my list. I had the spelling wrong ... but I still have absolutely no idea what merah means :(


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
I don't know also,and please add the details of Beta,I sent it with Merah.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005

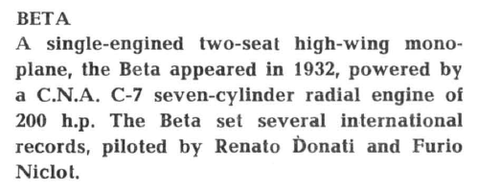

hesham: About adding those Beta details, there's a handful of suspect things about your Italian Civil and Military Aircraft, 1930-1945 snippet ...

- The "single-engined two-seat high-wing monoplane" also matches the Eta.
-- Could just be coincidence, or Beta led to Eta ... but see FAI records below.

- The CNA C.7 was a 9-cylinder radial of 170-180 hp (not a "seven-cylinder radial of 200 h.p.")

- Dating the CNA Beta to 1932 puts it a year later than the more complex Delta.
-- This is possible (since there seems to have been no strict ordering) but is it likely?

- "The Beta set several international records, piloted by Renato Donati and Furio Niclot."
-- And yet, the Fédération Aéronautique Internationale website has no such records listed.

A search of the Fédération Aéronautique Internationale website for Renato Donati returns 4 x FAI records. They are:

C.I - 20 Jan 1930, Fiat AS.1 (Fiat A.50) - Closed Circuit (2,746.20 km)
- Light 2-seat landplane, with Gino Capannini

C.I - 20 Feb 1932, Fiat AS.1 (Fiat A.50) - Altitude (6,782 m)
- Light 2-seat landplane, with Gino Capannini

C.I - 30 Dec 1932, Fiat AS.1CNA (CNA C.7) - Altitude (9,282 m)
- Light 2-seat landplane, with Gino Capannini

C - 11 Apr 1934, Caproni 114 (Bristol Mercury) - Altitude (14,433 m)
- Light single-seat landplane

A similar search for Furio Niclot returns 9 x FAI records. They are:

C.bis I - 28 Dec 1933, Fiat AS.1 (CNA C.7) - Altitude (7,362 m)
- Light 2-seat floatplane, with Mariano Lanciani

C.bis II - 06 Nov 1932, CNA Eta (CNA C.7) - Altitude (8,411 m)
- Light single-seat floatplane

C.I - 24 Dec 1933, CNA Eta (CNA C.7) - Altitude (10,008 m)
- Light single-seat landplane

C - 01 Apr 1937, Breda 88 (Isotta-Fraschini) - Speed over 100 km (517.84 km/h)

C - 10 Apr 1937, Breda 88 (Isotta-Fraschini) - Speed over 1,000 km (475.55 km/h)

C - 05 Dec 1937, Breda 88 (Piaggio P.XI RC) - Speed over 100 km (554.36 km/h)

C - 09 Dec 1937, Breda 88 (Piaggio P.XI RC) - Speed over 1,000 km (524.19 km/h)

C - 09 Dec 1937, Breda 88 (Piaggio P.XI RC) - Speed over 1,000 km/500 kg (524.19 km/h)

C - 09 Dec 1937, Breda 88 (Piaggio P.XI RC) - Speed over 1,000 km/1,000 kg (524.19 km/h)

So, did J. W. Thompson just get it wrong on the Beta? Or did he conflate Beta with Eta? Did he fail to check FAI listings? With such 'question marks' hanging, I am unsure as to how to proceed :confused:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
My dear Apophenia,

the Beta had high-wing,the Eta had parasol high wing,there is no relationship between them.


Attachments

  • 1.png
    54.1 KB · Views: 11
  • 2.png
    47.1 KB · Views: 11
  • 3.png
    103.1 KB · Views: 20
  • 4.png
    330.5 KB · Views: 39

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

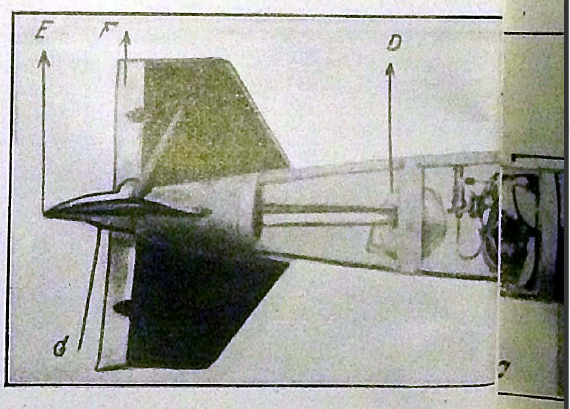

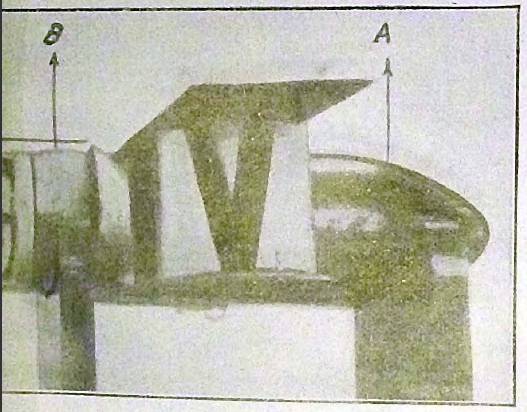

For Magni.


Attachments

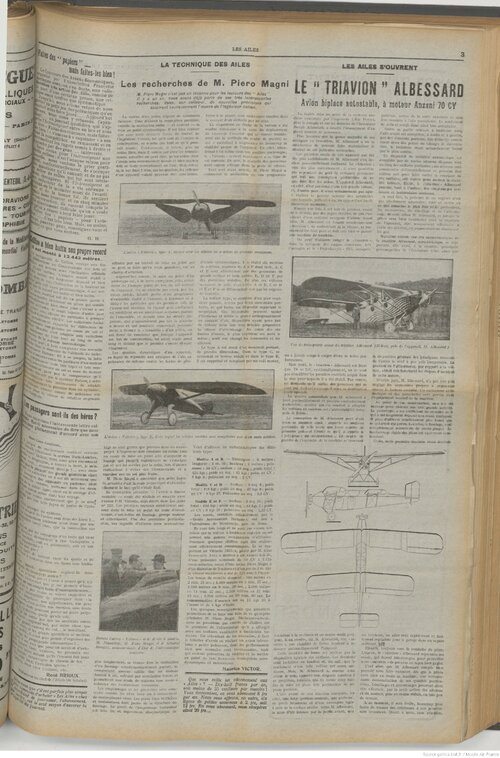

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k65683047_3.jpeg
    1.5 MB · Views: 31

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
This designer created 6 airplanes and one Project;

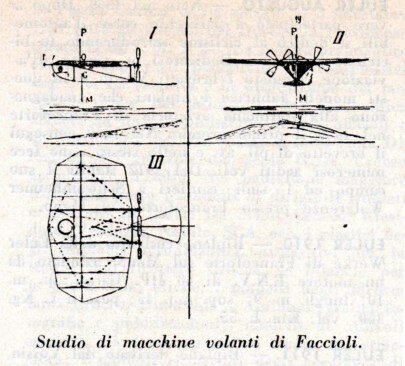

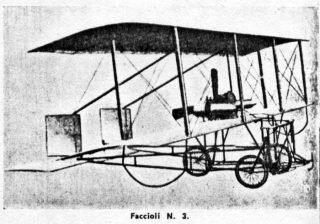

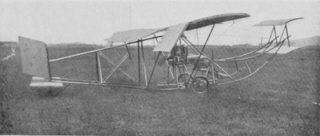

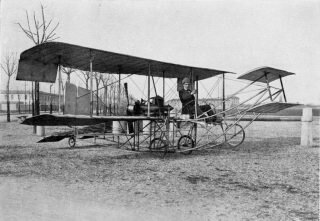

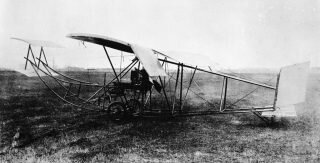

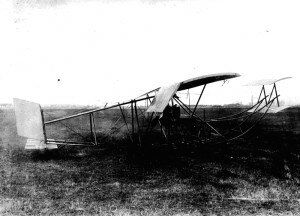

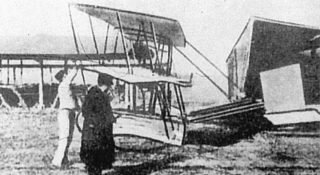

Aristide Faccioli, born in Bologna in 1848 and died in Turin in 1920, was one of the pioneers of Italian aeronautics. In 1909, in the plant of the Piemontese Automobili SPA in Corso Ferrucci 122 in Turin, he designed and built the first entirely Italian aircraft. The test flight that took place over the meadows of the Mirafiori field - on January 13, 1909 - ended in an unhappy way; the aircraft, piloted by Mario Faccioli, son of the designer, was damaged on landing, probably due to the lack of experience of the pilot himself. The aircraft - after modifications and repairs - continued its flights from June 1909 to February 1910 on the Piazza d'Armi in Venaria Reale. After this aircraft, other models were built and tested by Faccioli in biplane, triplane and monoplane configurations. Eng. Aristide Faccioli did not have a happy life: he lost his son in a flight accident in 1915 and, in 1920, tried by discouragement and disappointments, he took his own life.
