hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Hi,


we spoke before about many Fiat projects,but I open this topic to continue talking
about more Fiat Projects.


the G.4 was a two seat light aircraft project,powered by one 760 hp Fiat A.6 R
engine,I hope we get a more unknown Fiat G series projects.


http://www.alireggiane.com/t284-fiat-g50-freccia


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,879
Reaction score
1,542
Re: Fiat Projects

As I read that page, the G.4 was a 2-seat fighter -- in any case, 760 hp is a lot of power for a light aircraft!

Does anyone know the Fiat A.26R engine? Perhaps an evolution of the A.22R V-12?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Re: Fiat Projects

Thank you my dear Apophenia for your explanation.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Re: Fiat Projects

Hi,


the Fiat/Nuvoli N.3 aircraft;


http://it.wikipedia.org/wiki/Fiat_N.3


Attachments

  • FIAT_N.3_01.jpg
    68.3 KB · Views: 1,954

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
Re: Fiat Projects

FIAT A.26R was an experimental 720HP engine developed from A.24R in 1932.
Specs (referred to A.24R):
Type: V12 60°
Capacity: 32327cc
Bore/Stroke: 140mm/175mm
Power: 700HP @2050rpm @0m
Weight: 535kg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Re: Fiat Projects

Hi,

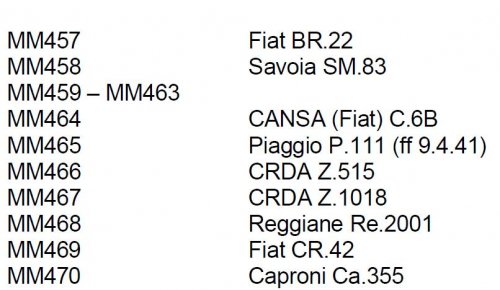

in an Italian PDF report about,its military aircraft designation serials,I found that;


MM457 (MM.457) Fiat BR.22


and I only knew the R.22,does anybody know it ?.


Attachments

  • MM.457.JPG
    56.1 KB · Views: 1,759

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Re: Fiat Projects

Hi,


from LA FANA issue 156,here is some Fiat G.12 projects,but I leave the main translation
to who know French language well;


1- G.12 for island,but I don't know what is this.
2- G.12S militray transport.
3- G.12TB parachute troops aircraft.
4- G.12TP bomber variant.
5- G.12TPB anther bomber.


Attachments

  • G.12 island.JPG
    G.12 island.JPG
    52.9 KB · Views: 1,526
  • G.12S.JPG
    54.2 KB · Views: 1,476
  • G.12TB.JPG
    66.5 KB · Views: 1,421
  • G.12TP.JPG
    79.4 KB · Views: 58
  • G.12TPB.JPG
    36.4 KB · Views: 72

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
Re: Fiat Projects

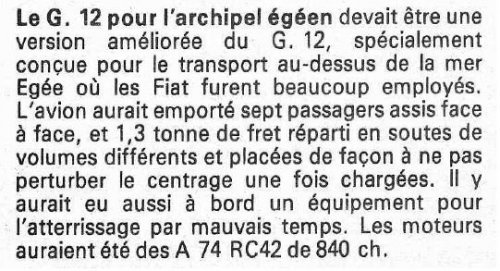

The G.12 for the Aegean islands was meant as an improved version of the G.12, especially conceived for transport over the Aegean sea where these Fiat aircraft were used a lot. The aircraft would have carried seven passengers sitting face-to-face and 1.3 ton of freight dispatched within holds of different capacities that were laid out so as to not upset the aircraft's centering once loaded. An onboard equipment for bad weather landings was also planned. It would have been powered by 840 hp engines of the A 74 RC42 type.

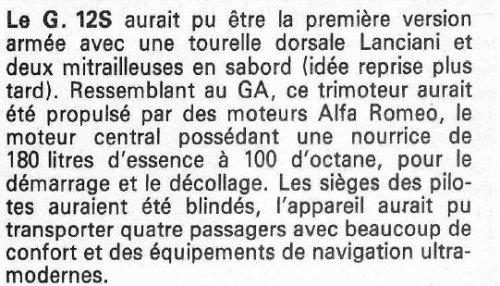

The G.12S could have been the first version with a dorsal Lanciani turret and two machine-guns in portholes (the concept was reused later on). Looking like the GA, this trimotor would have been powered by Alfa Romeo engines, the central engine having a feeding pipe with 180 liters of 100-octane gasoline for starting and taking off. The pilots' seats would have been armored and the aircraft could have carried four passengers with much comfort and ultramodern navigation equipment.

The G.12TB was to be a paratrooper transport. Although mentioned in Fiat manuals in May 1942, this machine was probably an answer to October 1941 Ministry specifications. With its Fiat A 74 RC42 engines it could have carried quite a heavy load for the time: 24 paratroopers plus their jump leader and two crewmen for maneuvers up to 1700 kms range; or 24 fuel containers and three crewmen for airdrops up to 1650 kms range; or 4 DB 601 engines; or three 2190-kg torpedoes. It would have used a 12.7-caliber Isotta Fraschini dorsal turret with 350-shot capacity, and a ventral cargo hold.

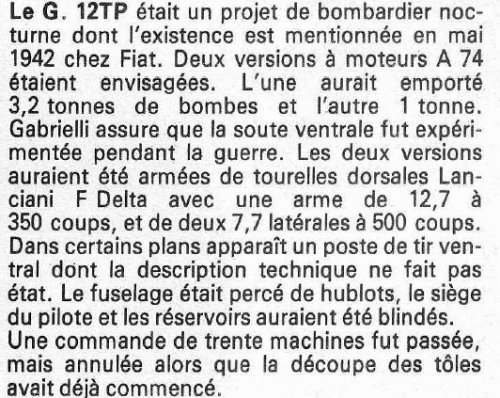

The G.12TP was a projected night bomber whose existence was mentioned at Fiat in May 1942. Two variants powered by A 74 engines were considered: one would have carried 3.2 tons of bombs and the other only 1 ton. Gabrielli claims that the ventral hold was tested during the war. The two versions would have been equipped with Lanciani F Delta dorsal turrets with a 350-shot 12.7-caliber machine gun and two 500-shot 7.7-caliber ones on the sides. Some plans show a shooting position for a soldier lying prone but the technical description doesn't mention it. The fuselage was fitted with windows and both the pilot's seat and the tanks would have been armored. An order for 30 machines was placed but then cancelled while the cutting of metal sheets had already started.

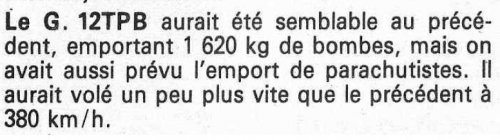

The G.12TPB would have been similar to the above version and carried 1620 kg of bombs, but could also have carried paratroopers. It would have flown a little faster too, at 380 kms/h.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Re: Fiat Projects

Amazing translation Stargazer,


thank you very much.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Re: Fiat Projects

Hi,

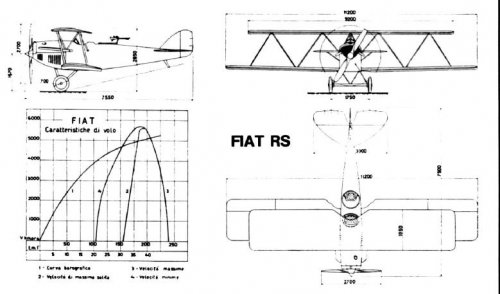

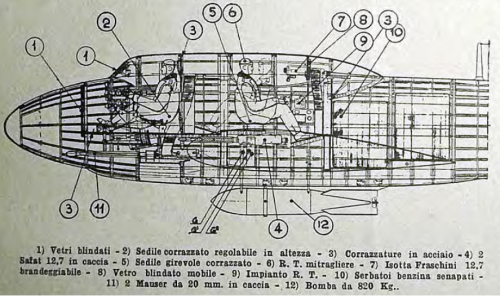

from Aerofan magazine,here is the Fiat RS recce aircraft.


Attachments

  • Fiat RS model.JPG
    Fiat RS model.JPG
    30.1 KB · Views: 176
  • Fiat RS.JPG
    Fiat RS.JPG
    45.8 KB · Views: 199

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Re: Fiat Projects

Hi,

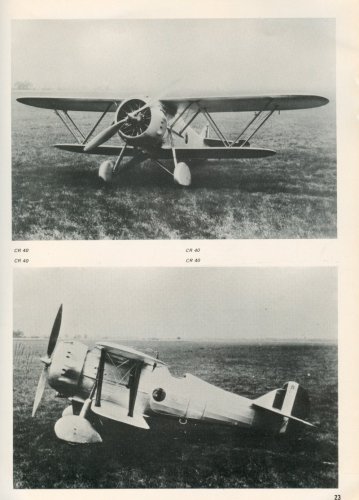

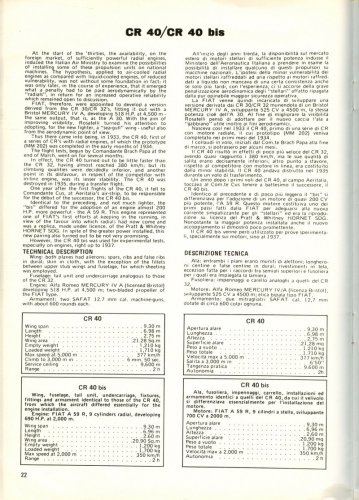

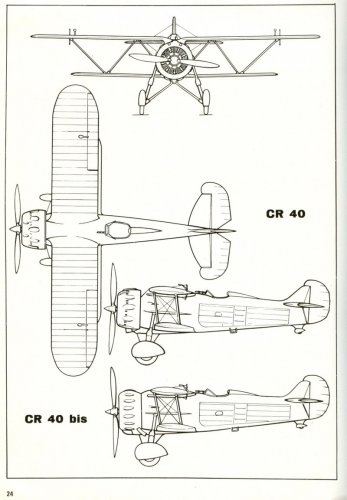

all those aircraft were built in a prototype form,CR.33,CR.40,CR.40bis and CR.41.


Attachments

  • Fiat.JPG
    32.7 KB · Views: 347

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Hi,

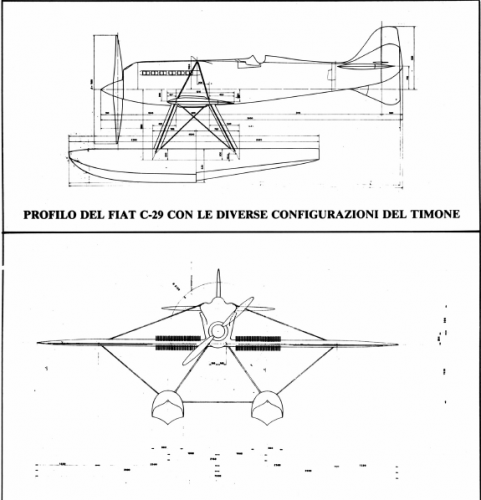

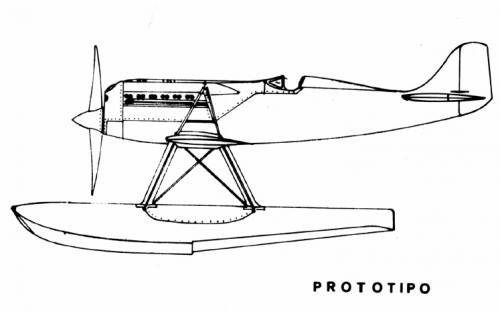

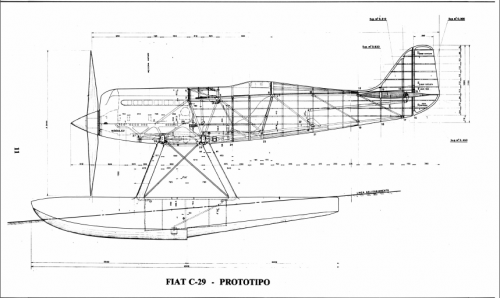

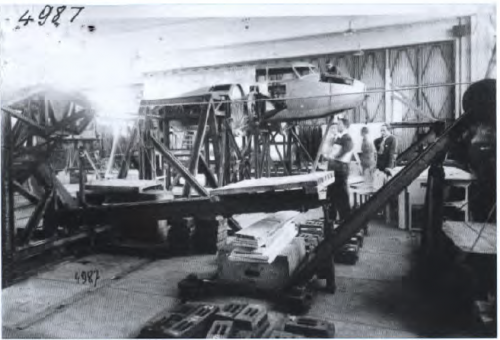

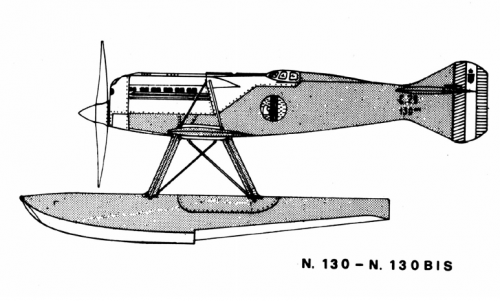

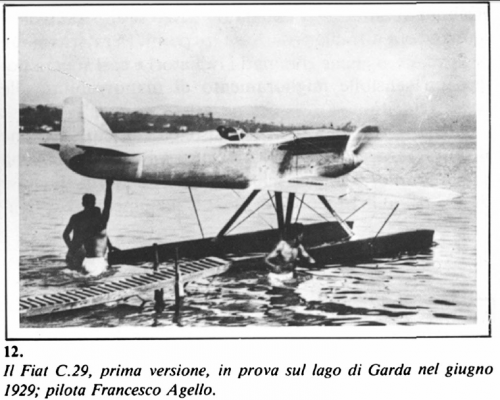

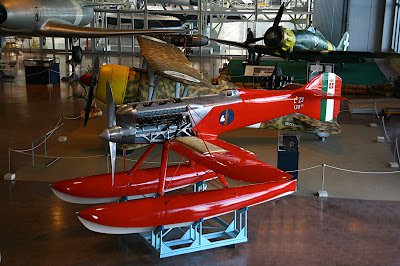

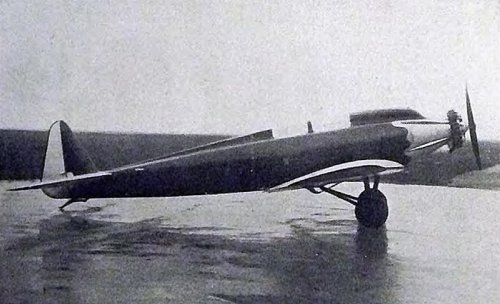

the Fiat C.29 was single seat low-wing racer aircraft.


Aerofan 1/1979


Attachments

  • 1.png
    393 KB · Views: 190
  • 2.png
    131.1 KB · Views: 180
  • 3.png
    89.5 KB · Views: 163
  • 4.png
    75.9 KB · Views: 141
  • 5.png
    134 KB · Views: 119
  • 6.png
    139.9 KB · Views: 131

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Hi,

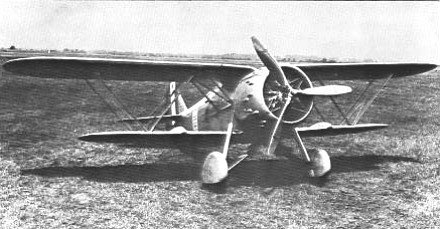

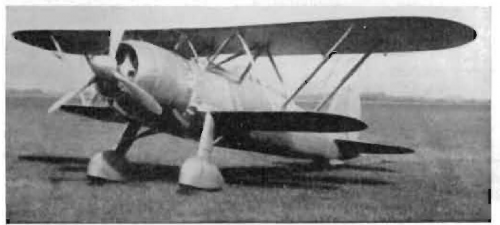

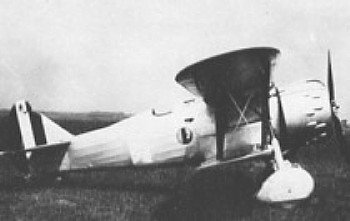

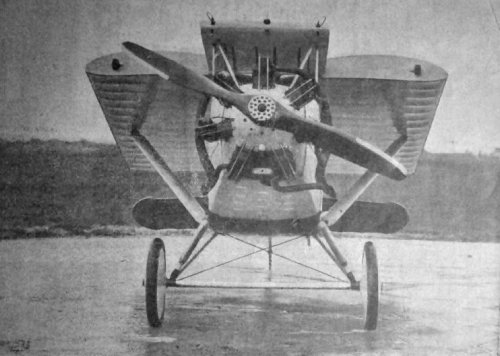

here is the Fiat CR.33 prototype.


Attachments

  • CR.33.png
    215.7 KB · Views: 150

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100

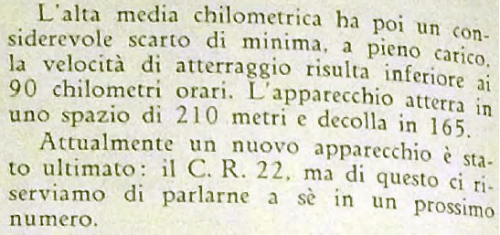

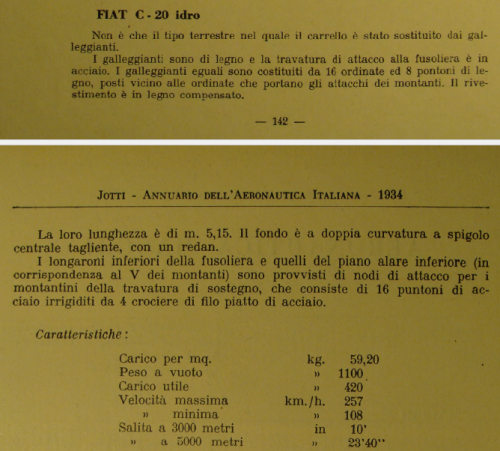

Hi,

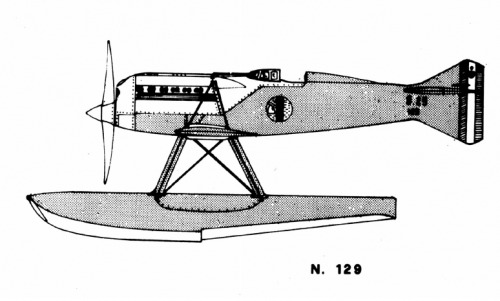

in this report and in the page of Fiat C.29,they spoke about C.20 seaplane,I don't know
if they meant CR.20 or not ?.


http://www.avia-it.com/act/biblioteca/libri/PDF_Libri_By_AVIA/Annuario%20dell'Aeronautica%20italiana%201934.pdf


Attachments

  • C.20.png
    764.2 KB · Views: 986

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820

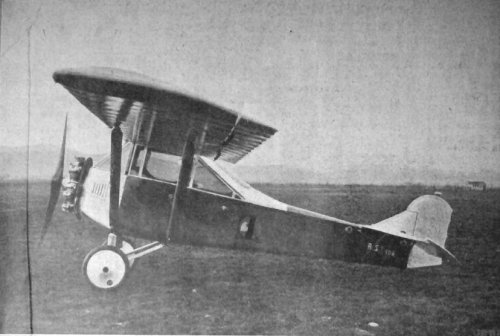

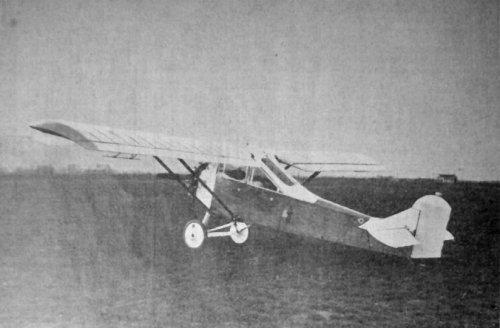

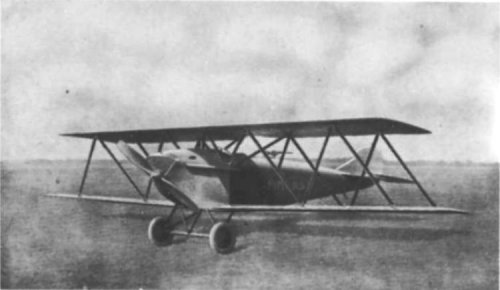

The Fiat A.S. of 1928, meant as "an airplane for everyone".


Attachments

  • Fiat A.S. _1.jpg
    Fiat A.S. _1.jpg
    74.2 KB · Views: 769
  • FIat A.S. _2.jpg
    FIat A.S. _2.jpg
    69.9 KB · Views: 744
  • Fiat A.S. _3.jpg
    Fiat A.S. _3.jpg
    63.3 KB · Views: 711
  • Fiat A.S. _4.jpg
    Fiat A.S. _4.jpg
    66.3 KB · Views: 736

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
963
Reaction score
548
the names of the files could be misleading. AFAIK, the AS-1 and the AS-2 were different designs.
Here are photos showing differences.


Fiat AS-1



Fiat AS-2


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
dan_inbox said:
Here are photos showing differences.

Thanks for these.

dan_inbox said:
the names of the files could be misleading. AFAIK, the AS-1 and the AS-2 were different designs.

Well, that's exactly why I put underscore signs before the numbers, because that sign is NEVER used in aircraft designations!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Hi,

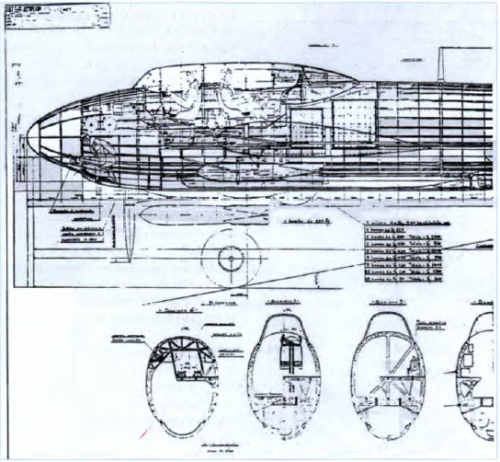

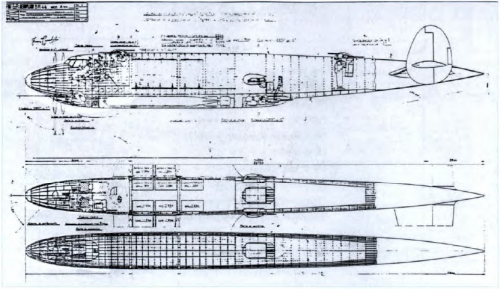

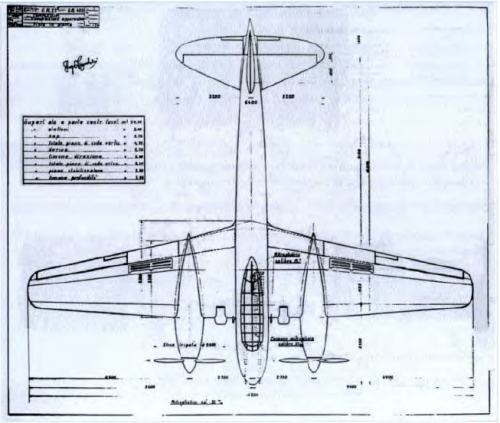

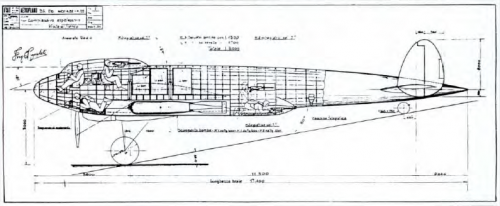

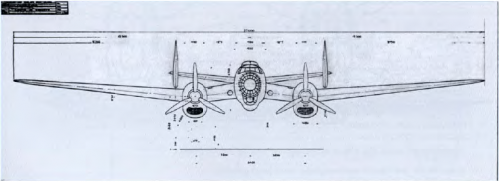

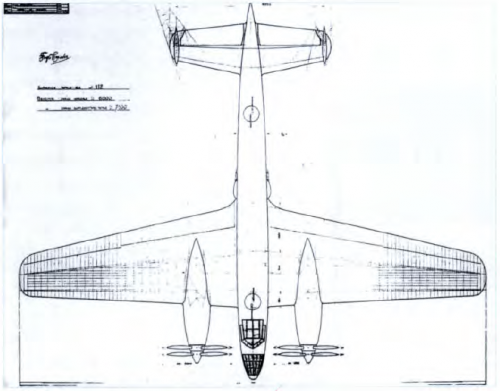

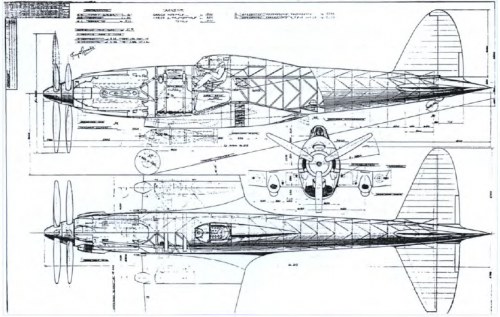

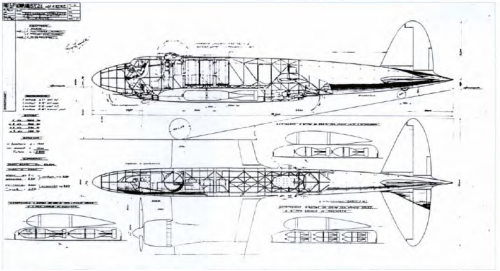

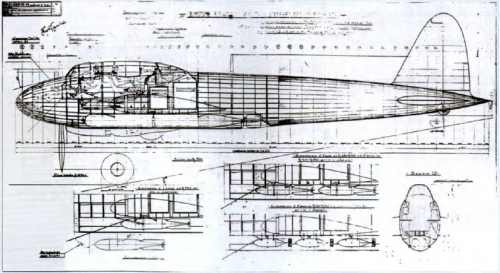

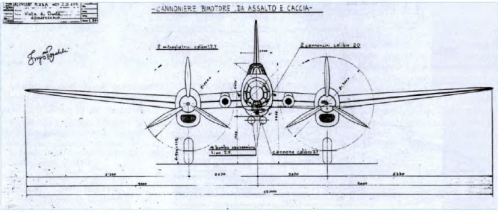

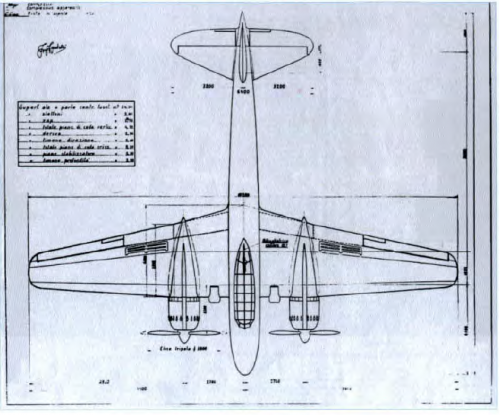

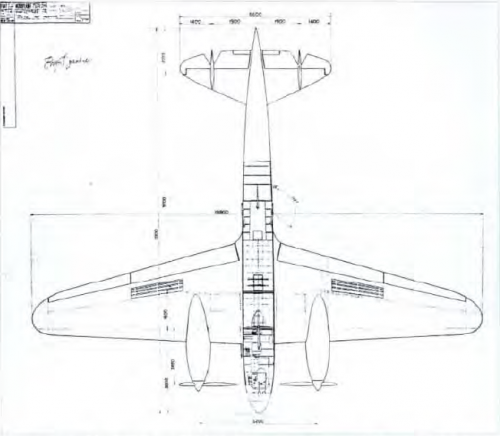

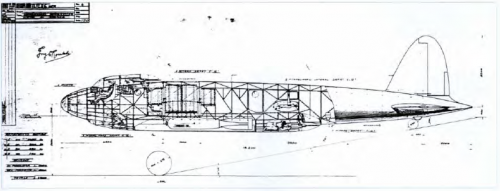

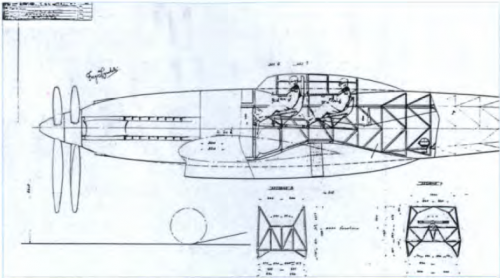

here is a great report,the Fiat CR.44 was a contra-rotating fighter/
bomber Project with A.44 engine,derivative BR.44 twin engined

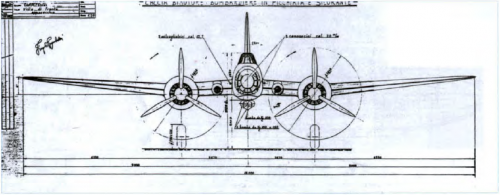

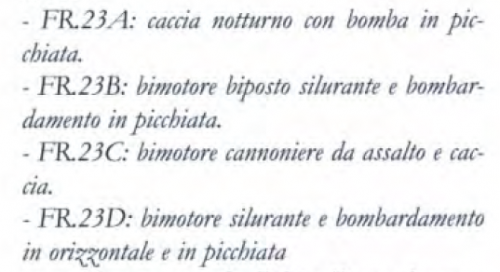

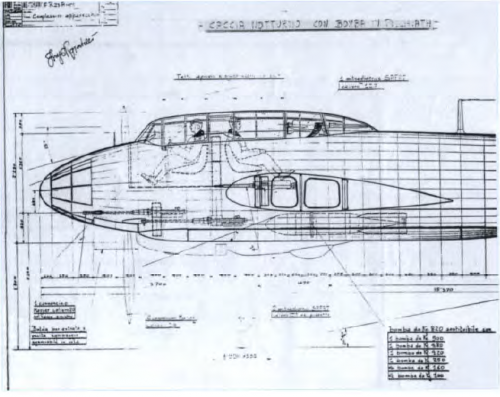

medium bomber Project,the FR.23 night fighter twin engined Project
also fitted with A.44 motor,and available in four variants,Model A,
B,C & D.

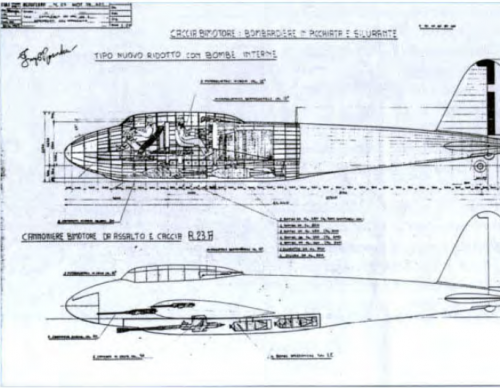

The R.23 was a twin engined fighter & dive and torpedo bomber
Project,also a reference to Fiat BR.22,BR.26 and BR.30 bomber
Projects,and a mock-up to BR.25 bomber Project.



Attachments

  • FR-23B.png
    735.2 KB · Views: 191
  • FR-23A.png
    633.8 KB · Views: 192
  • FR-23   I.png
    FR-23 I.png
    491.4 KB · Views: 189
  • 44-3.png
    303.3 KB · Views: 222
  • 44-2.png
    696.6 KB · Views: 232
  • 44-1.png
    315.9 KB · Views: 225
  • CR-44   II.png
    CR-44 II.png
    440.7 KB · Views: 258
  • CR-44   I.png
    CR-44 I.png
    627.7 KB · Views: 279
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
And;


Attachments

  • BR.25.png
    494.9 KB · Views: 176
  • R.23   IV.png
    R.23 IV.png
    446.4 KB · Views: 162
  • R.23   III.png
    R.23 III.png
    565 KB · Views: 151
  • R.23   II.png
    R.23 II.png
    492.4 KB · Views: 133
  • R.23   I.png
    R.23 I.png
    435.6 KB · Views: 127
  • 23.png
    178.7 KB · Views: 123
  • FR-23D.png
    499.1 KB · Views: 135
  • FR-23C.png
    578.8 KB · Views: 146

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100

Attachments

  • BR.26  IV.png
    BR.26 IV.png
    425.9 KB · Views: 196
  • BR.26  III.png
    BR.26 III.png
    367.3 KB · Views: 173
  • BR.26  II.png
    BR.26 II.png
    265.5 KB · Views: 164
  • BR.26   I.png
    BR.26 I.png
    293.9 KB · Views: 165
  • BR.25.png
    249.1 KB · Views: 161
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Many thanks to you my dears Nick and Lark.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,204

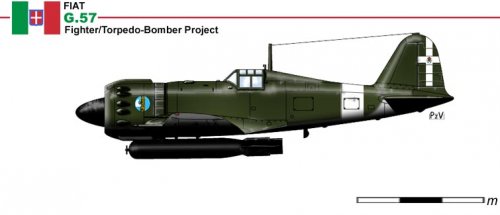

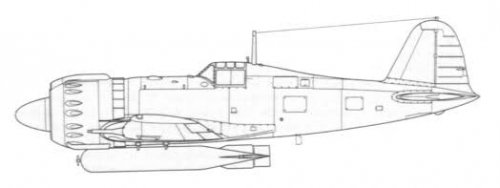

Hi! Fiat G.57.
http://www.aviarmor.net/aww2/projects/ita/fiat_g57.htm
Auto translation
One of the latest projects deal FIAT Division prior to the signing of the Armistice in September 1943 became fighter-torpedo under the brand symbol (G). 57. Design team under the direction of g. Gabrielli this time decided to, as they say, to get back to basics, and instead of the usual row engine install radial.
Basis for g. 57 served as an experienced fighter g. 55S/N, which is intended for mass production in the second half of the year 1943. In fact, he passed most of the design elements: low-sited wing, the middle part of the fuselage with the pilot's cabin and the back of the fuselage with the wings. Changed only the bow section where been radial engine of FIAT A-83-24.52 "Vortice" power 1475 HP powerplant was scheduled with air cooling will improve the survivability of the fighter, and the maximum speed is not less than 600 km/h. Additionally provided for suspension 680-kg torpedoes would have done from g. 57 very dangerous opponent for Allied ships.
By August 1943, was willing to draft project G. 57, but begin to elaborate and it was not possible. Next month's events showed that the Italian aviation industry is not able to implement even the neighbour plans for production aircraft. After the Armistice and the ensuing occupation by German troops 57 g. project was rejected from the buildings, but in the post-war period, individual achievements on this fighter aircraft were used to create G. 59.


Attachments

  • G.57.jpg
    8.1 KB · Views: 188
  • p1.jpg
    23.2 KB · Views: 186
  • Fiat%20G57.png
    109.5 KB · Views: 207

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,204
Fiat CR.44 initial design was a twin seat fighter. Final design was a single seat fighter.
Initial design.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=18767.0;attach=555393;image
Final design.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=18767.0;attach=555391;image
http://www.secretprojects.co.uk/forum/index.php/topic,18262.msg175040.html#msg175040

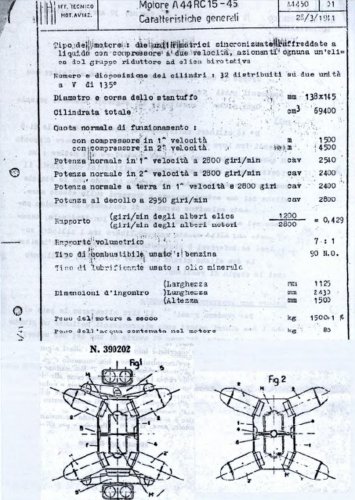

A44 RC15-45 engine
Displacement : 69.4L, Bore×Stroke : 138mm×145mm, 135° double V shape 32 cylinders inline liquid cooling engine
Take off power : 2800hp/2950 r.p.m


Attachments

  • A44_engine.jpg
    394.1 KB · Views: 142

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,204

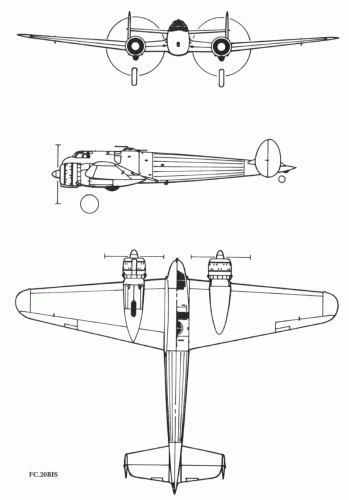

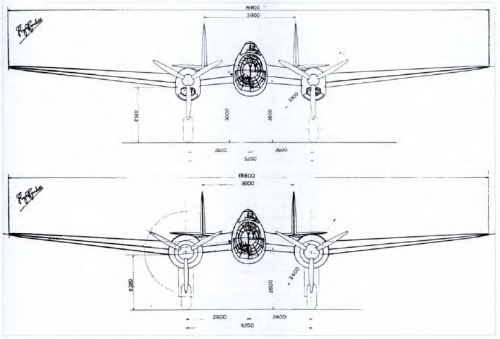

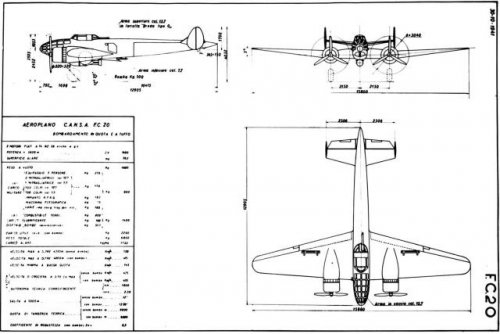

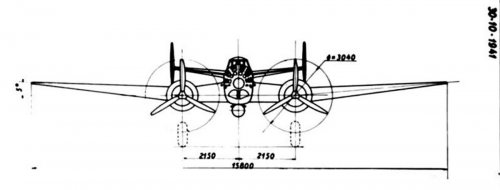

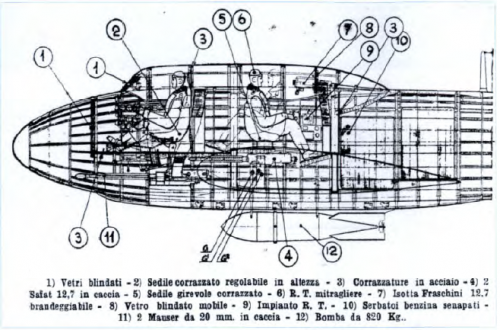

Hi Fiat CANSA FC.20.

http://alternathistory.com/mnogotselevoi-istrebitel-i-razvedchik-bombardirovshchik-cansa-fc20-italiya
https://en.wikipedia.org/wiki/CANSA_FC.20

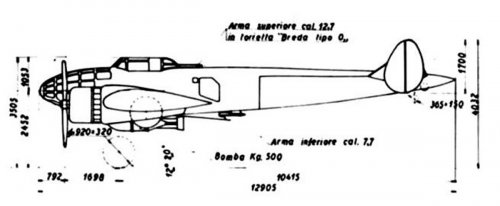

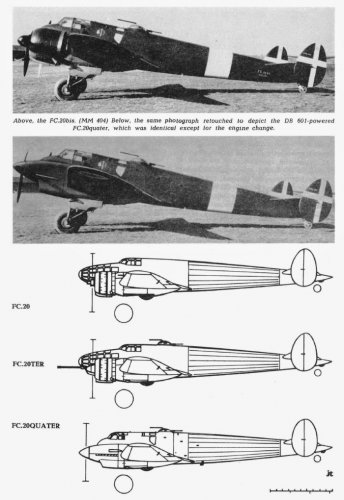

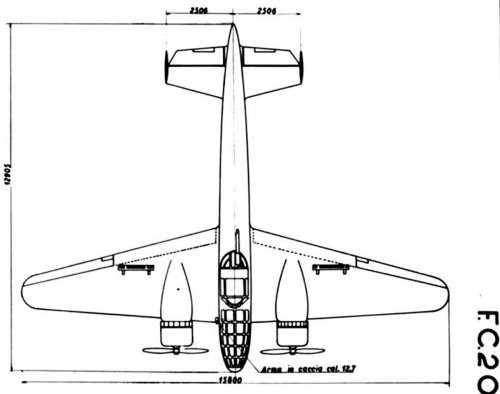

"The CANSA FC.20 was a twin engine reconnaissance bomber/ground attack monoplane designed and built in Italy in 1941.
FC.20 First prototype, long nose reconnaissance version.
FC.20bis Short nose ground attack version. Dorsal turret.
FC.20ter As FC.20 with 745 kW (1,000 hp) Fiat A.80 R.C.41 twin row 18-cylinder radial engines. Dorsal turret.
FC.20quater As FC.20bis with 935 kW (1,250 hp) Daimler-Benz DB 601 inverted V-12 engines. Dorsal turret."

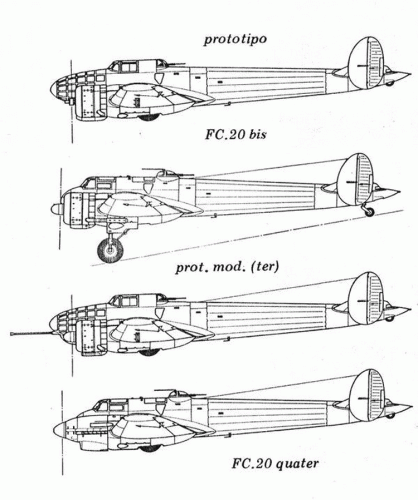

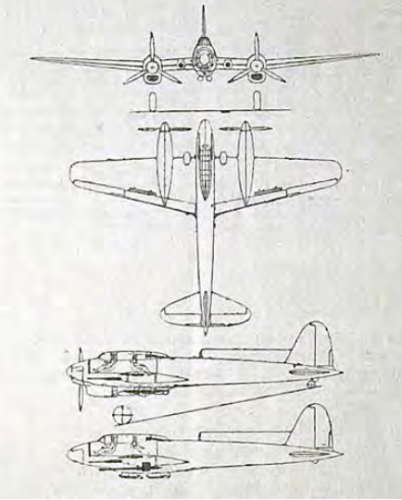

I think that bottom four drawing(bottom three drawings are partial enlarged one) are factory original drawings of FC.20 prototype.
Source : http://alternathistory.com/andrea-kurami-i-dzhankarlo-garello-italyanskie-pikirovshchiki-chast-2-italyanskie-pikirovshchiki-vto
Prototype and other type pictures
http://www.giemmesesto.org/Documentazione/Aerei/CANSA_Fc-20.html

Top drawings are mistake?


Attachments

  • 02fc20.jpg
    36.1 KB · Views: 124
  • FC.20_PLAN_VIEW.jpg
    84.1 KB · Views: 102
  • FC.20_FRONT_VIEW.jpg
    45.3 KB · Views: 106
  • FC.20_SIDE_VIEW.jpg
    60.5 KB · Views: 119
  • CANSA FC.20.jpg
    CANSA FC.20.jpg
    40.4 KB · Views: 132
  • fc20-1.gif
    133.8 KB · Views: 157
  • fc20-2.gif
    255.8 KB · Views: 173
  • CANSA FC.20.jpg
    CANSA FC.20.jpg
    148.6 KB · Views: 159

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,204
This picture shows prototype FC.20 MM403.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=18767.0;attach=561791;image

Source : http://www.giemmesesto.org/Documentazione/Aerei/CANSA_Fc-20.html

So this drawing's prototype and TER are mistake.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=18767.0;attach=561757;image


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
In my list,

Fiat G.54 was fighter Project intended to compete Reggiane Re.2004 ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Hi,

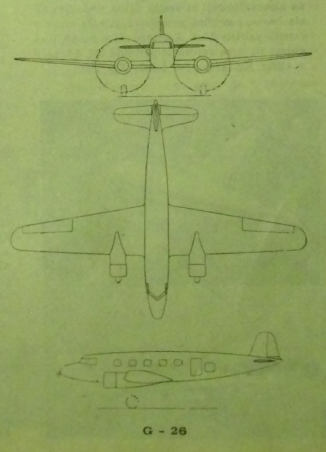

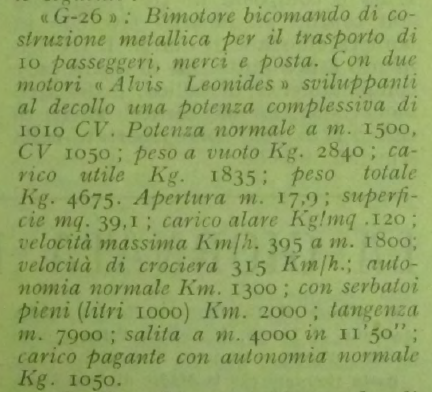

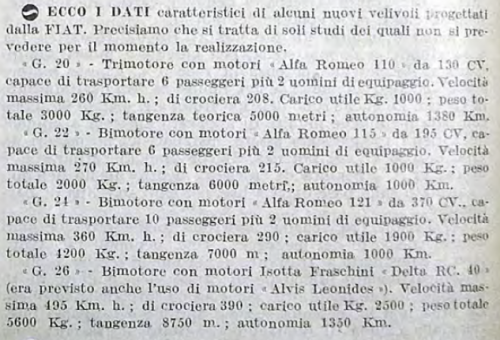

here is a Fiat G.20,G.22,G.24 & G.26 in details.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201947%2004.pdf


Attachments

  • 6.png
    546.2 KB · Views: 804

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
The Fiat R.23;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201947%20012.pdf


Attachments

  • 1.png
    330.2 KB · Views: 672
  • 2.png
    877.5 KB · Views: 617

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100

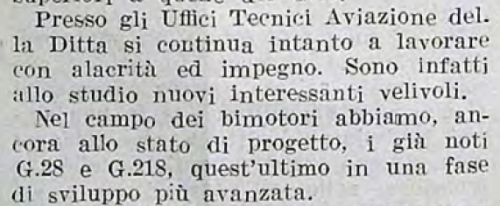

A new Info for me about Fiat G.28 twin engined transport airplane Project;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201949%2009.pdf


Attachments

  • 1.png
    261.3 KB · Views: 70

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,204
Hi Fiat CR.40 and CR.40 bis.
The sight in front seems very bad for this airplane. ;D

http://stormomagazine.com/phpbb2/viewtopic.php?t=651


Attachments

  • FiatCR40_1a.jpg
    270.7 KB · Views: 97
  • FiatCR40_2a.jpg
    153.3 KB · Views: 114
  • FiatCR40_3a.jpg
    113.6 KB · Views: 129

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,204
Fiat CR.41.

http://www.warbirds.jp/data/ita/htm/cr41.htm
Partial translation.
"Fiat CR.40/41
CR.40 is one of the proposed design which offered in paralleled with CR.32..
CR.40’s base was CR.30 same as CR.32, and design concept were as follows to reduce weight and drag.,
(1) Install air cooler engine and had small fuselage.
(2) Connected biplane directly to the fuselage.
CR.40 prototype which had a Bristol Mercury IV engine (MM.202) was completed in 1934.
Nevertheless CR.40 had good climbing performance, total performance was inferior compared with CR.32, failed to adopt.
Although Italian air force decided to continue CR.40 research and ordered CR.40bis prototype(MM275) which had a domestically produced Fiat A59R engine in 1935. But CR.40bis,suffered unsolved engine trouble and maximum speed was only 350km/h, rejected again..
Also the study of performance improvement plan for the CR.32 was ordered to Fiat in 1935.
Fiat decided to develop following plan.
(1) Improved engine power CR.32 called CR.33.
(2) Light weight CR.32 called CR.32 quarter.
(3) Improved engine power CR.40 called CR.41.
CR.41 had a Gnome et Rhône 14Kfs 900hp engine and increased area vertical tail stabilizer/rudder.
CR.41 No.1 prototype (MM207) was quickly completed and rolled out in 1935. Also No.2 prototype(MM208) with trouble disappeared But Italian air force decided to develop mono plane, CR.41 inspection was stopped."


Attachments

  • cr41.jpg
    15.4 KB · Views: 95
  • cr41f.jpg
    37.9 KB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,100
Hi,

so weird,in an Italian magazine,they spoke about CR.22,I can't translate it well,
who can help ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201927%2004.pdf


Attachments

  • 1  4-1927.png
    1 4-1927.png
    293.7 KB · Views: 88

Similar threads

Top
