Something about the ricci brothers:
Umberto Ricci, born in Verona on November 26, 1886
Ettore Ricci, born in Verona on November 30, 1888:

they started their aeronautical career in 1905, building little hot air rigid airship models.
After some free flight gliders, they built a triple-tandem hydroplane in 1912 - Ricci 0
powered by an inline Daimler 6 cyl engine. This aircraft flew in 1914
During the first World War they built a three engine biplane twin fuselage seaplane.
This one wass built in Naples and was intended to carry two torpedoes - The fuselages are very similar to the FBA flying Boats, built under license by the same firm.
The engines were two Isotta Fraschini V4 and a center line mounted Fiat A 12 bis.Wingspan: 28 metres
lenght 14 mt the seaplane went lost during her first flight.
The second prototype flew in 1919.
During 1918 the ricci brothers also designed a large gull-wing seaplane with a pylon mounted engine: the aircraft was intended to leverage the ground effect flying at low altitude to deliver its payload (2 torpedoes, buried inside the fuselage)
After the war the prototype was converted into a 10 seat passenger aircraft.
following the Ricci 3, 4 and 5 were the prelude to transatlantic flying boats, the latter intended to carry 150 passengers between Naples and New-York.
These projects did not gain financial support.
The little Ricci triplane (only 3,45 mt wingspan) was designed during the war, but it was built only in 1918.
The diminutive aircraft was entered in a popular aviation contest for an aerial motorcycle with a wingspan under six meters.
The contest was held in july 1919 and placed third, after the Macchi M16 and the Pensuti triplane.
The aircraftwas named Ricci R6 and a two place version - Ricci 9 - was developed in 1921.

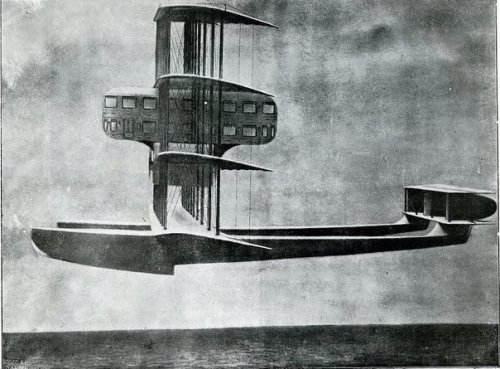

During 1921 the Ricci brothers started the construction of a large airship: the Ricci-Vaugean-Gargiulo A.V.3, intended to carry 100 passengers: lenght 120 mt; diameter: 33 mt. The project never flew.
In the followin years the firm built some motor boats and some FBA flying boats for the Grece.
They also designed a beating-wing hydro and a little folding wing catapultable fighter to be carried inside a submarine.
The ricci R6 gained new interest in the following years, to be used in the colonies.A newly built example was purchased by the Regia Aeronautica and allotted the MM.167.
After the second world war the busy brothers designed some interesting VTOLs and a giant transatlantic 350 tons aircraft, with a two decks fuselage and ten tubular wings.


Attachments

  • ricci r6.jpg
    ricci r6.jpg
    53.5 KB · Views: 1,142

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
134
One can add that the Ricci's diminutive triplane is hanging from the roof of the Aeronautical Pavillon of Museo della Scienza e della Tecnologia in Milan....


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
By the way,

the Ricci R.1 was also called R.I.B.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
ermeio said:
Something about the ricci brothers:
During the first World War they built a three engine biplane twin fuselage seaplane.
This one wass built in Naples and was intended to carry two torpedoes - The fuselages are very similar to the FBA flying Boats, built under license by the same firm.
The engines were two Isotta Fraschini V4 and a center line mounted Fiat A 12 bis.Wingspan: 28 metres
lenght 14 mt the seaplane went lost during her first flight.
The second prototype flew in 1919.
Google found not twin twin-hull Ricci seaplane. I have looked in my twin-boom database, and I am not sure the one I have is the same:from Jane's all the World aircraft 1919, I have the SIAM Ricci (Societa Industrie Alto Mediterraneo). 2 versions: tractive single engine (700hp), pusher twin-engine. Is this what you were talking about? You seem to speak of a 3-engined layout...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061

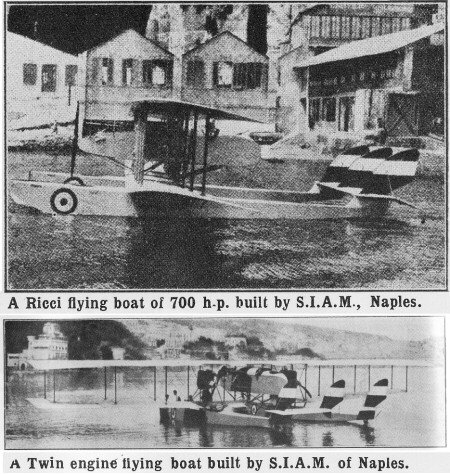

Hi,

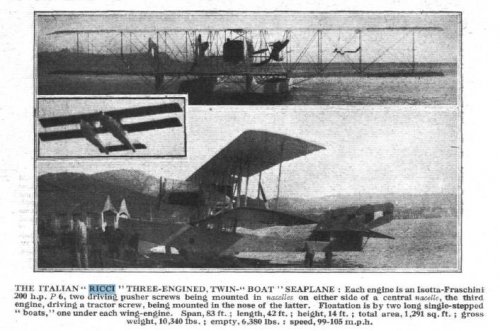

http://www.flightglobal.com/pdfarchive/view/1920/1920%20-%200324.html


Attachments

  • Ricci.JPG
    64.7 KB · Views: 622

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
Thanks for this confirmation about a 3-engined layout.
From the JAWA 1919, reduced, I confirm the 1-engined and 2-engined versions:


Attachments

  • r_ricci_1_2.JPG
    98 KB · Views: 595

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38

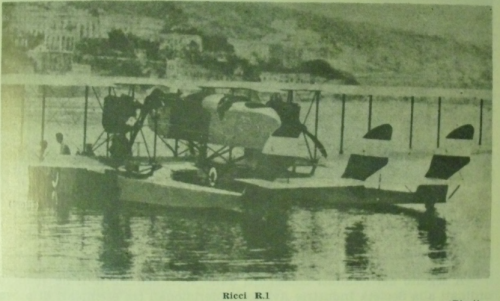

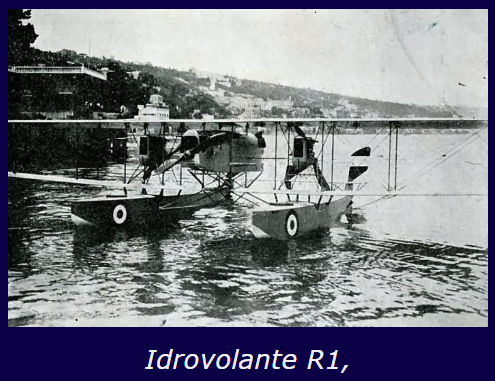

Yes, this is the Ricci R1: as you can see, the hulls are very reminiscent of the FBA fuselage.
The first prototype went lost during the maiden flight and was rebuilt in the following years.
I suspect that the one in flight magazine is the second prototype.
In the flight caption the aircraft is reported as three engined - the discerning eye can distinguish the two pusher engines (above the hulls) and the single tractive airscrew mounted in front of the center line fuselage, suspended between the wings.
the engines were two 200 hp IF and a single 300hp IF - no single engine was capable of 700 hp before the late '20s.
best regards


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
Hi ermeio,

do you have drawings and technical info´s for the Ricci projects?

Servus


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
ermeio said:
the engines were two 200 hp IF and a single 300hp IF - no single engine was capable of 700 hp before the late '20s.
Thanks for this expert analysis. So... the first Jane's picture would be a 3-engined total 700hp seaplane, but what about the one mentionned as "twin-engine"? Misreading of Jane's writer? ??? ;)


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
...there is the Ricci R.5 from 1923 build by the Officine E. Cantieri Montofano...

(Source: JAWA 1923)

Maveric


Attachments

  • Ricci R-5 (Montofano)-.jpg
    Ricci R-5 (Montofano)-.jpg
    696.9 KB · Views: 566

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352

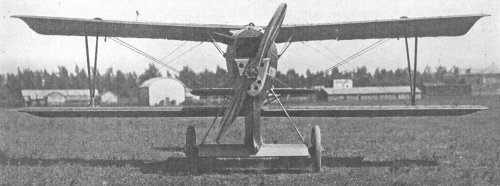

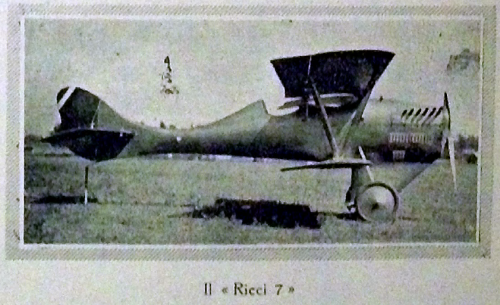

...and the Ricci R.7 trainer, also build by Montofano in 1923...

(same Source)

Maveric


Attachments

  • Ricci R-7 (Montofano)-.jpg
    Ricci R-7 (Montofano)-.jpg
    583.9 KB · Views: 494

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38
Thanks for this expert analysis. So... the first Jane's picture would be a 3-engined total 700hp seaplane, but what about the one mentionned as "twin-engine"? Misreading of Jane's writer? ??? ;)
[/quote]

Hi, Thophe
the Ricci's are obscure aircraft, also for an Italian, let alone for an english jane's correspondant in 1920.
The tho photos are side and rearward views of the same aircraft, and that engine installation in the fuselage nose is very difficult to be seen from behind - well, you can see that also in the side view there is some problem to discern the side nacelle and the props may look like struts...
I checked again the books I have at hand and the photos are of a three-engine biplane.
A very peculiar feature are the three coloured rudders, with horizontal stripes instead of the mandatory vertical stripes.
Also lacking is the savoia coat of arms.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
Thanks for this final jugement: three-engine R1, all right.
When you wrote triplane, did you mistype for three-engine? or refer to the R6?
Thanks anyway. ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061

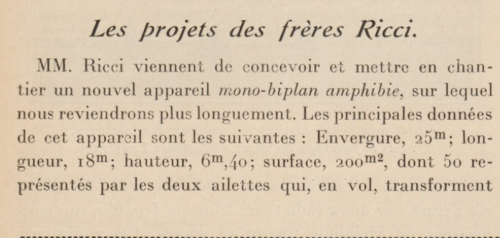

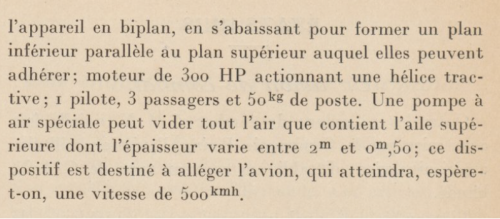

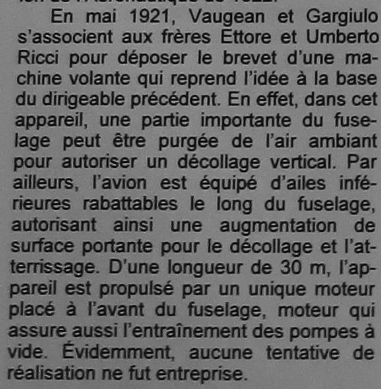

From l'Aeronautique journal,


what was this Ricci aircraft or project ?.


Also I hope to know what was those mysteries aircraft;
http://www.secretprojects.co.uk/forum/index.php/topic,1108.msg8930.html#msg8930


Attachments

  • 2.png
    467.3 KB · Views: 28
  • 1.png
    477.7 KB · Views: 31

covert_shores

Research + illustration
Senior Member
Joined
Oct 31, 2014
Messages
689
Reaction score
121
Website
www.hisutton.com
Photos and specs of Ricci R-6 Triplane from 1918 (the aircraft hanging from the ceiling is a replica).






blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,563
Reaction score
2,966
Wow thanks for sharing us such a interesting shape plane's information.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
Maveric said:
...there is the Ricci R.5 from 1923 build by the Officine E. Cantieri Montofano...

(Source: JAWA 1923)

Maveric

Hi,

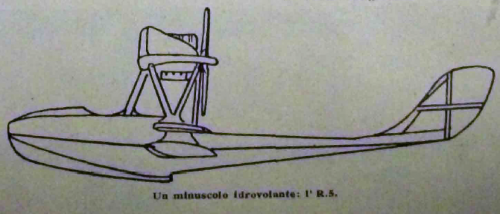

here is a Ricci R.5 drawing.


http://www.avia-it.com/act/biblioteca/libri/PDF_Libri_By_AVIA/Aeronautica%20-%20L'Aviazione%20nell'Auto%20Italiana.pdf


Attachments

  • R.5.png
    300.8 KB · Views: 611

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
40
I believe , this Ricci R.4 was not posted here before …

http://www.fremmauno.com/


Attachments

  • s_R4_side.jpg
    73.4 KB · Views: 497

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
Hi,

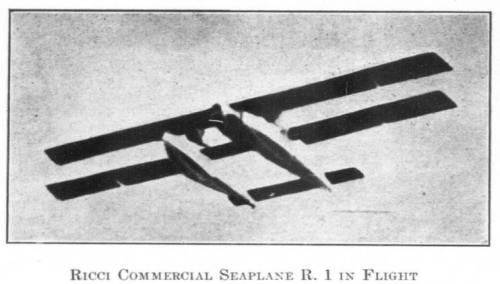

http://archive.aviationweek.com/image/spread/19200601/12/2


Attachments

  • 1.png
    266.5 KB · Views: 410

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
Maveric said:
...and the Ricci R.7 trainer, also build by Montofano in 1923...

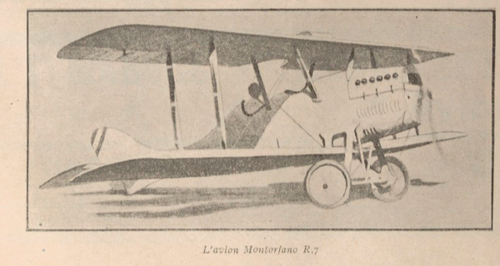

The Ricci R.7;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201924%20010.pdf


Attachments

  • 1.png
    1 MB · Views: 339

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
The Ricci R.5;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201925%2001.pdf


Attachments

  • 1.png
    1.1 MB · Views: 256

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,782
Reaction score
2,785
Telegraph addresses, the e-mail addresses of their day you could say.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061

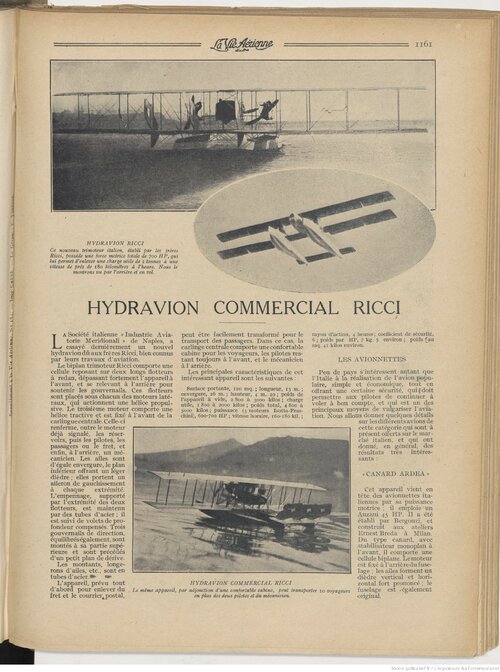

Hi,

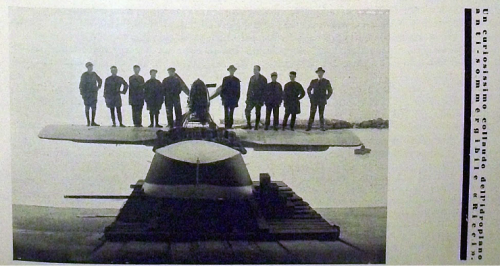

a Ricci seaplane,maybe it was R.5.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201933%2006.pdf


Attachments

  • 4.png
    551.9 KB · Views: 39

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
Hi,

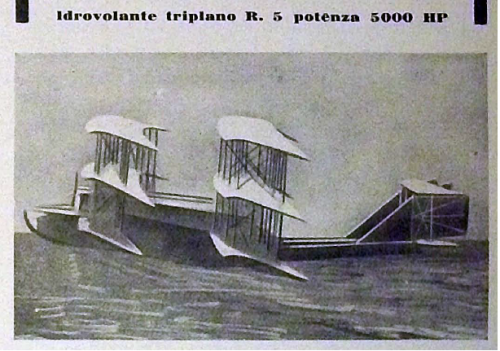

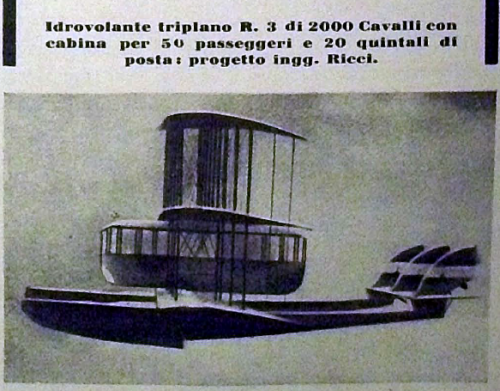

here is a Ricci R.3 and R.5 (first allocated) Projects.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201933%2007-08.pdf


Attachments

  • 2.png
    609.8 KB · Views: 49
  • 3.png
    626.4 KB · Views: 50

giru-XX

I really should change my personal text
Joined
Nov 1, 2015
Messages
4
Reaction score
1
New pictures and information on the Ricci R.8 hydroplane have appeared here:
  • http://www.sim-outhouse.com/sohforums/showthread.php/17-The-Ongoing-Mystery-Aircraft-Thread-Part-Deux?p=1059469&viewfull=1#post1059469
  • http://www.sim-outhouse.com/sohforums/showthread.php/17-The-Ongoing-Mystery-Aircraft-Thread-Part-Deux?p=1059909&viewfull=1#post1059909
  • http://www.sim-outhouse.com/sohforums/showthread.php/17-The-Ongoing-Mystery-Aircraft-Thread-Part-Deux?p=1059995&viewfull=1#post1059995


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
giru-XX said:
New pictures and information on the Ricci R.8 hydroplane have appeared here:
  • http://www.sim-outhouse.com/sohforums/showthread.php/17-The-Ongoing-Mystery-Aircraft-Thread-Part-Deux?p=1059469&viewfull=1#post1059469
  • http://www.sim-outhouse.com/sohforums/showthread.php/17-The-Ongoing-Mystery-Aircraft-Thread-Part-Deux?p=1059909&viewfull=1#post1059909
  • http://www.sim-outhouse.com/sohforums/showthread.php/17-The-Ongoing-Mystery-Aircraft-Thread-Part-Deux?p=1059995&viewfull=1#post1059995

Thank you Giru,

I never saw your respond,and did you mean this one?.


Attachments

  • vRMALXW.jpg
    384.2 KB · Views: 39

giru-XX

I really should change my personal text
Joined
Nov 1, 2015
Messages
4
Reaction score
1
no this one is the Frenard Duck (a wrong link perhaps?)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
giru-XX said:
no this one is the Frenard Duck (a wrong link perhaps?)

OK Giru,

and please can you send a picture to it.


giru-XX

I really should change my personal text
Joined
Nov 1, 2015
Messages
4
Reaction score
1

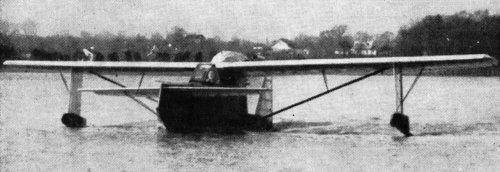

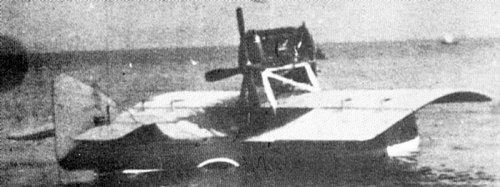

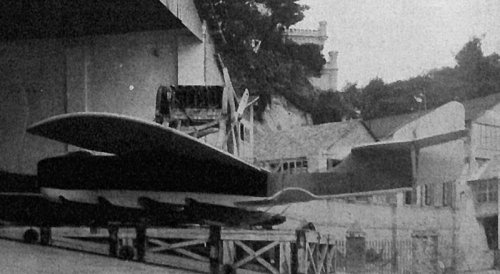

Ricci R.8


Attachments

  • Ricci Idroplano.jpg
    Ricci Idroplano.jpg
    68.8 KB · Views: 45
  • Ricci R.8.jpg
    Ricci R.8.jpg
    45.1 KB · Views: 44

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061

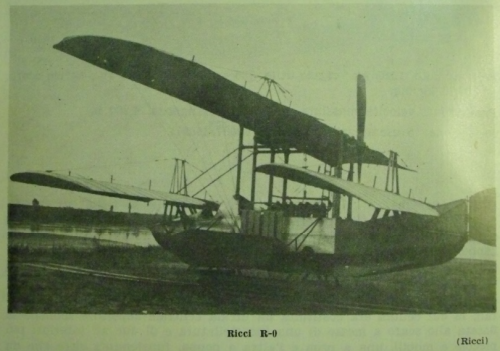

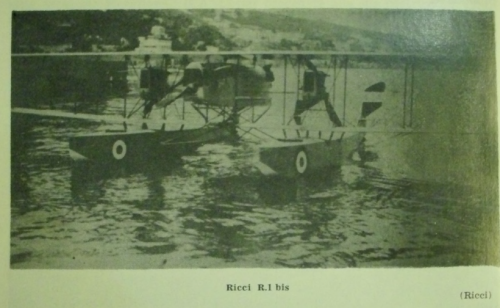

From Aerei Italiani 1914-1918,

the Ricci R-0,R-1 & R-1bis.


Attachments

  • 1.png
    631.8 KB · Views: 95
  • 2.png
    872.6 KB · Views: 72
  • 3.png
    839.2 KB · Views: 67

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,296
Reaction score
4,061
From L'Air Revue 1926,

the R.7 biplane.


Attachments

  • 1.png
    339.4 KB · Views: 19
