Hi all,

once again a question about Caproni...
I don´t know project or not, but I search for pics or drawings of the following early Caproni aircraft Ca.52/Ca.54/Ca.55/Ca.78(sure project)/Ca.81(sure project)/Ca.88(real aircraft) and Ca.110(project).

Thanks Maveric


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
mm, maybe I have something, but I have to check. The late 20s aren't my favourite period.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Preliminary answer:
Ca.52: a minor variant of the Ca.51. Same engines.
Ca.88 one of the several variants of the Ca.3-Ca.80 family. Two I.F.Asso 500. Weight 5700 Kgs, Span 25 mts, lenght 15.20 Mts. Max speed 195 Kmh/h, ceiling 5500 mts.


Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0

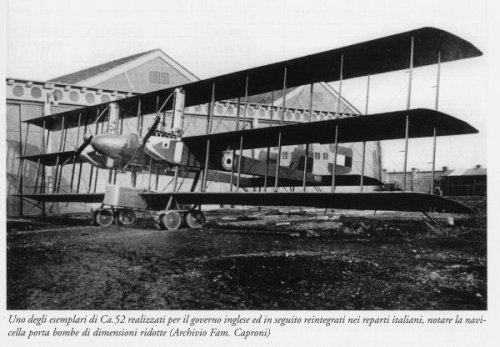

Caproni Ca.52
From: Caproni bombers in World War I - Paul Miano - Macchione Editor

The British Government requested the Italian authorities a few copies of the bomber triplane Caproni Ca 42
in order to evaluate it.
Caproni built 6 airplane designated Ca.52. Differed from the Italian model for mt. Lewis paired in the front seat of the fuselage and a spaceship for bombs sizes suitable for the British.
Machines received the serial RNAS from N526 to N531 and were used briefly by No. 6 Squadron in Otranto (Italy) and then returned to Italy.


Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0
From: Caproni bombers in World War I - Paul Miano - Macchione Editore
Caproni Ca.52


Attachments

  • Ca-52.jpg
    52.9 KB · Views: 737

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Ahem, the correct name is "Paolo Miana".... I known him, nice guy.


Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
270
Reaction score
33
Hi

I am interrested in Breda but has also a question which has to do with Caproni.
Its concerning the Pensuti-Caproni, the little 1919 triplane.
Now I found (the same or a new plane) the Breda-Pensuti.
The Pensuti-Caproni was powered by a 3 cylinder Anzani and the Breda-Pensuti by a 6 cylinder Anzani radial
What can you tell me, what do you have??
My interrests are: history/drawings/dimensions (as much as possible)/pictures/colors, but also construction details (and pictures/drawings which gives these details) technical information etc.
Thank for your help
Jan


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
370
...from L+K 2008...

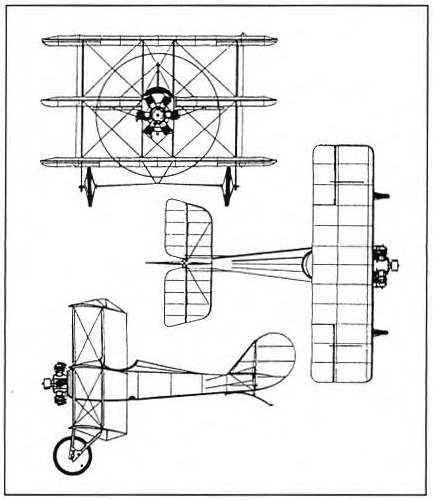

Breda-Pensuit B.1 Sp 4,00m / L 4,40m / H 2,90m / empty 180kg / TO 290kg / Vm 120km/h / Vmin 60km/h

Servus Maveric


Attachments

  • Breda-Pensuit B-1.jpg
    Breda-Pensuit B-1.jpg
    80.5 KB · Views: 590
  • Breda-Pensuit B-1--.jpg
    Breda-Pensuit B-1--.jpg
    77.2 KB · Views: 548
  • Breda-Pensuit B-1-.jpg
    Breda-Pensuit B-1-.jpg
    88.2 KB · Views: 550

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,752
Reaction score
3,350
Empty 180kg! Very light weight. :eek:


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
63

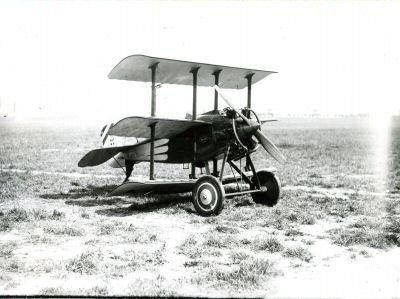

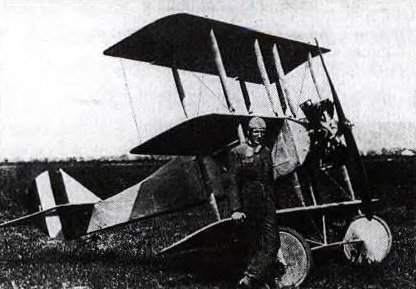

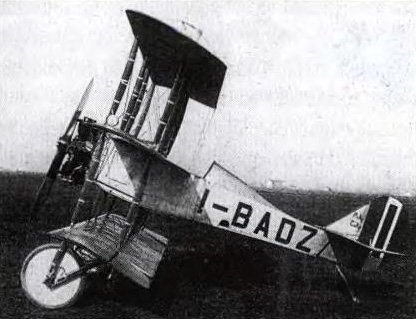

Here is a photo which I found somewhere. (If I remember correctly, I found it at one of Russian modelling forums, where somebody asked for identification...) Looks much similar to this Breda-Pensuti, but with some differences... Anybody knows what is it?


Attachments

  • SwoWiW_ph.jpg
    25.6 KB · Views: 512

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
98
Reaction score
44
[quote="redstar72"]
Here is a photo which I found somewhere. (If I remember correctly, I found it at one of Russian modelling forums, where somebody asked for identification...) Looks much similar to this [b]Breda-Pensuti,[/b] but with some differences... Anybody knows what is it?
[/quote]
This one is the Ricci Triplane R6, now on show at the Museo della scienza e della tecnica in Milan;
its concept was very similar to the Pensuti's, and the first of the series flew in 1918, near Naples.
The Ricci brothers also designed some very interesting projects, likea gull-wing hidroplaneproject
ermeio


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
370
Thanks ermeio,

do you have more info´s about the Ricci brothers? And their planes and projects.

Maveric


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
370

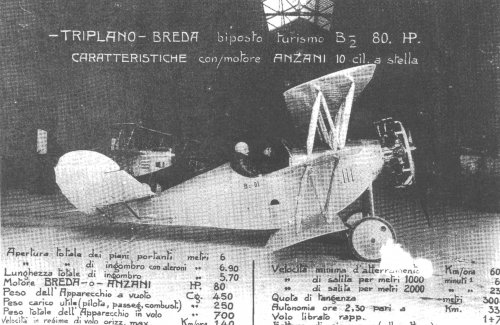

...found the two seat-version, named Breda-Pensuit B.2 :p


Attachments

  • Breda-Pensuit B-2-.jpg
    Breda-Pensuit B-2-.jpg
    899.7 KB · Views: 611

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
270
Reaction score
33
Maveric
Thanks for the pictures/drawings of the Pensuti's.
Do you have from the L+K article the history?
Has there been one or two Pensuti's (single seater)?
What do you haven concerning the used colors?
Again thanks,
Jan
ps. do you have information concerning other Breda planes?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Ahem, fellows, remember, not (too much) sponging here....


ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
98
Reaction score
44
I've opened a new thread about the Ricci Bros.
As regards the Pensuti triplanes, there wereat least 9 of them:
four versions of the first triplane and five of the second one, of which you can see a photo in this thread.
ermeio


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

From my dear Lucamax,and from that site with the book, Gli Aeroplani Carponi;

http://www.avia-it.com/act/biblioteca/libri/libribyavia_indice_a.asp

Some of projects has special topics,such as Ca.64,Ca.65 and Ca.91.

the early Caproni projects;

Ca.26 1914 military utility aircraft
Ca.27 ,, ,, ,, ,,
Ca.28 ,, ,, ,, ,,
Ca.29 ,, ,, ,, ,,
Ca.39 seaplane version of Ca.35 & Ca.36 powered by three 540 hp engines
Five-engined two different bomber designs,based on Ca.40

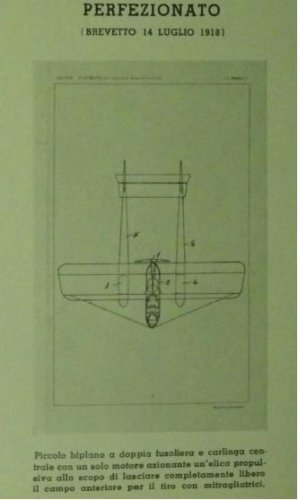

Pusher twin boom single engined fighter project,based on Ca.40
Pusher twin boom three fins predesign of Ca.41

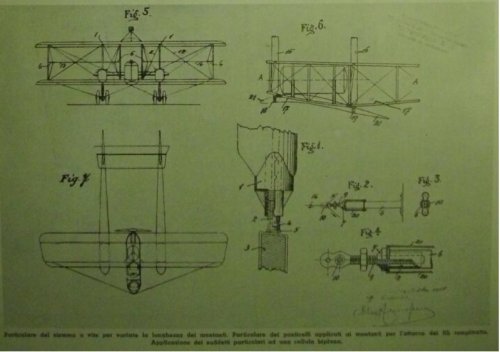

Pusher twin boom two fins predesign of Ca.41
Triplane derivative of Ca.44
Ca.49 1919 four-engined (3 tractor,1 pusher) airliner


Attachments

  • Ca.49.JPG
    36.8 KB · Views: 101
  • Triplane derivative of Ca.44.JPG
    Triplane derivative of Ca.44.JPG
    21.5 KB · Views: 83
  • Two fins predesign of Ca.41.JPG
    Two fins predesign of Ca.41.JPG
    42.4 KB · Views: 83
  • Three fins predesign of Ca.41.JPG
    Three fins predesign of Ca.41.JPG
    45.1 KB · Views: 81
  • 1918 fighter based on Ca.40.JPG
    1918 fighter based on Ca.40.JPG
    17.9 KB · Views: 337
  • Five-engined.JPG
    26.1 KB · Views: 342
  • Ca.39.JPG
    21.9 KB · Views: 346

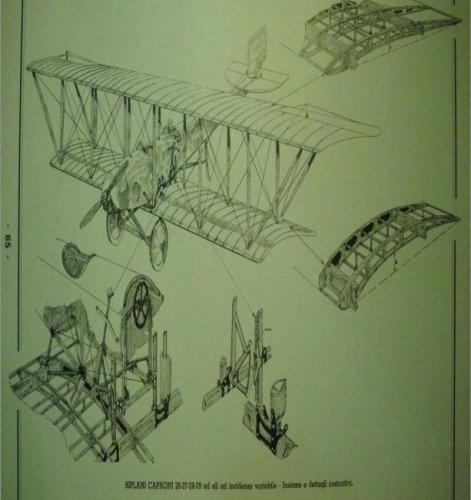

  • Ca.26,27,28 & 29.JPG
    Ca.26,27,28 & 29.JPG
    51.9 KB · Views: 342

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

And;


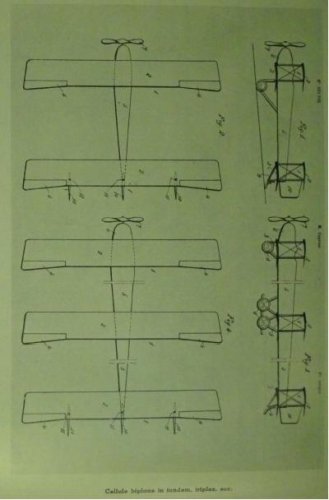

Predesign Ca.60 figure 1, 2 & 3
Ca.61 - biplane bomber, 3 x 230hp SPA 6A inlines
Ca.62 - three engined flying boat
Ca.63 - three engined bomber
Ca.63A - three engined bomber


Attachments

  • Ca.63A.JPG
    39.6 KB · Views: 87
  • Ca.63.JPG
    40.9 KB · Views: 84
  • Ca.62.JPG
    21.9 KB · Views: 76
  • Ca.61.JPG
    26.9 KB · Views: 71
  • predesign Ca.60   (3).JPG
    predesign Ca.60 (3).JPG
    29.3 KB · Views: 60
  • predesign Ca.60   (2).JPG
    predesign Ca.60 (2).JPG
    24.3 KB · Views: 63
  • predesign Ca.60   (1).JPG
    predesign Ca.60 (1).JPG
    33.7 KB · Views: 62

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

And;

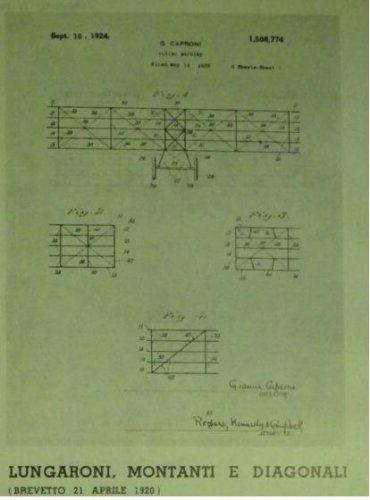

1919 aircraft figure 1, 2 & 3
1920 canard aircraft 1 and 2

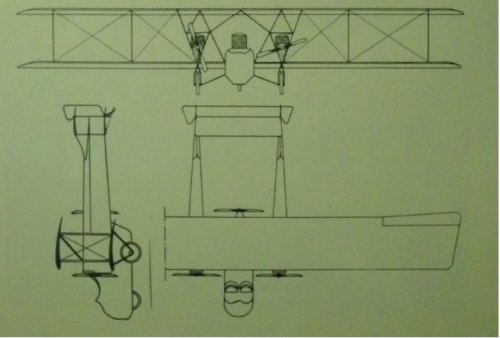

1920 flying boat
Ca.68 - 192? reconnaissance flyingboat
Ca.69 - 192? reconnaissance flyingboat


Attachments

  • Ca.69.JPG
    27.7 KB · Views: 83
  • Ca.68.JPG
    28 KB · Views: 84
  • 1920-flying boat.JPG
    1920-flying boat.JPG
    24.5 KB · Views: 60
  • 1920-canard  2.JPG
    1920-canard 2.JPG
    36.8 KB · Views: 54
  • 1920-canard 1.JPG
    1920-canard 1.JPG
    43.4 KB · Views: 51
  • 1919-3.JPG
    22.5 KB · Views: 40
  • 1919-2.JPG
    33.2 KB · Views: 42
  • 1919-1.JPG
    40.2 KB · Views: 44

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

And;


Ca.74 - designation also used for a sesquiplane single-seat fighter, 1 x 400hp Jupiter
Ca.75 - three engined bomber

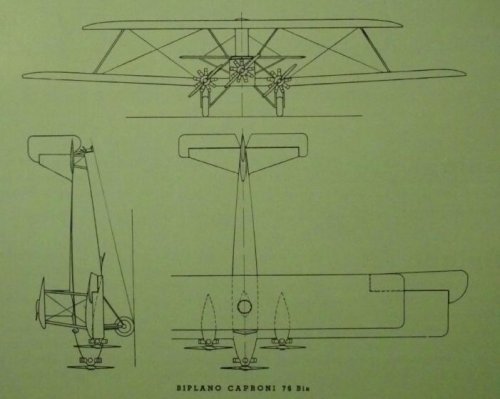

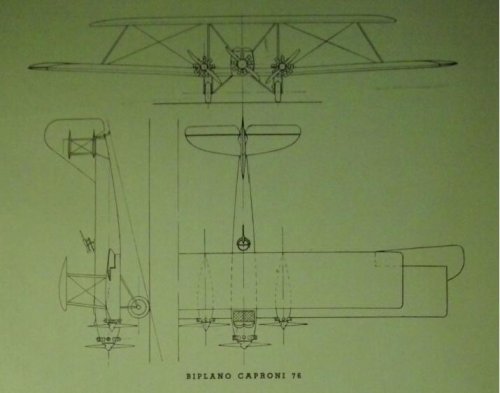

Ca.76 & Ca.76bis were three engined bomber
Ca.77 - twin-engined bomber
Asymmetric experimental aircraft of 1923

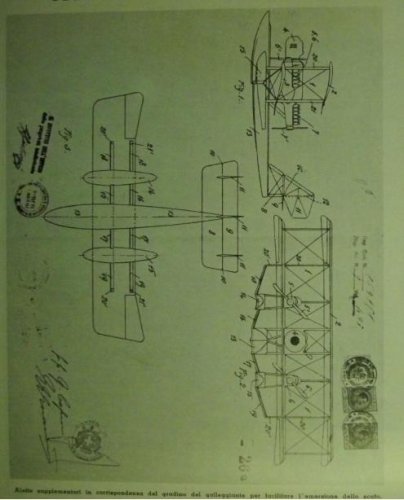

Flap 1923
1925 projects


Attachments

  • 1925.JPG
    43.4 KB · Views: 75
  • Flap 1923.JPG
    Flap 1923.JPG
    23.1 KB · Views: 82
  • Asymmetric.JPG
    40.3 KB · Views: 87
  • Ca.77.JPG
    29.5 KB · Views: 67
  • Ca.76bis.JPG
    33.9 KB · Views: 69
  • Ca.76.JPG
    32.4 KB · Views: 67
  • Ca.75.JPG
    35.5 KB · Views: 65
  • Ca.74.JPG
    30.5 KB · Views: 65

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

And;


Ca.83 - parasol-wing single seat fighter
Ca.84 - amphibian flyingboat powered by one 840 hp engine

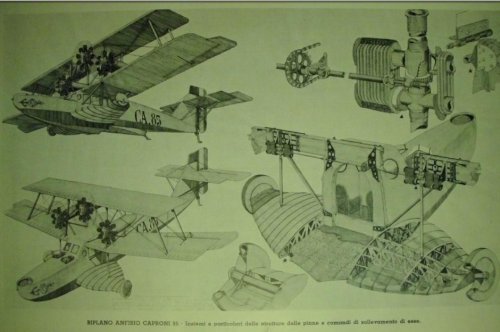

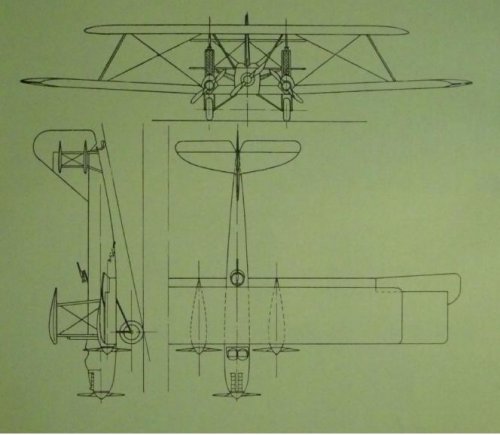

Ca.85 - amphibian flyingboat powered by three 1260 hp engines

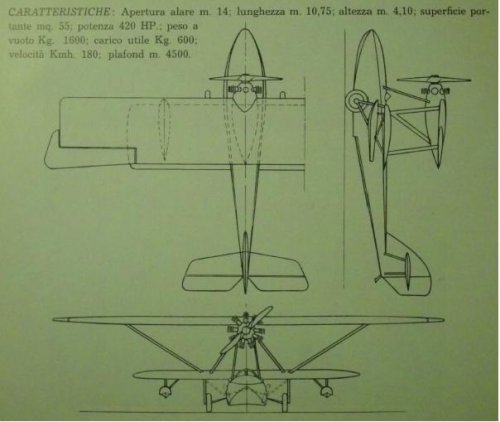

Ca.86 - amphibian flyingboat powered by one 420 hp engine

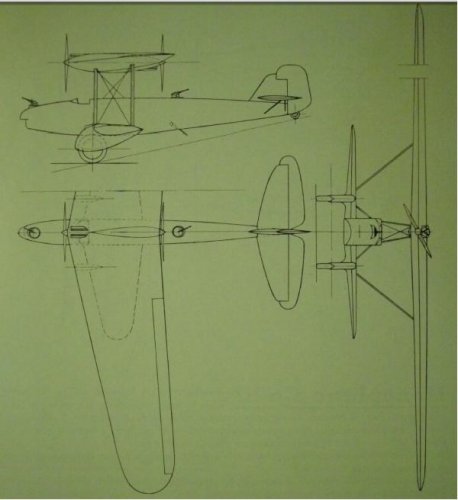

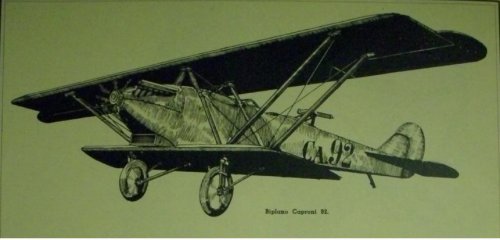

Ca.92 - single-engined sesquiplane (Warren truss) 2-seat reconnaissance biplane
Ca.93 - push-pull biplane bomber, sim to Ca.73ter but with tapered wings
Ca.94 - four-engined biplane heavy bomber
Ca.96 - three-engined biplane heavy bomber


Attachments

  • Ca.96.JPG
    34.9 KB · Views: 77
  • Ca.94.JPG
    31.3 KB · Views: 72
  • Ca.93.JPG
    29.8 KB · Views: 71
  • Ca.92 biplane.JPG
    Ca.92 biplane.JPG
    38 KB · Views: 69
  • Ca.86.JPG
    32.2 KB · Views: 88
  • Ca.85.JPG
    69.4 KB · Views: 87
  • Ca.84.JPG
    37 KB · Views: 79
  • Ca.83.JPG
    21.8 KB · Views: 71

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

And;

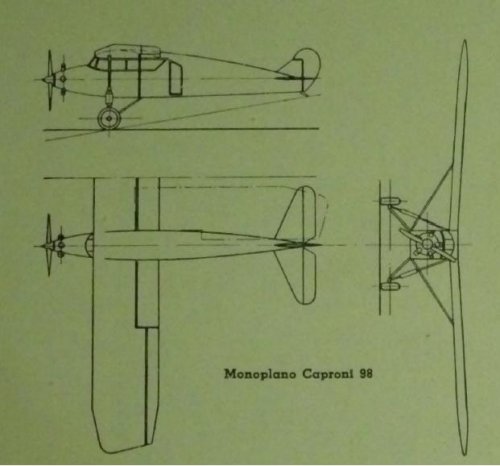

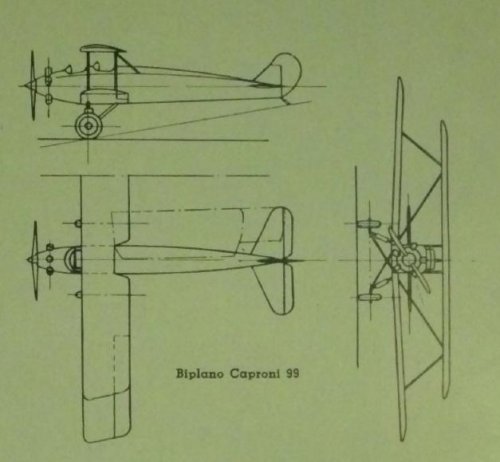

Ca.98 - monoplane tourer
Ca.99 - 2-seat biplane

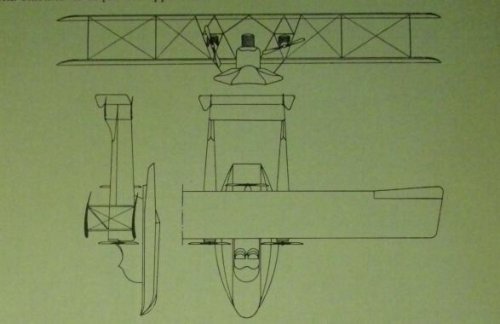

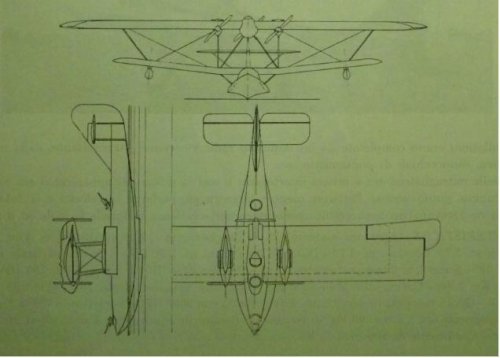

Ca.106 - biplane amphibian, 2 x 500hp Bristol Jupiter (between wings)
Ca.107 – was a sesequiplane single seat fighter powered by one 480 hp engine

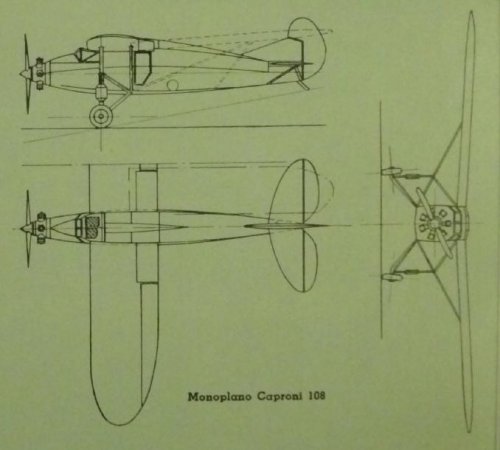

Ca.108 – air-mail/cargo monoplane (based on Ca.105), 240hp radial
Ca.112 - 1932 passenger aircraft based on Ca.111, 800hp engine, 3000km range
Ca.115 – sesquiplane push-pull twin-engined bomber,powered by two 450 hp engines
Ca.116 - 193? sport aircraft


Attachments

  • Ca.116.JPG
    31.2 KB · Views: 77
  • Ca.115.JPG
    33.6 KB · Views: 83
  • Ca.112.JPG
    22.9 KB · Views: 76
  • Ca.108.JPG
    33.5 KB · Views: 74

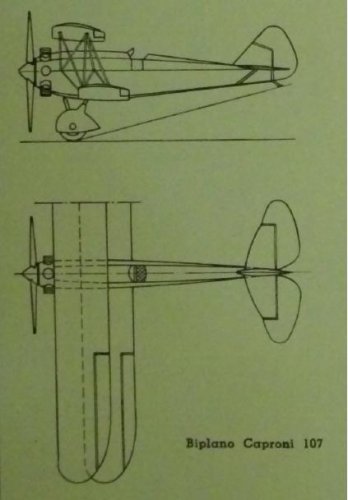

  • Ca.107.JPG
    23.2 KB · Views: 72
  • Ca.106.JPG
    34.1 KB · Views: 69
  • Ca.99.JPG
    30.3 KB · Views: 67
  • Ca.98.JPG
    30.4 KB · Views: 67

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

And;


Ca.117 - 193? experimental aircraft

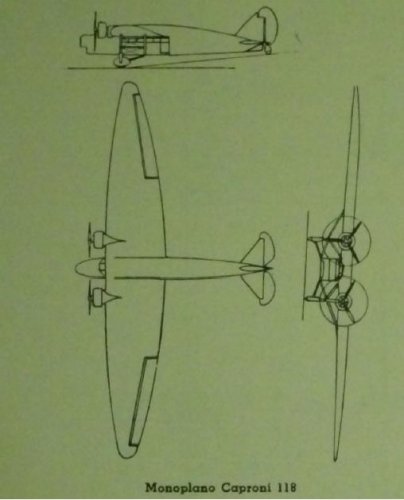

Ca.118 - twin-engined high-wing bomber based on Ca.102,two 1000 hp engines

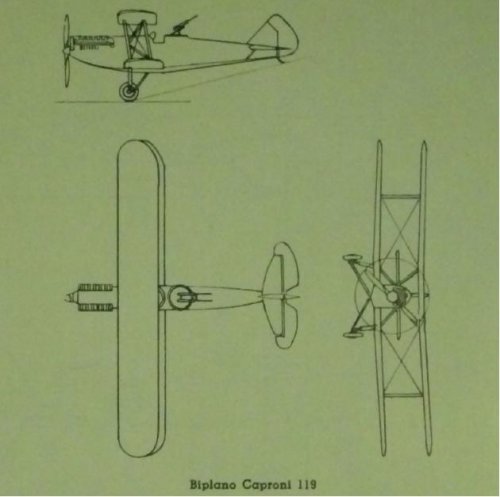

Ca.119 – two-seat recce biplane,powered by one 160 hp engine
Ca.121 - single engined low-wing monoplane bomber,powered by one 800 hp engine
Ca.122 - 2-engined, low-winged monoplane transport/bomber

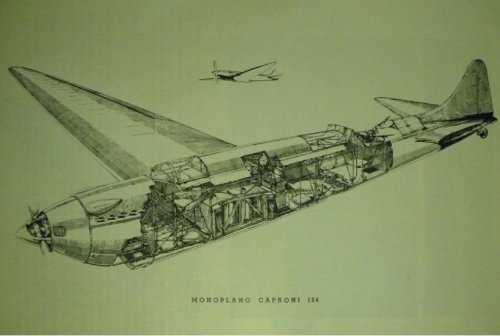

Ca.124 - low-wing floatplane recce-bomber, 1 x Isotta-Fraschini 12R
Ca.126 – low-wing racer aircraft,powered by one 500 hp engine
Ca.128 - low-wing metal monoplane 1+4 feederliner, 3 x 60hp engines


Attachments

  • Ca.128.JPG
    33.4 KB · Views: 96
  • Ca.126.JPG
    32.7 KB · Views: 130
  • Ca.124.JPG
    48.1 KB · Views: 125
  • Ca.122.JPG
    35.5 KB · Views: 105
  • Ca.121.JPG
    31.5 KB · Views: 98
  • Ca.119.JPG
    29.4 KB · Views: 89
  • Ca.118.JPG
    24.4 KB · Views: 99

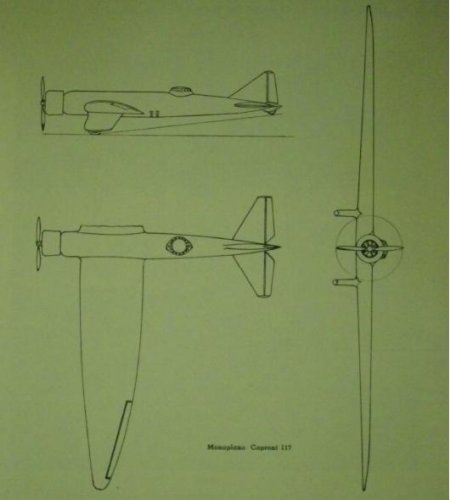

  • Ca.117.JPG
    21.5 KB · Views: 95

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Re: Caproni early projects

Finally;

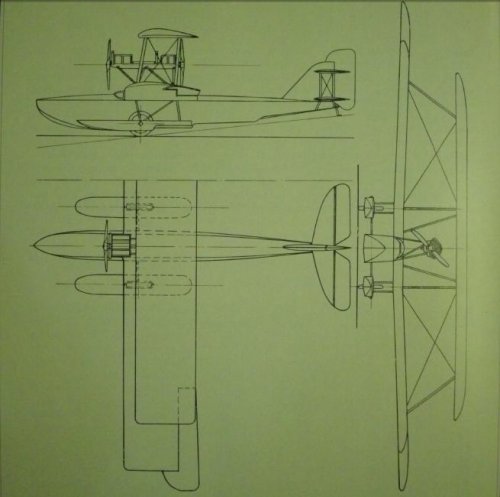

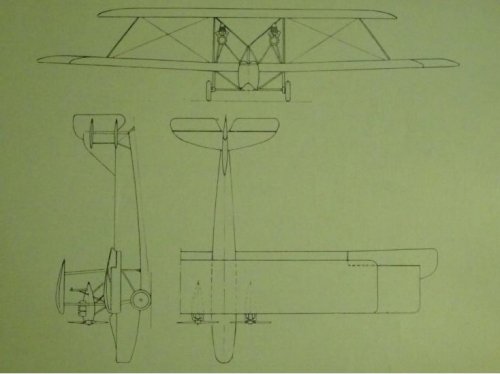

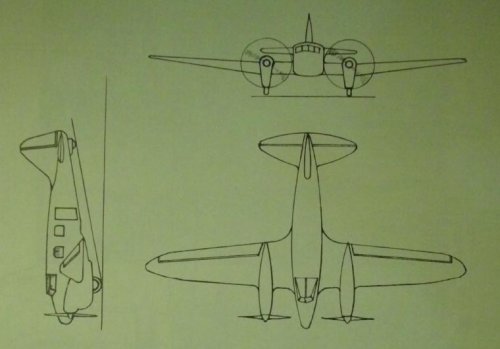

Ca.129 - low-wing metal monoplane based on Ca.128, 2 x 120hp engines

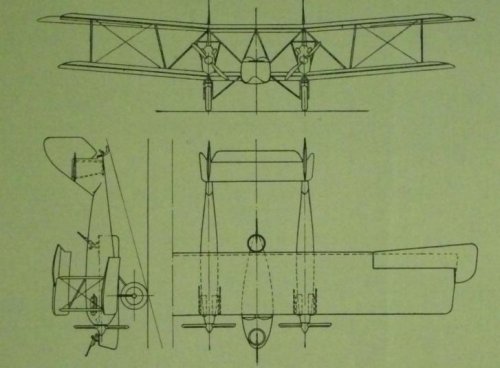

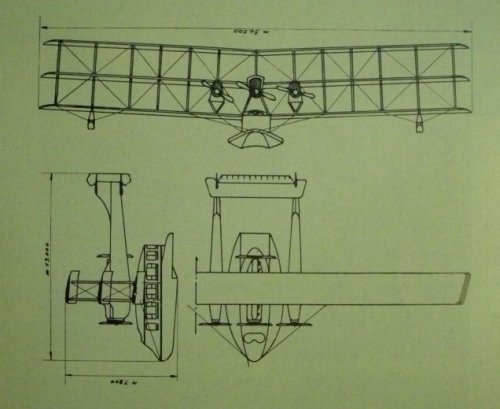

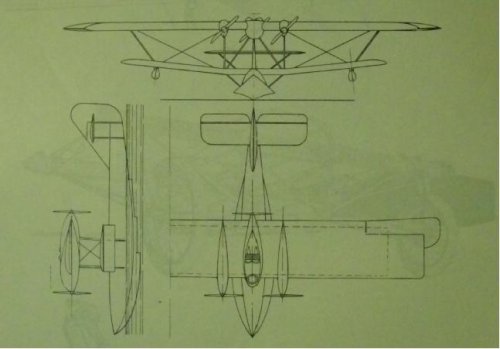

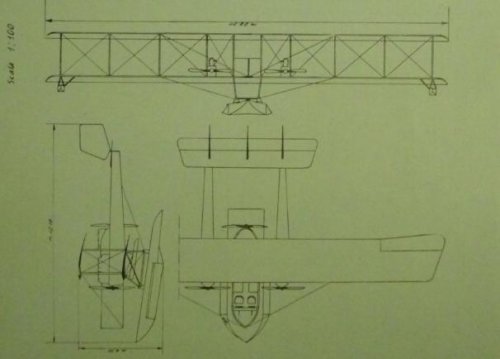

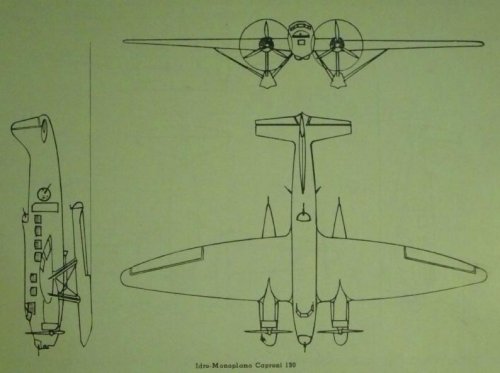

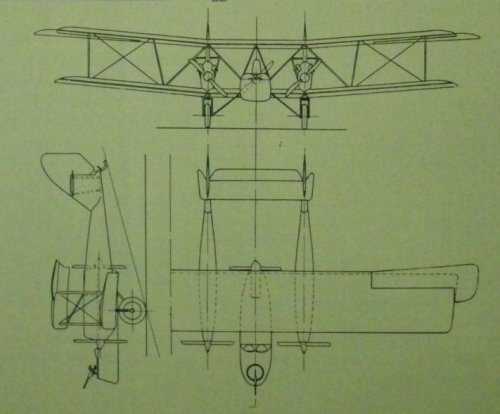

Ca.130 – twin-engined mid-wing transport/bomber floatplane

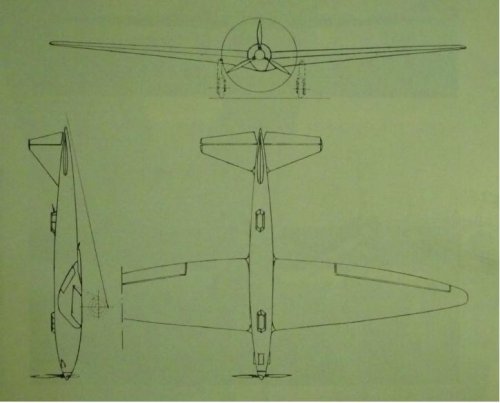

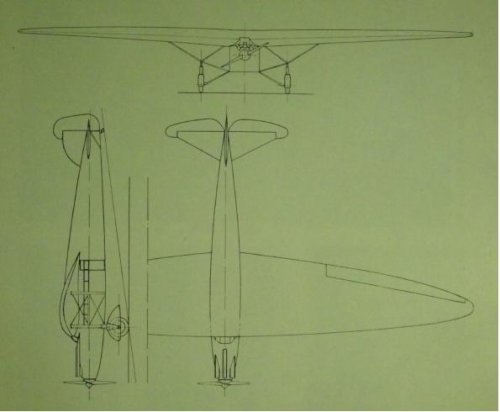

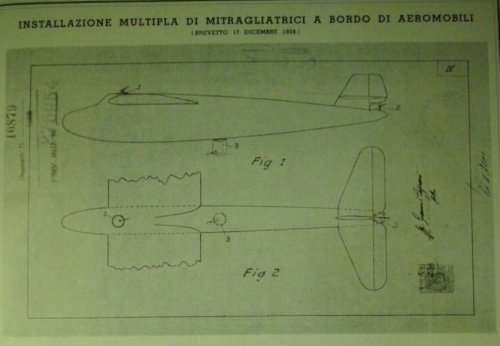

1928 experimental aircraft

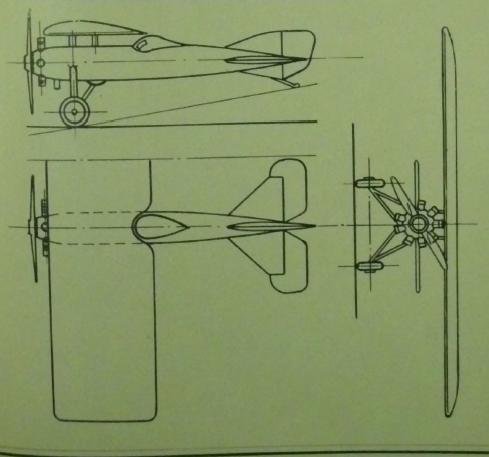

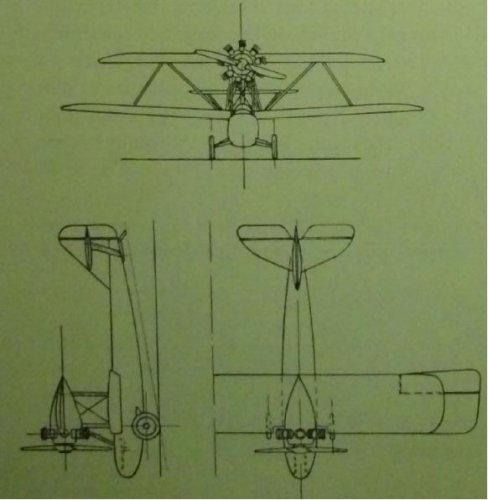

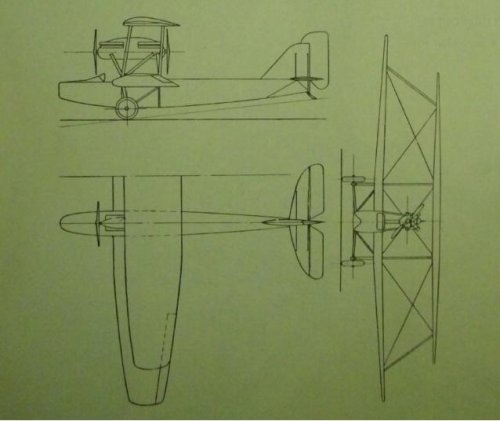

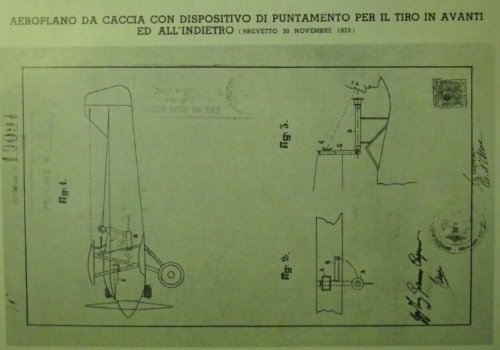

1928 biplane single seat fighter
1933 turbine powered aircraft

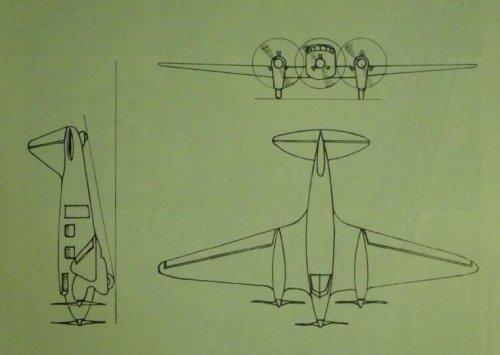

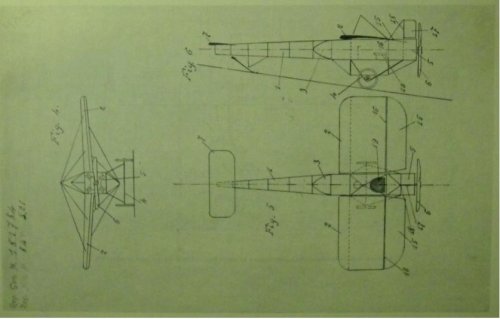

1934 light aircraft

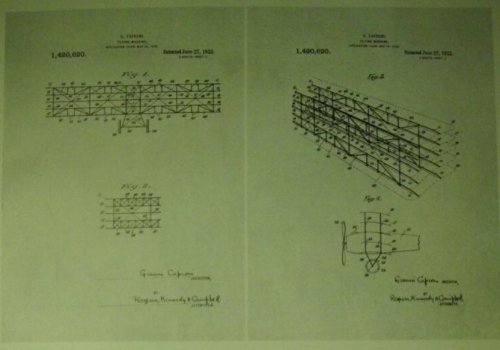

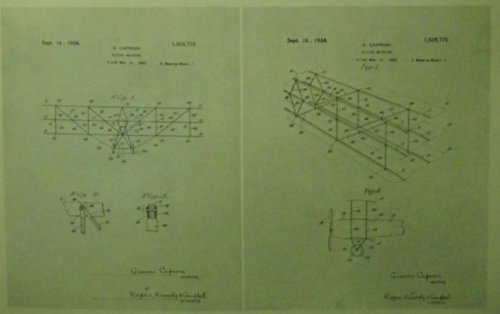

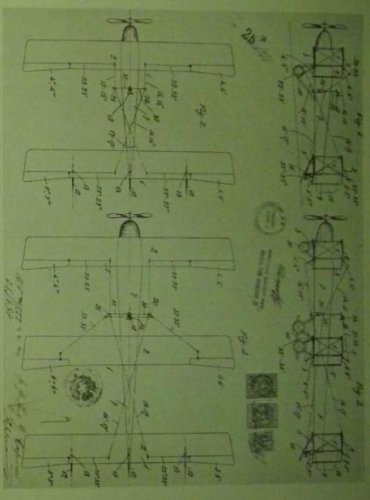

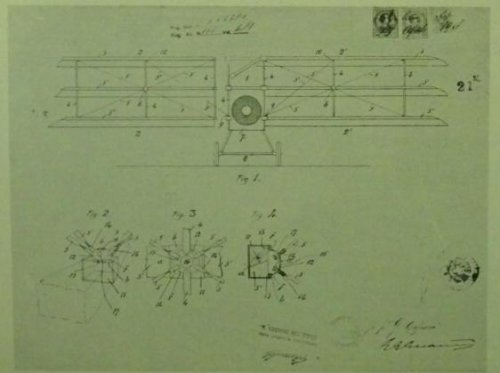

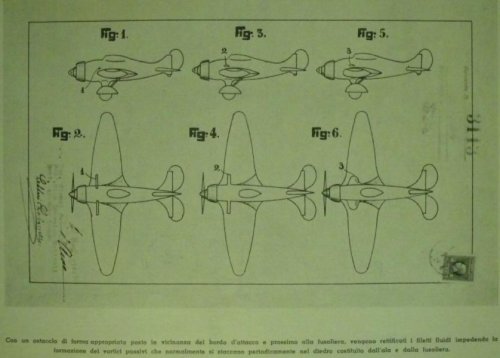

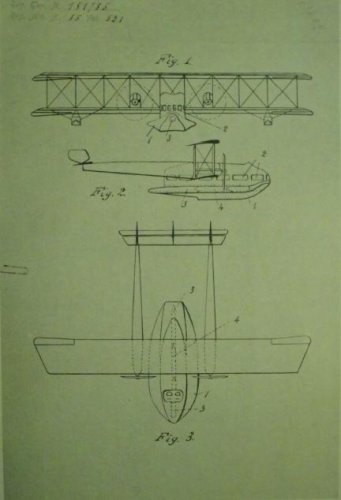

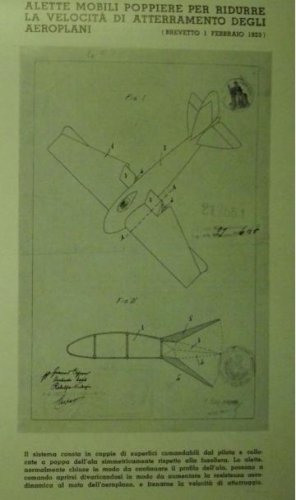

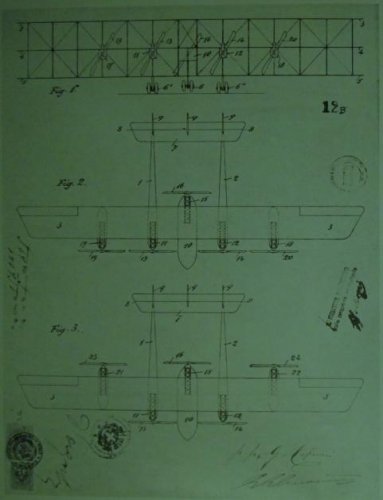

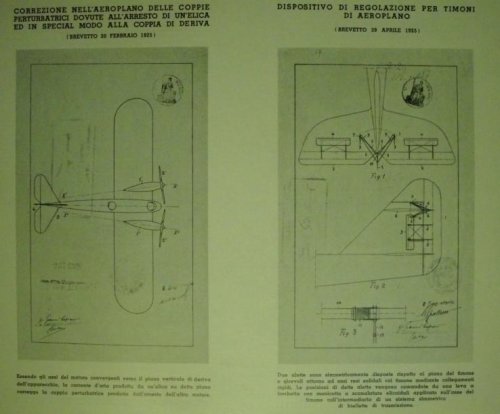

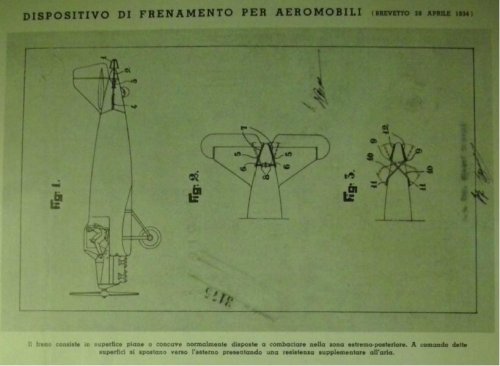

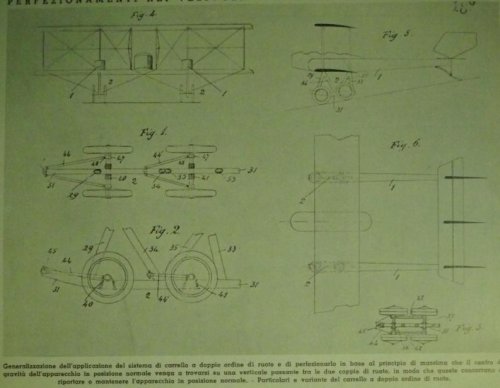

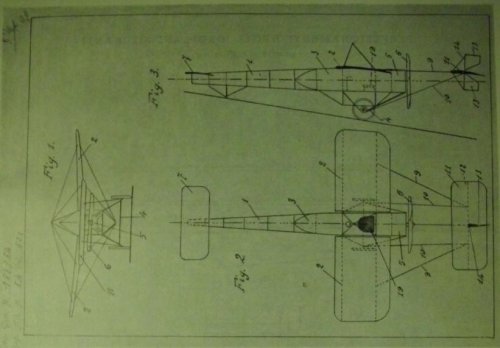

1934 patent

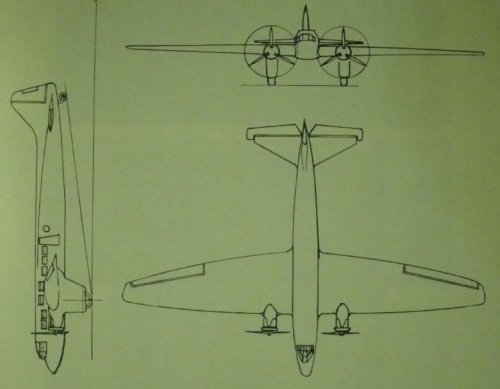

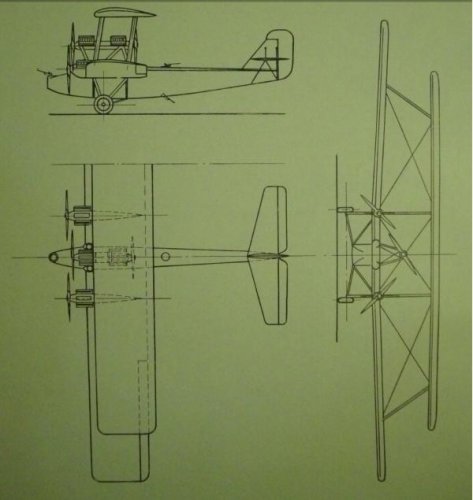

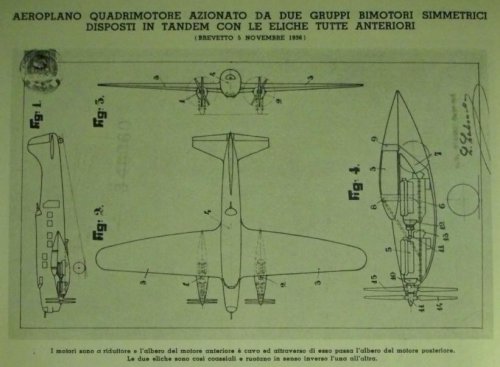

1936 four-engined transport, every two motors put in tandem


Attachments

  • 1936 four-engined.JPG
    1936 four-engined.JPG
    53.8 KB · Views: 110
  • 1934 patent.JPG
    1934 patent.JPG
    45.9 KB · Views: 85
  • 1934 light aircraft.JPG
    1934 light aircraft.JPG
    47.8 KB · Views: 77
  • 1933 turbine powered aircraft.JPG
    1933 turbine powered aircraft.JPG
    21.8 KB · Views: 77
  • 1928 fighter.JPG
    1928 fighter.JPG
    47.4 KB · Views: 79
  • 1928 experimental.JPG
    1928 experimental.JPG
    42.8 KB · Views: 93
  • Ca.130.JPG
    38.1 KB · Views: 105
  • Ca.129.JPG
    30.5 KB · Views: 99

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Hi,


Ca.330 was twin engined light recce and bomber aircraft project,never went beyond
a mock-up stage,let to develop the Ca.331.

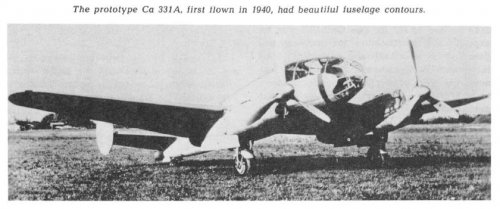

Ca.331A was twin engined light recce and bomber aircraft,powered by two 770 hp
Isotta-Fraschini Delta R.C.40 engines.

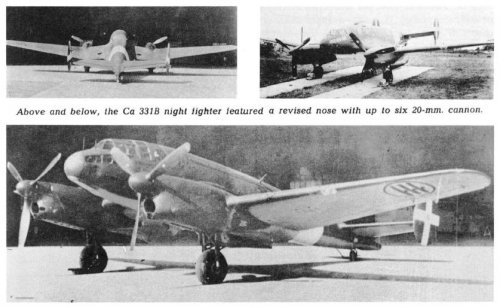

Ca.331B was a three seat twin engined night fighter version,powered by two 840 hp
Delat IV engines.

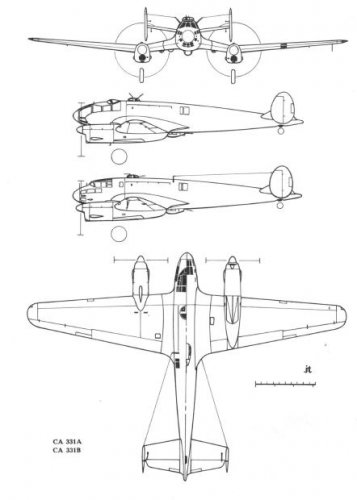

Attachments

  • Ca.331 A & B.JPG
    Ca.331 A & B.JPG
    27.6 KB · Views: 116
  • Ca.331B.JPG
    73.6 KB · Views: 87
  • Ca.331A.JPG
    49.4 KB · Views: 86

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,732
Reaction score
1,188
Related to the above were the following unbuilt projects:

Ca.331 C.N. (Caccia Notturno) with alternative Fiat RA-1050 RC.58 Tifone engines;

Ca.331G Luftwaffe combat trainer (1,000 ordered, based on the Ca.331A);

Ca.331 assault derivative with 37mm gun and Fiat RA1050 RC.58 Tifone engines;

Ca.332 twin-float seaplane version of the Ca.330

Ca.333 twin-float seaplane version of the Ca.331


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
A page on the Caproni Ca.73 from the March 1976 issue of Flieger-Revue:


Attachments

  • Ca-73 (Flieger Revue 1976-3).pdf
    241.3 KB · Views: 77

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Thank you my dears Apophenia and Stargazer.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
All Caproni aircraft from CA 1 to CA 116 are now presented in a separate topic in three-view form with info and specs (in Italian for now, but hopefully translations will be added in time):

http://www.secretprojects.co.uk/forum/index.php/topic,20062.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Hi,


in 1937 competition for light tourist aircraft,the tenders were; Caproni-Reggiane Ca.412,
Caproni-Taliedo Ca.167,Ambrosini SAI-3,Nuvoli ND.6,Lombardi-Bottini L.B.1,SAIMAN-201,
STAL-11.


Does anyone know a more info about Ca.412 and Ca.167 aircraft ?.


Dimensione Cielo- Scuola Collegamento vol.10


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
hesham said:
in 1937 competition for light tourist aircraft,the tenders were; Caproni-Reggiane Ca.412,
Caproni-Taliedo Ca.167,Ambrosini SAI-3,Nuvoli ND.6,Lombardi-Bottini L.B.1,SAIMAN-201,
STAL-11.

Does anyone know a more info about Ca.412 and Ca.167 aircraft ?.

By the way,

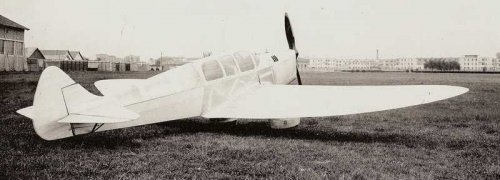

the Caproni Ca.167 was actually built and not a project.


Attachments

  • Ca.167.jpg
    27.8 KB · Views: 600

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Hi,


has anyone a drawing or a more info about Caproni GDL aircraft ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Hi,

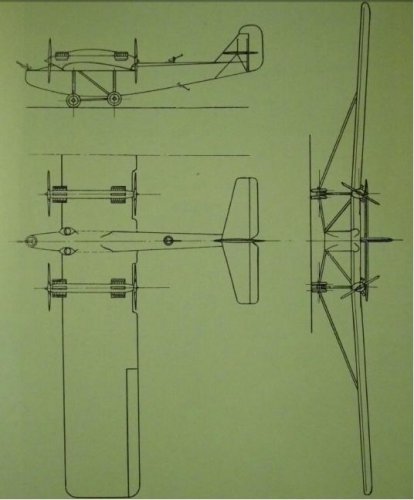

here is some of Caproni commercial projects;


http://www.aerei-italiani.net/Articoli_Storici_1909_%22I_Progetti_di_Gianni_Caproni_-_Laviazione_commerciale%22.html


Attachments

  • 6.jpg
    20.1 KB · Views: 608
  • 5.jpg
    16.3 KB · Views: 604
  • 4.jpg
    20.2 KB · Views: 598
  • 3.jpg
    20.3 KB · Views: 604
  • 2.jpg
    13.5 KB · Views: 606
  • 1.jpg
    12.8 KB · Views: 606

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
I think we have quite a few specific topics on Caproni types on this forum, so it's best to keep this here topic for unidentified designs I think. Perhaps a mod could rename this one as "Various Caproni aircraft" or "Unidentified Caproni designs", something like that?

Also I'd like to remind everyone that we have two other general topics on "early" Caproni aircraft which have plenty of pictures in them, if you seek to identify a certain type...

Designation Systems > Caproni aircraft
http://www.secretprojects.co.uk/forum/index.php/topic,2026.0

Early Aircraft Projects > Caproni's early aircraft (from CA 1 to CA 116)
http://www.secretprojects.co.uk/forum/index.php/topic,20062.0


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Yes Skyblazer,

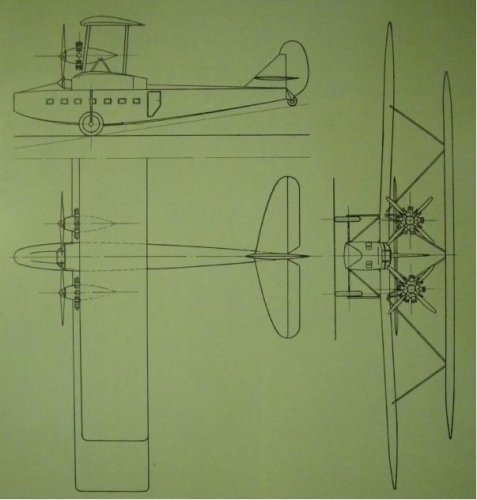

I just want to display some unknown projects to Caproni,specially in the picture No.6.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894

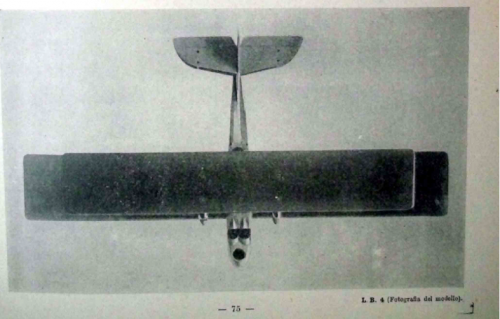

From Aeronautica Italiana 1923,

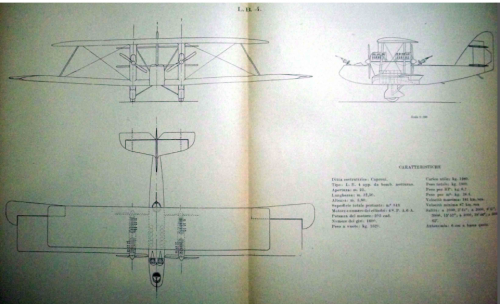

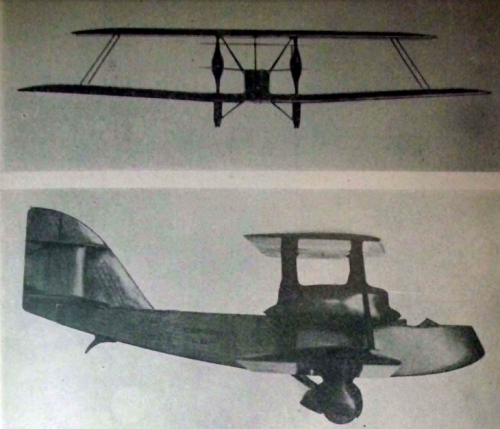

here is a Caproni L.B.4 aircraft,very close to Ca.66 ?.


Attachments

  • L.B.4.png
    923.9 KB · Views: 371
  • L.B.4   I.png
    L.B.4 I.png
    598.2 KB · Views: 336
  • L.B.4   II.png
    L.B.4 II.png
    493.1 KB · Views: 304

Similar threads

Top
