Italian Little Known Light Aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

Attachments

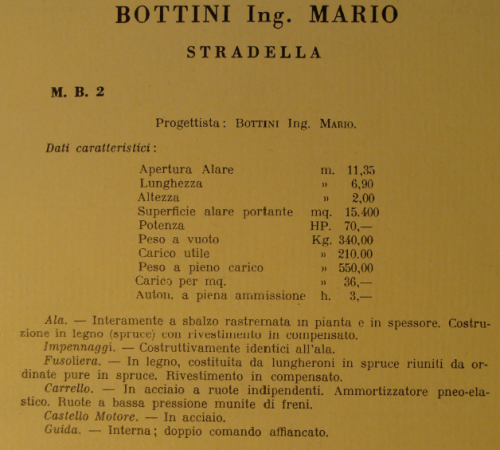

  • Bottini.png
    668.7 KB · Views: 1,148

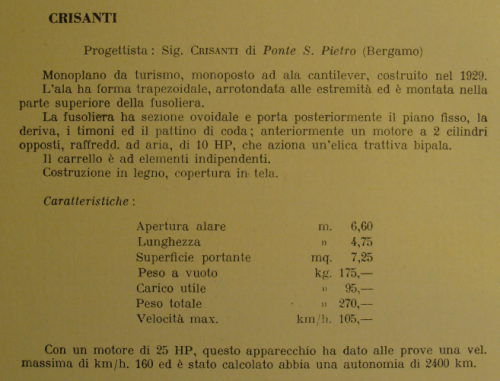

  • Crisanti.png
    645.6 KB · Views: 1,028

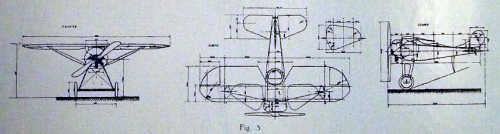

  • Crisanti drawing.png
    Crisanti drawing.png
    745.8 KB · Views: 882

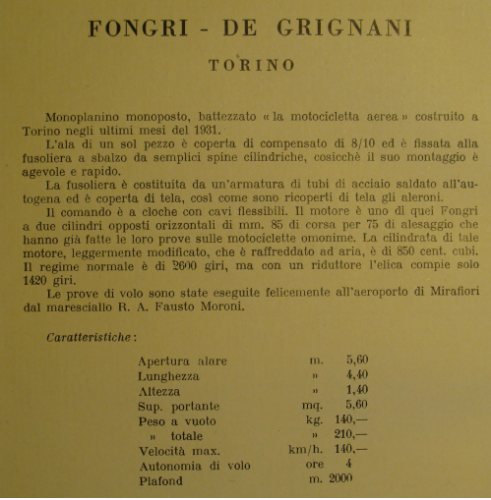

  • Fongri data.png
    Fongri data.png
    497.5 KB · Views: 780

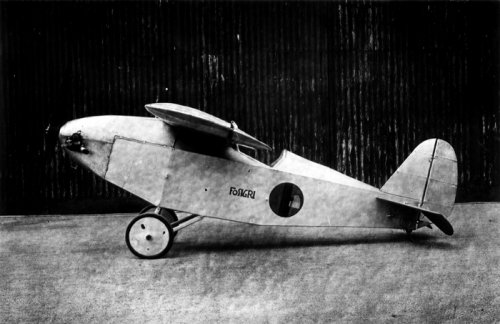

  • Fongri.png
    1.3 MB · Views: 741
Last edited:

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38
Some years ago I saw another photo of the fongri in the italian army museum "la cecchignola"
A third photo shows the fongri along the giant CA 90


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
ermeio said:
Some years ago I saw another photo of the fongri in the italian army museum "la cecchignola"
A third photo shows the fongri along the giant CA 90


Hi Ermeio,


do you know anther Italian little known light aircraft,not famous of course ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

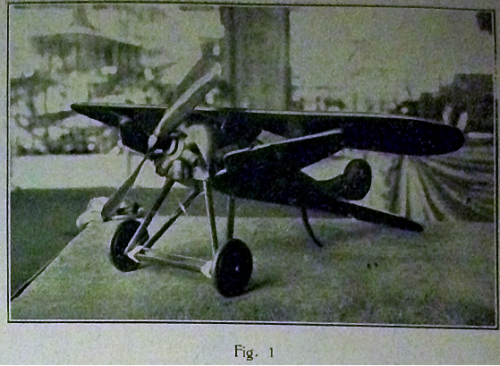

Hi,

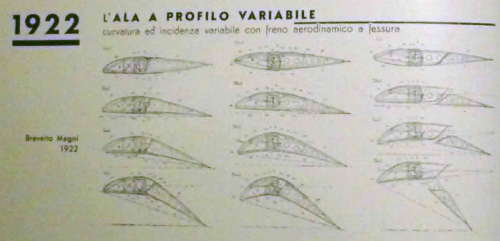

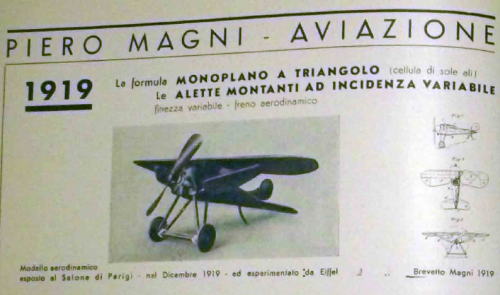

from Italian Aeronautical 1922,here is a Magni project of 1919 from a patent.


Attachments

  • Magni 1922.png
    Magni 1922.png
    273 KB · Views: 118
  • Magni 1919.png
    Magni 1919.png
    396.5 KB · Views: 92

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38
I've seen your request today
Piero Magni was wounded during WW1 and after the war he designed various aircraft.
The patent is for a monoplane with the wings sustained and anchored only with one stub for half-wing and with an aerodynamical cover (later NACA) that was intended to cool the engine through the airflow. The supporting struts also worked as an airbrake.

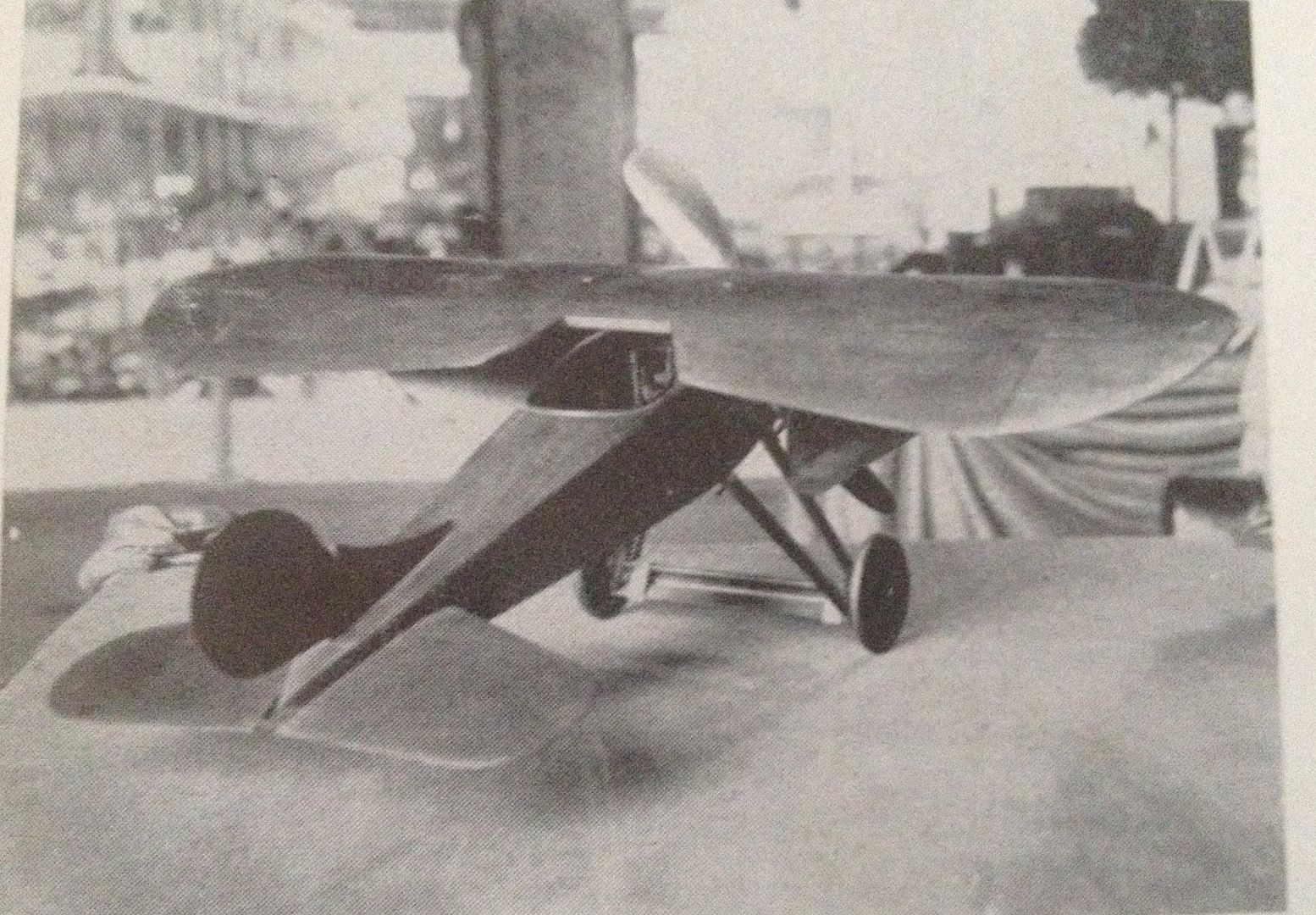

A reduced scale model of the monoplane was put on show during the 1919 Salon in Paris (the one in your photo) and it was built in 1923 by the Magni Aeronautical Construction lab in Meda, after being tested as a model in the Eiffel Labs and later on in the testing facilities in Turin (this latter airtunnel and laboratory is still there at the politechnic institute)
I have found another photo, just let me scan it and I will publish it.
By the way, do you have a better scan of the 3-view of this aircraft? (a plan scan, not the deformed one and possibly with a better resolution )


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Many thanks Ermeio,


and I will wait.


ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38
Well, not much to wait:





Now I wait for a better three view or if you know, the title of the Book in order to have a better view of it.


Attachments

  • MAgni 1919.JPG
    MAgni 1919.JPG
    747.6 KB · Views: 76

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

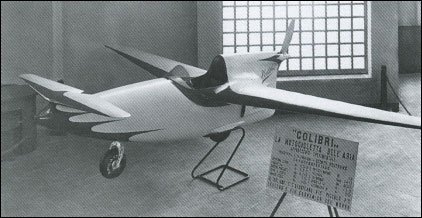

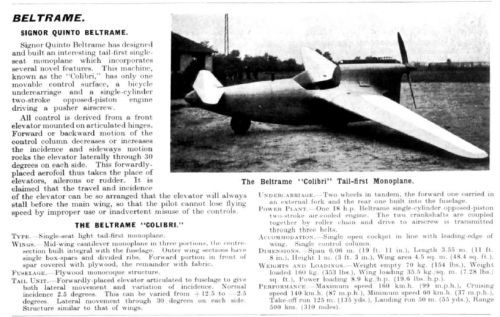

here is a Beltrame Colibri tail-first canard light aircraft of 1938,from Jane's All
the World's Aircraft 1938.


Attachments

  • 1.jpg
    33.9 KB · Views: 90
  • 2.jpg
    25.9 KB · Views: 88
  • 3.png
    333.6 KB · Views: 97

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38

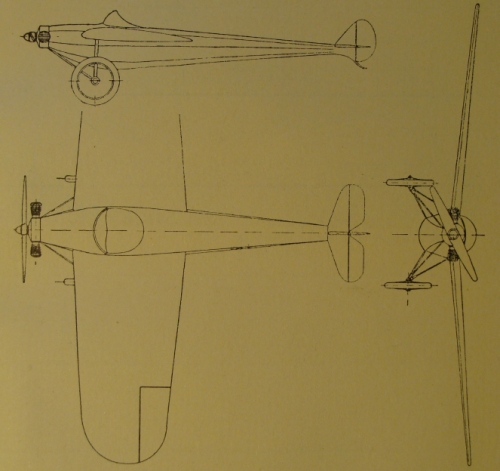

i have been lucky enough to buy this 3view from the late Carlo Godel


Attachments

  • image.jpg
    207.7 KB · Views: 124

Kdmoo

ACCESS: Confidential
Joined
Nov 7, 2008
Messages
61
Reaction score
15

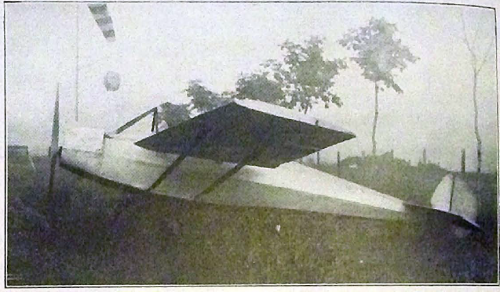

Another photo of the Fongri I had in my archives.


Attachments

  • Fongri DeGrignani 1931.JPG
    Fongri DeGrignani 1931.JPG
    208.7 KB · Views: 104

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
660
Reaction score
300
Quite a few pics here - http://www.avia-it.com/act/cera_una_volta/Aerei_nei_cieli/avianew_cera_una_volta_Aerei_182_Fongri_DeGrignani.asp


ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38

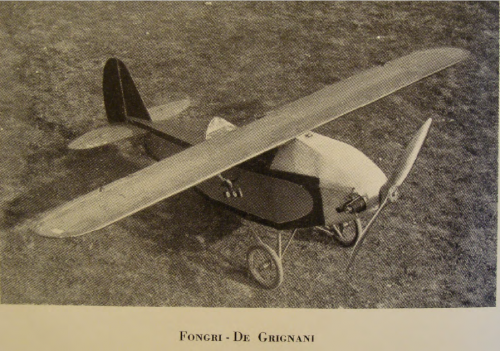

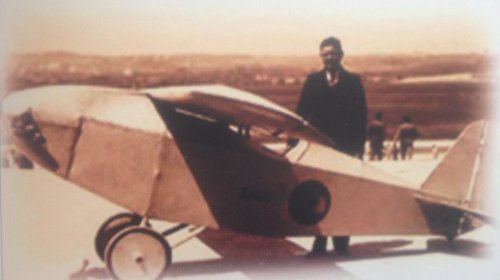

Here is another photo of the FONGRI
I'm sorry for the low quality of this picture, but I had to take this picture from an old postcard in the personal colelction of a friend of mine.
er me


Attachments

  • FONGRI de grignani.jpg
    FONGRI de grignani.jpg
    1.3 MB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

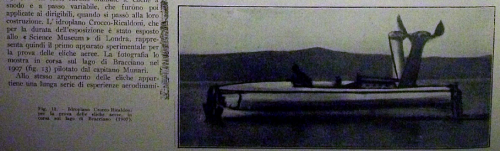

what was this ?

http://www.avia-it.com/act/la_tecnica/la_tecnica_di_ieri/Tecnica_ieri_2012/Ricordi_Idroaviazione.pdf


Attachments

  • a.png
    322.2 KB · Views: 733

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
hesham said:
what was this ?

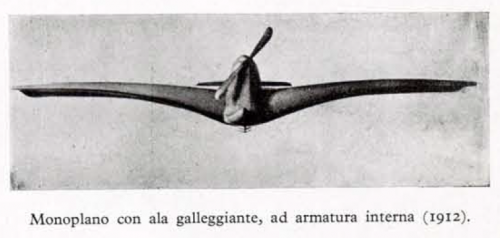

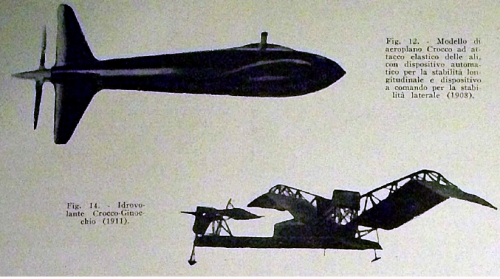

Paraphrasing, a 1912 study for a blended wing/body/float of semi-monocoque structure. The covering of the wings, fuselage, and float consisted of thin layers of wood separated by fabric and riveted together.* The framework of the wings were metal.

Work began on the fuselage, but then the order was given to suspend work.

It's not completely clear to me who was responsible for this concept (perhaps an Italian-speaking forum member can help?). It may be that this semi-monocoque monoplane study was work performed under Commandante Ginocchio at the Arsenale di Venezia.

* Sounding very much like S.E. Saunders' 1898 patent for 'Compound Lumber' or Consuta construction - which had four plys of mahogany veneer interleaved with calico (canvas soaked in linseed oil). However, as the name suggests, Consuta was stitched together (with copper wire) rather than fastened with rivets. Perhaps the Italians were looking for a way around Sam Saunders' earlier patent?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

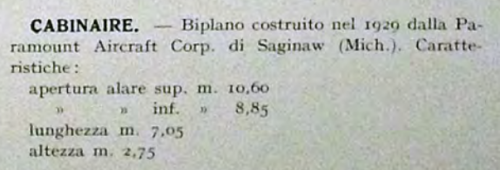

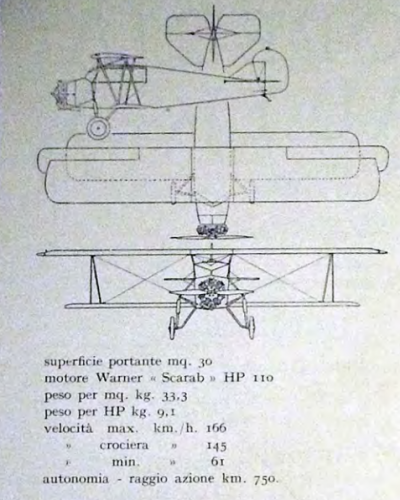

here is a two Itailian airplanes,one for Cabinaire biplane of 1929,and a Cadelli twin
boom monoplane,the later maybe remained a Project.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Aeronautica/L'Aeronautica%201930%2009.pdf


Attachments

  • Cabinaire.png
    573.4 KB · Views: 591
  • Cabinaire  II.png
    Cabinaire II.png
    240.9 KB · Views: 509

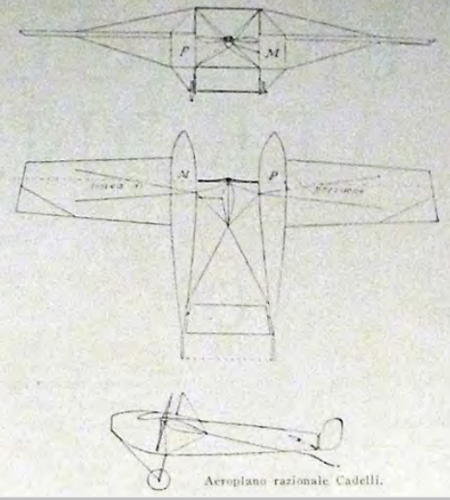

  • Cadelli.png
    501.5 KB · Views: 478
  • Cadelli Carlo.png
    Cadelli Carlo.png
    479.6 KB · Views: 441

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

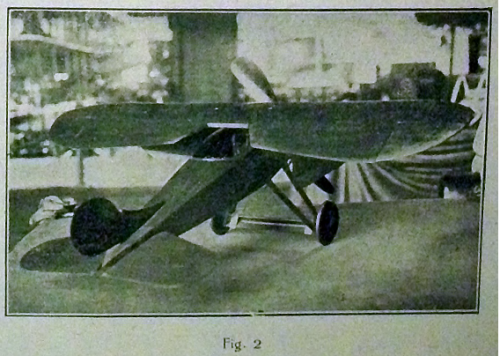

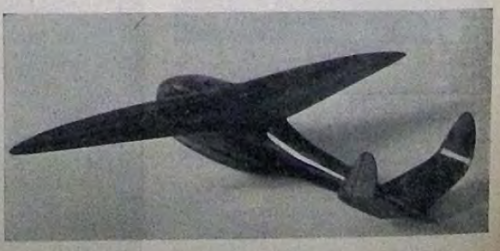

What was that Magni Model ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Alata/Alata%201949%2005.pdf


Attachments

  • Magni.png
    319.1 KB · Views: 73

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
350
hesham said:
Hi,

here is a two Itailian airplanes,one for Cabinaire biplane of 1929,and a Cadelli twin
boom monoplane,the later maybe remained a Project.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Aeronautica/L'Aeronautica%201930%2009.pdf

The Cabinaire was NOT an italian Projects as you said. The airplane was a real US aircraft built by Paramount.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

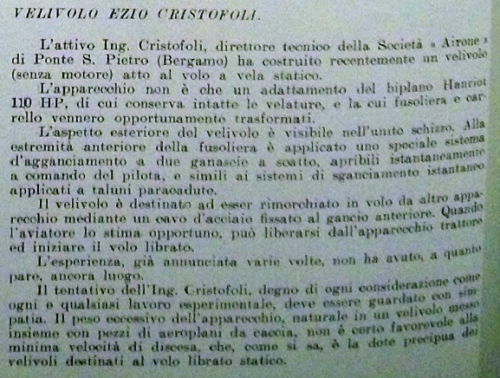

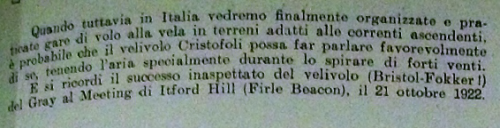

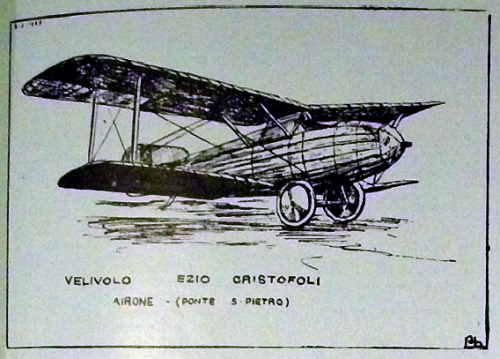

here is a little known civil biplane,designed by Cristofoli;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201923%2008.pdf


Attachments

  • 1.png
    538 KB · Views: 69
  • 2.png
    599.8 KB · Views: 56
  • 3.png
    193.6 KB · Views: 50

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
hesham said:
from Italian Aeronautical 1922,here is a Magni project of 1919 from a patent.

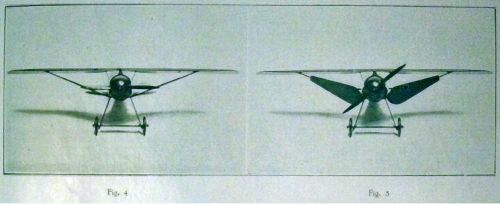

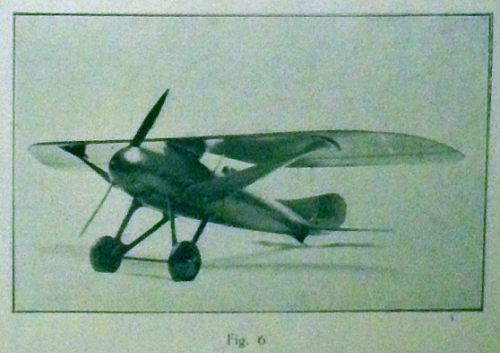

Anther drawings to Magni Airplane of 1919;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201924%2007.pdf


Attachments

  • 5.png
    527.7 KB · Views: 66
  • 4.png
    647.1 KB · Views: 72
  • 3.png
    466.4 KB · Views: 70
  • 2.png
    584.7 KB · Views: 61
  • 1.png
    556.6 KB · Views: 62

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

here is unusual seaplane Project,maybe a racer,designed by Montuelli Alexander ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201929%20012.pdf


Attachments

  • 1.png
    690.3 KB · Views: 83

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
hesham said:
here is unusual seaplane Project,maybe a racer,designed by Montuelli Alexander ?.

Yes, 'idrocorsa' looks like 'water course' but actually means racing seaplane. This is a model of a design by sig. Montuelli Alessandro of Castel Maggiore.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
hesham said:
here is a three little known light aircraft from Italy,the first called Bottini M.B.2,the second
aircraft from Mr. Crisanti and the third was Fongri - De Grignani,does anyone one know
more,but must be a little known ?.

For Mr. Crisanti,was this a developed version ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201931%2002.pdf


Attachments

  • 2.png
    921.7 KB · Views: 60

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

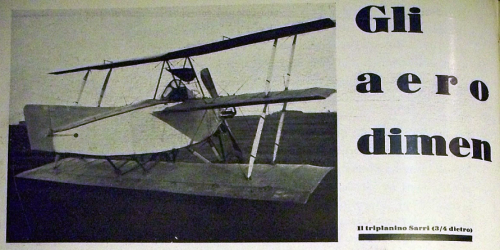

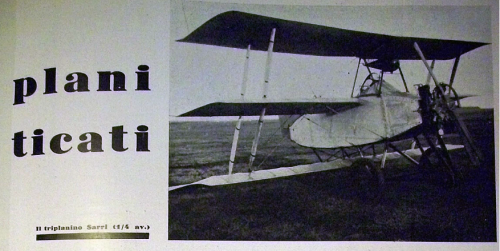

a strange triplane from Tommasi Sarri;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201933%2006.pdf


Attachments

  • 1.png
    936.5 KB · Views: 57
  • 2.png
    890.2 KB · Views: 60

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

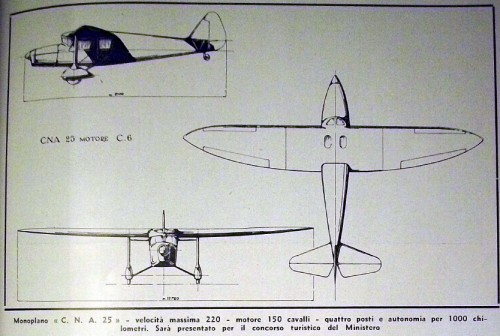

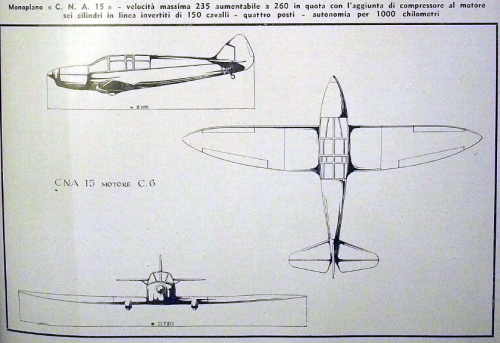

A 3-view to CNA.15 and CNA.25.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201935%20010.pdf


Attachments

  • A.png
    999.7 KB · Views: 583
  • B.png
    1,011.4 KB · Views: 500

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38
I have found two more pictures of very light italian aircraft
Both are conceived by Ferruccio Vignoli (as far as I know) and probably i had to post them in the thread about aerial bycicles, but i cannot find it...


Attachments

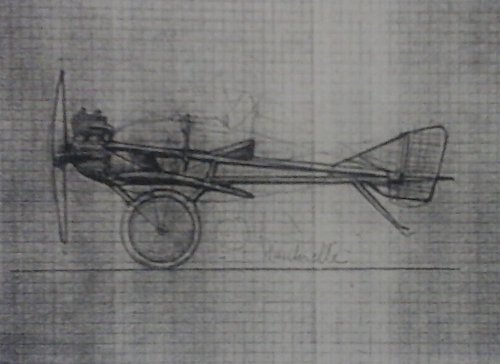

  • vignoli velorette.jpg
    vignoli velorette.jpg
    138.3 KB · Views: 337
  • ferruccio vignoli bicicletta aerea.jpg
    ferruccio vignoli bicicletta aerea.jpg
    147.1 KB · Views: 358

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

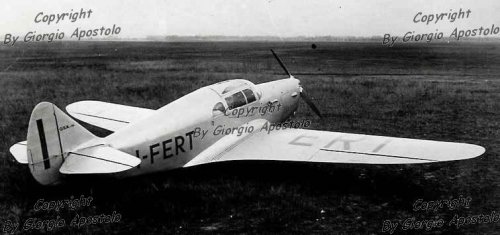

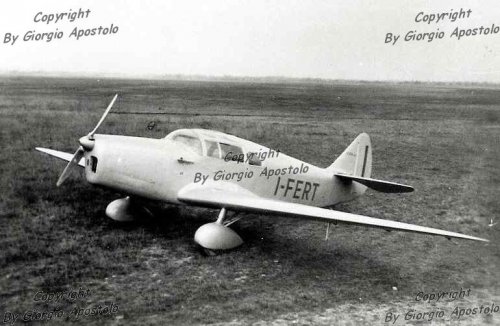

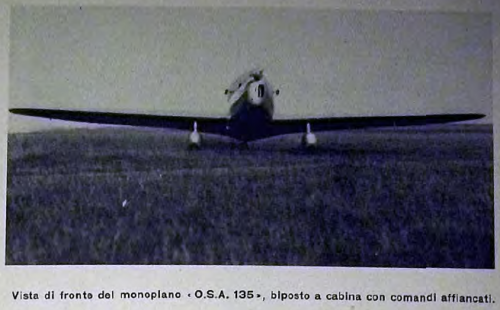

Here is the OSA-135;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201940%2002.pdf

http://www.giemmesesto.org/Documentazione/Aerei/Osa135.html


Attachments

  • 1.png
    509.2 KB · Views: 282
  • 2.jpg
    41.4 KB · Views: 58
  • 3.jpg
    56.1 KB · Views: 71

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

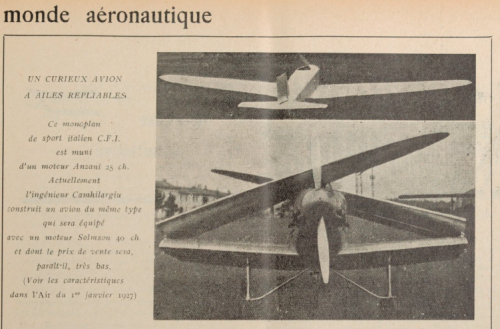

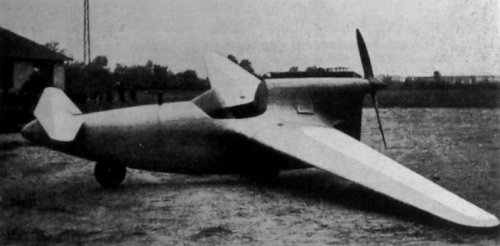

I can't ID the designer of this Italian monoplane,it was called C.F.1 ?.

L'Air 1927


Attachments

  • 1.png
    694.6 KB · Views: 66

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
850
Reaction score
380
The designer was Mr Emanuele Cambilargiu. (there is a typo in the French paper's transcription of his name)
https://it.wikipedia.org/wiki/Emanuele_Cambilargiu

The plane is the Cambilargiu-Folz CF-1. Amedeo Folz financed their venture "azienda Costruzioni Aeronautiche Italiane", which designed the CF-1 and CF-2.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Many thanks to you my dear Dan,

and I search for early series to this designer.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

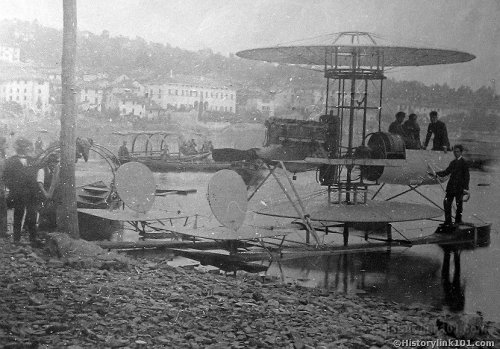

here is a seaplane designed by Somalvico;

http://historylink101.com/bw/e_plane/early/slides/IMG_6979_e2a.html
http://www.theaerodrome.com/forum/showthread.php?t=57702&page=2


Attachments

  • 1.jpg
    178.2 KB · Views: 62

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
95
Reaction score
38

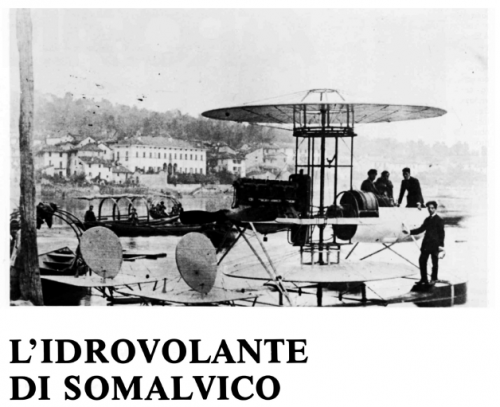

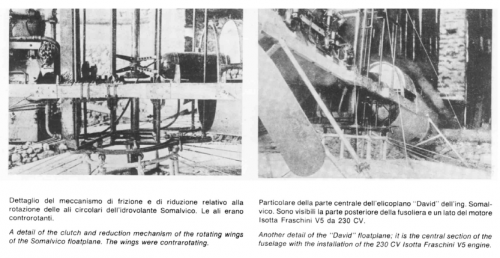

Some photos and a description of the Somalvico are in an old Aerofan issue
I do not remember which one and I don't have it at hand now


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
ermeio said:
Some photos and a description of the Somalvico are in an old Aerofan issue
I do not remember which one and I don't have it at hand now

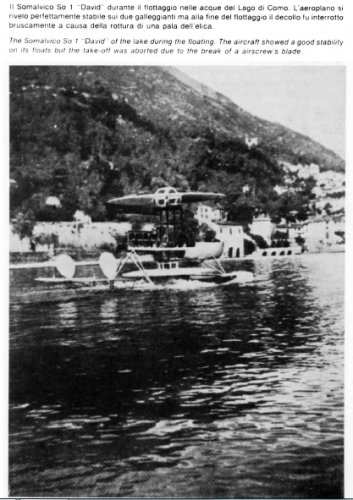

It's Aerofan 4/1983.


Attachments

  • 1.png
    227.1 KB · Views: 41
  • 2.png
    244.2 KB · Views: 41
  • 3.png
    297.1 KB · Views: 38
