Ing. Campini projects

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Excellent piece of research... Thanks Sky!


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,449
Reaction score
84
Skybolt said:
Justo, there were two different versions of the Re-2005R.
There is someting odd on the new Re 2005 R drawing. The engine does not look like a DB 605 (Fiat RA 1050). As per the comparative scale, it is just 2269 mm long and too depressed (just 665 mm high) to be a German V-12 engine.
The DB 605 measures 2668 x 1142.
Could it be a Fiat CS-38?

The cannon is a Mauser MG 151/20 and measures (without the muzzle brake) 1770 mm.

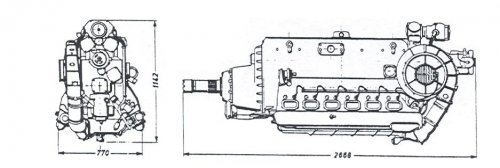

Please find attached drawings of the DB 605 and the MG 151/20


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
26
Justo, you mean a FIAT A-38.. no way, too late, by early 1941 the A-38 was in the dustbin (except for its cylinders banks, but this is another story..). Having triple checked, I can offer a theory:
Since the drawing was a conceptual design, not a project drawing, it could be simply wrong in details. As you may notice, the fuselage of the Re-2005T-Axial is rather different form the regular one (I attach an inboard profile for comparison). The rear is longer to make room to the burner tube, but all the mid-to front section has been reworked too, to make room for the compressor and the power transmission complex. I checked with the forms of all the inline inverted-V engines (I think there's no doubt it is an inverted V) in use or in construction/project in Italy by 1943. No one was similar. The rear section is DB-605-like (compressor skewed from down-up), while, for example the Re-10X M-engine had a vertical compressor installation. The 603 is 605-like, and I don't think, for other reasons, it is a 603 (the R projects was initiated just to have a high-performance interceptor BEFORE the 603 would have been available in quantity in licence-build version, in second half of the 1944). In case you noticed what I said on the Gamma used for the static test of the idea, the IF V-engine were all upright-Vs, or impossible to use (air-cooled).


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
26
Thanx! It's clear that this isn't the engine in the Re-2005R. I stick to my explanation.


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,449
Reaction score
84
Nick Sumner said:

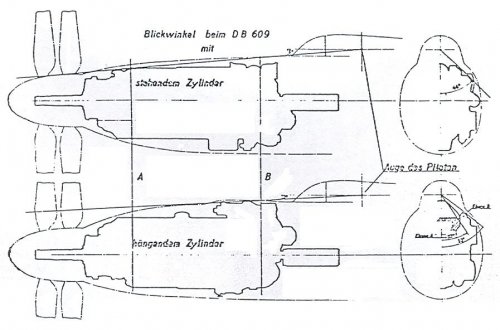

This is the DB609

Well, it is true that the DB-609 has a similar shape, but it is a monster 293.5 m long and the engine in the drawing of the Re 2005 R cannot be more than 227 cm.
You may calcualte that comparing the size of the engine with the pilot seat and the length of the canopy, that are both known.
The cannon length may also serve as a refernce.

I understand your reasons. Please see the similiraty in the attached drawing.


Attachments

Kim Margosein

CLEARANCE: Confidential
Joined
Feb 10, 2007
Messages
103
Reaction score
0
I'm very unclear on the two Re 2005R concepts here. Where, exactly are the engine-driven centrifugal compressor and the axial compressor drawing their air from? I see no intakes other than the belly radiator.

Kim M


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
26
Uh, this is simple. On the centrifugal R the air comes via a long tube running under the pilot seat directly from the 605 compressor. They tested this configuration on the ground and it worked., albeit the thrust was low (120 Kg/s theoretical, 100 Kg/s in practice). The axial R draws the air from two intakes (one per side) just above the trailing edge of the wing at wing-root. In this case the expected thrust was more than triple (350 kg), due at least in part to the greater flux of air (6,4 kg/sec). The compression ratio was 1,5/1.
BTW, probably I have a new version of the theory (and until I return to Rome and try and find out some more details, will remain a theory) : perhaps the "engine" in reality is more a "power pack". To extract power (a sizable chunk, 350 HP) from the back of the engine, the entire compressor section had to be reworked. So what we see from more or less two third of the length on is this mechanical assembly.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893
red admiral said:
Speaking of other Campini projects, I have this picture which is of a Campini aeroplane. It clearly shows an axial-flow turbojet however, not a motorjet.
That project from red admiral was called Campini CC.7.


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
26
Pure speculation. And the C.C. 7 was a postwar "deduction"... I have somewhere the 1947 article by Campini describing his work during the war: no mention of either a C.C.7 (that would mean Campini CAPRONI...) or a axial flow turbojet project.


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
560
Reaction score
14

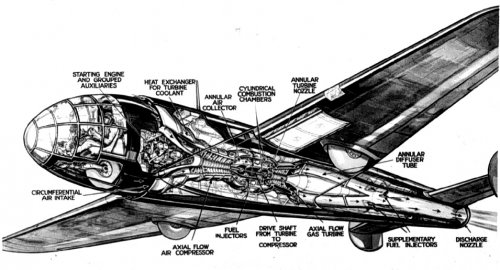

Did I say that? I since found out that that picture was in Flight Magazine and was a conceptual sketch by an artist on hearing that the Italians had flown the world's first jet aircraft. It has nothing to do with Campini at all.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,363
Reaction score
40

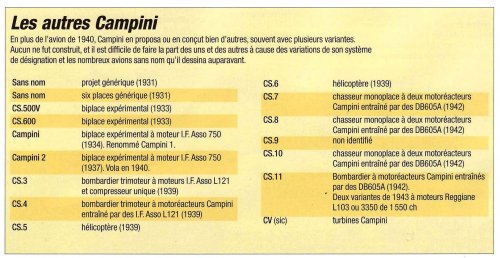

Campini Jet Projects

From Le Fana de L'Aviation Nº472 March 2009 page 24

CS.4 Bomber: 3 "motoréacteurs" Campini with engines I.F. Asso L121 (1939)
CS.7 Fighter: 2 "motoréacteurs" Campini with engines DB605A (1942)
CS.8 Fighter: 2 "motoréacteurs" Campini with engines DB605A (1942)
CS.10 Fighter: 2 "motoréacteurs" Campini with engines DB605A (1942)
CS.11 Bomber: ? "motoréacteurs" Campini with engines DB605A (1942). Two variants from 1943 with engines Reggiane L103 or 3350 (1550 hp)

No pictures :'(


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
560
Reaction score
14
Re: Campini Jet Projects

http://www.secretprojects.co.uk/forum/index.php/topic,791.0/highlight,campini.html

I'm not quite sure on the designations but I think most are covered in the thread above. Apparently the three engine version was the CS.3 whereas the CS.4 was a helicopter with cold jet tips.

There are a couple of other images and stats provided by Skybolt that don't have designations, but seem to fit more or less into your list.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
26
Re: Campini Jet Projects

Yes, Gregory (Alegi, author of the Fanà article) drew from the same materiel in the archives of the Ufficio Storico dell'Aeronautica that I (and everybody else) saw. It is the same material available from NARA (documents both taken to Reichlin in 1943 and then in the US and a few documents that escaped German attention aftrer the Armistice). Campini ended his collaboration with Caproni immediately after the CC.1 tests, so there isn't anything in the Caproni archives. The designations could be right, maybe they come from Campini's family memories. Campini was heavily sponsored by De Bernardi with the Regia, but they weren't interested in the motoreattore concept.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
26
Re: Campini Jet Projects

The real new materiel refers to the tests and is superb ! Moreover, there is a inboard view of a bomber project that come from a private archive that has never been published before. And probably only Gregory could have do that....


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893
Re: Campini Jet Projects



And may be it was CS.6 and not CS.4 !.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164

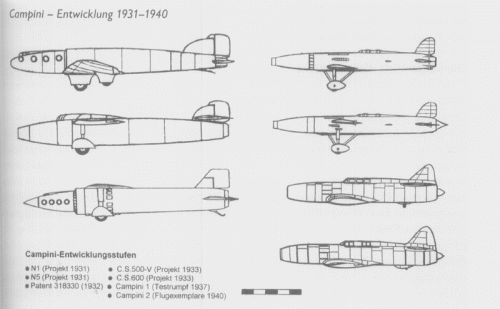

Found in "FliegerKalender 2011", pre-projects to the Campini 2:


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Magnificent! Thanks Jens..


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,541
Reaction score
55
Outstanding finding Jemiba!!
Thanks for sharing it with us...


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
26
Beautiful find, Jens, but the first row cannot be considered "pre-projects", but simply "concepts" from patents.


Pelzig

CLEARANCE: Secret
Joined
Oct 24, 2008
Messages
441
Reaction score
0
For the interested, the U.S. patent for the 1932 Campini design is 2024274. Interestingly, the plane concept is part of a grouping of propulsion designs, including for a motorboat!


Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,151
Reaction score
5
Website
cmeunier.chez-alice.fr
Hikoki1946 said:
For the interested, the U.S. patent for the 1932 Campini design is 2024274. Interestingly, the plane concept is part of a grouping of propulsion designs, including for a motorboat!
I've not found it with Google Patents. It is at esp@cenet:
http://v3.espacenet.com/publicationDetails/originalDocument?CC=US&NR=2024274A&KC=A&FT=D&date=19351217&DB=EPODOC


Pelzig

CLEARANCE: Secret
Joined
Oct 24, 2008
Messages
441
Reaction score
0
I found the U.S. patent here:

http://www.freepatentsonline.com

Cheers!


Tophe said:
Hikoki1946 said:
For the interested, the U.S. patent for the 1932 Campini design is 2024274. Interestingly, the plane concept is part of a grouping of propulsion designs, including for a motorboat!
I've not found it with Google Patents. It is at esp@cenet:
http://v3.espacenet.com/publicationDetails/originalDocument?CC=US&NR=2024274A&KC=A&FT=D&date=19351217&DB=EPODOC


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,001
Reaction score
164
I've read the article more carefully again. It's said, the N 1 and N 5 were the first proposals of
Campinis company VENAR ("Velivoli et Natandi a Reazione"), founded in 1931. BTW and
OT here, but nevertheless: After returning from the US, where he worked for Northrop, Campini
proposed an airliner of 90t for 100 pax.


MC72

CLEARANCE: Confidential
Joined
Oct 17, 2010
Messages
72
Reaction score
2
About the "Campini Fighter 1942"
Campini presented for consideration of the Regia Aeronautica, studies for a fighter pushed by two Campini turbines and powered by a single Daimler Benz DB605 engine in the fuselage of the plane, which would allow at least .... interesting features in theory.
Some pictures of the wooden model was being prepared in the offices Caproni, together with the evolution of this formula to crystallize with an intermediate position of the engine (Source Aerei December-1976)



In the same article details the solutions analyzed by Campini

Saludos
MC72



Nik

CLEARANCE: Secret
Joined
Jul 15, 2009
Messages
382
Reaction score
0
Slightly OT: Why would they consider placing the cockpit so far back ?? I appreciate that the infamous GeeBee racer simply had nowhere else without doubling the aircraft size or spoiling the drag factors, but...

I'm very glad to see that the pilot was finally placed roughly at the 'centre'...


Mig Eater

Munch, munch...
Joined
Mar 10, 2011
Messages
7
Reaction score
0
Website
www.dday.migeater.net
I hate to bump an old topic but this seamed the best place to ask...

I'm trying to find information on the Campini bombers, mainly the one Skybolt posted a diagram of on the first page. I've seen mention of a Campini C.S.11 else where & was wondering if that was it or if it was an earlier project?


toura

CLEARANCE: Top Secret
Joined
Apr 12, 2008
Messages
1,191
Reaction score
22
Hi all.
I found this document !
Who know more on all this Campini projects
Thanks


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Please, see the several contributions in 'Ing.Campini projects'


toura

CLEARANCE: Top Secret
Joined
Apr 12, 2008
Messages
1,191
Reaction score
22
Hi Lark
I only want to know if I could have MORE !


Giovanni

CLEARANCE: Restricted
Joined
Nov 17, 2010
Messages
8
Reaction score
0
Thanks to the informations about the RE 2005 R and the drawing reported by Skybolt, I'm trying to

scratch a 1/72 RE 2005 R model based on the axial hypothesis. I'm tracing a drawing . The fuselage is completely different from a RE 2005, just a resemblance. What is used from the RE 2005 are: wings and tail components ( even if modified for the new exaust ).
It's not clear to me if the two intakes for the additional propulsion can be located as I traced on the fuselage side, and which dimensions ? If you can help me, thanks in advance.
Ciao
Giovanni


Bubba

I really should change my personal text
Joined
Sep 2, 2011
Messages
3
Reaction score
0
Hello folks, I'm Bubba, a new entry. I'm Italian, forgive my english...
Afer all your posts very little things remains to say. I'm quite astonished of your knowledge about. I only posted for two points:
1) Campini really draw a project of a turboprop, the "Campini 3500".
2) I don't know about RSI pilots and He.162, but is certain that 15 RSI pilots of 1° Gruppo Caccia went to Germany for training on Me.163B Komet; they began glider training at Sprottau (Silesia), but very bad weather and very close russians forced them to return to Italy in february 1945.
Bye


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,541
Reaction score
55
Bubba said:
Hello folks, I'm Bubba, a new entry. I'm Italian, forgive my english...
Welcome Bubba!!!
I komw him since we are both present in another italian astronautics forum... ;)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,857
Reaction score
893
Hi,

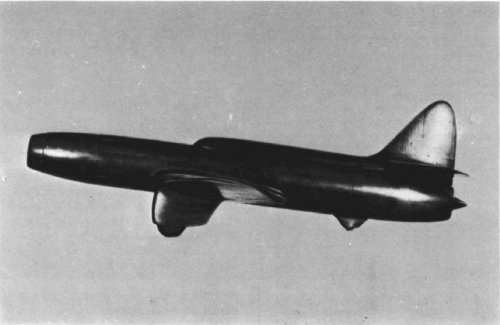

the Caproni-Campini N.1 wooden model.
