Fugaku : Z-plane, G10 or G12

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Winston said:
Blackkite how did you get the blueprint? ;D

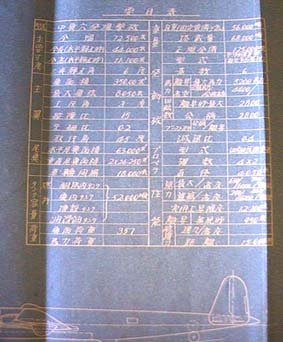

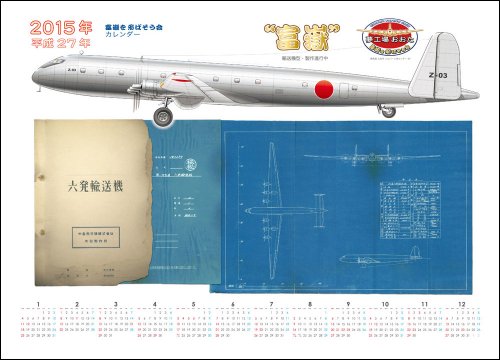

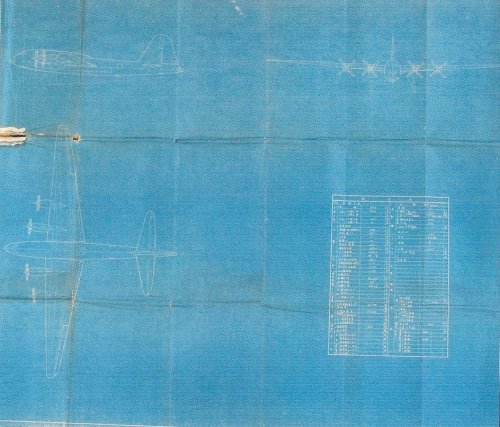

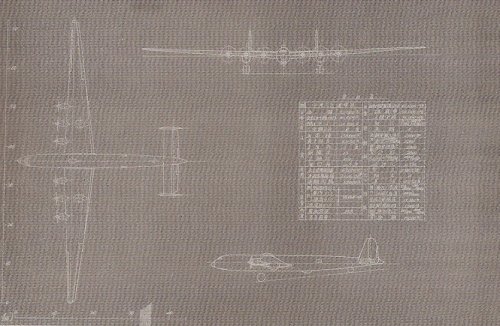

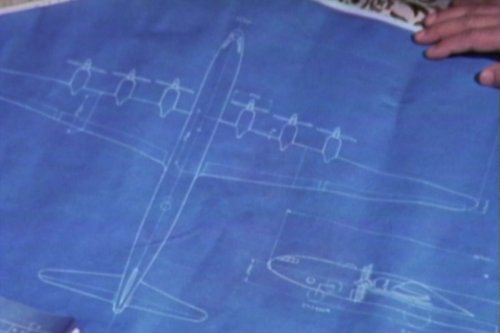

Hi Winston-san. I got this calender from one member of Fugaku Flying club. And scanned, then posted.
The size of this calender is about 50 cm × 80cm. Blue print size is same as the original one. ;)
Date of this drawing was 5/March/1943.
Base of this design was Z-bomer designed by Nakajima aircraft Ohta factory. Engine power was half compared with Z-bomber

Many thanks Motocar-san. Excellent drawings!!

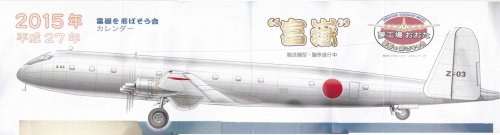

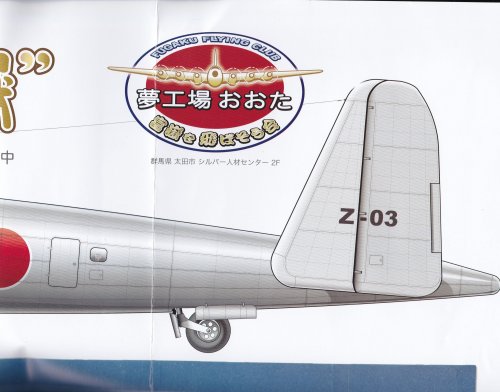

The first drawing which you posted is Fugaku final design artistic impression.(With pressurized cabin)
I believe that Fugaku final design did not have turbocharged engine. Fugaku final design had the engine with single stage 3 speed mechanical super charger. Number of propeller blade is eight.(Single propeller)

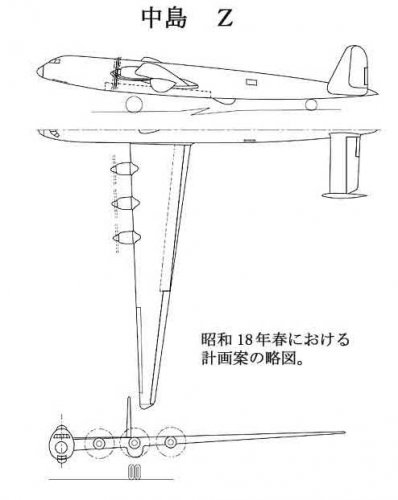

The second one is Z-bomber designed by Nakajima aircraft Koizumi factory. I believe this drawing is the trace of original drawing, reliable one. This design did not have pressurized cabin. This design was a one of the base of Fugaku final design. This design had turbocharged engine.
Perhaps Nakajima aircraft did not succeed to devolop tuebocharged HA-54 engine for Fugaku final design.


Attachments

  • 2015fugakucalendar-s.jpg
    198 KB · Views: 90
  • Z-bomber by Ohta factory.jpg
    Z-bomber by Ohta factory.jpg
    19.6 KB · Views: 79
  • fugaku4.jpg
    22.5 KB · Views: 63

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

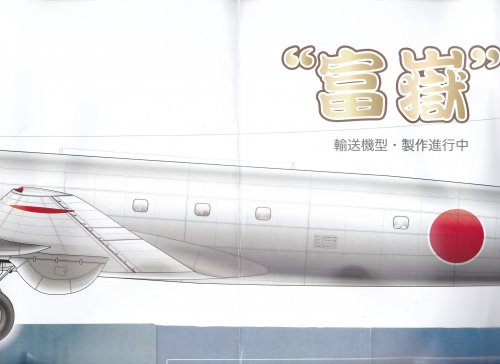

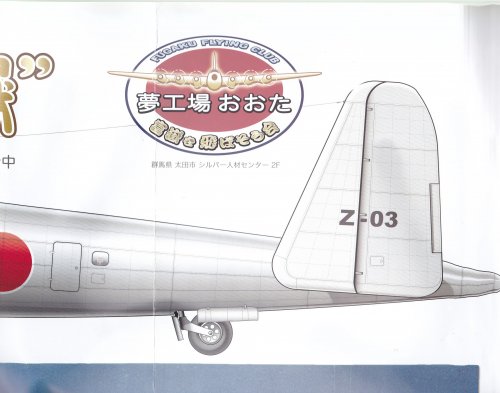

Hi! After war work by Mamoru Sakamoto using Illustrator.
He's very famous Mr. Minoru Matsuba's beloved pupil.


Attachments

  • tail.jpg
    1.2 MB · Views: 44
  • middle.jpg
    1.4 MB · Views: 48
  • nose.jpg
    1.3 MB · Views: 53

Winston

ACCESS: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
21
Thank you Blackkite. :)


I tried combining the images but Photoshop requires the scans of the nose and middle overlap before it will work!


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
Good idea ! Corel doesn't have this limit, but I couldn't compensate the slightly
different colors from the separate scans.


Attachments

  • Fugaku.jpg
    109.8 KB · Views: 86

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Winston said:
Thank you Blackkite. :)


I tried combining the images but Photoshop requires the scans of the nose and middle overlap before it will work!
Do you need these images?


Attachments

  • IMG_20141226_0001.jpg
    1.6 MB · Views: 30
  • IMG_20141226_0002.jpg
    1.4 MB · Views: 38

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Jemiba said:
Good idea ! Corel doesn't have this limit, but I couldn't compensate the slightly
different colors from the separate scans.
Good without tail, dark man. ;D


Winston

ACCESS: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
21
Yes Blackkite that is exactly what I need.
Jemiba said:
Good idea ! Corel doesn't have this limit, but I couldn't compensate the slightly
different colors from the separate scans.
I can add them together normally or use Photomerge to account for changes in perspective.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Wow excellent! Please modify tail end shape.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
You did it!! Thanks a lot. B)
We will see RC model flight of this transport next year. ;)


Winston

ACCESS: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
21
blackkite said:
You did it!! Thanks a lot. B)
We will see RC model flight of this transport next year. ;)
No problem! I am excited to see it take flight. :)


I saved this image a while ago but I cannot read the caption. Is it related to the Z-Plane? Can you read it? :D


Attachments

  • Copy of Copy of Copy of img002.jpg
    Copy of Copy of Copy of img002.jpg
    35.9 KB · Views: 293

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Wow amazing drawing! Thanks for sharing us.
Of course I can read it. Yes I believe this design related to Z-plane. One of the Chikuhei Nakajima's private venture.
The engine is HA-54 same as Z-plane.(5000hp 36 cylinders aircooling radial)

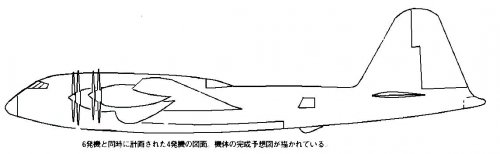

caption says that
This is a conceptional drawing of an airplane which possesses four engines planned simultaneously with an airplane which possesses six engines.

This one? I really want to know your source. ;)
http://www.secretprojects.co.uk/forum/index.php/topic,9451.0/all.html


Attachments

  • 4 ENGINE BOMBER.jpg
    4 ENGINE BOMBER.jpg
    373 KB · Views: 316

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
I think this bomber was almost same design compared with 6 engine transport.
This design was called temporaly 6 engine bomber with HA-44 enigne.(Half power compared with Z-plane.)
This was a backup of radical Z-bomber. You can see turrets which transport did not have.


Attachments

  • TEMPORARY 6 ENGINE BOMBER.jpg
    TEMPORARY 6 ENGINE BOMBER.jpg
    252.4 KB · Views: 304

Winston

ACCESS: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
21
I think my image came from secret projects, but I cannot find it now.
blackkite said:
Wow amazing drawing! Thanks for sharing us.
Of course I can read it. Yes I believe this design related to Z-plane. One of the Chikuhei Nakajima's private venture.
The engine is HA-54 same as Z-plane.(5000hp 36 cylinders aircooling radial)
caption says that
This is a conceptional drawing of an airplane which possesses four engines planned simultaneously with an airplane which possesses six engines.

This one? I really want to know your source. ;)
http://www.secretprojects.co.uk/forum/index.php/topic,9451.0/all.html
Interesting! So this was the original drawing from 1/28/1943 by the Nakajima club. When were the plans from Ohta and Koizumi proposed?


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
wow this topic is become better and better! awesome pics again you have posted Blackkite san!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Winston said:
I think my image came from secret projects, but I cannot find it now.
blackkite said:
Wow amazing drawing! Thanks for sharing us.
Of course I can read it. Yes I believe this design related to Z-plane. One of the Chikuhei Nakajima's private venture.
The engine is HA-54 same as Z-plane.(5000hp 36 cylinders aircooling radial)
caption says that
This is a conceptional drawing of an airplane which possesses four engines planned simultaneously with an airplane which possesses six engines.

This one? I really want to know your source. ;)
http://www.secretprojects.co.uk/forum/index.php/topic,9451.0/all.html
Interesting! So this was the original drawing from 1/28/1943 by the Nakajima club. When were the plans from Ohta and Koizumi proposed?
Hmmm.....This image is a really surprising one. Anyone knows about this?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
T-50 said:
wow this topic is become better and better! awesome pics again you have posted Blackkite san!
T-50 san, we are waiting for your new work. ;)


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,044
Reaction score
3,854
Kevin Renner said:
I have wonder. Just where did the IJA/N ever think they would get the fuel for such a beast
blackkite said:
I believe this transport was a Chikuhei Nakajima's private venture which transport oil and industrial materials from Southern area to Japan instead of surface transport.
blackkite said:
I think this bomber was almost same design compared with 6 engine transport.
This design was called temporaly 6 engine bomber with HA-44 enigne.(Half power compared with Z-plane.)
This was a backup of radical Z-bomber. You can see turrets which transport did not have.

Was the HA-44 a, or developed as, an alternative fuel engine, by any chance?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
A wood turpentine oil is the liquid like oil the thing to which batsune of a pine (stump) is dried distill gives. It's called Matsune turpentine. Use as a raw material of aerial gas was tried in Japan during the Pacific War, but didn't come to practical use because effort spanned and the yield was also very bad.


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
blackkite said:
T-50 said:
wow this topic is become better and better! awesome pics again you have posted Blackkite san!
T-50 san, we are waiting for your new work. ;)

I going make some art work of G10N and Kawasaki 200 in the new year you will see it soon Blackkite san


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
That's wonderful news T-50 san! I'll have the hunch which seems to be surprise and the joyful year for me next year. :D


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
317
Reaction score
154
T-50 said:
blackkite said:
T-50 said:
wow this topic is become better and better! awesome pics again you have posted Blackkite san!
T-50 san, we are waiting for your new work. ;)

I going make some art work of G10N and Kawasaki 200 in the new year you will see it soon Blackkite san
...great news for the new year!! :D Best wishes, Athpilot


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,620
Hi,

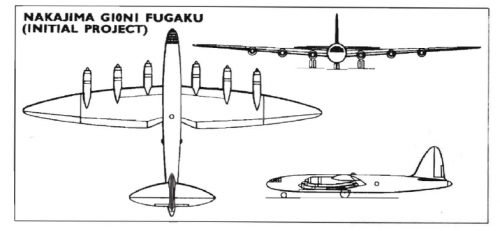

here is the initial drawing to G10N.


FR 3/1964


Attachments

  • G10N.png
    86.4 KB · Views: 64

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
Not realy Hesham.

It's more a postwar variation on the Fugaku theme...


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

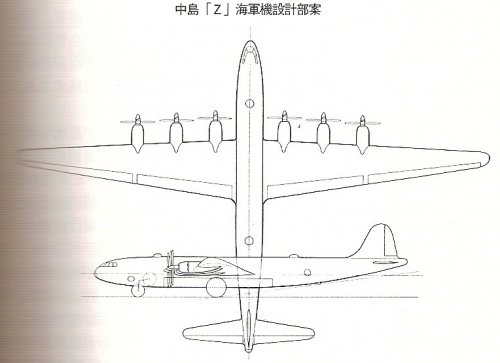

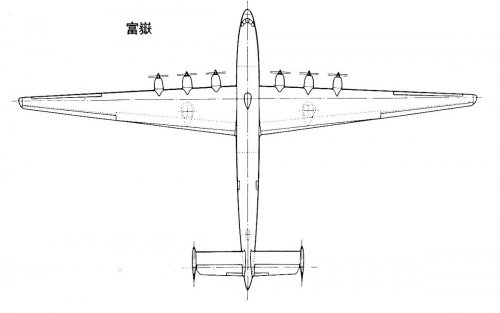

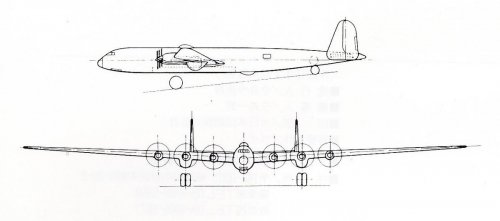

Hi! Clear image of Z-OHTA bomber. I believe this drawing is a trace or direct copy of Nakajima's original drawing. Very reliable one.
Engine ; Nakajima HA-54 take off power 5,000hp/each, Span ; 63m, Length ; 46m, Wing area ; 330 square meter, Gross weight ; 122ton, Maximum speed ; 780km/h, Ceiling ; 15000m, Range ; 19400km(with 5ton bomb), 16500km(with 10ton bomb), Armament : 20mm cannon×4 , Bomb ; max 20ton.
(I think these data are not reliable.)
Source : IMPERIAL JAPANESE NAVY AIRCRAFT, KOKU-FAN Illustrated, 98-4 N0.99, 1998.

We need Z-KOIZUMI clear drawing which survive still now. ;)

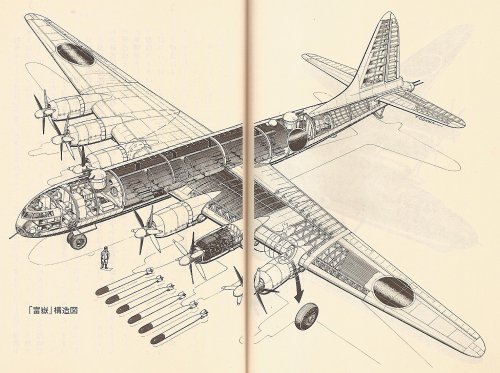

There is contradiction about store method of main gear for the last 2 drawings.
Cutaway drawing had main landing gear housing in middle engine nacelle same as Z-OHTA..
But I can't find any main landing gear housing in middle engine nacelle in the bottom official drawing. :-[


Attachments

  • Z-OHTA side and front view.jpg
    Z-OHTA side and front view.jpg
    41.8 KB · Views: 546
  • Z-OHTA plan view.jpg
    Z-OHTA plan view.jpg
    70.6 KB · Views: 547
  • Z KOIZUMI PLAN.jpg
    Z KOIZUMI PLAN.jpg
    72.3 KB · Views: 508
  • Z-KOIZUMI STRUCTURE.jpg
    Z-KOIZUMI STRUCTURE.jpg
    532.2 KB · Views: 493
  • Z-KOIZUMI.jpg
    361.8 KB · Views: 416

foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
286
Reaction score
20
Terrific find. Thank you Blackkite. What is the difference in meaning (or function) between OHTA & Koizumi?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
foiling said:
Terrific find. Thank you Blackkite. What is the difference in meaning (or function) between OHTA & Koizumi?
Hi!
http://www.secretprojects.co.uk/forum/index.php/topic,14582.210.html

And Fugaku chief designer Yasushi Koyama.


Attachments

  • YASUSHI KOYAMA PIC2.png
    YASUSHI KOYAMA PIC2.png
    785.6 KB · Views: 67
  • YASUSHI  KOYAMA.png
    YASUSHI KOYAMA.png
    466.8 KB · Views: 64
  • YASUSHI_KOYAMA_PIC1.jpg
    104.7 KB · Views: 79

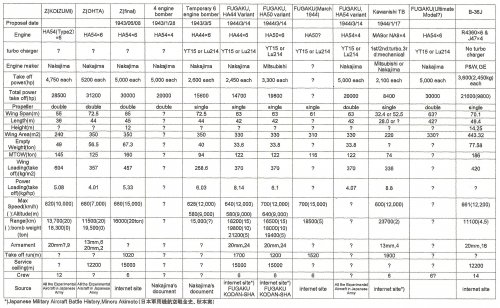

  • Z FUGAKU  TB SPEC[1].jpg
    Z FUGAKU TB SPEC[1].jpg
    719.7 KB · Views: 146

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

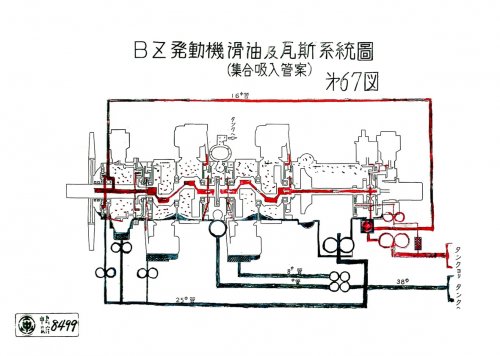

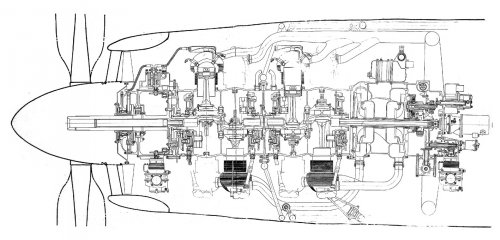

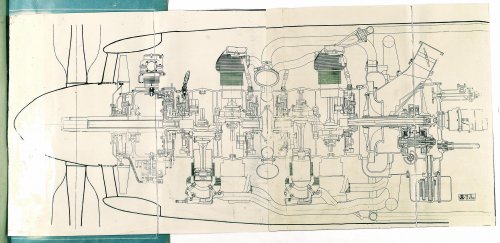

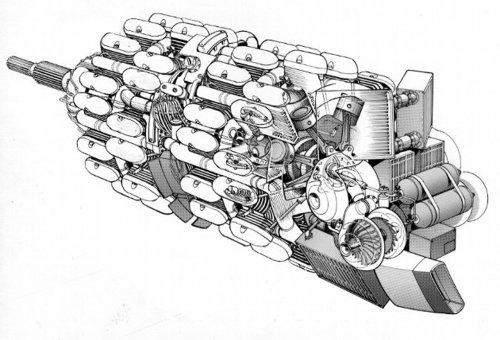

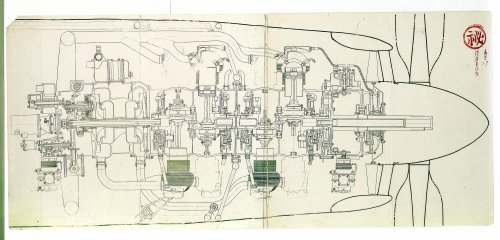

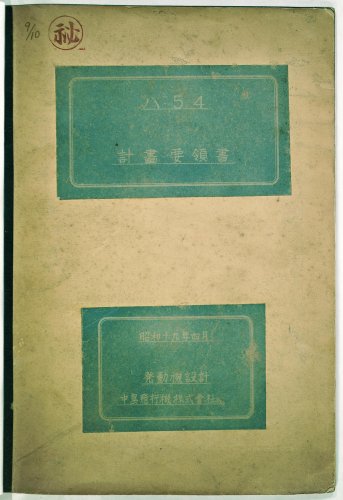

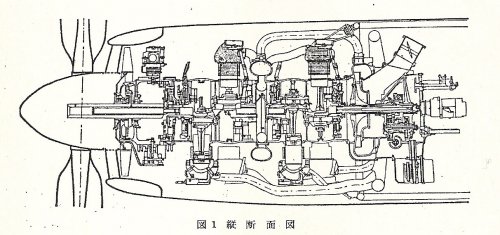

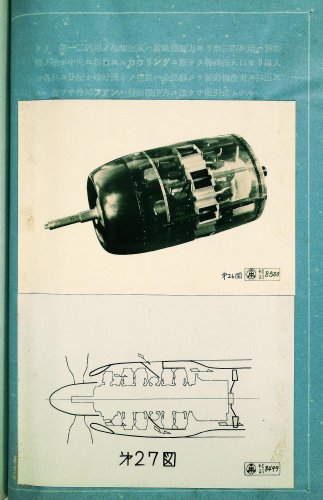

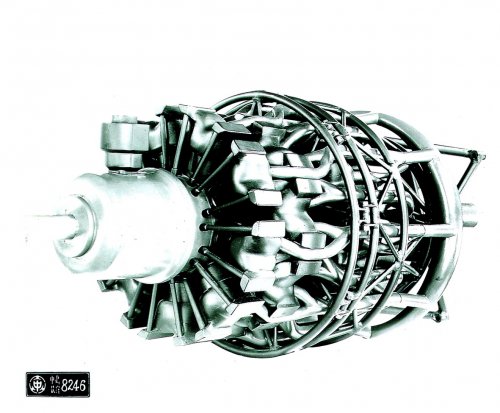

Hi! HA54 engine. (No manifold initial design?)


Attachments

  • HA54 MODEL.jpg
    HA54 MODEL.jpg
    261.8 KB · Views: 86
  • HA54 DRAWING.jpg
    HA54 DRAWING.jpg
    265.3 KB · Views: 49
  • HA54 DIAGRAM.jpg
    HA54 DIAGRAM.jpg
    188.8 KB · Views: 46
  • 0099.JPG
    1.2 MB · Views: 34

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
HA54 with manifold design.


Attachments

  • HA54.jpg
    240.6 KB · Views: 43

foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
286
Reaction score
20
Thank you so much, Blackkite. I often have to rush through articles and missed the very answer i wanted. Appreciate your tolerance with the less thorough fans of this site. :)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
There were some differences between these engines, especially mechanical supercharger design.
(Single inpeller and double inpeller.)


Attachments

  • HA54 no intake air manifold design.jpg
    HA54 no intake air manifold design.jpg
    265.3 KB · Views: 38
  • HA54 with  intake air manifold design.jpg
    HA54 with intake air manifold design.jpg
    240.6 KB · Views: 40

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Hi! Next images. Enjoy.


Attachments

  • HA54 ENGINE.JPG
    HA54 ENGINE.JPG
    1.3 MB · Views: 42

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
HA54 engine model.


Attachments

  • HA54 ENGINE MODEL.JPG
    HA54 ENGINE MODEL.JPG
    1.5 MB · Views: 61

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

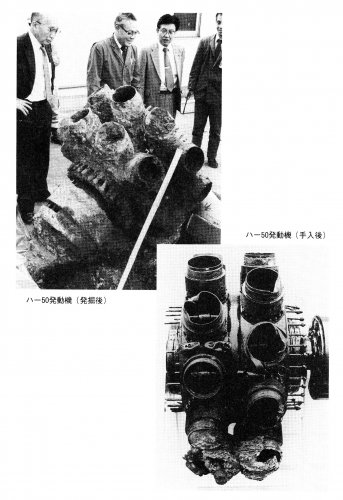

Mitsubishi HA50 engine.


Attachments

  • Mitsubishi HA50 engine for Fugaku bomber.jpg
    Mitsubishi HA50 engine for Fugaku bomber.jpg
    1.1 MB · Views: 58

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
these engines are real power beast that's for sure! and imagine six of them to power a huge plane like the Fugaku awesome!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Recently I get this HA54 engine plan point book.
Accoring to this book, engine drawing in this book is not including first stage turbo charger or mechanical supercharger.
So HA54 engine had two stage supercharger.


Attachments

  • HA54 engine Plan point note.JPG
    HA54 engine Plan point note.JPG
    730.9 KB · Views: 24
  • HA54 ENGINE final design.JPG
    HA54 ENGINE final design.JPG
    1.3 MB · Views: 24
  • Not selected HA54 no intake air manifold design.jpg
    Not selected HA54 no intake air manifold design.jpg
    265.3 KB · Views: 36

Similar threads

Top
