Fugaku : Z-plane, G10 or G12

Fluff

ACCESS: Secret
Joined
Sep 9, 2019
Messages
487
Reaction score
267
blackkite said:
Oh! I have never heard about Fugaku-kai. :eek:
I wonder that jet engine's fuel consumption was very large for such a long range aircraft at the day.

I do think so too. If such project existed it would reduce the range of the craft, maybe half??? But significantly increase it's speed and bomb load am I right?
Only 8 years ago, but just a suggestion, Jets were very new, maybe they thought of putting 2 or 4 into pods, for take off, and maybe to evade fighters, using speed. So not so much jet powered, as jet boosted.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
183
fujimi design


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
This Fugaku drawing is very good especially cabin.
But HA-54 engine with contra rotating double propeller is not a final design.

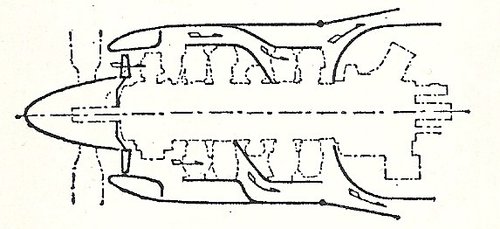

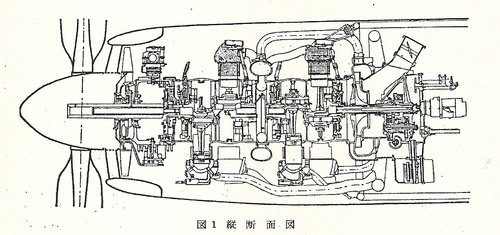

Please check attached HA-54 engine official drawings.
Propeller is single and engine cowl flap is also single and very big size.


Attachments

  • fugaku10.jpg
    50.3 KB · Views: 113
  • HA54.jpg
    240.6 KB · Views: 100
  • TYPE 1 COOLING.jpg
    TYPE 1 COOLING.jpg
    54.7 KB · Views: 98
Last edited:

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127
The Fugaku design (like its proposed official designation G10 etc.) was never fixed. Fugaku was an idea, a concept. A set design was never fixed on, just like its designation was not official. The Fugaku can be depicted in any number of ways; twin tail, single tail, B-29 like nose, traditional nose, contra-rotating props, traditional props, remote gun turrets, manual gun turrets. The only part of the plane that had progressed to any degree were the Ha-54 engines.
Model makers and artists have a lot of latitude when depicting this aircraft.

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Yes and also HA-54 engine suffered cooling problem at last cylinder row.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
611
Reaction score
183
The Fugaku design (like its proposed official designation G10 etc.) was never fixed. Fugaku was an idea, a concept. A set design was never fixed on, just like its designation was not official. The Fugaku can be depicted in any number of ways; twin tail single tail, B-29 like nose, traditional nose, contra-rotating props, traditional props, remote gun turrets, manual gun turrets. The only part of the plane that had progressed to any degree were the Ha-54 engines.
Model makers and artists have a lot of latitude when depicting this aircraft.

So the fujimi one is valid ,thanks


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127
The Fugaku design (like its proposed official designation G10 etc.) was never fixed. Fugaku was an idea, a concept. A set design was never fixed on, just like its designation was not official. The Fugaku can be depicted in any number of ways; twin tail single tail, B-29 like nose, traditional nose, contra-rotating props, traditional props, remote gun turrets, manual gun turrets. The only part of the plane that had progressed to any degree were the Ha-54 engines.
Model makers and artists have a lot of latitude when depicting this aircraft.

So the fujimi one is valid ,thanks

It is as valid as any other rendition. No more, no less.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

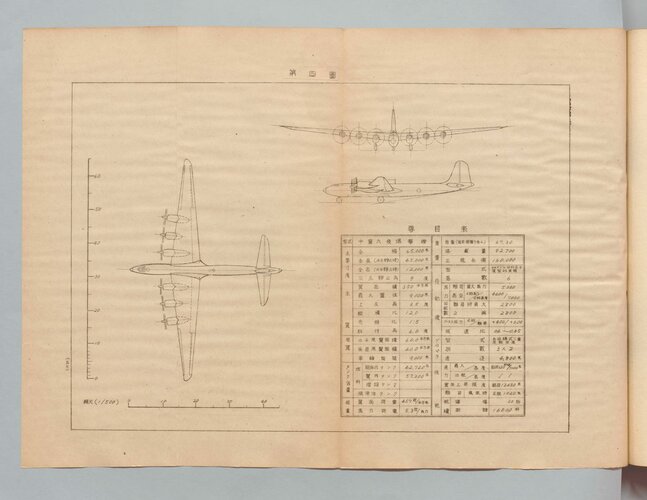

It's absolutely true that we only have the official drawing of Z-plane.
We never have Fugaku drawings at all. Burned out all perhaps.
Only we approach them logically, if possible according to the evidence........

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

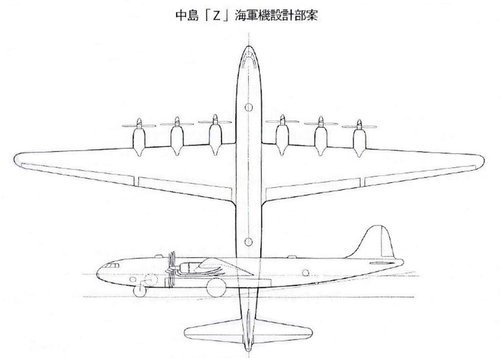

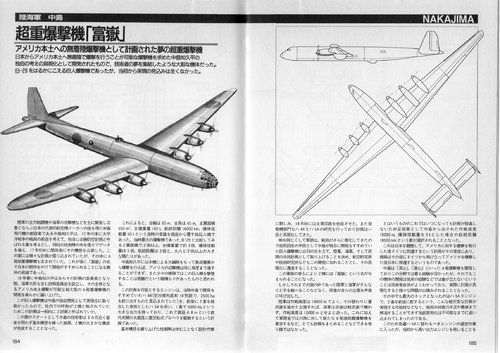

Hi! Rather clear image of Z-koizumi as you already know.
中島「Z」海軍機設計部案 means Nakajima Z-bomber(the ancestor of Fugaku bomber) plan which the IJN aircraft design department designed. The IJN aircraft design department belonged to Nakajima aircraft Koizumi factory. This drawing's side view is strange, because there are no space for main landing gear when retracted.
Drawing source is "All the Experimental Aircraft in Japanese Army", KANTOSHA MOOK, 2/20/2008, Minoru Akimoto, ISBN978-4-87357-233-8, page109.

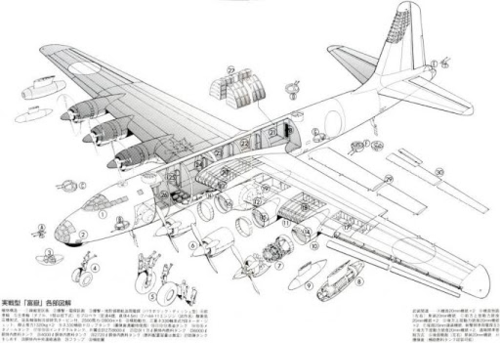

Motocar-san's excellent cutaway of this aircraft is as follows.

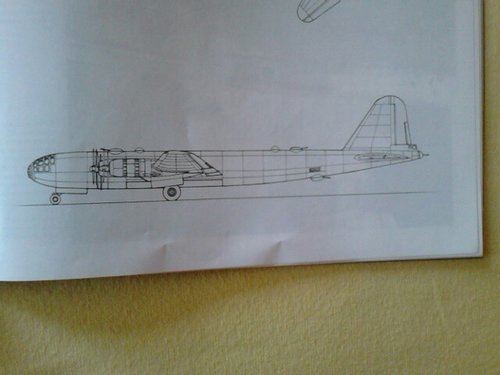

And perhaps this is the original drawing of Z-Koizumi. No space for landing gear?

Z-Ohta is as follows.

Z-final shape is as follows.



Attachments

  • EXPERIMENTAL AIRCRAFT OF IJA.png
    EXPERIMENTAL AIRCRAFT OF IJA.png
    148.7 KB · Views: 59
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

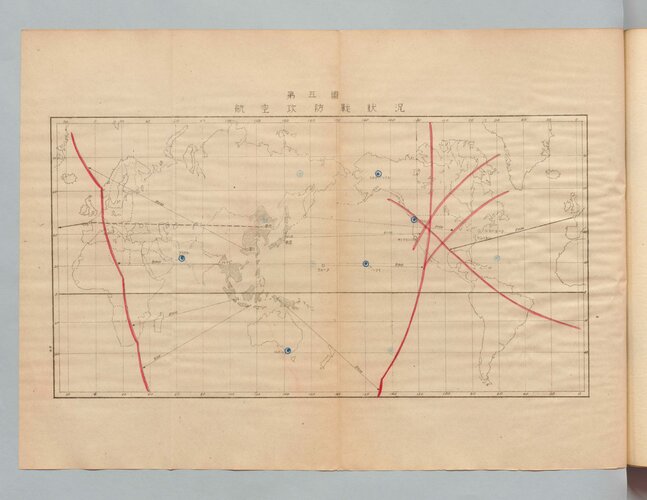

This blog says that......
"During this time, Nakajima Aircraft was coordinating with each related organization and was working on the design of the Fugaku bomber with all efforts, and it seems that it was decided to build a factory that produces Fugaku on the site of Mitaka Research Laboratory.
However, it seems that it was difficult to develop a turbocharger-equipped large engine BH (Ha54) that was planned to be installed in Fugaku bomber, and BH could not obtain a stable output enough to fly a large aircraft. In the end, it is said that they gave up their in-house development and chose to install Mitsubishi's prototype engine “Ha 50” (aircooling radial double row 22 cylinder). By the way, “Ha 50” is exhibited at the Aviation Science Museum near Narita Airport."

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
There is a list for the IJA aircraft which include long range bomber Fugaku in this book.
"Japanese aeronautical academicscientific history(日本航空学術史)."
Description about Fugaku(two types) are as follows.
Design : Nakajima
(1) Engine : Ha219ru(Ha42-21ru)(Nakajima), Number of engine : 6, Take off power : 2500hp, nominal power : 2050hp(7000m-15000m), Speed : 640km/h/12000m, crew : over 6
(2) Engine : Ha50(Mitsubishi, Number of engine : 6, Take off power : 3300hp, nominal power : 2370hp(10400m), Speed : 700km/h/12000m, crew : over 6

"Engine : Ha219ru(Ha42-21ru)(Nakajima)" is apparently mistake. Correctly it's Ha219ru(Ha44-12ru)(Nakajima).

There are no descriptopn about Nakajima Ha-54 engine. Ha-54 had engine cooling problem at No.4 engine row.

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

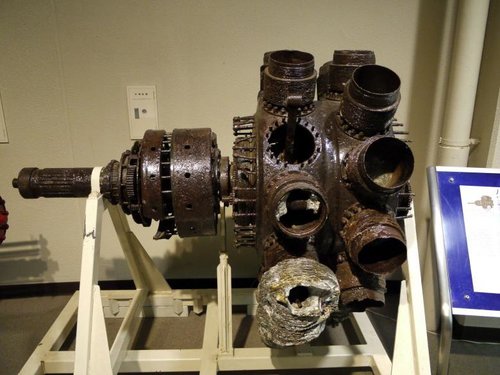

Mitsubishi Ha-50 engine specification is as follows.
Bore : 150mm, Stroke : 170mm, Displacement : 66.1 little, Weight : 1540kg, Diameter : 1500mm, Reduction ratio : 0.412, Super charger : Mechanical drive single stage two speed supercharger+turbocharger, Fuel injection, water injection, take off power : 3100hp/2600rpm, nominal power : 2700hp/2500prm/1500m and 2240hp/2500rpm/10000m
Source : THE HISTORY OF MITSUBISHI AERO-ENGINES, ISBN4-89522-461-9 C0053
Perhaps the length is 2400mm.


Attachments

  • Mitsubishi Ha-50.jpg
    Mitsubishi Ha-50.jpg
    67.5 KB · Views: 79

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
If you still want to draw Fugaku with HA54 engine desperately, you should draw Fugaku with four HA54 engines.
It was Fugaku commitee's decision.

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

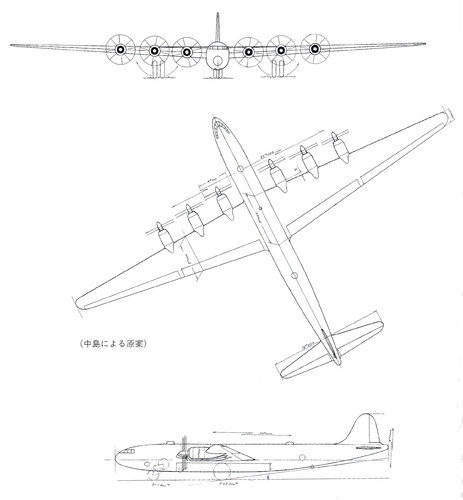

Hi! Fugaku ancestor Z-plane designed by Nakajima aircraft Koizumi factory for the IJN.
I believe this drawing is based on Nakajima's official drawing.
I understand how to retract main landing gear. After take off inner tire of main landing gera dropped, then main landing gear retract inside of the wing.
Source : Japanese Aircraft Large Picture Book.



Attachments

  • Z-PLANE KOIZUMI.jpg
    Z-PLANE KOIZUMI.jpg
    1.1 MB · Views: 78
  • Z.jpg
    99.7 KB · Views: 82
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

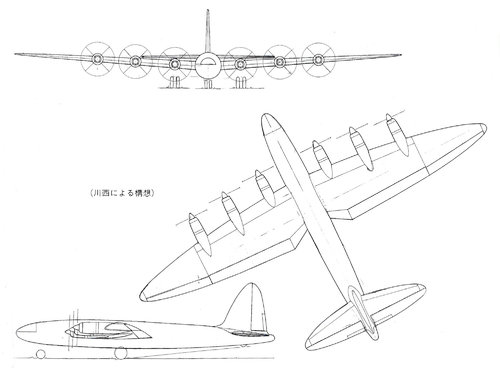

And this three side view drawing shows Kawanishi design for Fugaku.
Source : Japanese Aircraft Large Picture Book.


Attachments

  • FUGAKU KAWANISHI STUDY.jpg
    FUGAKU KAWANISHI STUDY.jpg
    245.1 KB · Views: 96

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

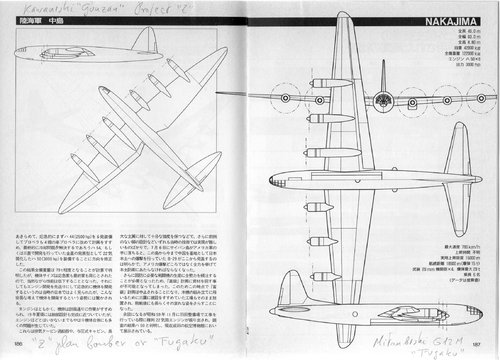

695.jpg represent Nakajima G10N or an other variation of Fugaku of Nakajima ?
Difficult to identify. Perhaps Fugaku with Nakajima HA-44 engine or Fugaku with Mitsubishi HA-50 engine.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

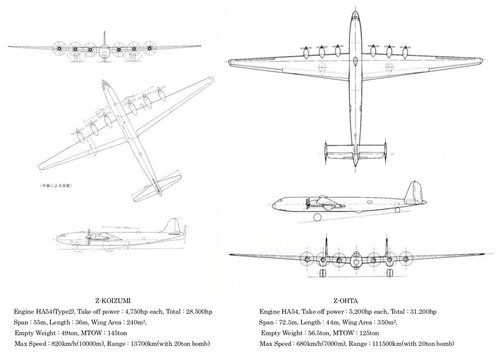

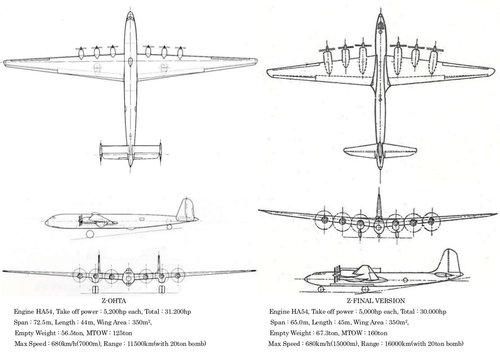

Hi!

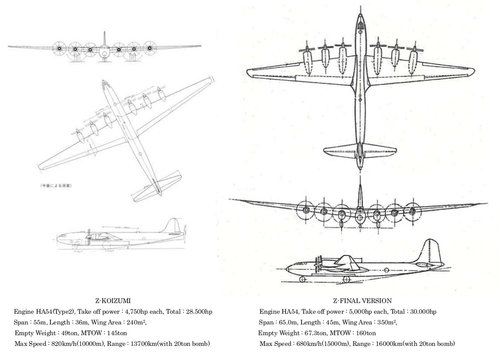

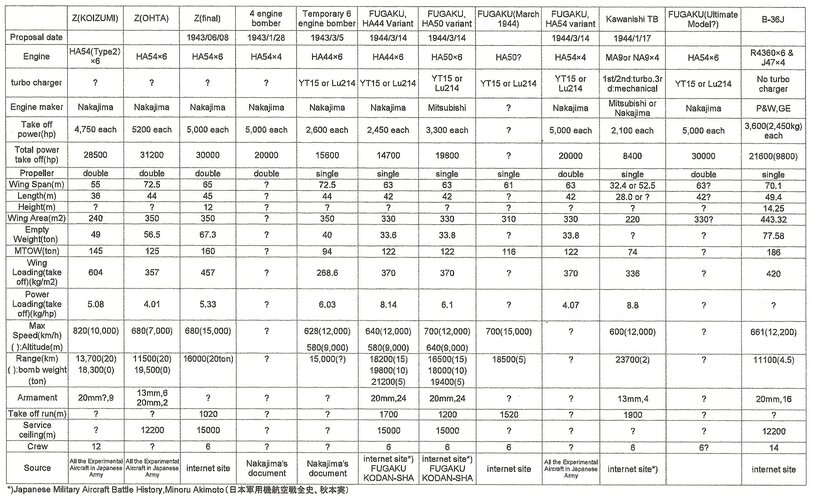

Specification of Fugaku final version is almost similar to Z-Ohto design.


Attachments

  • Z-Koizumi vs Z-Final Version.jpg
    Z-Koizumi vs Z-Final Version.jpg
    118 KB · Views: 92
  • Z-Ohta vs Z-Final Version.jpg
    Z-Ohta vs Z-Final Version.jpg
    123.1 KB · Views: 93
Last edited:

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,243
Reaction score
102
Website
zeef.com
Tzoli said:
Nice one of the Torpedo Carrying variant but I thought about this version:
From the book: Japanese Secret Projects: Experimental Aircrafts of the IJA and IJN 1939-1945 by Edwin M. Dyer, III

"Bombing was not the only mission that was envisioned for the Fugaku and during the Project Z brainstorming three other concepts arose and later formed part of Chikuhei's thesis. The First was and attack design that had 400 Type 97 7.7mm machine guns crammed into the aircraft. The front and the back of the bomber would accommodate 40 machine guns arranged in ten rows. The intention was to rain thousands of rounds of bullets down on to enemy ships with the theory that a swath of destruction 45m (148ft) wide and 10km (6.2 miles) long could be achieved by 15 Fugaku aircraft. Once the decks of these ships were swept of personnel, nine Fugaku bombers, each with twenty 907kg (2,000 lb) bombs or torpedoes, would deliver the coup de grace, covering a path 200m (656ft) in length with high explosive."
Hmmmm......
This is a heavy escort type.
against modern american fighters ? Could had been same fate of B-40 Fortress ( heavy escort version of B-17) .


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

Attachments

  • 2021fugakuCalendar.jpg
    153.2 KB · Views: 31
  • tiisanatabi.jpg
    119.1 KB · Views: 30
Last edited:

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,243
Reaction score
102
Website
zeef.com
Last edited:

Noveos

I really should change my personal text
Joined
Mar 8, 2019
Messages
39
Reaction score
22

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
At the end of the Pacific War, the Japanese Navy had developed an experimental torpedo M with a total weight of 2 tons, but this was left unfinished. Since the spring of 1944, Kugisho had been developing a huge aerial torpedo weighing 2 tons for the four engine land attack aircraft "Renzan". The torpedo was called the "Experimental torpedo M" or abbreviated as the "2 ton torpedo". This torpedo is like a giant of the Type 91 aerial torpedo, with a diameter of 21 inches (53.3 cm), a total length of 23 ft 4-1 / 4 inches (7.10 m), a total weight of 2,070 kg, and an explosive charge of 750kg.

However, members of the Type 91 aerial torpedo development team did not consider the experimental torpedo M to be part of the Type 91 aerial torpedo series. This torpedo was supposed to be the largest aerial torpedo in the history of the Japanese Navy, but the tactical concept of performing torpedo strikes from a distance with four engines large aircraft was no longer in tune with the times, so the torpedo ended unfinished.
