Unbekannte Panzerstudie

hannesjo

ACCESS: Restricted
Joined
Dec 3, 2020
Messages
26
Reaction score
117

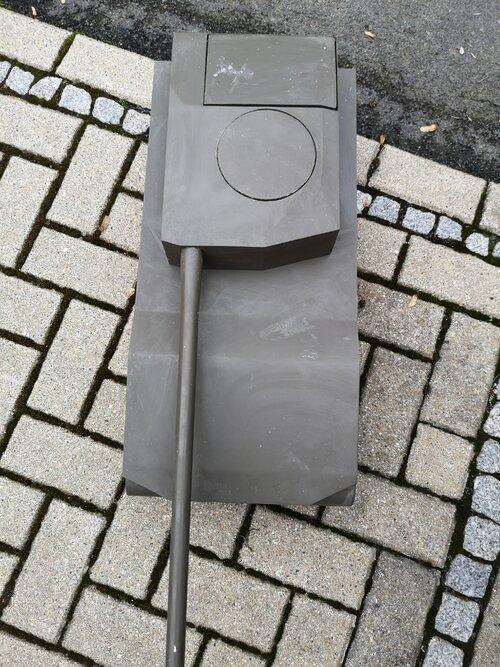

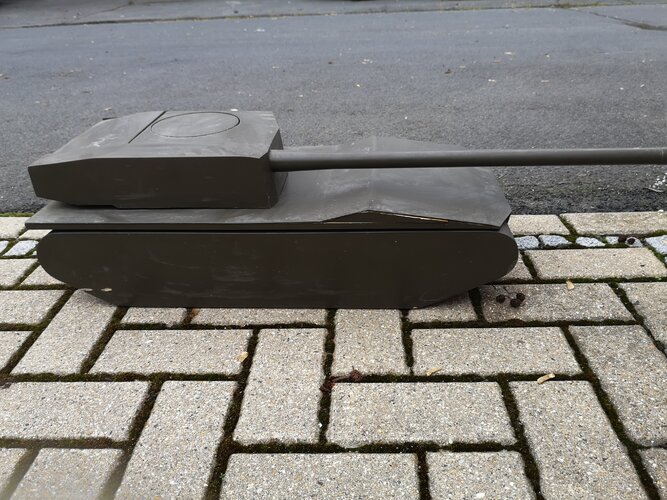

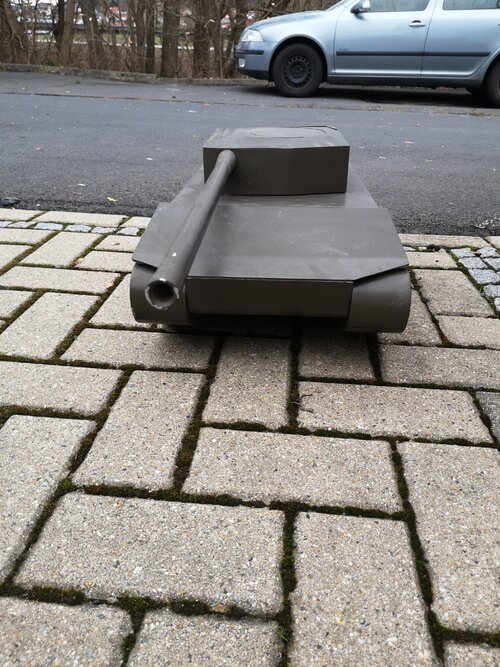

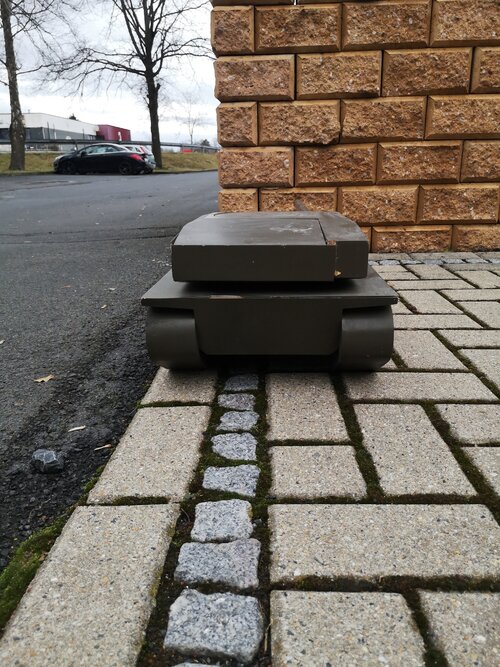

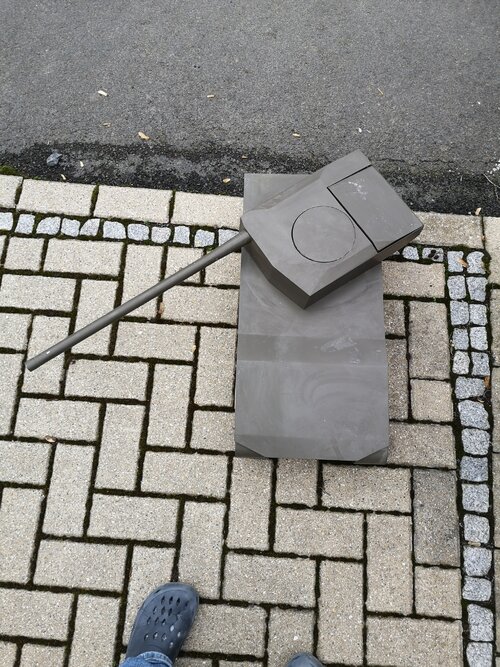

Hello dear tank friends :) Here I show an unknown tank concept that dates back to the 70s!
There are no details available, just the contour! Its in 1:10 scale


Greetings from Frielendorf Germany


Attachments

  • IMG_20210130_150815.jpg
    5.7 MB · Views: 63
  • IMG_20210130_150833.jpg
    4.9 MB · Views: 55
  • IMG_20210130_150853.jpg
    5.5 MB · Views: 46
  • IMG_20210130_150912.jpg
    5.2 MB · Views: 36
  • IMG_20210130_150924.jpg
    6.5 MB · Views: 54

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,152
Reaction score
1,880
Hello dear tank friends :) Here I show an unknown tank concept that dates back to the 70s!
There are no details available, just the contour! Its in 1:10 scale


Greetings from Frielendorf Germany
Solid wooden models like this are a German speciality. I bought one for the Gepard AA tank at a toy fair in Cologne back in 2003. More detailed ones have featured in books about the Leopard family and the Kpz70.
The model is very Leopard 2 with its turret shape but the Swiss looked at a tank with its turret located at the rear. I will see if there is a thread here anywhere.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,201
Reaction score
911
Website
beyondthesprues.com
I suspect this might be one of a series of studies carried out between 1976 and 1978 looking at different turrets/configurations.


monochromelody

ACCESS: Restricted
Joined
Nov 3, 2015
Messages
17
Reaction score
35

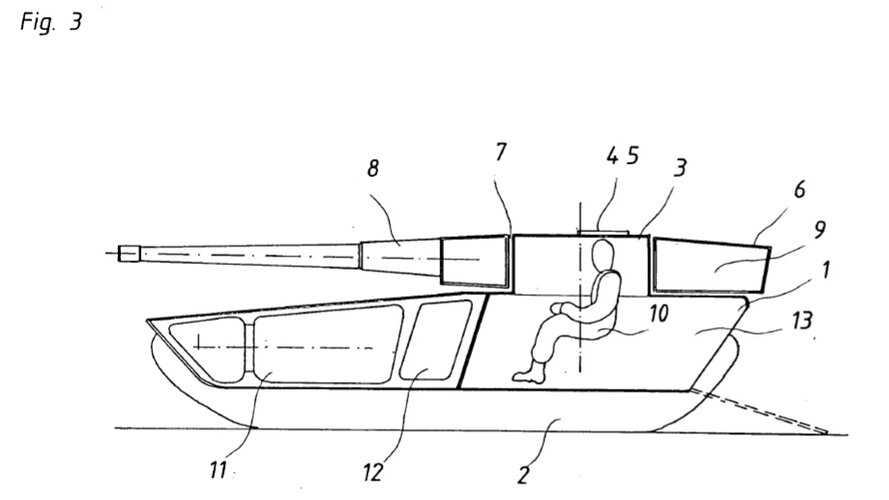

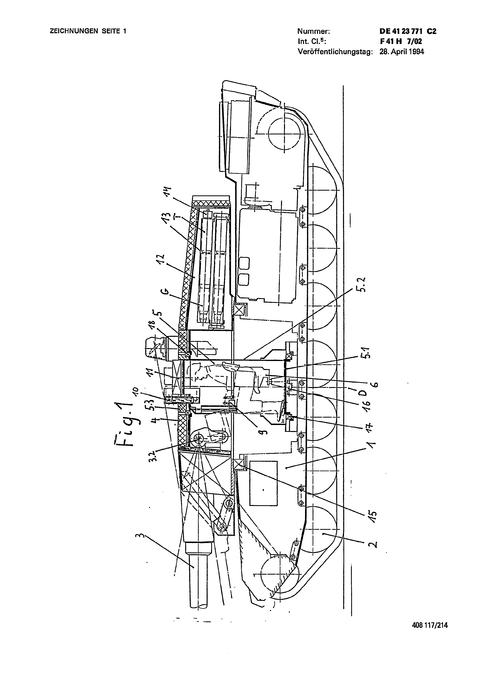

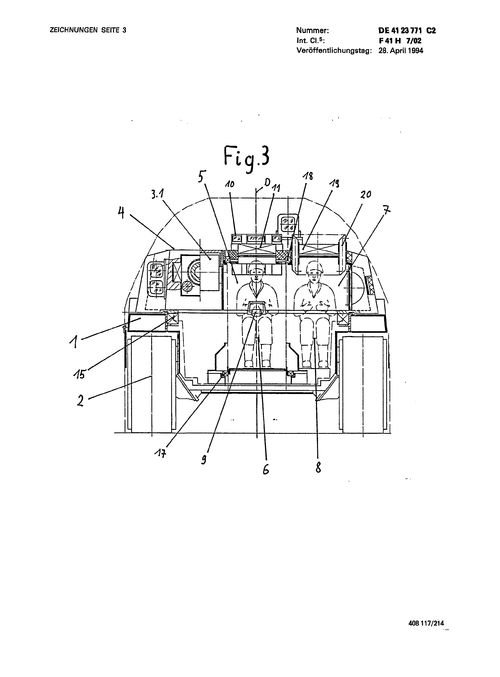

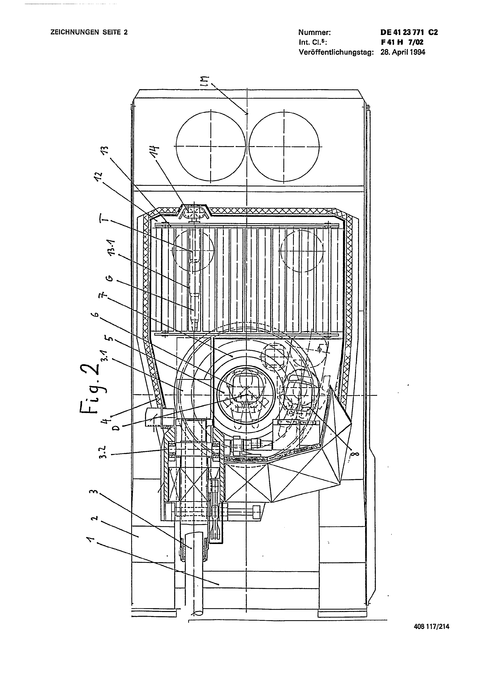

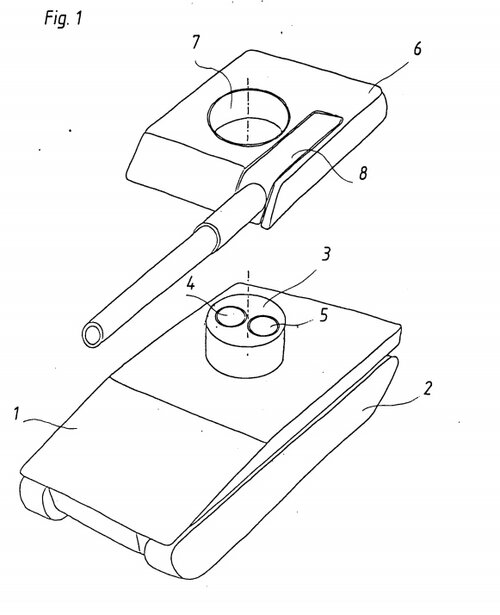

Such design also appeared in Wegmann's patent DE4123771C2
A 2-man DIT(driver in turret)design, the driver located in the center of turret ring, another crew member on the left and main gun on the right.
DE_4123771_C2.png DE_4123771_C2 (1).png DE_4123771_C2 (2).png


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,996
Reaction score
876
Totally implausible.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,361
Reaction score
780
Every time it fired that gun, the turret and hull would try to rotate clockwise.
The solution - for an accurate second shot - is traversing the turret "right 20 an left 10 degrees" to ensure that all the gear back-lash is cancelled.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
Every time it fired that gun, the turret and hull would try to rotate clockwise.

That's what I was thinking . . .
But . . . would it be possible to engineer some method of locking the turret to the hull, just prior to firing, to prevent this movement ?

cheers,
Robin.
