Swiss MBT 1980's

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
296
Reaction score
97
Interesting front engined MBT proposal for the Swiss Army, the NKPz ended up to expensive and the auto loader was apparently problematic.


Attachments

  • SWISS- NKPz_1.jpg
    SWISS- NKPz_1.jpg
    22.5 KB · Views: 1,076

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42
Is this what was sometimes called the Lamgorghini tank? I have a line drawing (which I will post if someone tells me how) and a description referring to 'a streamlined egg shaped turret rather like the Russian T-54.'


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
325
Hi smurf,

when you write a post, can you see the "Additional Options..." under the white rectangle where you write your text?
just click on it and follow the indications. Try to resize your pics below 100-120 Kb to avoid server overloads.
And this is all, if you need additional help just tell it.

wellcome and enjoy the forum :)

regards
Antonio


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42
Thanks. I will try.

A. the description was found in Angelucci's book 'Modern Armour' I think it was also in Jane's for the late 1980's but I don't have those. It's hard to see how it could be written unless someone had seen drawings.

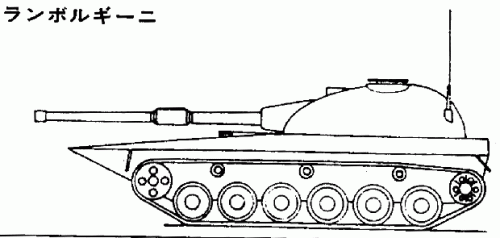

B. the picture came from a Japanese website. The machine translation on it referred to 40 tons, front engine, acute angle armour and 105mm rifle or 120mm smooth bore. I have a downloaded page but the pictures there won't show - except by opening the files to get at the gif, which is what I hope follows. I do not have a url for it.

PS forgive the typo for Lamborghini


Attachments

  • Swiss Lambo tanj.gif
    Swiss Lambo tanj.gif
    17.4 KB · Views: 728

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42

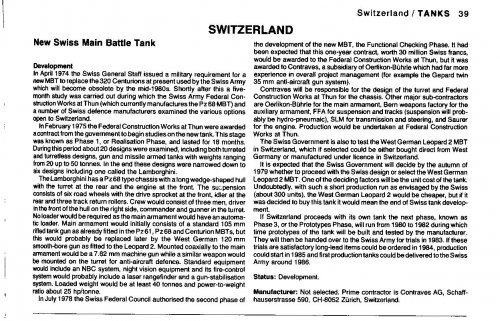

I have a copy of the description in Jane's 1979/80. It's more like the Japanese website line drawing (which may of course have been drawn from it. The picture posted by Jazz has a much squarer turret and is a different (later developed?) version. 120mm gun?
The Leopard 2 won out in the end.
Has anyone any information, pictures, of any of the early concept studies referred to in Jane's?


Attachments

  • Swiss mbt.jpg
    Swiss mbt.jpg
    334 KB · Views: 686

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
296
Reaction score
97
I suspect that the round turreted drawing was only conceptual rather than being the basis of any real design. Spaced arounr or even cobham armour. The NKPz (square turret) has the following specifications

Overall length 8.508m
Hull length 7.725m
Width - with/without skirts 3.630m / 3.4550m
Height top turret roof 2.570m
weight - combat 50t
Armament 120mm Rheinmetall smoothbore - 50 rounds
7.5mm co-axial MG
7.5mm ring mounted MG

Engine V12 990kW

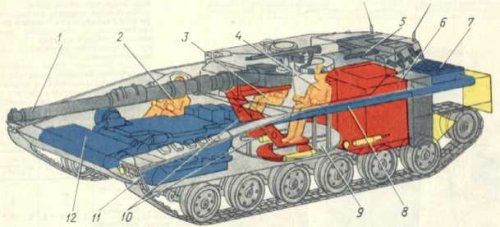

Additional schematic attached


Attachments

  • SWISS- NKPz.jpg
    SWISS- NKPz.jpg
    21.4 KB · Views: 1,524

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
42

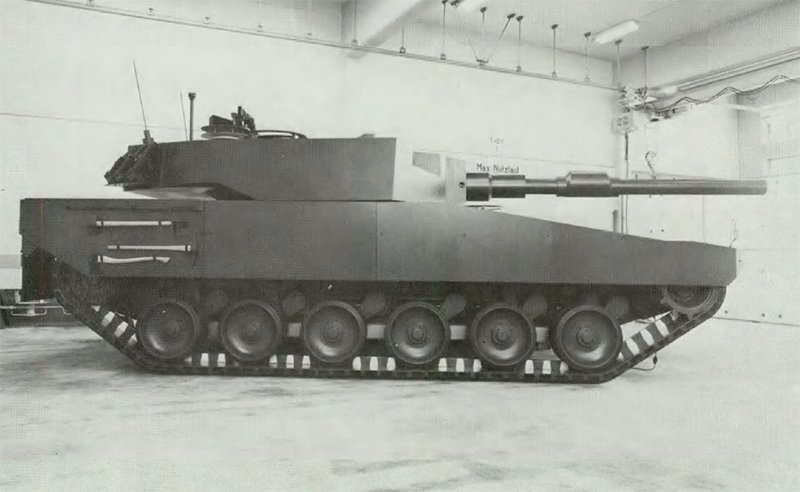

Seeing this, and the picture of the wooden mockup in Hilmes book, I think my Japanese drawing is simply an artist's impression based on the verbal description in Angelucci's book Modern Armour.


rdmr

I really should change my personal text
Joined
Jul 18, 2018
Messages
4
Reaction score
0

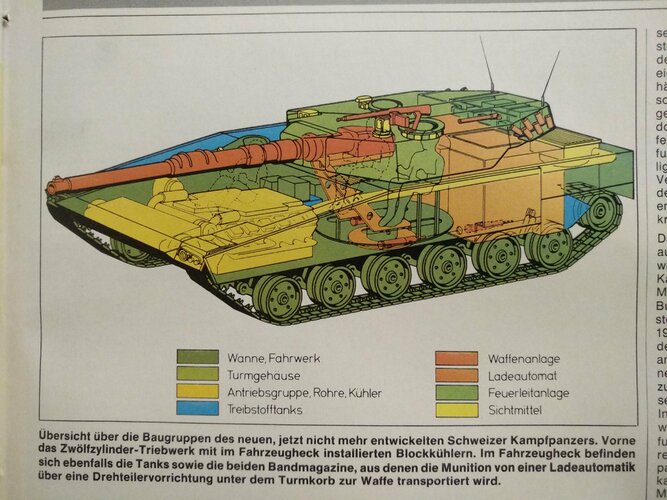

Hi, here is a few more pics of this prototype. Great looking vehicle, Leo2/Merkerva mash up.
Has anyone come across a timeline for its development?


Attachments

  • 1.png
    69.7 KB · Views: 391
  • 2.jpg
    183.2 KB · Views: 325

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
883
Reaction score
439
rdmr said:
Has anyone come across a timeline for its development?
The development was launched about 1975, but was already abandoned in 1984 when the purchase of Leo IIs was reviewed by Bundesrat und Parlament.
https://www.nzz.ch/schweiz/schweizer-geschichte/zeitenwende-fuer-den-ruestungsfilz-1.18440000


rdmr

I really should change my personal text
Joined
Jul 18, 2018
Messages
4
Reaction score
0
Cheers Dan,

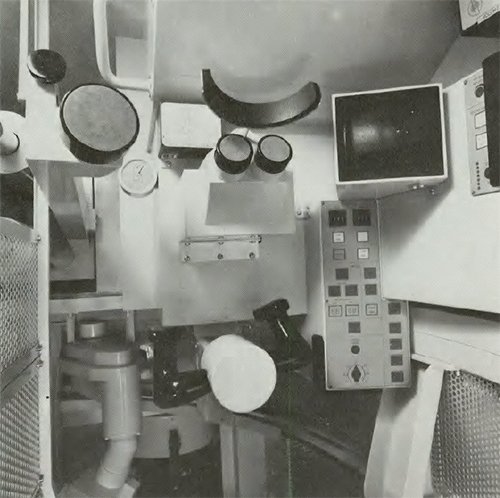

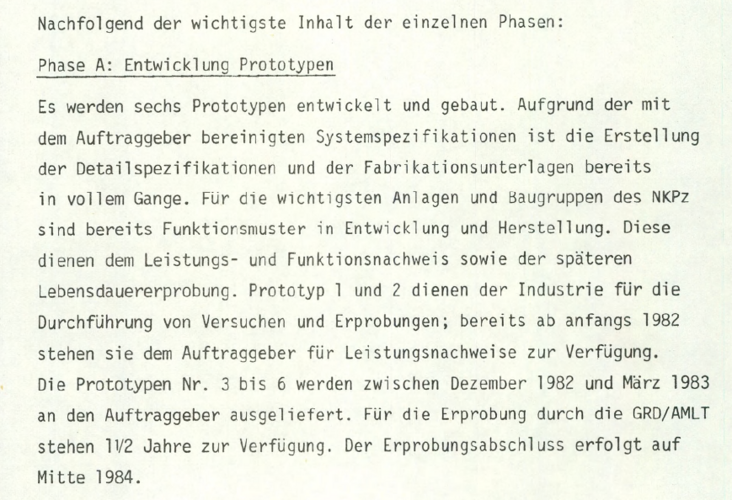

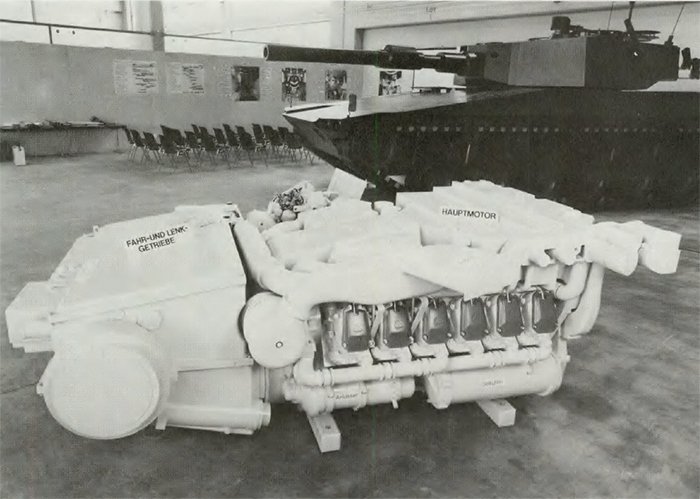

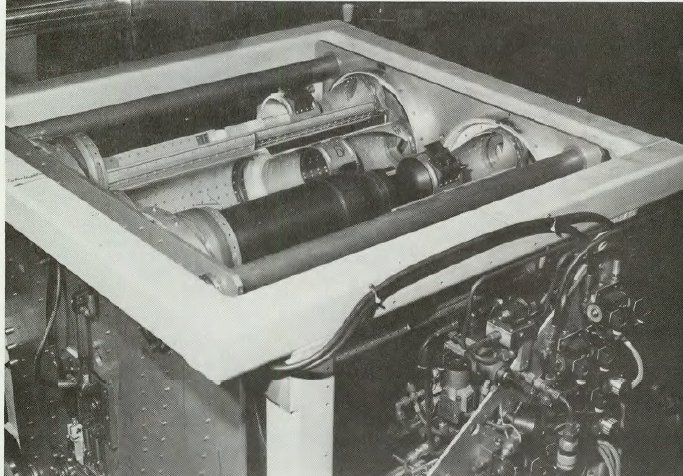

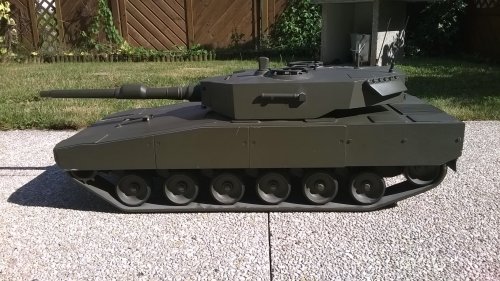

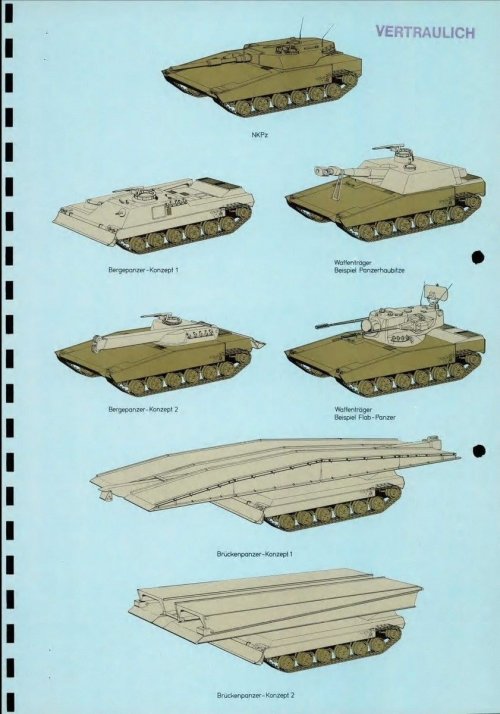

Here's a few more photos including a model.


Attachments

  • 3.jpg
    56.8 KB · Views: 147
  • 4.jpg
    474.2 KB · Views: 153
  • paper.jpg
    596.2 KB · Views: 154
