MDP program - the Mikoyan Product 701

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
35
Mikoyan Product 701

Crew: 2
Wingspan: 19 m
Length: 31 m
Height: 7 m
Wing Area: 130 m2
Empty Weight: 35,000 kg
Maximum TO Weight: 65,000 kg
Cruise Speed: 2,500 km/h
Ceiling: 17,000 m
Subsonic Range: 11,000 km
Supersonic Range: 7,000 km
Engines: Two turbofans of 200 kN each
Armament: 4 x R-72

The Product 701 was a long-range and high-altitude interceptor to replace MiG-31. It was designed for a high degree of autonomy to patrol the extreme borders of the USSR and intercept enemy bombers before they could launch their cruise missiles. Cranked delta wing, single vertical tail, and two turbofans above the wings with a dorsal intake. Internal weapons bay. Production line was planned at Gorkiy. A supersonic business jet version was proposed in 1993 as the Product 701P.

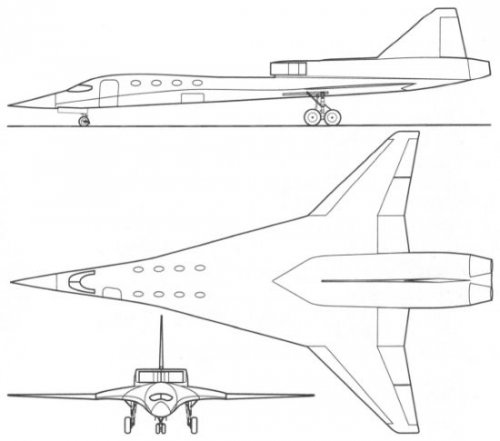

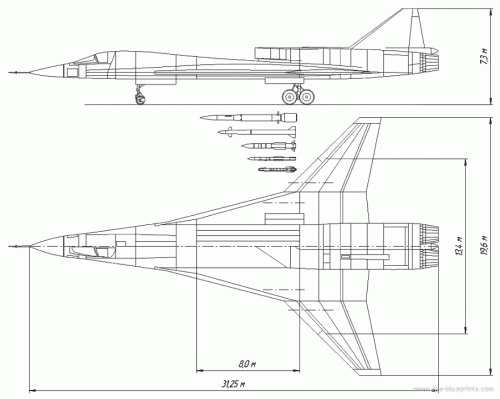

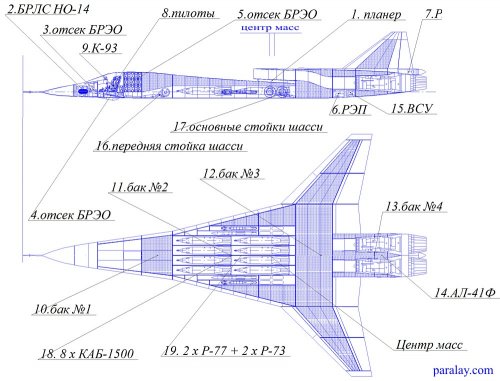

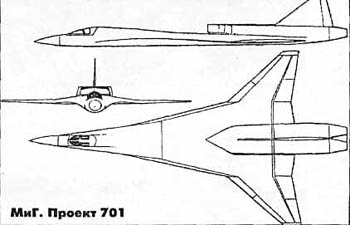

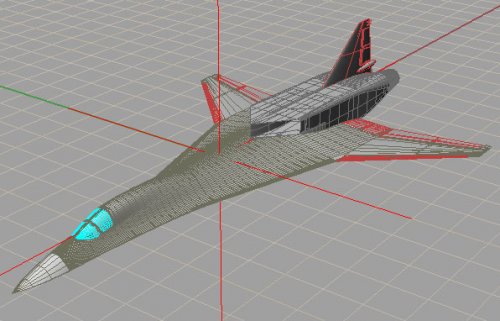

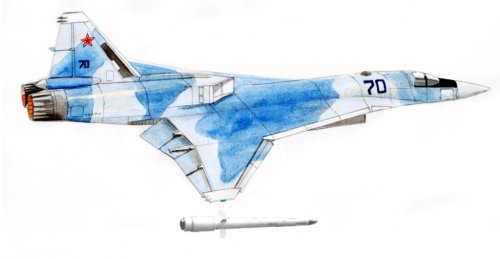

Attached are a three-view from the Aviatsia i Vremya magazine, and an excellent drawing by paralay.

Sources
  • Brassey's World Aircraft & Systems Directory 1996/97
  • http://www.testpilot.ru/russia/mikoyan/701/mig701.htm (in Russian)
  • http://paralay.narod.ru/mdp.html (in Russian)


Attachments

  • MiG 701.jpg
    MiG 701.jpg
    27.1 KB · Views: 4,958
  • MiG 701P.jpg
    MiG 701P.jpg
    21.5 KB · Views: 1,186
  • MiG 701.jpg
    MiG 701.jpg
    63 KB · Views: 1,391

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,543
Reaction score
331
Until now the drawings I have from 701 were that form your post but please take a look at this link and tell me what you think:

http://www.ussr-airspace.com/catalog/product_info.php?cPath=28_39_38_96&products_id=2436&PHPSESSID=77aab08a8dea0ab1947dcf6a0f43c4b0

Alex Panchenko sells beautiful Soviet/Russian model aircraft, most of it very rare unbuilt projects but everything is authentic....but it is difficult for me to believe this is the true 701 shape. It seems a toy :-\

One seater, 4 "mini-engines", single underbelly missile....where are the Novator K-172 AAM?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
Nope.

Thats one of the early Sukhoi T-4 configurations if I'm not mistaken. Look at the "Winged Archer" symbol on the fuselage.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu
Pometablava: it seems to me more like one of Tupolev 135 designs than as MiG 70.1

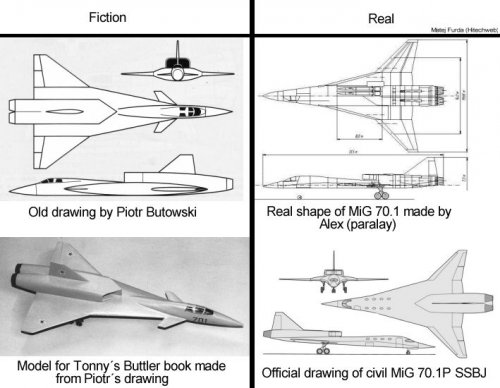

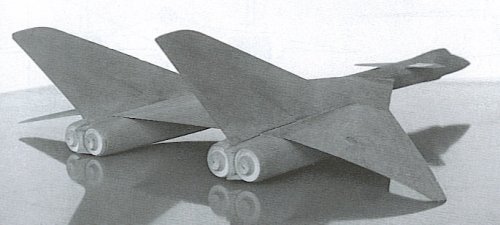

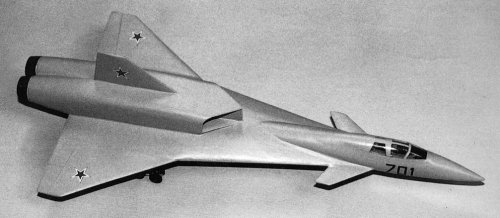

And one hideous early design from Tony Buttler´s book Soviet Fighters.


Attachments

  • Mig Type 701.JPG
    Mig Type 701.JPG
    82.1 KB · Views: 2,584
  • Tu Aircraft 135_!.JPG
    Tu Aircraft 135_!.JPG
    41.8 KB · Views: 1,055

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
It was made for Tony Buttler's Secret Projects book, so its not an official model.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,419
Reaction score
3,483
Is the dorsal air intakes behind the cockpit a good idea? Disturbed airflow in the air intake is not very good, no?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
According to Evan, Northrop had sorted out a good design for dorsal inlets even for high alpha. Saab also did such a design (2107) for the Gripen which came a good second.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
77
Archibald said:
Is the dorsal air intakes behind the cockpit a good idea? Disturbed airflow in the air intake is not very good, no?

The Russians have traditionally been preoccupied with FOD, and a dorsal intake is the ultimate solution to that concern.

High AoA performance would seem to be meaningless when you're talking about a 65 tonne aircraft!


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
235
overscan said:
According to Evan, Northrop had sorted out a good design for dorsal inlets even for high alpha. Saab also did such a design (2107) for the Gripen which came a good second.

And this design looks to have several of the same features that made Northrop's design so successful.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,419
Reaction score
3,483
High AoA performance would seem to be meaningless when you're talking about a 65 tonne aircraft!
[/quote]

Well this sound quite logical ::) ::)


Gavin

ACCESS: Confidential
Joined
Apr 4, 2006
Messages
59
Reaction score
5
TinWing said:
High AoA performance would seem to be meaningless when you're talking about a 65 tonne aircraft!

For sure, this design was not intended for close combat. But from the specs listed above, the wing loading would have been just over 100 pounds per square foot ... not bad at all.

Did this design have a canard or not?


Attachments

  • MiG701_2[1].jpg
    10.1 KB · Views: 276

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
The most authentic sketch of the 7.01 is

index.php


The configuration derives from a tailless delta configuration once studied for the MiG-31 program, which appears to remains secret to date (due to its resemblance to the MFI and MDP programs).


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
Interestingly, this wing design has some similarities to the Rockwell HIMAT derived wing proposed for, for example, SAAB's 2107 design. This was thought to better at transonic speeds but inferior to the pure delta wing for supersonic manouvreing.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,419
Reaction score
3,483
Just a thought : would the MiG 7.01 have been armed with ultra long range missiles such as R-37 or KS-172? After all it was a ultra-long range fighters so it seems quite logical that it have long range missiles no?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
Certainly it would have used long range missiles. It was the replacement for the MiG-31 after all. Probably, it would have used R-37 missiles.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,419
Reaction score
3,483
Ok thanks! I just tried to imagine 1st May 2015 over Moscow
- Tu 160s with Su-47 or MiG 1.44 in formation
- T-60S with MiG 7.01...
Impressive thought... but well this is what-if!!!


Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
14
Dear all,

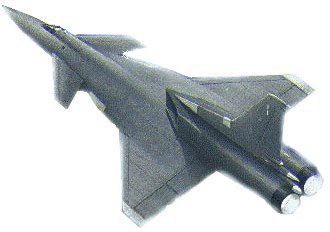

is there anyone who can id this design for me?. . I heard its called mikoyan project 7.01(which i am not sure). . . Any other additional information about it also will be highly appreciated. :)


Regards,
AK


Attachments

  • 8865_359650747477027_251894910_n.jpeg
    13.8 KB · Views: 856

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665
Topics merged. The project you posted is discussed in the previous posts, so check them out! ;)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
701 / MDP was an Oleg Samolovitch design based on his fixed-wing T-60S design, brought over when he left Sukhoi in 1985.


Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
14
Thanks a lot people for the Help... Highly appreciated :)

AK


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
819
Website
deeptowild.blogspot.com
Did the Mikoyan Product 7.01 incorporate stealth features and/or any fifth-generation fighter aspects? Share any technology with the Mikoyan Project 1.44?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
Hi!

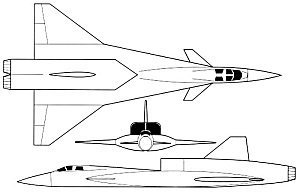

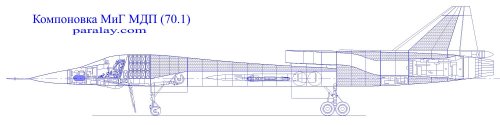

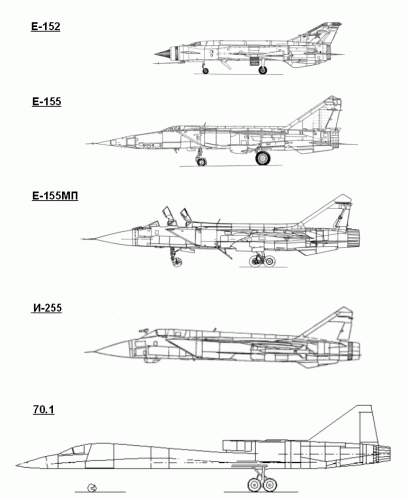

Type 7.01 long range supersonic interceptor. No front wing. Official drawing(bottom one) is reliable. ;)
Drawing.

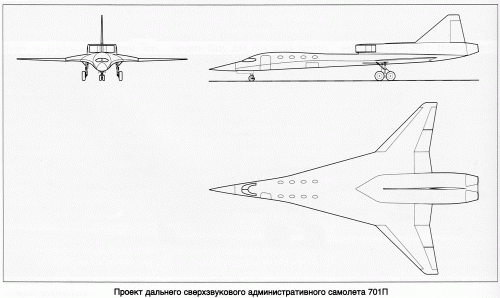

And 701P supersonic business jet.

Paralay-san's amazing site.



Attachments

  • 701p.gif
    186.2 KB · Views: 247
  • fox.gif
    111.2 KB · Views: 276
  • 7071.jpg
    178 KB · Views: 441
  • 7070.jpg
    177.8 KB · Views: 434
  • ats36137_MiG701.jpg
    55.1 KB · Views: 431
  • mig-701p-multifunctional-long-range-interceptor-project.gif
    36.6 KB · Views: 440
Last edited by a moderator:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
These are fascinated wonderful and beautiful pictures as usual.
Thansk a lot my dear Jozef-san. :D


Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
664
Reaction score
729

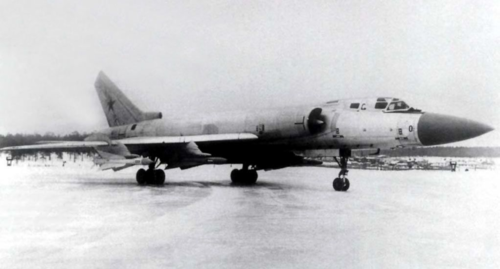

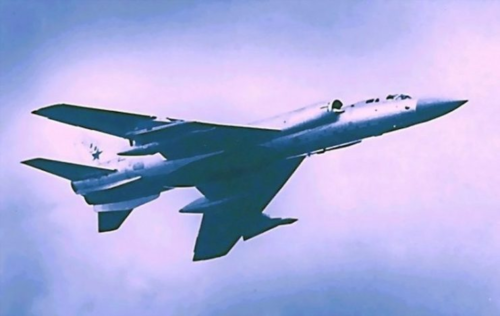

So, this aircraft would have been similar in purpose to the Tupolev TU-128 (pictured below), a sort-of "flying battleship", able to carry large missiles over vast distances and engage targets from hundreds of miles away.




Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,580
Reaction score
4,305
Indeed, though it would have also eventually replaced the MiG-31 Foxhound in service as well (with this in mind, Project 701 was way more agile than the Tu-128, though the Fiddler's manoeuvrability wasn't actually too bad to be fair). In fact, some Fiddler squadrons had already converted to the Foxhound as an interim measure prior to the collapse of the Soviet Union (the original planned retirement date for the Tu-128 was in 1990).

Last edited:

FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
1,795
Reaction score
583
Indeed, though it would have also eventually replaced the MiG-31 Foxhound in service as well (with this in mind, Project 701 was way more agile than the Tu-128, though the Fiddler's manoeuvrability wasn't actually too bad to be fair). In fact, some Fiddler squadrons had already converted to the Foxhound as an interim measure prior to the collapse of the Soviet Union (the original planned retirement date for the Tu-128 was in 1990).

Amazing to read that the Tu-128 was to have been flown until 1990, which I find rather shocking because the Tu-128 was designed back in the 1950s.:eek:
