Argentinian Unbuilt Projects

COLDOWN

ACCESS: Confidential
Joined
Nov 13, 2019
Messages
96
Reaction score
73
Hello.
Are there any projects to make aircraft for the Navy or for use on Aircraft Carriers?
The ARA Independencia was purchased in 1958-9 and the ARA Veinticinco de Mayo in 1968-9.
Regards


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374
Hello.
Are there any projects to make aircraft for the Navy or for use on Aircraft Carriers?
The ARA Independencia was purchased in 1958-9 and the ARA Veinticinco de Mayo in 1968-9.
Regards

Hello,

No, there was an attempt to sell Guarani to the Navy but it did not prosper.

It must be borne in mind that from 1930 to 1983, Argentina was governed most of the time by military boards that overthrew democratic governments.

The FMA was created expressly to equip the FAA (Argentine Air Force) with its own aircraft, and to maintain its native and foreign aircraft.

Unfortunately, the FMA was like another air base within the FAA, with a Brigadier in charge, who changed every so many years according to promotions, and each Brigadier that arrived managed it as an air base, without long-term planning.

The Navy had its own maintenance centers.

Just now from 2014/15 they sent a P-3C Orion plane from the Argentine Navy for the first time in history.

To summarize, the FMA only designed planes for the FAA and the Navy would never buy or commission the design of an aircraft.

Best regards.


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

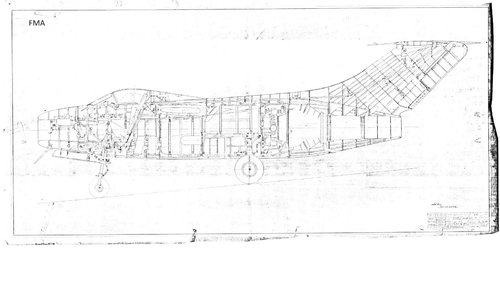

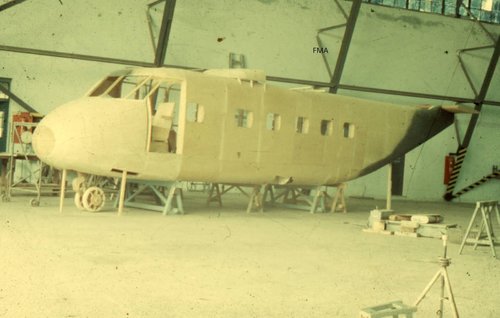

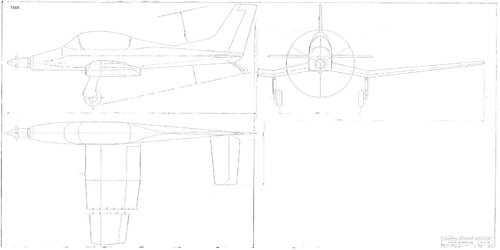

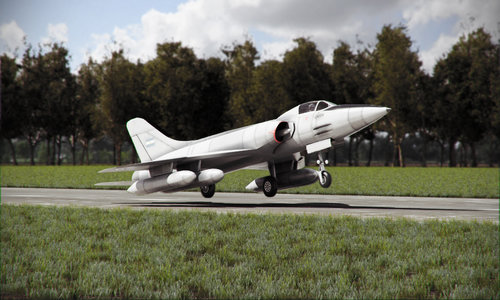

FMA IA-73/ UNASUR I and IA-100


Attachments

  • 445f8030.jpg
    143.6 KB · Views: 58
  • ia73a.jpg
    149.4 KB · Views: 47
  • ia73c.jpg
    166.7 KB · Views: 46
  • IA-100_01.jpg
    26.4 KB · Views: 52
  • 20v16w9.png
    740.3 KB · Views: 57
  • 29olmpl.jpg
    139.5 KB · Views: 61
  • 11229775_1101206683232590_6053224531794029195_o.jpg
    74.4 KB · Views: 55
  • 12002230_888038584566552_4463680728240585040_n.jpg
    28.2 KB · Views: 50
  • AnMGa8.jpg
    35.7 KB · Views: 44
  • CPOZHwYWsAAIVk2.jpg
    10.8 KB · Views: 65

COLDOWN

ACCESS: Confidential
Joined
Nov 13, 2019
Messages
96
Reaction score
73
Hello.
Are there any projects to make aircraft for the Navy or for use on Aircraft Carriers?
The ARA Independencia was purchased in 1958-9 and the ARA Veinticinco de Mayo in 1968-9.
Regards

Hello,

No, there was an attempt to sell Guarani to the Navy but it did not prosper.

It must be borne in mind that from 1930 to 1983, Argentina was governed most of the time by military boards that overthrew democratic governments.

The FMA was created expressly to equip the FAA (Argentine Air Force) with its own aircraft, and to maintain its native and foreign aircraft.

Unfortunately, the FMA was like another air base within the FAA, with a Brigadier in charge, who changed every so many years according to promotions, and each Brigadier that arrived managed it as an air base, without long-term planning.

The Navy had its own maintenance centers.

Just now from 2014/15 they sent a P-3C Orion plane from the Argentine Navy for the first time in history.

To summarize, the FMA only designed planes for the FAA and the Navy would never buy or commission the design of an aircraft.

Best regards.
What a pity. That cuts off quite a few lines of research that I had been developing.

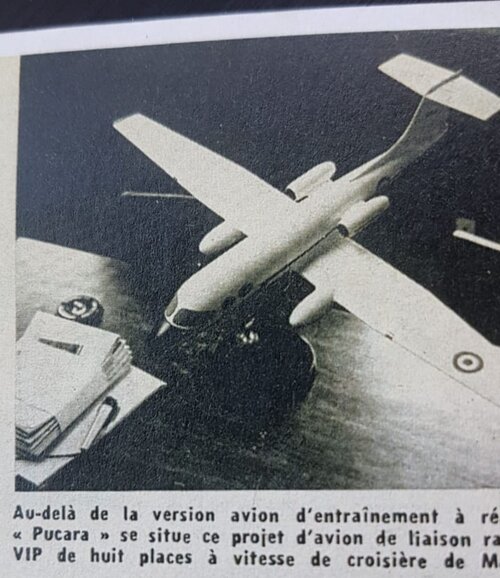

I was hoping to find designs or prototypes, like this DL variant offered to the Navy:

Anyway, thanks for the answer and your posts!
Regards


NoBarrelRolls

I really should change my personal text
Joined
Oct 27, 2018
Messages
47
Reaction score
87
Website
nobarrelrolls.blogspot.com
The site infodefensa.com quoted current Minister of Defense, Agustín Rossi, that the development on the IA-100 is going to be restarted.



Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

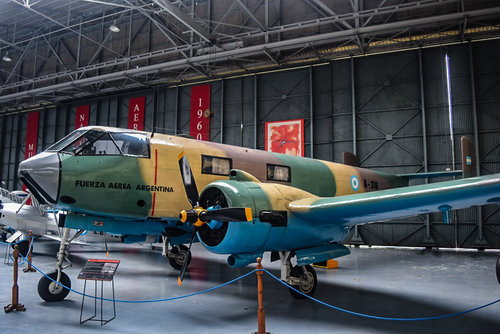

Huanquero, Bombi, Mamboreta, IA-68 ATL and Lancaster with PAT-1 ASM


Attachments

  • 483336_4556858873987_1129945710_n.jpg
    126.5 KB · Views: 68
  • 1730362.jpg
    34.3 KB · Views: 64
  • 8953907.jpg
    23 KB · Views: 61
  • 10950691_977729978913595_8590783788620019561_n.jpg
    77.8 KB · Views: 60
  • 10952246_977726838913909_4923761764114026899_o.jpg
    295.7 KB · Views: 55
  • 10986973_977730332246893_1617206500267246621_o.jpg
    149.5 KB · Views: 71
  • ATL 02.jpg
    ATL 02.jpg
    19.7 KB · Views: 85
  • Avro Lancaster y PAT-1.jpg
    Avro Lancaster y PAT-1.jpg
    228.2 KB · Views: 99

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,746
Reaction score
531
Huanquero, Bombi, Mamboreta, IA-68 ATL and Lancaster with PAT-1 ASM
Lancaster with PAT-1 missile - the missile looks very much like a Henschel Hs 293, a surprising combination.
Do you have more information about PAT-1?


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

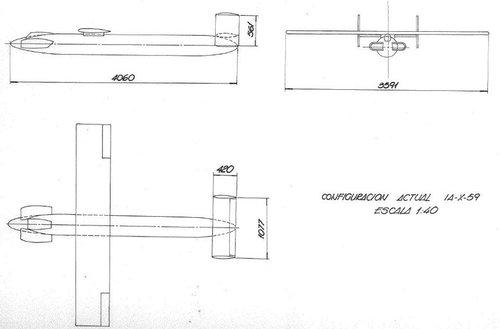

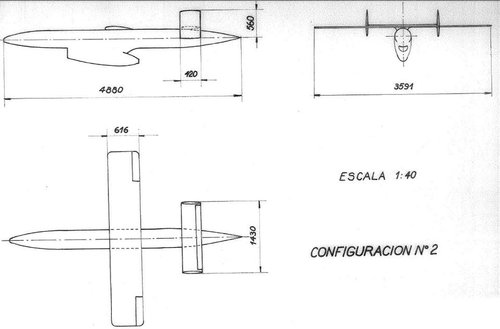

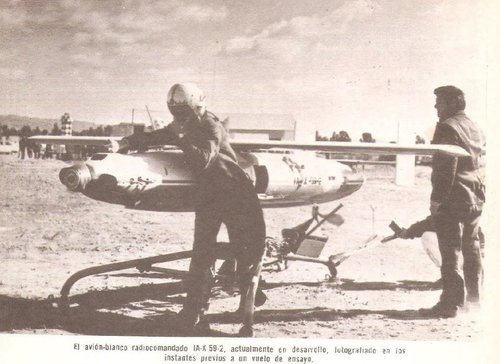

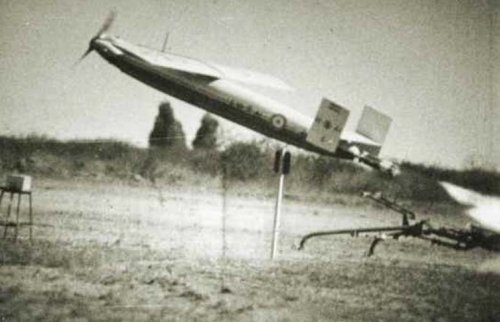

The IA-X-59 was an early attempt by the FMA to develop a RPV, or drone, at the request of the FAA. Only one propeller-powered prototype was built, but there were studies of turbojet and turbofan powered variants, which did not pass the preliminary study stage.

Extract from the book "Military Factory of Airplanes, Chronicles and Testimonies" by Angel Cesar Arreguez

FMA I.A. X 59 Dronner

Radio-controlled target plane, also called TABANO. It made its presentation flight on December 9, 1972 in Serrezuela (Córdoba). Could be used with remote sensors,
cameras, camcorders and as target. A prototype was made.

Features: 45 hp MC CULLOCH engine and fixed pitch propeller; fuel capacity 45 l; maximum speed 340 km/h; service ceiling 5900 m; flight time 1 h; length 4,070 m; wingspan 3.6 m; wing area 2.25 m; maximum weight 160 Kg.


Attachments

  • 14249718_10154113348657982_5953163791218798238_o.jpg
    37.6 KB · Views: 78
  • 14258175_10154113348932982_358944767903132400_o.jpg
    58.6 KB · Views: 60
  • 14310297_10154113348772982_2915615965833158958_o.jpg
    46.6 KB · Views: 71
  • 14203249_10154113352002982_278930393038182150_n.jpg
    39.3 KB · Views: 62
  • 14249895_10154113352107982_3520998525679491032_o.jpg
    105.4 KB · Views: 58

NoBarrelRolls

I really should change my personal text
Joined
Oct 27, 2018
Messages
47
Reaction score
87
Website
nobarrelrolls.blogspot.com

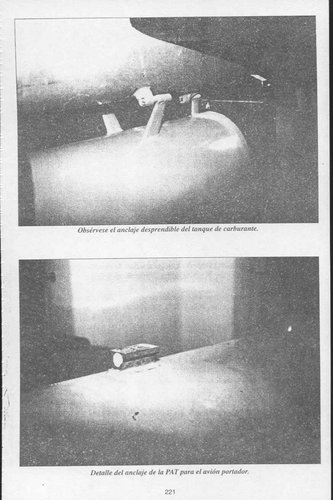

Huanquero, Bombi, Mamboreta, IA-68 ATL and Lancaster with PAT-1 ASM
Lancaster with PAT-1 missile - the missile looks very much like a Henschel Hs 293, a surprising combination.
Do you have more information about PAT-1?

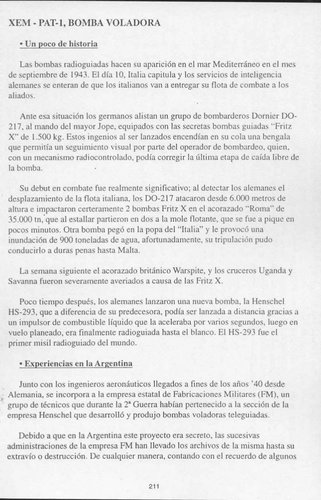

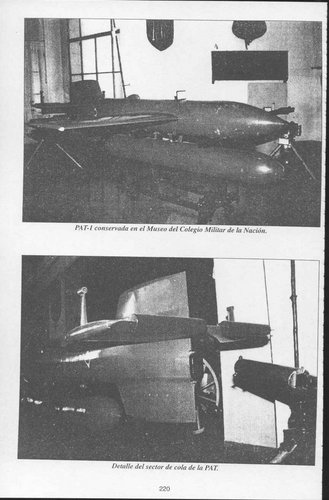

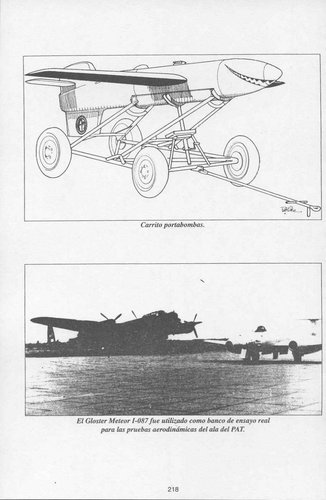

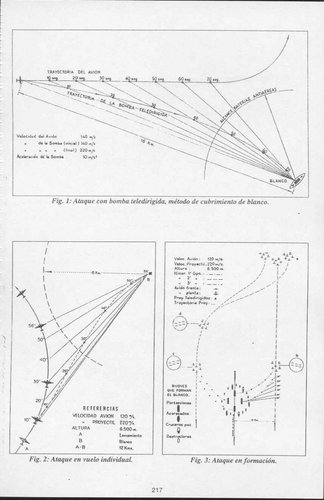

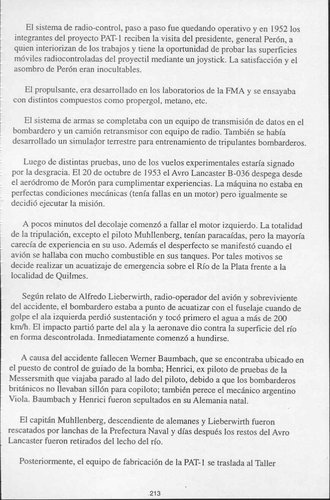

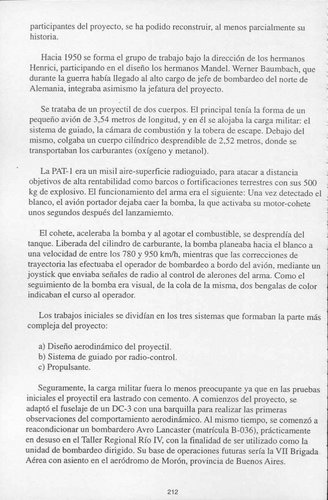

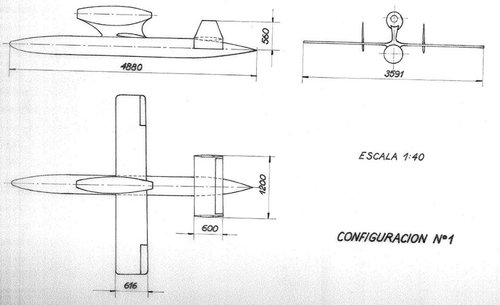

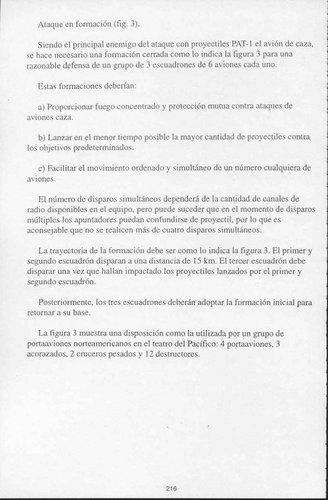

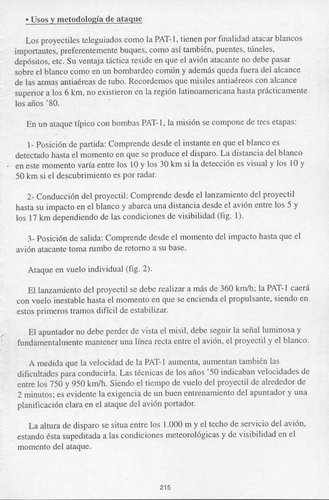

Arjen, the PAT-1 was developed by a group of former Henschel engineers who worked on the Hs 293. These engineers, were hired by Fabricaciones Militares (FM) after the war.

The PAT-1 was an air to surface missile with two bodies, very similar to the Hs 293. The main body was 3.45 mts long, and had the same shape as a small airplane and it contain the explosive warhead, together with the guidance system, and engine. The second body, shaped as a cylinder contained the propellants for the rocket engine (oxygen and methanol).

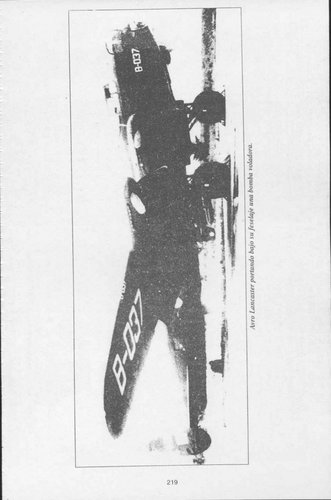

During the testing of one PAT-1, on October 20, 1953, Avro Lancaster B-036 suffered an engine failure crashing in the River Plate (Río de la Plata), perishing Werner Baumbach (former Luftwaffe commander of the Kampfgeschwader 200) who was at the bomb controlling station, the co-pilot Henrici (former Messersmith test pilot) and an argentinian Air Force flight mechanic named Viola. The only survivors were pilot Muhllenberg and radio operator Lieberwith who where rescued by the Argentinian Coast Guard.

Development continued until 1956, when cost become to high.


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

Attachments

  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    573 KB · Views: 49
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    707.2 KB · Views: 41
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    635.4 KB · Views: 35
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    712.7 KB · Views: 33
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    631.7 KB · Views: 30
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    402.7 KB · Views: 32
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    462 KB · Views: 47
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    419.8 KB · Views: 52
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    385.2 KB · Views: 49
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    613.6 KB · Views: 43

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

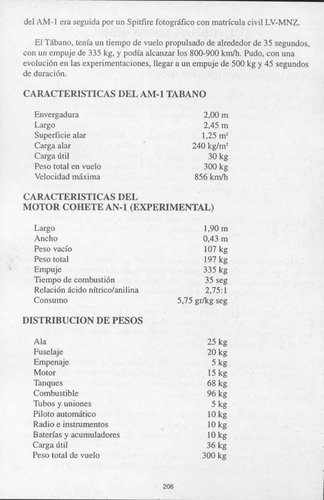

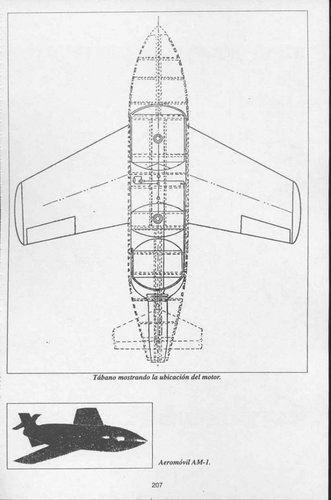

Second Part, with another missile:

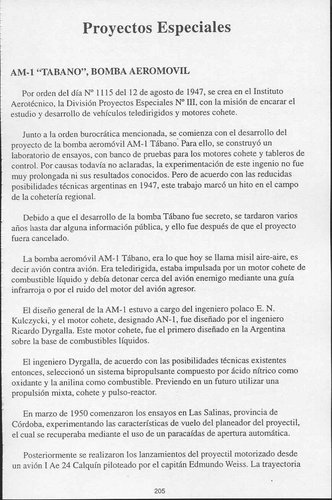

FMA I.Ae.24 Calquin launching an Air to Air Missile Tabano


Attachments

  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    681.6 KB · Views: 56
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    196.4 KB · Views: 68
  • 30706099_10155797500012982_4190967119648653312_n.jpg
    273.4 KB · Views: 70
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    633.9 KB · Views: 56
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    423.7 KB · Views: 39
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    379 KB · Views: 40
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    630.5 KB · Views: 38
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    329.2 KB · Views: 38
  • Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    Las alas de Peron. Aeronautica Argentina 19451960. History of military aviation Argentina by B...jpg
    689.7 KB · Views: 73

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
818
Reaction score
325
FMA I.Ae.24 Calquin launching an Air to Air Missile Tabano
In 1989, there was an Argentinian missile called FAS-320 Tabano, which was an air-to-ground rocket with a length 6.3m, a 500kg warhead, and a range of 100km.
Is it this one, or were there two different Tabano missiles?


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

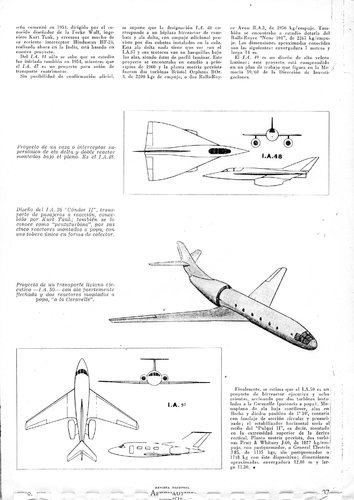

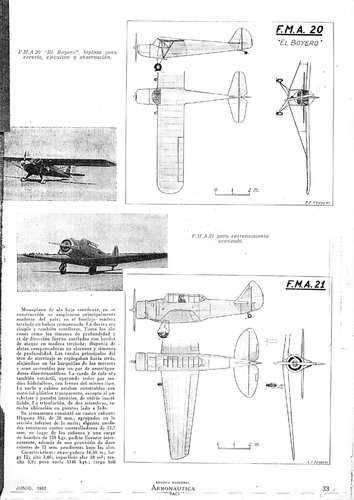

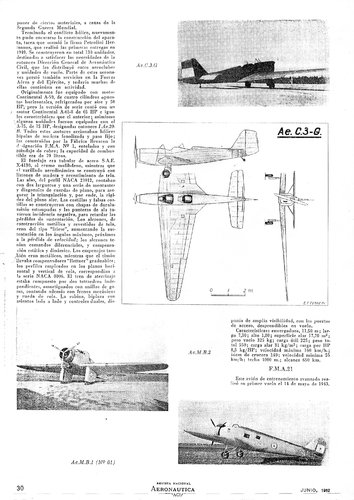

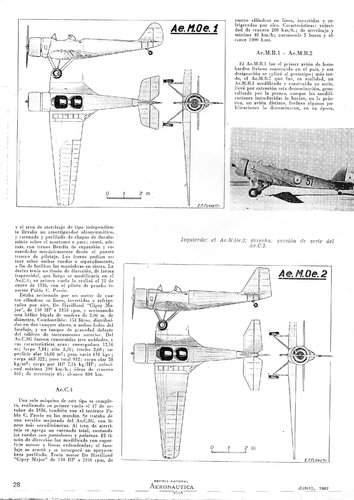

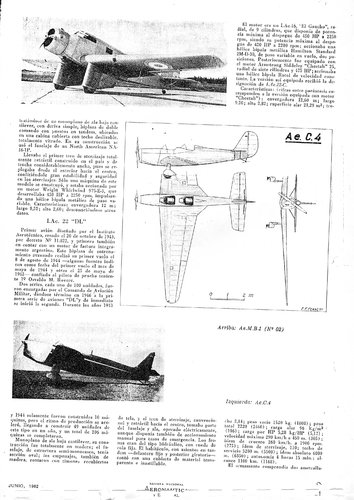

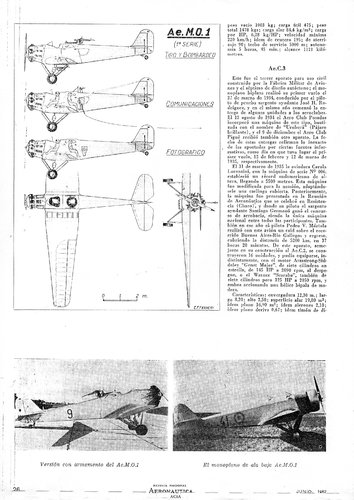

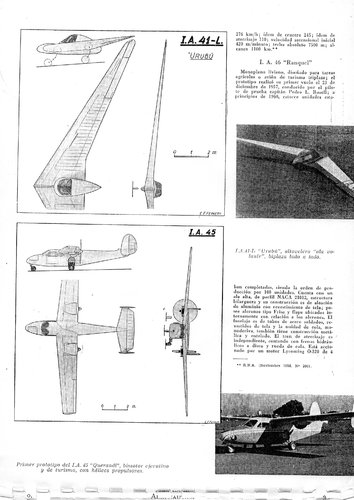

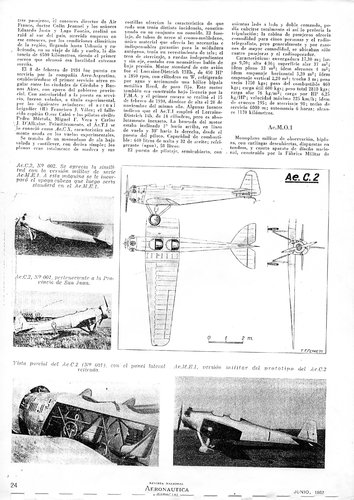

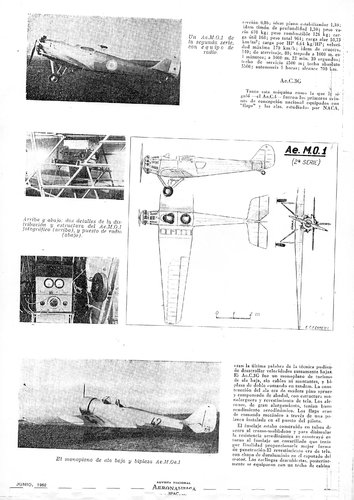

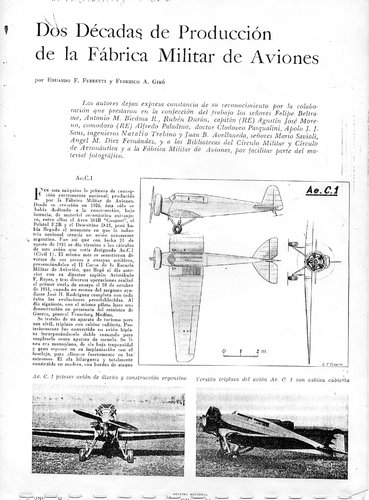

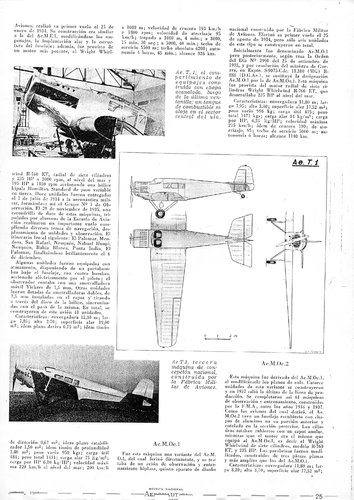

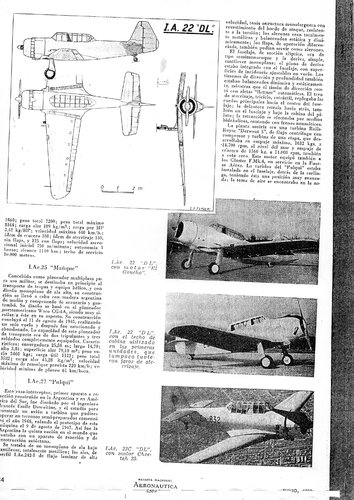

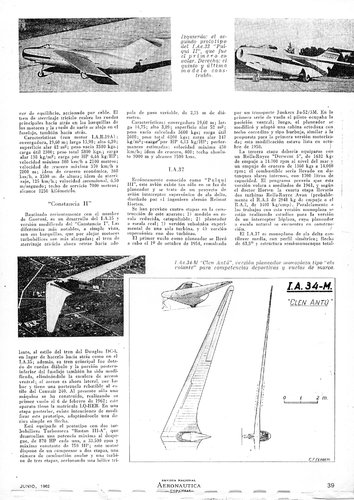

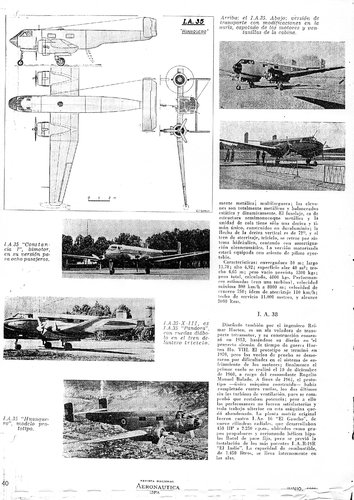

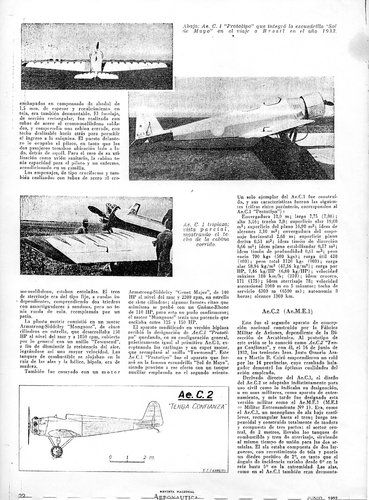

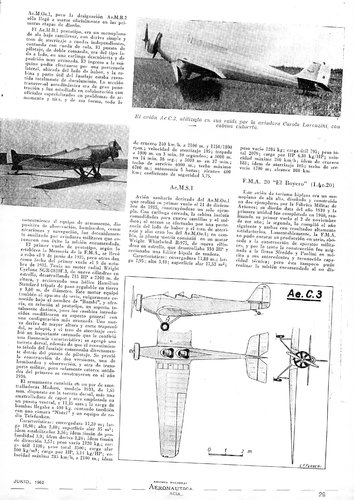

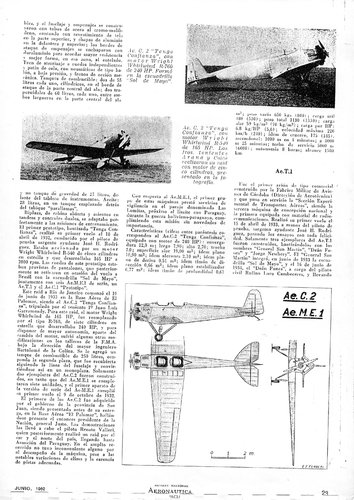

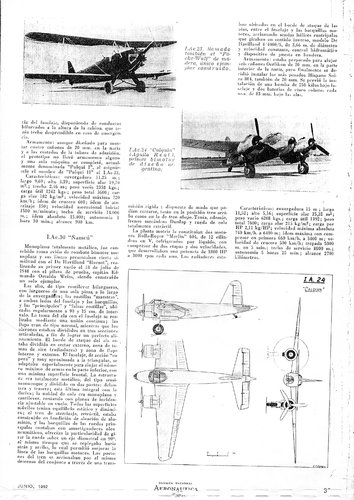

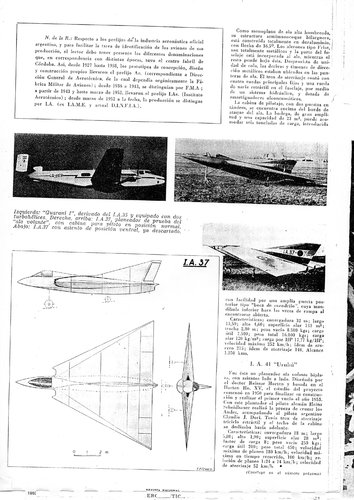

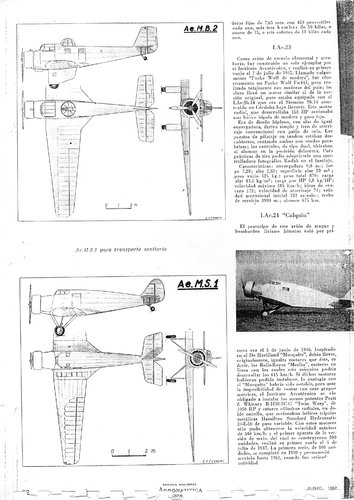

Revista Nacional de Aeronáutica, June, 1962.

PART 1


Attachments

  • Rev. Nac.Aer.Junio 1962_01.jpg
    Rev. Nac.Aer.Junio 1962_01.jpg
    1.4 MB · Views: 76
  • Rev. Nac.Aer.Junio 1962_02.jpg
    Rev. Nac.Aer.Junio 1962_02.jpg
    1.8 MB · Views: 76
  • Rev. Nac.Aer.Junio 1962_03.jpg
    Rev. Nac.Aer.Junio 1962_03.jpg
    1.6 MB · Views: 67
  • Rev. Nac.Aer.Junio 1962_04.jpg
    Rev. Nac.Aer.Junio 1962_04.jpg
    1.5 MB · Views: 68
  • Rev. Nac.Aer.Junio 1962_05.jpg
    Rev. Nac.Aer.Junio 1962_05.jpg
    1.4 MB · Views: 69
  • Rev. Nac.Aer.Junio 1962_06.jpg
    Rev. Nac.Aer.Junio 1962_06.jpg
    1.3 MB · Views: 72
  • Rev. Nac.Aer.Junio 1962_07.jpg
    Rev. Nac.Aer.Junio 1962_07.jpg
    1.4 MB · Views: 71
  • Rev. Nac.Aer.Junio 1962_08.jpg
    Rev. Nac.Aer.Junio 1962_08.jpg
    1.1 MB · Views: 69
  • Rev. Nac.Aer.Junio 1962_09.jpg
    Rev. Nac.Aer.Junio 1962_09.jpg
    1.6 MB · Views: 65
  • Rev. Nac.Aer.Junio 1962_10.jpg
    Rev. Nac.Aer.Junio 1962_10.jpg
    1.3 MB · Views: 68

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

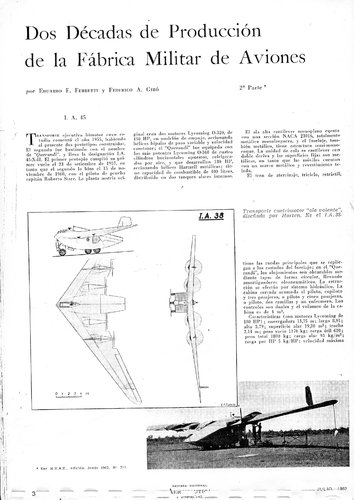

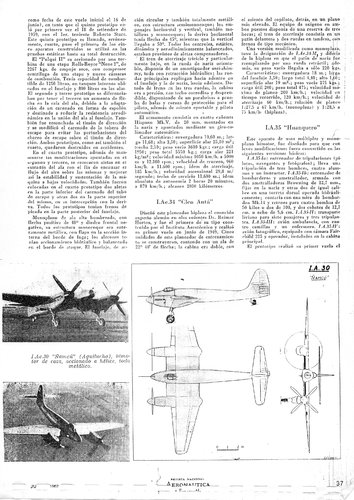

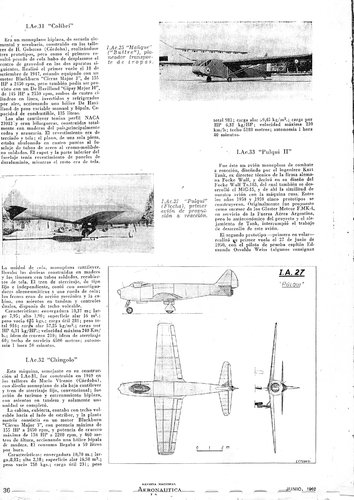

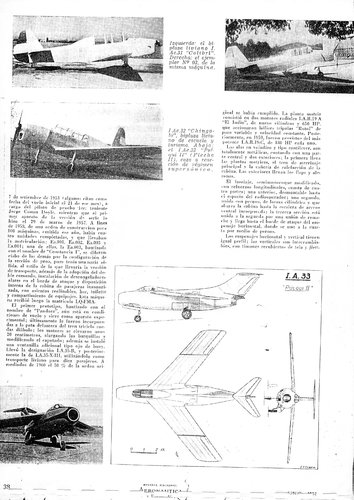

Revista Nacional de Aeronáutica, June, 1962.

PART 2


Attachments

  • Rev. Nac.Aer.Junio 1962_11.jpg
    Rev. Nac.Aer.Junio 1962_11.jpg
    1.3 MB · Views: 71
  • Rev. Nac.Aer.Junio 1962_12.jpg
    Rev. Nac.Aer.Junio 1962_12.jpg
    1.2 MB · Views: 75
  • Rev. Nac.Aer.Junio 1962_13.jpg
    Rev. Nac.Aer.Junio 1962_13.jpg
    1.1 MB · Views: 69
  • Rev. Nac.Aer.Junio 1962_14.jpg
    Rev. Nac.Aer.Junio 1962_14.jpg
    1.8 MB · Views: 73
  • Rev. Nac.Aer.Junio 1962_15.jpg
    Rev. Nac.Aer.Junio 1962_15.jpg
    1.3 MB · Views: 77
  • Rev. Nac.Aer.Junio 1962_16.jpg
    Rev. Nac.Aer.Junio 1962_16.jpg
    1.3 MB · Views: 83
  • Rev. Nac.Aer.Junio 1962_17.jpg
    Rev. Nac.Aer.Junio 1962_17.jpg
    1.5 MB · Views: 84
  • Rev. Nac.Aer.Junio 1962_18.jpg
    Rev. Nac.Aer.Junio 1962_18.jpg
    1.4 MB · Views: 92
  • Rev. Nac.Aer.Junio 1962_19.jpg
    Rev. Nac.Aer.Junio 1962_19.jpg
    1.5 MB · Views: 86
  • Rev. Nac.Aer.Junio 1962_20.jpg
    Rev. Nac.Aer.Junio 1962_20.jpg
    1.7 MB · Views: 96

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374
Revista Nacional de Aeronáutica, June, 1962.

PART 3


Attachments

  • Rev. Nac.Aer.Junio 1962_21.jpg
    Rev. Nac.Aer.Junio 1962_21.jpg
    1.3 MB · Views: 103
  • Rev. Nac.Aer.Junio 1962_22.jpg
    Rev. Nac.Aer.Junio 1962_22.jpg
    980.8 KB · Views: 99
  • Rev. Nac.Aer.Junio 1962_23.jpg
    Rev. Nac.Aer.Junio 1962_23.jpg
    1.2 MB · Views: 94
  • Rev. Nac.Aer.Junio 1962_24.jpg
    Rev. Nac.Aer.Junio 1962_24.jpg
    1.4 MB · Views: 103
  • Rev. Nac.Aer.Junio 1962_25.jpg
    Rev. Nac.Aer.Junio 1962_25.jpg
    780.8 KB · Views: 114

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374
Hello.
Are there any projects to make aircraft for the Navy or for use on Aircraft Carriers?
The ARA Independencia was purchased in 1958-9 and the ARA Veinticinco de Mayo in 1968-9.
Regards

Hello,

No, there was an attempt to sell Guarani to the Navy but it did not prosper.

It must be borne in mind that from 1930 to 1983, Argentina was governed most of the time by military boards that overthrew democratic governments.

The FMA was created expressly to equip the FAA (Argentine Air Force) with its own aircraft, and to maintain its native and foreign aircraft.

Unfortunately, the FMA was like another air base within the FAA, with a Brigadier in charge, who changed every so many years according to promotions, and each Brigadier that arrived managed it as an air base, without long-term planning.

The Navy had its own maintenance centers.

Just now from 2014/15 they sent a P-3C Orion plane from the Argentine Navy for the first time in history.

To summarize, the FMA only designed planes for the FAA and the Navy would never buy or commission the design of an aircraft.

Best regards.
What a pity. That cuts off quite a few lines of research that I had been developing.
I was hoping to find designs or prototypes, like this DL variant offered to the Navy:

Anyway, thanks for the answer and your posts!
Regards


the Argentine Navy preferred to buy the North American SNJ/AT-6 Texan.

In record time they entered service, so much so that the first flight took place at the Comandante Espora Naval Base in mid-September 1946.
Thus began a stage of Naval Aviation that lasted until the late 1970s.

With a total of 125 copies, the AT-6 / SNJ Texan was not only the most numerous aircraft, but also one of the most emblematic of Naval Aviation.








Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

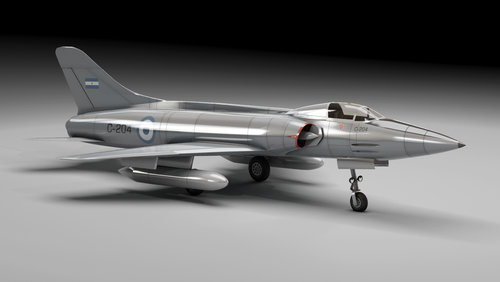

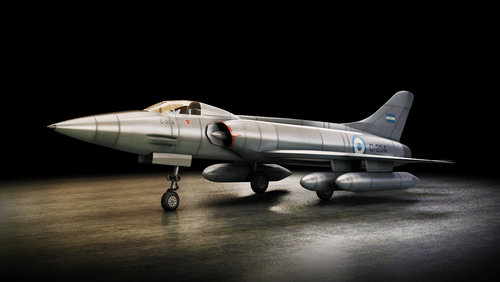

FMA IA-43 Pulqui III. Digital art by Alejandro Klichowski


Attachments

  • 10915134_10153134568394516_2064346462143445372_o.jpg
    203.6 KB · Views: 90
  • I.A. 43 Maqueta 2.jpg
    I.A. 43 Maqueta 2.jpg
    23.8 KB · Views: 93
  • I.A. 43 Maqueta 1.jpg
    I.A. 43 Maqueta 1.jpg
    31 KB · Views: 97
  • IA-43 Condor II.jpg
    IA-43 Condor II.jpg
    246.2 KB · Views: 108
  • IA-43_01  Alelichko.jpg
    IA-43_01 Alelichko.jpg
    88.6 KB · Views: 104
  • IA-43_02  Alelichko.jpg
    IA-43_02 Alelichko.jpg
    250.6 KB · Views: 90
  • IA-43_03  Alelichko.jpg
    IA-43_03 Alelichko.jpg
    157.4 KB · Views: 89

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

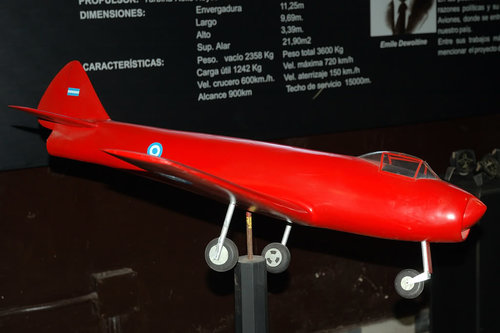

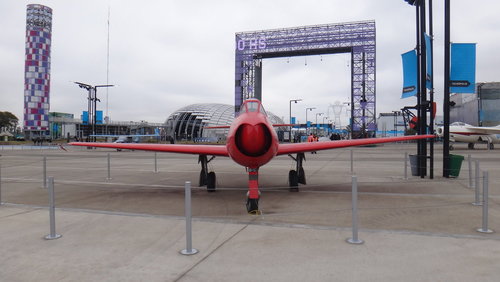

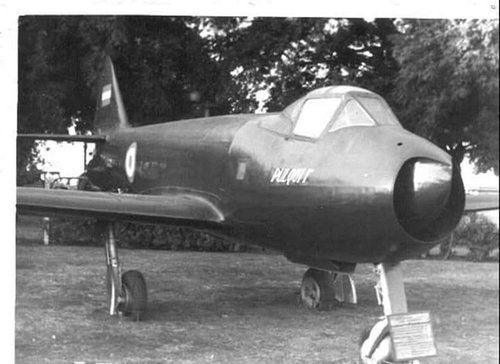

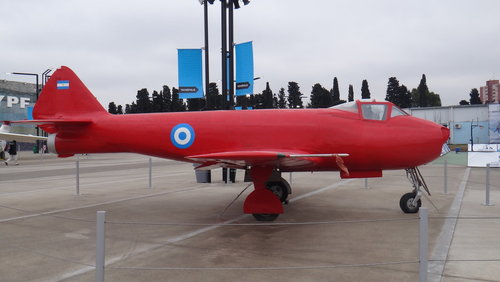

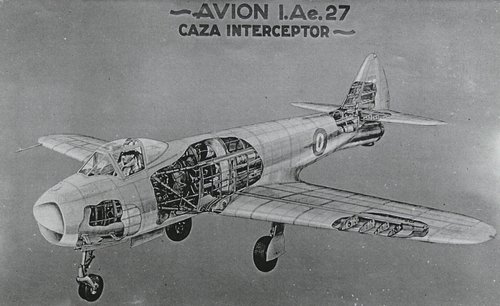

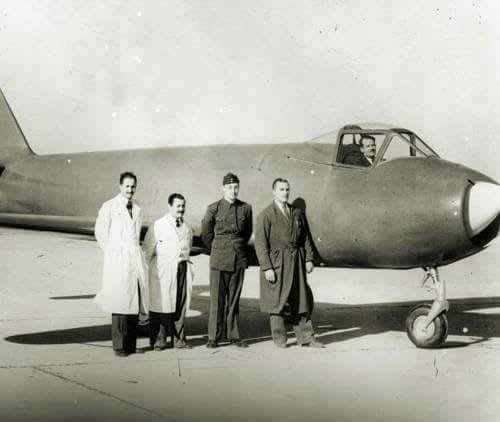

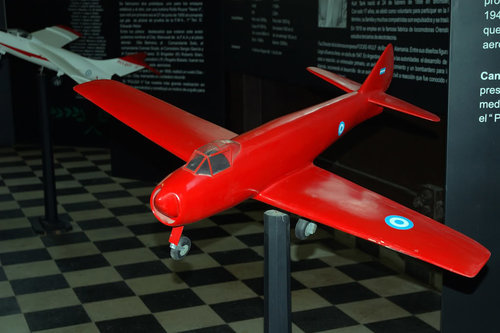

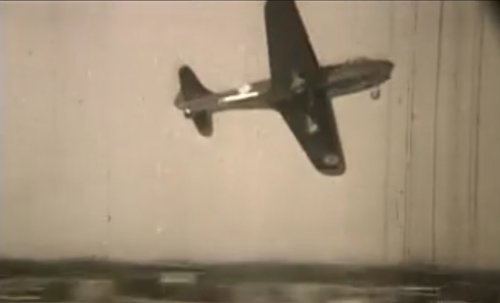

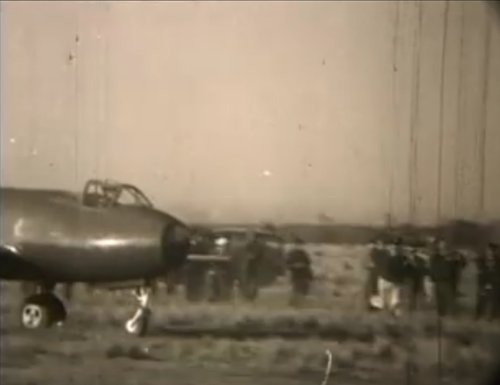

FMA I.Ae.27 Pulqui - Part 1


Attachments

  • 8_avion-gibelin-35.jpg
    140.8 KB · Views: 72
  • 35.jpg
    81.3 KB · Views: 63
  • 36.jpg
    70.4 KB · Views: 55
  • 148933_4556858593980_1323473909_n.jpg
    81.9 KB · Views: 58
  • 244119_449971668387085_944524561_o.jpg
    272.3 KB · Views: 50
  • 10996105_903867226324442_4831452824041580671_o.jpg
    225.6 KB · Views: 52
  • forgotten_pioneer_by_roberdigiorge-d5acd15.jpg
    340.6 KB · Views: 51
  • forgotten_pioneer_by_roberdigiorge-d5acdos.jpg
    149 KB · Views: 53
  • forgotten_pioneer_by_roberdigiorge-d5acdzd.jpg
    122 KB · Views: 53
  • IMG-20180904-WA0171.jpg
    34.8 KB · Views: 54

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

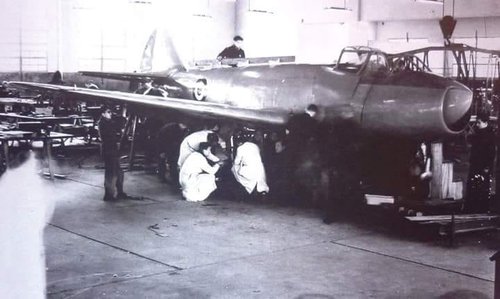

FMA I.Ae.27 Pulqui - Part 2


Attachments

  • IMG-20180904-WA0172.jpg
    34.2 KB · Views: 48
  • IMG-20180904-WA0173.jpg
    40.2 KB · Views: 54
  • IMG-20180904-WA0190.jpg
    58 KB · Views: 50
  • IMG-20180904-WA0200.jpg
    20.4 KB · Views: 51
  • IMG-20190812-WA0010.jpg
    188.6 KB · Views: 46
  • IMG-20190812-WA0011.jpg
    139 KB · Views: 44
  • IMG-20190812-WA0012.jpg
    103.1 KB · Views: 44
  • IMG-20190812-WA0013.jpg
    123.1 KB · Views: 45
  • IMG-20190812-WA0014.jpg
    120.1 KB · Views: 43
  • IMG-20190812-WA0015.jpg
    165 KB · Views: 85

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,510
Reaction score
241
Was this before or after the HAL HF-24 Marut?


Justo Miranda included the story of Kurt Tank's post WWII activities on his book "Focke Wulf Jet Fighters"


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

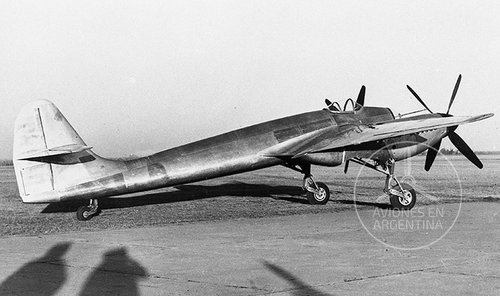

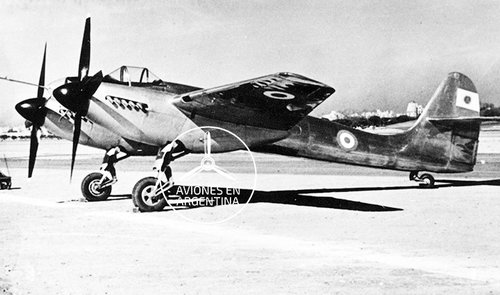

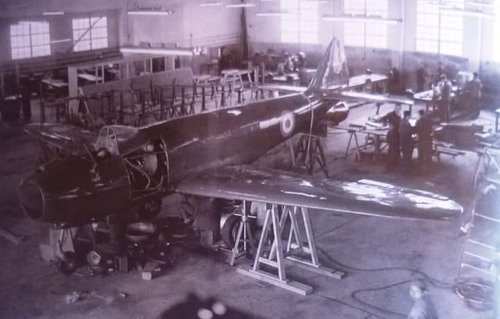

The prototype of the I.Ae. 30 Ñamcú (small eagle in the Mapuche language) made its first flight on July 17, 1947, piloted by first lieutenant Edmundo O. Weiss. This project was born in June 1947 when the technical team of the Special Projects Division 2 of the Aerotechnical Institute headed by the Italian Engineer Pallaveccino began work on a new twin-engine interceptor named Ñamcu being designated I.Ae.30.

It was intended to be a escort fighter of the recently incorporated Avro Lincoln and Avro Lancaster bombers. It was equipped with two 203 5hp Rolls Royce Merlin 134-135 engines with which it could reach a height of 6400 meters and a speed of 740 km/h. These characteristics allowed it to unite the Córdoba (FMA) and Buenos Aires (Airport) in just 55 minutes in flight on August 7, 1948 at an average speed of 648 km/h being piloted by First Lieutenant Edmundo O. Weiss.

The FAA had planned to produce some 210 units but the project was never completed due to two reasons
1) An agreement with the Rolls Royce company in England for the delivery of 430 Engines and their parts was not reached
2) The Aeronautical Secretariat decides cancel the project because it decides to give priority to the impulse of the Reactor Factory after obtaining the manufacturing license of the Rolls Royce Nene Turbojet for the series of I.Ae.33 that had already begun to materialize with the group of German engineers headed by Kurt Tank.

A single prototype was built and it had been assigned a provisional registration I-101. in the year 1952 was destroyed in an accident According to the FMA Historical Book locates the first flight on July 17, 1948, other authors on July 18 of the same year we opted for the first version.

Sources Military Aircraft Factory Chronicles and Testimonies Ángel César Arreguez, Aircraft Guide 1912-2015 Eduardo J. Amores Oliver, DEH

Aviones en Argentina


Attachments

  • 107621791_1434216273633905_8220815645453804766_n.jpg
    81.3 KB · Views: 83
  • 109032087_1434216203633912_1149056424585004010_n.jpg
    139.2 KB · Views: 83
  • 110318228_1434216153633917_8554829019122758823_n.jpg
    90.5 KB · Views: 119

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

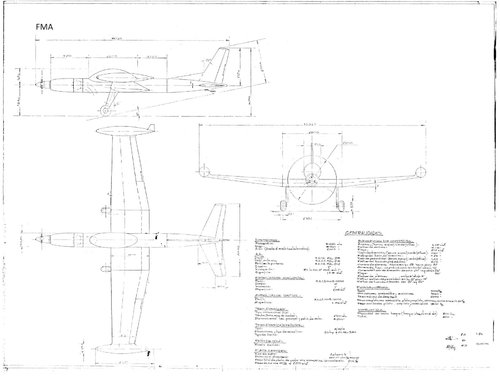

A large number of unpublished drawings of different FMA projects



Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

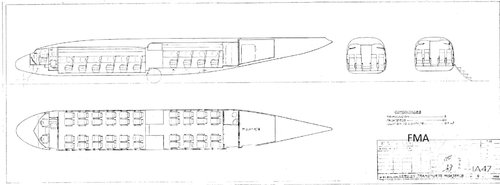

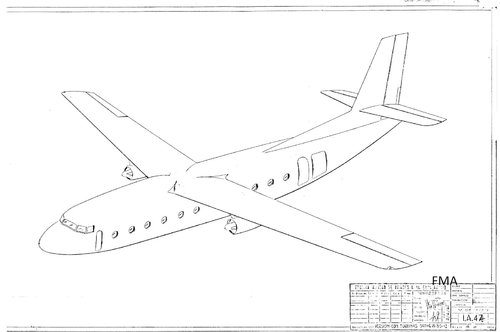

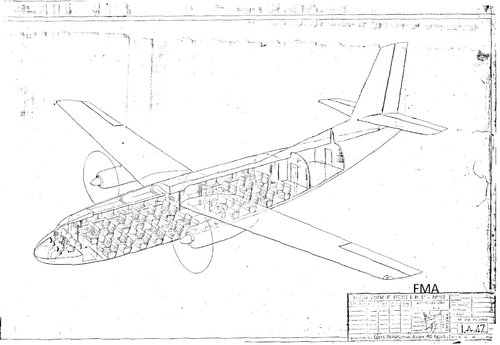

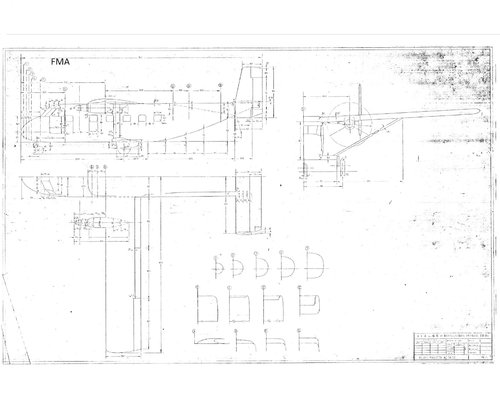

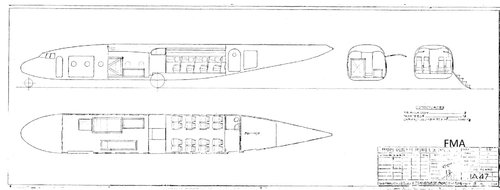

FMA IA-47, turboprop and turbojet variants


Attachments

  • a.jpg
    202.8 KB · Views: 79
  • IA47 Corte Perspectiva 40 Pasajerosd.jpg
    IA47 Corte Perspectiva 40 Pasajerosd.jpg
    265.7 KB · Views: 72
  • IA47 con turbinas Orpheus Bor 12s.jpg
    IA47 con turbinas Orpheus Bor 12s.jpg
    145.3 KB · Views: 69
  • IA47 (version transporte de pasajeros)s.jpg
    IA47 (version transporte de pasajeros)s.jpg
    139.1 KB · Views: 62
  • IA47 (version transporte de pasajeros y carga)s.jpg
    IA47 (version transporte de pasajeros y carga)s.jpg
    145.9 KB · Views: 70

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

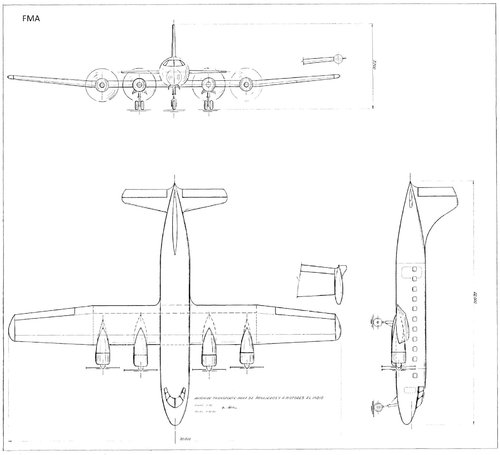

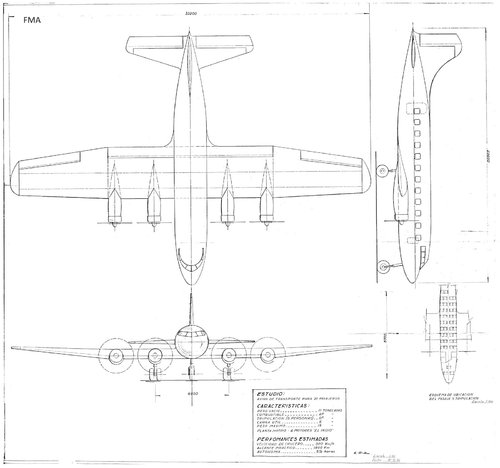

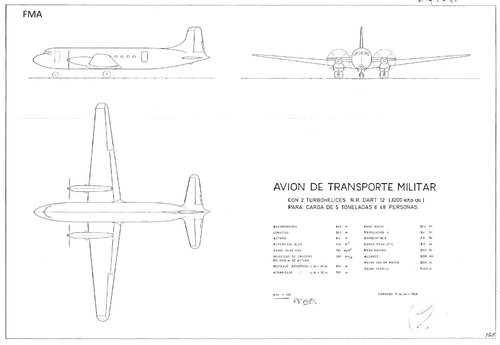

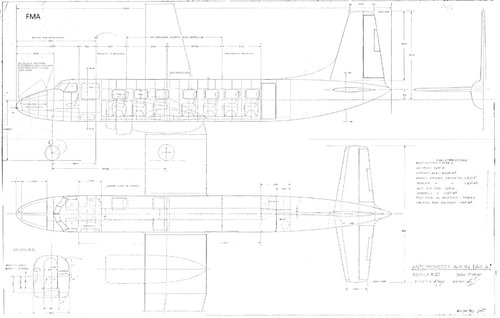

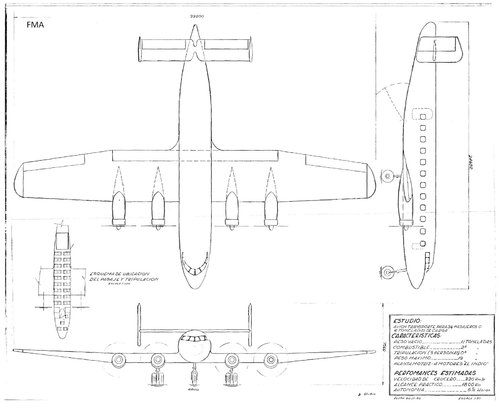

Different transport planes projected at the FMA, which did not have an assigned project number


Attachments

  • a4Avion de Transporte Militars.jpg
    a4Avion de Transporte Militars.jpg
    126.8 KB · Views: 76
  • a3Avion Transporte 36 pasajerosd.jpg
    a3Avion Transporte 36 pasajerosd.jpg
    215.5 KB · Views: 75
  • a2Avion Transporte 34 Pasajeross.jpg
    a2Avion Transporte 34 Pasajeross.jpg
    182.4 KB · Views: 78
  • a1Avion de transporte 38 pasajeross.jpg
    a1Avion de transporte 38 pasajeross.jpg
    229.4 KB · Views: 104

Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
109
Reaction score
374

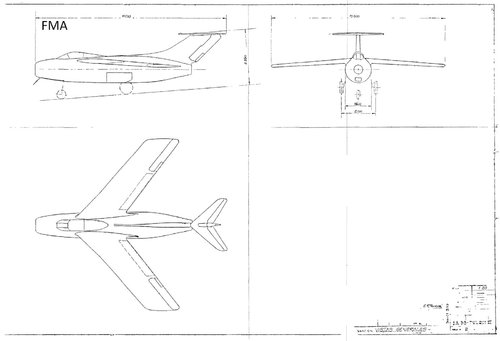

Drawings of FMA I.Ae.33 Pulqui II


Attachments

  • b4IA33 PULQUI II VISTAS GENERALESs.jpg
    b4IA33 PULQUI II VISTAS GENERALESs.jpg
    132.2 KB · Views: 97
  • b5IAe 33-03bk.jpg
    b5IAe 33-03bk.jpg
    254.4 KB · Views: 84

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
337
Reaction score
546
I remember coming across a mention somewhere (unfortunately I don't recall the source) that there was allegedly a Pucara design study with jet engines. Does anybody have more information?

Martin
Just to confirm this, as Apophenia said in his post, the twin Astafan variant was indeed planned as a trainer. Source is from Janes All The World 74-75. Once I get my scanner up and running I'll post the GA drawing along with the small piece of text on the project.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,386
Reaction score
2,290
Website
www.amazon.com
In my opinion, “Las Alas de Perón” has to be the most comprehensive book about the Golden age of Argentinian aviation industry.
Llevo esperando trece años a que aparezca un editor con el suficiente... "right stuff" para hacer justicia al extraordinario trabajo de Burzaco, publicando sus libros en ingles.
Tan dificil y arriesgado seria hacer una edicion en Amazon-Kindle?
Es una cuestion de ideologia?.
Que problema puede haber en publicar un trabajo tan tecnico con background historico de todos conocido? yo no he encontrado ningun obstaculo a mis publicaciones en el mundo anglosajon.
Un saludo a todos y mis respeto por los demas autores.


Attachments

  • 910.jpg
    775.8 KB · Views: 15
  • 911.jpg
    561.2 KB · Views: 15

Similar threads

Top
