VFW VTOL aircraft

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,970
Reaction score
5,279

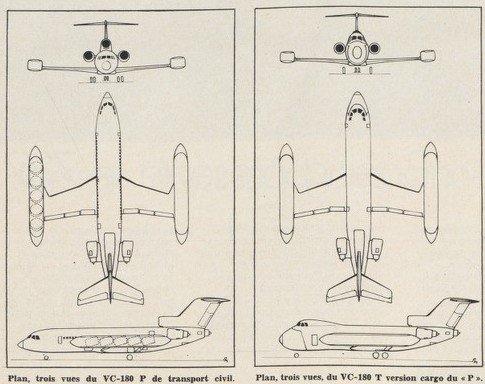

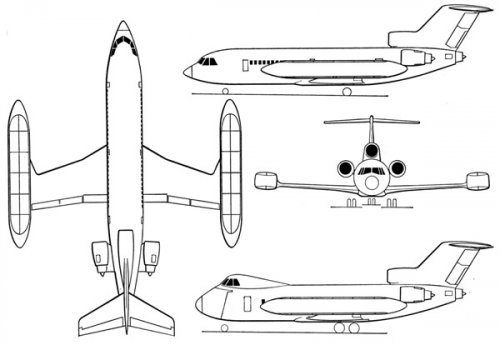

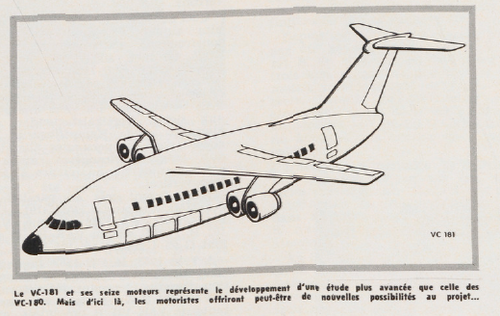

VFW-Fokker VC180

(text to follow)


Attachments

  • VC-180P+T.jpg
    44.4 KB · Views: 1,059
  • VC-180T.jpg
    44 KB · Views: 989

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,970
Reaction score
5,279

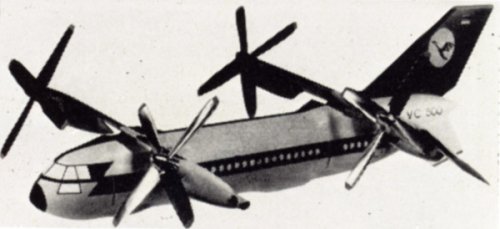

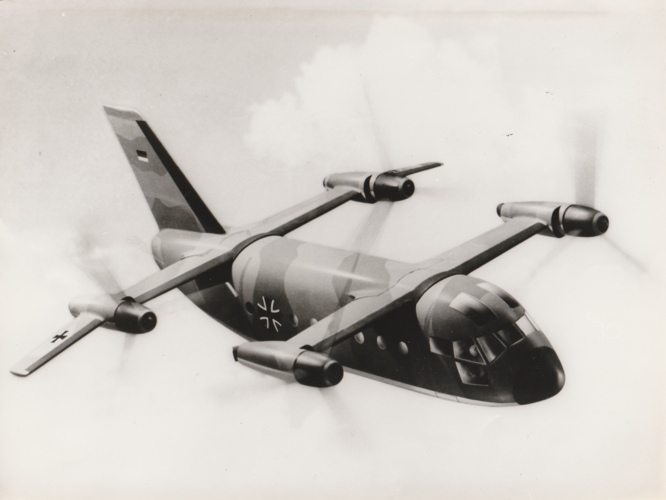

VFW-Fokker VC 500


(text to follow)

Source for all the above:
Flying Review International Feb 1970


Attachments

  • VC-400.jpg
    40.7 KB · Views: 535

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,970
Reaction score
5,279
http://www.vstol.org/GermanVSTOLTransports.pdf

Has some nice pics of the above and basic info.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

I know many aircraft for this company,but what
was that VTOL aircraft ?.
http://www.google.com/patents?id=kcppAAAAEBAJ&pg=PA1968&dq=aviation+week+airplane&as_drrb_ap=q&as_minm_ap=1&as_miny_ap=2007&as_maxm_ap=1&as_maxy_ap=2007&as_drrb_is=q&as_minm_is=1&as_miny_is=2007&as_maxm_is=1&as_maxy_is=2007&num=100#PPA1968,M1


Attachments

  • VFW VTOL aircraft.JPG
    VFW VTOL aircraft.JPG
    25.8 KB · Views: 574

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312

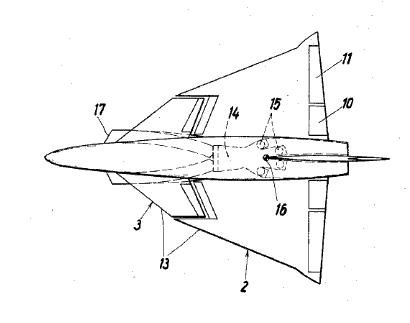

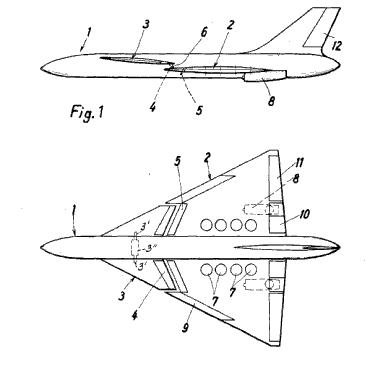

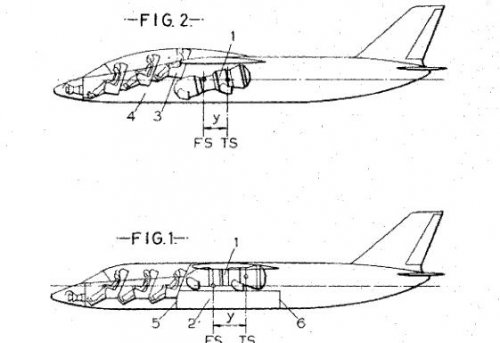

Reading this patent, I think, it was just an idea to get a better weight balance
in a direct lift VTOL aircraft, and so, in this case, really not in a context with
a real project. .. although I must admit , it looks quite fancy, with its 3-seat
cockpit ...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

the VFW VSTOL aircraft of 1971.
http://www.google.com/patents?id=feE6AAAAEBAJ&pg=PA1971&dq=VSTOL+aircraft&as_drrb_ap=q&as_minm_ap=1&as_miny_ap=2007&as_maxm_ap=1&as_maxy_ap=2007&as_drrb_is=q&as_minm_is=1&as_miny_is=2007&as_maxm_is=1&as_maxy_is=2007&num=100#PPA1971,M1


Attachments

  • VFW 1.JPG
    VFW 1.JPG
    17.4 KB · Views: 174
  • VFW 2.JPG
    VFW 2.JPG
    14.4 KB · Views: 151

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,970
Reaction score
5,279

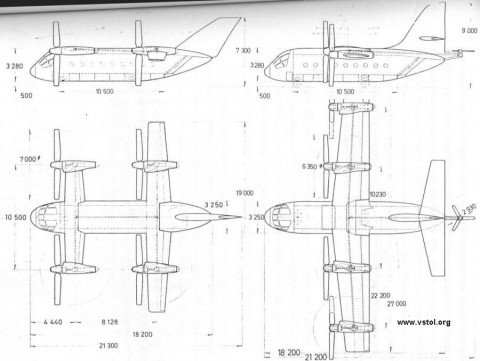

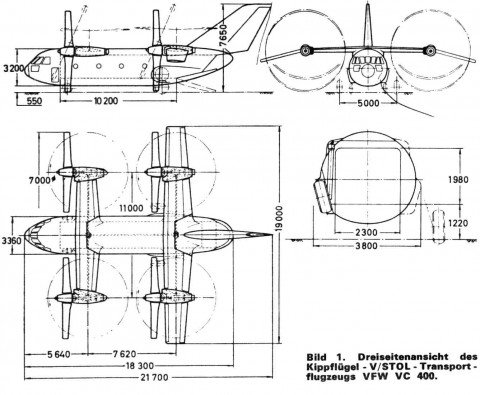

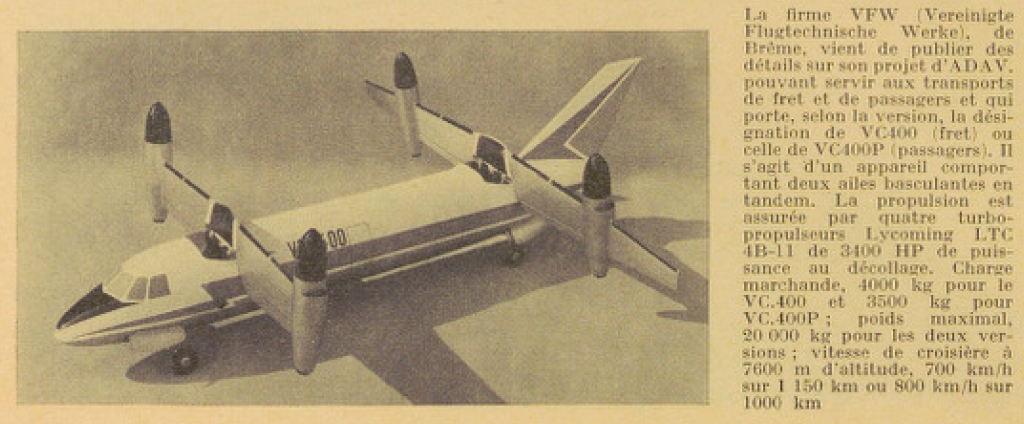

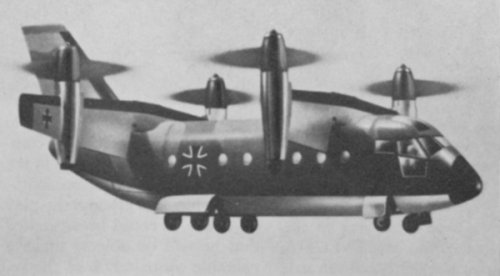

VFW VC-400

Source: Flying Review International, December 1968


Attachments

  • vc-400.jpg
    38.2 KB · Views: 814

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
153

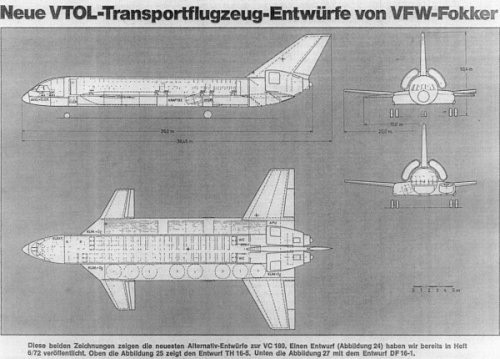

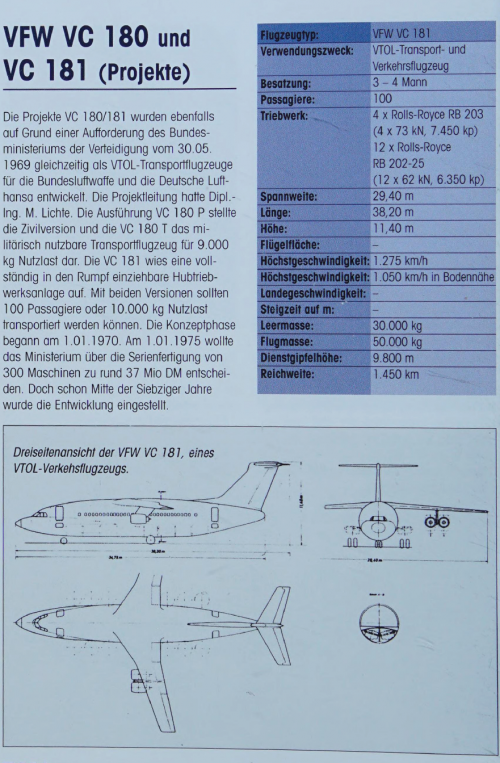

Flug Revue + Flugwelt International 1972?

VFW-Fokker VC180 I think iteration 24?


Attachments

  • scan0029a.jpg
    147.4 KB · Views: 199

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Hi,

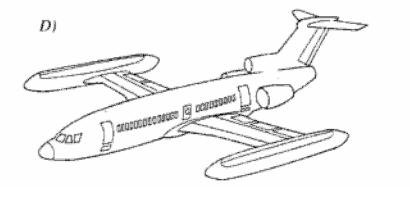

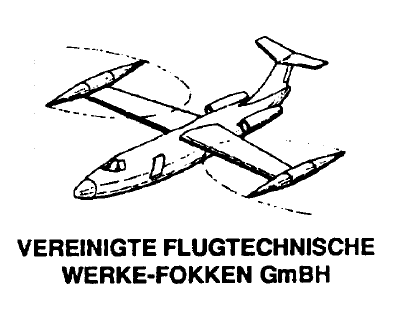

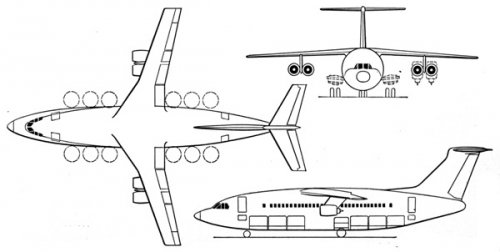

the VFW VC.180.

http://books.google.com.eg/books?id=OoFcHOLpCskC&pg=PA386&dq=EWR+VJ+Flugzeuge&hl=ar&ei=89hrTKLmL4TgOP628aQF&sa=X&oi=book_result&ct=result&resnum=1&ved=0CCgQ6AEwAA#v=onepage&q&f=true


Attachments

  • VC.180.JPG
    10.4 KB · Views: 423

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151
Re: German V/STOL transport/passenger projects

Just posted at the San Diego Air & Space Museum Archives on Flickr, a photo of a (company?) model of the VFW-Fokker VC-180.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Barrington Bond said:
Flug Revue + Flugwelt International 1972?

VFW-Fokker VC180 I think iteration 24?


My dear Barrington,

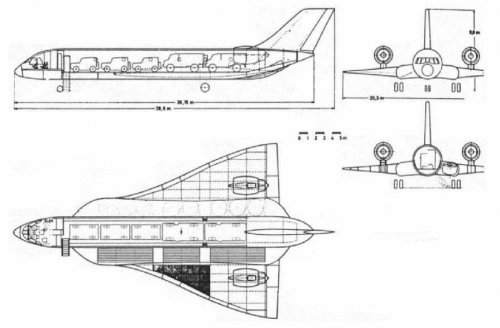

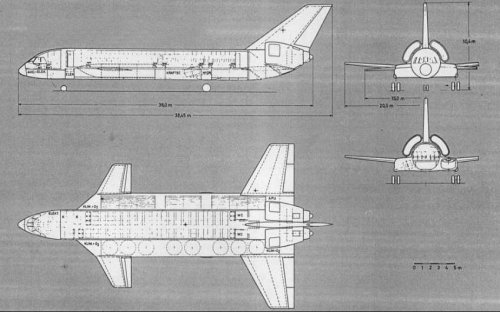

I think this aircraft was VFW TH 16,and here is DH 16-3.


Attachments

  • TH 16.jpg
    TH 16.jpg
    81.9 KB · Views: 115
  • DH 16-3.jpg
    DH 16-3.jpg
    59.4 KB · Views: 137

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
108
Hello,

I'm trying to find some projects - they are a series of German design studies for four-poster/quad tilt rotors (fuselage mounted engines). The designs had both military and transport versions. Most interestingly, they ranged in size from very small single-seat designs to large transports.

They apparently never made it to the forum here (although they were once on a VTOL related website),

If anyone has them - I'd love to see that information again,


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Avimimus said:
I'm trying to find some projects - they are a series of German design studies for four-poster/quad tilt rotors (fuselage mounted engines). The designs had both military and transport versions. Most interestingly, they ranged in size from very small single-seat designs to large transports.


My dear Avimimus,


we know the VFW VC.400 and VC.500 quad tilt-rotor projects,but as you said "fuselage mounted engines",
I never heard about them before,can you tell us what is their names and from which company to help you.


The only tilt-rotor fuselage mounted engines was from Brazilian and designed by Mr. Heinrich Focke;


http://www.secretprojects.co.uk/forum/index.php/topic,2971.msg85420.html#msg85420


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
108
Dear Hesham, thank you for jogging my memory.

There were proposals for a VC-300 and a VC-200 in that family of aircraft. The smallest (VC-200) had fuselauge mounted engines. I've managed to obtain a few images from internet archives which I'll post shortly (originally posted on VSTOL.org but no longer available).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
Thank you my dear Avimimus,


and please if you have a drawings to them,please send it,they are a well known
projects,but I never keep any views for them .


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,209
My dear Avimimus,

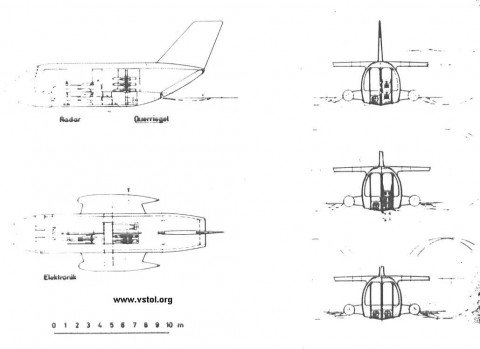

here is a drawings to VC.200 and VC.300.


Attachments

  • vc_200_2[1] - Copy.jpg
    vc_200_2[1] - Copy.jpg
    30.7 KB · Views: 466
  • vc_200_2[1].jpg
    25.8 KB · Views: 469
  • vc_300_2[1] - Copy.jpg
    vc_300_2[1] - Copy.jpg
    33.3 KB · Views: 455
  • vc_300_2[1].jpg
    27.6 KB · Views: 449

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
108
Great! Thanks Hesham.

It is hard to imagine how anyone could operate the rear gun on the VC-300...

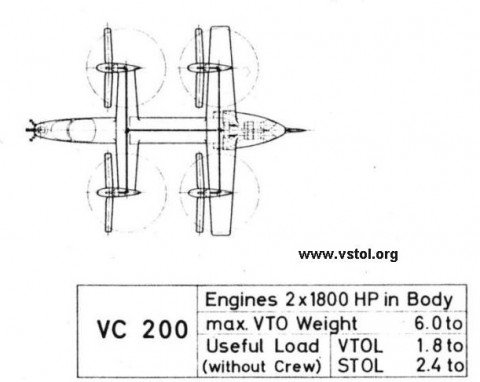

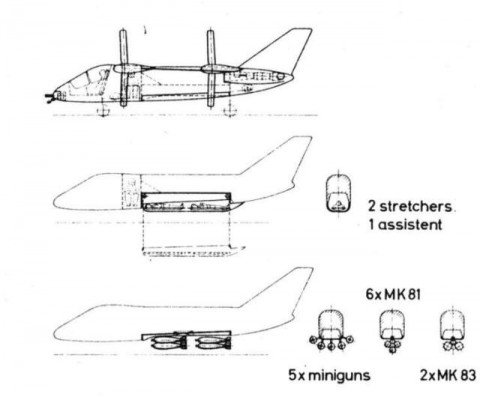

VC-200 Combat Aircraft / Medevac
Power: two 1,342 kW engines mounted in the rear of the fuselage
Maximum VTO Weight: 6,000 kg (13,230 lb)
Payload (STOL): 2,400 kg (5,300 lb)
Payload (VTOL): 1,815 kg (4,000 lb)
A medical evacuation pod was conceived that would have allowed the transport of two casualties on stretchers and a doctor.

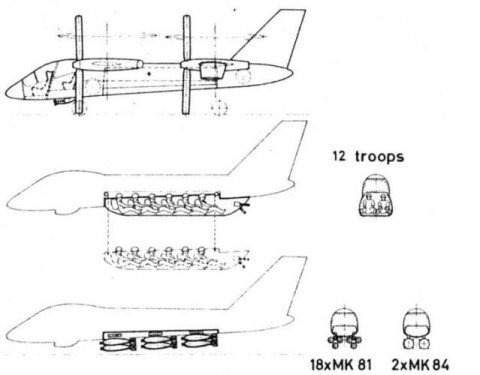

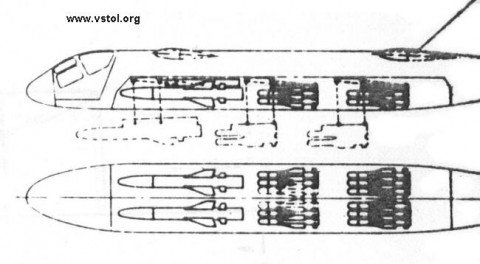

VC-300 Combat/ Transport Aircraft
Power: four 1,800 hp engines
Maximum VTO Weight: 11,000 kg (24,250 lb)
Payload (STOL): 4,800 kg (10,582 lb)
Payload (VTOL): 3,800 kg (8,377 lb)
Crew: 2
It could have ferried 12 troops in a detachable pod or various combinations of bombs

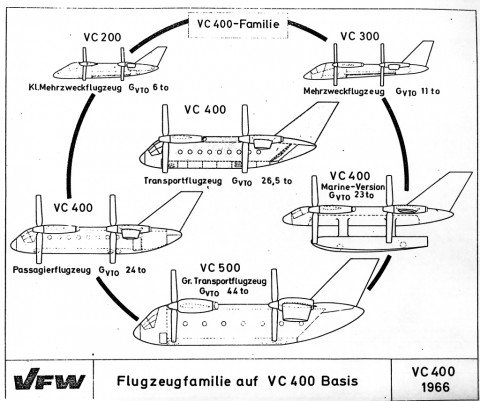

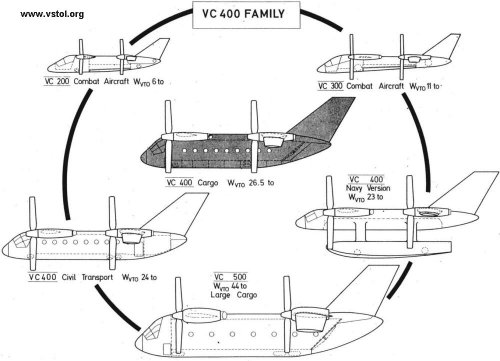

Here is the family photo!


Attachments

  • VFW.jpg
    55.3 KB · Views: 124
  • vc_fam.jpg
    67.9 KB · Views: 387

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,983
Reaction score
108

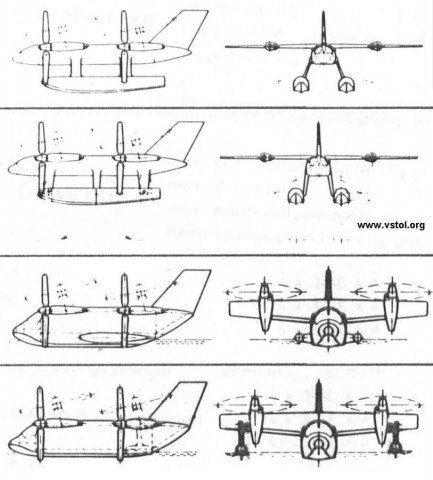

Here are some additional pictures of the military/naval versions of the VC-400 (compared to the standard version).

VC-400 / Naval
In 1966, sea-based variants of the VC 400 concept were studied for the German navy. Four different concepts were considered for this mission.
Power: 4 General Electric T64-GE-12 engines
Propeller: 4 propellers (7 m diameter)
Wing Area: 20 m (215 ft) (forward); 40 m (430 ft) (rear)
Maximum VTO weight: 23,000 kg (50,700 lb)
Fuel load: 6,000 kg (13,225 lb)
Payload: 9,650 kg (21,275 lb)
could operated from solid surfaces
could load a 2 m (6.6 ft) wide troop transport pod with 30 folding seats
If anyone has more information - I'm sure it'd be interesting.


Attachments

  • vc_400_3[1].jpg
    51.9 KB · Views: 99
  • vc_400n1[1].jpg
    47.7 KB · Views: 89
  • vc_400n2[1].jpg
    22.6 KB · Views: 96
  • vc_400n3[1].jpg
    30.3 KB · Views: 112
  • vc_400s_2[1].jpg
    37.5 KB · Views: 130

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31

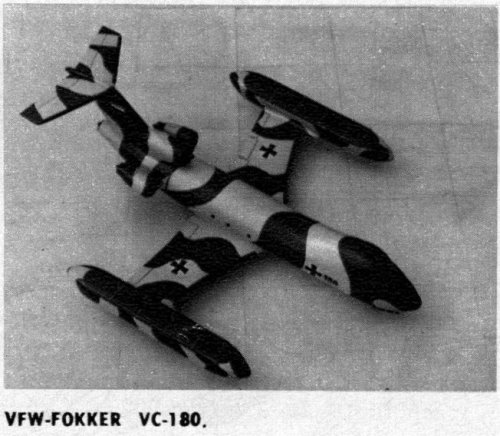

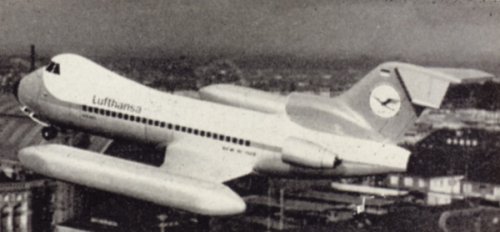

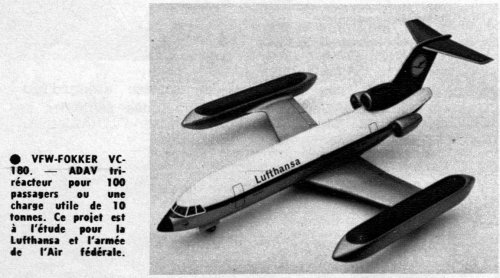

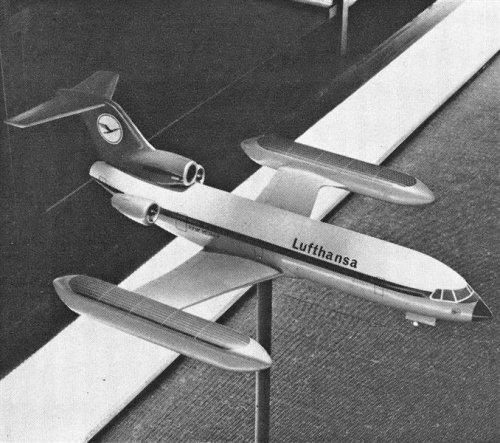

Models of the VC-180 in military and civil colours, exhibited at Le Bourget 1971, from Aviation Magazine 565.


Attachments

  • VFW_fokker_VC-180_avimag_565_p39.jpg
    114.7 KB · Views: 82
  • VFW_fokker_VC-180_lufthansa_avimag_565_p39.jpg
    225 KB · Views: 82

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31

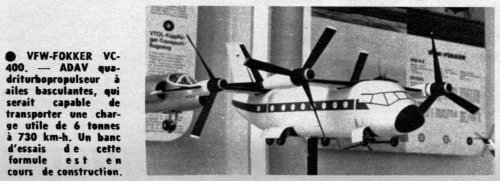

Model of the VC-400 exhibited at Le Bourget 1971, from Aviation Magazine 565.


Attachments

  • VFW_fokker_VC-400_avimag_565_p39.jpg
    153.1 KB · Views: 97

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

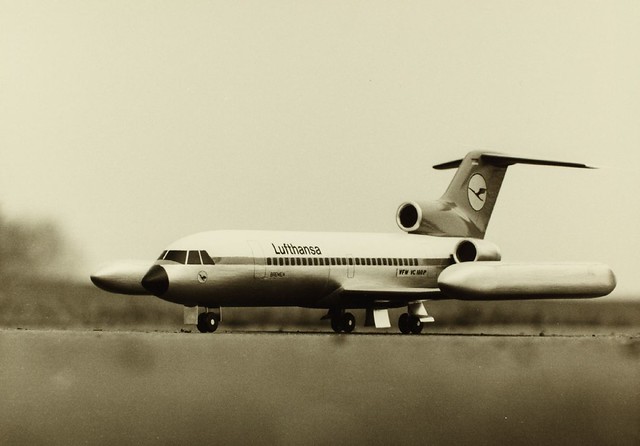

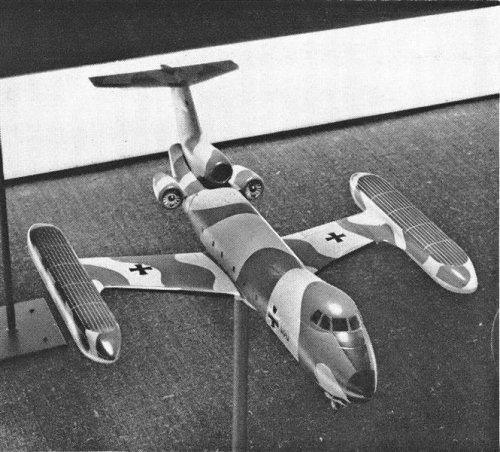

Model of VFW-Fokker VC-180 military version and civil version shown at the Hanover Air Show 1970.

Each would be powered by ten Rolls-Royce lift engines in wing pods and three General Electric cruise engines. Civil version would carry about 100 passengers at 560 mph. Military version has raised cockpit and hinged visor for cargo loading.

"VTOL Aircraft Designs Shown in Hanover"
Aviation Week & Space Technology May 11, 1970 p. 61


Attachments

  • 1970051179_4.jpg
    103.8 KB · Views: 74
  • 1970051179_5.jpg
    107.2 KB · Views: 80

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,490
Reaction score
1,037

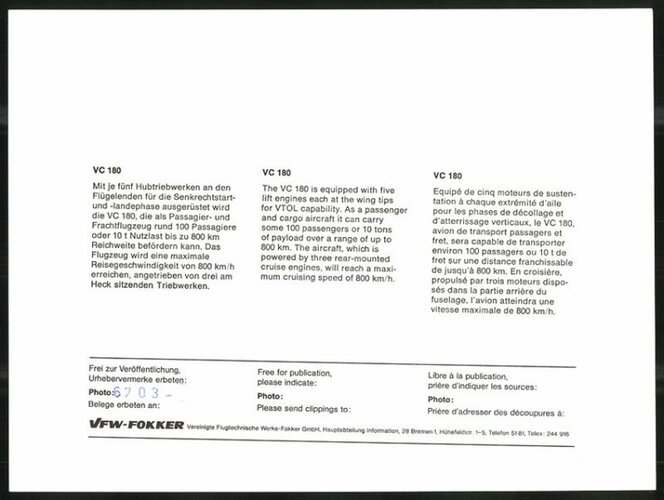

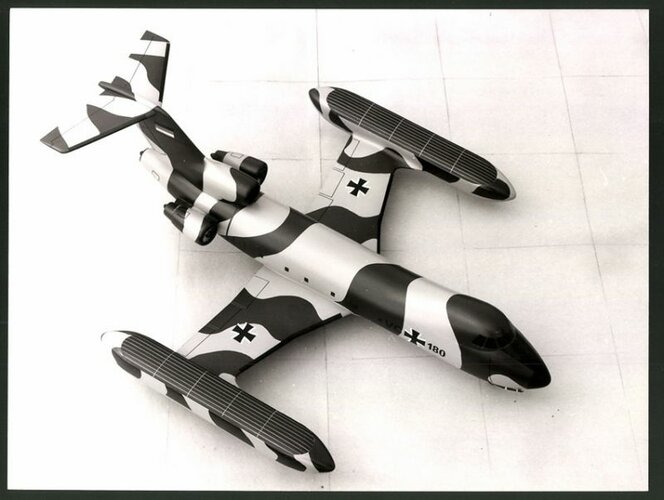

Attachments

  • Fotografie-Flugzeug-VFW-Fokker-VC180-Modell-fuer-die-Luftwaffe.jpg
    53 KB · Views: 49
  • Fotografie-Flugzeug-VFW-Fokker-VC180-Modell-fuer-die-Luftwaffe (1).jpg
    Fotografie-Flugzeug-VFW-Fokker-VC180-Modell-fuer-die-Luftwaffe (1).jpg
    53.9 KB · Views: 51
