Eurotrainer: Alphajet Proposals

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
80

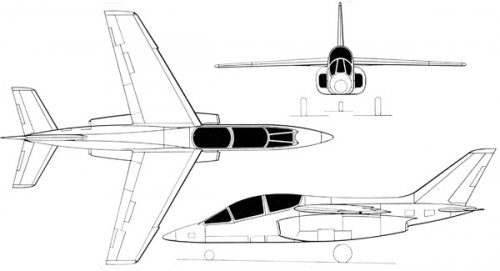

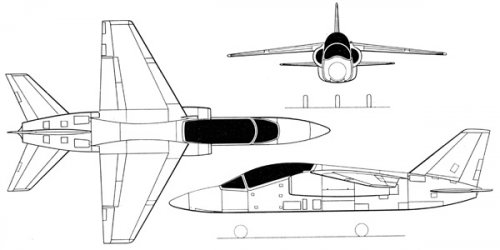

Just a couple of drawings showing two jet trainers proposed for the German/French trainer programme.

Dassault Bregeut TA-501

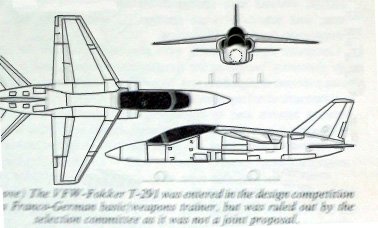

VFW-Fokker T-291

They are a bit Scratchy anyone got better?


Attachments

  • FR- Dassault Bregeut TA-501.jpg
    FR- Dassault Bregeut TA-501.jpg
    38.6 KB · Views: 1,216
  • GER- VFW-Fokker T-291_1.jpg
    GER- VFW-Fokker T-291_1.jpg
    45.8 KB · Views: 1,127

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865

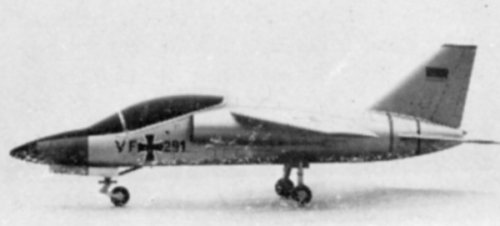

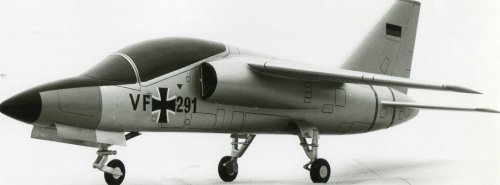

VFW-Fokker VF T291

Projected powerplants included Larzac, J85-GE-4, and JT15D-3, and optional afterburning engines permitting low supersonic speeds.

Span: 8.05m
Length: 11.795m
Height: 3.785m

Landing speed: less than 185km/h
TO/landing run: less than 500m

Source:
Flying Review International, Aug 1970


Attachments

  • T291.jpg
    33.9 KB · Views: 1,100
  • T291b.jpg
    23.8 KB · Views: 1,044

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865

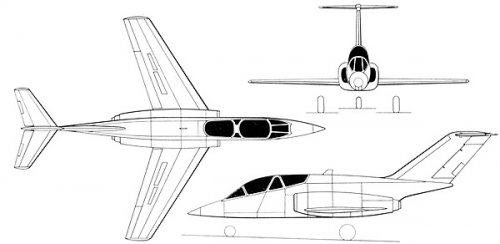

Aerospatiale/MBB E-650


Attachments

  • E-650b.jpg
    45.8 KB · Views: 353
  • E-650.jpg
    32.1 KB · Views: 1,003

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865
Dornier/Dassault TA 501


Attachments

  • Ta-501.jpg
    32.4 KB · Views: 372
  • Ta-501b.jpg
    60.1 KB · Views: 389

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865

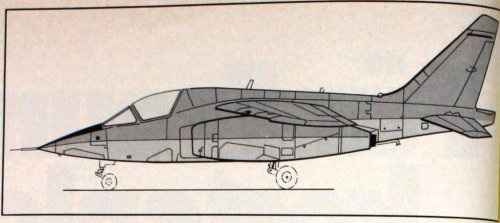

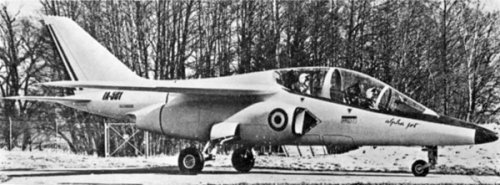

Interesting photo found in a pile of old photos at a local bookshop. There's also a T291 photo if anyone is interested. Dated June 1969, copyright Harry Naef.


Attachments

  • Alphajet.jpg
    79.4 KB · Views: 373

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Dear overscan,

Sorry, I misunderstand,is the last picture for E-650 or T-291 ?.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865
I think its a low wing version of the TA 501? Its just called "Alpha Jet" on the nose.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
Nord Aviation-Sud Aviation/Messerschmitt-Bölkow-Blohm proposed the E 650 "Eurotrainer"
Dassault-Bréguet/Dornier proposed the TA 501
VFW-Fokker proposed the T 291
The very 1st 3 views on this topic is the 2nd E 650 proposal .


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
At first the Aerospatiale-MBB E 650 was based on the Messerschmitt 462 fuselage and SN 600 Corvette business jet wing
Later it got a high tailplane


Attachments

  • E650.jpg
    75.7 KB · Views: 248
  • e650.pdf
    283.4 KB · Views: 61

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
-The Dassault-Bréguet proposal was the Br 126 shown by Overscan as full scale mock up at Le Bourget in 1969
-The Dornier proposal was the 2nd P 375 .
They merged in the TA 501 AlphaJet (I am sure you noticed 375+126=501 , dear Watson ) . TA 501 was the winner ,and with some mod was built
in France &Germany
-VFW 291 was a late hopeless proposal.


Attachments

  • p375.pdf
    428.6 KB · Views: 60
  • P375a.jpg
    35.3 KB · Views: 241

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865

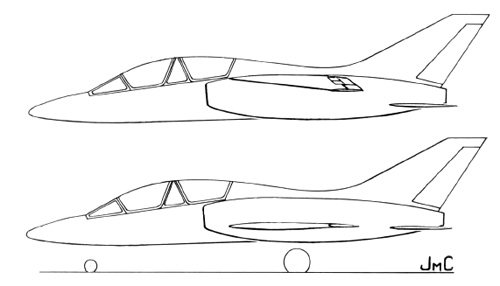

Thanks for that, Richard. Here's Br 126 from Jean Cuny (Avions Breguet 1940-1971) and P375 from the same.


Attachments

  • Br126.jpg
    81.3 KB · Views: 231
  • Br126-a.jpg
    23.7 KB · Views: 247
  • P375.jpg
    17.1 KB · Views: 250

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,941
There's an artist rendering of the E-650 in Le fana de l'aviation, July 2004 (they explain the background of the ACF program, particularly the lack of competitors to Dassault in the ACF... first time it happened since 1910 and fundation of militayr aviation in France :) )


Arthur

ACCESS: Restricted
Joined
May 3, 2007
Messages
7
Reaction score
1
The E650 mockup still survives. I saw it years ago in the small aviation museum at Villingen-Schwenningen in southern Germany. Not sure if it's still there.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865
Museum here:
http://www.flugplatz-schwenningen.de/mu_exponate.html

My German's pretty rubbish but it looks like its not on display any more.


Arthur

ACCESS: Restricted
Joined
May 3, 2007
Messages
7
Reaction score
1
You're right, it's in storage. Very unfortunate, since i know of very little places where original mockups survive. Come and think of it - i'm going to post a thread on that.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
The E 650 was at the "Luftwaffe Museum " in the 80' ( then at Uetersen near Hamburg ,now at Gatow near Berlin )
Right side of this picture (part of a poscard I got at Uetersen )


Attachments

  • xHpxD3.jpg 589×265 pixels.pdf
    137.5 KB · Views: 155

MIRAGE 4000

ACCESS: Confidential
Joined
Mar 17, 2007
Messages
151
Reaction score
13

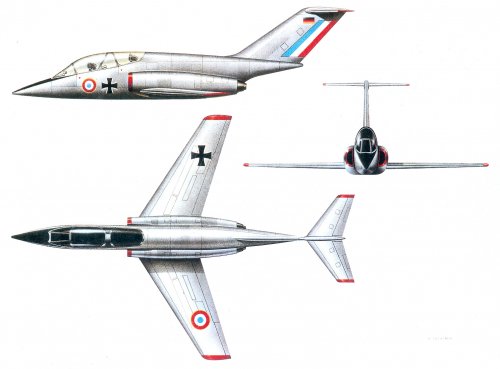

E 650 EUROTRAINER

Big problems with the T tail : spin

Nord and Sud launched a project in 1969 (before the creation of Aerospatiale) and with MBB (type 462) proposed in august 1969 the E 650.

Interesting, MBB and Sud Aviation set up in december 1969 a GIE Eurotrainer (like Airbus) for this program.

The E 650 have the Larzac 02, the E 651 the J85


E 650
Longueur : 13,5
Envergure : 9,6 m
Surface alaire : 18 M2
Masse : 4425 kg


Attachments

  • E650.jpg
    305.8 KB · Views: 721

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865
Dornier P375 is described in Flight International, 14 Dec 1967. Unfortunately seems to be missing from website.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865
http://www.flightglobal.com/PDFArchive/View/1970/1970%20-%200789.html
http://www.flightglobal.com/PDFArchive/View/1970/1970%20-%200245.html

Collaboration in a more concrete form (or more accurately, in wood and metal forms) is to be seen in Hall C. where two of the three Franco-German subsonic trainer projects exist in coy juxtaposition as full-scale mock-ups. The first is the E.650 Eurotrainer, proposed jointly by Snias and MBB (Messerschmitt-Bolkow Blohm) with French design leadership. Alongside stands the Alpha Jet, by Dornier and Dassault-Breguet, in which the leader is Germany. The Eurotrainer, in green and brown camouflage, is a low wing design with a high tail, while its counterpart, finished in white, has a shoulder wing and fuselage-mounted tailplane. Both have been designed with private money; government support does not begin until the contractor has been selected.

Both aircraft are twin-engined, and designed to take either the Snecma Larzac of 2,464lb. 10.9kN thrust or the General Electric J85-GE-4 rated at 2,950lb, 13.1kN thrust. The French and German Governments each have a requirement for 200 aircraft, and one of the stipulations in entering the design contest was that a firm in either country would have to team with a partner from the other. Both are designed around a combined trainer/light-strike role (designation TA on the fin of the Alpha Jet denotes training and attack). The winner will replace the venerable Magister in France, but its adoption in Germany will signal the beginning of a new training philosophy for that country. For some years fight crews for the G A F have been trained in America, beginning on Cessna T-37s and graduating to Northrop T-38 Talons. While certainly helping to offset the costs of maintaining American troops in Germany, the forces of nationalism are beginning to press for a "homegrown" product. More to the point, training in clear American skies is hardly a suitable preparation for fighting in proverbially poor European weather.

A model of a similar project, the Type 291 by VFW and Fokker, demonstrates the thoughts of this now-combined Dutch-German firm. This, too. would have twin Larzacs or J85s. but in view of the political constraints mentioned above in connection with the Franco-
German projects, its realisation (at least in response to this competition) appears remote.

Another European Trainer

THE NEW DESIGNATION E.650 now used for the Franco-German trainer proposed by Snias (Sud-Nord-Sereb) and Messerschmitt-Bolkow-Blohm aircraft division (Flight, January 29, page 171) was given when the joint project teams completed the design phase shortly before the end of last year. This project is based on the MBB Type 462 and the Nord SN600. It will be powered by two Snecma-Turbomeca Larzac engines, have a speed range lying between Mach 0.2 and Mach 0.9 and be able to operate from unprepared strips. Weapon load for eventual ground support missions will be about 3,360lb, 1,524kg, and the all-up weight will probably be about 11,200lb, 5,080kg. The two seats will be in tandem.

Another proposed Franco-German trainer has now appeared on the scene, making three all told. This is the VFW T291, shown in model form in the photograph on this page. Like the others, this would replace the Fouga Magister and Lockheed T-33 types.

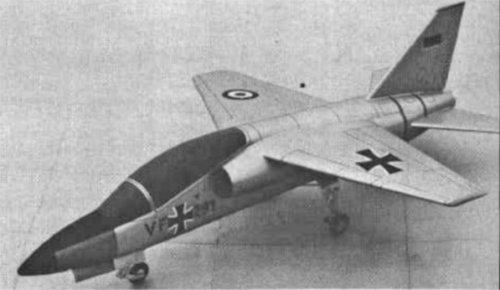

Newcomer on the European military jet trainer scene, VFWs T291 proposal has a shoulder wing layout, its structure being designed for afterburner powerplants (two Snecma Larzac 02s or two J-85 CE4s) so that operation at low supersonic speeds is possible.


Attachments

  • T291.jpg
    42.2 KB · Views: 1,067

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Hi,

and the MBB-Nord Type-462.

http://www.flightglobal.com/PDFArchive/View/1969/1969%20-%201083.html


Attachments

  • type-462.JPG
    12.8 KB · Views: 606

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Hi,

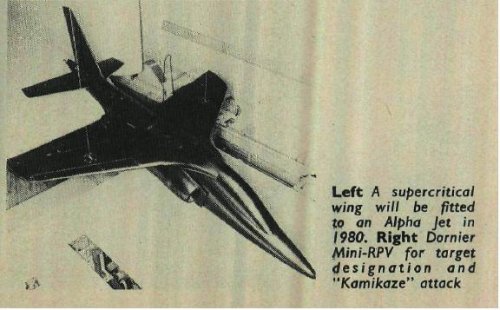

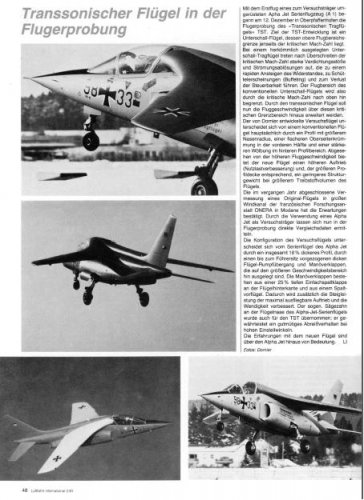

a supercritical wing with Alphajet.

http://www.flightglobal.com/PDFArchive/View/1978/1978%20-%200720.html


Attachments

  • Alphajet.JPG
    39.3 KB · Views: 522

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,058
Reaction score
3,743
Hi,

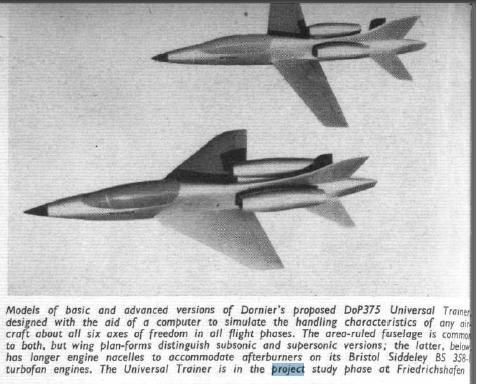

anther models to Dornier P.375,with different wings and engines.

http://www.flightglobal.com/PDFArchive/View/1967/1967%20-%202379.html

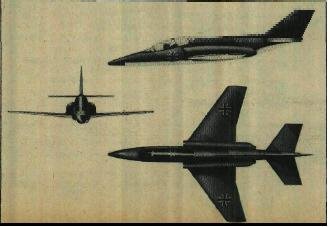

Models of basic and advanced versions of Dornier's proposed DoP375 Universal Trainer designed with the aid of a computer to formulate the handling characteristics of any aircraft about all six axes of freedom in all flight phases. The area-ruled fuselage is common to both, but wing plan-forms distinguish subsonic and supersonic versions; the latter, below has longer engine nacelles to accommodate afterburners on its Bristol Siddeley BS 358 turbofan engines. The Universal Trainer is in the project study phase at Friedrichshafen


Attachments

  • P.375.JPG
    35.8 KB · Views: 588

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147

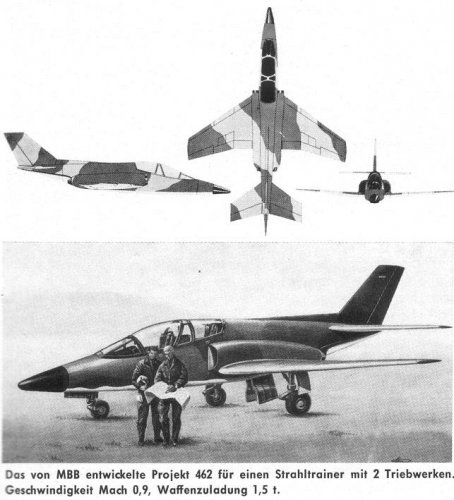

And MBB 462 again. This is from "Der Flieger" 7/1969.


Attachments

  • MBB 462.JPG
    MBB 462.JPG
    67.9 KB · Views: 279

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,395
Reaction score
733
Pictures: http://i29.servimg.com/u/f29/11/29/05/29/enigmc11.jpg
Source: http://forum.avionslegendaires.net/viewtopic.php?f=5&t=6294


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,395
Reaction score
733

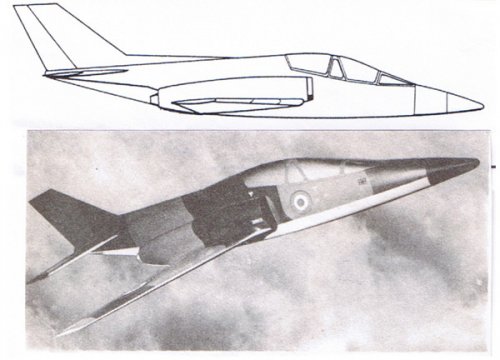

Unofficial artist drawing of a single-seat Alpha-Jet. The free space would have been used for extra fuel and ECM equipment.
From Flug-Revue 01/1976, page 2?.


Attachments

  • AlphaJet_SingleSeater_ArtCon_FR0176.jpg
    132.6 KB · Views: 184

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
209
Re: Eurotrainer: Bréguet Br.126 Alphajet Proposal......

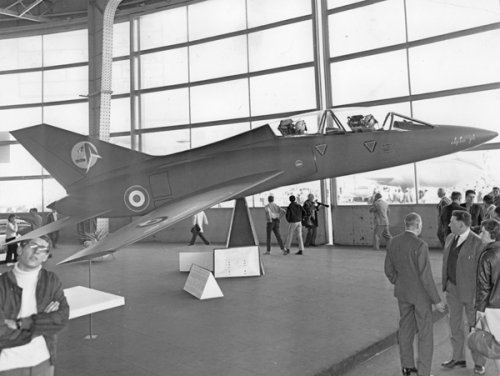

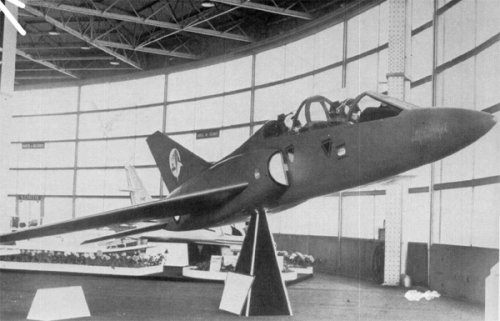

Dear Boys and Girls, here is a picture of the Bréguet Br.126 Alpha Jet mock-up exhibited at the 1969 Paris Salon......

The picture comes from the 15th June 1969 issue of Aviation Magazine International......

Terry (Caravellarella)

Bréguet Br.126 Alpha Jet mock-up - Aviation Magazine International - No. 516 - 15 Juin 1969......jpg

Last edited:

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
209
Re: Eurotrainer: Dornier Alphajet projects......

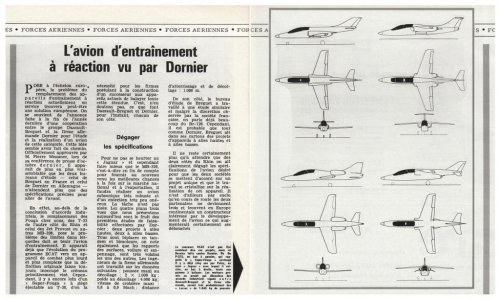

Dear Boys and Girls, here is in article in French about the Dornier Alphajet "projects"; I do not know if all of the designs are Dornier's (the article isn't clear to me)......

The article comes from the 15th February 1969 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Dornier jet trainer projects - Aviation Magazine International - No. 508 - 15 Février 1969.......jpg
    Dornier jet trainer projects - Aviation Magazine International - No. 508 - 15 Février 1969.......jpg
    134.2 KB · Views: 276

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
209
Re: Eurotrainer: Bréguet Br.126 Alphajet Proposal......

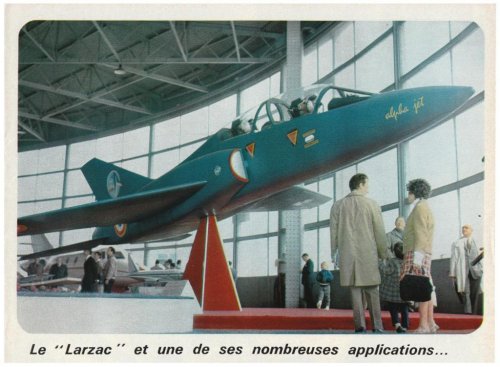

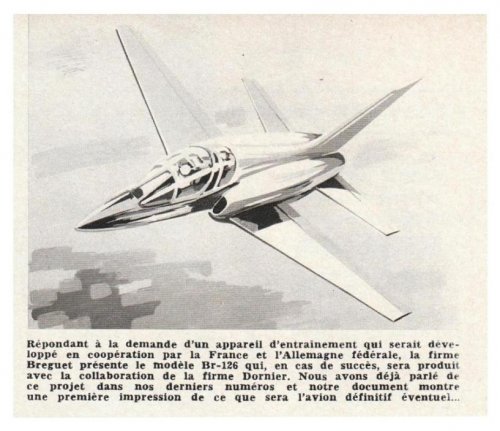

Dear Boys and Girls, here is an artist's impression with a caption in French of the Bréguet Br.126 Alpha Jet "project"......

The picture comes from the 1st June 1969 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Bréguet Br.126 Alpha Jet project - Aviation Magazine International - No. 515 - 1 Juin 1969.......jpg
    Bréguet Br.126 Alpha Jet project - Aviation Magazine International - No. 515 - 1 Juin 1969.......jpg
    86.1 KB · Views: 201

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38

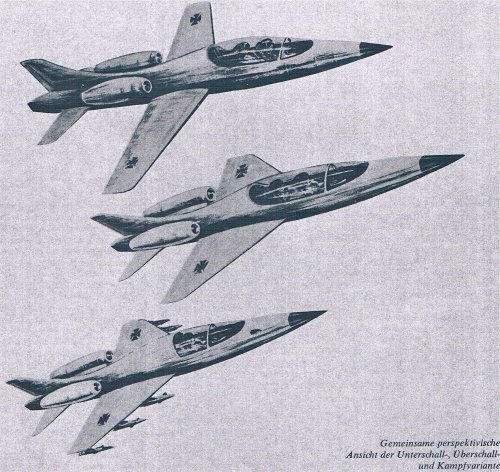

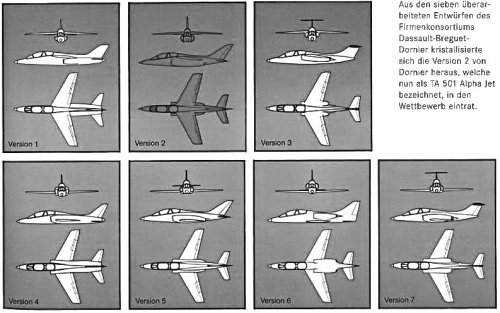

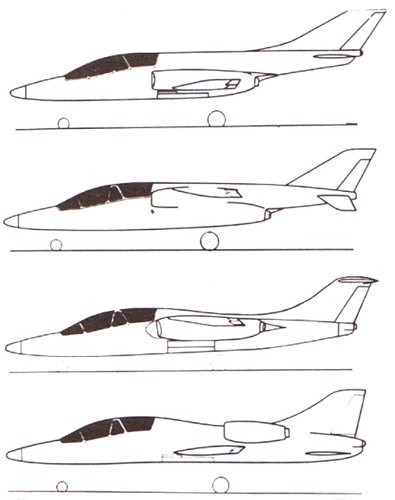

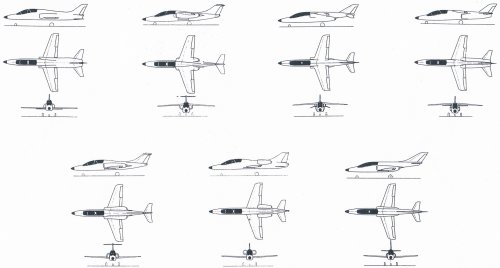

From the DORNIER POST ( 1968 ) : AussichtreichenEntwürfe für das Strahltrainerkonzept :


Attachments

  • Numériser 19.jpg
    Numériser 19.jpg
    1.1 MB · Views: 237

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,978
Reaction score
333
Good find, richard. Thanks. Are in the text any designations?

regards


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
From the same source ( Dornier Post ) , a single seat Dornier P-375 :


Attachments

  • Numériser 47.jpg
    Numériser 47.jpg
    1.2 MB · Views: 964

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,395
Reaction score
733

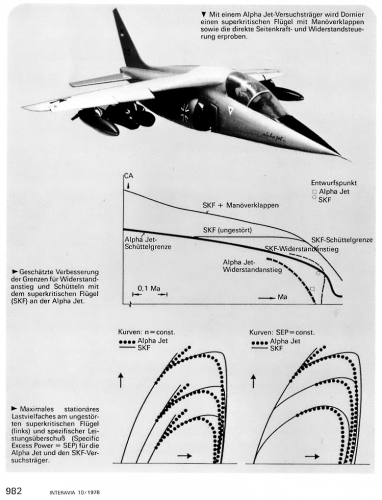

Re: Alphajet supercritical wing test aircraft

Dornier Alphajet SKF (super critical wing and single seat)




Source: Interavia Germany October 1978, page 982


Attachments

  • Dornier_Alpha_Jet_SKF_super_critical_wing_single_seat_Interavia_Germany_October_1978_page982.png
    Dornier_Alpha_Jet_SKF_super_critical_wing_single_seat_Interavia_Germany_October_1978_page982.png
    437.9 KB · Views: 665

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
568
Reaction score
184
More on the Dornier P.375 from Dornier Post 1/2 1969 in-house magazine attached as a PDF.


Attachments

  • Dornier_P375_(Dornier_Post_1_2_1969)_Article.PDF
    1.1 MB · Views: 93

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
561
Website
deeptowild.blogspot.com
Artist's impression of Aerospatiale/MBB E-650.

Source:
https://www.facebook.com/photo.php?fbid=603307206474256&set=o.34366349783&type=1&theater


Attachments

  • 11855796_603307206474256_8480084634982269836_n.jpg
    40.9 KB · Views: 96

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,572
Reaction score
3,865
Fokker VF291

http://www.ebay.co.uk/itm/original-press-photograph-FOKKER-VF-T-291-jet-trainer-/361447622648


Attachments

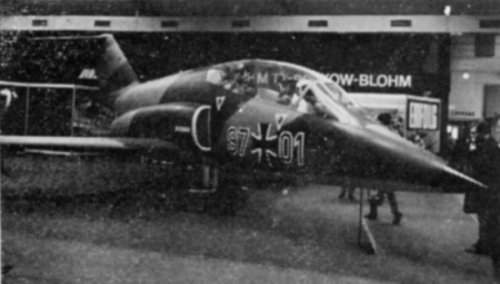

  • Fokker V291.JPG
    Fokker V291.JPG
    107.6 KB · Views: 118

Similar threads

Top
