European RPV and UAV projects from the 70's

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
184
Website
www.hitechweb.genezis.eu
UAU! In 1976!!

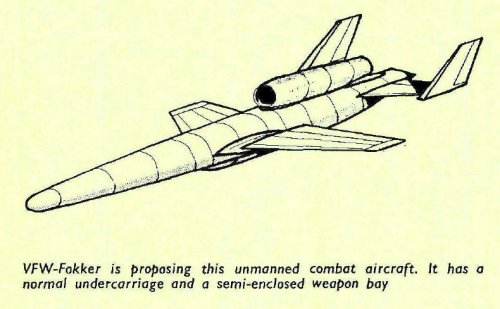

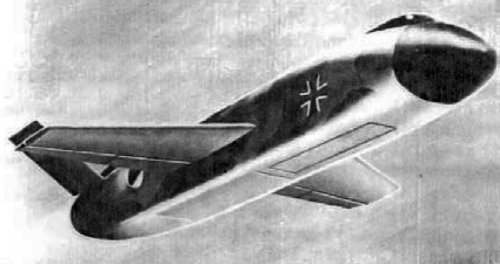

VFW-Fokker has now published a proposal for an unmanned
attack aircraft which could be cost-effective in
preparing heavily defended target areas for attack by
manned aircraft. It would also be capable of penetrating
up to 100km into enemy territory from behind the friendly
SAM missile belt. Three stages of sensor and controlsystem
sophistication are proposed, ranging from today's
established technology to a remote target-seeking and
attack capability. The aircraft would have a single turbojet
mounted above the fuselage and could carry bombs
or missiles in a semi-submerged centreline weapon station.
Gross weight would be 2,000kg (4,4001b), weapon load
500kg (1,1001b), top speed Mach 0.9 at 100m (320ft), and
radius of action 300km (180 miles).
The first-stage aircraft would have a basic low-flying
system designed to keep it at under 300ft. A strappeddown
inertial system would be updated by terrain
terraincomparison
(Tercom) radar and beacons to fly the aircraft
over a programmed stationary target within the coverage
of a BL.755 cluster bomb or a Rockeye weapon. The
aircraft would take off and land on a normal undercarriage,
making automatic landings with the aid of the
German Setag or Mitag microwave landing systems. Peacetime
training would require virtually no flying, as is the
case with current missile batteries.
The second-stage VFW-Fokker unmanned aircraft would
add to the first the Sensor System fur Vorausgewahltes
Sehen (Sevas), embodying FLIR and a ranging and
tracking laser. The 40 FLIR detectors, having a + 20°
vision arc, would pick up any infra-red-radiating target
once they were turned on at the end of a programmed
approach flight. Then, without any telemetred contact with
the control station, the weapon would be released on
the target. The FLIR would simply provide a degree of
last-minute automatic detection and the laser would help
solve the aiming equation. Alternatively, the aircraft could
be set to detect and attack a target illuminated by a
ground-based laser designator. Sevas would give the aircraft
a degree of "intelligence," but it could be diverted
by decoy targets.
Only at the third stage is a live air-to-ground data link
envisaged. The link would be triggered to transmit a still
picture to the ground operator whenever the Sevas detected
a heat-radiating target. The operator would quickly
examine the picture and simply reply "Attack" or
"Ignore." It is felt that he would not have time to observe
a continuous visual image or to exercise real-time control.
The aircraft could also carry passive-warning radar to
identify transmitting SAM vehicles amidst a large
armoured force.
The low data rate of the proposed link might allow
the use of HF or even lower frequencies, which would
eliminate the need for line-of-sight contact. Control range
could be extended 200km (120 miles) into enemy territory
and there would be no need for airborne relay
stations. Countermeasures would be made extremely difficult
by both the low frequency and the low transmission
rate.

http://www.flightglobal.com/pdfarchive/view/1976/1976%20-%200763.html


Attachments

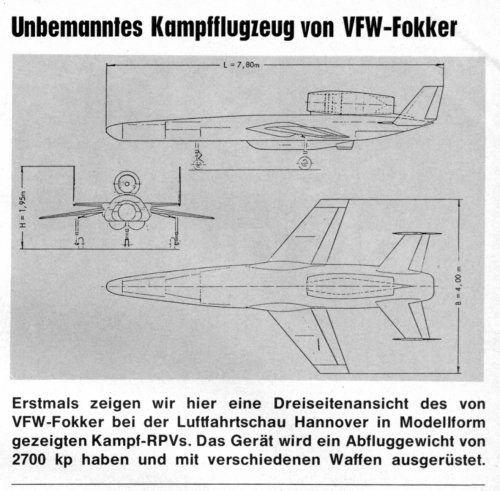

  • VFW Fokker UCAV.jpg
    VFW Fokker UCAV.jpg
    100.9 KB · Views: 602

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,554
Reaction score
360
Dornier projects

Source: Flug Revue July 1977

Models shown at Le Bourget 77


Attachments

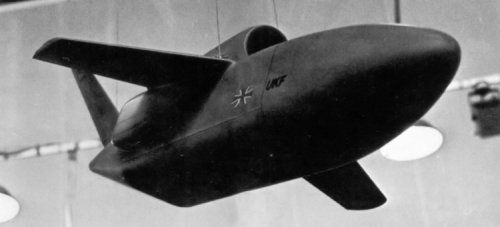

  • Dornier.jpg
    399.4 KB · Views: 548

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,554
Reaction score
360

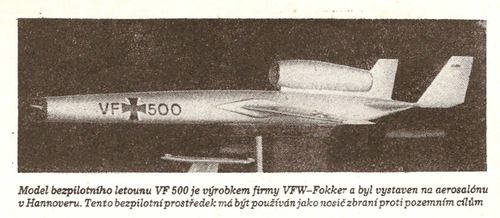

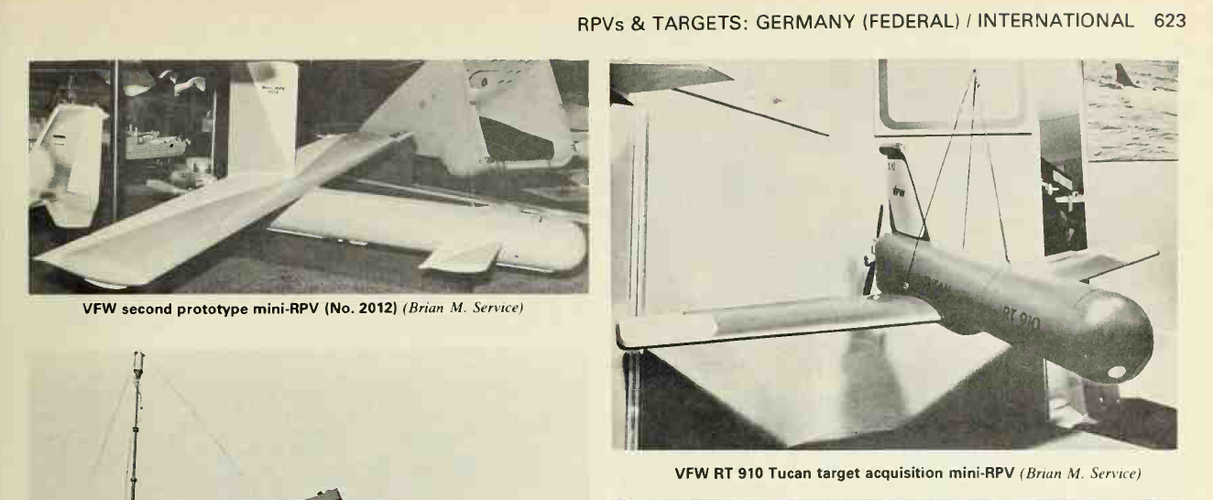

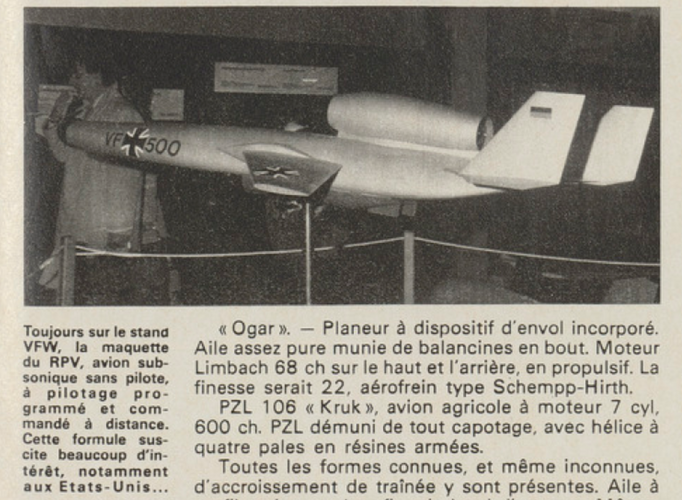

VFW-Fokker

Source: Flug Revue Setember 1976


Attachments

  • VFW Fokker.jpg
    VFW Fokker.jpg
    286.5 KB · Views: 542

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,335
Reaction score
284
what are the cylindrical objects under the belly?
[edit: semi-submerged payload]


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
184
Website
www.hitechweb.genezis.eu

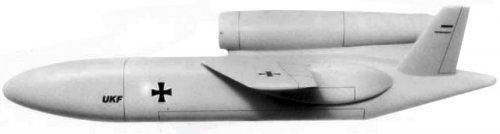

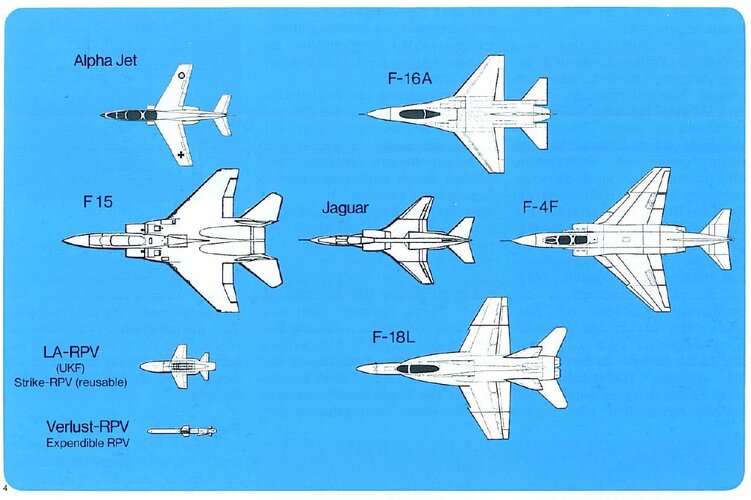

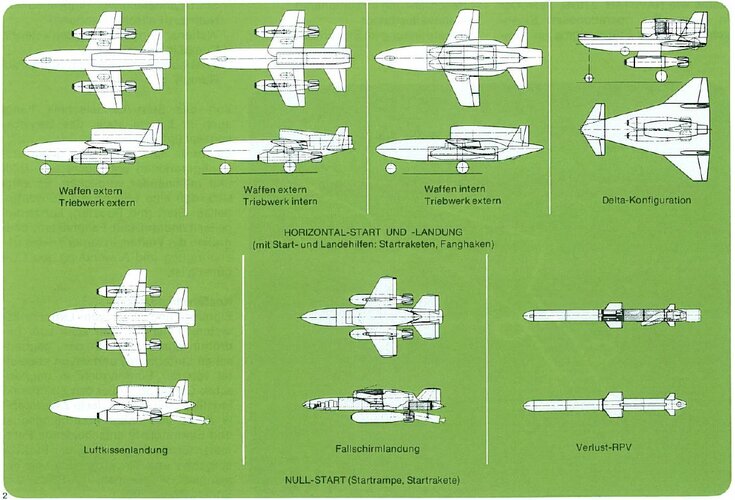

Yay, my 2000th post here. :) Hope it is worth the number. To complete the collection, here are the Dornier and MBB proposals, known also as the LA-RPV (Luft Angriffs RPV). Found thanks to Dr. Jürgen Engel from EADS LFK. The description of the program (to be updated in the next few days) is here:

http://www.hitechweb.genezis.eu/UCAV03.htm


Attachments

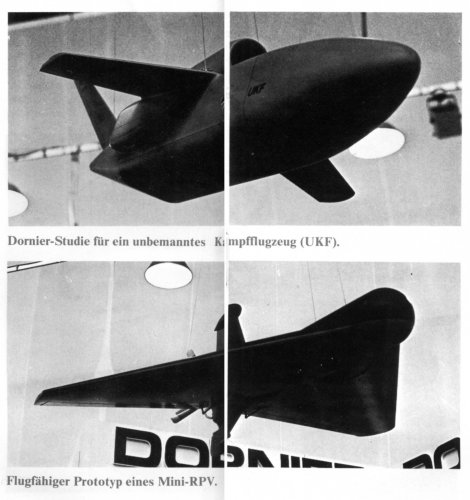

  • dornier_luft_angriffs_RPV_UKF_1.jpg
    55.8 KB · Views: 439
  • dornier_luft_angriffs_RPV_UKF_2.jpg
    26.1 KB · Views: 426
  • MBB_luft_angriffs_RPV_UKF.jpg
    40.6 KB · Views: 62

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
184
Website
www.hitechweb.genezis.eu
A7430598 I Experimental system for future remotely
piloted vehicles. J. Spintryk. Dornier-Post (English Edition), no. 2,
1974, p. 22-25.

Unmanned remote-controlled combat aircraft, known as re-
'motely piloted vehicles or RPVr. may well acquire great importance,
alongside the conventional manned aircraft. The German armed
fwces could save upkeep costs in peacetime with the aid of RF'Js.
Oefence capability would not suffer thereby. since RPVs promise
greater efficiency iri operation. An especially rntererting aspect IS the
UY of RPVs agaimt attacking armored units and other strongly
;defended ground taigets in thn combat area. The RPV system
:envisaged by Dornier ;onsis!s 01 one or more vehicles, a flying relay
lsta1ion. and a mobile grouiiu control station.

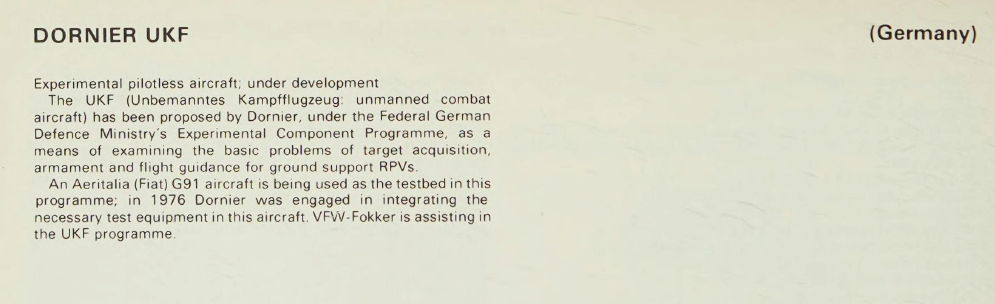

A7534725 System concept and key problems concerning
pilotless, remotely-controlled combat aircraft UKF (Systernkonzept
,urd Schldsselprobleme unbemannter. ferngelenkter Karnpfflugzeuge
/UKF). J. Spintzyk and P. S.arke (Dornier GmbH, Friedrichshafen.
Jahrest,Jgfing. 7rh, Kiel, West Gcrnlany, Sepr. 17.19, 1974, Paper
' 74.076~8. 2 p. 19 refs. In German.

Pilotless, remotely-controlled flight vehicles show great promise
'for combat missions involving strongly defended ground .%gets. An
employment of such unmanned aircraft is considered in the Tase of
'typical area targets in connection with the provision of air support
and missions which have the objective to isolate the combat area. A
;description of the considered vehicle concept is given. Key prob!ems
'are related to target recognition. data transmission, target search at
the proiection screen, flight control, and vehicle navigation.
Attention i s also given to an experimental system for the study of
the various problem areas.

http://www.osti.gov/bridge/purl.cover.jsp;jsessionid=00C876E624865F4D46EC2C6C209E9A5F?purl=/573396-ykvpaP/webviewable/

Does anybody have access to this?


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
855
Reaction score
190

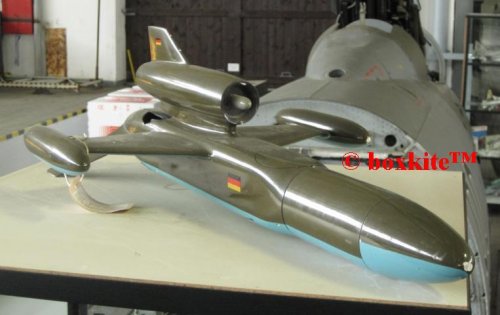

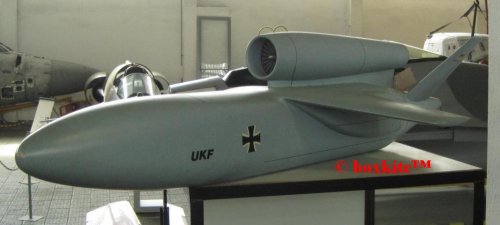

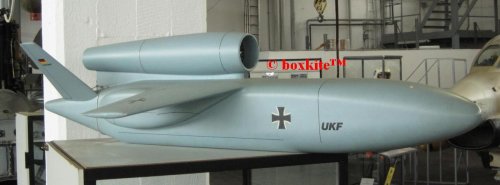

Photographed on Thursday in the Luftfahrtmuseum Wernigerode. Sorry, but no descriptions on the models :( .


Attachments

  • IMG_4764 (FILEminimizer).jpg
    IMG_4764 (FILEminimizer).jpg
    44.1 KB · Views: 55
  • IMG_4763 (FILEminimizer).jpg
    IMG_4763 (FILEminimizer).jpg
    41.2 KB · Views: 56
  • IMG_4762 (FILEminimizer).jpg
    IMG_4762 (FILEminimizer).jpg
    64.2 KB · Views: 61
  • IMG_4761 (FILEminimizer).jpg
    IMG_4761 (FILEminimizer).jpg
    48.6 KB · Views: 53

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,494
Reaction score
1,051

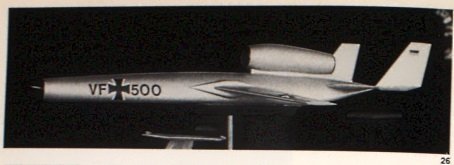

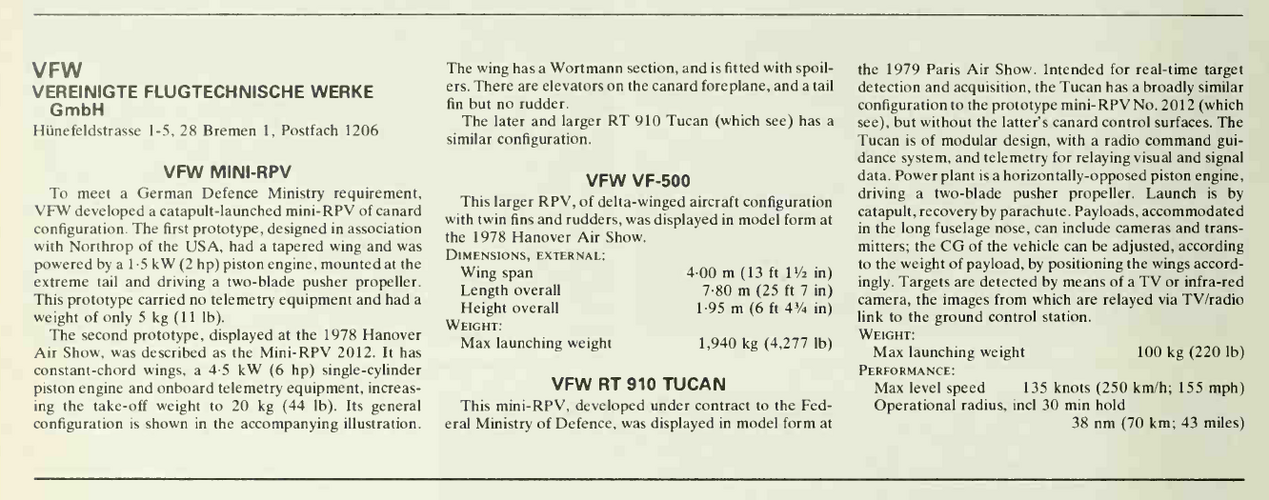

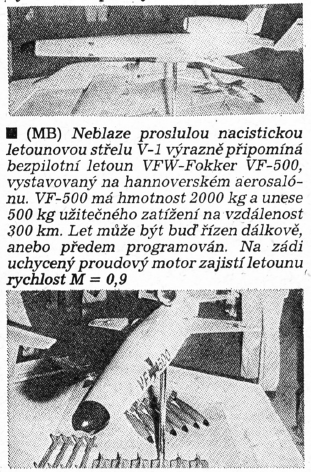

From Flug-Revue, June 1976, page 30.


Attachments

  • VFW_Fokker_VF_500_Drone_Flug_Revue_June1976_page30.jpg
    26.5 KB · Views: 55

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Hi,


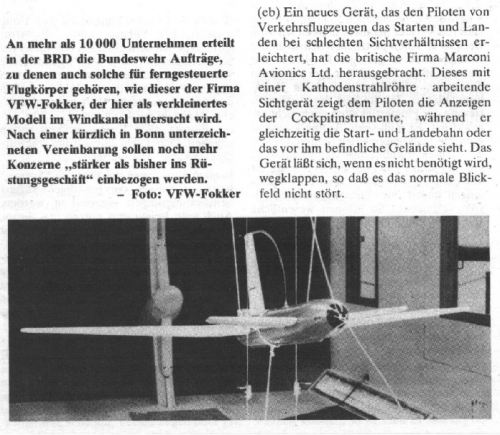

here is the Fokker-VFW RPV,but I don't know what was its name ?.


Flieger Revue 3/1979


Attachments

  • Fokker-VFW.png
    414.4 KB · Views: 50

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,494
Reaction score
1,051

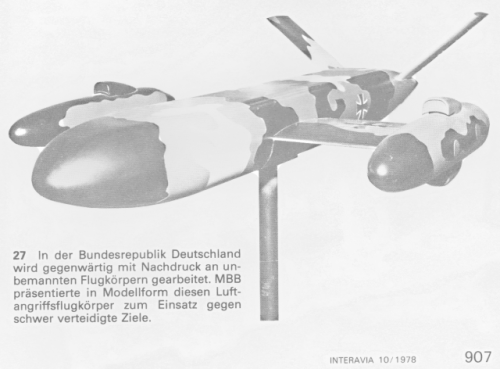

MBB UAV model against heavy defended targets.


It looks like a tiltrotor, but that assumption or any other information is not mentioned in the article.


Source: Interavia (German) - October 1978, page 907


Attachments

  • MBB_UAV_Interavia_Germany_October_1978_page907.png
    157.9 KB · Views: 76

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
As an UCAV intended "to attack strongly defended targets", as mentioned in the caption,
it probably would have flown one-way missions, I think. And VTOL wouldn't have been
really useful then.
