Various Mikoyan-Gurevich (MiG) Projects

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
727
Reaction score
344
Cutaway MiG I-360, modified by Motocar


Attachments

  • Cutaway MiG I-360.jpg
    Cutaway MiG I-360.jpg
    554.3 KB · Views: 1,491

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
From; MiG Aircraft since 1939,Putnam.


Attachments

  • 1.png
    362.9 KB · Views: 1,162

kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,621
Reaction score
831

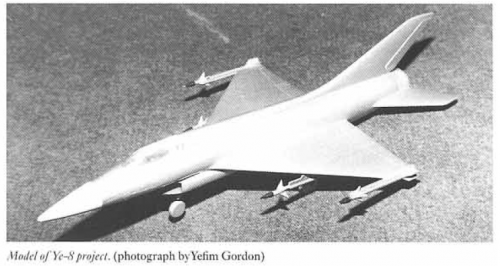

Interesting..I have been aware of the Ye-8 for ages, but had never noticed the version with wingtip AAM stations.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
Hi,

the MiG-19 Tigr (Tiger) was a shipboard fighter Project of 1953,powered by two
RD-9b engines.

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/45/


robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
103
Reaction score
78
what is this post-war model - experimental circular-wing MiG prototype ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
robertino said:
what is this post-war model - experimental circular-wing MiG prototype ?

What is it my dear Robertino,can you explain more ?.


robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
103
Reaction score
78
hesham said:
robertino said:
what is this post-war model - experimental circular-wing MiG prototype ?

What is it my dear Robertino,can you explain more ?.

somewhere I read that the Russians (Soviet) made a circle mig, but I did not find this information, pictures and articles anywhere


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
It's a fake aircraft called MiG-55;

https://www.secretprojects.co.uk/forum/index.php/topic,275.msg49554.html#msg49554


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036

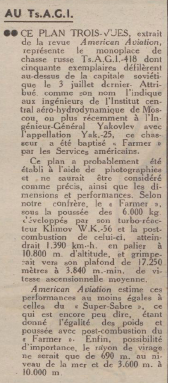

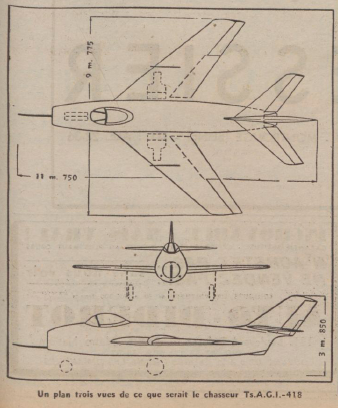

From Ailes 3/1956,

of course they meant here,a MiG-19 Farmer,but the strange thing they called it TsAGI-418 ?.


Attachments

  • 1.png
    208.7 KB · Views: 332
  • 2.png
    118.5 KB · Views: 269

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,127
Reaction score
321
A little drawing from "AIR iNTERNATIONAL"
volume 51 n°2

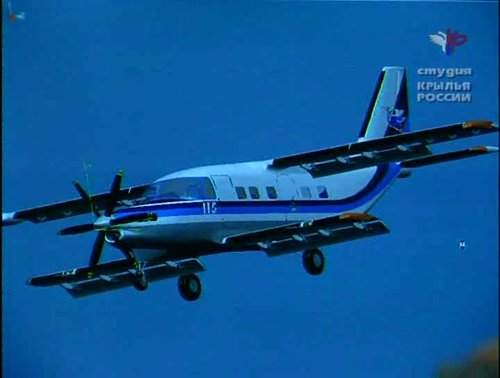

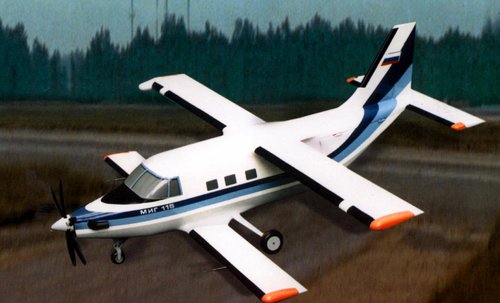

The Mig 115 project
Biplane, the hight wing is behind the low one
1 turbo TVB 20 M 1350 hp
span hight wing : 15.00 m
low wing : 12.20 m
lenght : 14.66 m
speed maxi : 410 km/h

Any idea on the airfoils or aspect ratio of the wings? A front or top view would be interesting.

The reverse stagger is interesting - I wonder what the reasoning was?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,472
Reaction score
2,503
Any idea on the airfoils or aspect ratio of the wings? A front or top view would be interesting.

The reverse stagger is interesting - I wonder what the reasoning was?



Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,127
Reaction score
321
Thanks Flateric - I actually read through the thread to see if it had been answered and somehow missed the post this time!

I'm still quite curious as to the reason behind the reverse stagger? It might lead to better stall characteristics and without the potential effects of positive stagger tandem wings... but I doubt that is the reasoning.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,454
Reaction score
7,261
Thought we already had this but apparently not:
screenshot.php

Known also as the Izdeliye K, the KSK manned version of the KS-1 “Komet” anti-shipping cruise missile conceived to speed up the development of the missile. It’s not coincidence the sort of cute “Lil’ MiG-15” looks of this testbed keeping in mind the use of their MiG-15 shape and configuration by Mikoyan-Gurevich Bureau in the design of their missile. Four examples were produced. Powered by a RD-500 turbojet (a RR Derwent copy), the KSK was launched from a Tu-4KS. The tests flights, both manned and unmanned, took place in the 1951/52 period. Further testing was completed with real KS-1s.
The size of its cockpit gives us a good idea of how tiny this lovely little gem was.

https://elpoderdelasgalaxias.wordpress.com/2018/05/28/mikoyan-gurevich-ksk-the-lil-mig-15/


Resister1976

ACCESS: Confidential
Joined
Apr 10, 2021
Messages
54
Reaction score
37
Thought we already had this but apparently not:
screenshot.php

Known also as the Izdeliye K, the KSK manned version of the KS-1 “Komet” anti-shipping cruise missile conceived to speed up the development of the missile. It’s not coincidence the sort of cute “Lil’ MiG-15” looks of this testbed keeping in mind the use of their MiG-15 shape and configuration by Mikoyan-Gurevich Bureau in the design of their missile. Four examples were produced. Powered by a RD-500 turbojet (a RR Derwent copy), the KSK was launched from a Tu-4KS. The tests flights, both manned and unmanned, took place in the 1951/52 period. Further testing was completed with real KS-1s.
The size of its cockpit gives us a good idea of how tiny this lovely little gem was.

https://elpoderdelasgalaxias.wordpress.com/2018/05/28/mikoyan-gurevich-ksk-the-lil-mig-15/
Oh,It looks like a micro fighter:cool:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036

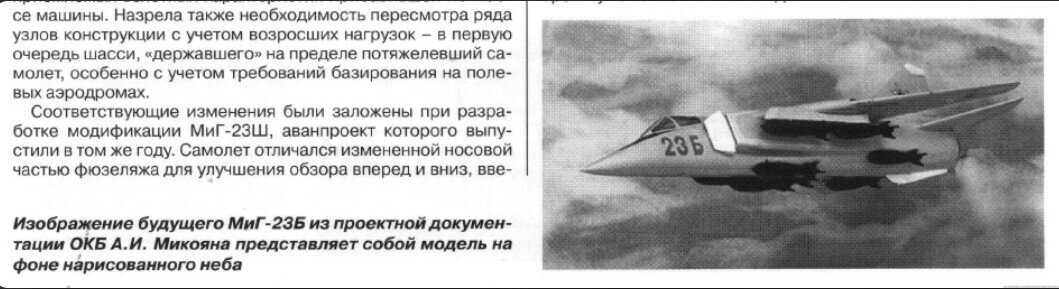

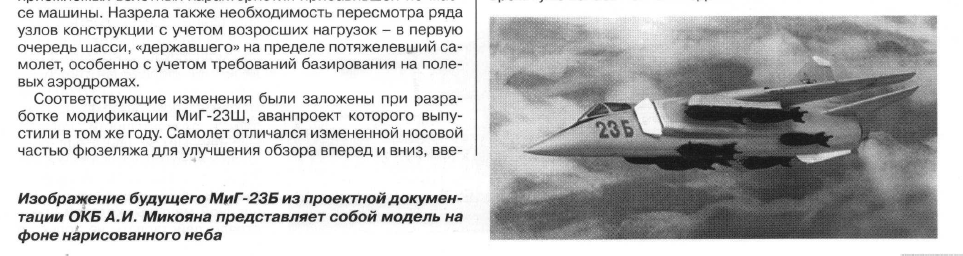

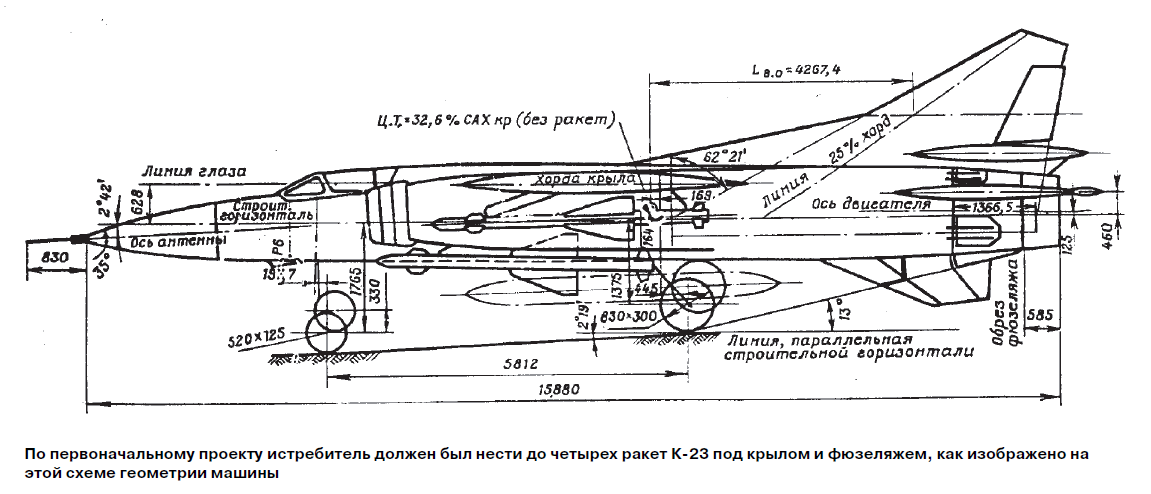

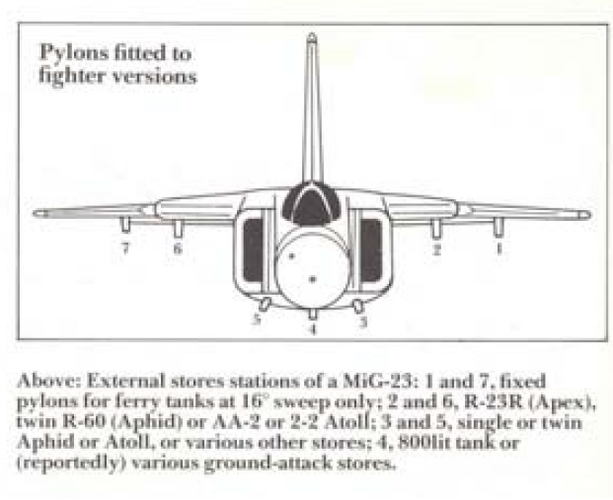

According to the initial design, the fighter was supposed to carry up to four K-23
missiles under the wing and fuselage, as shown in this machine geometry diagram

- Истребитель МиГ-23. На защите неба Родины


Attachments

  • 1.png
    60.3 KB · Views: 236

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036

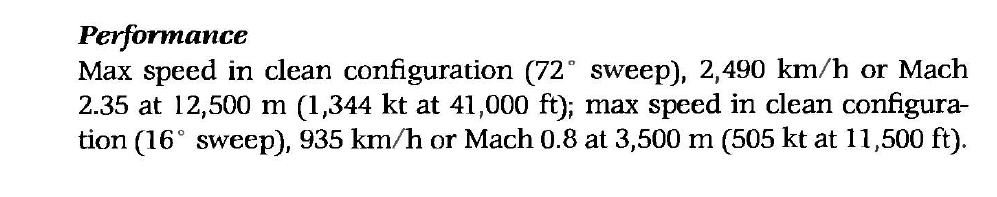

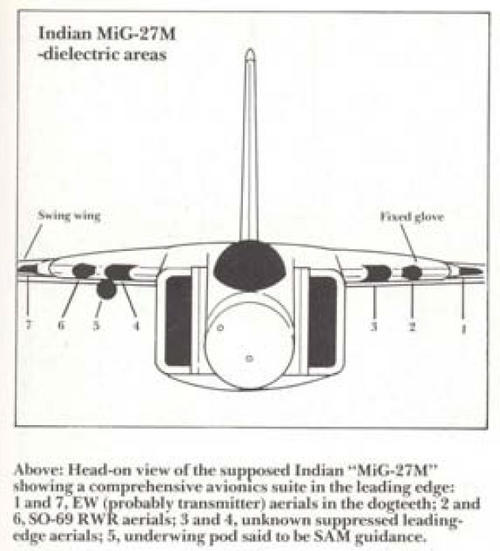

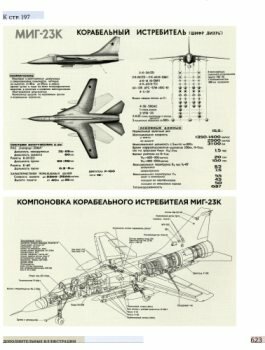

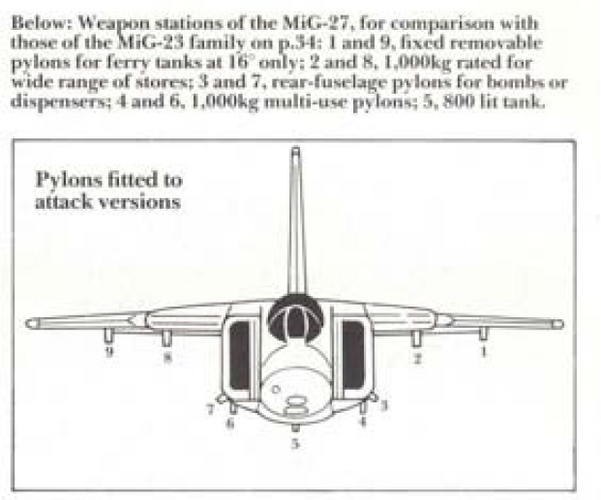

From a Russian book about MiG-27.


Attachments

  • 1.png
    240.5 KB · Views: 66
  • 2.png
    661.8 KB · Views: 62
