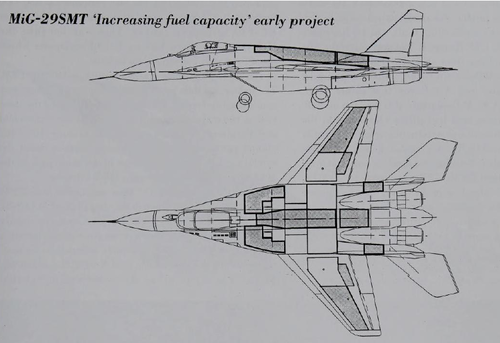

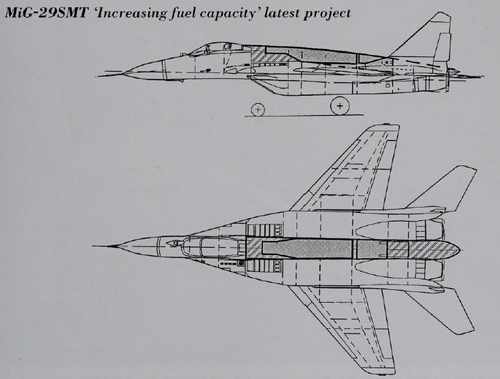

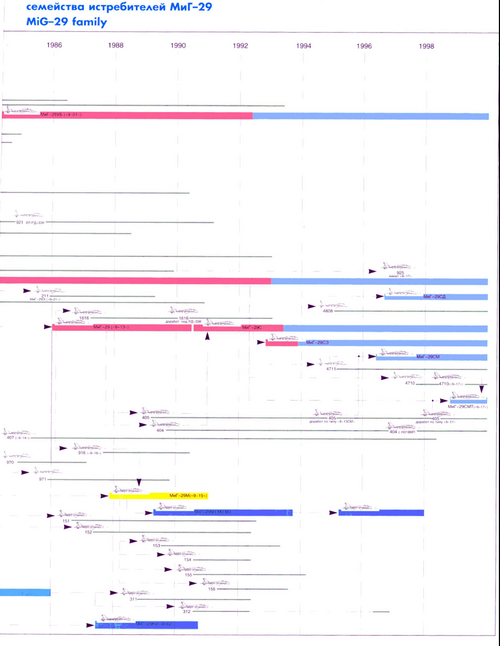

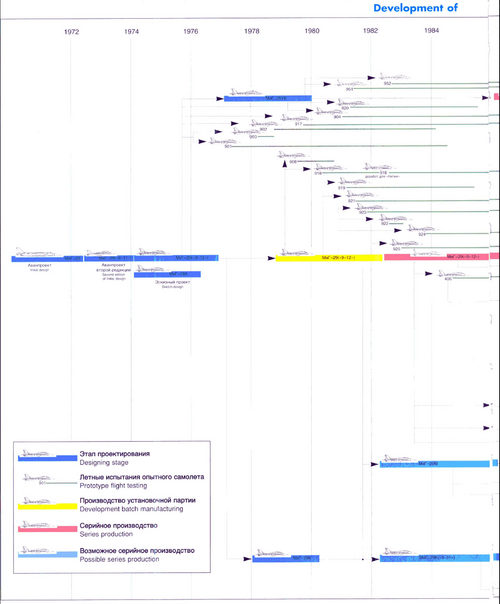

Evolution of the Mikoyan MiG-29

Merv_P

ACCESS: Confidential
Joined
Jul 29, 2006
Messages
115
Reaction score
5

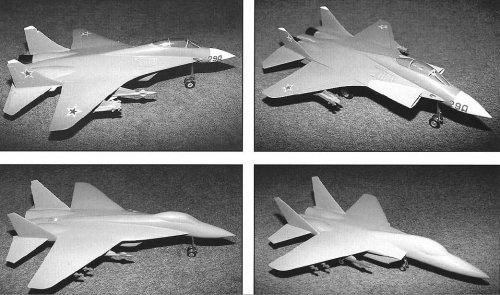

It's been great to browse Paralay's new site and be able to pick up things so quickly and easily. This caught my eye; it's half of an image showing preliminary designs for the MiG-29 from 1971 and 1972.

Are there any any other sources for these? The clear progression from a -25 to a -29-style configuration is interesting.


Attachments

  • mig29.gif
    13.2 KB · Views: 2,035

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,048
Reaction score
566
Website
beyondthesprues.com
The top one looks like a straight cross between the MiG-25 and Mig-23.

Regards,

Greg


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,040
Reaction score
311
During the early development years of the Flanker/Fulcrum generation of Soviet fighters, a Sparrow copy was seriously considered as their SARH BVR missile. Eventually though, the missile design we've come to know as R-27 prevailed.

EDIT: http://www.secretprojects.co.uk/forum/index.php/topic,2750.0/


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
Matej mean that his beginnings old as hell, I'm sure ;)


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
131
Website
www.hitechweb.genezis.eu
Model photos are definitely from some book. But what is the original source? I saw many of them in more than two books... Polygon MiG-29, Yefim Gordon MiG-29 (Famous Russian Aircrafts series) to name a few.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
These are taken from Andrey Fomin's Polygon book


kcran567

ACCESS: Top Secret
Joined
Aug 15, 2009
Messages
665
Reaction score
16
Triton said:


Very interesting, I like the one with the unusual Lerx's with the f-105/draaken reminiscent intake. One model looks very f-15-ish and another looks very f-18-ish.


Any reason behind why the soviets chose such tiny cockpits with poor visibility? when did this philosophy change and why are bubble canopies not on some of these models, esp. the "heavy" design? I thought by the time the lightweight fighter program got underway that led to the Mig -29 the soviets learned their lesson re visibility for their air superiority designs.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
143
Some of the early designs are very Yak-141-ish, and the Yak-141 is completely unlike any previous Yak. Hmmm.... A little data trasnfusion?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
LowObservable said:
Some of the early designs are very Yak-141-ish, and the Yak-141 is completely unlike any previous Yak. Hmmm.... A little data trasnfusion?


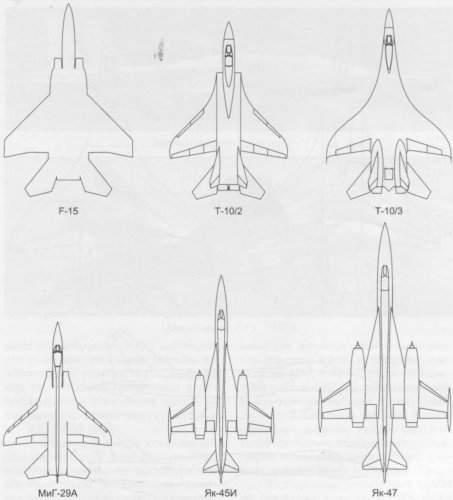

Yakovlev would have seen the early "large MiG-29" design at the presentation of concepts in the initial stages of the PFI contest whilst presenting their own designs. Mikoyan came up with the small MiG-29 layout after seeing the early Su-27 designs in the same meeting; the designs were not kept secret from each other. Its also possible someone moved from MiG to Yak - Oleg Samolovich took several designs with him from Sukhoi to MiG when he left in the 1980s.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
kcran567 said:
Triton said:


Very interesting, I like the one with the unusual Lerx's with the f-105/draaken reminiscent intake. One model looks very f-15-ish and another looks very f-18-ish.


Any reason behind why the soviets chose such tiny cockpits with poor visibility? when did this philosophy change and why are bubble canopies not on some of these models, esp. the "heavy" design? I thought by the time the lightweight fighter program got underway that led to the Mig -29 the soviets learned their lesson re visibility for their air superiority designs.

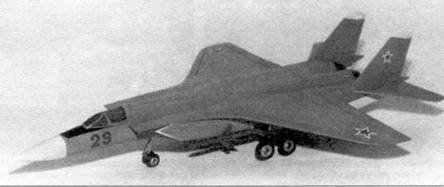

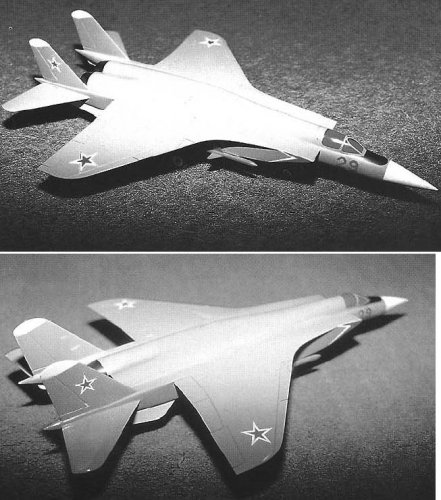

In fact, once the fast MiG-25 inspired design was rejected, the lightweight MiG-29 designs had very good rear vision.


Attachments

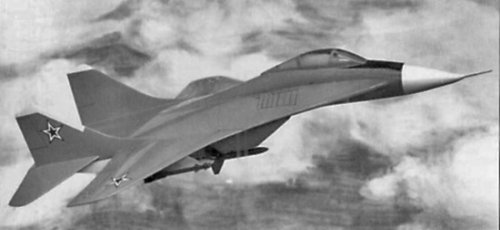

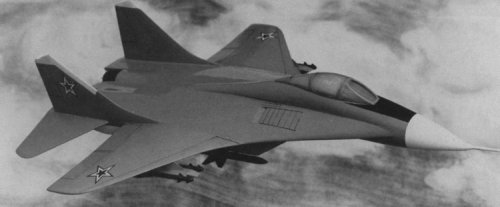

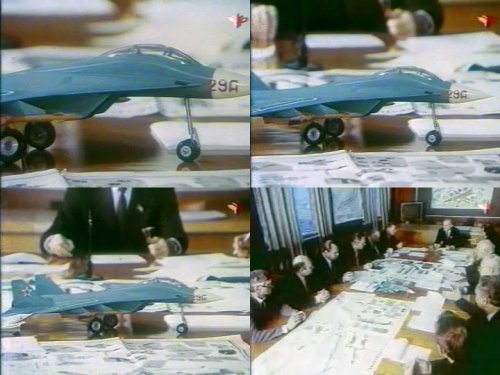

  • MiG-29 LIGHTWEIGHT.jpg
    MiG-29 LIGHTWEIGHT.jpg
    58.1 KB · Views: 1,510

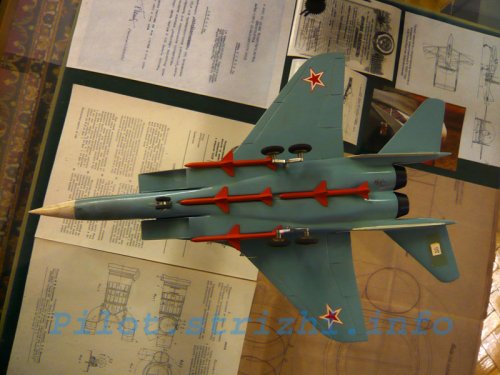

  • 9.11 Model, K-25 AAMs.jpg
    9.11 Model, K-25 AAMs.jpg
    30.6 KB · Views: 1,537

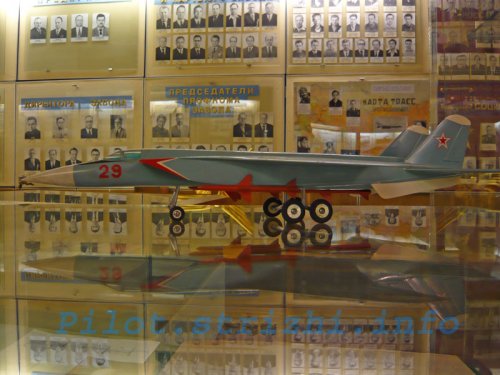

  • MiG-29 Model.jpg
    MiG-29 Model.jpg
    122 KB · Views: 1,578

lancer21

ACCESS: Secret
Joined
Jan 9, 2010
Messages
298
Reaction score
22
kcran567 said:
Triton said:


Very interesting, I like the one with the unusual Lerx's with the f-105/draaken reminiscent intake. One model looks very f-15-ish and another looks very f-18-ish.

Actually , those are not intakes ( they are under the fuselage), but panels attached to the LERX to make the aircraft appear as a MiG-25 from spy satellites. At least according to mr. Yefim Gordon.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836

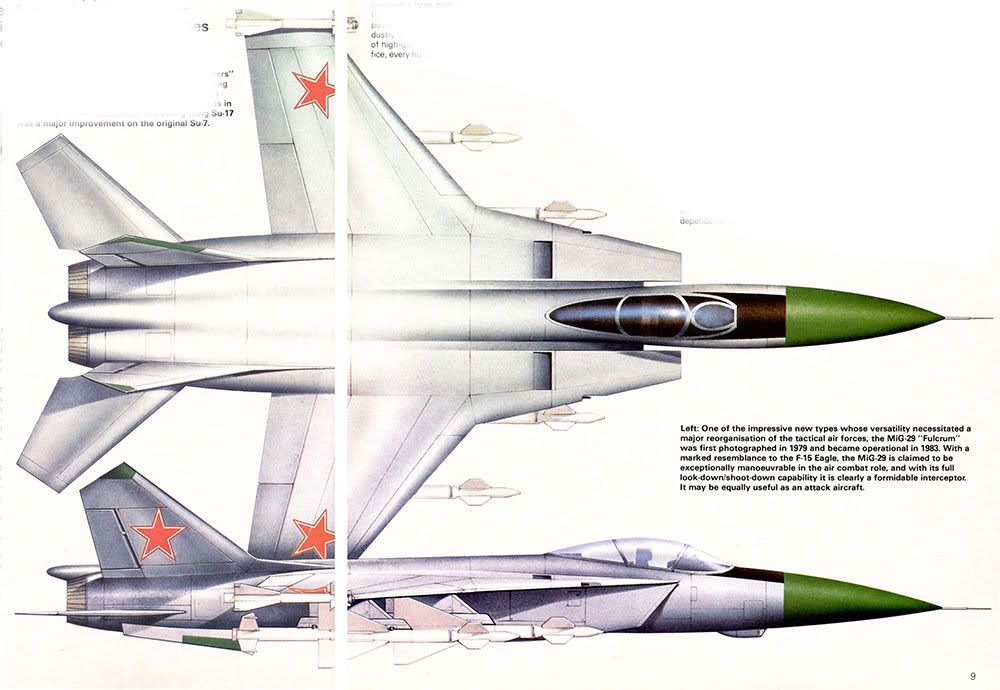

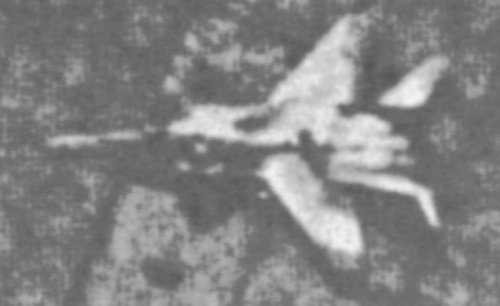

Yep that is correct. Remembering this famous satellite shot, it might even have worked. Look at the LERX, and some early "MiG-29" artwork.




Attachments

  • MiG-29-Satellite.jpg
    24.9 KB · Views: 1,395

lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
585
Reaction score
25
Website
defense-and-freedom.blogspot.de
I wonder why the West didn't expect the Russians to follow the F-14 style of mounting engines below a rather flat rear fuselage.

The artist's impressions all seemed to expect the boxy F-15 style instead.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,481
Reaction score
2,761
Hi!

http://www.k2x2.info/transport_i_aviacija/aviacija_i_vremja_2001_05/p4.php

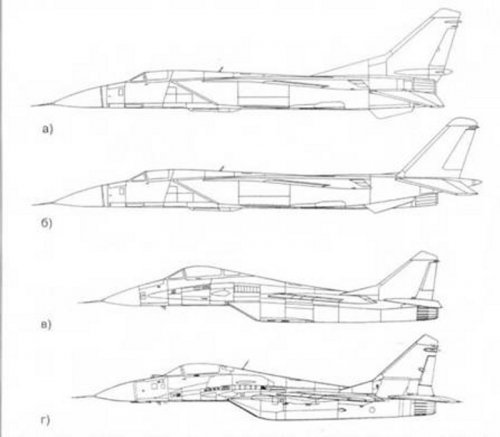

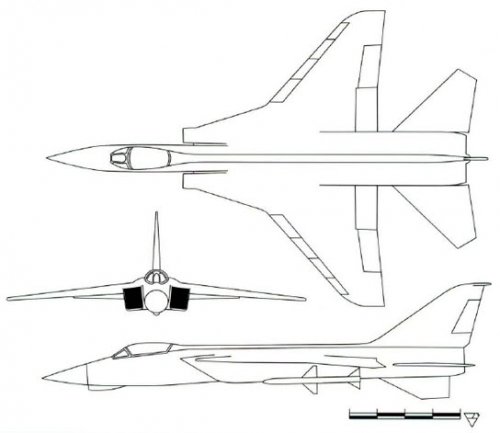

a)1971 design

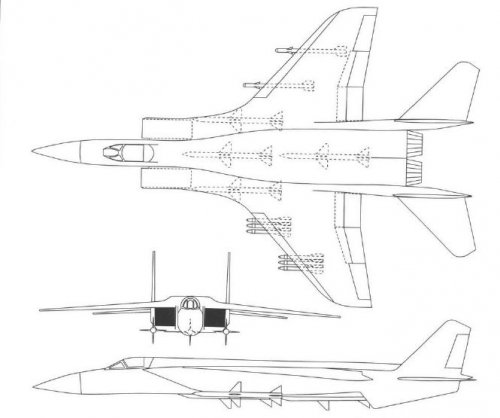

b)1972 design
c)1973 design (plane 9-11)

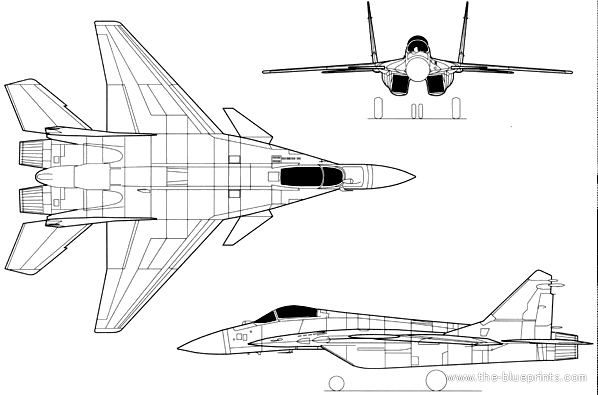

d)1974-76 draft project(plane 9-12)

https://topwar.ru/107787-mig-29-i-su-27-istoriya-sluzhby-i-konkurencii-chast-1.html
http://p-d-m.livejournal.com/124525.html


Attachments

  • MIG-29 on conceptual design stage in 1971.jpg
    MIG-29 on conceptual design stage in 1971.jpg
    24.7 KB · Views: 284
  • 1972 design three side view.jpg
    1972 design three side view.jpg
    34.8 KB · Views: 352
  • Mig-29 1971 design.jpg
    Mig-29 1971 design.jpg
    93 KB · Views: 347

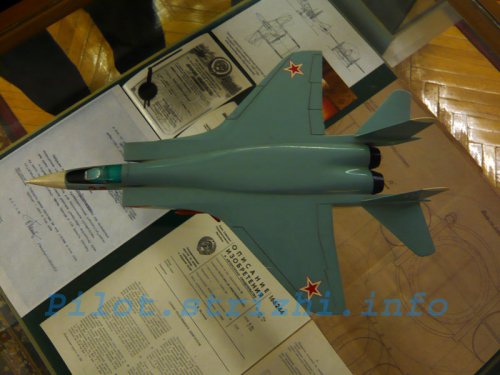

  • 1972 design model.jpg
    1972 design model.jpg
    10.9 KB · Views: 346

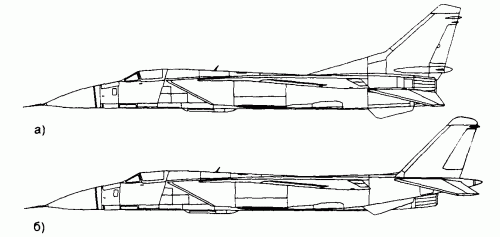

  • Change the appearance of the MiG-29 during the design process.jpg
    Change the appearance of the MiG-29 during the design process.jpg
    51.9 KB · Views: 955

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732
In my files,

there was a Project for MiG-29,had a controlled vector thrust system.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
hesham said:
In my files,

there was a Project for MiG-29,had a controlled vector thrust system.
O'RLY?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732
Of course I know it,

and this was from almost 2001,but what I spoke about it,was from nearly 1986,and it had a
different system,also remained a Project only.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,896
Reaction score
241
PaulMM (Overscan) said:
Yep that is correct. Remembering this famous satellite shot, it might even have worked. Look at the LERX, and some early "MiG-29" artwork.



There and then known to the West (well America) as the RAM-L


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147
It's a Shulikov design, for details see here: https://www.secretprojects.co.uk/forum/index.php/topic,15107.0


GARGEAN

ACCESS: Secret
Joined
May 7, 2018
Messages
486
Reaction score
197
Lil note: AIM-7 copy (R-25) was a competitor not to R-27 but to R-23. By the time R-27 started to became a thing it was long gone.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,559
Reaction score
3,836
Lil note: AIM-7 copy (R-25) was a competitor not to R-27 but to R-23. By the time R-27 started to became a thing it was long gone.

The early MiG-29 models did feature K-25 (AIM-7E Sparrow clone) missiles as in 1971-72 the K-25 was expected to supplant the K-23. Tests on K-25 didn't start until 1972 and were completed in 1974, the program terminated with the decision to proceed with the K-23 for the MiG-23.

The first beginnings of K-27 development were in 1973 and derived in part from technical solutions developed in the K-25 program.
