Various Bristol postwar projects

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
http://www.transportarchive.org.uk/

Some interesting stuff


Attachments

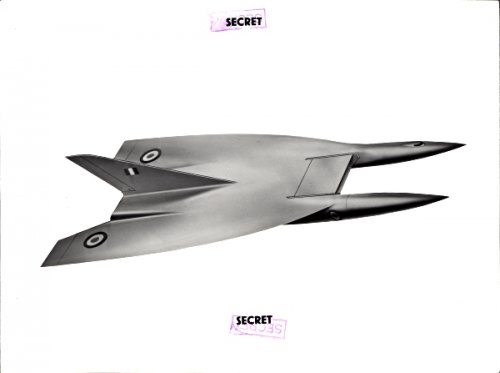

  • 1950s Twin boom bomber.jpg
    1950s Twin boom bomber.jpg
    55.2 KB · Views: 752

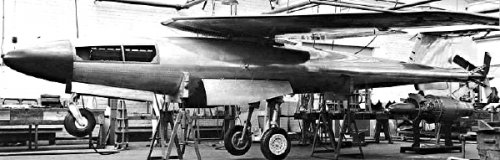

  • 1953 Red Rapier.jpg
    1953 Red Rapier.jpg
    105.4 KB · Views: 752

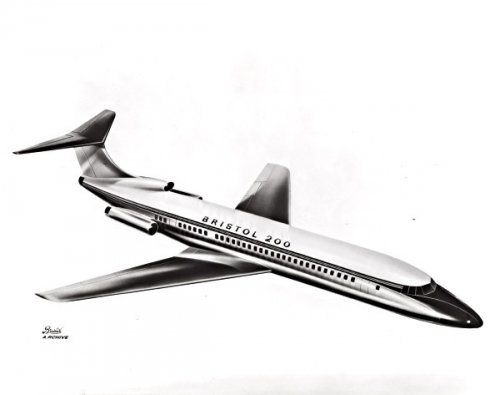

  • 1956 Bristol 200.jpg
    1956 Bristol 200.jpg
    28.6 KB · Views: 628

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
more


Attachments

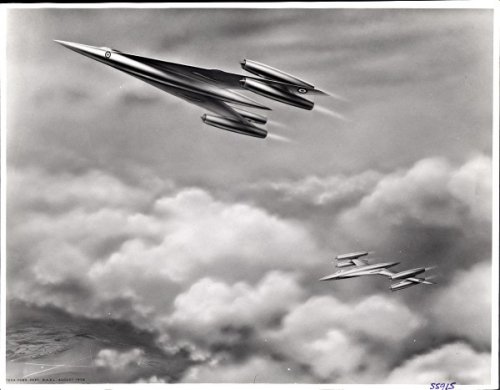

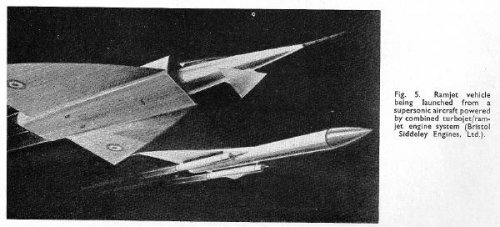

  • 1958 BAEL Ramjet Fighter.jpg
    1958 BAEL Ramjet Fighter.jpg
    54 KB · Views: 629
  • 1958 ramjet SST.jpg
    1958 ramjet SST.jpg
    179.2 KB · Views: 578

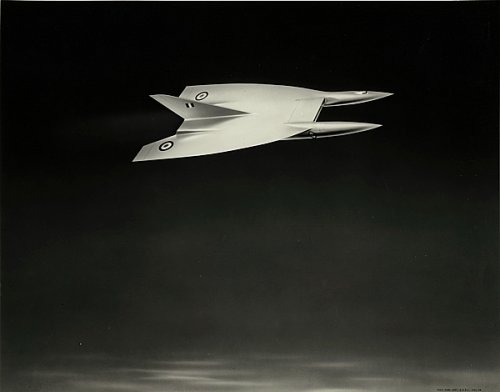

  • 1958 Twin Boom Ramjet RAF.jpg
    1958 Twin Boom Ramjet RAF.jpg
    148.2 KB · Views: 327

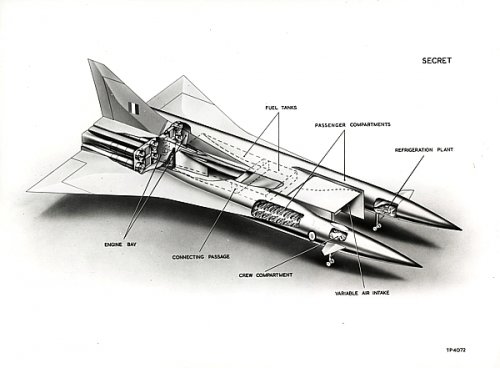

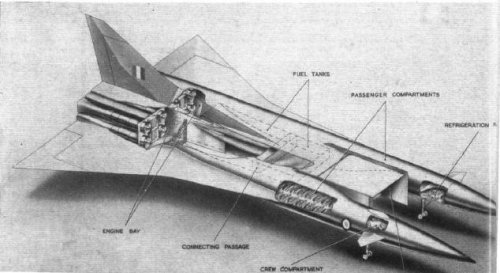

  • 1958 Twin boom SST.jpg
    1958 Twin boom SST.jpg
    120.7 KB · Views: 411

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
more


Attachments

  • 1960 Flying Pig 2.jpg
    1960 Flying Pig 2.jpg
    286.9 KB · Views: 367
  • 1960 Flying Pig.jpg
    1960 Flying Pig.jpg
    76.7 KB · Views: 385

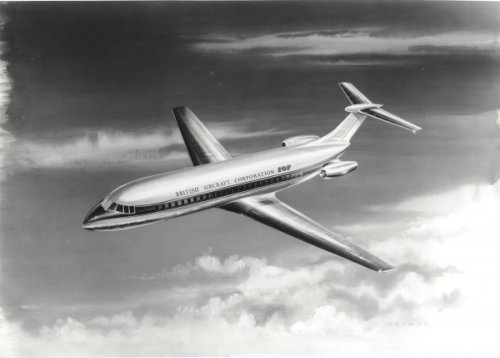

  • 1960 - Bristol 207.jpg
    1960 - Bristol 207.jpg
    132.9 KB · Views: 354

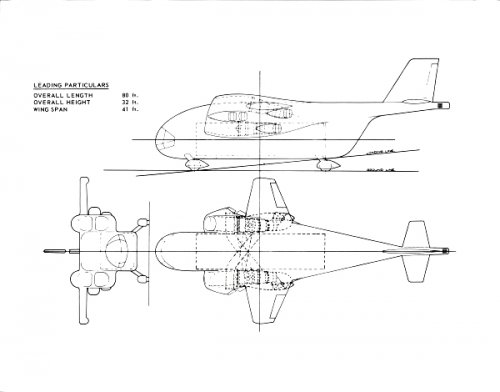

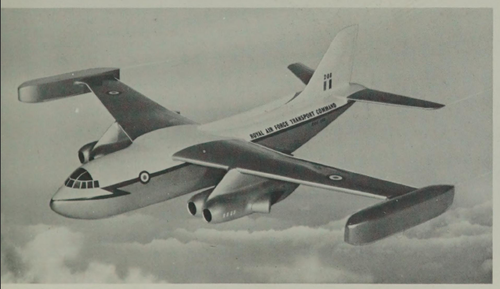

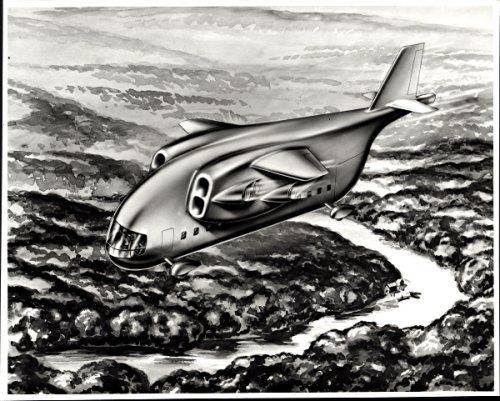

  • 1958 VSTOL Transport.jpg
    1958 VSTOL Transport.jpg
    237.9 KB · Views: 392

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
Last one


Attachments

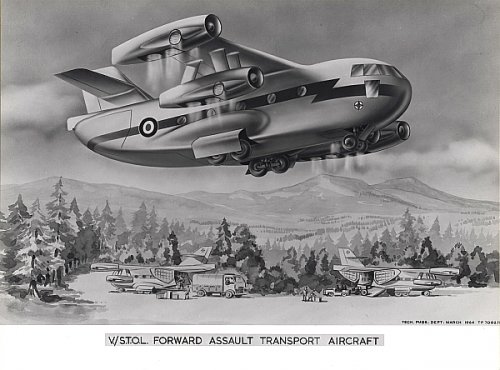

  • 1964 VSTOL forward assault aircraft.jpg
    1964 VSTOL forward assault aircraft.jpg
    225.5 KB · Views: 382

JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
251
Got any specs on the VTOL aircraft, these are new ones on me?

Regards


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,042
Reaction score
4,428
there was also the fabulous type 204 for the gor339 competition...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,378

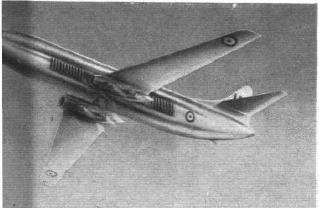

Here are two more Bristol VSTOL projects, a supersonic Fighter and
a transport, both powered by BS.53 engines
(from FlugWelt-61-II )


Attachments

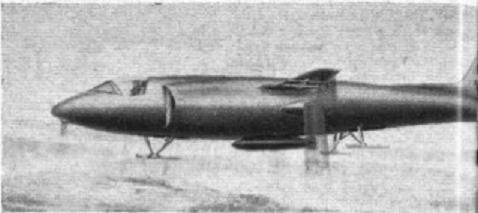

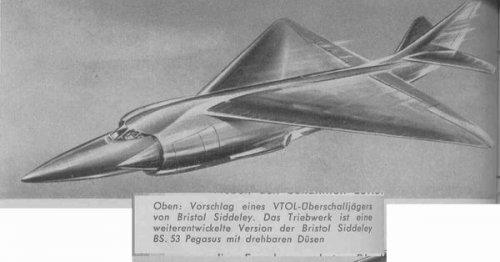

  • Bristo-Siddeley-VTOL-Fighter.JPG
    26.3 KB · Views: 398

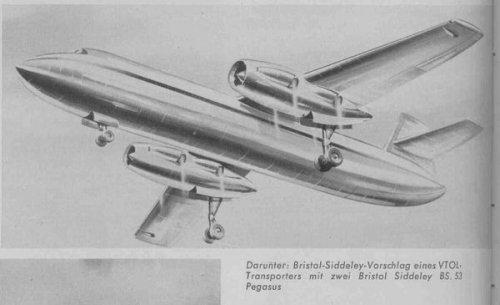

  • Bristo-Siddeley-Transport-2.JPG
    26.6 KB · Views: 348

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
The Swing-Wing ramjet fighter reminds me the Barnes (Vickers) Swallow.Any relation...?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
I believe the VSTOL projects may be concepts by BSEL (Bristol Siddeley Engines Limited) based around the Pegasus engine rather than Bristol /BAC.


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
'1958 BAEL Ramjet Fighter'
???...Uh...where did you come up with this being a Bristol project? ???
This design is a Barnes Wallis project...Vickers, not Bristol. At least, that's who's book it's listed in. So,...how could it be Bristol? No. Seriously.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
The site is basically about Bristol Aeroplane Company designs. Thats why. Its obviously a mistake on their part.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,378

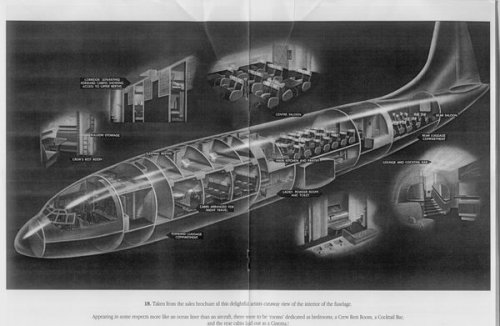

Not a secret Bristol project at all, the production version of the Bristol
Brabazon differed from the prototype, at least the nose section. Just
found a cut-off drawing in "The Simons Peters Collection 001", showing
a more modern looking nose. From a picture on the last page, I would
say, that this form was already introduced in the second prototype.


Attachments

  • Brabazon.JPG
    39.2 KB · Views: 332

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258
Akaikaze said:
'1958 BAEL Ramjet Fighter'
???...Uh...where did you come up with this being a Bristol project? ???
This design is a Barnes Wallis project...Vickers, not Bristol. At least, that's who's book it's listed in. So,...how could it be Bristol? No. Seriously.

From site:
G2056. Just some of the military aircraft ideas using ramjet technology that came from the factory in the late 1950's. These were produced by B.A.E.L. at Filton and show supersonic fighters with four wingtip mounted engines.

BAEL = Bristol Aero Engines Limited

Chris Gibson contacted me via Tony Buttler to clarify. It is indeed a Wallis design with BAEL "Steel Orpheus" Mach 3 capable turbojets. The drawing was prepared by BAEL, which is why it is included in the Filton archive.


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
So, it's under Bristol only because of the engines. The actual aircraft is Wallis. I could see how the two might work together on such a project, seeing as Bristol was one of the only companies in the UK that made ramjets and other high powered engines and the Swallow design was designed to be very fast. That makes sense. :-\
'Steel Orpheus'? I'd like to learn more about that one. :eek:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
Thank you my dears Overscan and Jemiba,

there was some British VTOL projects.



http://www.flightglobal.com/FlightPDFArchive/1960/1960%20-%200008.pdf


Attachments

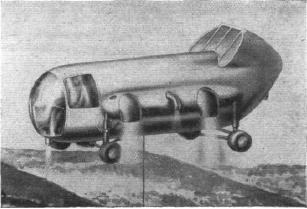

  • VTOL 1.JPG
    VTOL 1.JPG
    12.9 KB · Views: 419
  • VTOL 2.JPG
    VTOL 2.JPG
    11.8 KB · Views: 416
  • VTOL 3.JPG
    VTOL 3.JPG
    15.5 KB · Views: 409
  • VTOL 4.JPG
    VTOL 4.JPG
    40.8 KB · Views: 496

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
Hi,

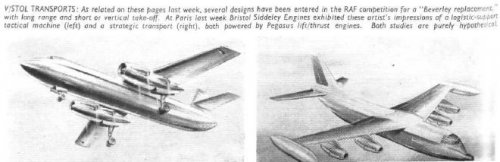

Two VTOL transport for Beverley replacement.


http://www.flightglobal.com/FlightPDFArchive/1961/1961%20-%200772.pdf


Attachments

  • untitled.JPG
    26.4 KB · Views: 789

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
What was this variant for Britannia ?.

Air Pictorial 12/1955


Attachments

  • 1.png
    140.6 KB · Views: 433

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,882
Reaction score
829
That might be connected with the Canadair CL-44.
http://www.cl44.com/index.htm


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,348
Reaction score
2,412
The type is described in Richard Payne's Stuck on the Drawing Board, p.45.

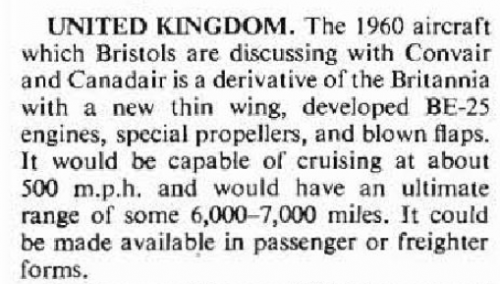

It is the Bristol-Convair-Canadair development of the Type 187 (aka Britannia 600) with a 150-seat double-deck fuselage and powered by four BE.25 Orion Series 2. It was a 1955-56 project with projected first flight in January 1960 with entry into service in April 1962. BOAC seemed keen at first, the Government less so as they feared too much technical knowledge would go to the US.
Payne has the range at a lower (but more realistic) 4,600nm. Projected AUW 205,000lb.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
Oh yes,thank you my dear Hood,

I forgot to look in this book.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629

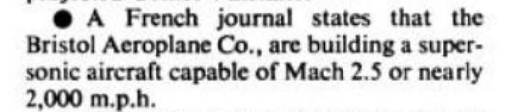

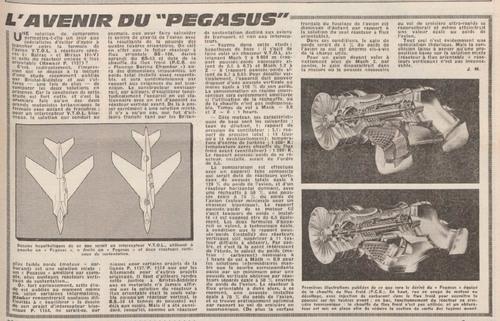

From Ailes 28/12/1962,

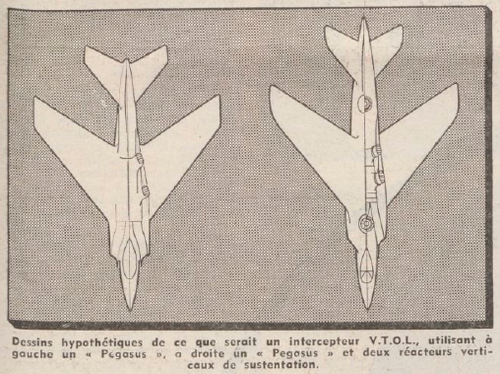

here is a two hypothetical VTOL designs,they were a VTOL experimental fighter Projects,the left had a vectored
thrust nozzles and the right was the same,but had a two additions lift fans in front and rear of the fuselage.


Attachments

  • 1.png
    311.1 KB · Views: 200
  • 2.png
    815.5 KB · Views: 247

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629

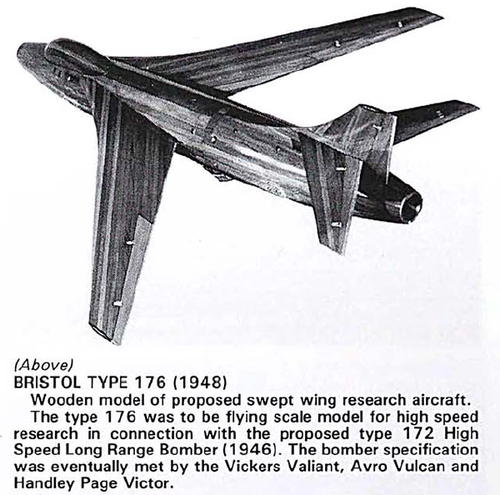

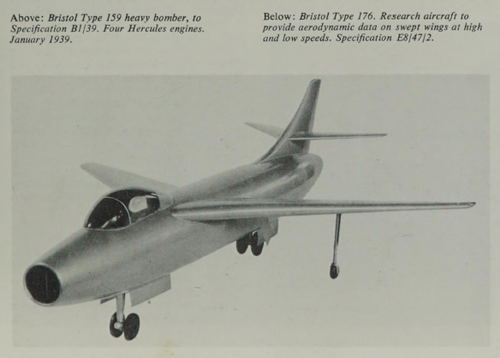

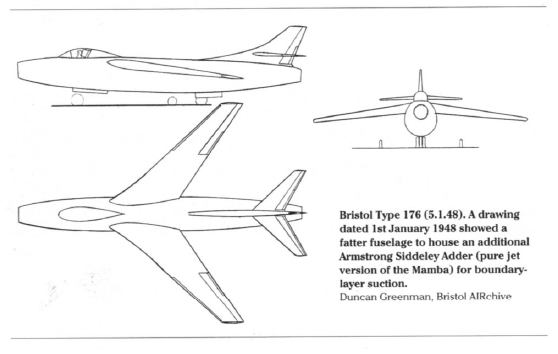

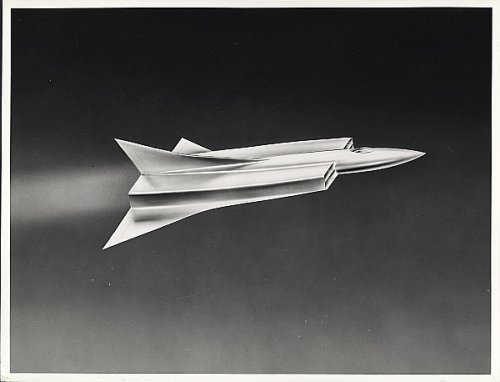

From Bristol Aerospace since 1910,

a Model for Bristol Type-176.


Attachments

  • 1.png
    315.7 KB · Views: 191

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
From Bristol Aerospace since 1910,

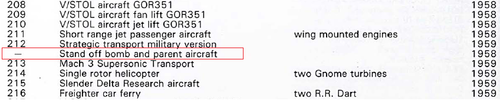

what was this un-numbered design ?.


Attachments

  • 111.png
    112.4 KB · Views: 196

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629

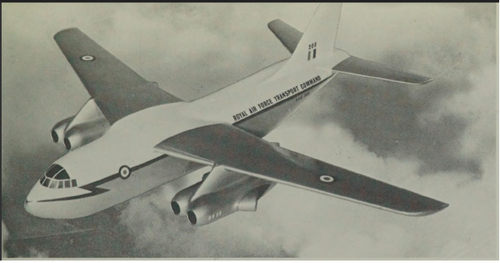

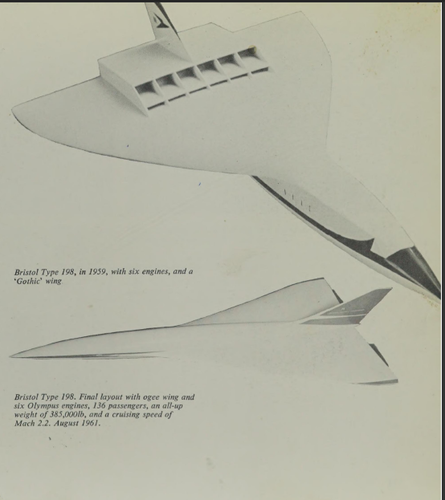

From; Bristol an aircraft album.


Attachments

  • 176.png
    241.2 KB · Views: 165

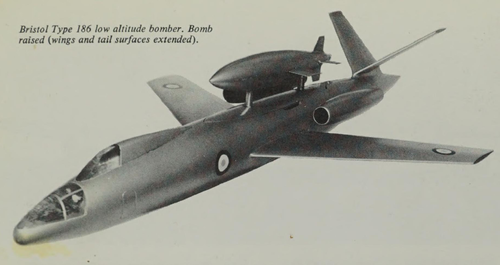

  • 186.png
    398.9 KB · Views: 172
  • 198.png
    262.5 KB · Views: 157

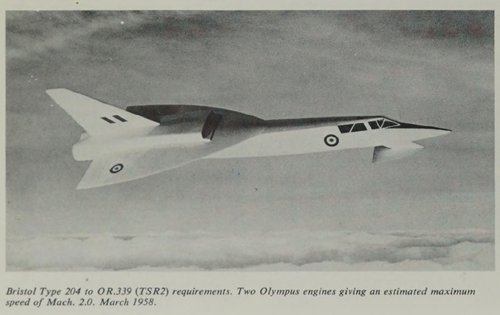

  • 204.png
    578.2 KB · Views: 156
  • 208 stol.png
    208 stol.png
    303.8 KB · Views: 156
  • 208 vtol.png
    208 vtol.png
    322 KB · Views: 150

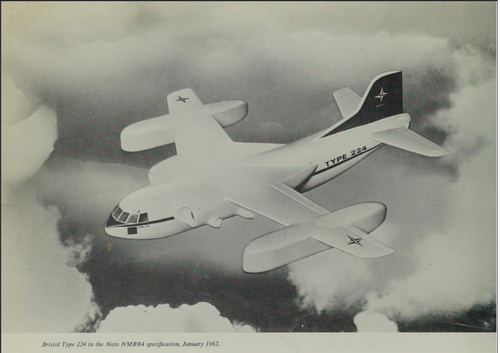

  • 224.png
    717.2 KB · Views: 175

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
Hi,

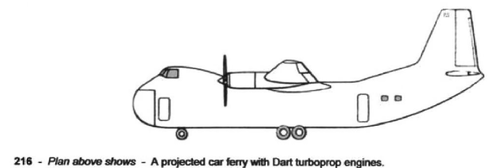

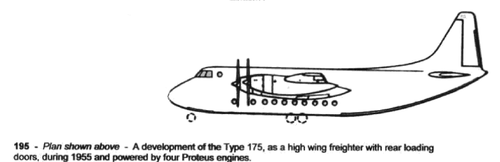

The Bristol 195 & 216.



Attachments

  • 195.png
    40.8 KB · Views: 92
  • 216.png
    50.2 KB · Views: 106

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629

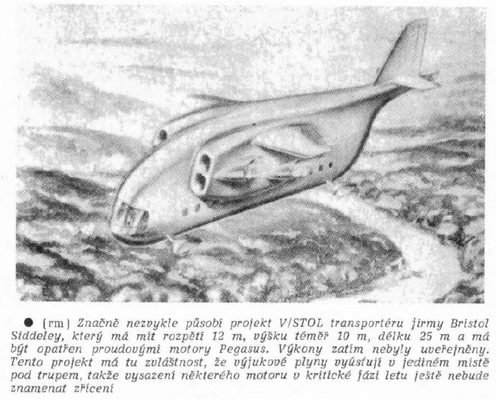

From L+K 1968/5,

again with small Info,had a span of 12 m, a height of almost 10 m, a length of 25 m.


Attachments

  • 1   5-1968.png
    1 5-1968.png
    309.7 KB · Views: 95

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629

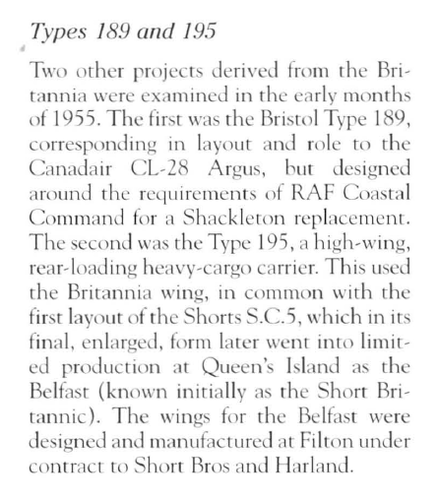

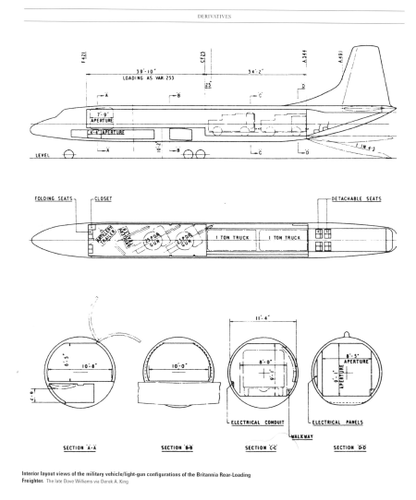

From Crowood book,Bristol Britannia,

a more info about Type 189 & 195.


Attachments

  • 1.png
    128.8 KB · Views: 65
  • 2.png
    74 KB · Views: 81
