Hi,

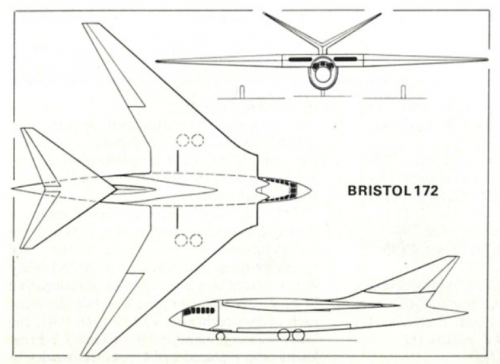

here is a two drawings to Bristol Type-172 long range bomber project for B35/46,and

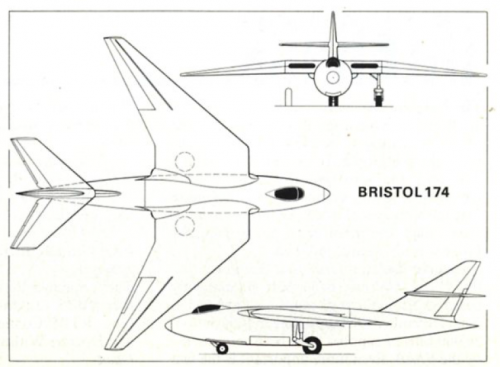

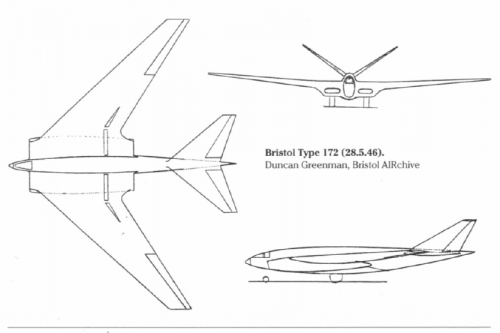

Bristol Type-174 scale flying model for E8/47,please note the drawing for 172 differs
from Mr. Tony Buttler drawing of the book; British Secret Projects : Jet bombers since
1949.

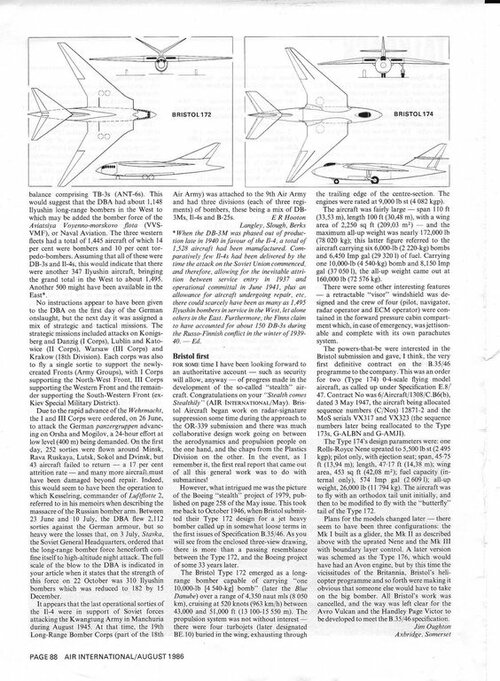

Air International magazine


Attachments

  • Type-172.png
    338 KB · Views: 368
  • Type-174.png
    332.5 KB · Views: 334
  • 172.png
    107.1 KB · Views: 313

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
284
Specifications for Type 172:

  • Length: 100 feet
  • Wingspan: 110 feet
  • Wing area: 2,560 square feet
  • Weight: 166,000 lb
  • Powerplant: four 9,000 lb thrust Bristol BE.10 turbojets
  • Weapons load: 24,000 lb
  • Cruise speed: 600 mph
Specifications for Type 174:

  • Length: 47.2 feet
  • Wingspan: 45.9 feet
  • Wing area: 435 square feet
  • Weight: 26,000 lb
  • Powerplant: one 5,500 lb thrust Rolls-Royce Nene turbojet
  • Cruise speed: high subsonic
Source:
Buttler, Tony (2003). British Secret Projects: Jet Bombers Since 1949. Hinkley: Midland Publishing. ISBN 9-781-85-780130-9.
