Bristol Siddeley "Flying Pig" V/STOL 1960

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,779
Reaction score
4,469

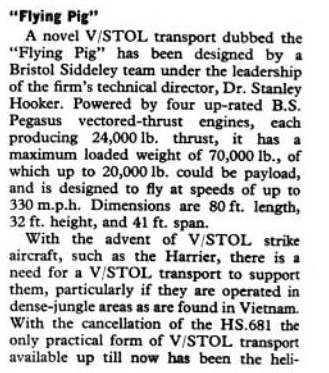

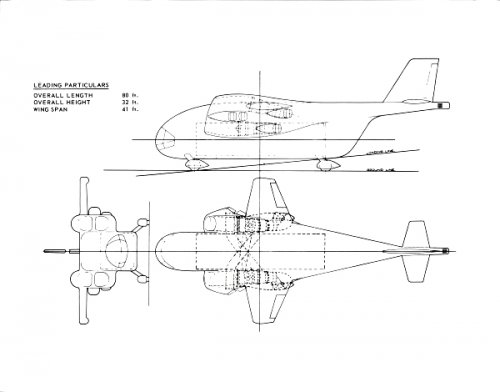

Found some brief specs on this one in an Air Pictorial.

  • VTOL transport, partly replacing cancelled H.S.681, designed for minimum structure weight, sized around payload with smallest wings possible to support weight during cruise. In low speed flight relies on partial deflected thrust.
  • Designed by a team under Sir Stanley Hooker.
  • Powered by 4 uprated Pegasus engines, rated at 24,000lb each.
  • MTOW: 70,000lb
  • Payload: 20,000lb
  • Cruise speed: 330mph
  • Dimensions: 80ft length, 41ft span, 32ft height.


Attachments

  • 1960 Flying Pig.jpg
    1960 Flying Pig.jpg
    76.7 KB · Views: 1,661
  • 1960 Flying Pig 2.jpg
    1960 Flying Pig 2.jpg
    286.9 KB · Views: 1,464

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
But it still had wings. Totally unnecessary, as can be seen by
this concept, described as "slow flying, wingless aircraft" in
FlugWelt-60-I !


Attachments

  • Bristol_wingless_VTOL.JPG
    45.3 KB · Views: 1,281

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,970
Reaction score
375
here's the version i found...

http://www.secretprojects.co.uk/forum/index.php/topic,2504.msg33446.html#msg33446

cheers,
Robin.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,065
Reaction score
3,880
Crosslink to topic dealing with a 1959 NASA Technical Note on wind tunnel studies on a model of a Wingless jet VSTOL Transport: http://www.secretprojects.co.uk/forum/index.php/topic,7142.0.html


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,516
Reaction score
837

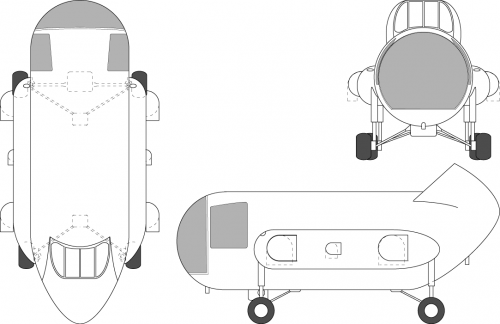

I've knocked up a GA of the Bristol 'Flying Pig'.

Any idea what its real designation was?

Chris


Attachments

  • Flying_pig_early_A4.png
    70.6 KB · Views: 745

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
170
CJGibson said:
I've knocked up a GA of the Bristol 'Flying Pig'.

Any idea what its real designation was?

Chris

Maybe it's a proposal by Bristol ENGINES, not by the aircraft manufacturer Bristol?


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,516
Reaction score
837
Ah...very true.

Back to the bookcase.

Thanks

Chris


CNH

ACCESS: Secret
Top Contributor
Senior Member
Joined
Dec 5, 2010
Messages
494
Reaction score
515
How was it going to get lift in forward flight?


Kevin Renner

ACCESS: Confidential
Joined
Nov 6, 2007
Messages
95
Reaction score
4
1) The first design shown. Can you imagine how loud it would be
2) The wingless designs. Flight time in minutes due to the incredibly high fuel consumption


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
CNH said:
How was it going to get lift in forward flight?

Jet lift only ! The Harrier can, or better, has to do the same at very low forward speed.

Kevin Renner said:
1) The first design shown. Can you imagine how loud it would be
2) The wingless designs. Flight time in minutes due to the incredibly high fuel consumption

1) Dependening on the task, that may mot matter !
2) Judging the sketch, it was intended as a kind of roadable flying crane. Refulleing during attaching the
sling load may have been a suitable scenario, I think.


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,516
Reaction score
837

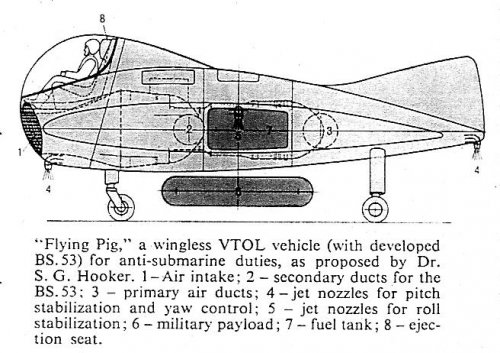

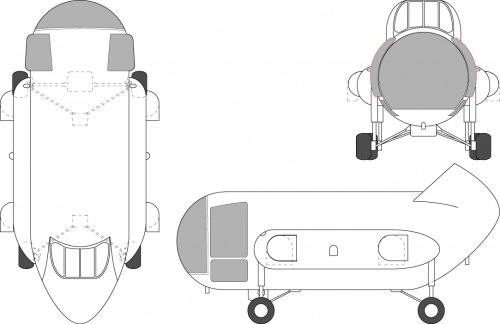

My reading of the sketch is:

Vectored thrust with rotating nozzles.
Pegasus installed backwards with intake at rear
Directional control by puffers shown at nose, tail and sides (the side ones might/might not rotate) I might 'fix' the side ones.
Driven front wheels as there appears to be a drive shaft and a transmission under the froward fuselage.
Flying crane for moving underslung loads short distances (20km?), but could be driven/manoeuvred on the ground.
Wheels/tyres look a bit beefy for mere landing gear.

I've found another sketch showing it in 3/4 view from below so have amended the drawing. This sketch shows bulged windows for better downward view and the shaft drives for the wheels.

Also used the payload shown to estimate the lifting capacity - 12 x 45 UK Gal drums (54 US Gal) - assume 6.08lb/US Gal for gasoline = 12 x 54 x 6.08 = 3940lb (1787kg)

Add in the odds and sods for slinging etc - looks like 4000lb at least.

Chris


Attachments

  • Flying_pig_early_A4.png
    71.6 KB · Views: 540
  • BS Flying Pig.jpg
    BS Flying Pig.jpg
    111.3 KB · Views: 135

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
Sorry for not having reacted correctly at once, although I have the source about the
Pegasus engine at hand, "Pegasus, The Heart Of The Harrier" by Andrew Dow:
About the "Flying Pig", he says, that it was conceived by Stanley Hooker as a means
of providing vertical lift for battlefield materials. The vehicle was designed with front and
back halves, allowing easy installation of the Pegasus engine, which was mounted back-
wards. Hot and cold nozzles were controllable independently to allow for propulsion by
the cold nozzles at the rear providing some forward thrust. Flight controll was achieved
by four puffer jets, the pilot was provided with a Martin-Baker ejection seat and the
road wheels were driven by a 100 shp turbine located below and behind the pilot.
Length was to be 22 ft and, with the puffer jets extended, 11 ft 4 in wide.
The twin engined version, with the engines side-by-side was designed by David Maxwell.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,065
Reaction score
3,880
CJGibson said:
My reading of the sketch is:

Vectored thrust with rotating nozzles.
Pegasus installed backwards with intake at rear
Directional control by puffers shown at nose, tail and sides (the side ones might/might not rotate) I might 'fix' the side ones.
Driven front wheels as there appears to be a drive shaft and a transmission under the froward fuselage.
Flying crane for moving underslung loads short distances (20km?), but could be driven/manoeuvred on the ground.
Wheels/tyres look a bit beefy for mere landing gear.

I've found another sketch showing it in 3/4 view from below so have amended the drawing. This sketch shows bulged windows for better downward view and the shaft drives for the wheels.

Also used the payload shown to estimate the lifting capacity - 12 x 45 UK Gal drums (54 US Gal) - assume 6.08lb/US Gal for gasoline = 12 x 54 x 6.08 = 3940lb (1787kg)

Add in the odds and sods for slinging etc - looks like 4000lb at least.

Chris

Incidentally, I suspect that the searchlight shown in the 3/4 view is an IR one. Would make sense for a battlefield supply vehicle.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634
Hi,


the Bristol Flying Big; Early VTOL Aircraft
(before 1967)
Published by Dennis Hawkes at Smashwords


Attachments

  • Bristol.png
    193.4 KB · Views: 791

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
934
Reaction score
133

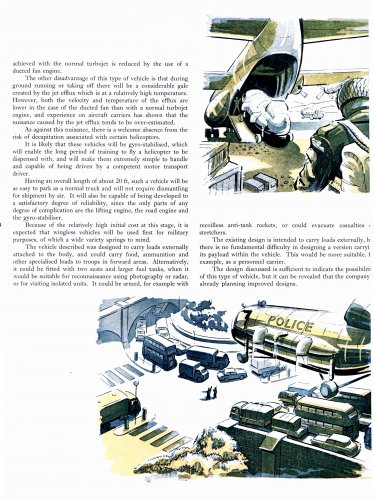

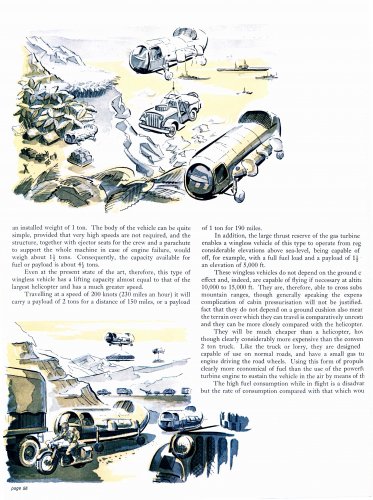

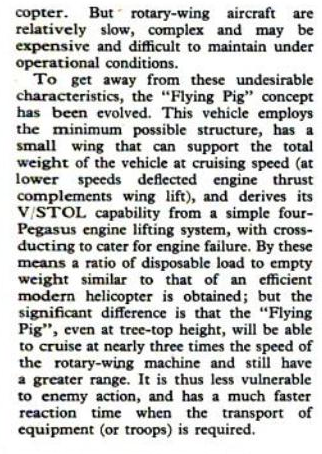

From Bristol Siddeley Magazine.
