SO Geret must be: SO Gerät - selbst opfer -Self sacrifying device.

Deutsche Geheimwaffen 1939-1945.
Fritz Hann. Erich Hoffmann Verlag.Heidenheim.1963. u.a.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi guys,

I have this projects pounding my mind for several years, without perspective to have them revealed:

Arado Radial Engined Fighter - Refered by Rudiger Kosin in "The German Fighter since 1915", a response to the soviet Polikarpov I-16, around 1938/39.

1940 project for a carrier-borne torpedo bomber sporting a single DB601, refered by Jorg Armin-Kranzhoff in his book "Die Arado-Flugzeuge: Vom Doppeldecker zum Strahlflugzeug". Does anyone knows more on these?

I wonder if the book from Volker Koos mentions these projects.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi, guys,

I guess this projects are really secret. No one has the Volker Koos book "Arado Flugzeugwerke"»?

Kosin says in his book of the radial engined fighter project: "We then proceeded to draw up a german version ( after inspectiong the "Rata", my note) - a fighter with the air-cooled fourteen-cylinder BMW radial engine ( BMW 139). The aircraft did look something like the the later Focke-Wulf Fw190".
He adds that Walter Blume, as well as the LC II office ( aircraft development ) of the RLM were not enthusiastic, especially regarding the speed given by Kosin ( and I believe Nes): 600-650 km/h.

Bye.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
53
Website
cmeunier.chez-alice.fr
I have the book "Arado, history of an aircraft company" (J. Kranzhoff, Schiffer pub., 1997). Do you know it or should I check something inside?


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi Tophe,

many thanks for your reply.I would appreciate that, althoug I think it is just an earlier version of the one I have from the same author. Anyhow, congratulations on your great work on the "fântomes fourchus".

Best regards,

Wurger


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi Tophe,

thanks anyway. I have another challenge for you guys:

what about the Arado E380? It was a Ar 196 on steroids ( BMW 801, heavier armament ). Does anyone have a drawing, or other technical specifications?

Bye.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi everyone,

on the Arado E 380, from "Secret German Aircraft Projects of 1945", Toros Publications, 1997, p.24:

" A low-wing floatplane with faired float attachments intended to replace the Ar196 and powered either by one As402, one BMW 323R-2, or one BMW 801A engine. There are two versions, one armed like the Ar196, the other with 2xMG151/20 (front)+1xMG131(rear)".

From "German Aircraft of the Second World War", Smith/Kay, Putnam, 1972, p.727:
"Floatplane development of Ar196 with folding wings, one 1600hp BMW 801A"

My german is still sketchy, but Kranzhoff`s latest book on Arado refered to a projected started in 1942, closely related to the aerodinamically improved ( with bigger twin floats and already with MG151 ) Ar196 C, intended as a carrier plane ( traegerversion ), with better protection and armament. An Argus As411 was to power this bird at 383km/h. Project of 1943.

Some of this data does not match entirelly, but it would be interesting to know more on the Ar196C and the Ar E380.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,


here is the Arado E.390;


http://www.flying-things.ch/air46/Are390.jpg


Attachments

  • Ar E.390.jpg
    Ar E.390.jpg
    113.9 KB · Views: 1,868

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi Hesham,

not exactly what I had in mind... ;)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
862
Topics merged.

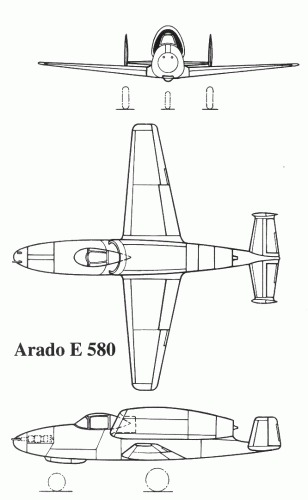

Here is the Arado E 580, the company's proposal for the "Volksjäger" competition (from the MBI book on the He 162).

The E 580 concept was quite similar to the winning proposal from Heinkel, however, it was a low-wing aircraft with significantly higher technological demands.


Attachments

  • E 580.gif
    E 580.gif
    71.1 KB · Views: 1,586

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

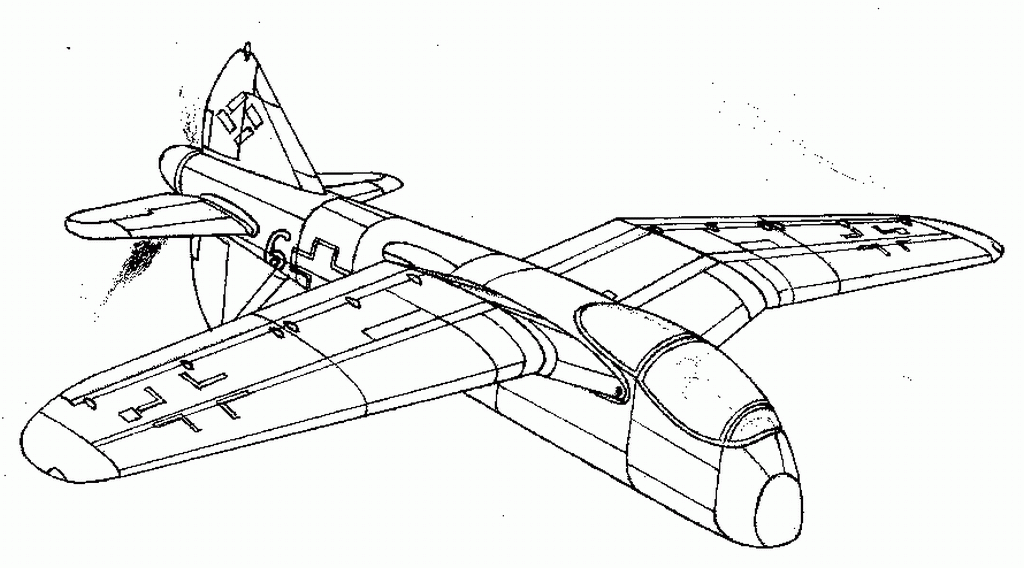

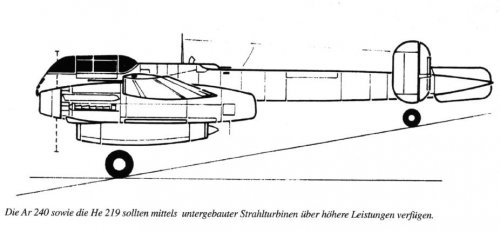

here is from Waffen-Arsenal 56,the Arado Ar.240 fitted with jet engine.


Attachments

  • Ar.240.JPG
    39.7 KB · Views: 1,385

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

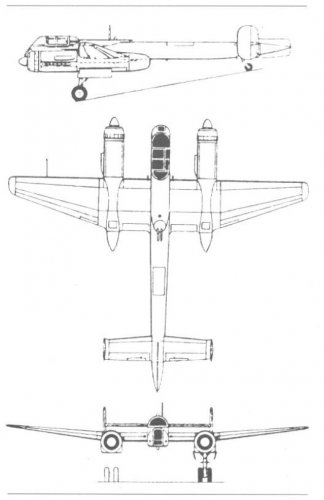

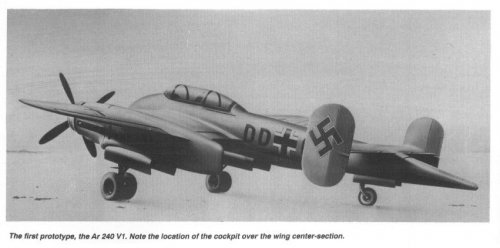

here is the first prototype for Arado Ar.240,please note the location of the cockpit,it
was over the wing center-section.


Attachments

  • 240.JPG
    45.7 KB · Views: 1,223

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

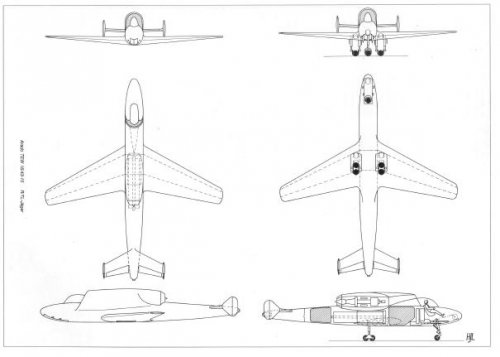

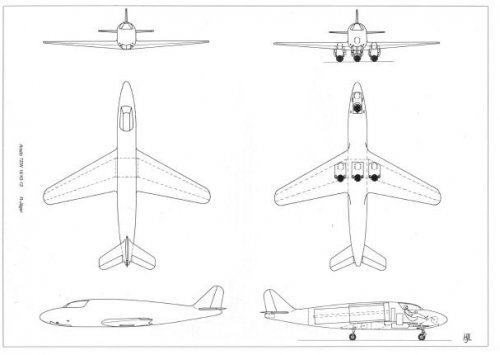

from Luftfahrt 3/1980,here is the landing gear system for Arado TEW 16/43-13
and TEW 16/43-15 projects.


Attachments

  • 43-15.JPG
    24.5 KB · Views: 1,022
  • 43-13.JPG
    22.6 KB · Views: 1,398

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299

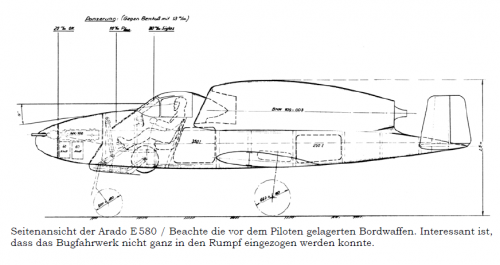

From Projekt, Kleinst-Jager report,


here is the Ardao E.580 drawing with some details.


Attachments

  • E.580.png
    80.1 KB · Views: 865

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

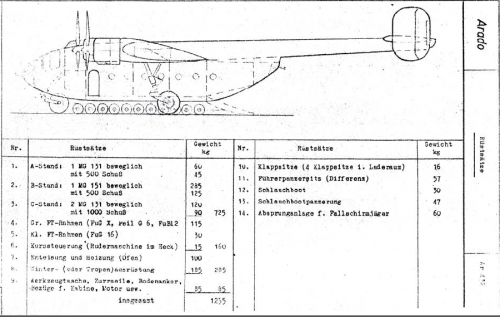

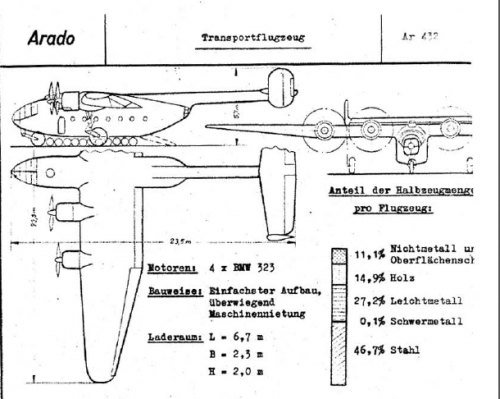

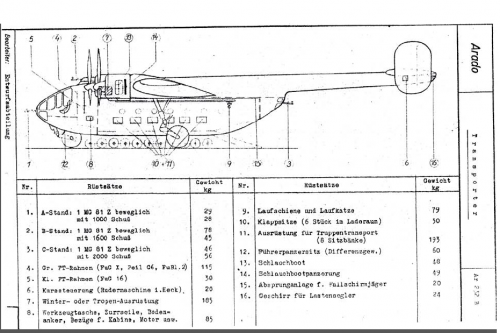

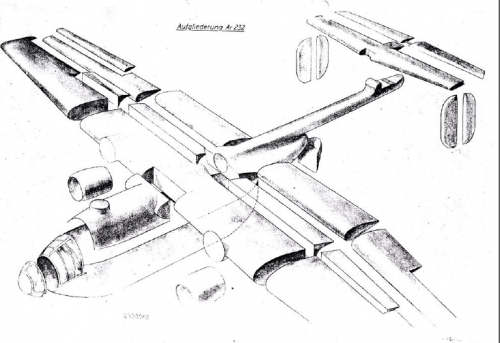

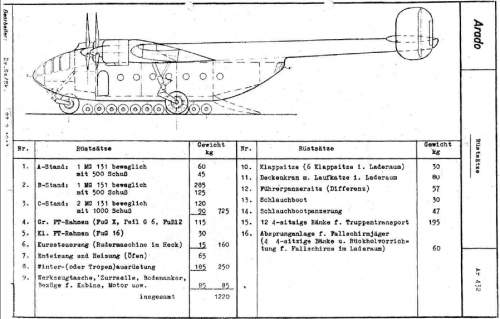

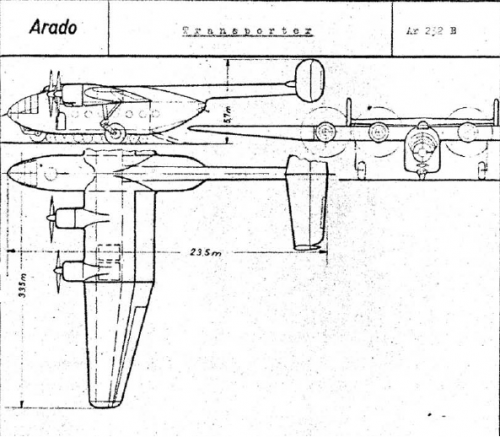

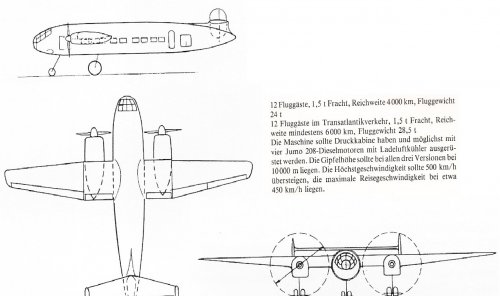

here is a report about Arado Ar.232 and Ar.432.


http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/a/Arado/Ar%20232/Kurzbaubeschreibung%20Ar%20232-B%20Ar%20432.pdf


Attachments

  • 6.png
    195 KB · Views: 209
  • 5.png
    260.8 KB · Views: 189
  • 4.png
    145.2 KB · Views: 210
  • 3.png
    264.2 KB · Views: 220
  • 2.png
    253.7 KB · Views: 696
  • 1.png
    169.6 KB · Views: 715

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,600
Interesting document, many thanks indeed !

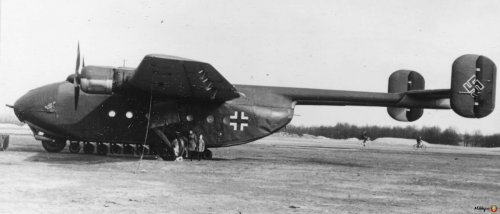

Just a side note, but I recently got an issue of Flugzeug Classic (Special 5), featuring an article
about the Ar 232 and one point caught my eye: The landing gear. Most photos and drawings
(in that document, too) show the main wheels and the nose wheel on the same level with the
row of small supporting wheels under the belly. But actually the landing gear already was lowered
then. When fully extended, the supporting wheels had no contact to the ground, as can be seen
on the attached photo from the mentioned mag.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Many thanks to you my dears Skyblazer and Jemiba,

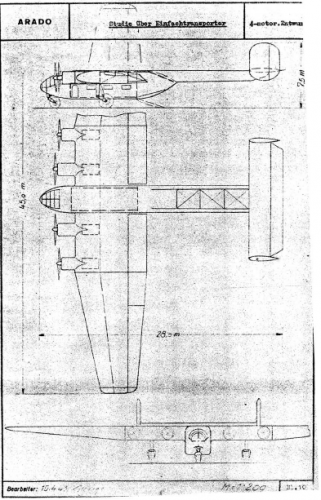

and anther file;

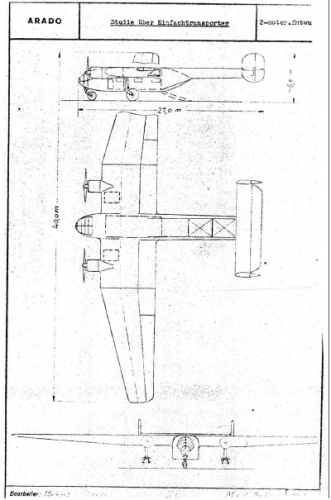

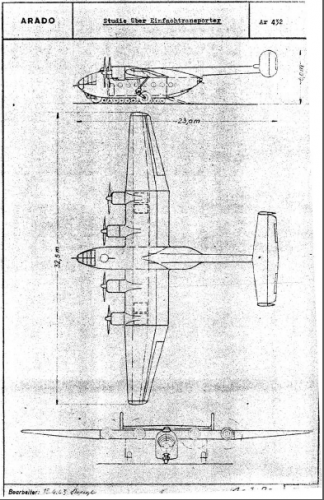

http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/a/Arado/Ar%20232/Vergleichsstudie%20Ar%20432.pdf


Attachments

  • 3.png
    284.3 KB · Views: 152
  • 2.png
    282.5 KB · Views: 171
  • 1.png
    229.8 KB · Views: 171

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
215
;)

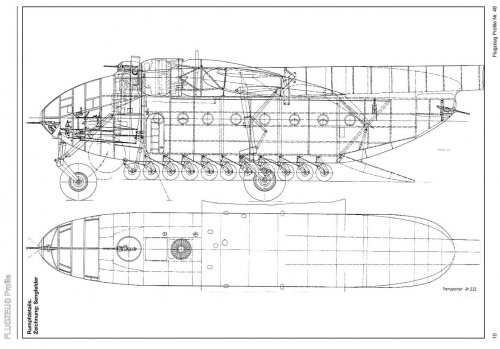

Attachments

  • ar_232.jpg
    170.8 KB · Views: 191
  • ar_232+.jpg
    239.3 KB · Views: 225

Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
14
Website
rwrwalker.ca
My understanding was that the Arados used the conventional tricycle gear for takeoffs and landings, and lowered themselves onto the multiple small tires for loading/unloading, and manuevering on less than ideal surfaces for said loading/unloading.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,600
Bill Walker said:
My understanding was that the Arados used the conventional tricycle gear for takeoffs and landings, and lowered themselves onto the multiple small tires for loading/unloading, and manuevering on less than ideal surfaces for said loading/unloading.

Honestly, I haven't thought about it before and most documents show it lowered to the auxiliary wheels.
But take-off/landing certainly only were possible with the legs fully extended.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299

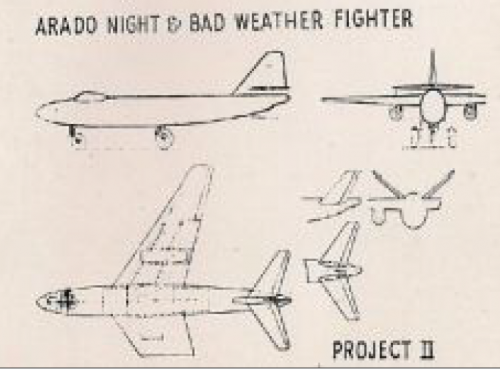

From; Secret Nazi Aircraft 1939 -1945 Luftwaffe's Advanced Aircraft Projects


it's the first time to know that,the Arado Project II,had a V-tail early variant ?!.


Attachments

  • Project II.png
    Project II.png
    228.9 KB · Views: 168

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
And I don't understand,


there was a V-tail variant or not ?.


Felda

I really should change my personal text
Joined
Sep 5, 2011
Messages
1
Reaction score
0
And what about Arado Ar-440? Was this plane ever built? Some drawings can be found, bud no photos ...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Felda said:
And what about Arado Ar-440? Was this plane ever built? Some drawings can be found, bud no photos ...


Hi Felda,

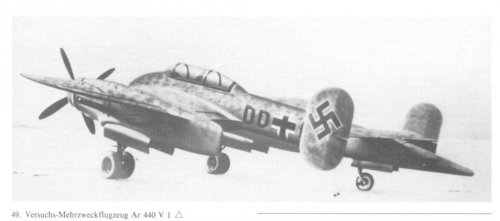

yes,it was built,and here is its picture and drawing.


Attachments

  • 440  II.JPG
    440 II.JPG
    46.1 KB · Views: 808
  • 440.JPG
    31.9 KB · Views: 830

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,003
Reaction score
46
Hi all.

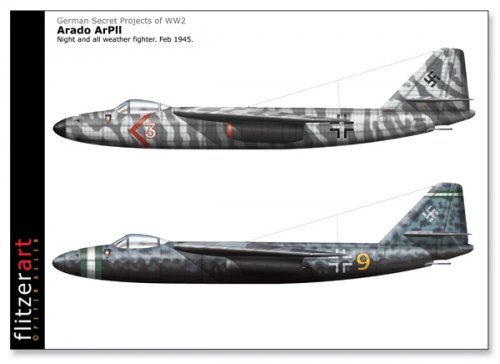

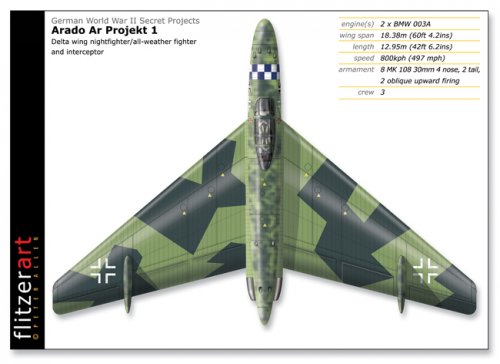

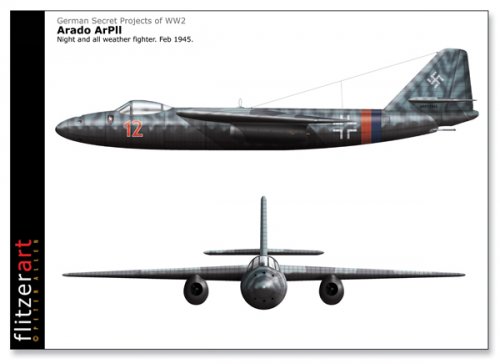

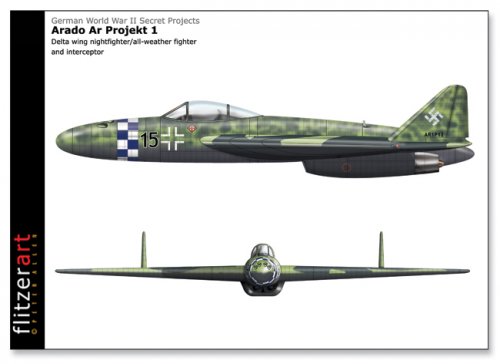

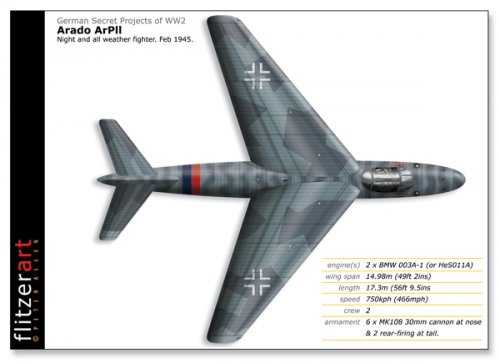

I'm back. Added a few old profile plates.


Cheers
P


Attachments

  • ArP1:F.jpg
    101.2 KB · Views: 206
  • ArP1:E.jpg
    143 KB · Views: 189
  • ArP2:B.jpg
    100.7 KB · Views: 278
  • ArP2:A.jpg
    127.9 KB · Views: 285
  • ArP2:G.jpg
    113.4 KB · Views: 315

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,274

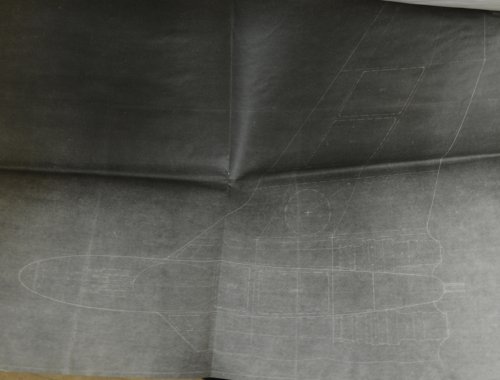

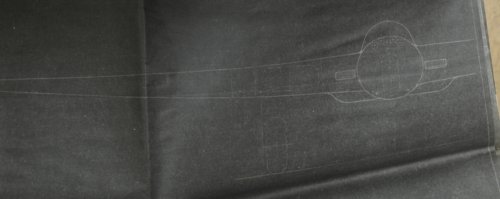

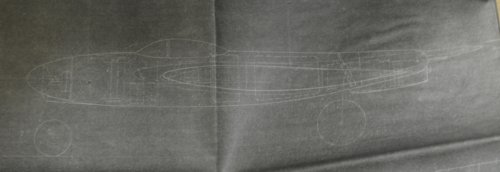

Oh flying wing aircraft. It's breathtaking. Is this a dinosaur of an undiscovered new kind? ;D
I can't find vertical tail stabilizer. :eek:
justo-san, do you know this design?
I can see complicated wing plan view, radar, foreward 4 cannons, rear 2 cannons, 2 jet engines, two seats(perhaps side by side forward looking two seats and side/backward looking one seat), landing gears, fuel tanks and 2 rectangler engine air intake located wing root leading edge.
Three seats night/bad weather interceptor?

Can you see Schräge Musik between jet engines?


Attachments

  • Side.jpg
    657.1 KB · Views: 207
  • Top.jpg
    1.3 MB · Views: 208
  • Front.jpg
    766.4 KB · Views: 192

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
152
Reaction score
20
Wow--really impressive. Looks to be outfitted w. the usual HeS011 engines.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,081
Reaction score
248
blackkite said:
Oh flying wing aircraft. It's breathtaking. Is this a dinosaur of an undiscovered new kind? ;D
I can't find vertical tail stabilizer. :eek:
justo-san, do you know this design?

Isn't this "P.1"? If so it may have small triangular stabilisers on the wing (just outboard of the images).


Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
325
Reaction score
174
Beautiful plane!

Similar to Project 1., but different air intakes and engines, and no vertical tail stabilizer!
