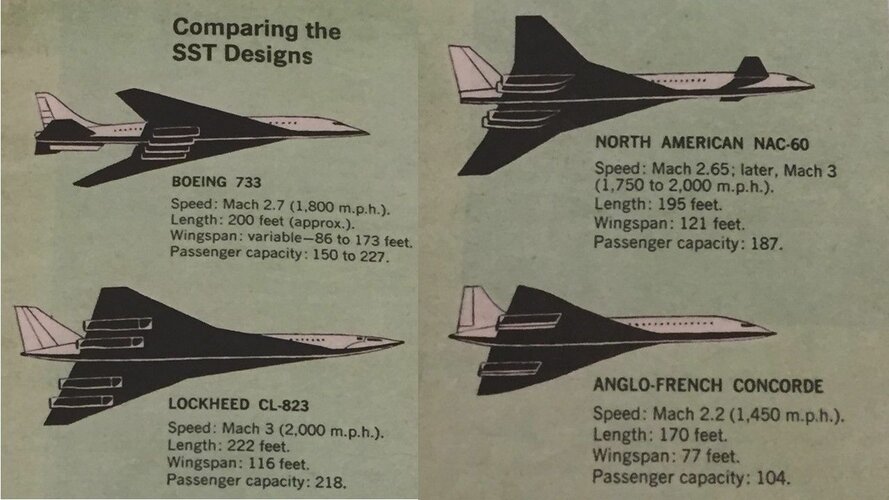

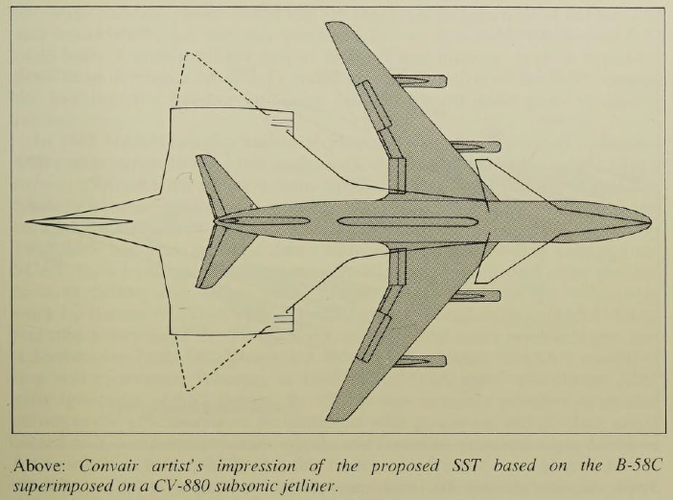

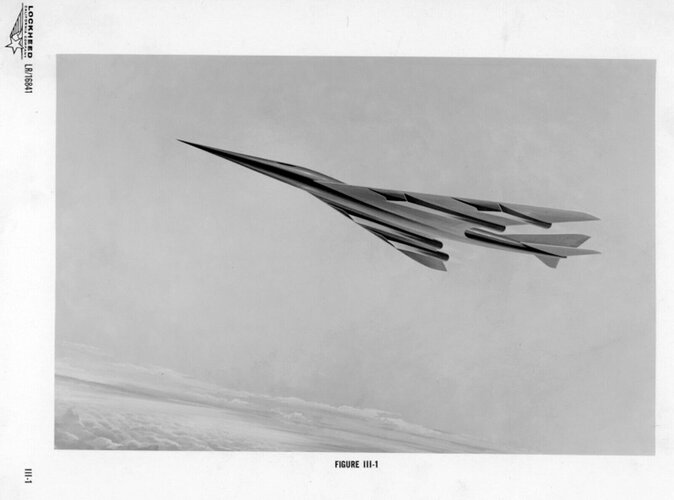

US Supersonic Transport (SST) Program 1960-1971

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!


Attachments

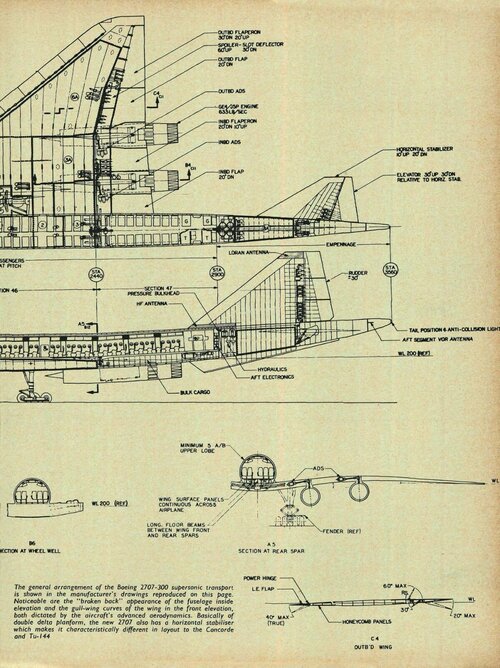

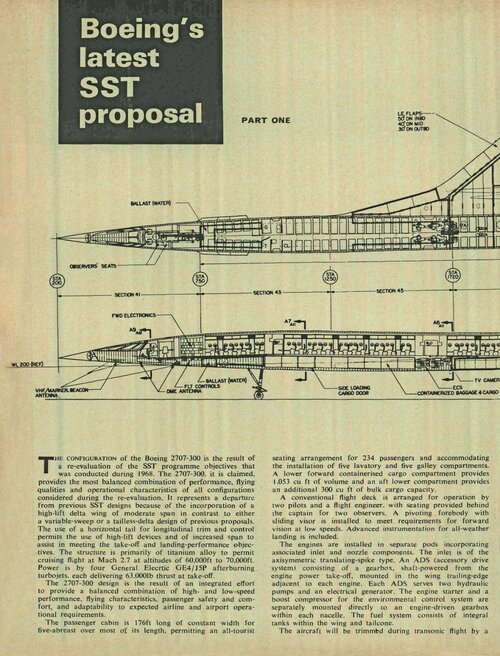

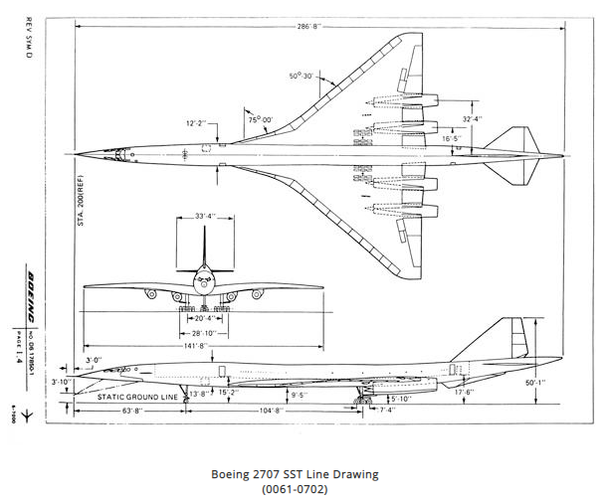

  • Boeing-Model-2707-300-SST-85x11-Print.jpg
    417.4 KB · Views: 188
  • Boeing-Model-2707-300-SST-85x11-Print-_57.jpg
    412.3 KB · Views: 160

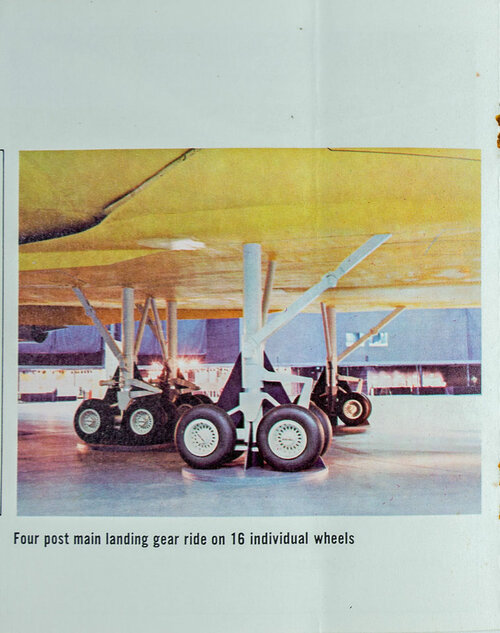

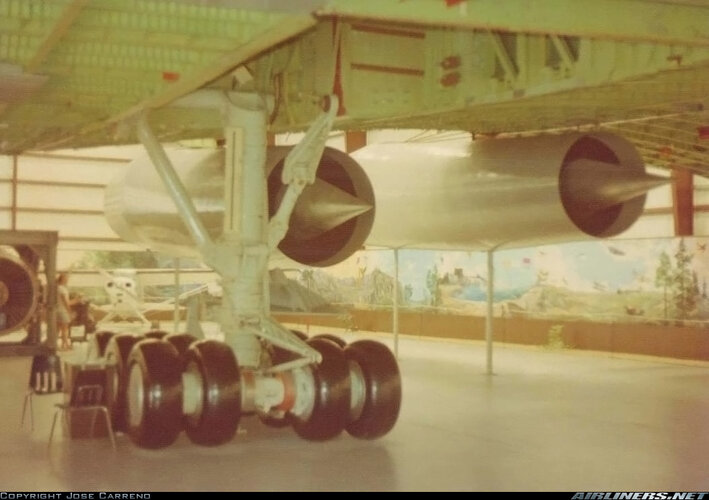

  • B2707-300 landing gear.jpg
    B2707-300 landing gear.jpg
    155.5 KB · Views: 199

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
4,182
Reaction score
3,439
This chart of Concorde liveries came from a children's book in the 1960s. Except for MEA and Sabena the liveries would have been used for Boeing and Lockheed SSTs. Sadly no such chart exists for them.


Attachments

  • Concorde_Airlines.jpg.01f04a43f39518df7a169c85c1c40521.jpg
    58.2 KB · Views: 215

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
8,710
Reaction score
8,235
I often wonder if an analog FBW similar to Concorde could have "tamed" SCAT-15F vicious low speed and stall characteristics... or would it take a digital Apollo guidance computer ?


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
757
Reaction score
472

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

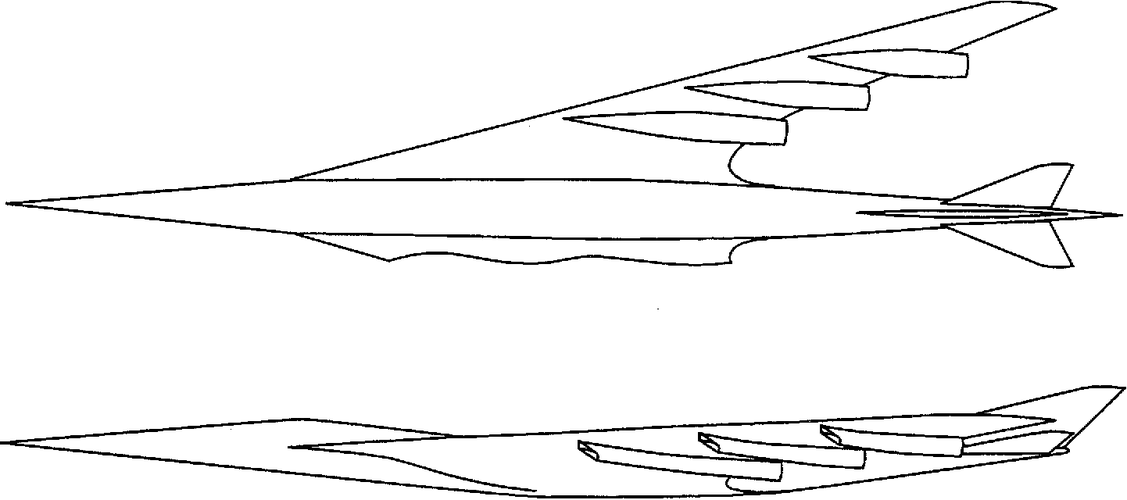

Hi! Four engined SCAT-4 and six engined SCAT-4.


Attachments

  • SCAT-4.jpg
    88.2 KB · Views: 119
  • SCAT-4.png
    15.2 KB · Views: 133

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,597
Reaction score
1,412

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

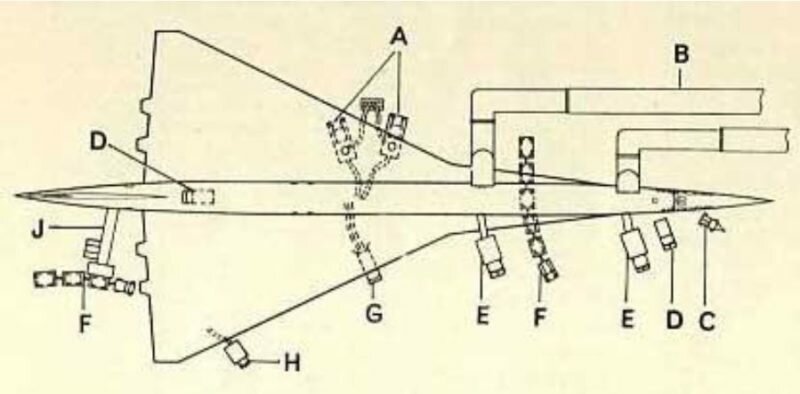

A - Bunker vehicles. B - Telescopic boarding gangways. C - Generating sets. D - Truck for the drinking water service or for the evacuation of waste water. E - Food and drink supply trucks. F - Luggage trolleys. G - Floor air conditioning installation. H - Reactor start-up group. I - Conveyor belt for luggage.
On board a supersonic airplane, two kinds of air intake systems are generally used; in one of the systems the compression occurs on the outside, in the other inside the inlet channel with external compression, the normal shock wave which produces the compression of the air and, therefore, its slowing down at subsonic speed is perpendicular to the wall of the intake duct and originates just at the entrance to the sleeve; in the mixed compression inlet system, the normal shock wave forms only far enough downstream, so inside the sleeve itself. In the first case, the air enters
the sleeve when it is already at subsonic speed and a subsonic diffuser is enough to bring it to the optimum speed. In the second case, two consecutive diffusers must be provided; a convergent diffuser for the subsonic flow, another divergent for the subsonic flow from the first.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Another factor plays an important role in the design of a supersonic aircraft air inlet. If the inlet system is calculated to obtain the optimum recovery of the dynamic pressure (as is the case, for example, in the air inlet with external compression) and the air enters the diffuser with a subsonic speed, the instability of the flow can cause impulses thereof: the air masses admitted into the diffuser are alternately accelerated and slowed down at a frequency of 3 to 5 Hz; the phenomenon referred to as “inlet unstart” greatly reduces the efficiency of the diffuser and causes intense structural and dynamic effects on the cell and on the reactor, which can lead to pumping of the compressor.

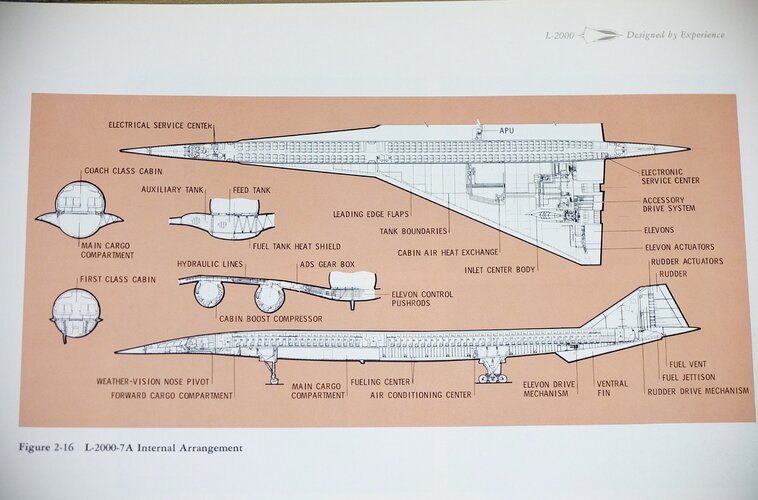

In order to combat this tendency to pulsation, the Lockheed L-2000-7 is provided with a variable section entry sleeve whose central corner moves continuously during normal flight in order to follow variations in internal aerodynamic conditions; these are modified, for example, by the operation of the post-combustion or by variations in the speed of the aircraft. In this way, the optimum supersonic compression and the normal shock wave are maintained at all times within the limits determined in advance. External disturbances caused by atmospheric conditions, aircraft maneuvering or shock waves from other supersonic airplanes must also be taken into account. As a result, care must be taken to ensure that the air intake system is perfect as well as that of the main flight controls, which implies attaching equal importance to its maintenance and reliability in operation.

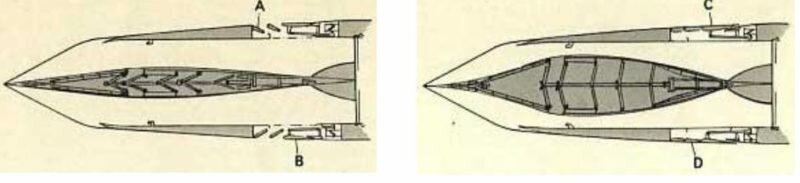

The air intake system chosen by Lockheed is a mixed compression system with automatic start; the drawings below show the internal configuration during take-off and in supersonic cruising flight. The entry corner is rectangular in cut but its shape can be modified to adapt the entry section to operational conditions. In addition, various air inlets arranged along the outer walls make it possible to maintain the air intake at a sufficient level and to stabilize the flow in the event of disturbances. The wedge adjustment mechanism is operated by two independent hydraulic circuits. In the sleeve are placed sensors which measure the pressure in the channel and allow to determine the position of the compression waves; their signals control the opening and closing of the secondary flow valves and auxiliary air intakes.

The main material used for the manufacture of the air intake system is titanium; the wedge adjustment mechanism is also made of machine-worked titanium parts. In the construction and finishing of the inner walls of the channel, care must be taken that the surfaces do not present any undulations or irregularities which could give rise to turbulence. Regarding maintenance, it is important to protect the leading edges of the handles, which are relatively thin, from damage.


Attachments

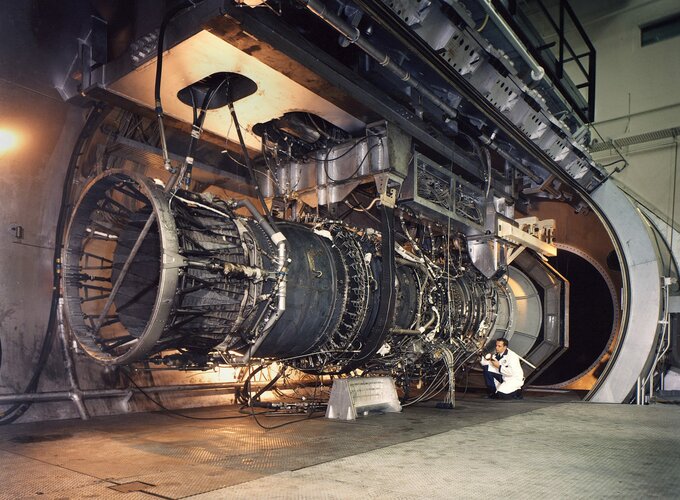

  • L2000 ENGINE.jpg
    L2000 ENGINE.jpg
    111.1 KB · Views: 106
  • ibteravia-aout-1966-13.jpg
    29.4 KB · Views: 137

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!


Attachments

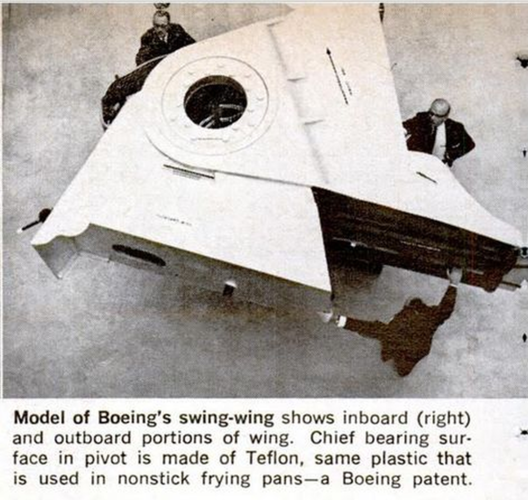

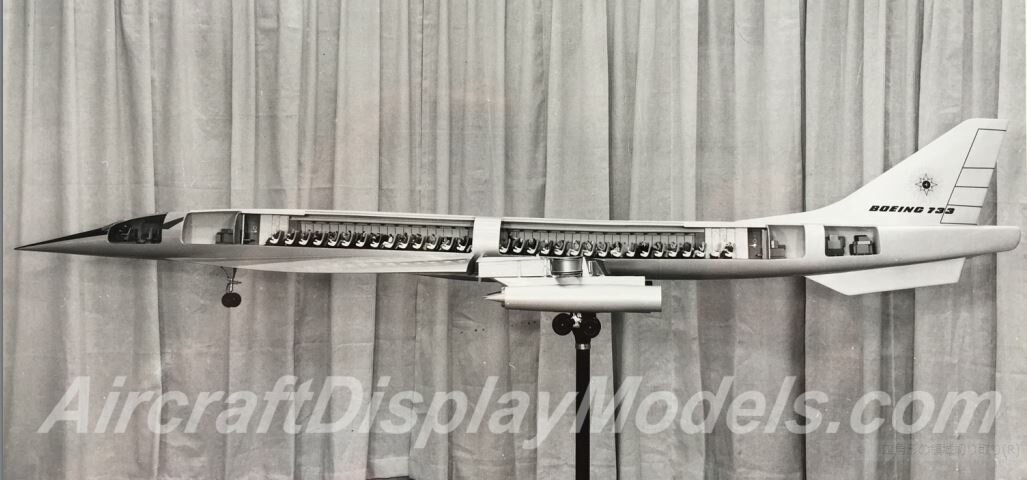

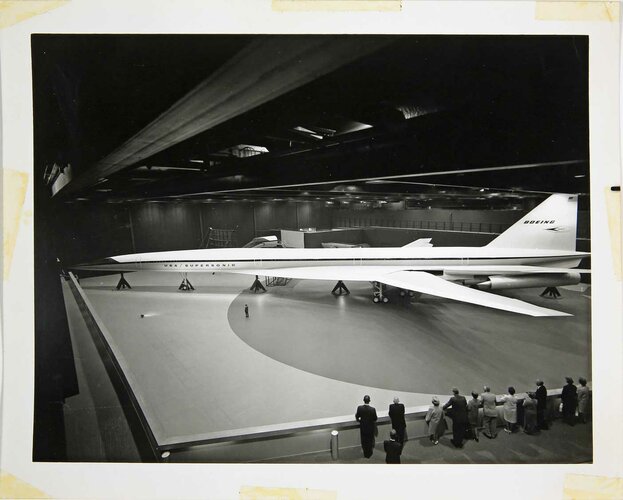

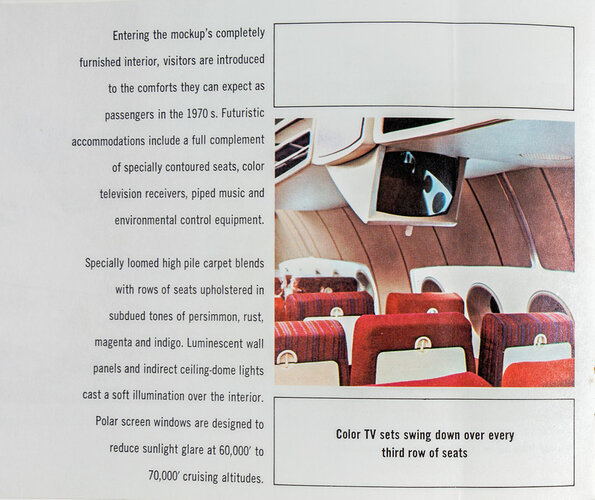

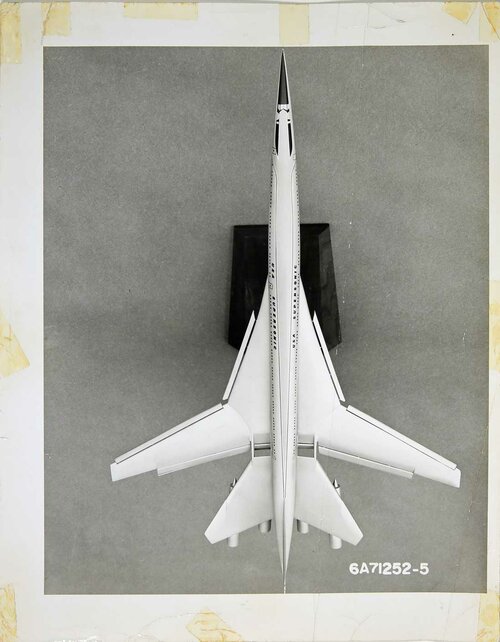

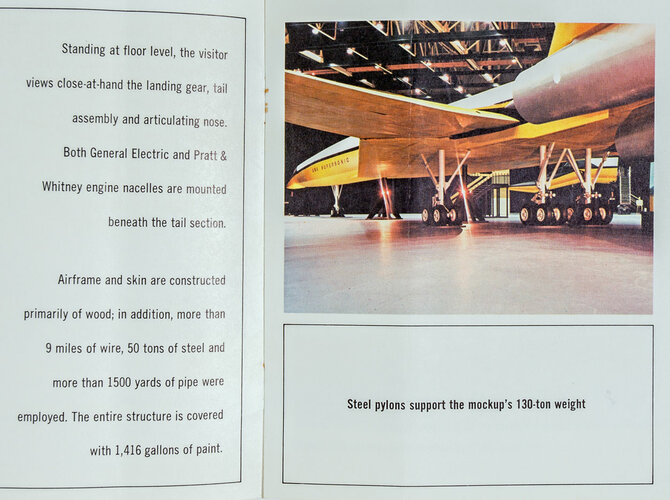

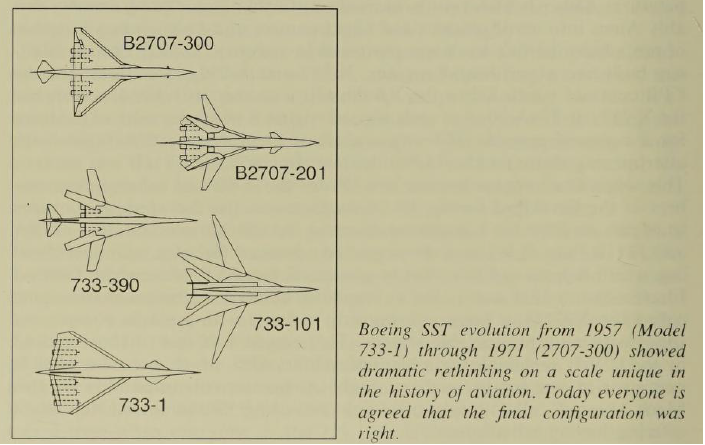

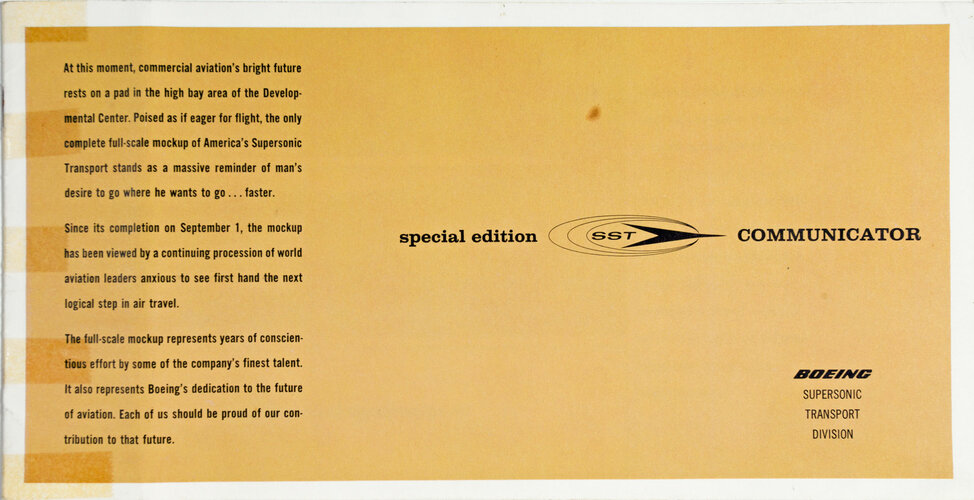

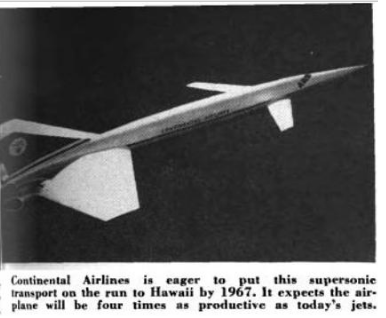

  • Boeing-Supersonic-Transport-Brochure-1960-1.jpg
    99.6 KB · Views: 109
  • Boeing-Supersonic-Transport-Brochure-1960-2.jpg
    83.3 KB · Views: 96

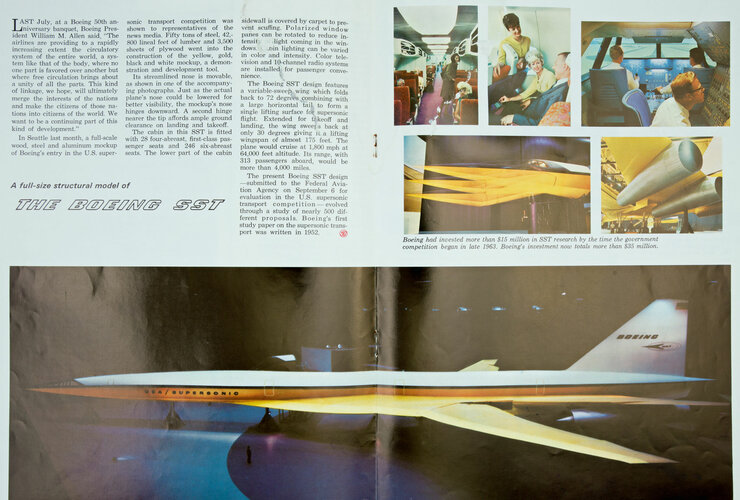

  • Boeing-Magazine-Oct-1966-P1.jpg
    422.7 KB · Views: 94
  • Boeing-Magazine-Oct-1966-P2.jpg
    457.8 KB · Views: 94

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570

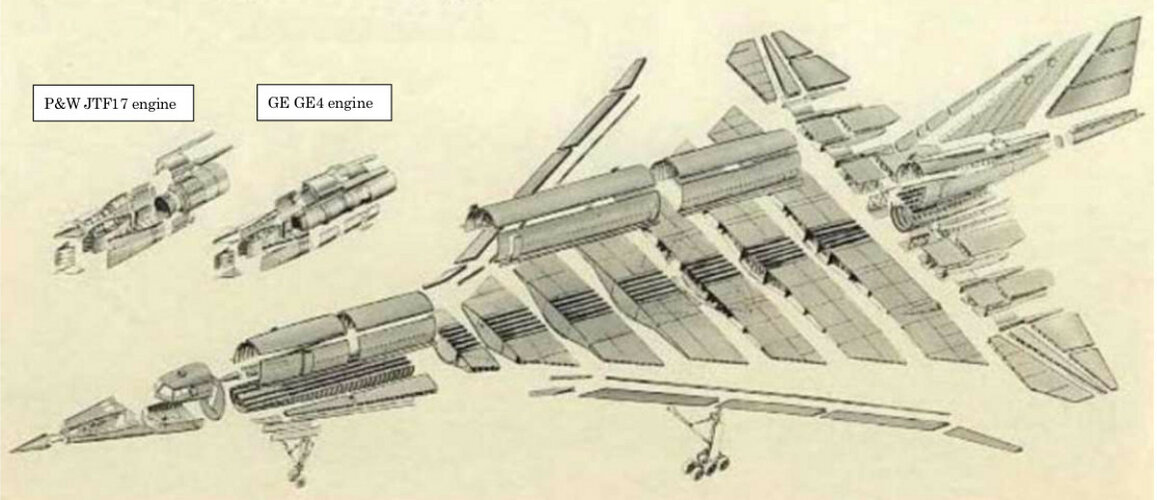

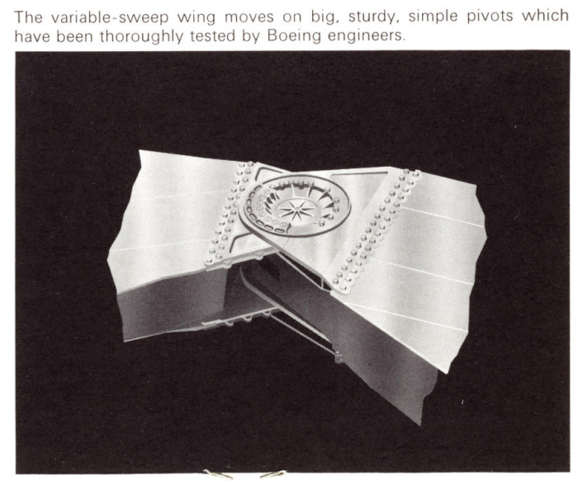

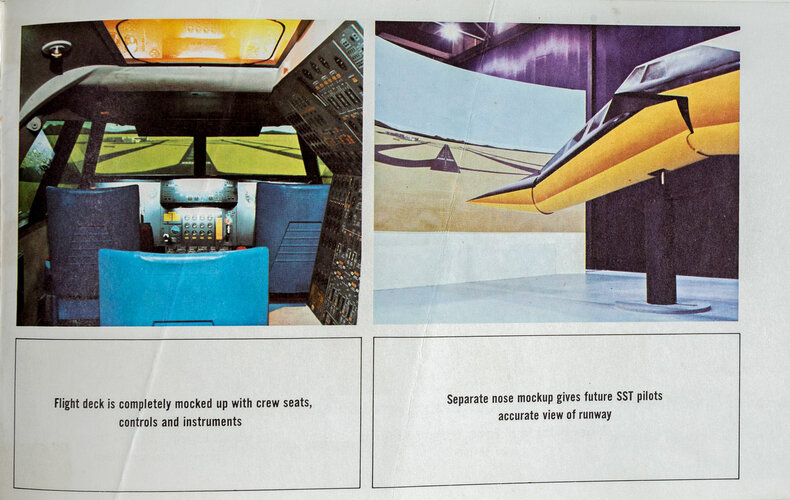

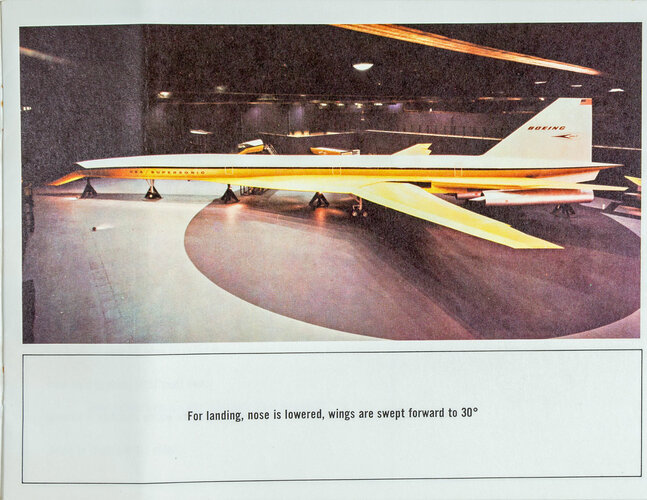

Attachments

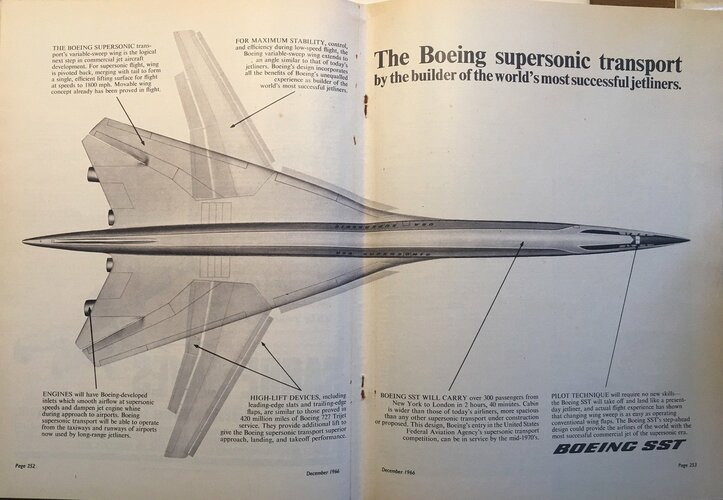

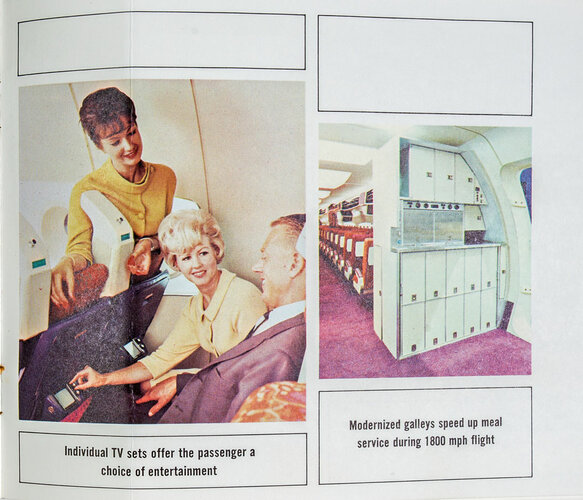

  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P1.jpg
    272.8 KB · Views: 89
  • Boeing-Supersonic-Transport-Brochure-1960-2.jpg
    83.3 KB · Views: 89
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P3.jpg
    269.7 KB · Views: 94
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P4.jpg
    219.7 KB · Views: 88
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P5.jpg
    131.6 KB · Views: 86
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P6.jpg
    343.7 KB · Views: 84
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P7.jpg
    188.5 KB · Views: 88
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P8.jpg
    203.5 KB · Views: 88
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P9.jpg
    364.4 KB · Views: 94
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P10.jpg
    302.1 KB · Views: 88
  • Boeing-Supersonic-Transport-Brochure-Sept-1966-P11.jpg
    299.4 KB · Views: 117

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,570
Hi!

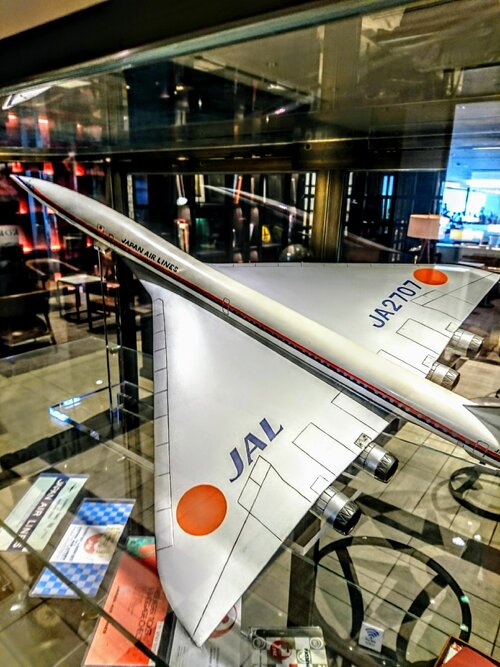

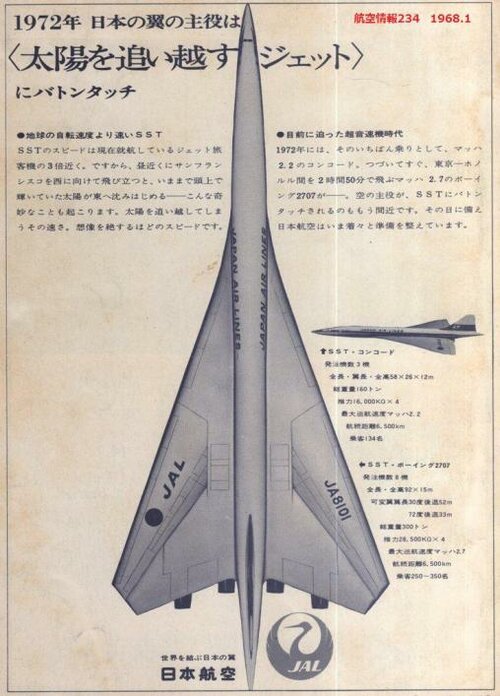

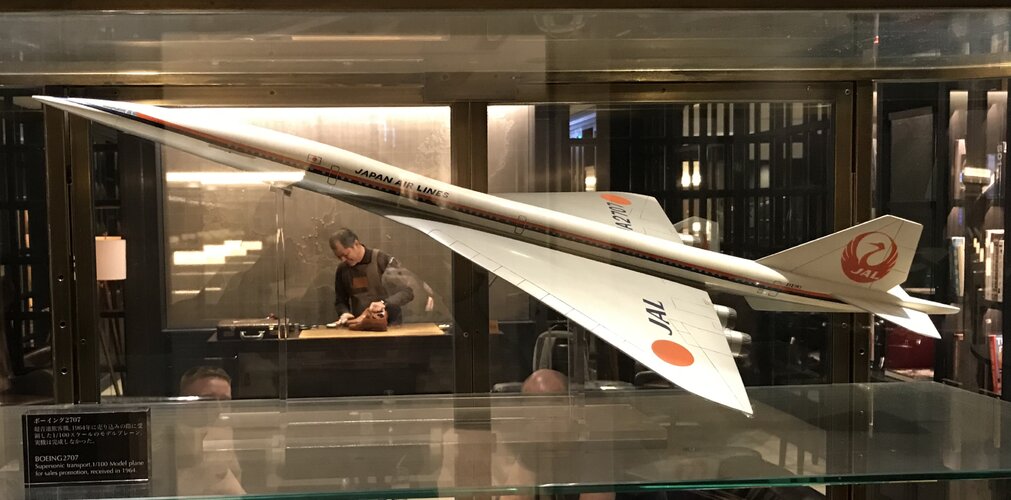

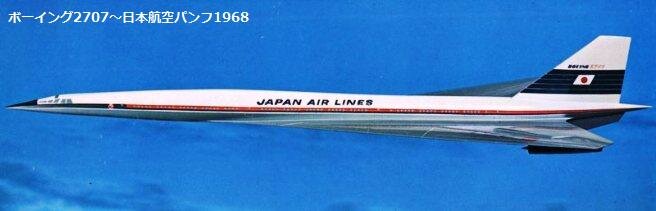

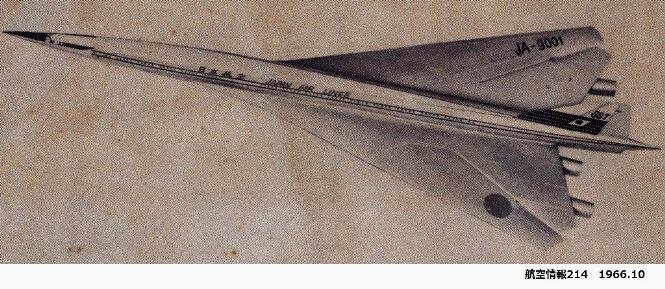

Source : Aireview magazine and JAL.


Attachments

  • 70abf9eb.jpg
    54.2 KB · Views: 91
  • 890f0c0f.jpg
    57.9 KB · Views: 77
  • 9835e236.jpg
    19.9 KB · Views: 82
  • DbUB__ZX4AAhvHg.jpg
    156.9 KB · Views: 90

Dew

ACCESS: Confidential
Joined
May 2, 2007
Messages
136
Reaction score
498

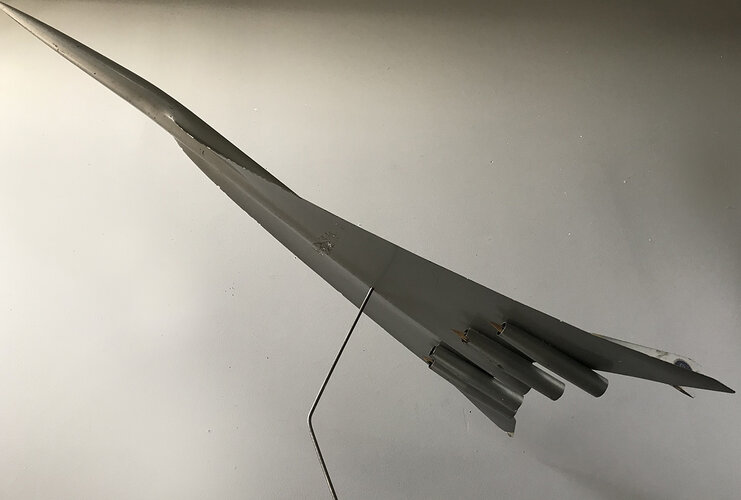

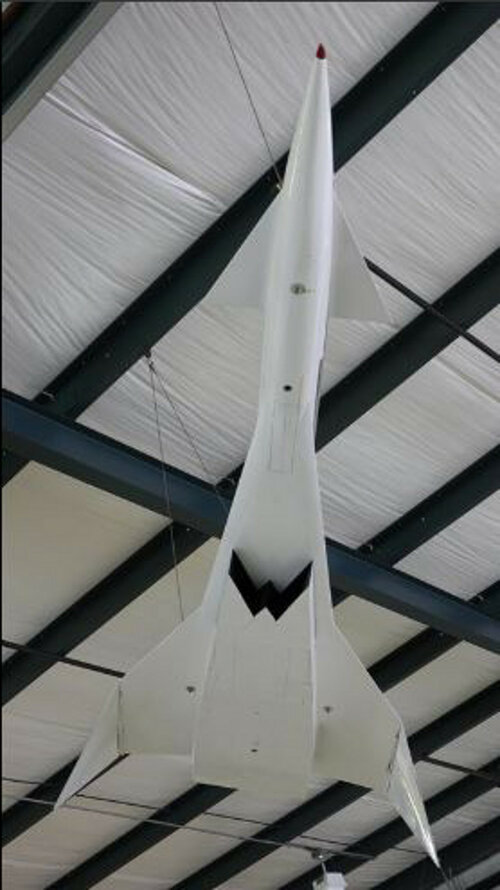

Rare 1960's NASA Aerodynamics SST Model

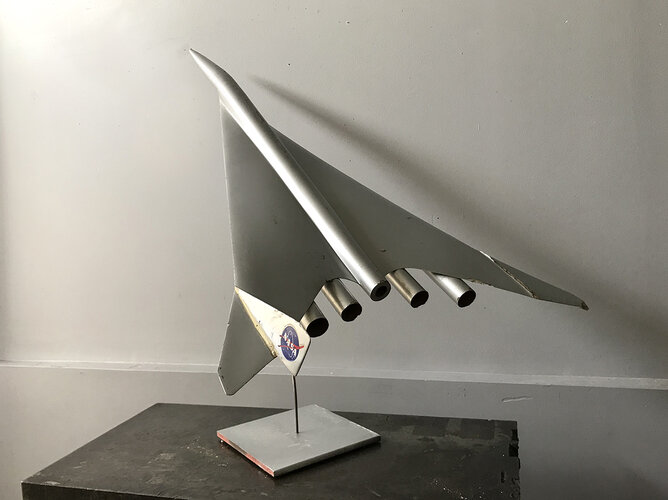

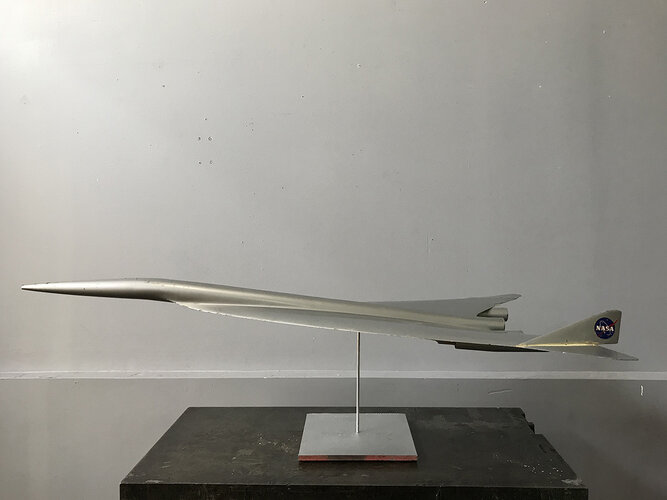

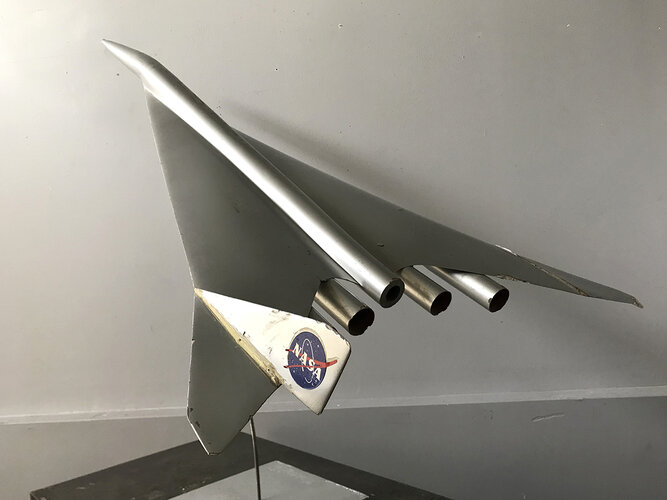

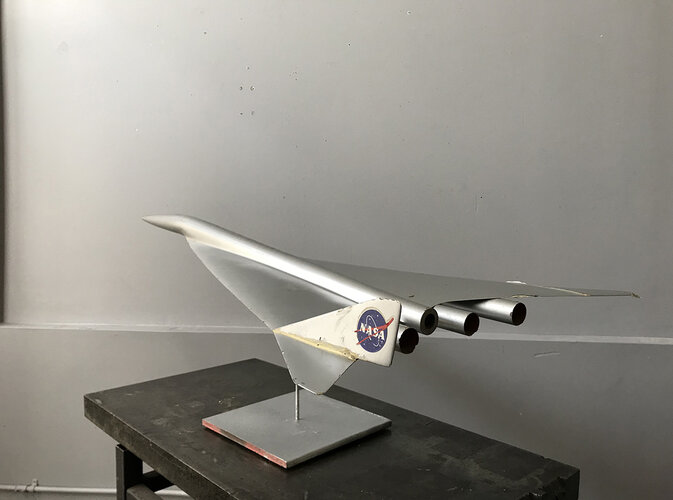

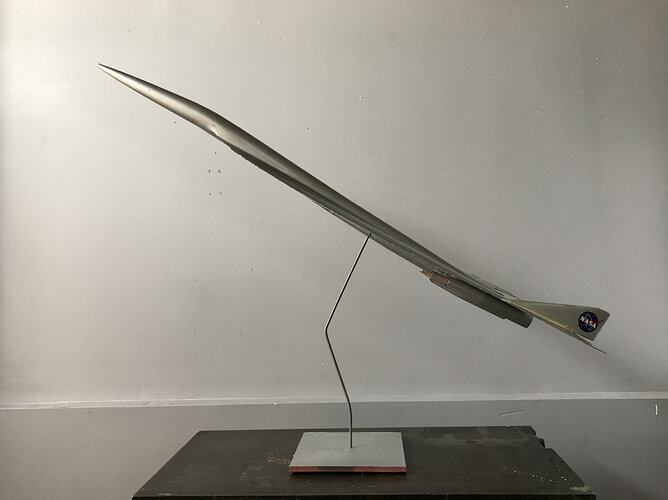

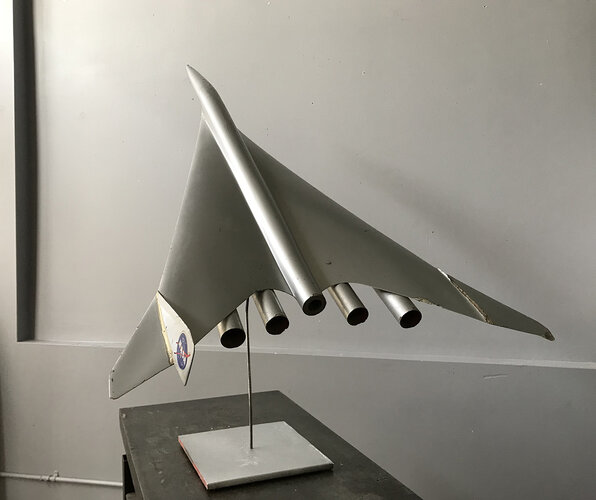

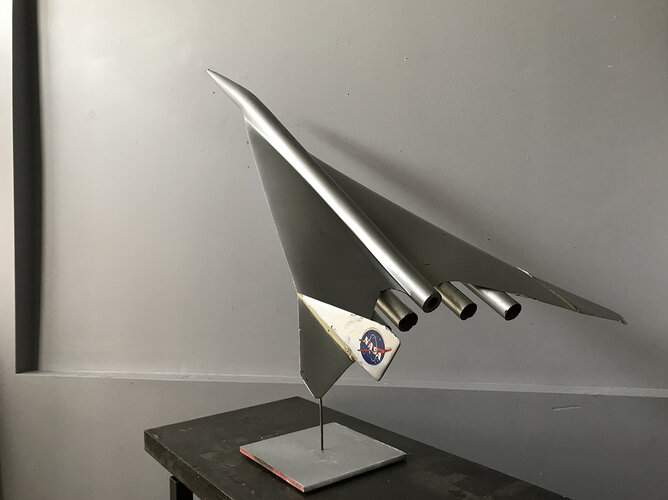

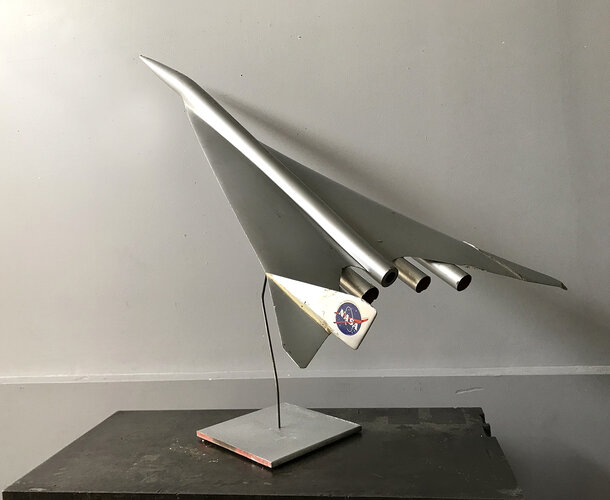

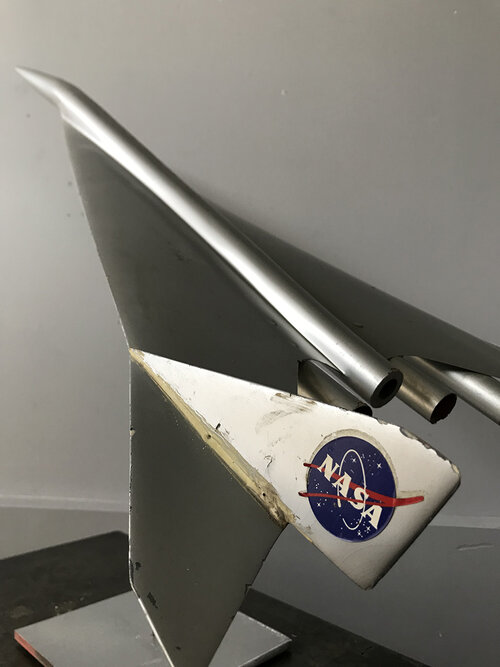

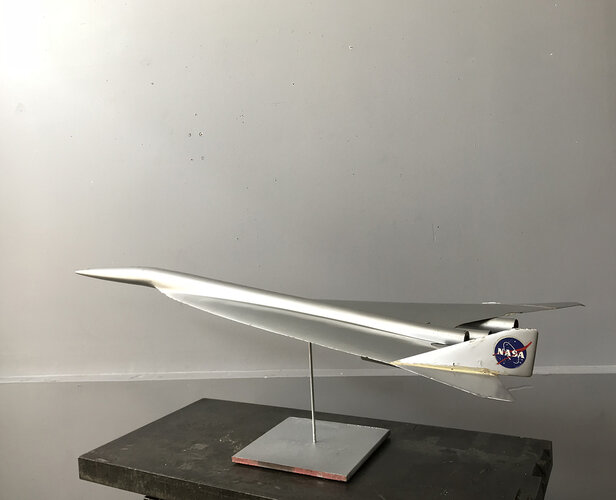

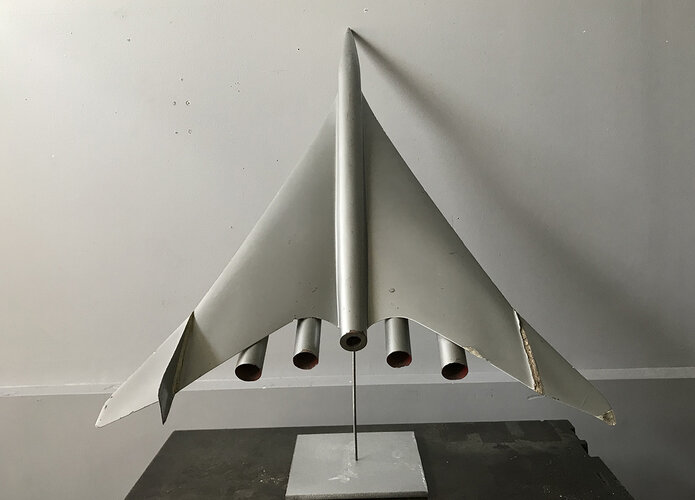

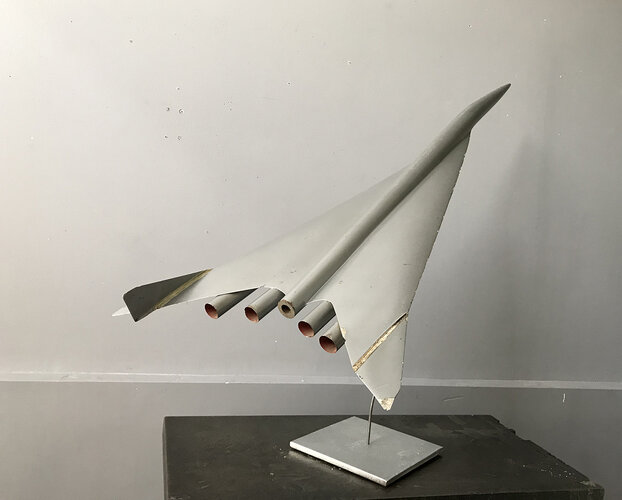

We recently acquired a rare 1960's aerodynamic test model for a NASA SST (Super Sonic Transport) vehicle from Langley Research Center. This model is rather large and is built of wood and composite materials. One rear fin has the NASA logo -- finish and condition is original. The piece measures 51" L and has a max width of 24". Everything is in tact with the minor exception of one rear fin. Wear has some dings and chip paint in areas. These Langley Aerodynamic models are very rare and as you can imagine and these were used in what is called the free-flight technique where they are tethered and float in the wind tunnel for study. A variety of designs were tested and this is one in the spectrum of craft. Reference the video for a demonstration of this type of craft in free flight testing. These video segments are courtesy of NASA Langley Research Center.

rare+nasa+sst+00.jpg rare+nasa+sst+01.jpg rare+nasa+sst+02.jpg
rare+nasa+sst+03.jpg rare+nasa+sst+05.jpg rare+nasa+sst+06.jpg rare+nasa+sst+07.jpg rare+nasa+sst+08.jpg rare+nasa+sst+09.jpg rare+nasa+sst+10.jpg rare+nasa+sst+11.jpg rare+nasa+sst+12.jpg starternasa1.jpg


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
650
Reaction score
256
Was the united state livery proposed for the variable geometry variant? what color were used?

Happy new year, thanks for your answers!


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
4,182
Reaction score
3,439
I have been looking for two documents which I thought were here.
List of optionholders with delivery positions of their aircraft. I think it came from Flight International.
1969 Boeing Report on the 2707-300 which used to be linked here.
In addition the Youtube 1967 Boeing SST promo video shows briefly side views of some airline liveries I will try.and screen capture.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
4,182
Reaction score
3,439

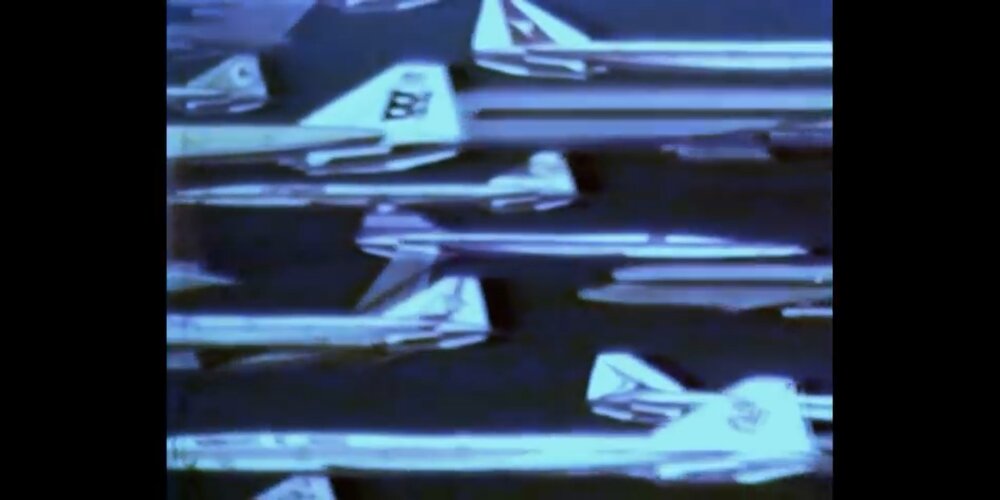

My phone caught this still from the Boeing SST film. Nice livery artwork


Attachments

  • Screenshot_2022-01-26-21-25-52-136.jpg
    261.9 KB · Views: 69

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,768
Reaction score
5,149
Website
www.aerospaceprojectsreview.com
Pan am SST postcard here with a livery slightly different than the revel one http://www.everythingpanam.com/Postcards.html


https://www.scalemates.com/fr/kits/monogram-6815-boeing-sst--1250000


FYI... Atlantis Models looks like they are going to re-release the 1/400 scale model:
https://drive.google.com/file/d/1KGOzi5Hino-PJycceL0M5Jl_9w613O5x/view

atlantis SST.jpg
