US Supersonic Transport (SST) Program 1960-1971

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38

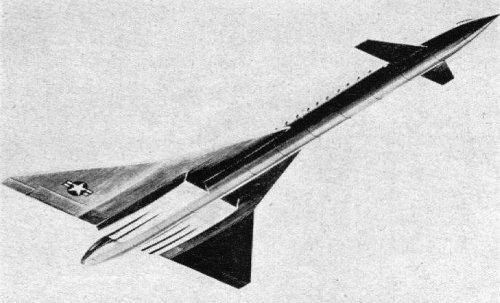

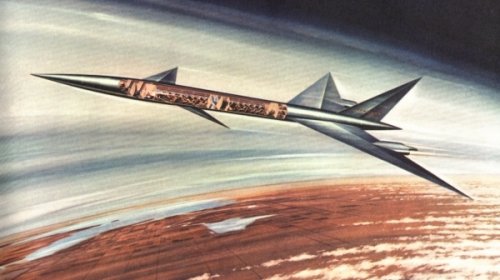

This was the first and only time I’ve seen a Republic SST proposal. Has Republic Aviation given a model number? Further information?

SOURCE: German magazine „Flug + modell-technik“ 8/1963 (page 236)


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
The same illustration was published in :
"Supersonische Verkeersvliegtuigen" by Hugo Hooftman,in the early sixties,the Netherlands.Since then ,I'm looking for more info
about this design , but nothing was ever found.
Intrigueing are the military colours for an SST...


devi

CLEARANCE: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
1
Hi boxkite.

In what to page about Republic SST in this magazine?

And what number of this magazine?


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Wasn't it related with the aerospaceplane studies of late '50s - eraly '60s? Some years ago Scott had a mistery aircraft on his APR site looking pretty much like this. I seem to remember that the large plane was carrying a little one (a TSTO design?)


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,799
Reaction score
239

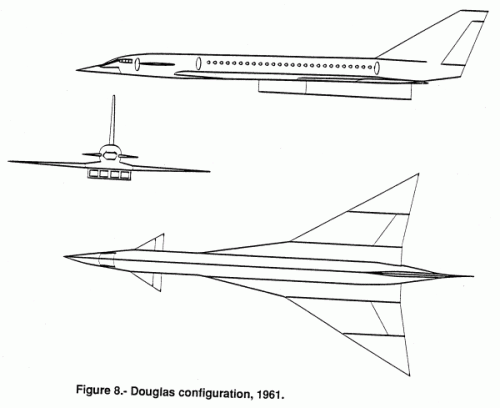

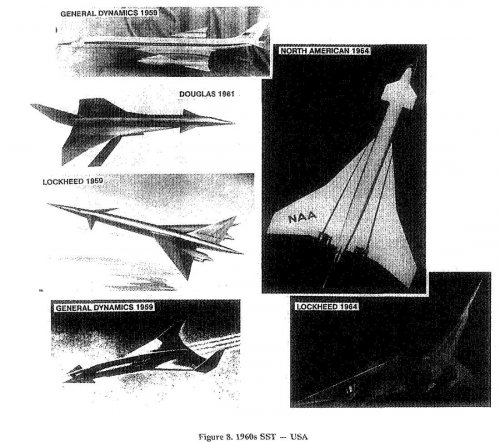

Do someone have something on some of these (Douglas 1961, lower left GD 1959, Lockheed's left 1958 and North American SST 1964 projects - later look somewhat different from XB-70-follow-on SST project)? Others are surely known for me...


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,186
Reaction score
388
Well the top left one is a stretched B-58 concept that would have been powered by 4 non-afterburning J58s and cruised at Mach 2.4 as I recall. The lower left GD design is very interesting.


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,260
Reaction score
14
There was also a version of the top left one with just two afterburning J58s. This picture is way too grainy for me to tell which one this is.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,617
Reaction score
38
Website
www.hitechweb.genezis.eu

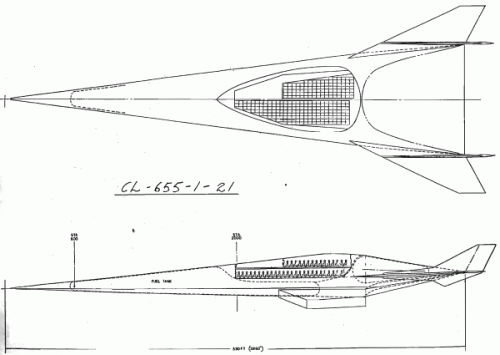

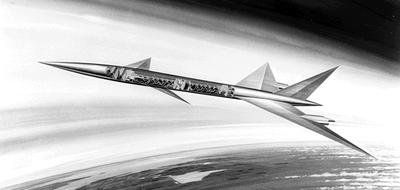

From what you are looking for, here is better drawing of Lockheed 1959 SST and its evolution.

Last edited by a moderator:

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,186
Reaction score
388
elmayerle said:
There was also a version of the top left one with just two afterburning J58s. This picture is way too grainy for me to tell which one this is.
This one (the one in the picture) had the two inner nacelles on pylons while the outer two were on the wingtips much like the Bounder bomber.


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38
Scott,

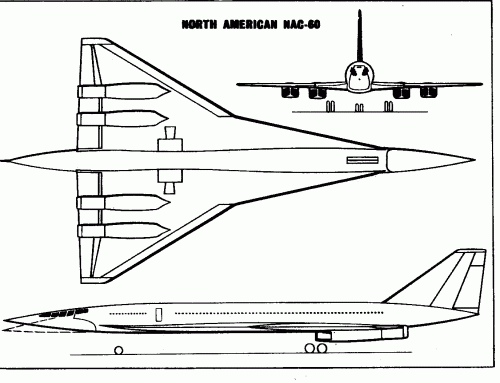

I can only contribute an artwork from "Der Flieger” 7/1965. It’s the North American NAC-60.

nearly Mach 3 in more than 21,000 m
payload 16,000 kg
range 6,500 km
span 37 m
wing sweep 50°
gross weight 220,000 kg

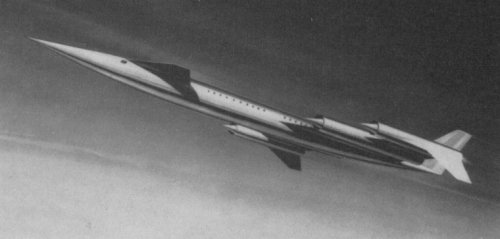

The Lockheed design was shown in „Der Flieger“ 12/1963. No details, sorry.

NA NAC-60.jpgLockheed (SST-Entwurf).JPG

Last edited by a moderator:

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38

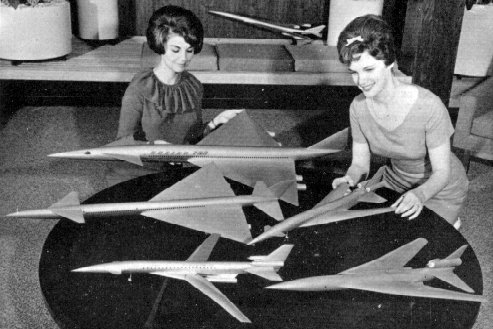

This pictures presented two girls. (By the way, Boeing SST proposals are inside the photo too.)

Source: Spanish magazine “Flaps” No.66/1964 (Thanks to pometablava)

Boeing Sst1.jpg


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38
(I said Scott, but meant Flateric - sorry).

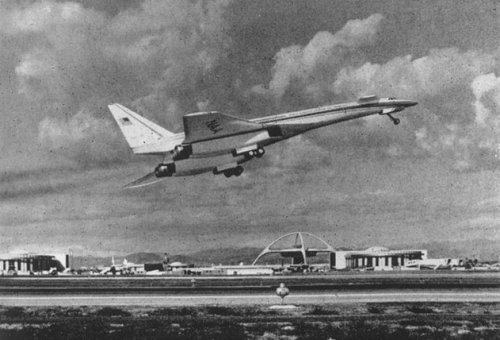

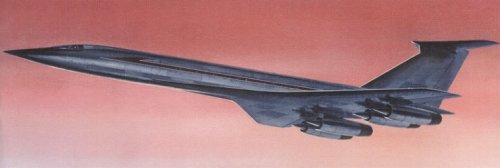

“Early-1960s T-tailed supersonic transport proposal is captured cruising at Mach 2 by Douglas Chief Artist, R. G. Smith.” / Source: “Wings” August 2002 (pg 25)Douglas (SST-Entwurf mit T-Leitwerk).JPG.jpg

Last edited by a moderator:

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38
Also from the same “Wings” issue:

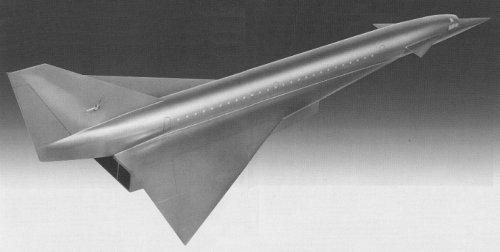

“Factory model of Douglas tri-sonic transport, circa 1961.”

Douglas (SST-Entwurf von ca. 1961).JPG

Last edited by a moderator:

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38
An interesting patent from “Weltumspannende Memoiren eines Flugzeugkonstrukteurs” (book and patent by Richard Vogt).


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,367
Reaction score
45
Wow Boxkite!, what a nice post series.

Richard Vogt, from Blohm und Voss?, do you know the date for this patent?, he was working in the USA?, for which company?

sorry for the number of questions but you made me feel curious with the last drawing :)


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,186
Reaction score
388
Orionblamblam said:

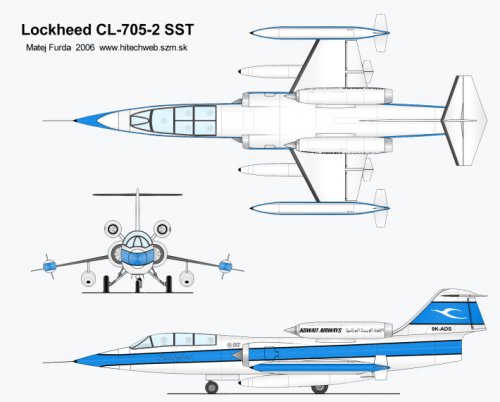

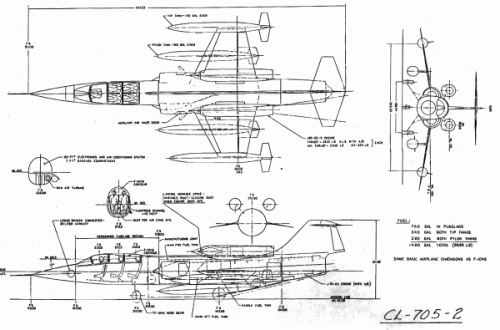

Of course, none of these are as cool as the SST version of the F-104 Starfighter:
That one made me laugh ;) Strikes me more as someone goofing off than a serious proposal.


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38
Richard Vogt, from Blohm und Voss?
Yes.

do you know the date for this patent?
No.

he was working in the USA?,
Yes.

for which company?
I borrowed the book a few years ago, but didn’t make Xerox copies. In only remember two companies, Aerophysics Development Corporation in Santa Barbara (Vogt said he was the leading engineer for the Curtiss-Wright VZ-7, which was developed at Aerophysics) and Boeing.

Maybe there is an Richard Vogt entry in the Wikipedia encyclopedia - ?
============================================
Scott,

Can you tell us something generally about the SCAT terminology? There where NASA SCATs, Lockheed SCATs, …


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,017
Reaction score
191

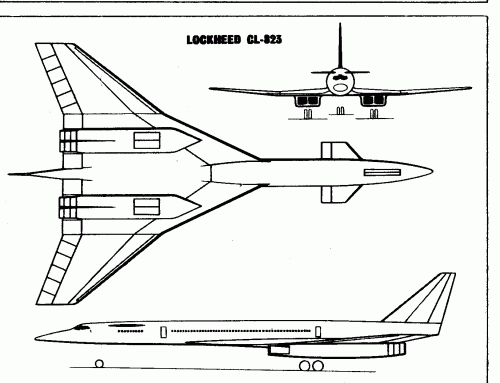

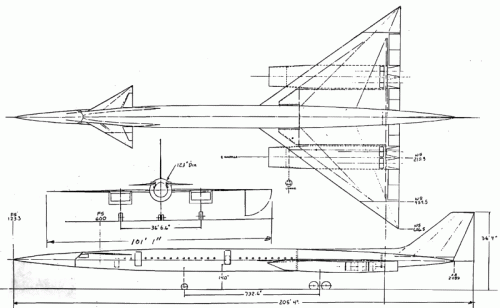

Just found, all types mentioned before, but nevertheless maybe those 3-views are
interesting :

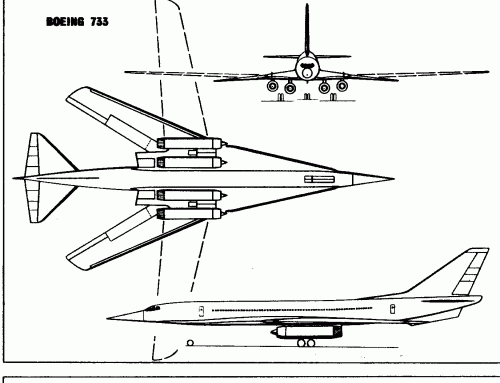

Boeing 733 (earlier, smaller proposal, I think)
Lockheed CL-823
North American NAC-60

(from FlyingReview 5/64)


Attachments

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,404
Reaction score
266
Website
www.aerospaceprojectsreview.com
boxkite said:
Can you tell us something generally about the SCAT terminology? There where NASA SCATs, Lockheed SCATs, …

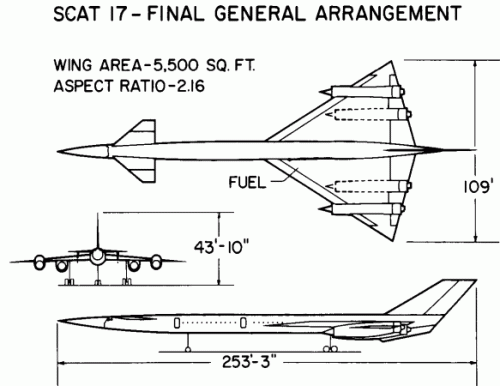

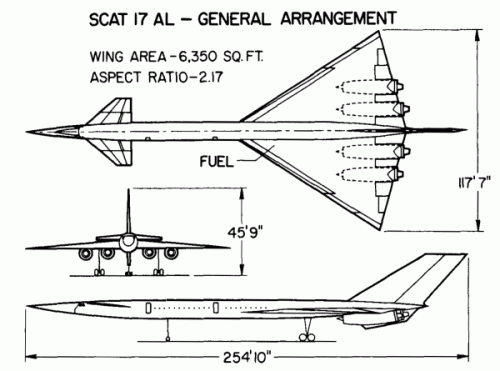

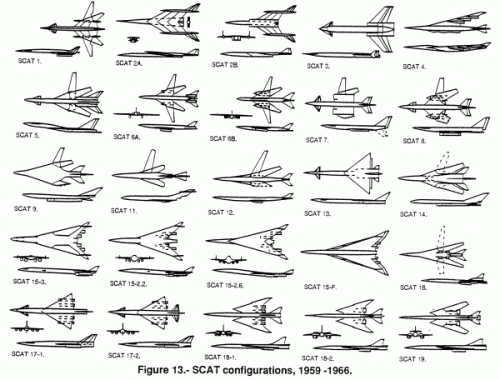

The Supersonic Commercial Air Transport program was started by NASA in, I believe, 1962. It built upon previous work done by NASA/NACA in designing generic SST configurations. The various corporations then took the NASA-generated configurations and produced more detailed designs based on them.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
580
Reaction score
11
Website
theavgeeks.com
"We apologise again for the fault in the subtitles. Those responsible for sacking the people who have just been sacked have been sacked."


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,624
Reaction score
229
- what is the speed of a swallow loaded with a coconut ?
- an african swallow or an european swallow ?
- I don't know...aaaaaaaaaaargh!!! ;D

Got a good pic of the Boeing 733 in a Science&Vie from march 1964, "3 projets US contre concorde" (thanks mom for the Science&Vie :-*)


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,624
Reaction score
229

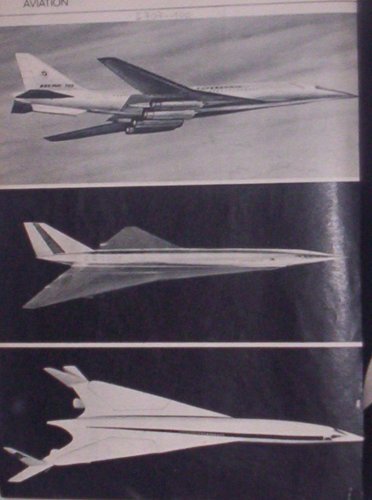

Here's the three competitors in march 1964: from up to down,
- Boeing 733
- Lockheed
- North American

:)


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,367
Reaction score
45
According to Aviation Magazine International Nº753 Mai 1979

Boeing launched an study for a 2nd Generation SST. Several configurations were studied but always starting from a delta wing plan. A twin engined scaled down prototype would be build under NASA and General Electric assistance. No engine details.

Prototype dimensions:

lenght: 39.18 m
span: 15.20 m
Max. Weight: 22 700 Kg
Speed range: Mach 2.2 to 2.7


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
That one made me laugh Wink Strikes me more as someone goofing off than a serious proposal.
Uh, not so, there was even a serious enough proposal for a (small) SST derived from the F-106...


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,260
Reaction score
14
More of a staff courier aircraft than a SST per se, at least according to the article Orionblamblam published in APR.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Yes, more or less what is the F-104 SST.. ;D


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
The Air and Space Museum in Washington has a complete documentation regarding the 1963 Republic SSt project. If someone is going there, he would take a look in Box 414 of the Fairchild Corporation Collection, Folder 20 to 26....


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,592
Reaction score
1,052
Hey, my wife wants to visit the USA again ;D


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Go, you'll be all of us.. ;) ;D


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Sky...

The designs Scott showed on his APR site was a kind of an early spaceplane concept. Perhaps related to Republic's initial idea's for a shuttle launcer.
It is strange that the Republic SST is carrying military markings..


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,617
Reaction score
38
Website
www.hitechweb.genezis.eu
Yes, its unusual, but not so strange for me. Its only artists impression. Maybe there we can search for mistake...
