US Supersonic Transport (SST) Program 1960-1971

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252
Zillion thanks!!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,157
Reaction score
1,031
Hi,

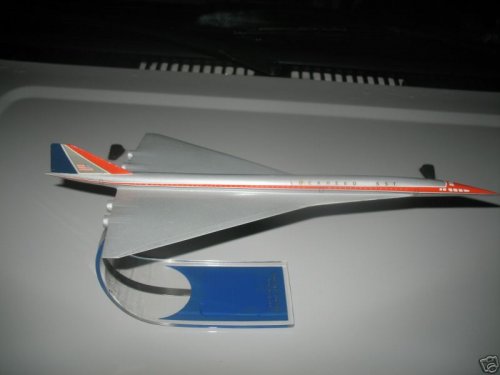

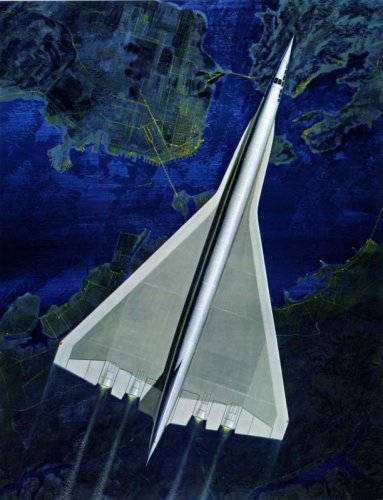

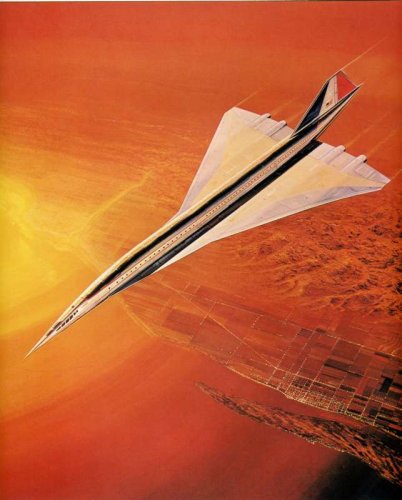

the Lockheed arrow wing SST airliner aircraft.
http://www.flightglobal.com/PDFArchive/View/1979/1979%20-%204333.html


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252

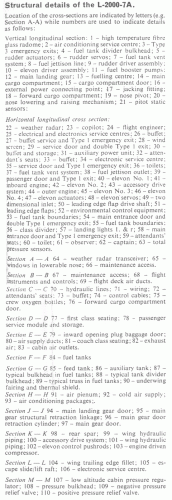

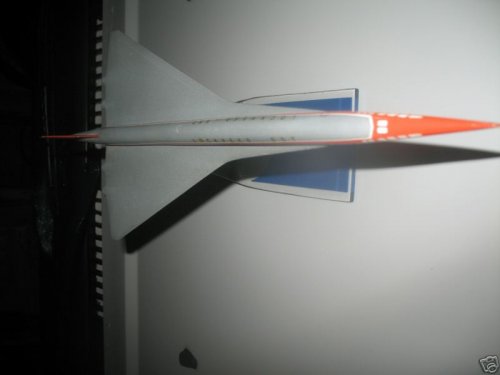

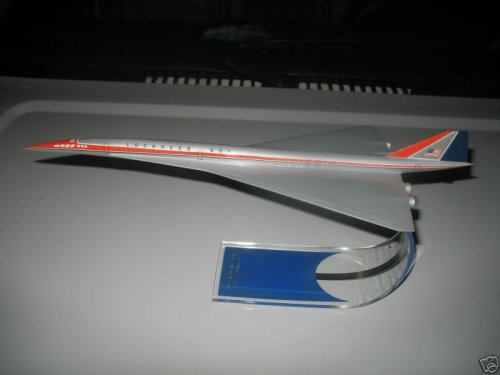

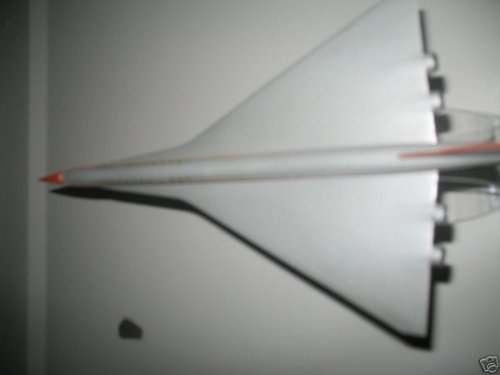

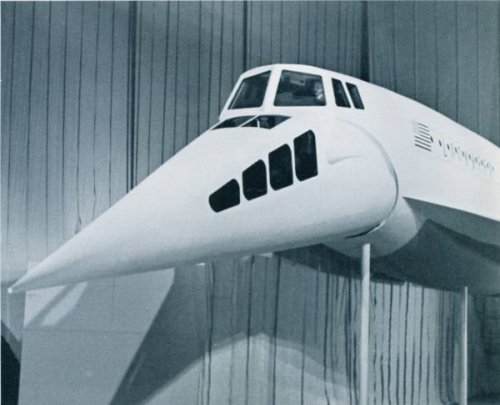

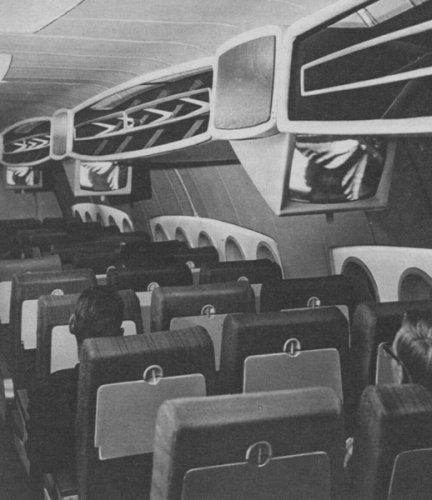

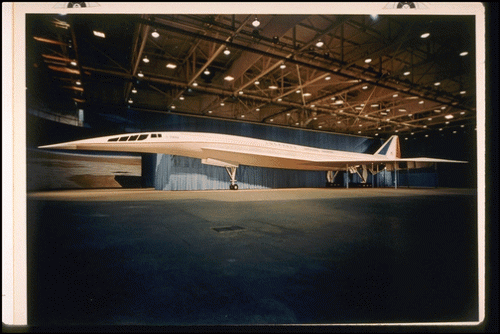

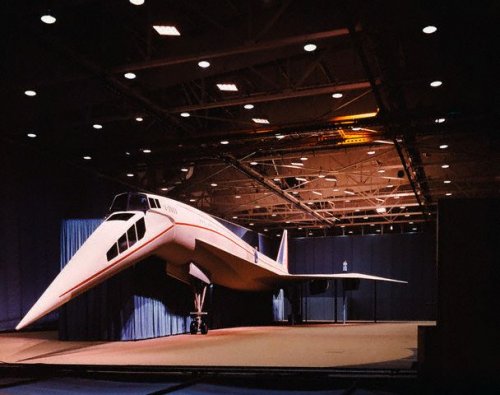

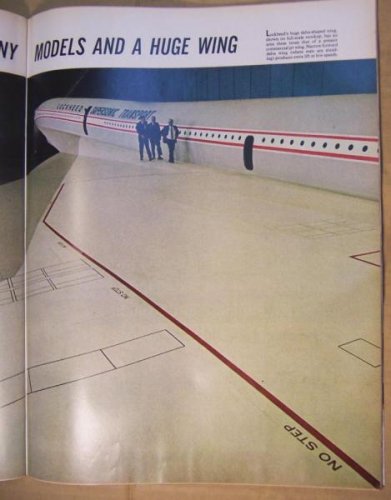

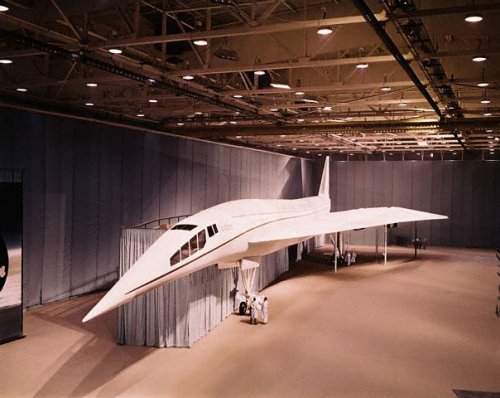

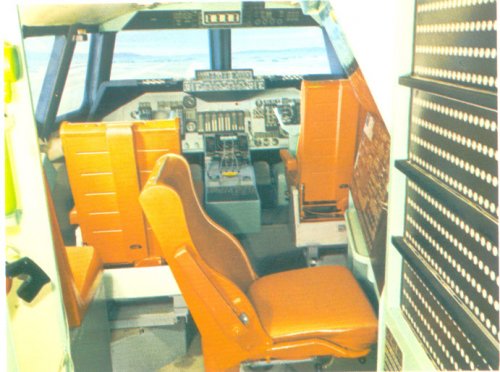

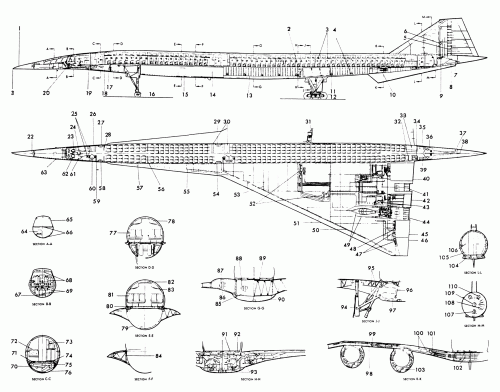

Found it on my HDD - L-2000 mock-up...and cool flight attendants (of course, woman stays on the 'No Step' area, what one could expect from her? ;D


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,369
Reaction score
48
Their uniforms are really cool. Thanks for sharing.


Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,026
Reaction score
122
Dear Pometablava, those "cool" uniforms are genuine Braniff International Airways stewardess uniforms; the ones with the repeating pattern are the the second uniform designed by noted Italian designer Emilio Pucci for 1967. The clear plastic "space helmets" are from his first 1966 collection for Braniff.


All best, Terry, (Caravellarella).


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,369
Reaction score
48
Terry,

thanks to your post I found more about Emilio Pucci's collection for Braniff at the following links:


https://flic.kr/p/fvCvk


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Nice document from Boeing's here:
http://www.emotionreports.com/downloads/pdfs/boeing.pdf

There is surprisingly few on the -300 technically-side. Also of interest is the neat 3-views detailing the "public" evolution (no hint to the 1968 studies that led to the delta configuration), where you can find the rarely seen early-VG 2707 canard configuration.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252
Skybolt, you made my day!


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252

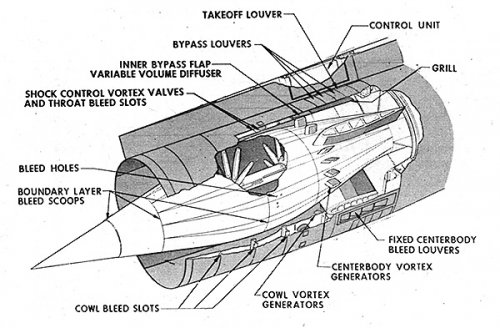

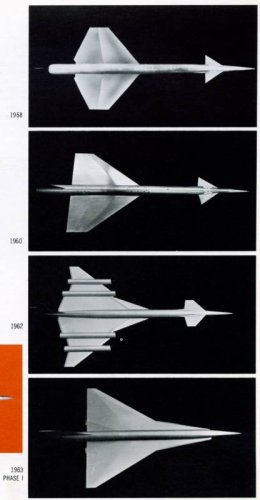

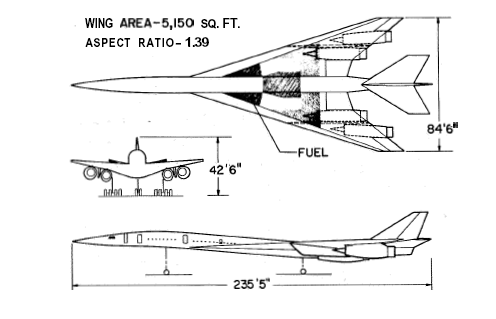

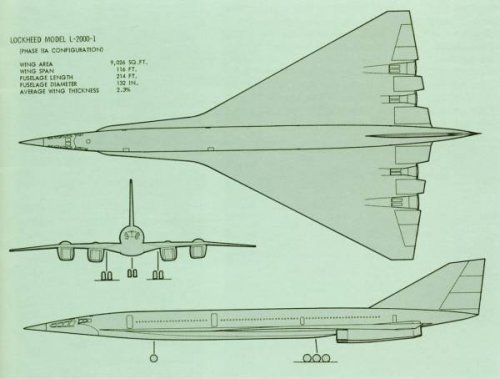

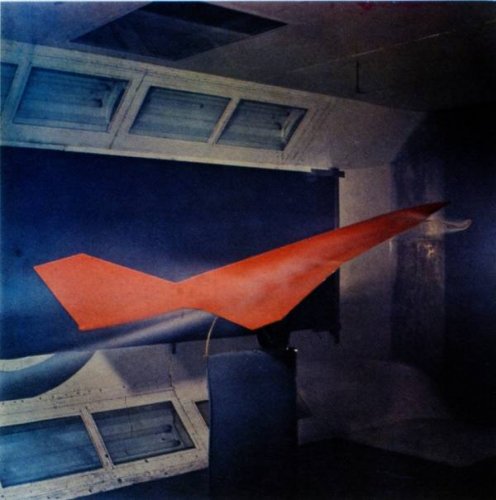

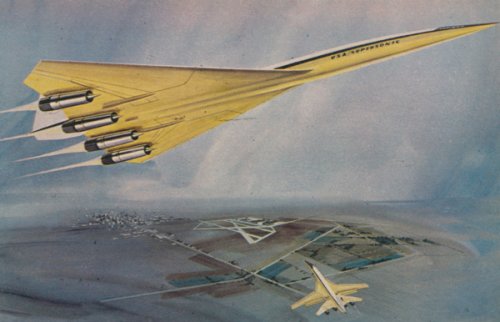

Lockheed SST evolution to Phase IA (CL-823 and early L-2000 configurations). Source: Lockheed Horizons Vol.1, Spring 1965


Attachments

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,543
Reaction score
176
Good stuff Flateric - thanks! Mark


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31

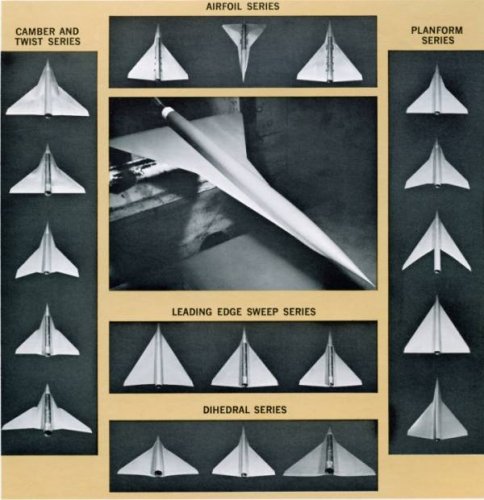

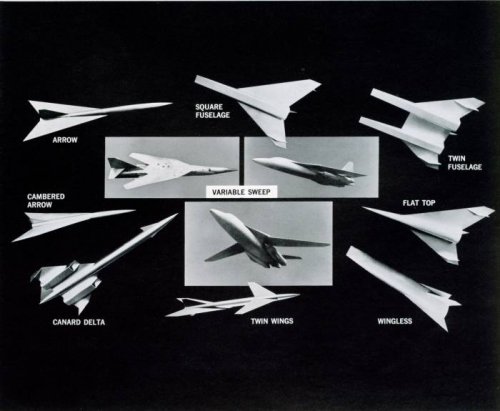

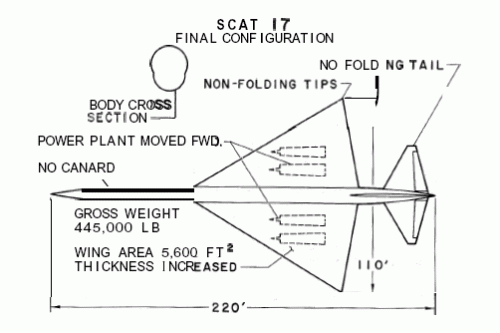

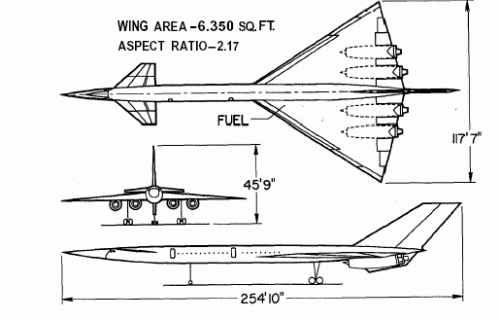

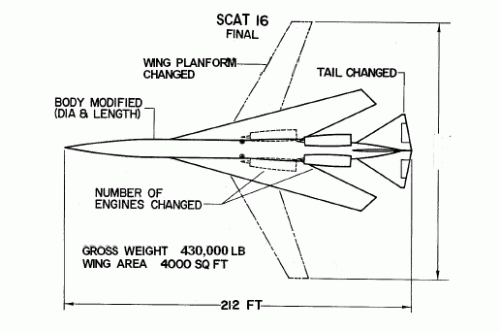

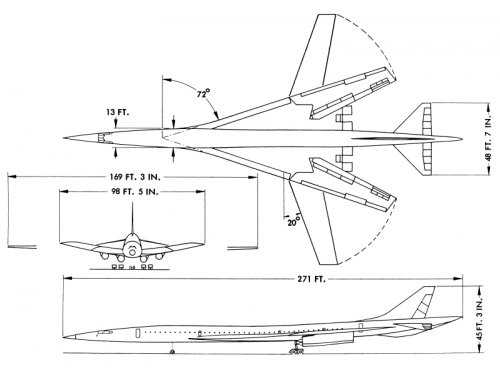

Lockheed did research on behalf of NASA on practical configurations for SST. This was pre-competitive and Lockheed did internal competitive research as well, but the cross-breeding was natural. Configurations studied were based on SCAT-4, -15, -16 and -17 for SST with a cruise speed of Mach 3 built with titanium, and a SCAT-17 derivative for a cruise speed of Mach 2.2 built with aluminium. Boeing did the same (or so). Will post later. BTW, SCAT-17 and SCAT-17 Aluminium were posted here by Scott some time ago. I repost them for completeness of view.


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31

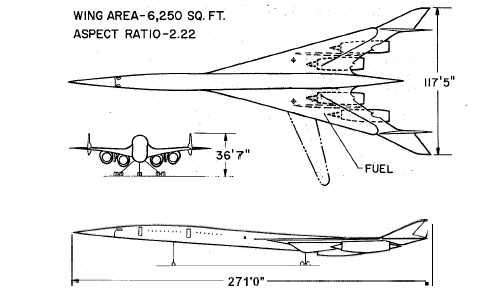

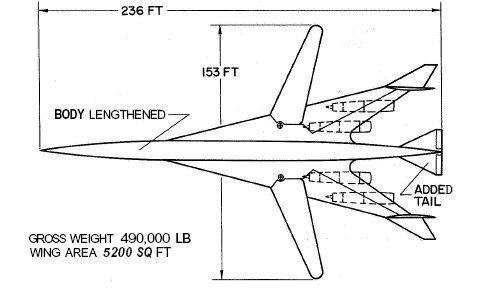

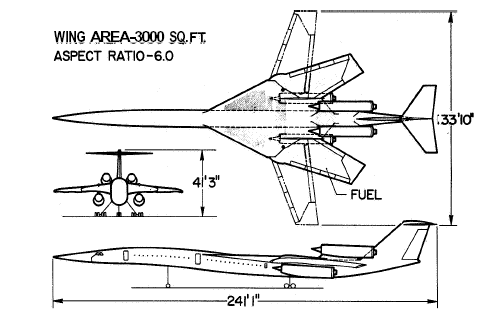

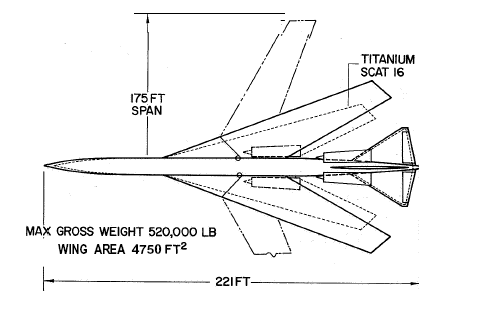

Corresponding Boeing studies based on generic SCAT designs. Only difference was that Boeing did the Mach 2.2 cruise design built with aluminium using the SCAT-16 VG base. Differences in interpretations are apparaent. Unfortunately, I have only plan views of the Boeing designs (for now).


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252
Skybolt, thanks for adding these!


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
The Boeing Model 1080 iterations posted by Scott some time ago were some of the configurations (all under the Model 1080 blanket) proposed by the Seattle company answering the 1991 NASA RFP for a High Speed Commercial Transport (HSCT). So (like mine SCAT-derived design, answering the AST/SCAR 1972 NASA RFP) do not strictly pertain to this thread. I suggest the moderator to split the topic and reorganize it in at least two: one for the first SST program, ended in 1971, and one for subsequent efforts.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252
It's a real Gordian Knot to do, but I'll try...should really SCAT efforts be separated from the *first* US SST effort? I'm going to create AST and HSCT threads as well ...


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Gregory, SCAT configurations (and SCAT-derived, like the 15F) were used up to circa 1973. In effect, the B-2707-300 wasn't strictly SCAT based but derived from internal efforts started at least in late 1967. Later the NASA efforts (and at least the Lockheed internal ones) concentrated on the arrow wing config. Boeing did a secret internal research on arrow wing configuration for the Transportation Department in 1967 when the VG config chosen run into problems. As it is evident, the SST program history has yet to be written. The HCST in 1988 started from a clean sheet, no SCAT there. :p


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,157
Reaction score
1,031
Sorry,

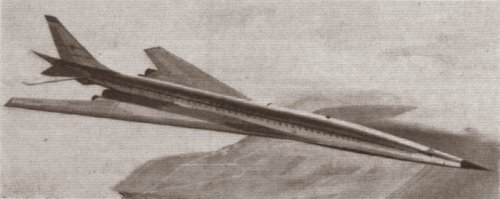

I don't remember if we display this North American VG SST aircraft
before or not .
http://www.flightglobal.com/PDFArchive/View/1963/1963%20-%200936.html?search=propeller%20aircraft%20project


Attachments

Apteryx

CLEARANCE: Confidential
Joined
Sep 28, 2007
Messages
145
Reaction score
1

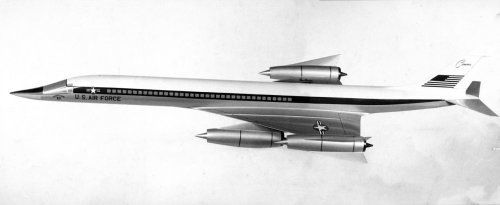

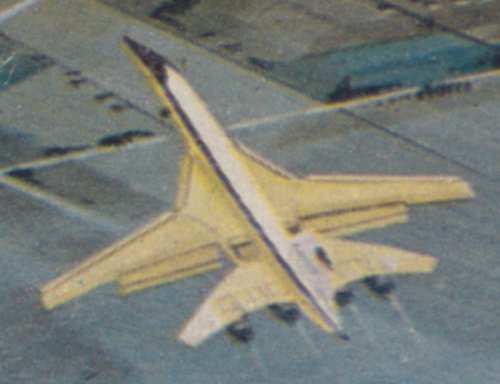

Orionblamblam said:
The Convair design:

http://www.up-ship.com/apr/extras/58-9/58-9.htm
I wonder if you've seen this photo. My college roommate found it taped to the back of a file cabinet he was moving at the University of Florida in 1981.


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Well, not exactly "this" photo, but that's the notorious SST derivative of the B-58.. Thanx!


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31

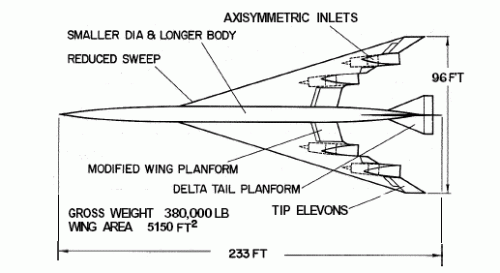

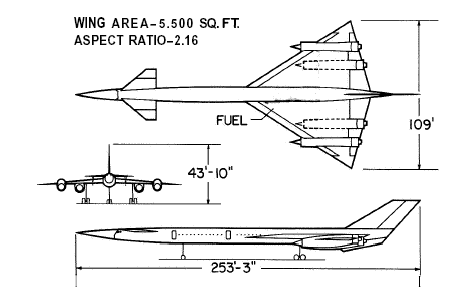

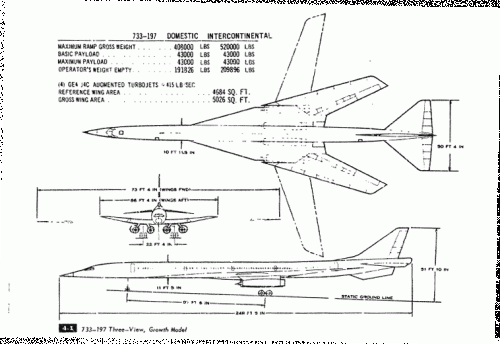

I could be wrong, but I don't remember having ever seen this. It is the stretched configuration (read probably: production) of the Boeing Model 733-197, the original (Jan 1964) Boeing bid for the Commercial Supersonic Transport competition. The stretched versions were actually two, one for domestic (transcontinental) and the other for intercontinental (transatlantic) service, but they were externally identical. Dimensions and weight are in the image.
This come from one of the proposal document that is available online, here http://handle.dtic.mil/100.2/AD803509. Beware, 22 MB, but enjoy !


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252
Another great find, Skybolt, thanks!

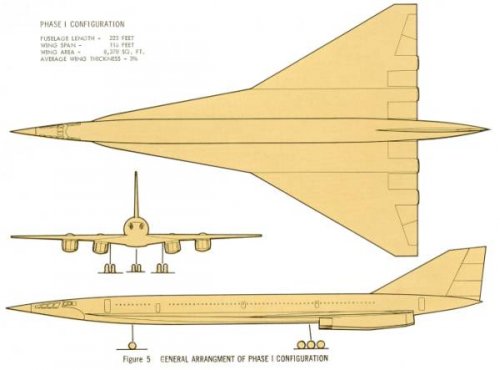

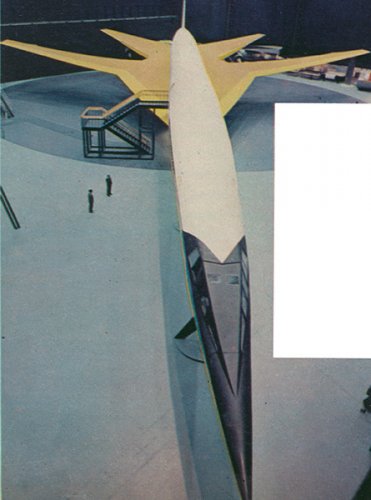

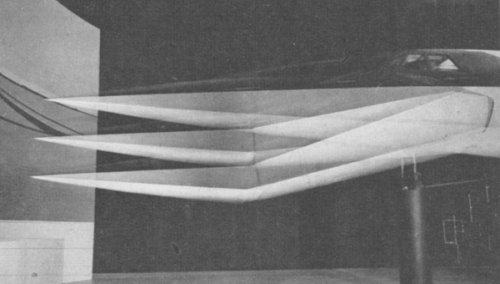

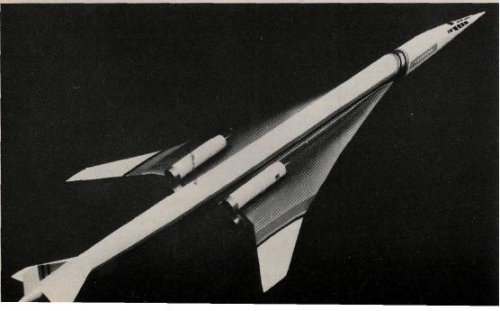

And this is last Phase I VG Boeing submission - 3-view from 2707-300 paper from your previous pdf link plus artist's renderinf from March, 25 1965 Flight International.


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Mmmm, Gregory, I think that 1965 is too early for the last VG submission. The 1966 winning proposal was the 2707-100. Probably the art is from a transition configurations between 733-197 and 2707-100. I have the designation somewhere. I seem to remember that there wa a last ditch attempt at the end of 1967 to "save" the VG, that is probably the not-integrated wing-tail config from the previous PDF. I think I'll have some first answer in a couple of weeks, and a definitive one in the spring.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,802
Reaction score
252
You are right, let's call it 'last submission as of March 1965'...did some SST phase end around this timeframe?


Johnbr

CLEARANCE: Top Secret
Joined
May 6, 2007
Messages
744
Reaction score
94

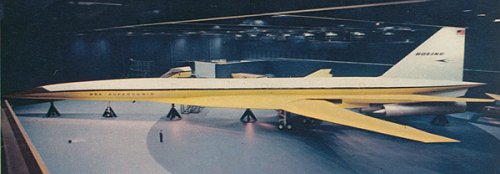

How far did get in the making of the prototype.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31

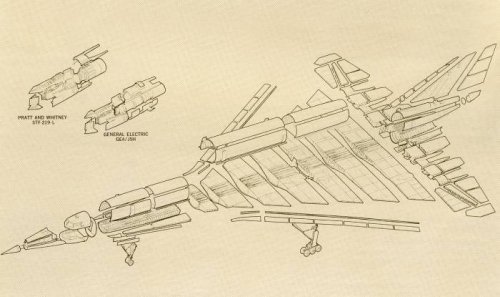

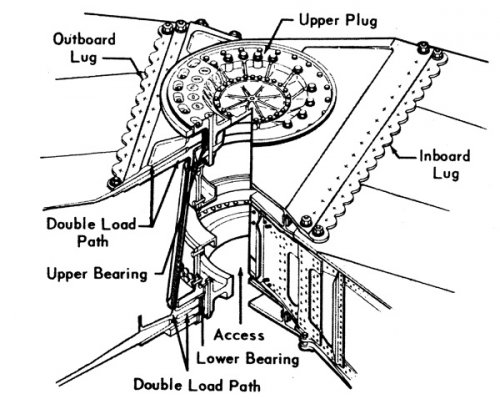

Some structural element.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
did some SST phase end around this timeframe?
Actually they were betweek Phase 2A and PHase IIB (June 1965), so that would be Boeing design submitted to the Phase IIB review.
Forgot to mention that all documents of Phase IIA (Nov 1964)and Phase IIB (June 1965) are not available in PDF form but only in hardcopy (printout from microfilm, I think). So it will take some time to have them.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31

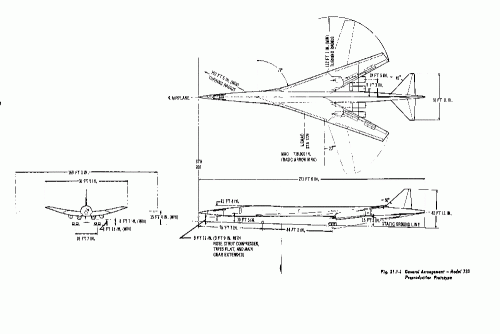

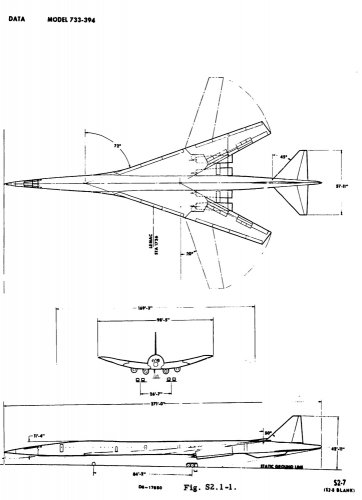

Just to give some chronological sense:

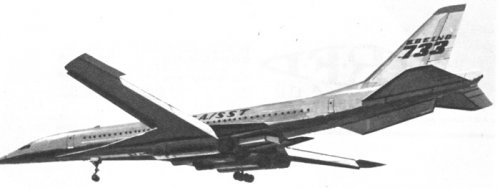

the images below are a freeze frame of what was the status of the SST program in November 1965, review at end of Phase 2-C. Model 733 without dash number is the preproduction aircraft (experimental prototype), Model 733-390 is the production version with Ge engine, Model 733-394 is the production one with P&W engines.


Attachments

LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,169
Reaction score
27
Air Force One based on a B-58....

We could repeal the 22nd Amendment.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,157
Reaction score
1,031
Hi,

the SCAT from Flightglobal;
http://www.flightglobal.com/PDFArchive/View/1963/1963%20-%201986.html


Attachments

KJ_Lesnick

CLEARANCE: Top Secret
Joined
Feb 13, 2008
Messages
1,021
Reaction score
6
What kind of technology in regards to fly-by-wire, engine-control-systems, autopilots did the Lockheed and Boeing SST's possess?

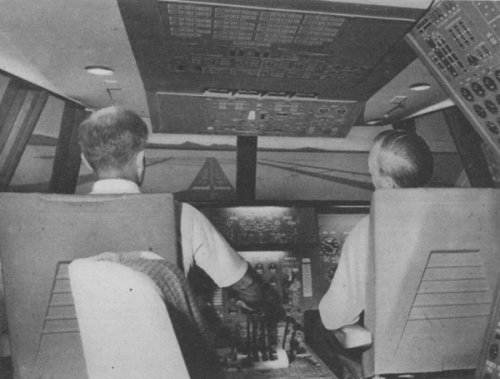

Also, does anybody have a picture, drawing or diagram of what the L-2000's cockpit looked like since I've NEVER seen one.


KJ_Lesnick
