Lockheed L-7000 Hypersonic Concept - October 1959

shockonlip

CLEARANCE: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
I was given the following years ago by Joe Jones.
Since this forum appreciates older design concepts, I thought I would post it.

The caption behind the press photo (attached here) says:

"NEWSBUREAU
LOCKHEED, BURBANK
TR 7-2711, EXT 1815 FOR RELEASE: PMs, TUESDAY, OCTOBER 6

4700-M.P.H AIRLINER -- Amsterdam and New York would be only 98 minutes'
flight time apart with this wingless transport, described by Hall L. Hibbard,
Lockheed senior vice president, as possible "in the forseeable future."

Hibbard said the airliner, traveling at an average speed of 62 miles a
minute, could house passengers in a central cabin. The entire nose would
serve as an inlet for the propulsion system and deflected airflow would
permit vertical takeoffs and landings. The Lockheed executive said the
all-body vehicle could offer "clearly attractive" payloads resulting in
practical and economic operation." His predictions were made at Delft in
the Netherlands, when he presented the third annual Dr. Albert Plesman
Memorial lecture, established to honor the founder of KLM Royal Dutch Airlines.


Note:
This conference was on Oct. 6, 1959
Hall L. Hibbard's paper was entitled: "Supersonic Flight"
Any copies out there?
This concept does portray an airframe integrated propulsion cycle.
The reference to "all-body" is interesting.
And VTOL via "deflected airflow" (I take this to mean the exhaust
jet can be deflected) is interesting.


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,995
Reaction score
774
This is pretty cool Xmas present, thanks a bunch!


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,810
Reaction score
968
Website
www.aerospaceprojectsreview.com
Look up the patents of Nathan Price, a designer for Lockheed. Among others, you'll find patents 2973921 and 3148848, which are for similar (though clearly not identical) VTOL wingless supersonic craft. These are, however, not attributed to Lockheed.


http://www.google.com/patents?lr=&q=nathan+price+wingless&btnG=Search+Patents

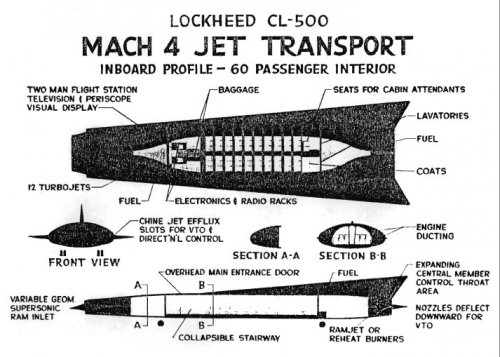

Still, the resemblance to the CL-500 is undeniable...


Attachments

Howedar

CLEARANCE: Confidential
Joined
Sep 24, 2008
Messages
58
Reaction score
0
Cute, if completely silly. I particularly love how VTOL is to be achieved with no apparent forward lift engines/nozzles.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
3,870
Reaction score
1,463
Le Fana de l'aviation recently talked about this one... the tone of their article looked similar to Howedar opinion.
;)


shockonlip

CLEARANCE: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
I don't see what's silly about it at all, or why "Le Fana de l'aviation" should
mock it.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
121
The author of the Fanà article, Roland de Narbonne, in known for out of hand use of sarcastic comments on airplanes he thinks are not appropriate to his view of what is aeronautically appropriate. In turn, I don't think appropriate to speak out what he could well do with his comments...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,268
Reaction score
3,175
Hi,

http://www.secretprojects.co.uk/forum/index.php/topic,2140.msg18784.html#msg18784

http://www.flightglobal.com/FlightPDFArchive/1959/1959%20-%202671.pdf
http://www.flightglobal.com/FlightPDFArchive/1959/1959%20-%202672.pdf


shockonlip

CLEARANCE: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
4
WOW!

Thanks Hesham for digging up Hall's paper!! This site is just awesome!

Thanks Orion for your slide and patent updates!

Thanks Skybolt and Archibald for the info on Fana!


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
584
Reaction score
84

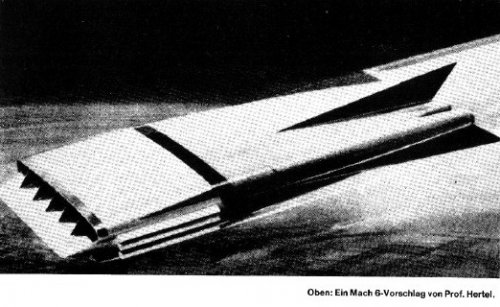

The same project, but attributed to Prof. Hertel ???
Source: "Junkers nannte es "Die Fliege"" by Hermann Pohlmann, 1983.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,268
Reaction score
3,175
Hi,

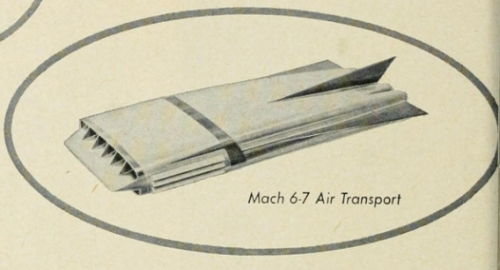

here is a clearer artist drawing to Lockheed L-7000.
