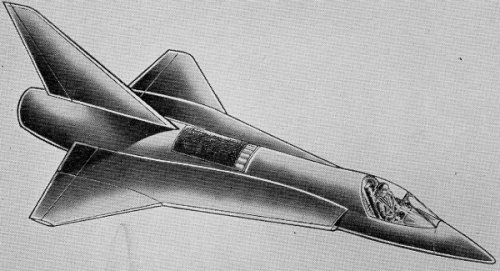

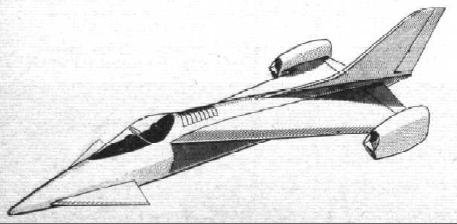

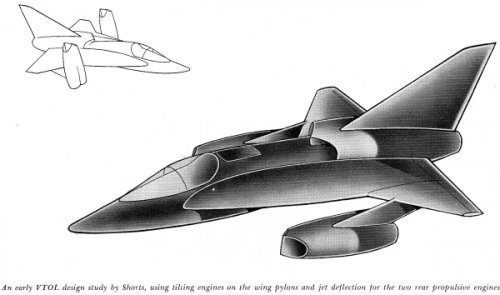

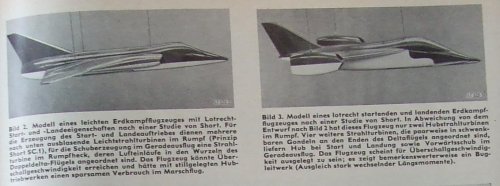

In the RAF Flying Review 3/62 I've found a model photo of a Shorts
VTOL project, principally similar to the german VJ-101, with to
swivelling nacelles and two vertically installed RB.162 engines.
Anybody, who knows the designation or furhter details ?


Attachments

  • Short_VSTOL.JPG
    41.4 KB · Views: 1,060

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,130
Hi,

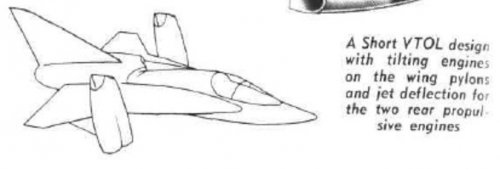

The Shorts SC.1 VTOL as tilting engines design.


Attachments

  • SC.1.JPG
    20.8 KB · Views: 1,127

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80

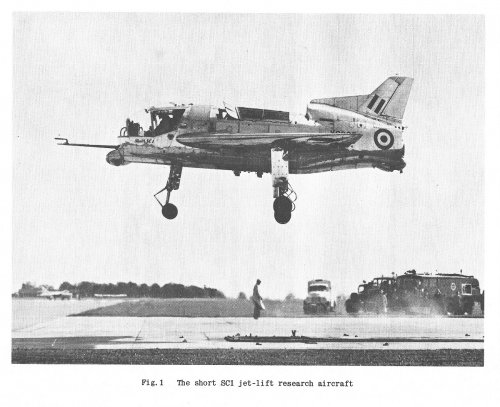

Short S.C.1 (P.D.11) was the flatriser with five R.B.108
engines to spec. ER.143....


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,662
Reaction score
4,273

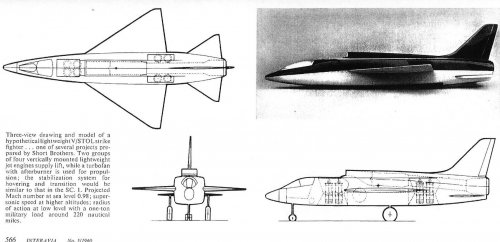

Reference for Hesham's pic:

http://www.flightglobal.com/FlightPDFArchive/1960/1960%20-%202986.pdf

Its one of of a number of Shorts designs in this piece. Not SC.1 though.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80
The design (in the Flight article) with the cranked delta is sometimes mentioned
as the Short P.D.49.
source : Mach Magazine No.4 - 1961.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
Hi all,

in the Putnam book Shorts Aircraft since 1900 by C.H.Barnes are 3view drawing from the P.D.22, P.D.34 and P.D.75.
I need the technical data for this projects, can anybody of you help?

Servus Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,130
Hi,

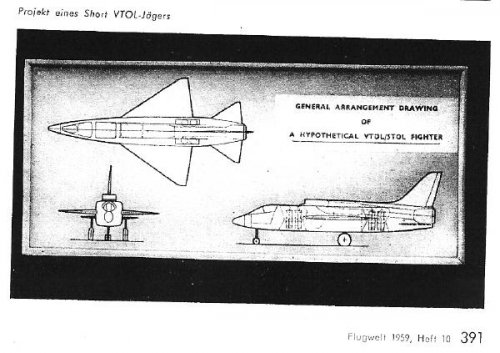

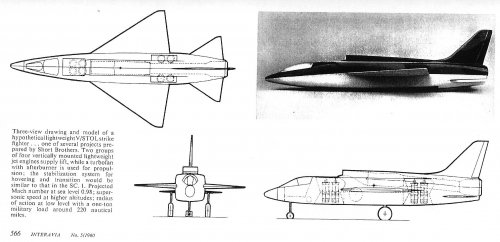

anther Shorts VTOL strike aircraft project based on SC.1.

http://www.flightglobal.com/FlightPDFArchive/1960/1960%20-%200790.pdf


Attachments

  • Shorts VTOL strike aircraft.JPG
    Shorts VTOL strike aircraft.JPG
    17.1 KB · Views: 927

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,987
Reaction score
352
Hi all,

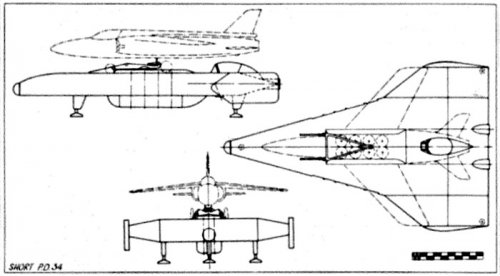

Shorts planed during the 1950s and 1960s many VTOL aircraft. The best known are the P.D.11 ( S.C.1 ) and the VTOL launching platform. But there are many other projects like the P.D.34.


Source Putnams: Shorts Aircraft since 1900

Servus Maveric


Attachments

  • pd34.jpg
    48.7 KB · Views: 942

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

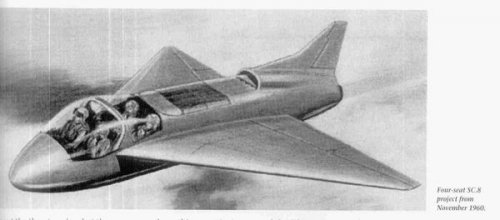

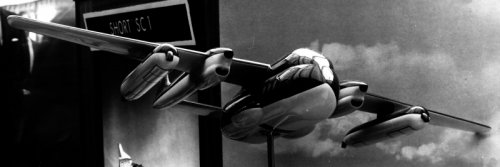

From AE January/February 2006, the SC.8, a development from
the SC.1.


Attachments

  • Short_SC-8.JPG
    22.3 KB · Views: 919

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125
From: FLIEGER REVUE


Attachments

  • project Short-English Electric P.D.17.jpg
    project Short-English Electric P.D.17.jpg
    39.7 KB · Views: 307

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

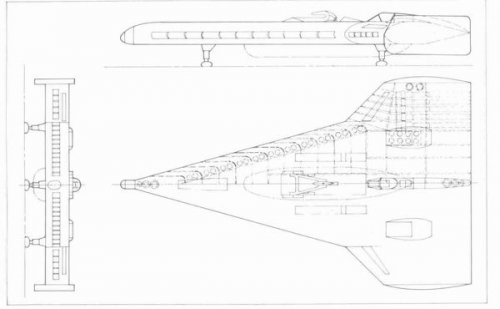

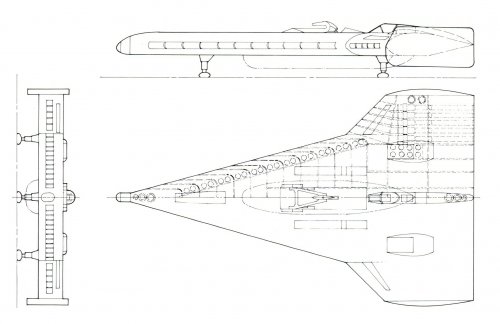

3-view of the PD.17 vertical lift platform
(from D.Wood "Project Cancelled")


Attachments

  • PD-17.JPG
    20.8 KB · Views: 274

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,130
Hi,

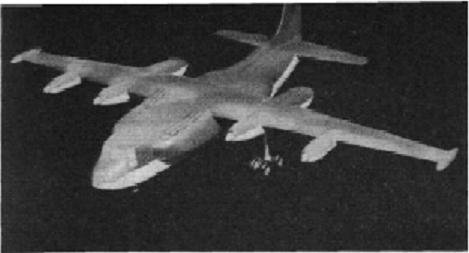

The Shorts PD.55 V/STOL military transport aircraft
project for NBMR-4 competition.
http://www.flightglobal.com/pdfarchive/view/1964/1964%20-%202272.html


Attachments

  • Shorts PD.55.JPG
    Shorts PD.55.JPG
    15 KB · Views: 220

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,130
Hi,

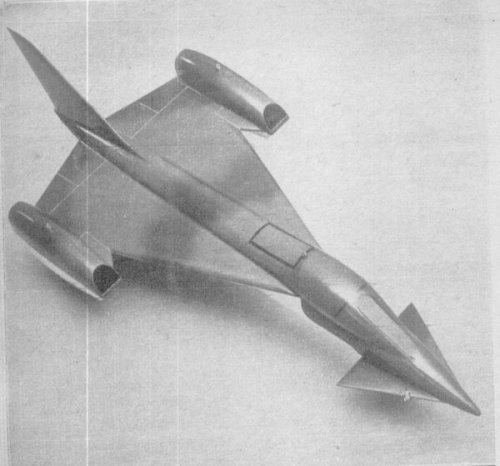

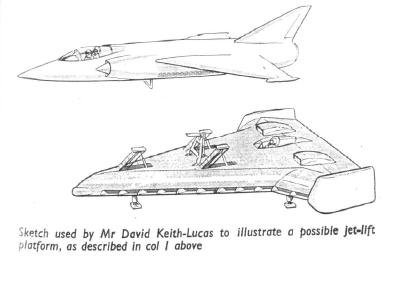

the Short Brothers & Harland Ltd and its technical director
Mr.David Keith-Lucas designed a VTOL aircraft in 1962.
http://www.flightglobal.com/PDFArchive/View/1962/1962%20-%200343.html?search=Heinkel%20aircraft%20project%201943


Attachments

  • Short B & H Ltd  VTOL.JPG
    Short B & H Ltd VTOL.JPG
    14.4 KB · Views: 498

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
932
Reaction score
113
:)


Attachments

  • scan0060 (2).jpg
    scan0060 (2).jpg
    208.8 KB · Views: 843
  • scan0059 (2).jpg
    scan0059 (2).jpg
    175.5 KB · Views: 1,540

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
932
Reaction score
113

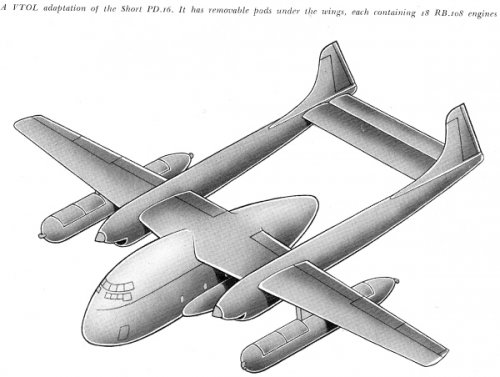

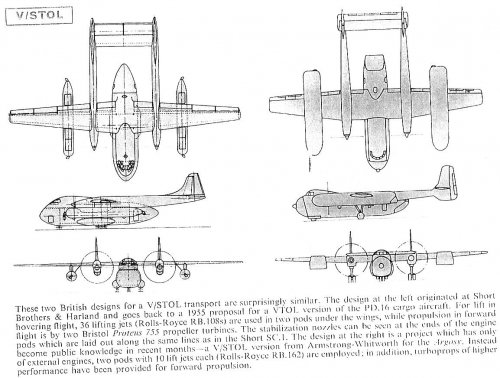

VTOL Short PD16 from Short Quarterley Review Winter 1960.


Attachments

  • scan0011a.jpg
    91.9 KB · Views: 865

SAustin16

Bravo to All Brave Test Pilots
Joined
Jan 13, 2008
Messages
132
Reaction score
6
Just as a sidebar, it's my understanding that Shorts learned the hard way about asymmetric thrust with the SC1. SC1 used several jet engines powering each side of the longitudinal axis for vertical flight. During one of the test flights, one engine lost power quickly rolling the aircraft on its back at full power on the other engines. There was no time for the pilot to escape.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
932
Reaction score
113

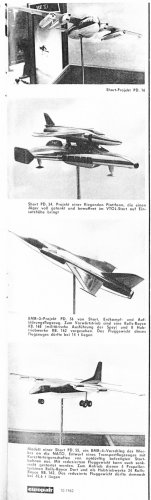

Some more from same issue.


Attachments

  • scan0015aa.jpg
    131.9 KB · Views: 155
  • scan0014a.jpg
    139.7 KB · Views: 142
  • scan0013a.jpg
    67.2 KB · Views: 175

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
690
Reaction score
427

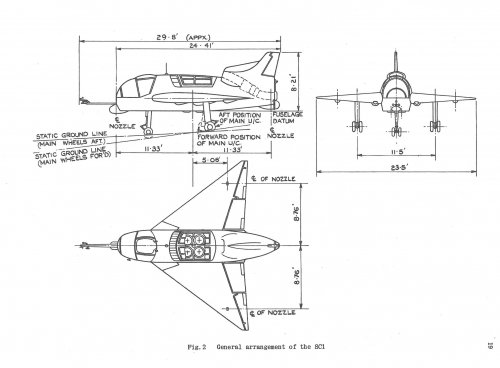

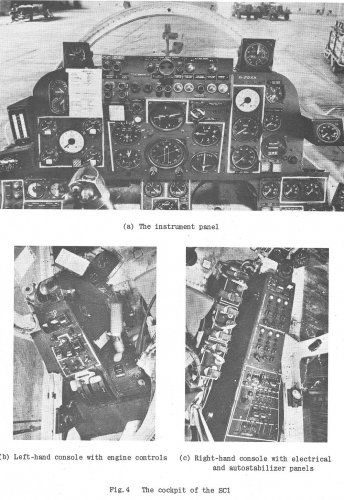

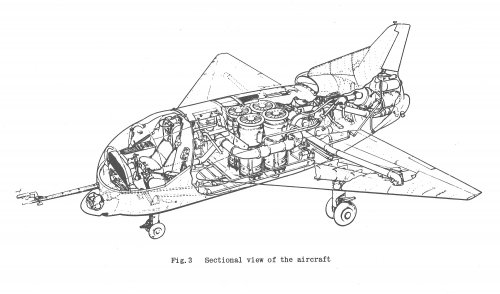

Some drawings of SC1.


Attachments

  • SC1.jpg
    594.9 KB · Views: 86
  • SC1 cockpit.jpg
    SC1 cockpit.jpg
    390.5 KB · Views: 87
  • SC1 cutaway.jpg
    SC1 cutaway.jpg
    611.3 KB · Views: 121
  • SC1 3 view.jpg
    SC1 3 view.jpg
    282.4 KB · Views: 111

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,130

Attachments

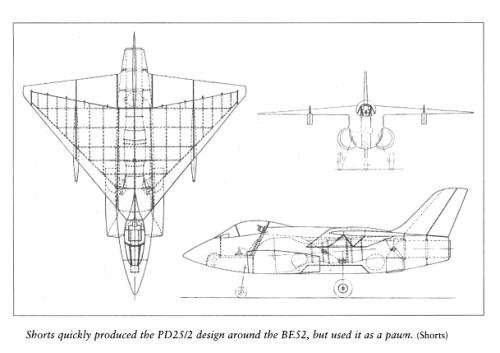

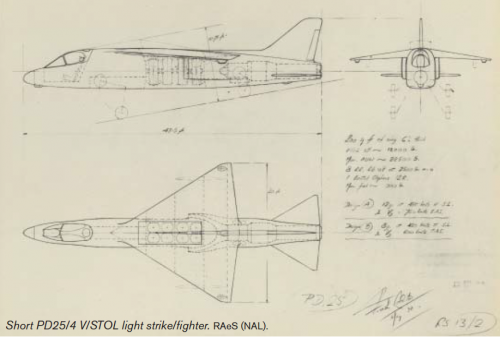

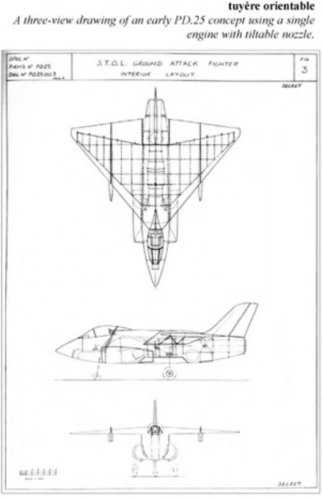

  • PD.25.png
    67 KB · Views: 178

JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8
hesham said:
Hi,

here is a Shorts PD.56 VTOL supersonic strike aircraft.

VTOL supersonic strike aircraft? Hardly. It looks like somebody's cocktail-napkin sketch for a VTOL testbed. Notice that there is no room for any fuel with most of the fuselage volume taken up with lift engines, cruise engine and its inlet duct, and landing gear. Anything it could strike with (say, a nuclear store) would have to be externally mounted on the centerline between the lift engine exhausts. The placement of the main landing gear so close to the trailing-edge controls on the too-small wing practically guarantees that it could only take off vertically (and then probably only fly once around the pattern).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,130
JimK said:
VTOL supersonic strike aircraft? Hardly. It looks like somebody's cocktail-napkin sketch for a VTOL testbed. Notice that there is no room for any fuel with most of the fuselage volume taken up with lift engines, cruise engine and its inlet duct, and landing gear. Anything it could strike with (say, a nuclear store) would have to be externally mounted on the centerline between the lift engine exhausts. The placement of the main landing gear so close to the trailing-edge controls on the too-small wing practically guarantees that it could only take off vertically (and then probably only fly once around the pattern).

Hi Jim,

you are right of course,but taht's exactly the drawing by Shorts as I know.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80
See reply #23 ...erdkampf und aufklärungs flugzeug- ground attack & recce. aircraft
It should be interesting to see the source of the 2 view..


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120
JimK said:
VTOL supersonic strike aircraft? Hardly.

I agree and disagree. The layout is very similar to the Mirage IIIV, which actually was declared
winner of NBMR.3 and is credited with being the first supersonic VTOL aircraf, but with never being
able to achieve both during the same flight !

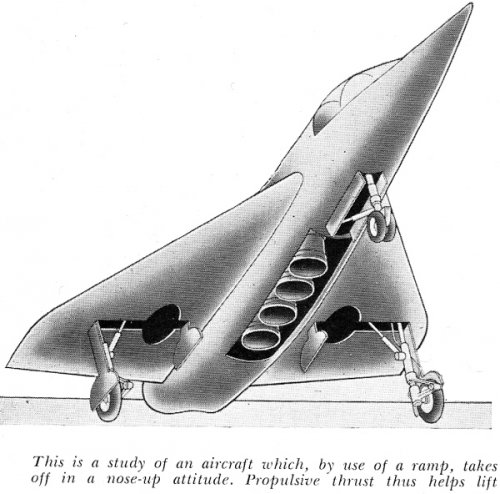

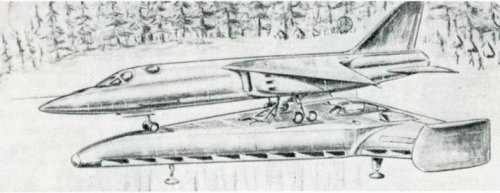

But at least Shorts may have envisaged another way to bring it up into the air
( http://www.secretprojects.co.uk/forum/index.php/topic,1134.msg25531.html#msg25531 ),
so that perhaps it would have been "VL" (vertical landing) only.


JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8
Whenever I see that proposal I am reminded of the time I showed the book "Project Cancelled" to a physician friend. After glancing over it his comment was " . . . thus saving the lives of numerous British test pilots."


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
673
Website
deeptowild.blogspot.com

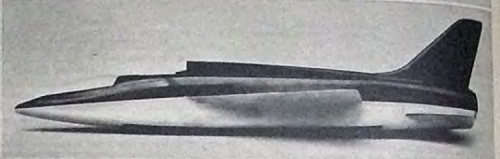

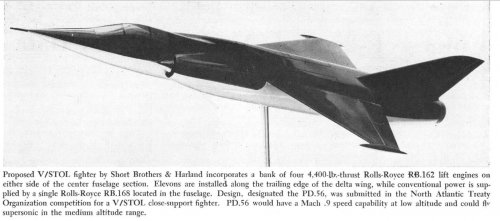

Short Brothers & Harland PD.56 V/STOL fighter.

Source:
http://archive.aviationweek.com/issue/19620917#!&pid=30


Attachments

  • 22792182_10209901685114612_1245238346766945813_o.jpg
    223.3 KB · Views: 471

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651
Interesting - front end looks like an F-104.

Thanks! Mark


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,861
Reaction score
321
Mark Nankivil said:
Interesting - front end looks like an F-104.

Thanks! Mark

Yeah, it looks like Lockheed wasn't the only manufacturer looking for a way to rebuild all of those NATO Starfighters into another aircraft.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,130
From Ali Nuove 9/1959,

here is a Shorts VTOL Project.


Attachments

  • 1.png
    215.6 KB · Views: 183
