Rolls Royce VTOL Projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517
Hi,

Does anyone know those VTO projects to Rolls Royce ?.


Source,flightglobal.


Attachments

  • RR VTO.JPG
    RR VTO.JPG
    24.7 KB · Views: 1,369

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,377
Reaction score
1,666

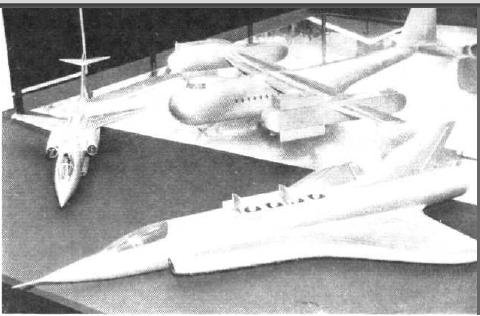

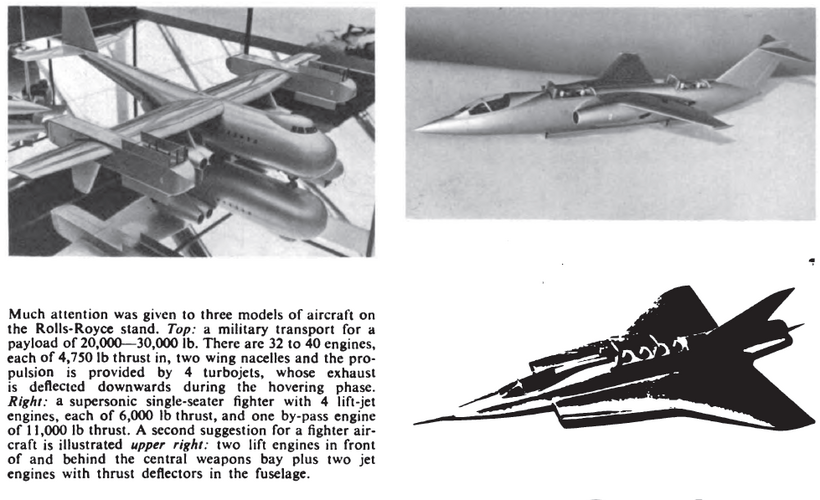

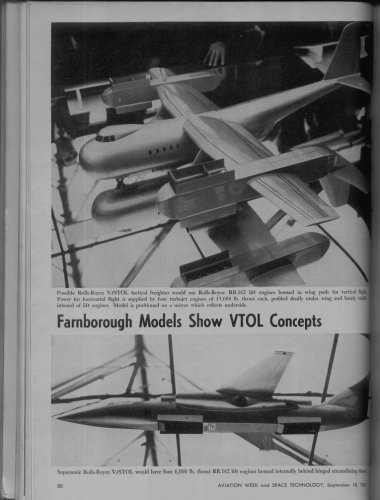

Mentioned in Aviation Week June 1967, too, is the transport aircraft and
the strike fighter in the fore ground. Both would have used RB 162 lift engines,
four in the fighter, 32 in the transport. Type of the cruise engins isn't menioned,
just the number : Fighter 1, transport 4.


Attachments

  • RR_VSTOL-Konzepte-1.JPG
    101.3 KB · Views: 1,263

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517
Hi,

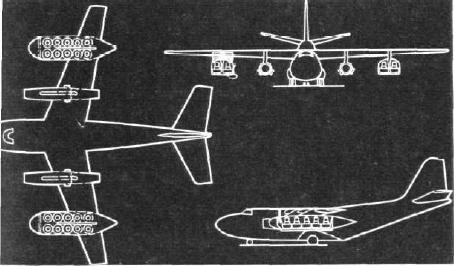

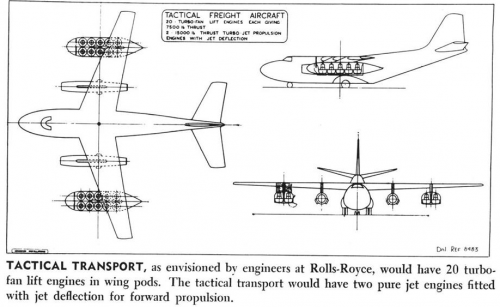

Anther Rolls Royce project was for tactical freight aircraft,and it had
a 20 turbofan lift engines of 7.500 1b each and two 15.000 1b turbojets
for propulsion with jet deflection.

http://www.flightglobal.com/FlightPDFArchive/1961/1961%20-%201295.pdf


Attachments

  • RR tactical freight aircraft.JPG
    RR tactical freight aircraft.JPG
    25 KB · Views: 925

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
863
Reaction score
231

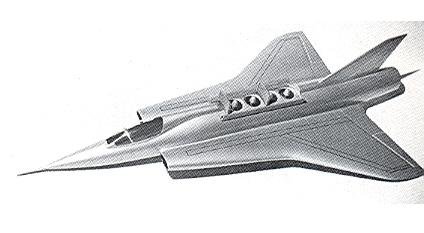

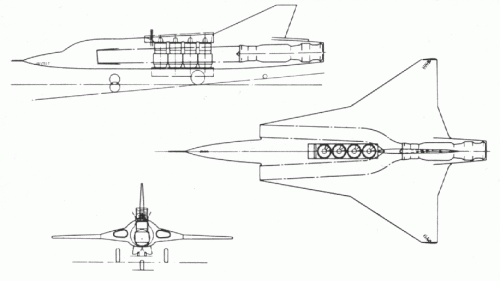

Not a Draken I think , but a Rolls Royce VTOL concept...

Yes, G L Wilde, head of Rolls-Royce's 'design department' wrote an article (maybe for a conference? - I found it in aero 9/1961) on 'Engines for VTOL aircraft'. The Draken lookalike is described as a strike aircraft (several other configurations were shown, e. g. attacker with swept wing, different tactical transports with 20 or 32 lift engines - a good idea by RR to increase the production ;D ).

Interesting. Usually the "Draken like" plane had twelve lift engines, not only four.

Tony Buttler wrote in his BSP Jet Bombers it's the Hawker P.1126.


Attachments

  • Rolls-Royce (VTOL strike aircraft with delta wing).gif
    Rolls-Royce (VTOL strike aircraft with delta wing).gif
    81.3 KB · Views: 281

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
126
Not the same plane I think.
Wingtrailing edge differs..


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517
Hi,

it was Rolls-Royce VTOL aircraft,I found it before but I don't
remember the number of the page.
http://www.secretprojects.co.uk/forum/index.php/topic,449.60.html


Attachments

  • RR VTO.jpg
    RR VTO.jpg
    24.7 KB · Views: 239

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517

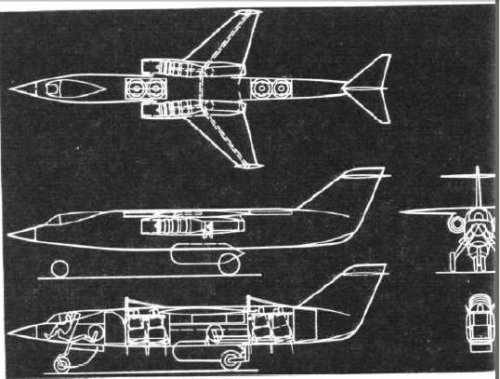

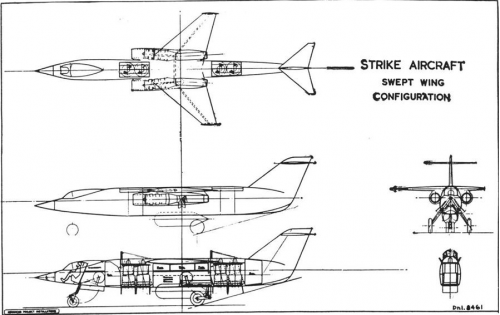

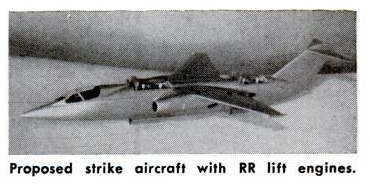

Also;


http://www.flightglobal.com/pdfarchive/view/1961/1961%20-%201294.html


Attachments

  • Strike.JPG
    52.3 KB · Views: 1,234

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,666
Reaction score
567

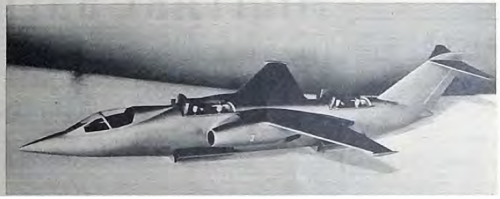

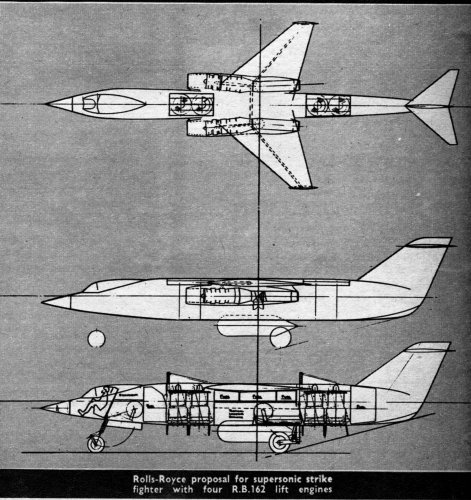

Scans from RAF Flying Journal


Attachments

  • RR strike fighter concept 1962.jpg
    RR strike fighter concept 1962.jpg
    443.7 KB · Views: 403
  • RR strike fighter concept 1962 2v  .jpg
    RR strike fighter concept 1962 2v .jpg
    888.2 KB · Views: 398

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,666
Reaction score
567

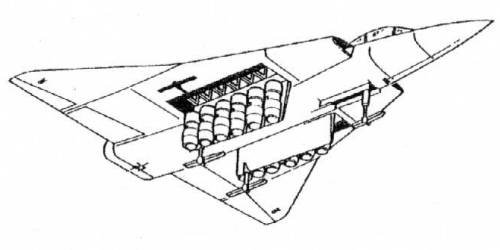

...and the delta wing concept


Attachments

  • RR strike fighter concept delta.jpg
    RR strike fighter concept delta.jpg
    857.6 KB · Views: 315

Tschaika

ACCESS: Restricted
Joined
Mar 21, 2006
Messages
3
Reaction score
0
the delta wing concept looks like the Saab J35 Draken with additional lift engines ...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517

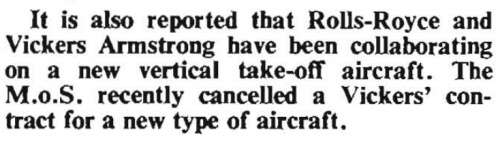

From Air Pictorial 10/1957,


a strange Info about Rolls Royce collaborated with Vickers-Armstrong to designed
a new VTOL aircraft,what was this ?.


Attachments

  • VTOL.png
    105.1 KB · Views: 83

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517
Hi,

here is a strike or a strike/fighter VTOL aircraft Model,I can't ID it,who can help ?,it
looks like one variant of English Electric P.31.

https://books.google.com.au/books?id=bHZ-ngYi4zUC&pg=PA64&dq=Flying+magazine+VTOL&hl=en&sa=X&ved=0ahUKEwjfhtmivJDKAhWCyRoKHShOAK04ChDoAQg6MAg#v=onepage&q=Flying%20magazine%20VTOL&f=false


Attachments

  • VTOL Strike.png
    VTOL Strike.png
    107.7 KB · Views: 319

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,492
Website
galgot.com
Look a bit like a mix of FIAT G-95/3 (the T tail) and G-95/6…
http://hushkit.net/2012/07/27/sixties-superfighters-the-original-jsf-the-italian-vstol-g-95-resistenza/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517
Hi,

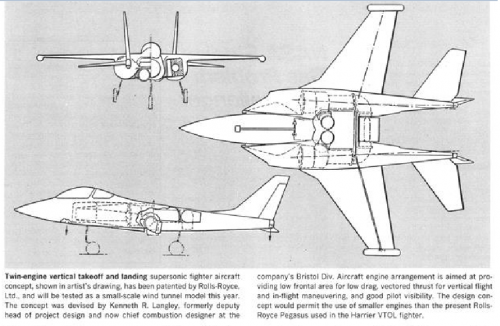

I think this was a Rolls Royce VTOL fighter ,Right ?.


Attachments

  • 1.png
    270.6 KB · Views: 195
  • 2 (21).jpg
    2 (21).jpg
    349.2 KB · Views: 192

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517
Hi,

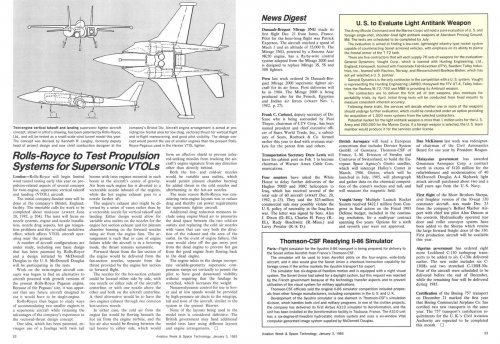

http://archive.aviationweek.com/image/spread/19611009/34/2
http://archive.aviationweek.com/image/spread/19611009/35/2


Attachments

  • 1.png
    212.6 KB · Views: 480
  • 2.png
    197.2 KB · Views: 486

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517

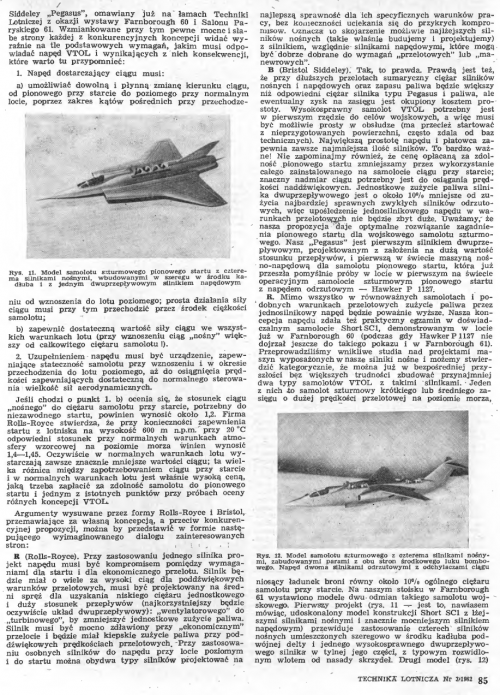

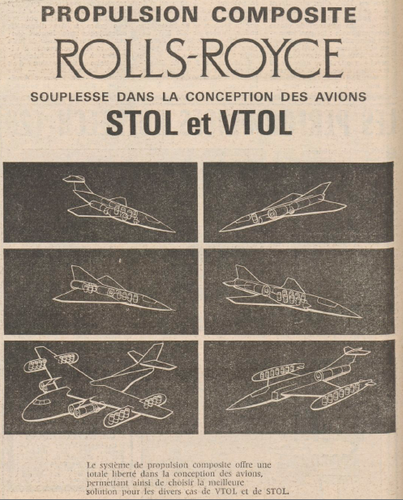

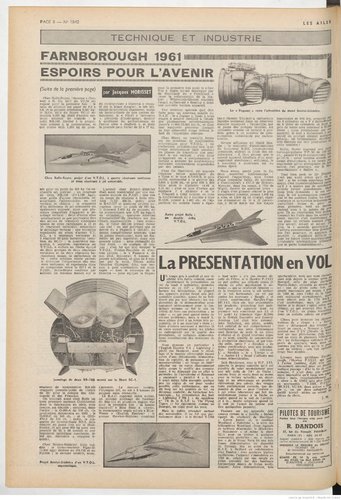

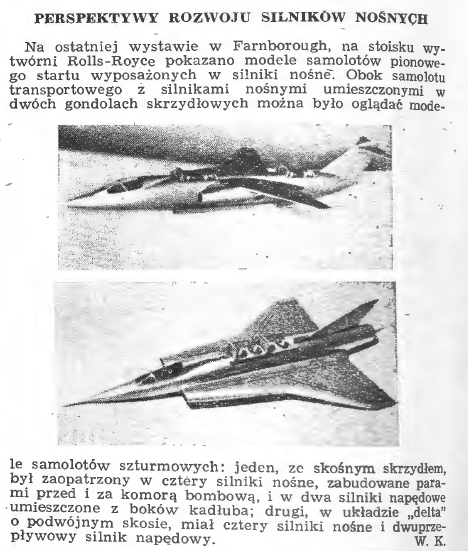

From Ali Nuove 9/1961.


Attachments

  • 3.png
    348.6 KB · Views: 373

FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
2,152
Reaction score
1,035
hesham said:
From Ali Nuove 9/1961.

Very nice find hesham, what type of lift fans would this plane use if it was to have been put into production? RB-108's?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,647
Reaction score
6,517
FighterJock said:
Very nice find hesham, what type of lift fans would this plane use if it was to have been put into production? RB-108's?

Thank you dear FighterJock,

and I think it was RB.162.


FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
2,152
Reaction score
1,035
hesham said:
FighterJock said:
Very nice find hesham, what type of lift fans would this plane use if it was to have been put into production? RB-108's?

Thank you dear FighterJock,

and I think it was RB.162.

Are there any pictures or websites available that mention the RB.162. strange to think that in all my years as a military aviation enthusiast I have never heard about the RB.162.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,100
Reaction score
1,235
FighterJock said:
Are there any pictures or websites available that mention the RB.162. strange to think that in all my years as a military aviation enthusiast I have never heard about the RB.162.
https://en.wikipedia.org/wiki/Rolls-Royce_RB162
Used as lift engine in Dassault Mirage IIIV, VFW VAK 191B, Dornier Do 31.
Used as auxiliary engine for take off and climb in Hawker Siddeley Trident 3B.


Dew

ACCESS: Confidential
Joined
May 2, 2007
Messages
136
Reaction score
466
Scans from RAF Flying Journal

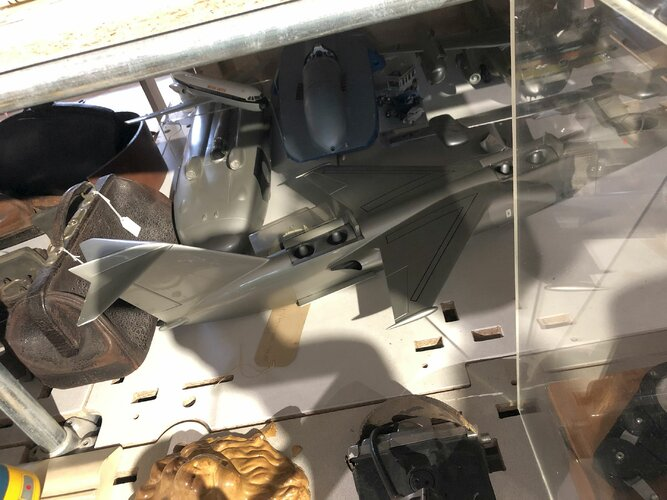

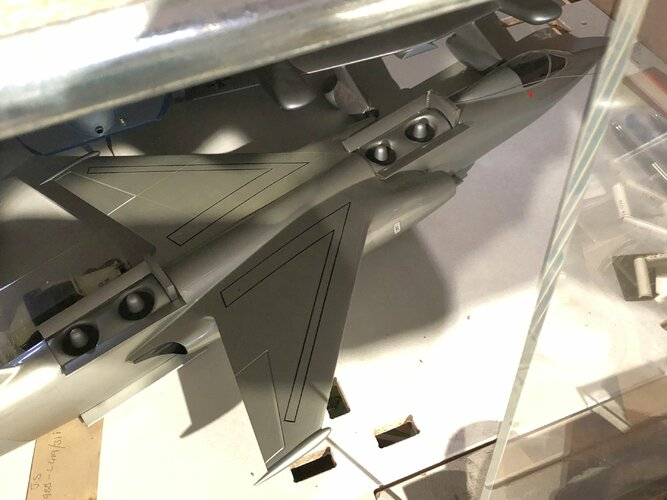

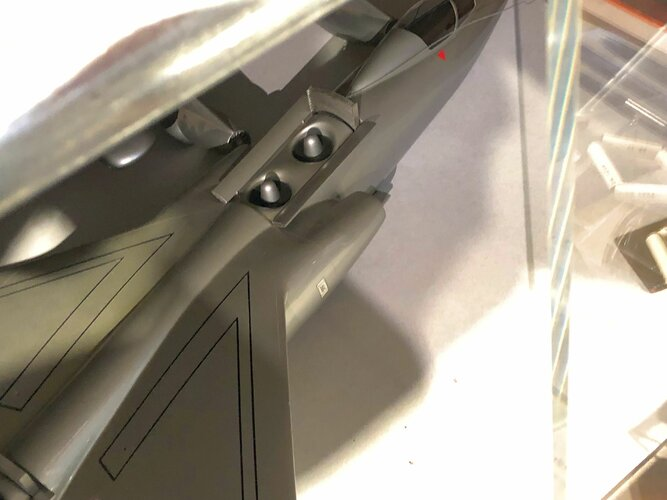

I think I've just seen this very model (pics taken earlier today, sorry they're fairly poor - access was rather tricky)

I've just realised I think a model similar to this cargo variant is lurking behind in the corner - top right, (alternate?) wing section infront of fuselage?


Last edited:

steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,213
Reaction score
774
Website
www.steelpillow.com

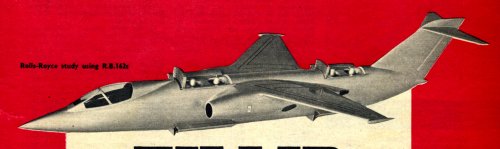

vtol3-jpg.40614

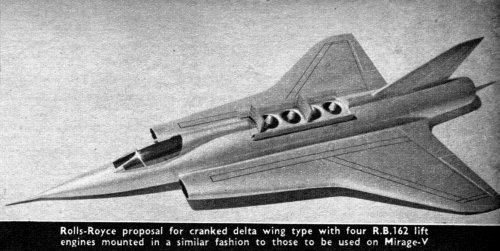

This photo along with other designs was also reproduced, with somewhat better resolution, in William Green; "VTOL Competition - Fillip or Fiasco?", RAF Flying Review, Vol XVII, No. 4, December 1961, pp. 17-19,53.
The photo itself is on Page 19 and captioned:
"Rolls-Royce proposal for cranked delta wing type with four R.B.162 lift engines mounted in a similar fashion to those to be used on Mirage-V"
No other comment on it is made.
Other than that, the article is an interesting potted commentary on NATO specification NBMR3 and its entrants, that would ultimately lead to the VJ-101 prototype.

Last edited:

steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,213
Reaction score
774
Website
www.steelpillow.com
Not a Draken I think , but a Rolls Royce VTOL concept...

Yes, G L Wilde, head of Rolls-Royce's 'design department' wrote an article (maybe for a conference? - I found it in aero 9/1961) on 'Engines for VTOL aircraft'. The Draken lookalike is described as a strike aircraft (several other configurations were shown, e. g. attacker with swept wing, different tactical transports with 20 or 32 lift engines - a good idea by RR to increase the production ;D ).

Interesting. Usually the "Draken like" plane had twelve lift engines, not only four.

Tony Buttler wrote in his BSP Jet Bombers it's the Hawker P.1126.
Which is the source for the drawing - Wilde or Buttler?


steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,213
Reaction score
774
Website
www.steelpillow.com
What I really want to know is, how much genuine engineering effort did R-R put into all these many aircraft designs, and why go to all the trouble of making so many disparate models when your graphic artists could knock up much bigger and more stunning artwork far more cheaply?


steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,213
Reaction score
774
Website
www.steelpillow.com
I think this was a Rolls Royce VTOL fighter ,Right ?.

Certainly appears to be their patent. But the twin-boom layout looks more like a study for the B.Ae 1216 supersonic ASTOVL fighter project at B.Ae Kingston. Some variants did have twin engines, though most had a singe engine with three nozzles. The date of 1983 puts it right at the heart of that programme.
But it's interesting to note that the article mentions McDonnell Douglas and not BAe.


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
690
Reaction score
378
Hesham #17 Air Pic 10/57 is peddling 9/57 Farnborough Show gossip. The only "Vickers" recent cancellations were non-funding of anything-Scimitar-ish. A year or so later the V-A submision to 9/57's OR (to be TSR.2) had that odd Shorts lifting platform (?P-17A) with a battery of RR lift engines.

Always be sceptical about engine firms' sketches for berths for their schemes. Misinformation to confuse and distract USSR.

Engine firms' culture was that the airframe is the tin to carry the engine, where, alone, novelty begins. New airframes can only be drawn around engines that have reached component test-rig stage: I lead, you follow. RR had the additional problem of less direct teamwork with airframers: futurologists in Bristol, ASM, even DH Engines could talk at High Table and/or the 19th.hole with their airframe colleagues. RR must rely on NGTE/RAE as intermediary. Ridiculous notions of multiple dead weight, often dead lift engines would never have survived the presence of, say, Camm.
