Teledyne Ryan VTOL/VSTOL/STOL projects (NOT liftfan/Fan-In-Wing)

EEP1A

ACCESS: Restricted
Joined
Nov 27, 2006
Messages
36
Reaction score
1
overscan said:

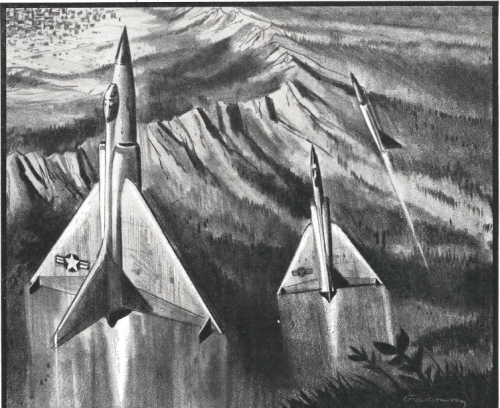

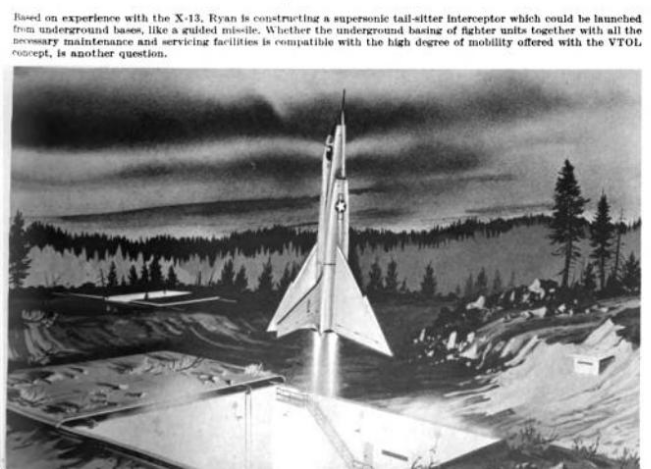

Ryan VATOL, 1950s

Source:
Bernard Lindenbaum, V-STOL Concepts and Developed Aircraft Volume 1 - A Historical Report (1940-1986)

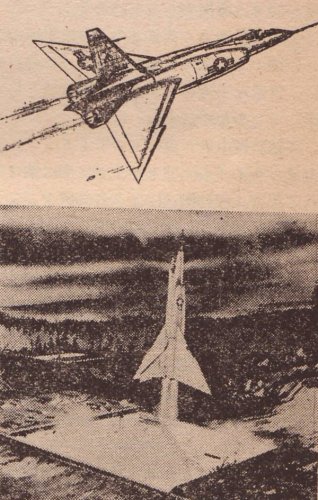

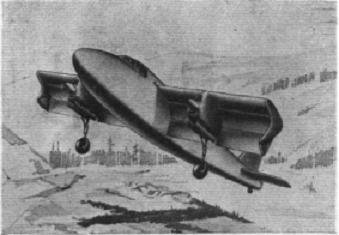

Ryan VTOL fighter project of the late 1950's.
From Japanese Magazine "The Aviation Magazine" September 1958.


Attachments

  • Ryan VTOL fighter.jpg
    Ryan VTOL fighter.jpg
    155 KB · Views: 1,238

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,957
Reaction score
5,238
Hi,

What was that VTOL army project to Ryan ?.


Attachments

  • Ryan.JPG
    14.1 KB · Views: 426

Firefly 2

ACCESS: Secret
Joined
Jun 30, 2009
Messages
461
Reaction score
11
hesham said:
Hi,

What was that VTOL army project to Ryan ?.

This couldn't be true VTOL, really. Only extremely short take of and landing. Was this the system that enabled the fabled and mythical MC130 that was supposed to be used in the operation to free the American hostages in Iran back in the 80's?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,316
"This couldn't be true VTOL, really."
The Ryan 92 VZ-3 Vertiplane, the forerunner of this concept, suffered
from not having enough thrust (as many others), but I haven't heard,
that the concept itself wouldn't enable "real" VTOL. Of course, if it's a
economical way to achieve VTOL and maybe even with a usable payload
is a different question ... (see http://www.vstol.org/, "History
Overview Brief" )


jackehammond

ACCESS: Restricted
Joined
Sep 17, 2007
Messages
18
Reaction score
2
Jemiba said:
".. some braking rockets "

It's OT here, so I'll post it in the "early secret projects" section, what can be achieved
with braking rockets ... at least theoretically .... ;D

Dear Member,

Reduce the landing distance. The Germans had two rockets in the nose for this purpose. It is a drastic and dangerous solution though I would think.

Jack E. Hammond


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,647
Reaction score
1,069
jackehammond said:
Jemiba said:
".. some braking rockets "

It's OT here, so I'll post it in the "early secret projects" section, what can be achieved
with braking rockets ... at least theoretically .... ;D

Dear Member,

Reduce the landing distance. The Germans had two rockets in the nose for this purpose. It is a drastic and dangerous solution though I would think.

Jack E. Hammond

It was for the YMC-130H as well. During the test flights the forward facing JATO were fired to early and the aircraft stopped mid-air and in essence fell to the runway, breaking the wing root and destroying the aircraft. Fortunately I believe all of the crew escaped from the ensuing fire.


Charles Gray

ACCESS: Restricted
Joined
Oct 13, 2007
Messages
36
Reaction score
0
index.php


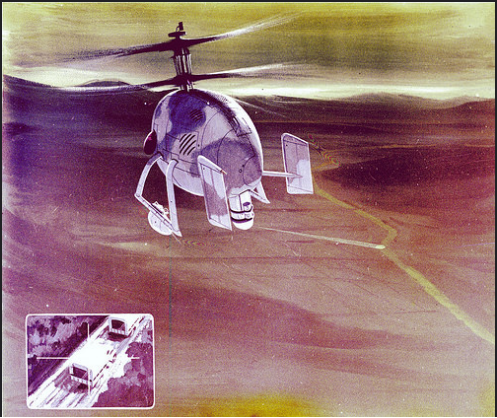

My question about this design is wouldn't the wing badly interfere with the downwash from the rotor, making it harder to control?

Also, I've looked all over the place and I've found no reference to Ryan designing anything of this sort, so if anyone could find more information, I'd be very happy.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,316
The interference between wing and rotor is a problem for many compound
helicopters and VTOL designs, in this special case, I think, it wouldn't have
been much worse, than, say, for the Bell UH-1B high-speed research compound
from 1969. It's a kind of trade-off between hover performance and maximum
speed.

In May this year we had this design here, too, (http://www.secretprojects.co.uk/forum/index.php/topic,2140.msg16218.html#msg16218),
unfortunately without further information .


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

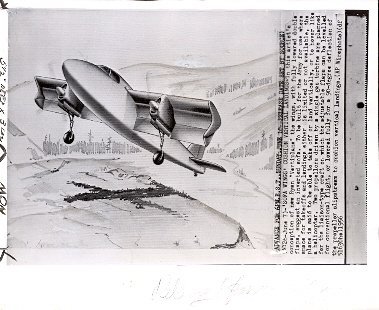

Photograph of Ryan "Vertiplane" concept from 1956 found on eBay.

[link no longer active]


Seller's description:
A fabulous (approx. 8" X 10") vintage original factory B&W Photograph of a 1956 Ryan "VERTIPLANE" concept Photo. Photograph has a Associated Press press release dated Jun 11, 1956 on back and is part of either my own collection or of other aviation buff's collections that I'm selling and is in VERY GOOD condition as seen in the scan.


Attachments

  • 80118.jpg
    75.9 KB · Views: 368

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
706
Triton said:
Artist's impression of Ryan Aircraft Number: 2108 circa 1964.

Given the time and what we know of Ryan's designation system, I really wonder if this Model "2108" isn't a typo for "210B".


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Greetings All -

In a meeting presentation/report I found at the Vought Archives, there were three Teledyne designs referenced I had not seen before. Anyone have info on these?

Enjoy the Day! Mark


Attachments

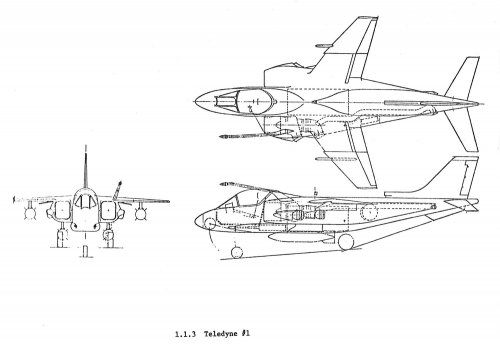

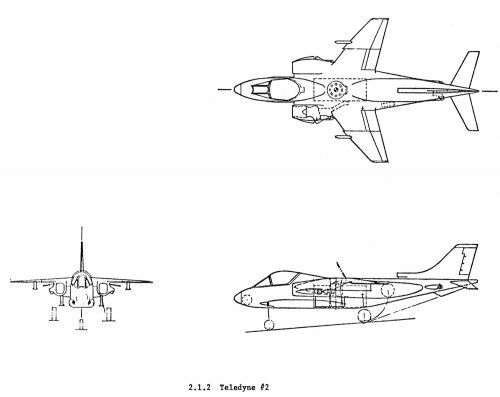

  • xTeledyne VSTOL No3 3V.jpg
    xTeledyne VSTOL No3 3V.jpg
    88.4 KB · Views: 839
  • xTeledyne VSTOL No2 3V.jpg
    xTeledyne VSTOL No2 3V.jpg
    89.9 KB · Views: 1,093
  • xTeledyne VSTOL No1 3V.jpg
    xTeledyne VSTOL No1 3V.jpg
    108.7 KB · Views: 1,133

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Hi Craig -

No date anywhere in the report (actually, probably a printed copy of overhead projector slides) but the V-521 is shown in the report. The opening slide is titled "Supersonic VTOL Fighter Concepts".

Enjoy the Day! Mark


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,957
Reaction score
5,238
Hi,

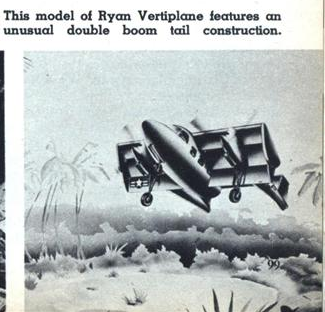

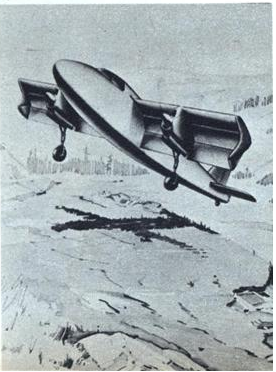

please note this Ryan Vertiplane differs in its shape from earlier one,it had a twin boom configuration
and could carry a passengers,with high rear wing.

http://blog.modernmechanix.com/coming-rooftop-airports/


Attachments

  • 1.png
    164.4 KB · Views: 54
  • 2.png
    165.3 KB · Views: 53

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,957
Reaction score
5,238

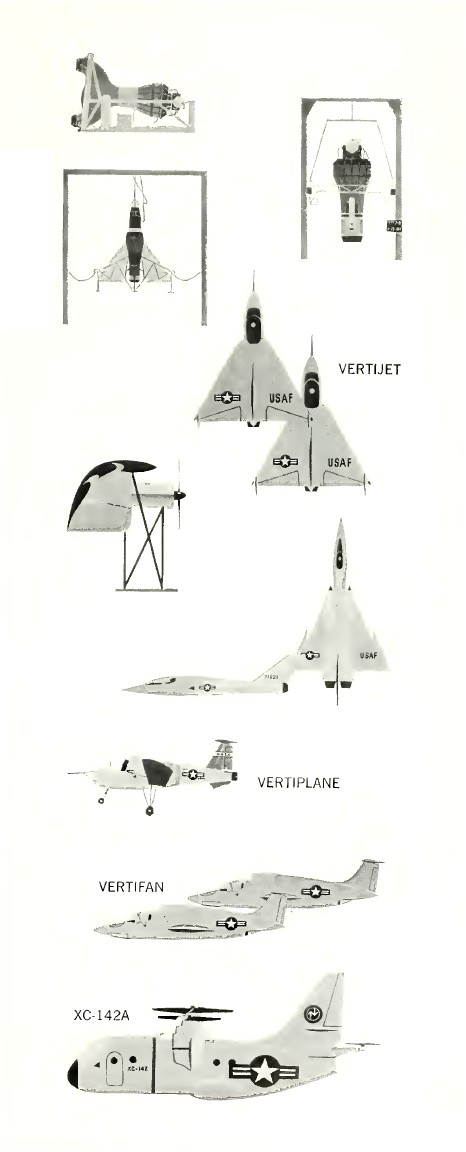

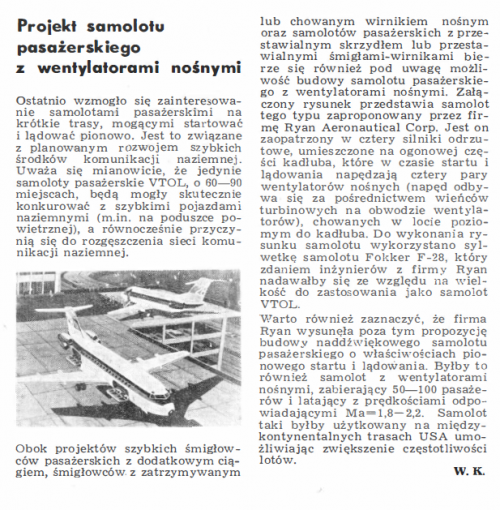

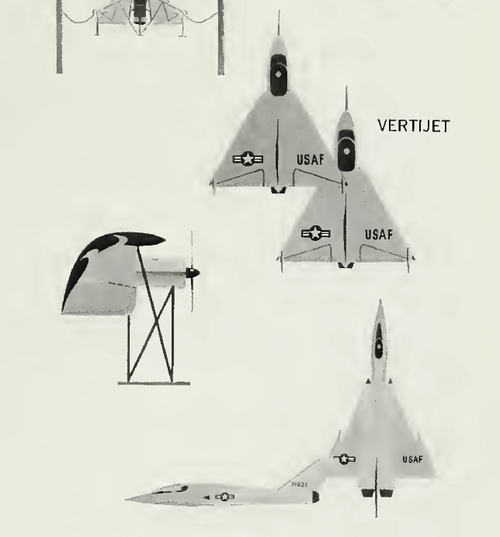

Also from my dear Rolf's discovering;

https://www.flickr.com/photos/sdasmarchives/


Attachments

  • 3.png
    541.4 KB · Views: 265

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,957
Reaction score
5,238
Hi,

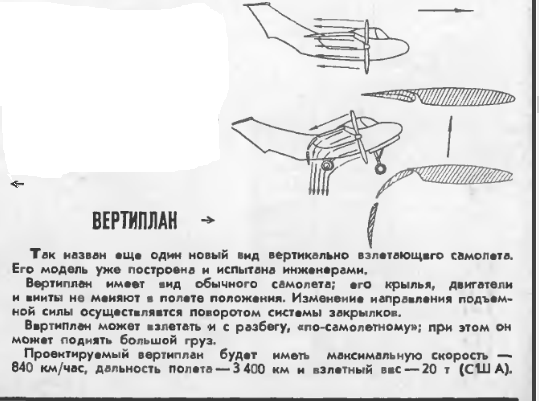

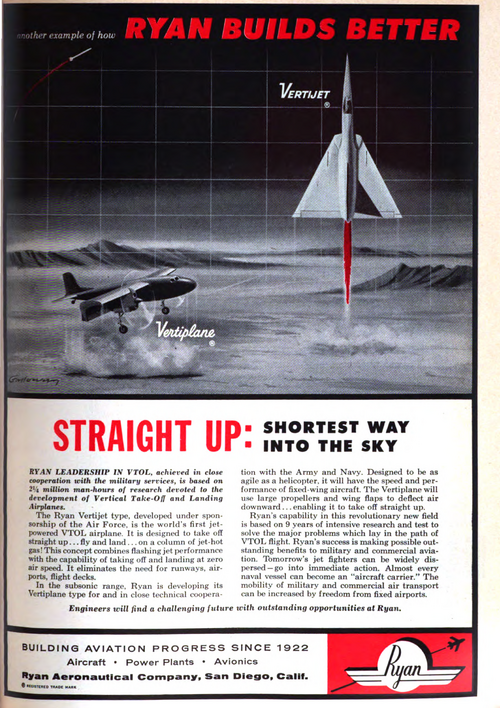

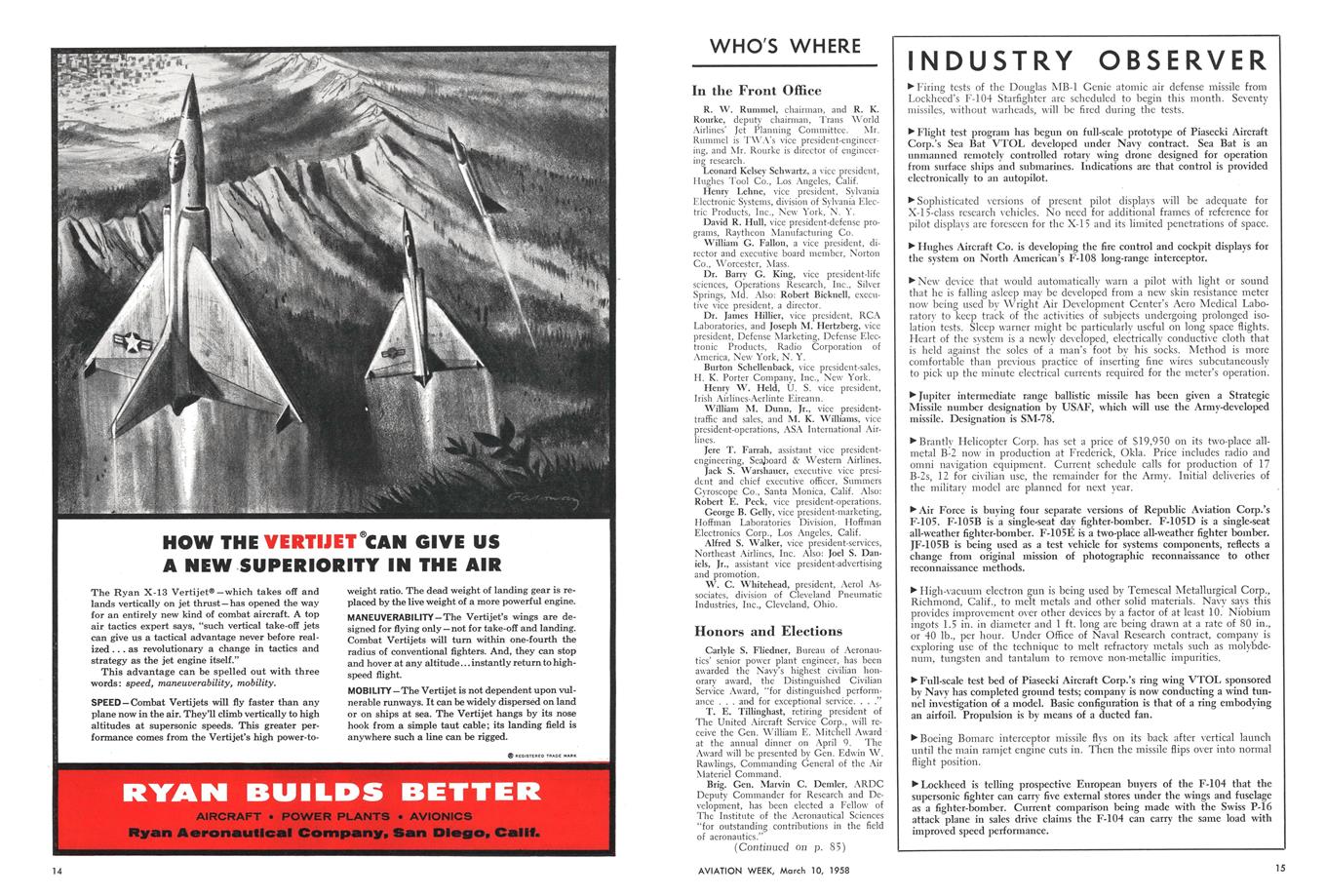

http://archive.aviationweek.com/image/spread/19580310/8/2


Attachments

  • 1.png
    717 KB · Views: 129
