panzerschiff concept

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
456
Reaction score
36

any original drawing regarding the admiral graf spee conception and why it was fitted with that tower? was this tower decided to be fitted in this ship from the start?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,335
Reaction score
84

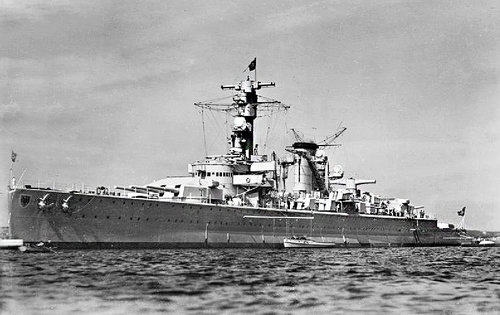

Admiral Scheer and Admiral Graf Spee were both launched with a tower bridge superstructure, the earlier Deutschland (renamed Lützow in 1940) had a different bridge.


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
669
Reaction score
124
Yes, those are the Deutschland preliminaries, otherwise known as the Zenker designs. Mostly big gun cruisers but there was a Monitor and a Battlecruiser design as well.
Some info can be found here:

But due to forum change the old codes were not imported and thus it's difficult to read the table.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
456
Reaction score
36
any conceptual design regarding the admiral graf spee? Why the tower was chosed instead of the tubular design of the deutschland? Also what modification were considered for him after his return to the port(if he came back of course because I know he didn't came back from his first war trip).

Last edited:

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,335
Reaction score
84
For modifications considered for Admiral Graf Spee, look at Admiral Scheer.
From wiki:
Admiral Scheer was modified during the early months of 1940, including the installation of a new, raked clipper bow. The heavy command tower was replaced with a lighter structure, and she was reclassified as a heavy cruiser. Additional anti-aircraft guns were also installed, along with updated radar equipment.

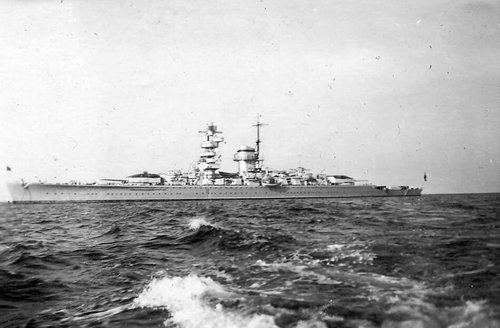

Image found here: https://www.worldwarphotos.info/gallery/germany/kriegsmarine/scheer/cruiser-admiral-scheer/

Last edited:

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
456
Reaction score
36
basicaly the graf spee would go with the same modification as the Scheer?

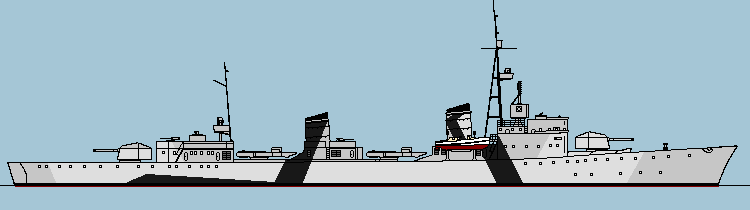

Also found this Deutschland concept:



Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,335
Reaction score
84
Admiral Scheer.png

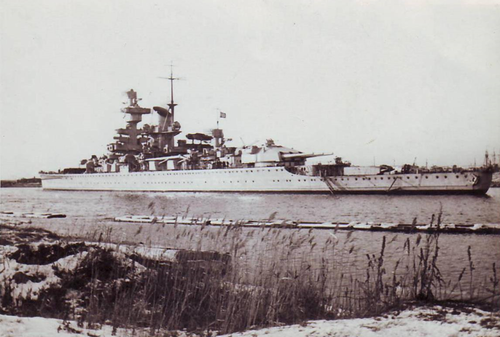

Panzerschiff Admiral Scheer at Pillau in November of 1944. The pier at this location is Rattenmole. Image from facebook.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
456
Reaction score
36

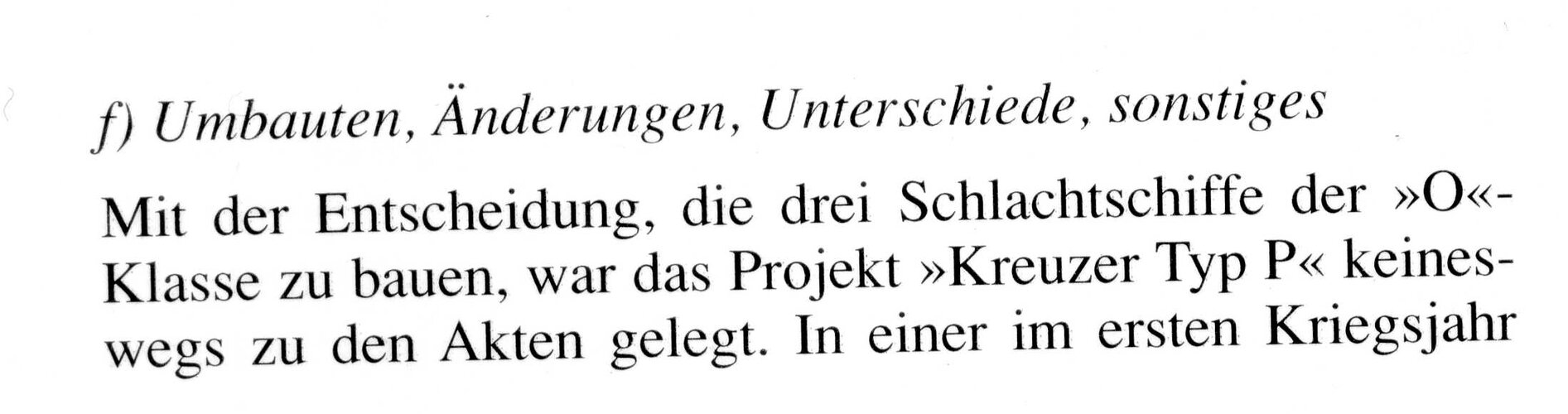

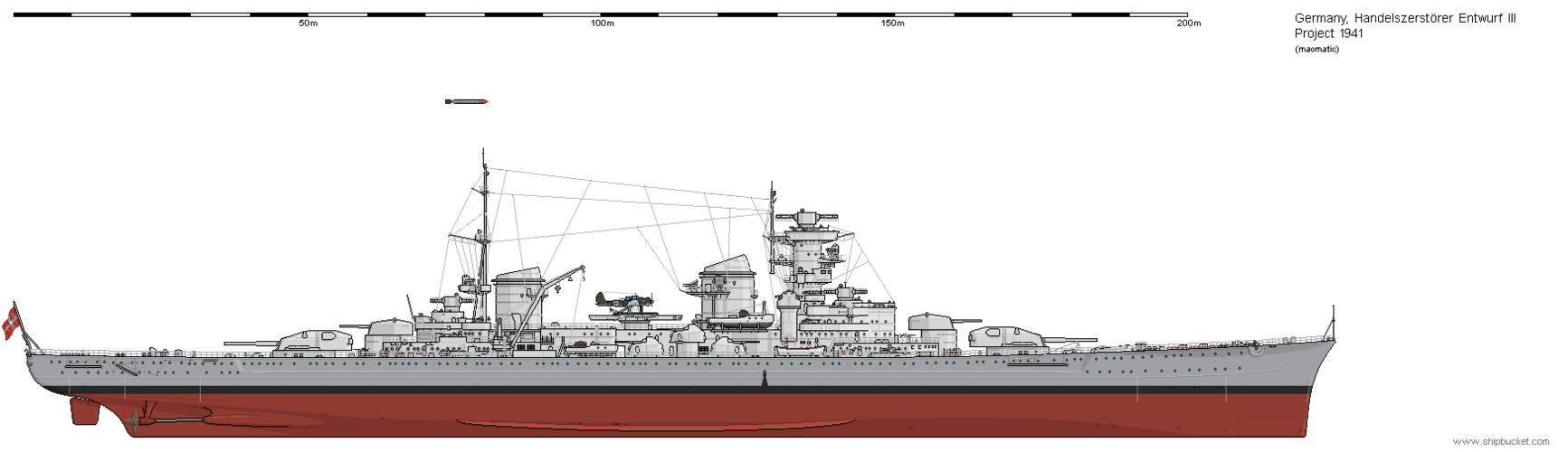

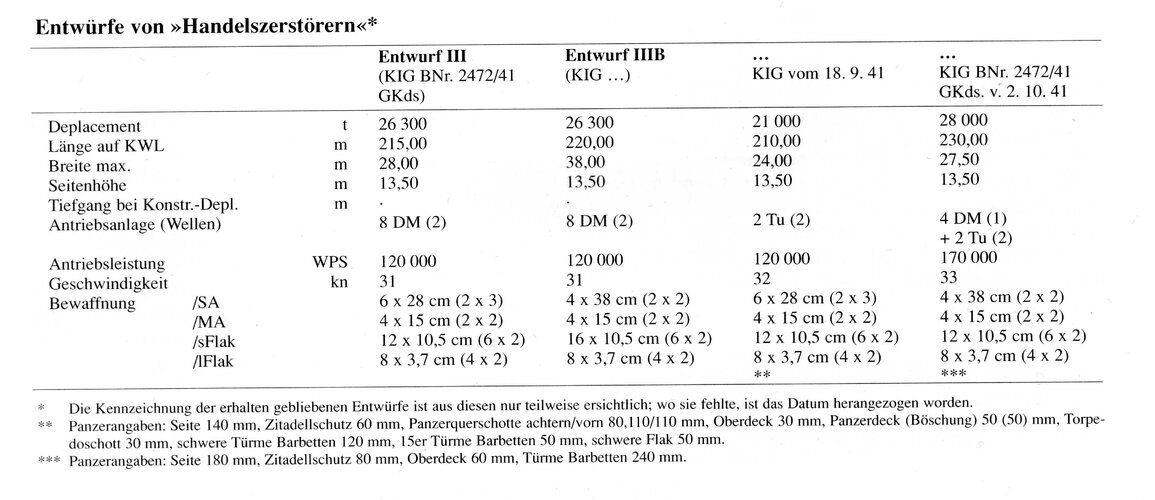

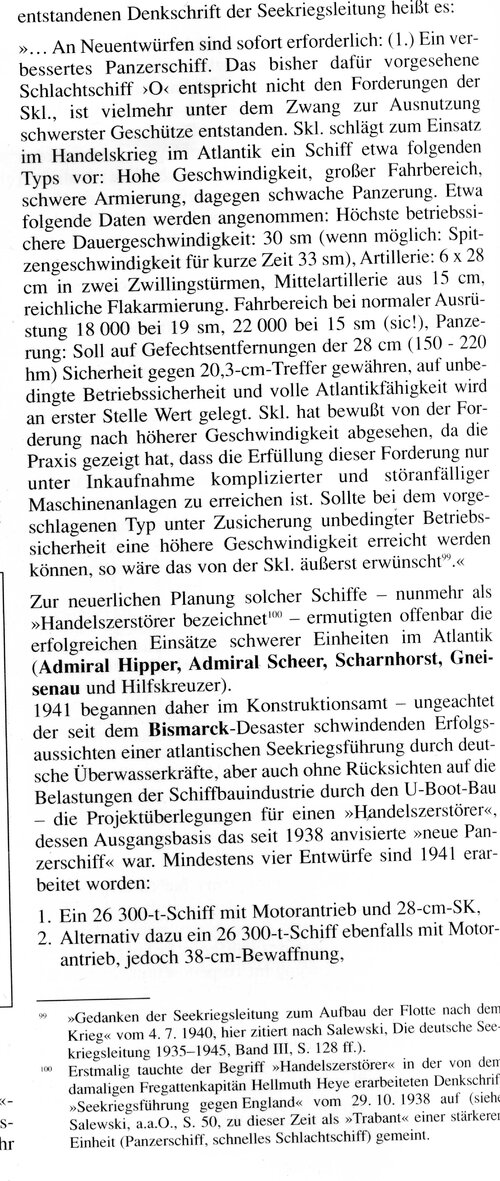

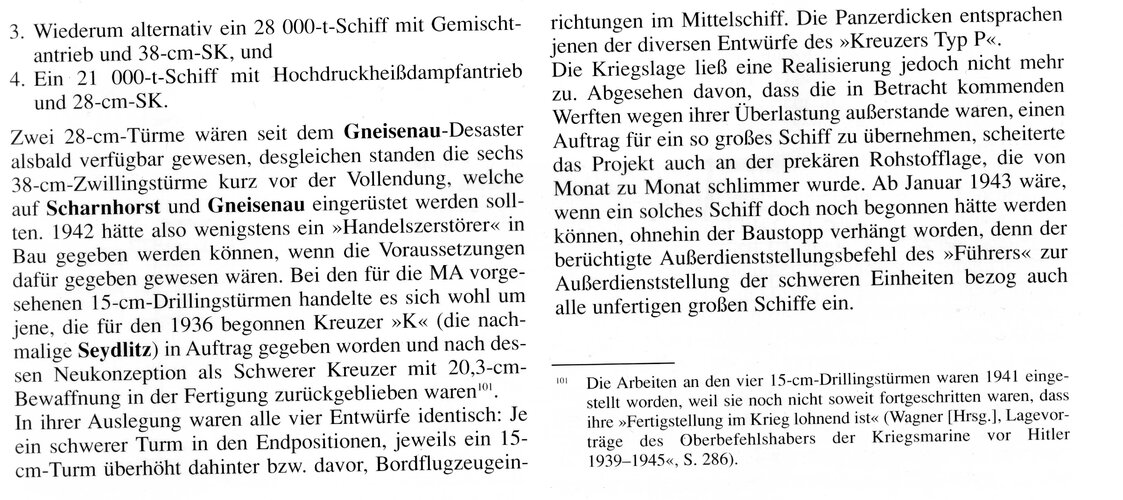

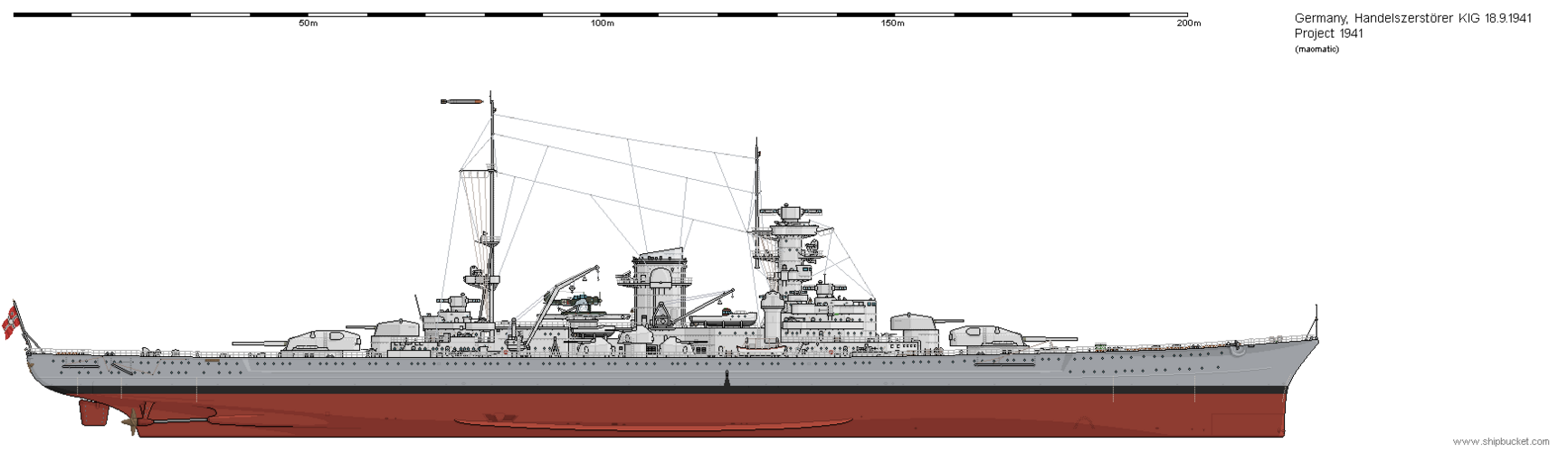

any info regarding the sixth considered panzerschiff?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
456
Reaction score
36

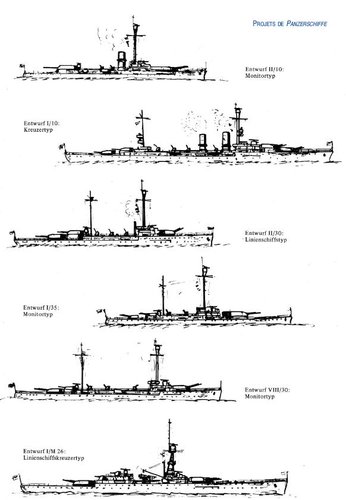

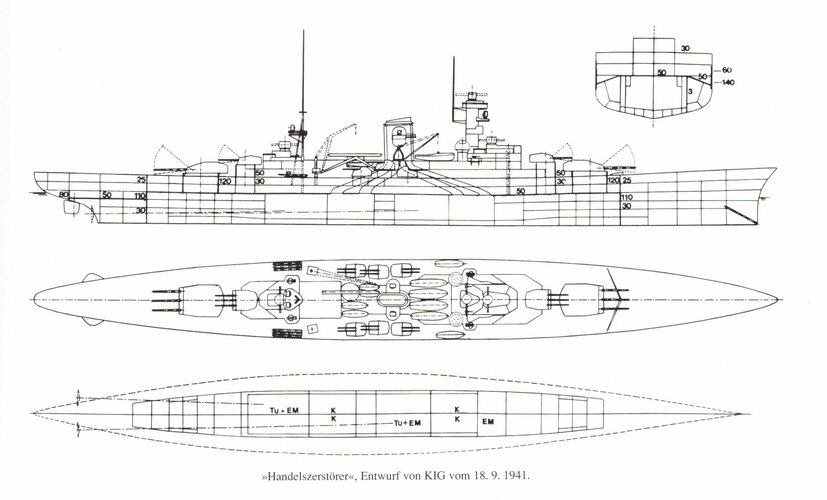

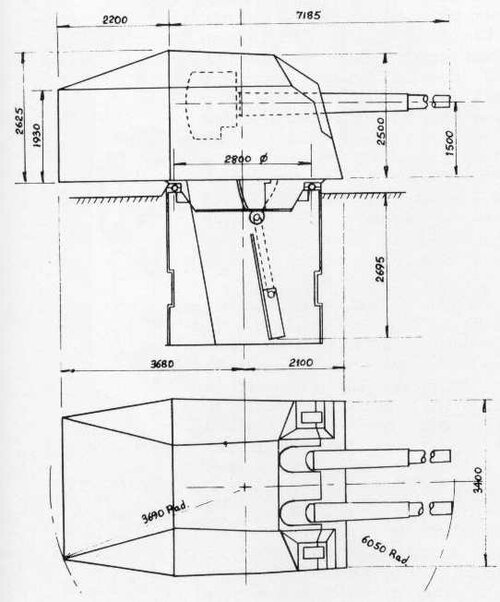

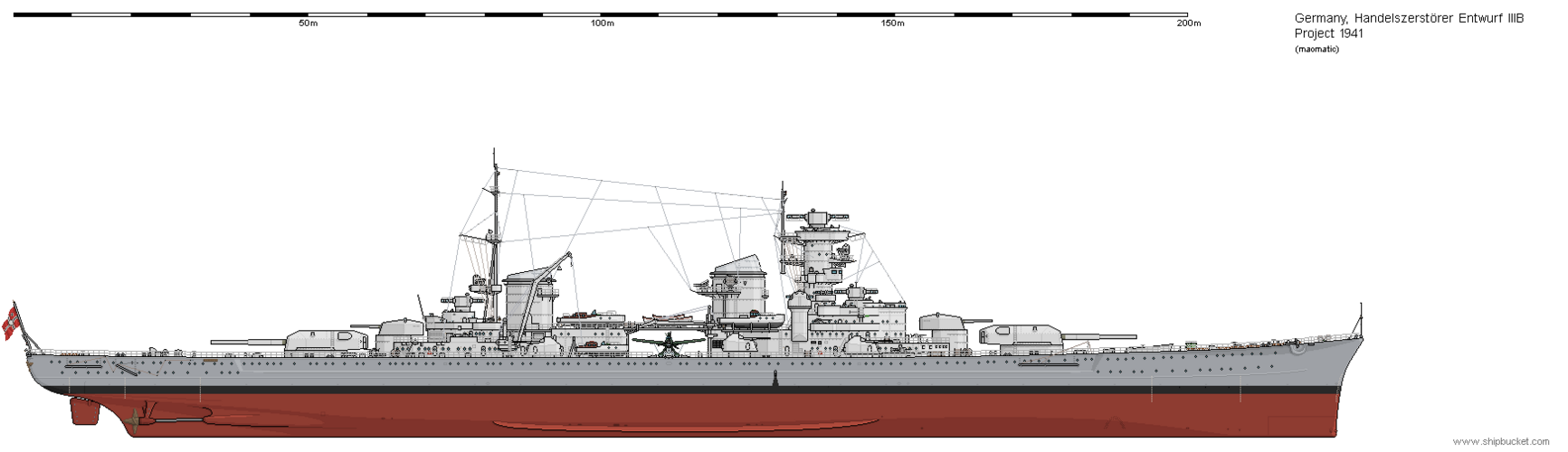

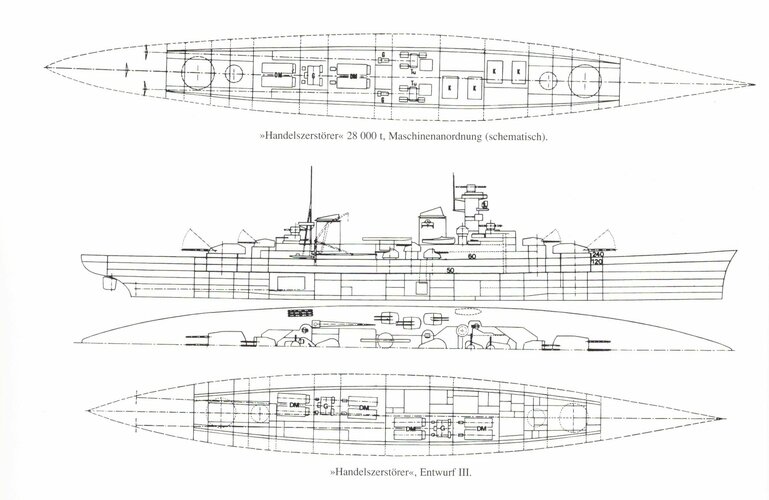

entwurf drawing

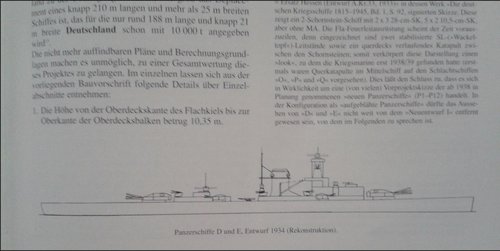

panzerschiffe D and E concept
panzerschiffe D.jpg
