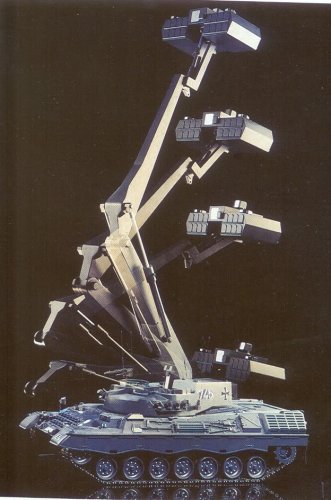

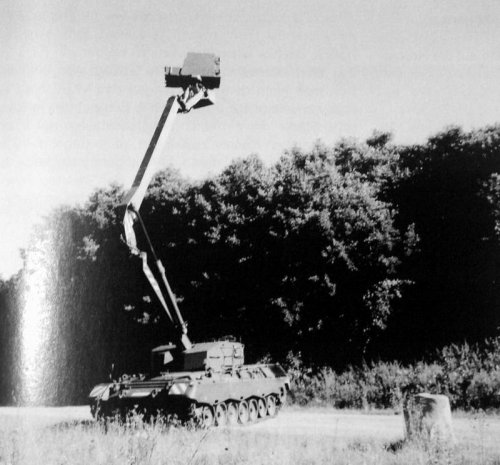

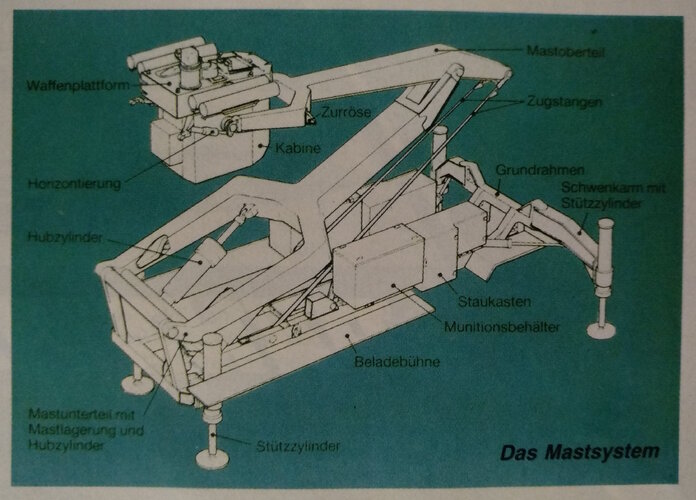

This was a project of the (then) West German Army during the late '80s/early'90s. It was designed for anti-tank and anti-helicopter warfare roles and was based on the hull of the Leopard 1 chassis converted by removing the turret and fitting an elevating arm with weapons/sensors that could reach a height of 12m. There seems to have been some variance in exact weapons carried - some sources refer to TRIGAT whilst others mention HOT3 and Stinger. The sight was downlinked to a gunner's position in the hull, which guided the missiles via a TV monitor. There was a hatch on the center front deck for the driver, one on the right deck behind the driver for the commander, and a large hatch behind the elevating arm for reloading of missiles.

The then Wegmann was selected in 1987 as the winner (this was apparently quite a surprise) but the program was cancelled in the early 1990s after only one prototype was built.

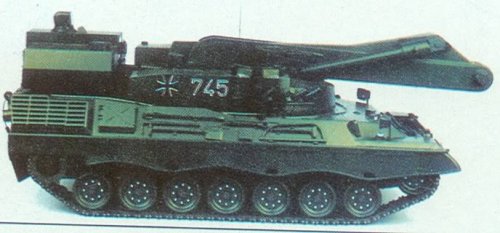

The last picture shows the vehicle with the weapons/sensor platform stowed.

Regards,

Greg


Attachments

  • Panther.jpg
    168.9 KB · Views: 1,575
  • panther1.jpg
    702.6 KB · Views: 271
  • pantherprototyp2.jpg
    63.3 KB · Views: 1,300
  • pantherprototyp1.jpg
    83.5 KB · Views: 1,339
  • scan0026.jpg
    52.3 KB · Views: 1,389
  • scan0024.jpg
    114.5 KB · Views: 2,470

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,109
Reaction score
650
Thanks for some great pics and info on the Panther AT/AA system Greg!
I never knew they actually built it in mock-up/prototype form!

Thanks again

Regards
Pioneer


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,074
Reaction score
231
Very nice. Thanks for the new info and pictures.

I can't help but to be moved even further toward thinking that Giraffe tanks are cool ;D

Some more information on related projects can be found in an old thread here:
http://www.secretprojects.co.uk/forum/index.php/topic,3307.0


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody
This is the chassis from GTX first post. Panther.jpg
http://www.military-car.de/verkauf/puma.htm
Helex Laser TAnk
http://www.secretprojects.co.uk/forum/index.php/topic,3307.0/all.html
http://laserstars.org/biglasers/continuous/helex.html
http://www.blisty.cz/art/41863.html
Many greetings


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,669
Reaction score
6,231
New Western Weapons Systems Noted

18010320 Moscow KRASNAYA ZVEZDA in Russian
4 Jan 89 First Edition p 3


[Report under the rubric "In the Arsenals and at the
Ranges"]

[Text]

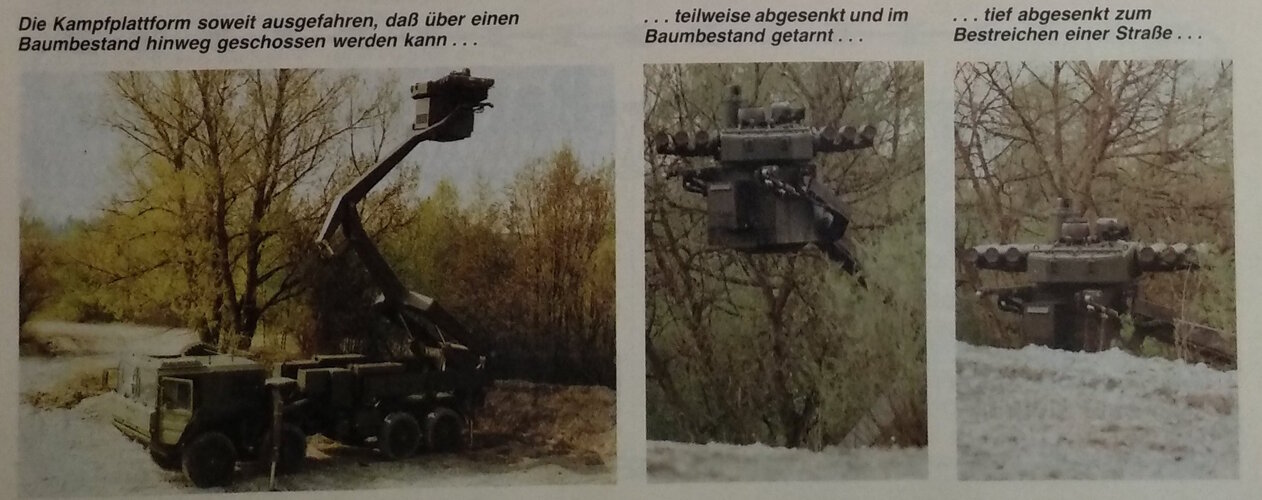

Elevating Launcher

The magazine ARMADA INTERNATIONAL reports
that the Krauss Maffei, MBB and MAN companies
exhibited an experimental model of the Panther, a
wheeled (8X8) self-propelled antitank launcher designed
by them, at an international air exhibition in Hannover,
FRG. The main difference between it and similar existing
weapons is that the turret with weapons and gunner-operator
is located on an elevating platform (see photo
[photographs not reproduced]).

The rotating turret is armored and is equipped with a
filter-ventilation system. One triple-unit launcher with
Hot antitank guided missiles is mounted on each side
(another 12 missiles are stored in the battle stowage).

According to the magazine WEHRTECHNIK, a version
of the elevating platform armed with 16 Hot antitank
guided missiles is being designed in the FRG for the
Leopard-1 tank chassis. Foreign experts believe that
vehicles with the elevating platforms will have greater
survivability on the battle field and greater combat
capabilities. Among other things, it is anticipated that
the weapon can be used for combatting helicopters.


JPRS Report
Soviet Union Military Affairs
22 February 1989


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Today the hydraulically operated elevating arm is lkely to be replaced by a kind of tethered UAV. I think. It's quite heavy
and probably forcing the carrier vehicle to be stationary during use and very restricted with regards to height and lateral
movement. A tethered UAV surely would have a more limited payload (I would think of, say, just two ATM against 6 for the
jib), but would largely increase tactical flexibility.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Indeed ! That was actually the thread I was looking for ! Unmanned, electrically driven and tethered,
it would be able to use a nearly endless powersupply.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,669
Reaction score
6,231
Here's another old thread along the same lines: http://www.secretprojects.co.uk/forum/index.php/topic,12261.0.html


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,669
Reaction score
6,231
From the Tanknet 'What If: A World Frozen In The Cold War' thread, courtesy of Dave Clark:



Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,669
Reaction score
6,231

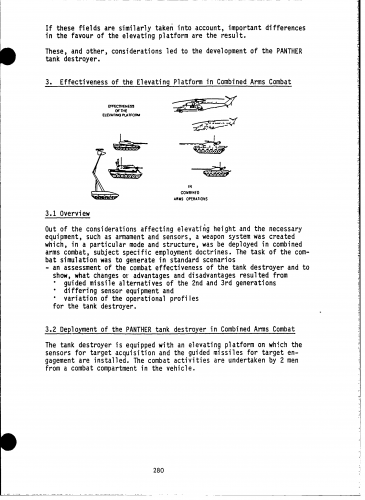

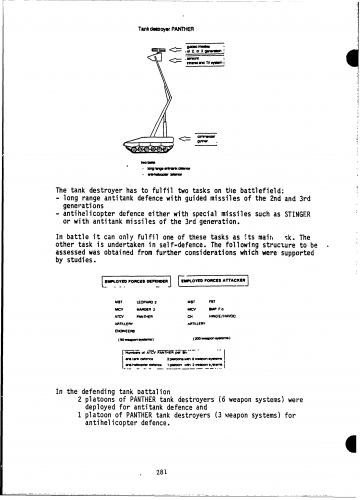

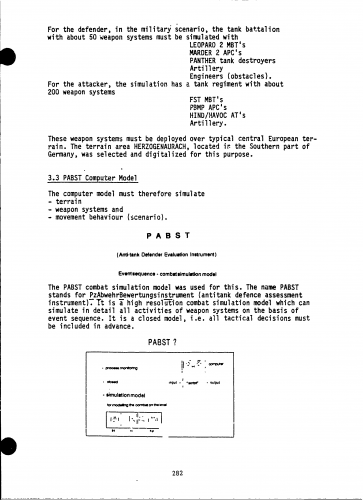

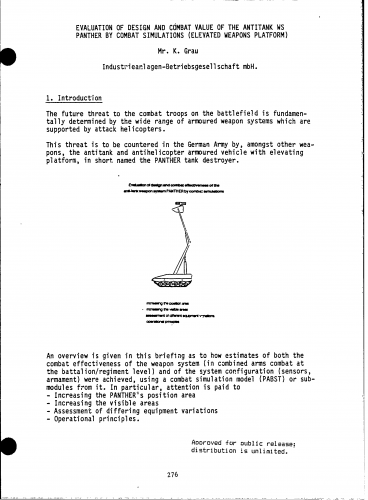

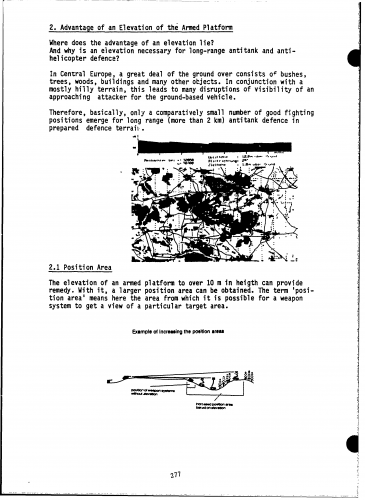

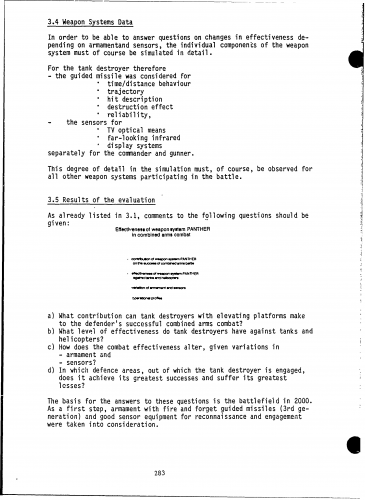

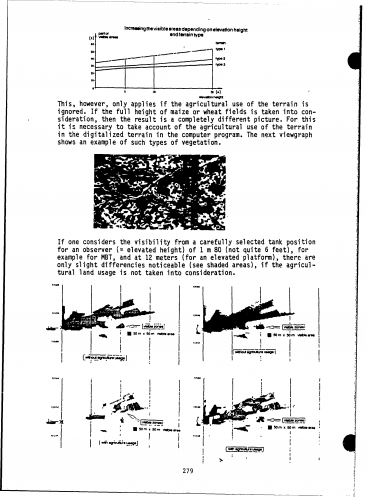

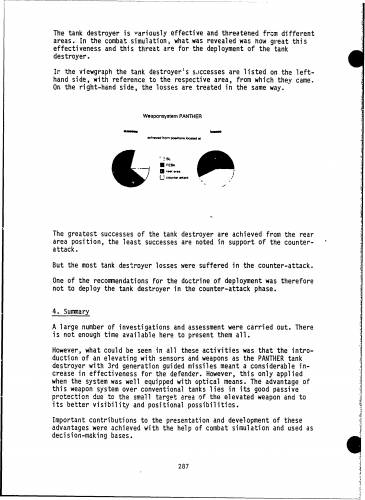

Found the following paper on the roles and effectiveness of the Panther tucked in among the proceedings of the 28th Annual US Army Operations Research Symposium (1989). Interestingly it seems to claim that the planned in-service date of the Panther was the year 2000 (most late '80s sources give the first operational examples as due to come in to service around 1993). Possibly the author meant that the Panther was supposed to be in full service by 2000AD.


Attachments

  • AORSpaper10.png
    271.6 KB · Views: 49
  • AORSpaper9.png
    214 KB · Views: 33
  • AORSpaper8.png
    265.9 KB · Views: 31
  • AORSpaper7.png
    216.3 KB · Views: 46
  • AORSpaper6.png
    189.2 KB · Views: 55
  • AORSpaper5.png
    256.4 KB · Views: 51
  • AORSpaper4.png
    294.6 KB · Views: 44
  • AORSpaper3.png
    205.3 KB · Views: 45
  • AORSpaper2.png
    269.7 KB · Views: 56
  • AORSpaper1.png
    229.1 KB · Views: 51

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,669
Reaction score
6,231
Last two pages.


Attachments

  • AORSpaper11.png
    250.6 KB · Views: 39
  • AORSpaper12.png
    295.9 KB · Views: 42

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
3,243
Reaction score
1,128
Thank you Grey Havoc.
you da man.
and there still is no such capability in the West. A slow LOSAT w/ an only HV terminal phase based vehicle would be good place to start thinkin but..
