Mirage 2000 RDM/RDI/RDY Radars and other avionics

[TomcatViP]

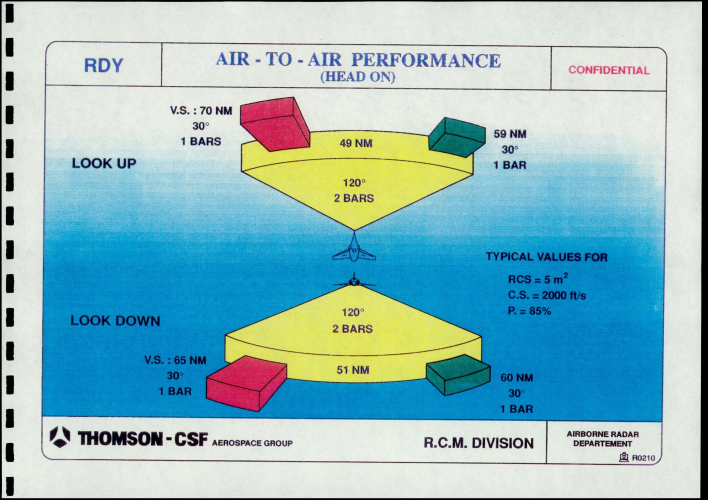

The brochures are a bit ecstatic... later documentation shows a 80NM max range for an early 2000 RDY at high alt and 60NM at low alt, all for a 5sqm (m^2) target.



[overscan (PaulMM)]

The brochures are a bit ecstatic... later documentation shows a 80NM max range for an early 2000 RDY at high alt and 60NM at low alt, all for a 5sqm (m^2) target.

What do you mean.


(brochure is from 1990)



[overscan (PaulMM)]

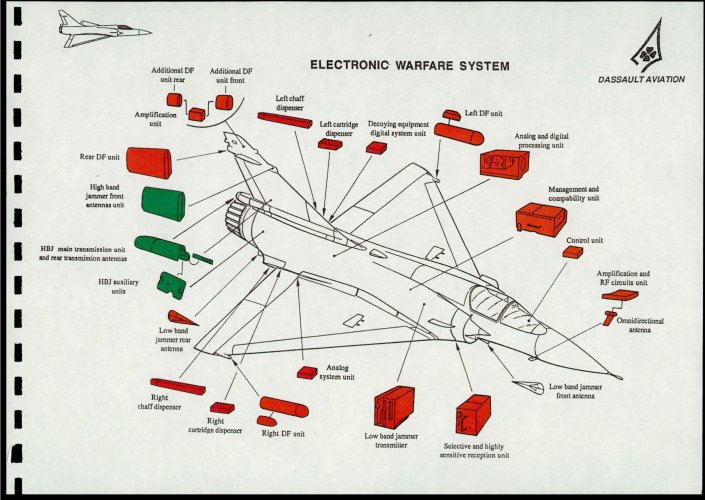

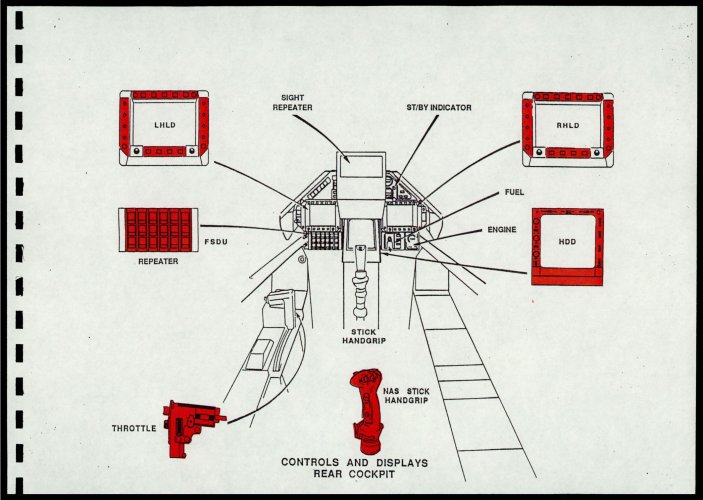

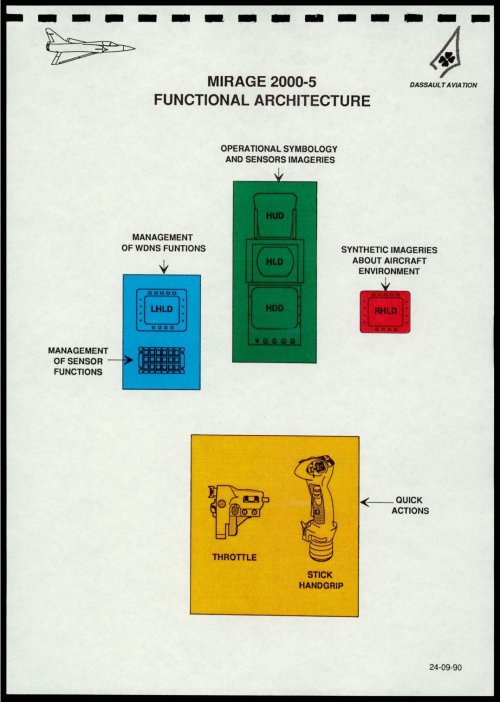

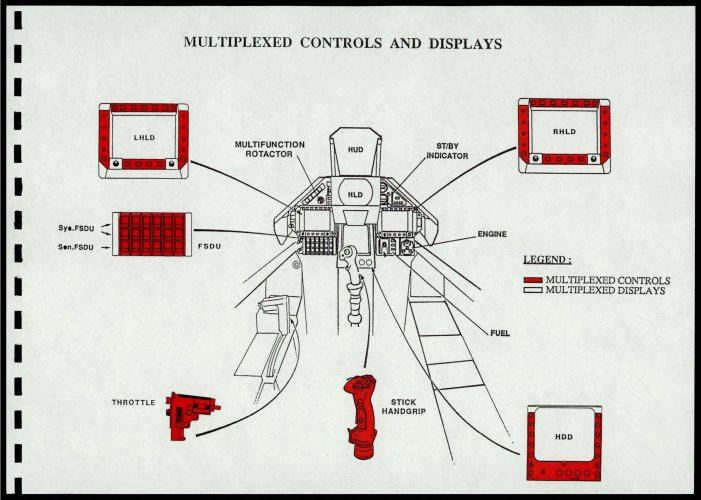

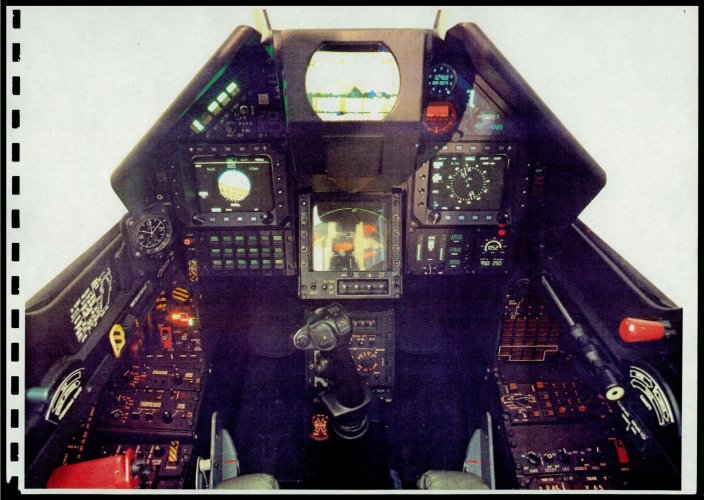

Mirage 2000-5 Brochure information



[Privateer]

Mirage 2000-5 Brochure information

Thank you!

Any chance to post the full brochure? Out of curiosity, are there more of these kind of brochures available from the Swiss National Archives?



[overscan (PaulMM)]

Thank you!

Any chance to post the full brochure? Out of curiosity, are there more of these kind of brochures available from the Swiss National Archives?

Register and take a look - if its been scanned it is downloadable.



[F-2]

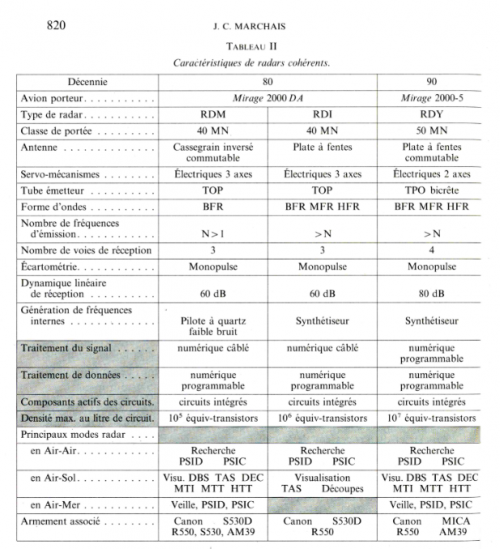

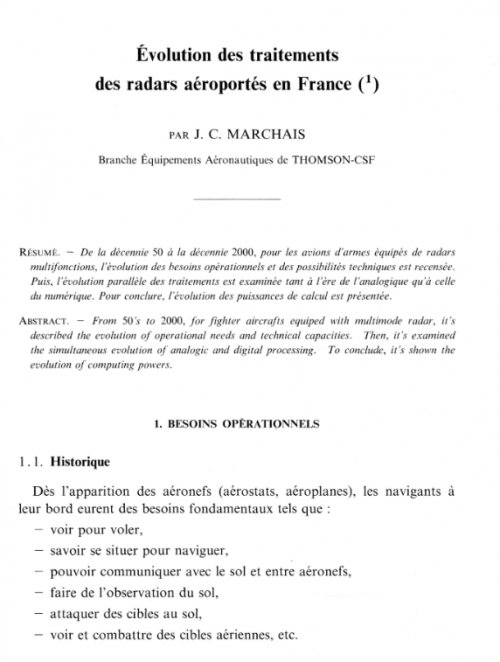

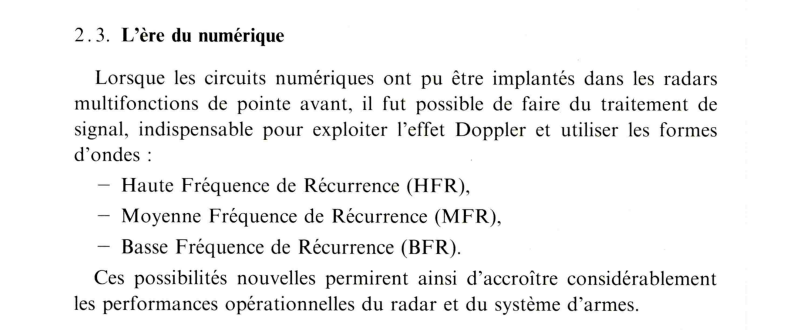

So I was browsing the worlds most sophisticated intelligence gathering system (Warthunder forum) and someone posted this paper by Thompson-CSF engineers.

Is RDI Actually full waveform?
