Dassault Mirage G8A / ACF / Super Mirage

alanqua

I dunno if she's the wife of my life
Joined
Aug 31, 2007
Messages
102
Reaction score
208
Hello,

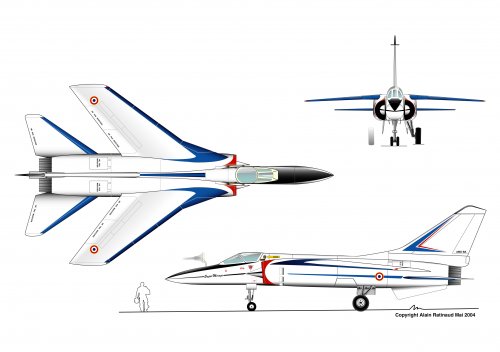

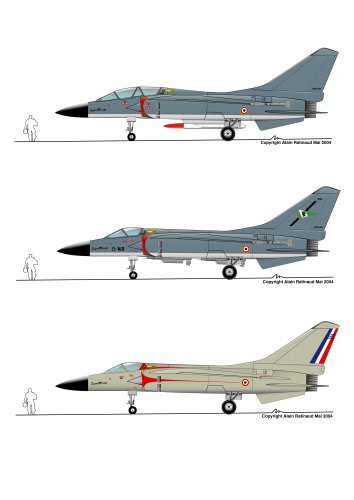

After the Mirage 4000, here are other drawings we published but on the ACF. ACF was Avion de Combat Futur, Future Combat Aircraft. The drawings were made from a blueprints issued from the manufacturer + lots of pictures.
They were published in Le Fana de l'Aviation. Enjoy.

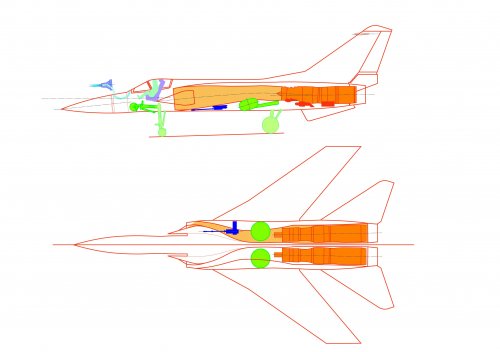

Bonus: 2 cuttaway views made from blueprints but they were refused for publication.

Regards
Alain


Attachments

  • Fana ACF plan 3 vues.jpg
    Fana ACF plan 3 vues.jpg
    583.2 KB · Views: 2,439
  • Fana ACF plans profils.jpg
    Fana ACF plans profils.jpg
    555.2 KB · Views: 2,205

alanqua

I dunno if she's the wife of my life
Joined
Aug 31, 2007
Messages
102
Reaction score
208
plan was not correctly uploaded apparently


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,877
Reaction score
4,823
Its a bit large - here's smaller


Attachments

  • 20477_Plan_ACF_final2.jpg
    277.6 KB · Views: 1,904

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,980
Reaction score
1,353
little Info about ACF or Mirage G8 or Super Mirage

Dassault wanted successor for Mirage III
and study parallel different Aircrafts including Mirage G8 VG Variable-sweep wing.

at the End was ACF a supersonic fighter equal F-15 !
but the Program end in December 1975 do to Budgetcuts
there a Prototype almost finish
Dassault went to Mirage 2000 + 4000 Project.

data
length 19,10 m (single-seat) 19,30 m (two-seat)
Wingspan: 11,20 m
Wing area: 41 m2
Height: 5,80 m
Empty weight: 14178 kg (single-seat) 14143 kg (two-seat) ?
Max takeoff weight: 29000 kg
Maximum speed: Mach 2,5 (single-seat) Mach 2,2 (two-seat)
Powerplant: 2 x Snecma M53-2 (Turbofan)
Dry thrust: 5500 kp
Thrust with afterburner: 8500 kp


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,543
Reaction score
331
Michel,

Nice Mirage book here:

http://www.secretprojects.co.uk/forum/index.php/topic,2205.0.html

regards

Antonio


Flying Sorcerer

ACCESS: Confidential
Joined
Jun 19, 2008
Messages
101
Reaction score
30
Anyone have any information/graphics on the Super Mirage? This was supposedly an F-15 class fighter Dassault began designing in the mid-70s. As I recall, it eventually morphed into the Super Mirage 4000, which was actually quite different.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,257
Sorry, typical copy-and-paste error, corrected ! :-[


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
175
Website
www.hitechweb.genezis.eu
Try to start with the unbuilt Mirages topic: http://www.secretprojects.co.uk/forum/index.php/topic,839.0/highlight,mega+mirage.html


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
I think the "Super-Mirage" of the early 1970s was the ACF (Avion de Combat Futur - Future Combat Aircraft). IIRC, there was a whole article about it in the magazine "Science et Vie, Hors Série Aviation 1973". I may check if your search is not successful here. Let me know.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,210
Reaction score
174
I believe that ACF was never formally named Mirage.

After quitting AFVG, and working with the FAF on developing the G VG demonstrator into the twin-engine G4, which finally flew as the G8, Dassault decided that the right design was a 55-degree swept wing - which (off the top of my head) was pretty much a unique solution at the time, although the Russians went that way in the 1950s (MiG-19, Su-7 and scads of prototypes) and the Frightening used a modified version.

I suspect that the French wanted something that had a chance of intercepting a Foxbat.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
Scanned as I could, from a big book:
Tophe said:
This comes from "L'industrie aéronautique et spatiale française 1907-1982" (GIFAS publishing, 1984). Volume 3 page 103. 233
The caption reads :
Project of single-seat ACF, called Super Mirage


Attachments

  • r_SuperMirage.JPG
    45.3 KB · Views: 1,759

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr

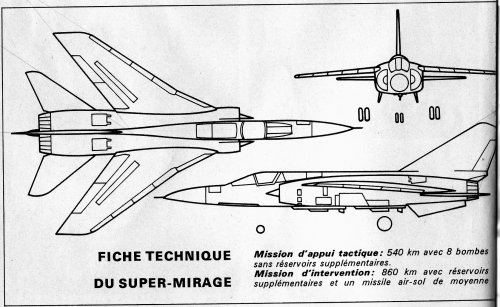

From Science & Vie - Hors Série - Aviation 75 (1975), page 42-43. 2-pages "Du Mirage à l'ACF" (from Mirage to ACF)


Attachments

  • acf-.JPG
    685.3 KB · Views: 1,633

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109

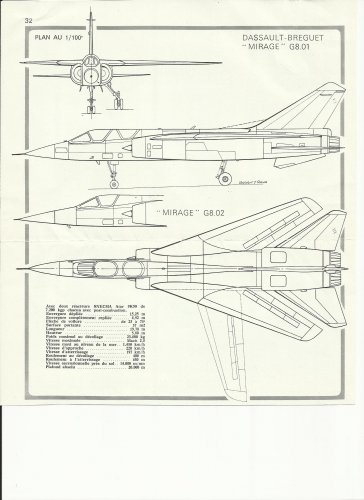

mirage g 8 from "le fana de l'aviation"


Attachments

  • Sans titre.jpg
    Sans titre.jpg
    402 KB · Views: 868

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
The "Super Mirage" as was the mock up model during inspection on
on January 23 24 1974 at the Dassault factory
(AVIATION MAGAZINE)


Attachments

  • Sans titre2.jpg
    Sans titre2.jpg
    538.3 KB · Views: 306

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109

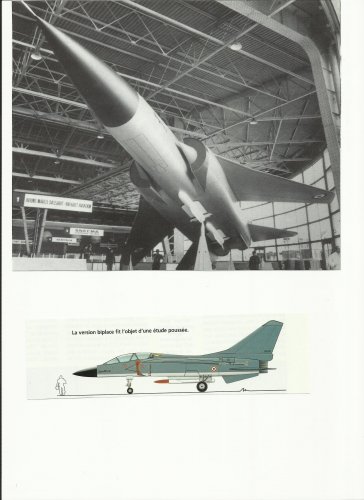

2 drawings and the mock up in Dassault factory


Attachments

  • Sans titre.jpg
    Sans titre.jpg
    856 KB · Views: 334

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
As at Le Bourget show
and
a project


Attachments

  • Sans titre2.jpg
    Sans titre2.jpg
    626.7 KB · Views: 386

datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
125
Reaction score
24
Was the ACF supposed to carried two semi-recessed Super 530s as its standard air-to-air loadout?


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
In the (French) caption of my March 02 posts is part of the answer, concerning the number of AA missiles: 3 missions were scheduled:
- ground support
- nuclear attack (with 1 air to ground missile)
- interceptor (with TWO ait to air missiles)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Maybe it's just me, but I have a feeling there is a confusion in this page between the Mirage G8, the Mirage 4000 and the ACF...


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
After the Mirage G experiment, the military official program was the ACF, and for it: the Mirage G8A (different from the G-8). Then the wing was chosen fixed, and the G8A name disappeared, for just ACF it seems. The name 'Super-Mirage' seems to have applied both to G8A and to "(fixed wing) ACF".
Later the ACF was cancelled and the little Mirage 2000: ordered. Later the bigger Mirage 4000 was designed, and maybe nick-named 'Super Mirage' too, with no relation at all to G8A and "(fixed wing) ACF".
EDIT: according to the Sharkit kit (http://www.sharkit.com/sharkit/G8a/G8a.htm) the G8A had a fixed wing already, so G8A and "fixed wing ACF" would be the same, but different from the G-8.


datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
125
Reaction score
24
Tophe said:
In the (French) caption of my March 02 posts is part of the answer, concerning the number of AA missiles: 3 missions were scheduled:
- ground support
- nuclear attack (with 1 air to ground missile)
- interceptor (with TWO ait to air missiles)


Thanks, it seems the ACF was unnecessarily large to carry just two Super 530s when intercepting something over France.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
That's the problem with multimission aircraft: they are too small for some missions and too big for other missions.
Why 2 missiles and not 6? (1 aircraft replacing 3?) I think for 2 reasons :
- control electronics were not efficient enough (the F-14 Tomcat's system reached a new step, impossible before)
- speed requirements were Mach 2.5+ and many missiles would have lessen that


datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
125
Reaction score
24
Tophe said:
That's the problem with multimission aircraft: they are too small for some missions and too big for other missions.
Why 2 missiles and not 6? (1 aircraft replacing 3?) I think for 2 reasons :
- control electronics were not efficient enough (the F-14 Tomcat's system reached a new step, impossible before)
- speed requirements were Mach 2.5+ and many missiles would have lessen that


Was there supposed to be just one ACF variant that can do both air defence and nuclear strike missions?


As you know in the French air force before 1990, the Mirage 2000 had two versions specialized for air defence (2000C with two Super 530s) and nuclear strike (2000N with one ASMP).


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
Yes, that was the goal, maybe optimistic. It was the perfect aircraft of that time, maybe like the European MRCA (multi role combat aircraft), before giving up and designing a special fighter version (Tornado ADV).


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr

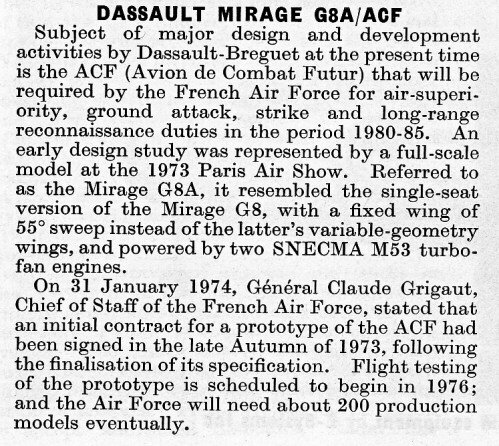

The Jane's all the World Aircraft book 1974-75 confirms at last: the G8A=ACF had a fixed wing:


Attachments

  • r_acf74.JPG
    124.9 KB · Views: 1,806

datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
125
Reaction score
24
Which is correct: the initial contract, #73/90422, granted to AMD/BA on December 5, 1973 was for a generic "ACF"; an amendment (n°1) to the said contract, dated July 9, 1974 specified that the aircraft designation was "Mirage G8A 01"; this was changed by a further amendment (n°4) on August 1, 1975, to Super Mirage.
ACF / Mirage G8A /Super Mirage was to have two rather different variants: a single-seat interceptor; and a two-seat nuclear strike aircraft to succeed to the Mirage IVA, carrying ASMP. The interceptor had two different missions profiles: high-altitude high speed interception, with only two Super-530 (TOW 21220 kg, climb to M2,2 and 60kft in 5,8 minutes, M2,2 flight for 4 minutes and interception at 400km from base); air patrol, with 2 Super-530, 2 R-550, 23060kg TOW, climb to 50kft, 1,2 hour patrol, acceleration to M2,2, 3 minutes combat. The nuclear strike version (prototype n°2 put on order by amendment #4) had a longer fuselage ( by 0,275m), simplified VG intakes (the interceptor variant had the "expending mouse" intakes that were very successfully tested on G8-02), no specific materials in the areas most subject to kinetic heating (which the interceptor variant had). With one ASMP, two tanks, two R-550 and full internal fuel, TOW was 28040kg, Lo-Lo radius 845km at 100m altitude and 1000km/h (Hi-Lo radius 1200km). Nav/attack systems were very different: optronic seeker and air-to-air radar for the interceptor, TFR for the nuclear strike variant.



This confirms what I suspected - one single type doing both interception and low-level penetration using 1970's technology was not possible.


The Mirage 2000C interceptors have RDI radar, while the Mirage 2000N nuclear strike bombers have Antelope V terrain-following radar.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Pictures show models of two configurations for a replacement of the Jaguar, displayed at Hanover 1980.
Source: Le Moniteur no.33.
The project is called ACF is the magazine, but this was just an acronym for "Avion de Combat Futur" (Future Combat Aircraft) and I think it was used generically in the press to communicate on advanced Dassault projects.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Hi,

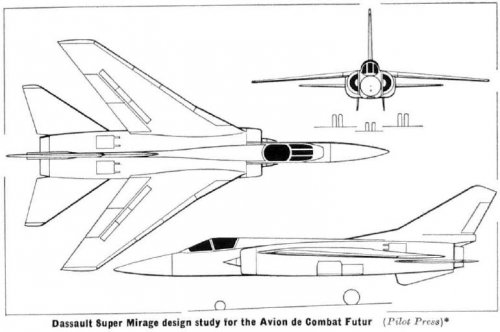

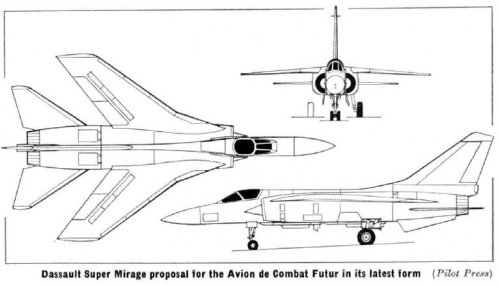

from Jane's All the World's Aircraft,here is the original drawing to the Dassault
Super Mirage and the final drawing,not the small different between them.


Attachments

  • Super Mirage original.JPG
    Super Mirage original.JPG
    43 KB · Views: 1,411
  • Super Mirage final.JPG
    Super Mirage final.JPG
    40.6 KB · Views: 1,392

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
From Air Pictorial 6/1973,


here is the Dassault ACF.


Attachments

  • ACF.png
    315.4 KB · Views: 275

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996
alanqua said:
Hello,
After the Mirage 4000, here are other drawings we published but on the ACF. ACF was Avion de Combat Futur, Future Combat Aircraft. The drawings were made from a blueprints issued from the manufacturer + lots of pictures.
They were published in Le Fana de l'Aviation. Enjoy.
Bonus: 2 cuttaway views made from blueprints but they were refused for publication.
Regards
Alain
Nice new drawing of the ACF Super Mirage by Alain in latest March 2018 issue of the French magazine Le Fana de l'Aviation. :)
